Description:

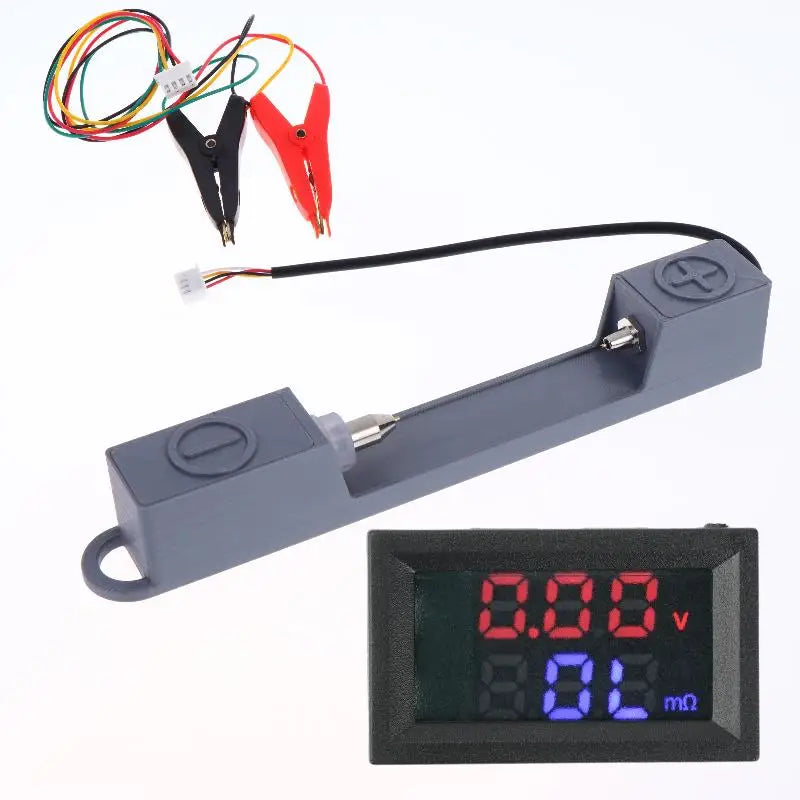

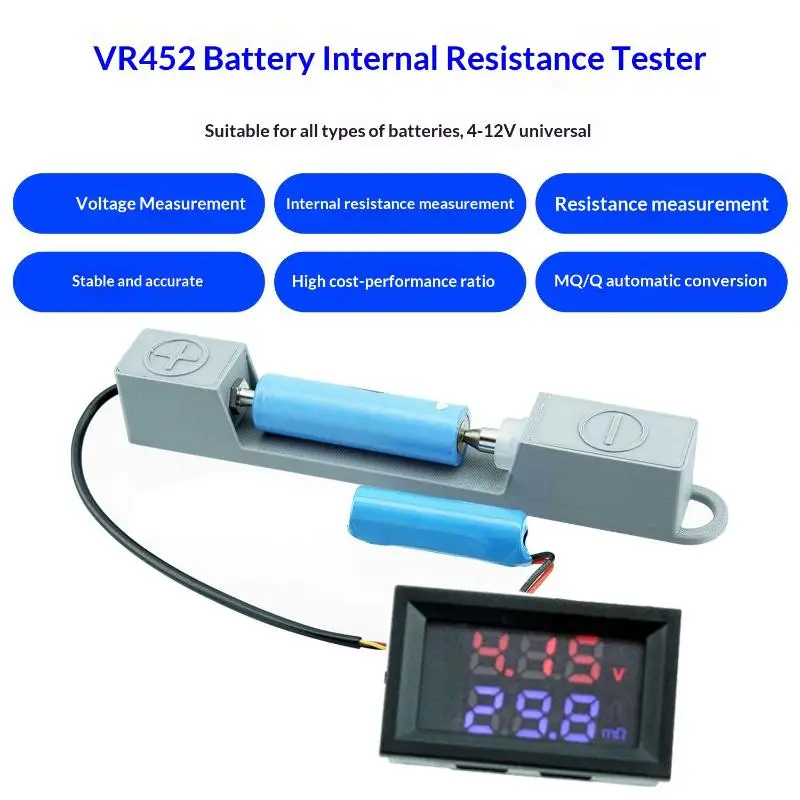

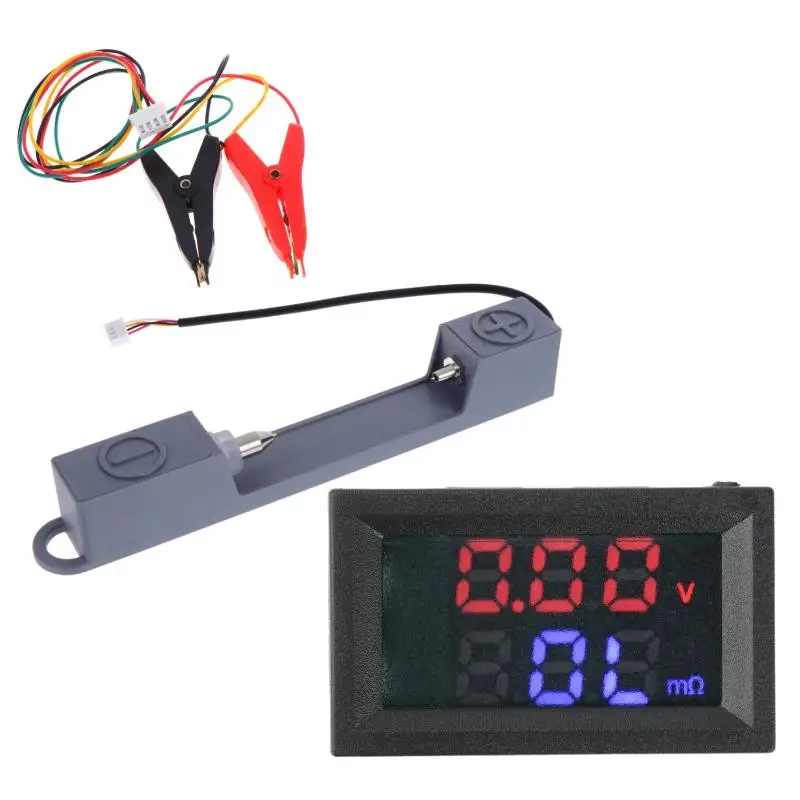

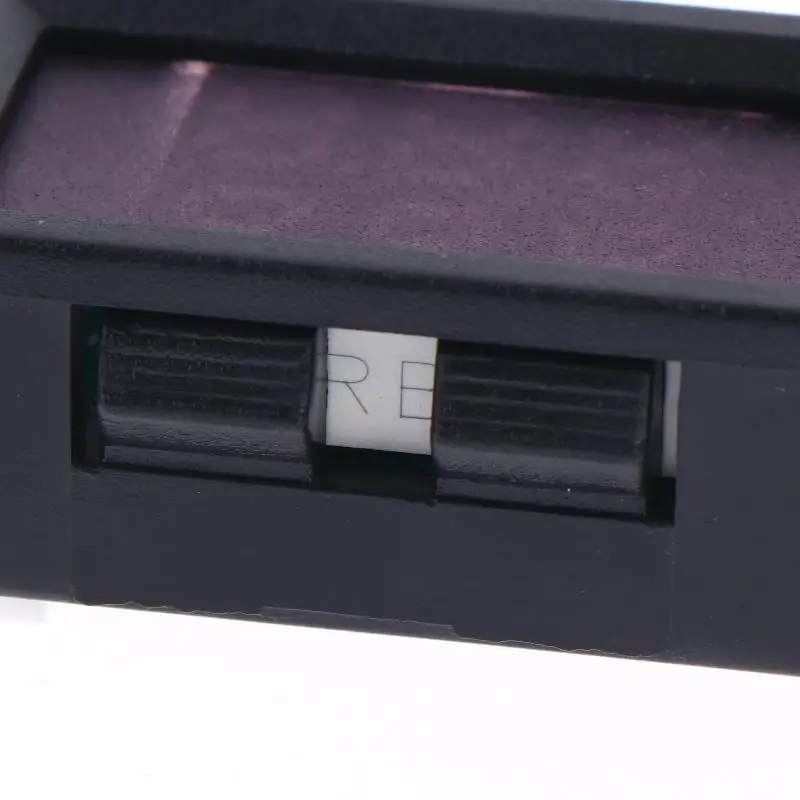

DC 4-12V VR452 Internal Resistance Tester 0.56 inch Dual Digital Display Battery Voltmeter Resistor Tester Red Blue Display

Features:

1. Accurate measurement: 4-wire + 1kHz signal, accurate measurement of voltage, internal resistance

2.Stable power supply: DC4~12V wide voltage, adapting to multiple scenarios.

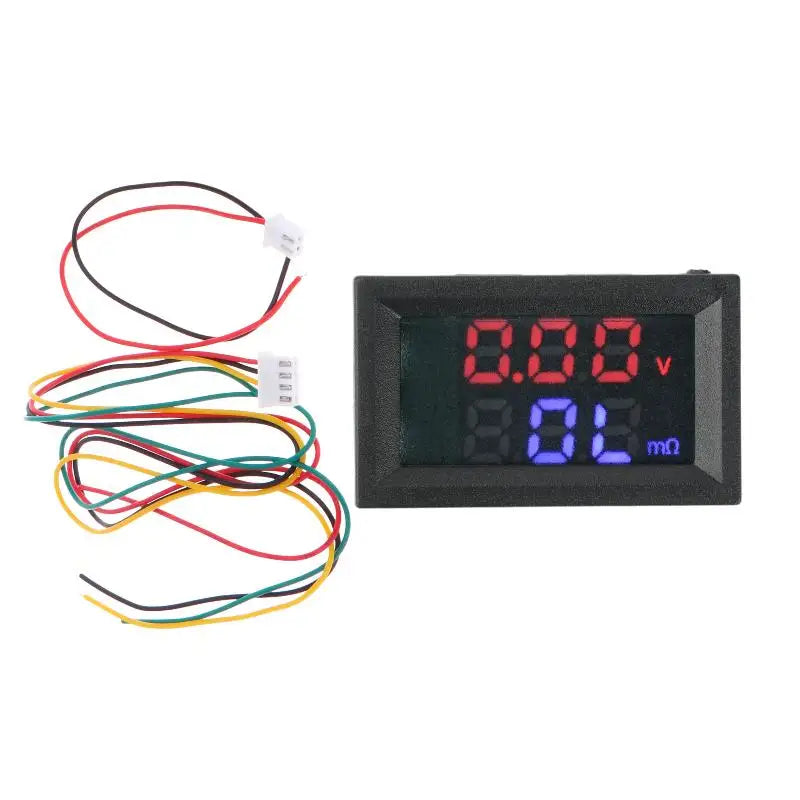

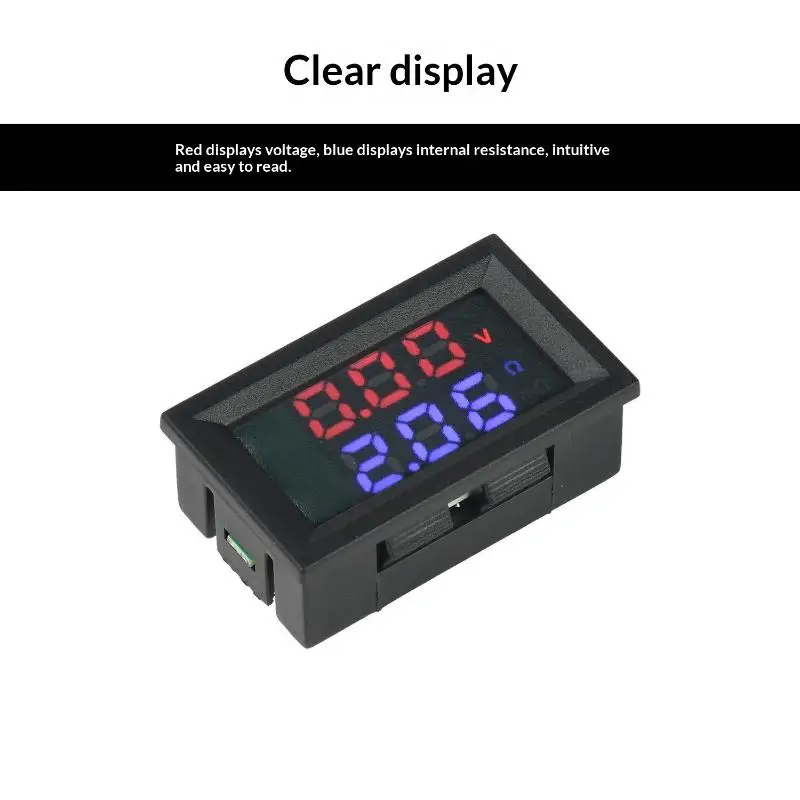

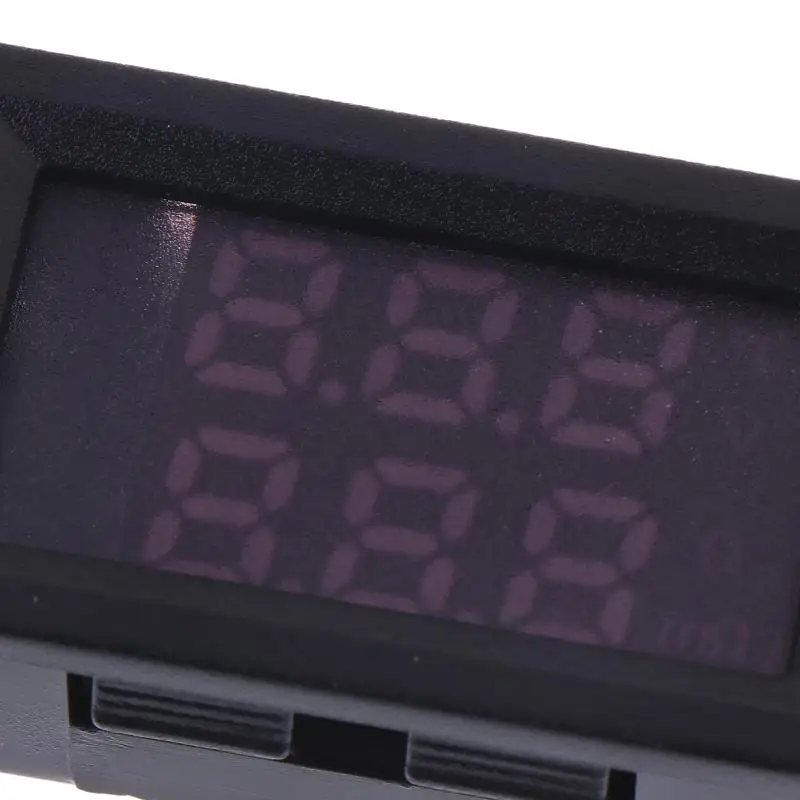

3. Clear display: red voltage, blue internal resistance, intuitive and easy to read.

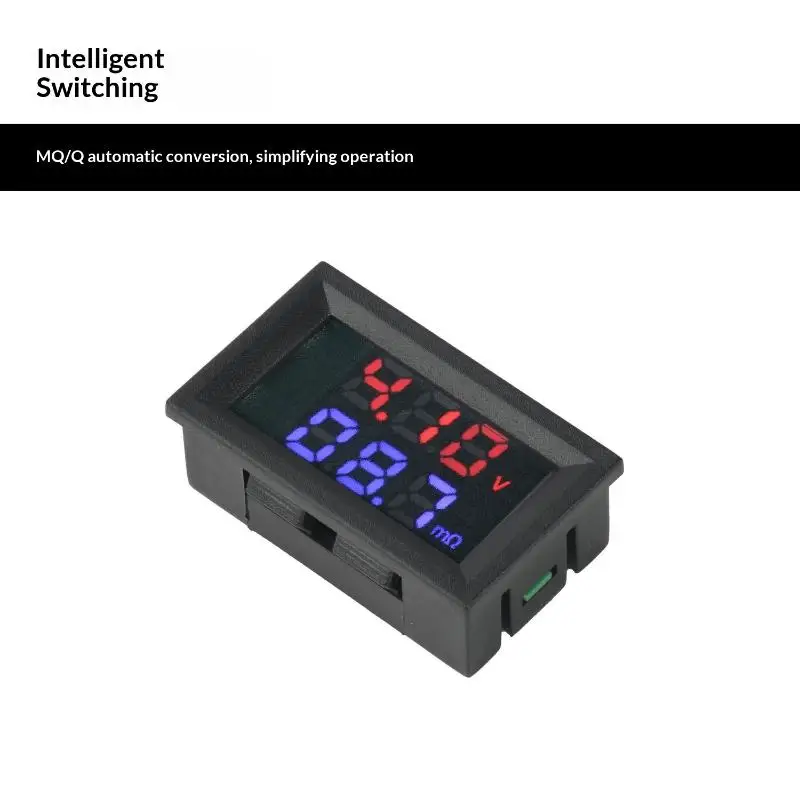

4. Intelligent switching: mΩ/Ω automatic conversion, simplify operation.

5. Compact size, easy to install, high efficiency and stable performance.

Specifications:

Material: Plastic+Metal

Operating voltage: DC4~12V

Standby current: 8mA

Operating current: 10mA

Measurement method: 4-wire system, 1kHz AC signal

Voltage measurement range: DC0.00~45.0V

Internal resistance test range: 00.0mΩ~999mΩ, 1.00~2.00Ω

mΩ and Ω unit automatic switching display

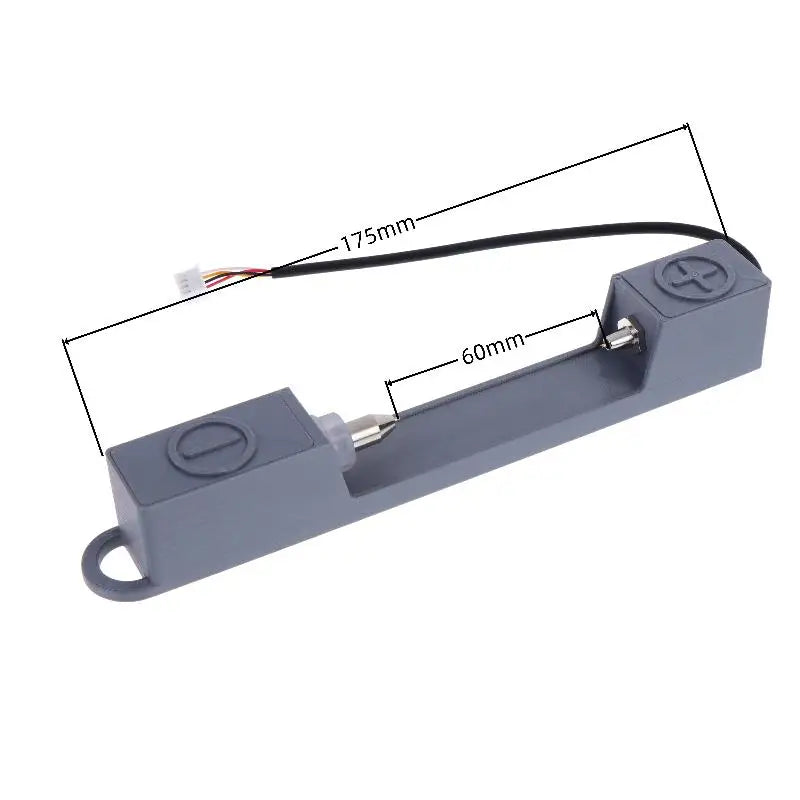

Product size: 48*29*22mm

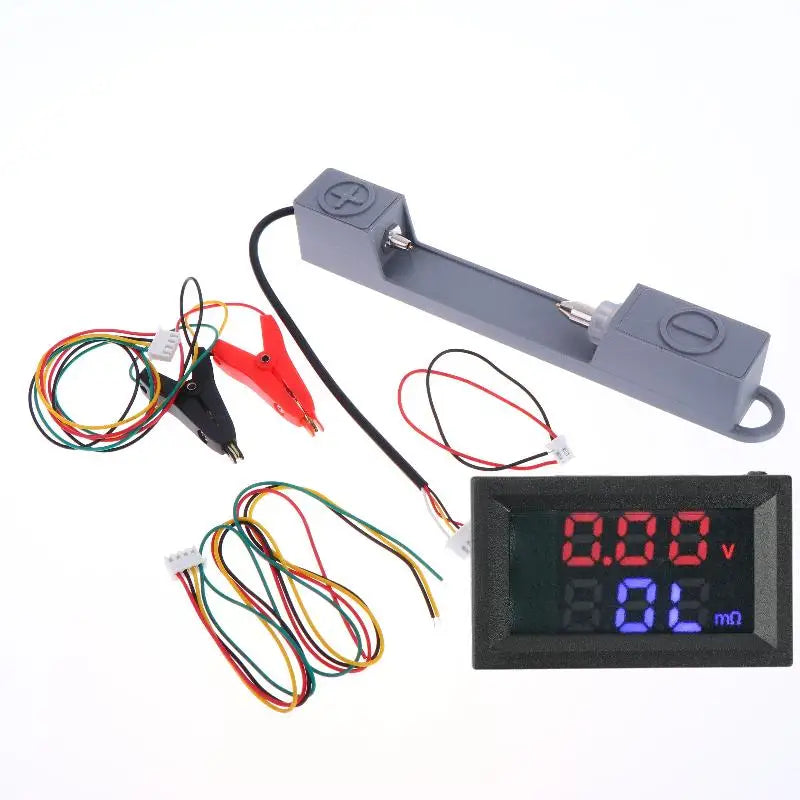

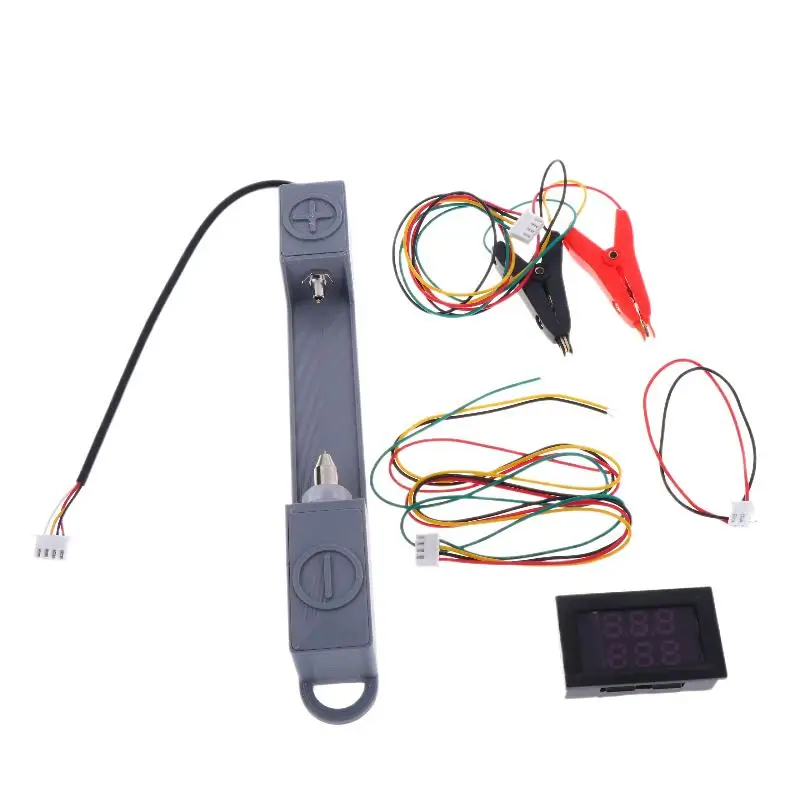

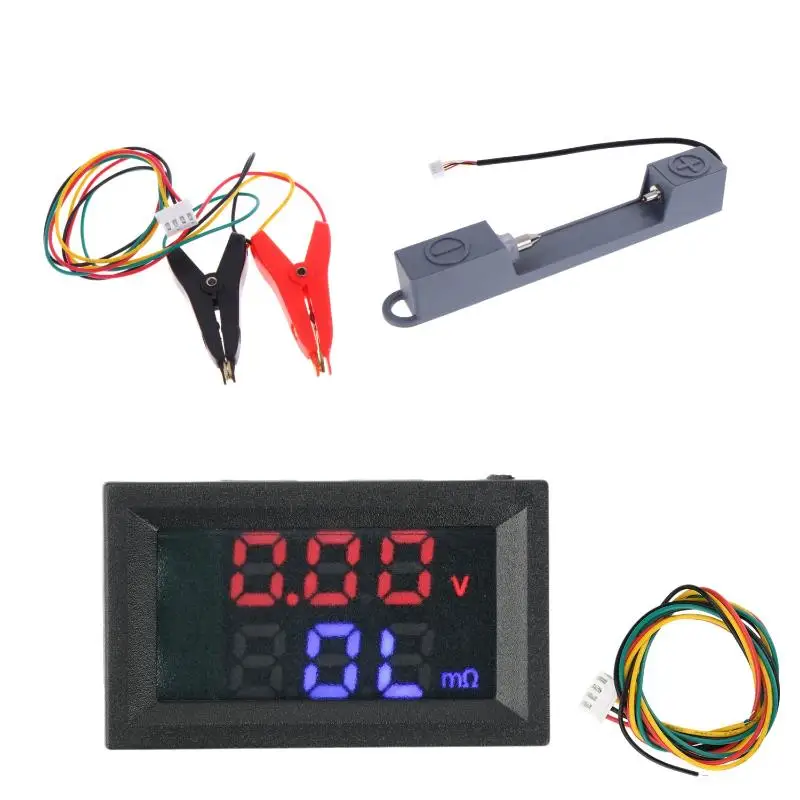

Packing: 1 set (excluding batteries)

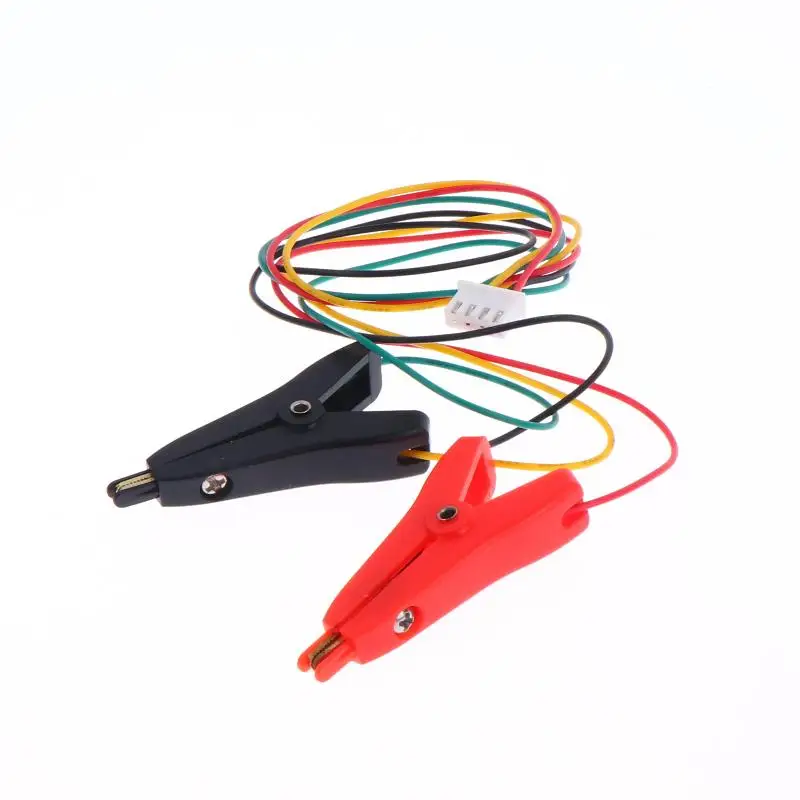

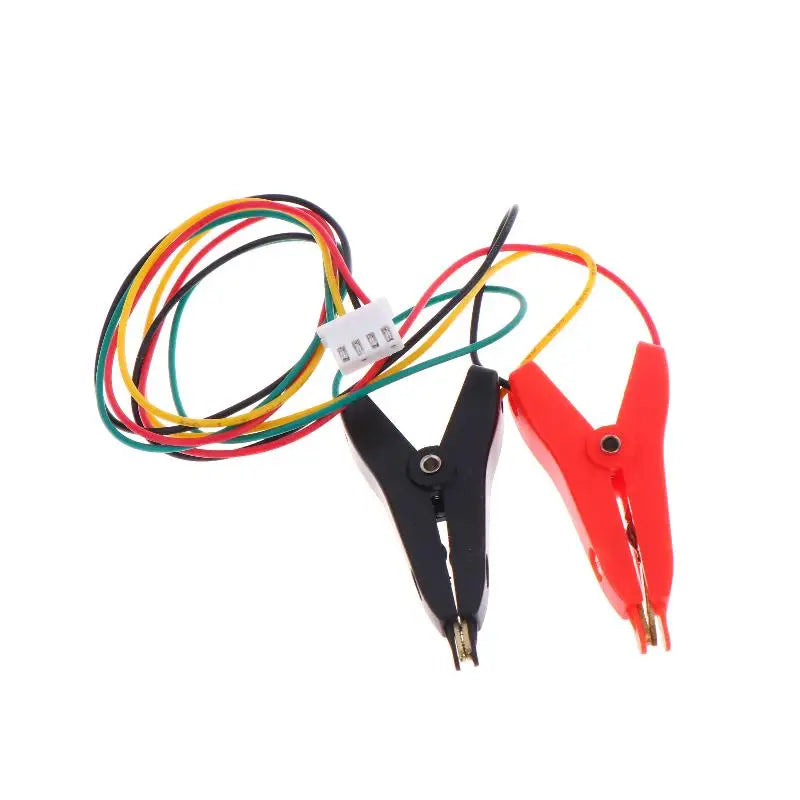

4P line definition:

Red: I+

Black: V+

Green: I-

Yellow: V-

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
