Highlight description:

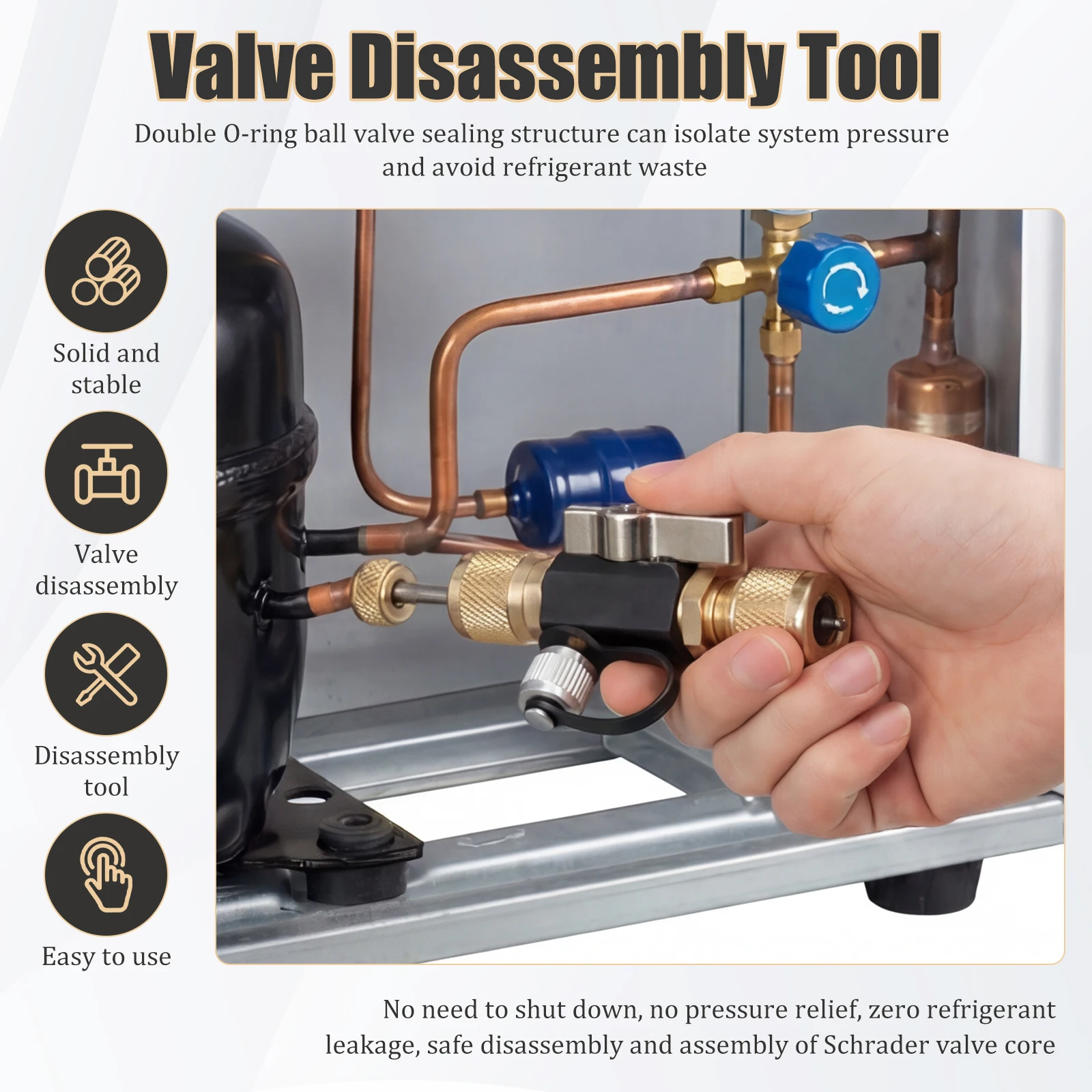

【Pressure Assisted Valve Core Disassembly】Adopting double O ring ball valve sealing structure , it can isolate system internal pressure . Users do not need to shut down equipment or release pressure , and achieve zero refrigerant leakage . It supports safe disassembly and installation of schrader valve cores to save working time and avoid refrigerant waste

【Full Bore Large Flow Design】Removing the valve core forms a straight through full flow channel . It greatly speeds up vacuum pumping refrigerant recovery and refrigerant filling speed to finish working tasks efficiently for professional technicians and personal DIY

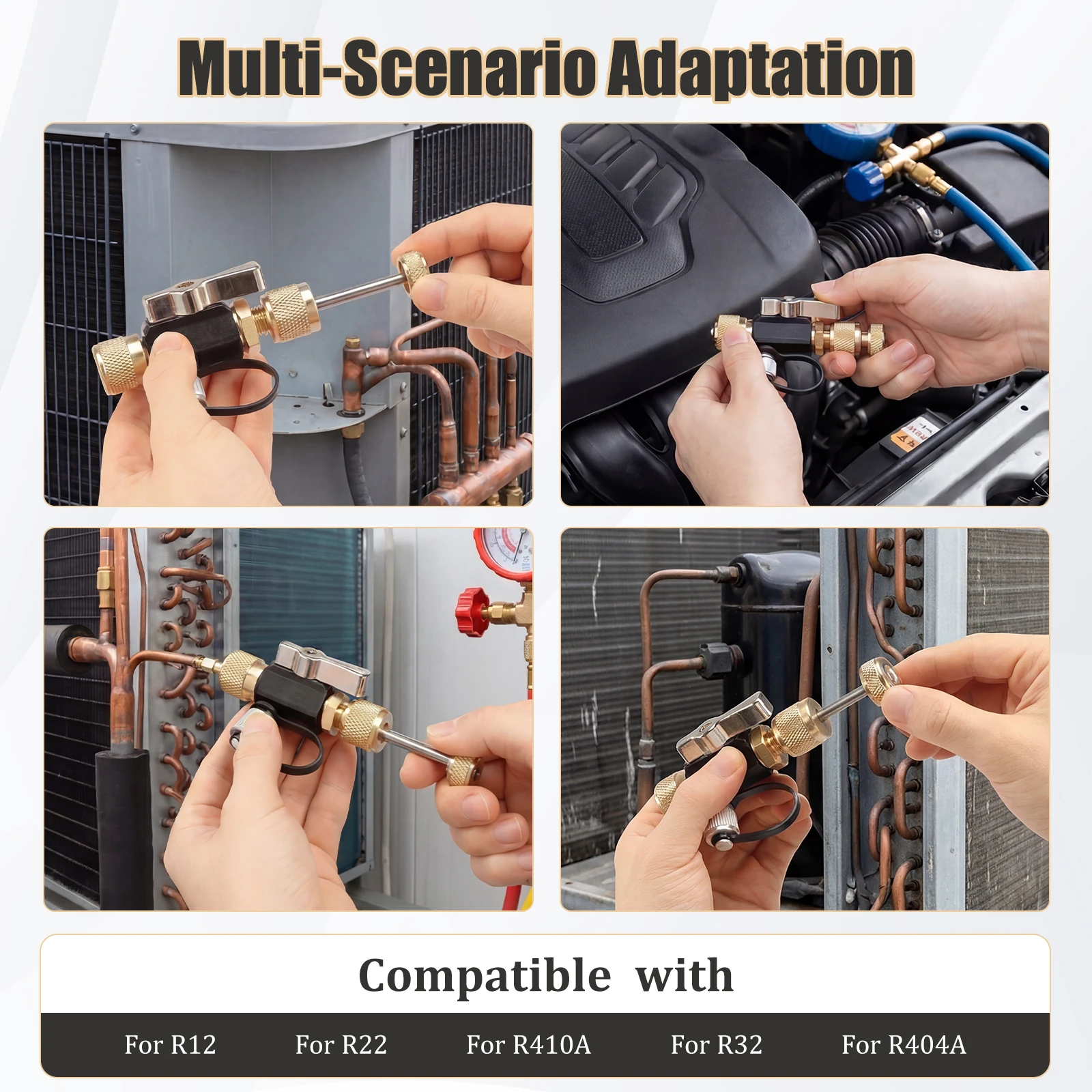

【1/4 Inch Universal Interface】It is equipped with standard 1/4 inch side port to match most HVAC service ports . It is compatible with mainstream refrigerants such as R12 R22 R410A R32 and R404A , suitable for household and commercial air conditioners heat pumps refrigerators freezers and vehicle air conditioning systems

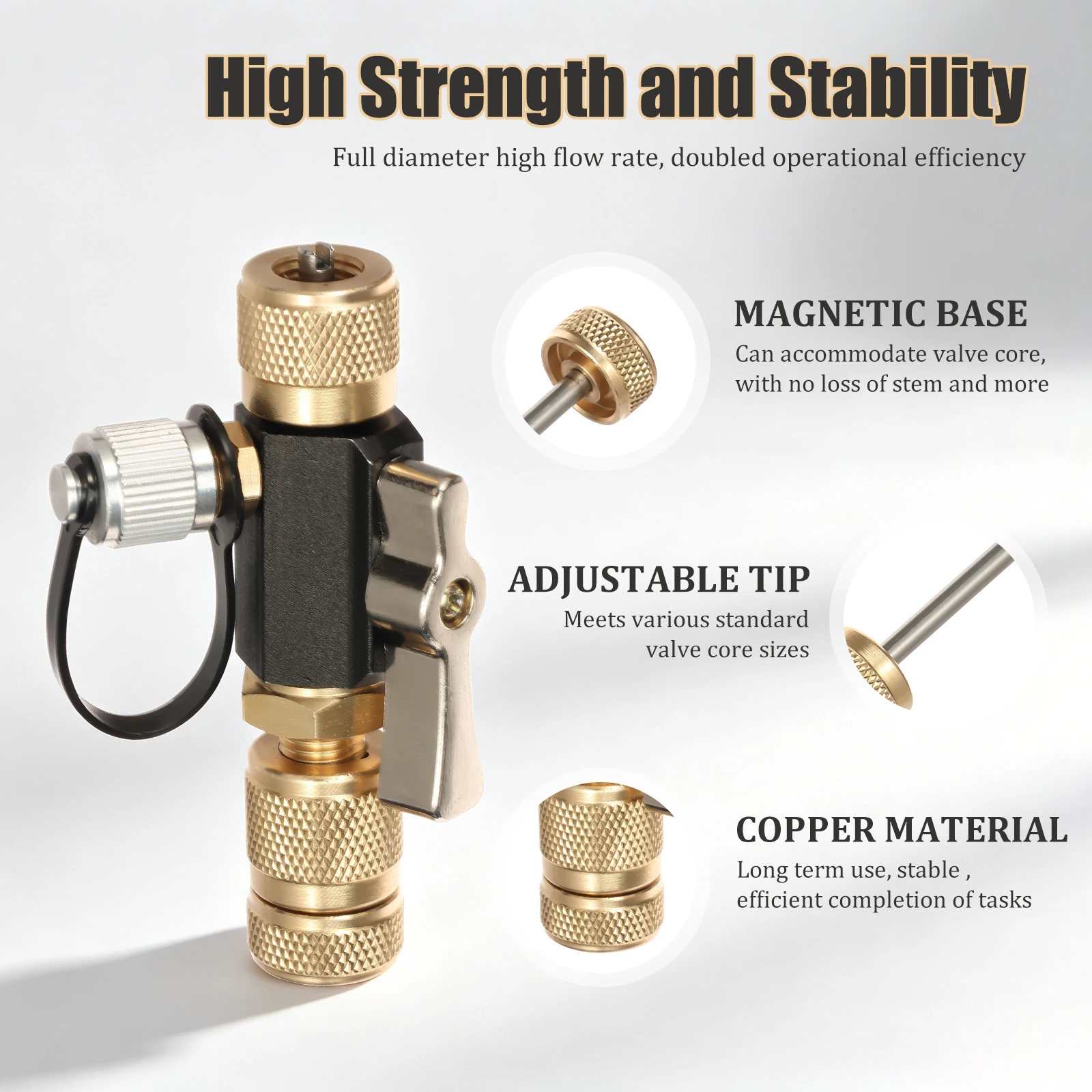

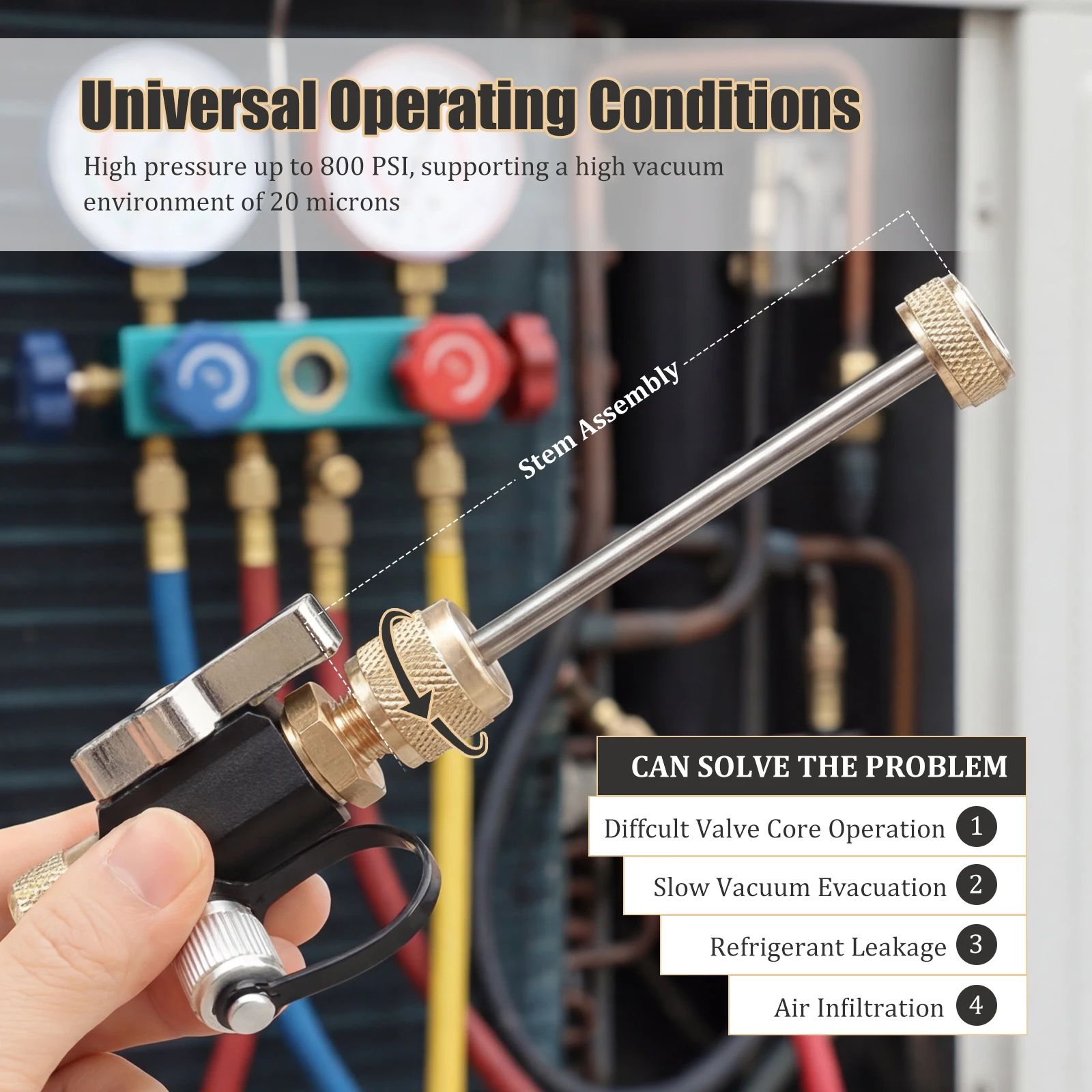

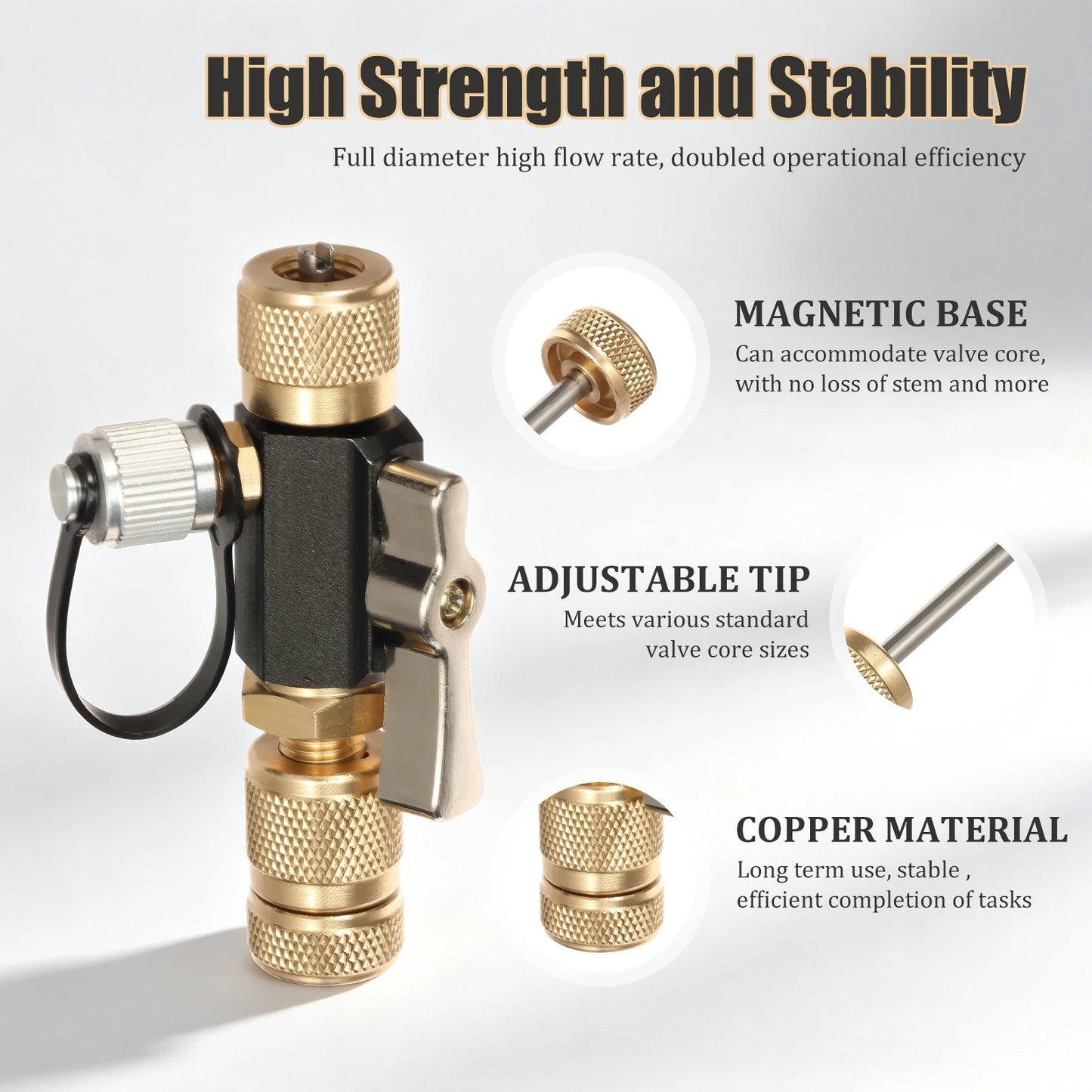

【High Strength Wear Resistant Structure】Made of premium metal material , it can bear working pressure up to 800 PSI and adapt to 20 micron high vacuum environment . It features good performance and stable shape to keep steady performance during long term service

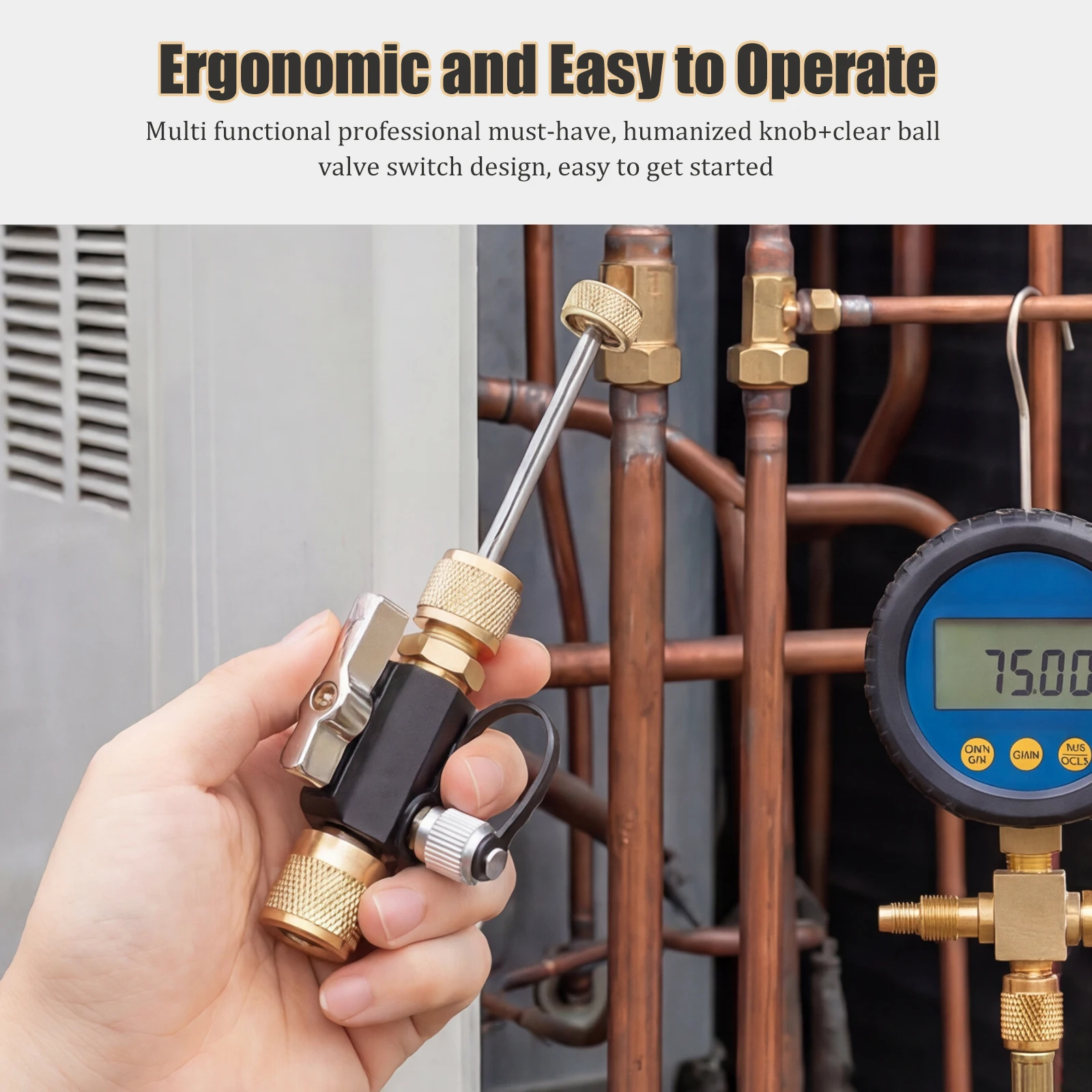

【Ergonomic Easy Usage】Designed with user friendly knob and clear ball valve switch structure , it is easy to operate even for beginners . It can be applied to valve core replacement system maintenance vacuum test refrigerant filling and leakage detection , being an essential tool for HVAC maintenance workers and DIY enthusiasts

Detailed description:

Description

This refrigeration tool has a pressure isolation structure for valve core replacement without refrigerant loss . Full flow passage improves pipeline processing efficiency . Standard universal interface fits most AC equipment . High grade metal resists pressure and vacuum . Simple design meets daily maintenance needs .

Key Feature

Double O ring pressure seal , pressure free valve core change , zero refrigerant loss , straight through fast flow , works with 1 4 inch ports , fits multiple refrigerants , high pressure vacuum resistant metal , easy knob control , great for AC maintenance .

Specification

Materials:

Yellow section: Copper

Pull rod: Stainless steel

Middle section: Aluminum alloy

Seal: Fluorocarbon rubber

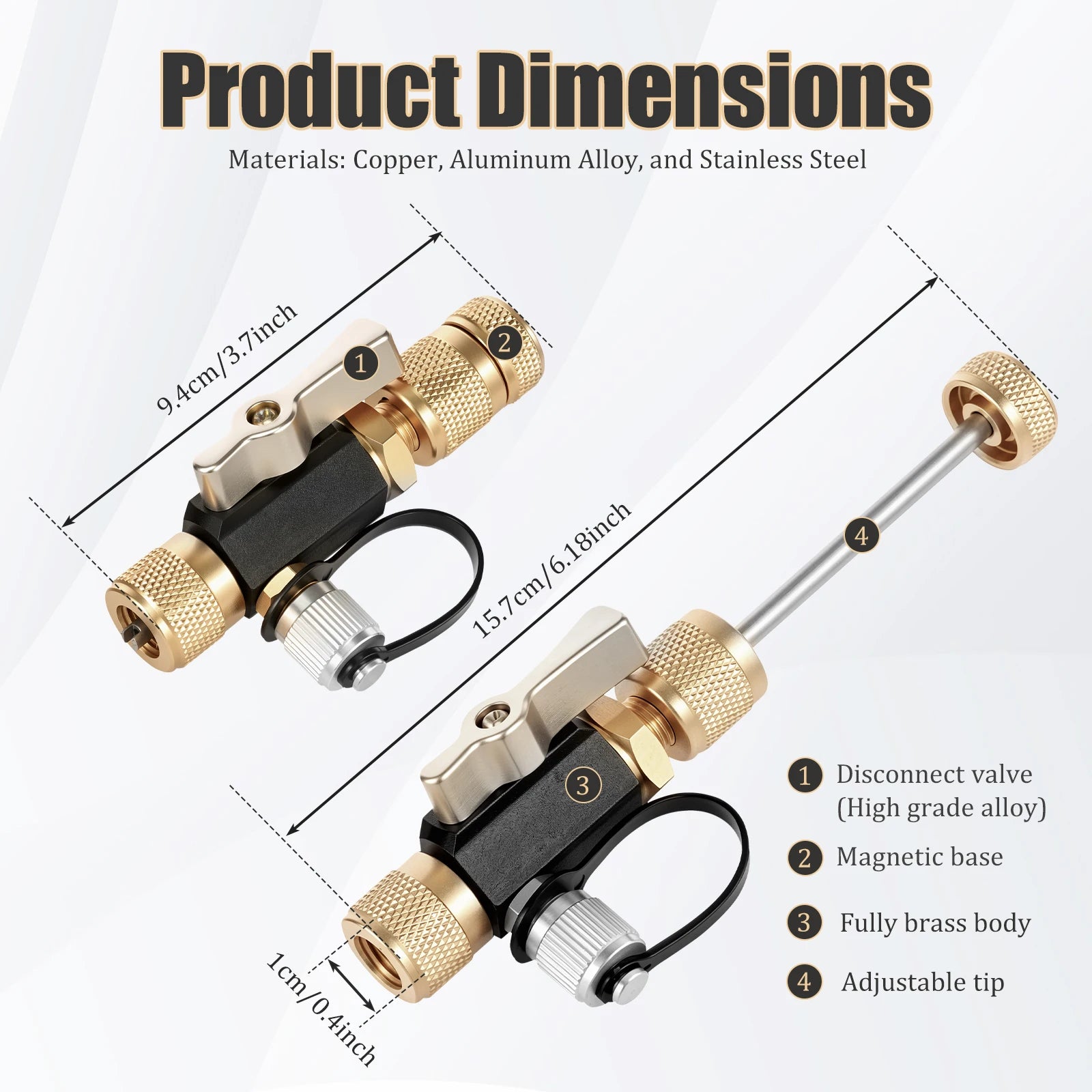

Dimensions: Extended length: 15.7 cm / 6.18 inches; Retracted length: 9.4 cm / 3.7 inches

Notes:

1.There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color.

2.Please allow slight dimension difference due to manual measurement.

Parts List:

1 x Valve Core Removal Tool
