Product Overview

Core Parameter Specifications

1. Storage & Structure

• Temperature Zone: Single zone (N, SN climate type)

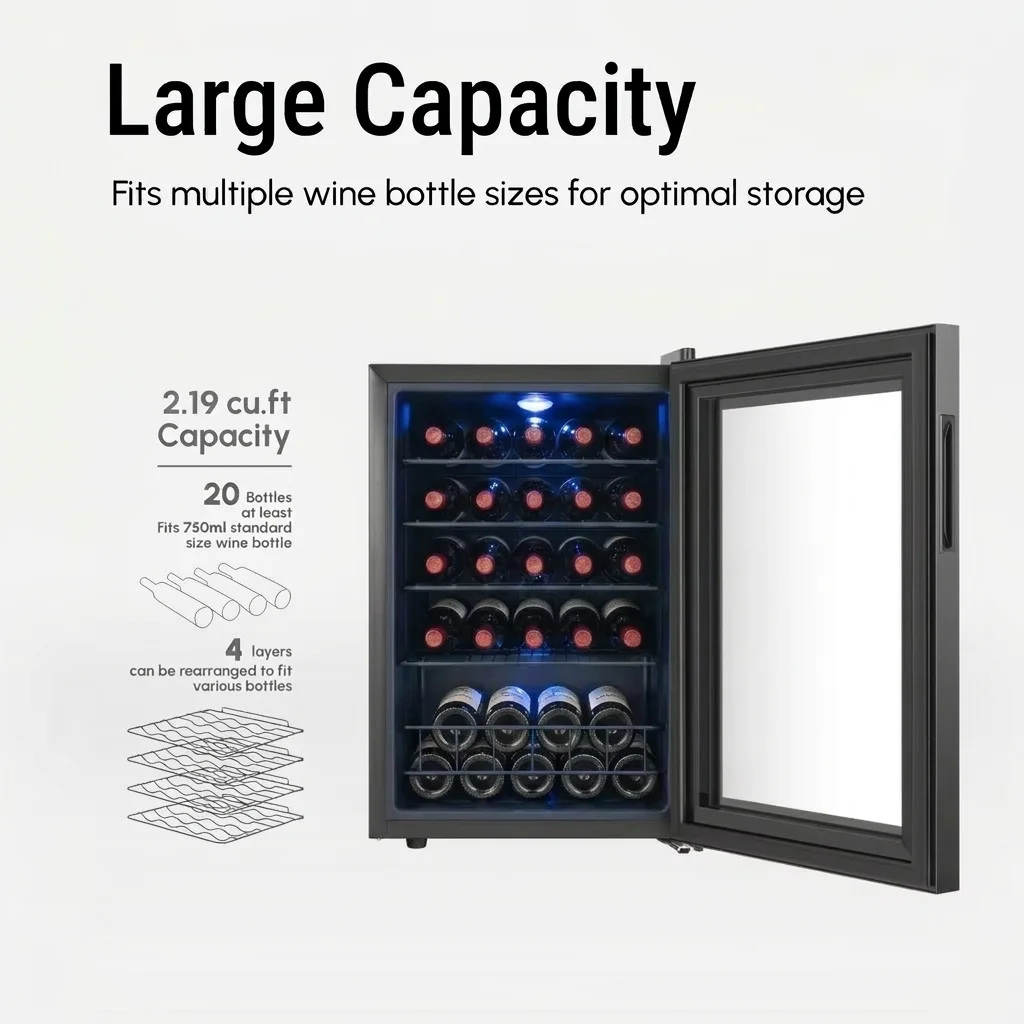

• Bottle Capacity: 20 bottles (16 standard bottles + 4 bottom non-standard bottles)

• Effective Volume: 62 Liters

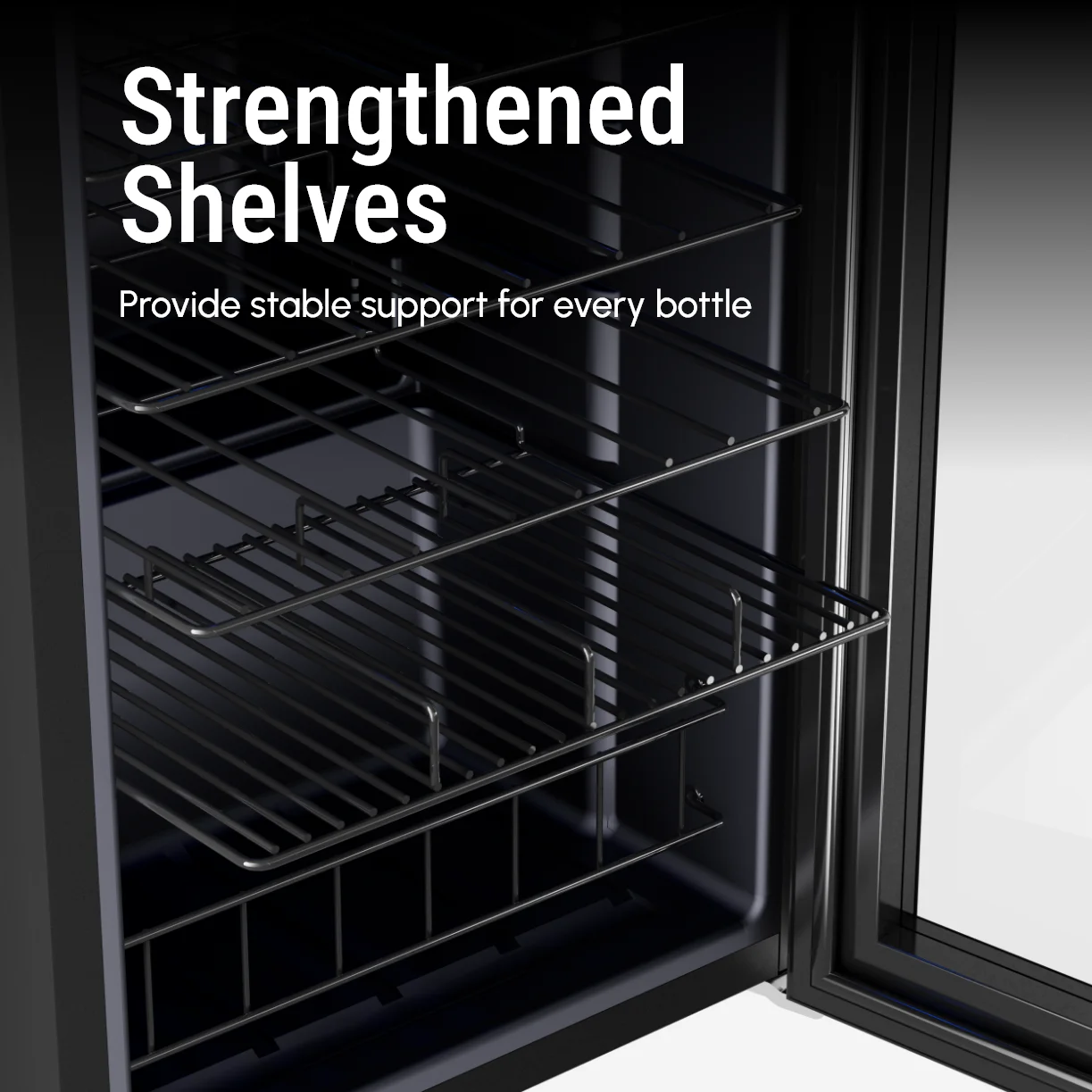

• Shelves: 3 large + 1 small black acid-washed flat shelves, sturdy for bottle placement

• No bottom display rack

• Cabinet Structure: Roller box

• Cabinet Material: 0.4mm A3 pre-coated black matte grain steel

• Inner Liner: Black HIPS material

• Foam Layer: Cyclopentane foaming agent, 36.5mm thick insulation layer for efficient temperature lock

• Back Panel Material: Galvanized steel

• Door Body: Right-opening glass door with plastic edge wrapping, top hinges, left recessed handle, black rubber door seal

• Door Dimension: 430×40×615mm

• No fan grille, no air outlet grille, no PTC heating wire, no electromagnetic valve

2. Cooling System

• Evaporator: Single expansion evaporator

• Condenser: Double-side layout

• Compressor: Huayi B43C5B low-noise compressor

• Max Noise Level: ≤42dB, ultra-quiet operation without disturbing daily rest

• Defrost Mode: Manual defrost (no automatic defrost function)

3. Intelligent Electronic Temperature Control

• Control Mode: Digital electronic thermostat

• Temperature Adjustable Range: 3–18°C (37–65°F), default factory setting 54°F

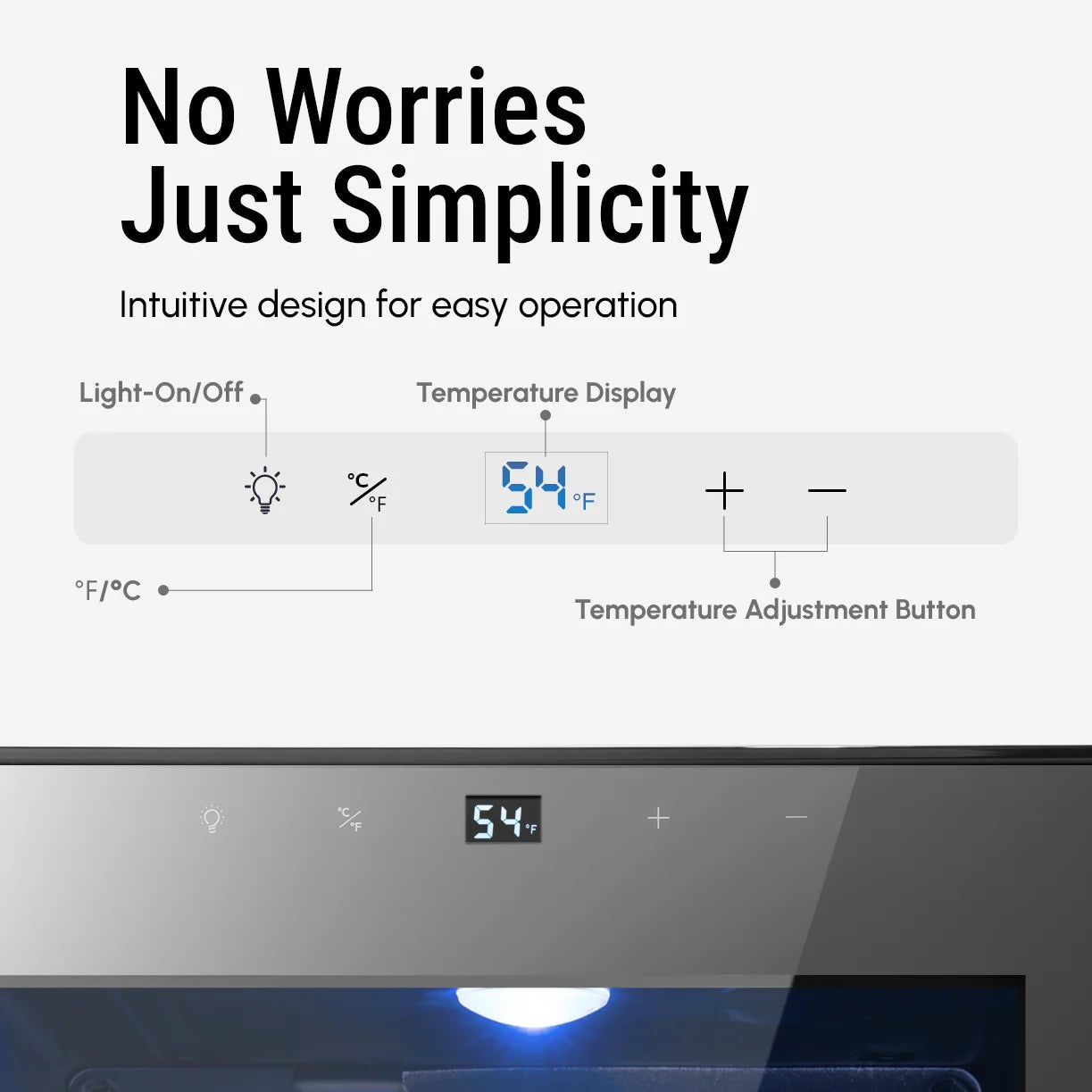

• Display Type: Clear digital electronic display mounted on door panel

• Support °C / °F one-click conversion

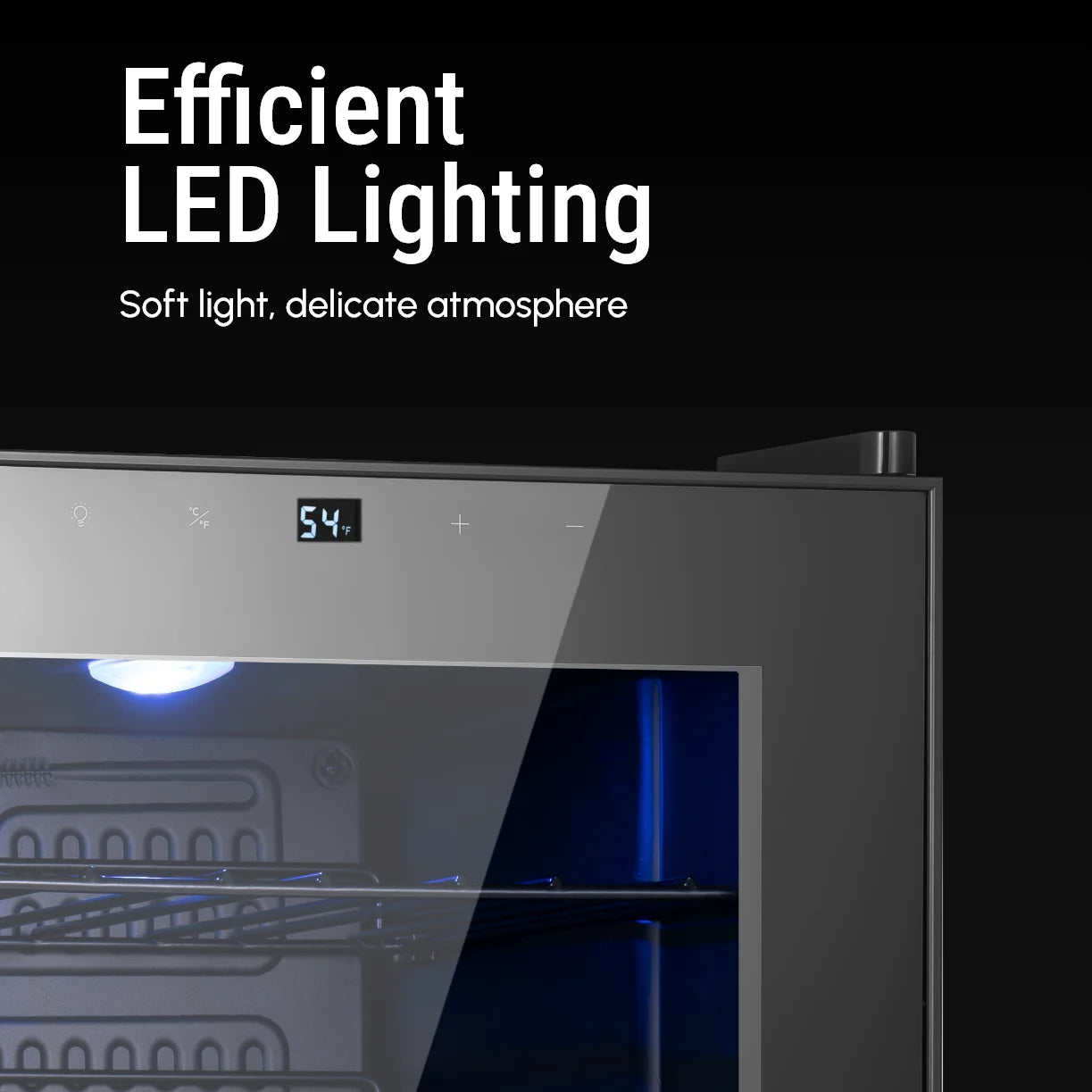

• Touch button light switch, built-in blue internal LED light for elegant wine viewing

• Single NTC dual-sensing temperature probe for precise temperature monitoring

• Power Supply Board Model: TW-KD-06-P

• No sleep mode, no over-temperature alarm, no door open reminder alarm, no WIFI smart control, no built-in deodorizer

4. Dimension & Weight

Product Size

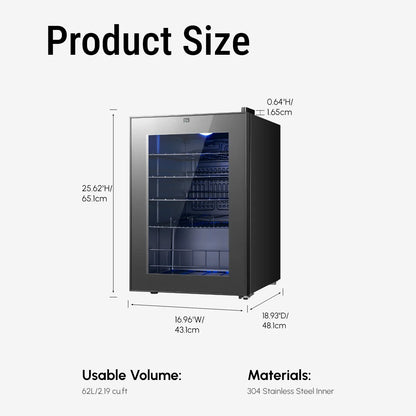

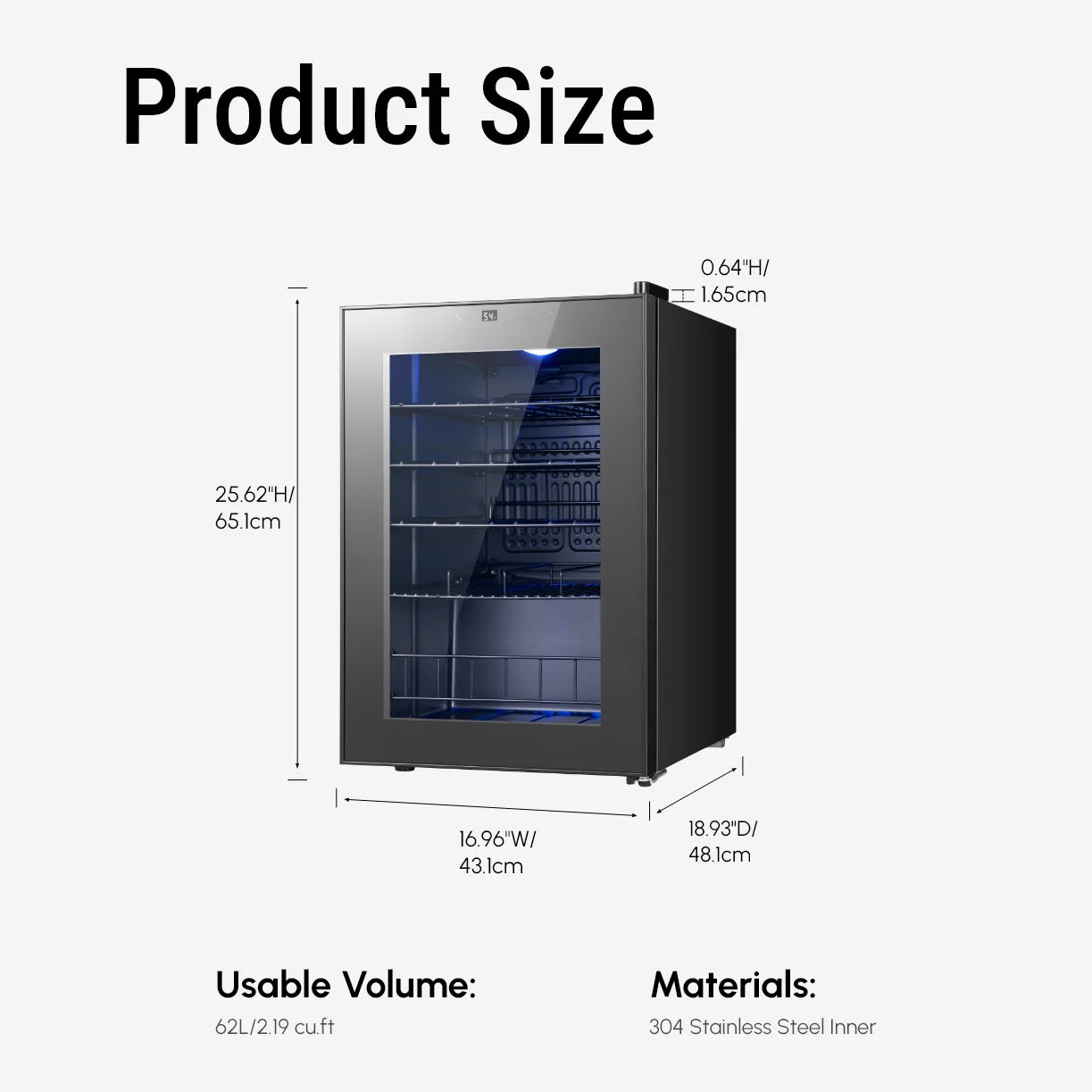

• Overall dimension (W×D×H): 430×480×645 mm

• Net Weight: 20.1 KG

Package Information

• Package Size: 550×500 (front) ×695 mm

• Gross Weight: 25.3 KG

• Custom exclusive packaging for customers

• Loading Quantity for 40HQ Container:

  • Without pallet: 360 units

  • With pallet: 216 units

5. Electrical & Energy Info

• Rated Voltage: 115V, Frequency: 60Hz

• Annual Power Consumption: 170 kWh/year

• Certification: ETL certified for North American market

Key Selling Points

1. Precise Single-Zone Temperature Storage

   Adjustable 3–18°C temperature range fits all wine varieties, stable constant temperature environment slows wine aging and preserves original wine flavor. Celsius & Fahrenheit dual unit conversion meets US local usage habits.

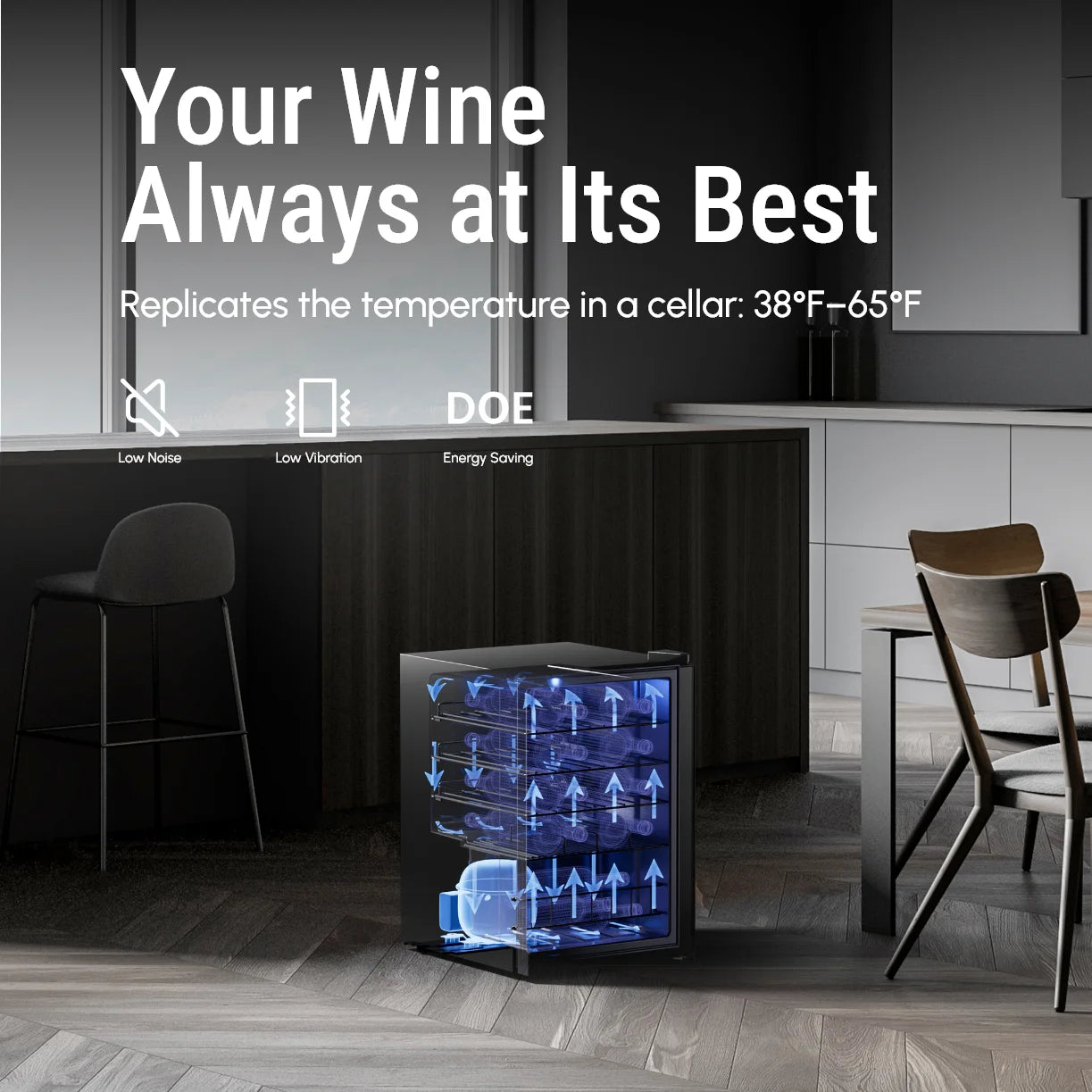

2. Ultra-Quiet Low-Vibration Compressor Cooling

   Adopts Huayi professional wine cooler compressor, maximum noise only 42dB. Low vibration design avoids disturbing wine sediment, ideal for placing in living room, bedroom and study.
3. Thickened Energy-Saving Insulation Layer

   36.5mm cyclopentane foam insulation effectively isolates external temperature interference, cuts annual power consumption down to 170kWh, energy-saving and cost-effective for long-term use.
4. Sturdy & Elegant Cabinet Design

   0.4mm black matte grain steel cabinet resists fingerprints and scratches. Black HIPS inner liner is corrosion-resistant and easy to clean. Black flat shelves hold wine bottles steadily without slipping. Blue internal LED light creates premium wine display atmosphere.

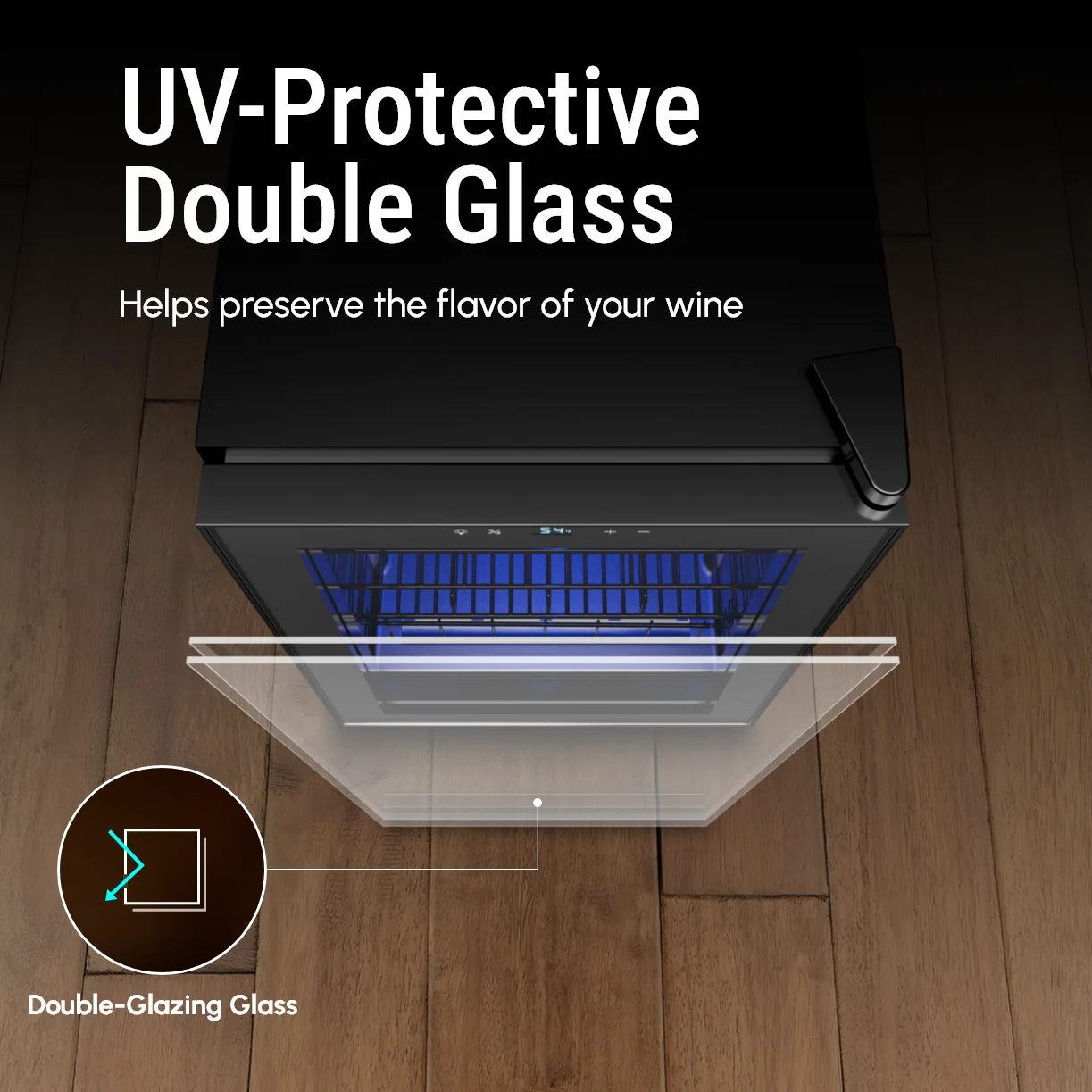

5. Practical Right-Opening Glass Door Structure

   Glass door with full plastic edge wrapping, tight black door seal locks cold air inside. Recessed left handle saves space, top hinges ensure smooth door opening. Digital control panel on door allows one-touch temperature adjustment without bending over.
6. North American Standard Certified

   ETL safety certification, 115V 60Hz power supply perfectly matches US household power grid, safe for residential and commercial wine storage scenarios. Custom exclusive packaging protects goods during long-distance ocean shipping, stable 40HQ container loading quantity supports bulk wholesale.

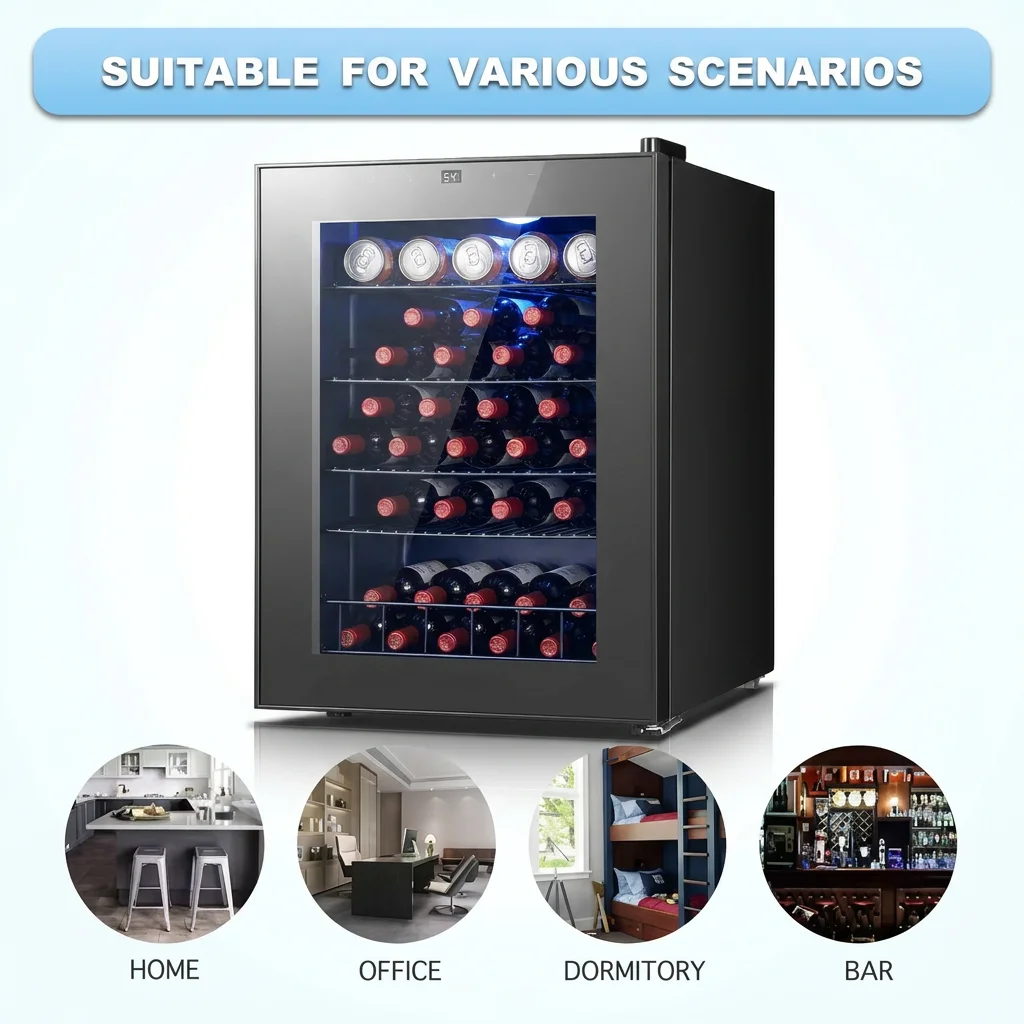

Application Scenarios

Notes

• No automatic defrost function, regular manual defrost required to maintain cooling efficiency

• No WIFI remote control, all operations via door touch control panel

• Right door opening design, confirm placement space before installation

• Suitable for N, SN climate environment usage
