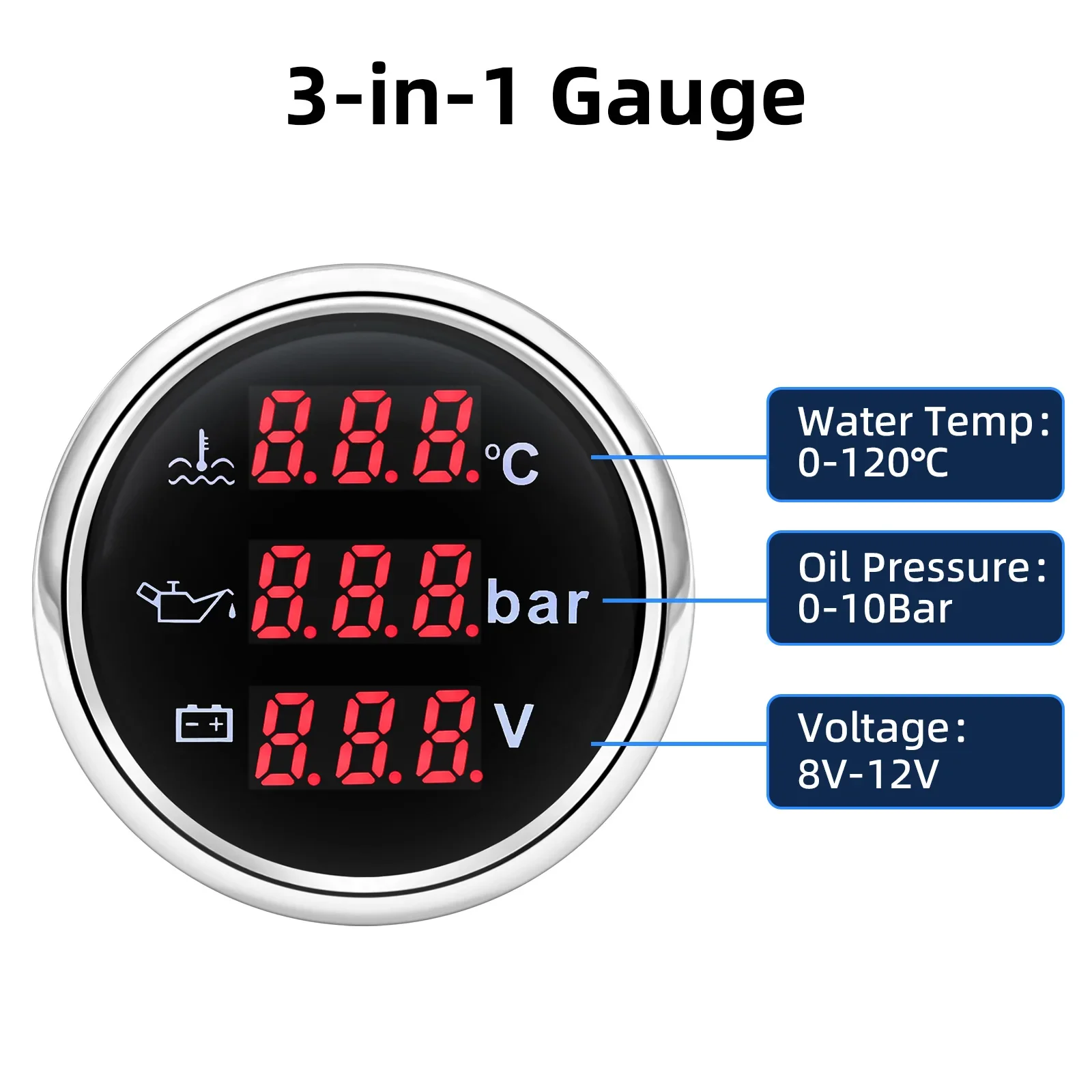

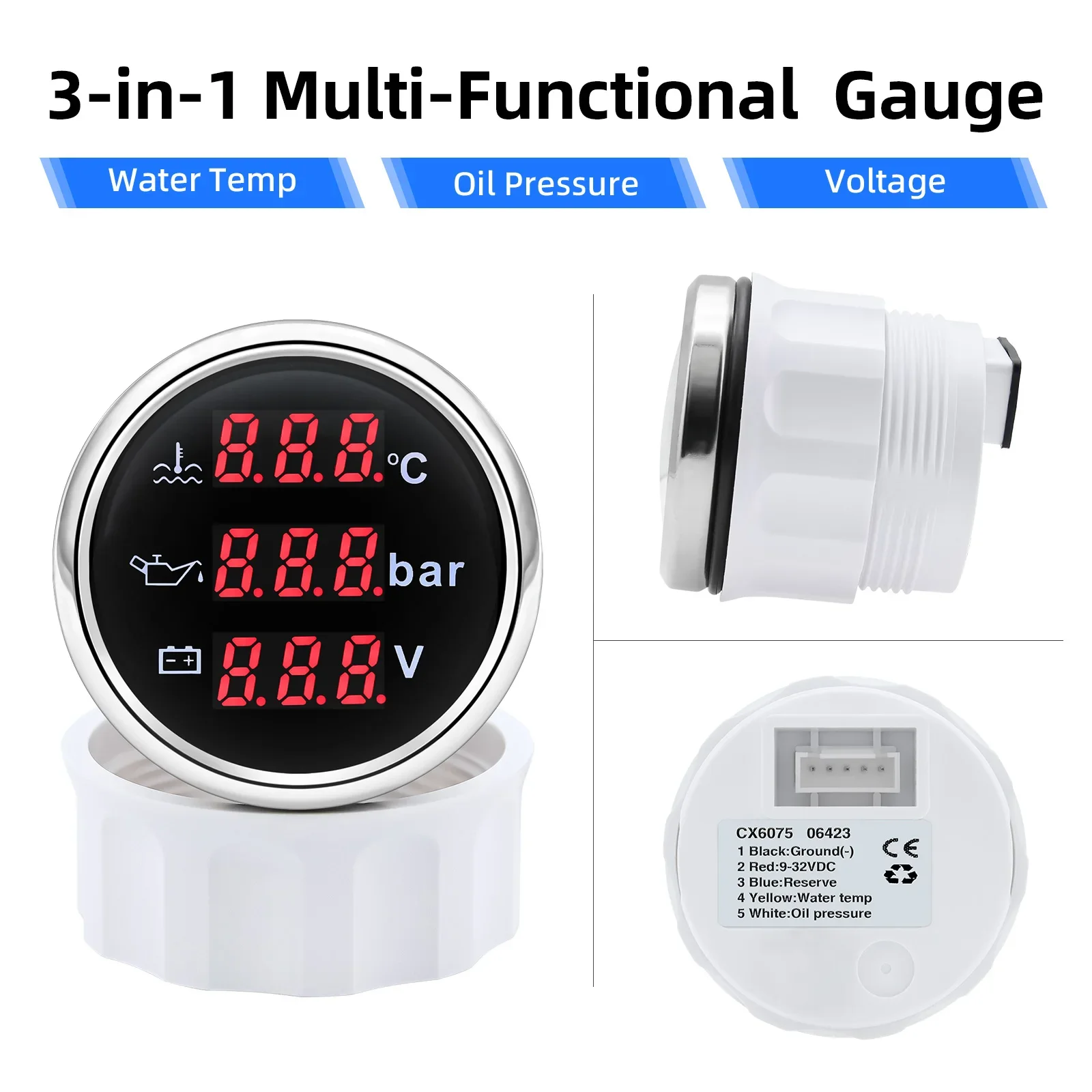

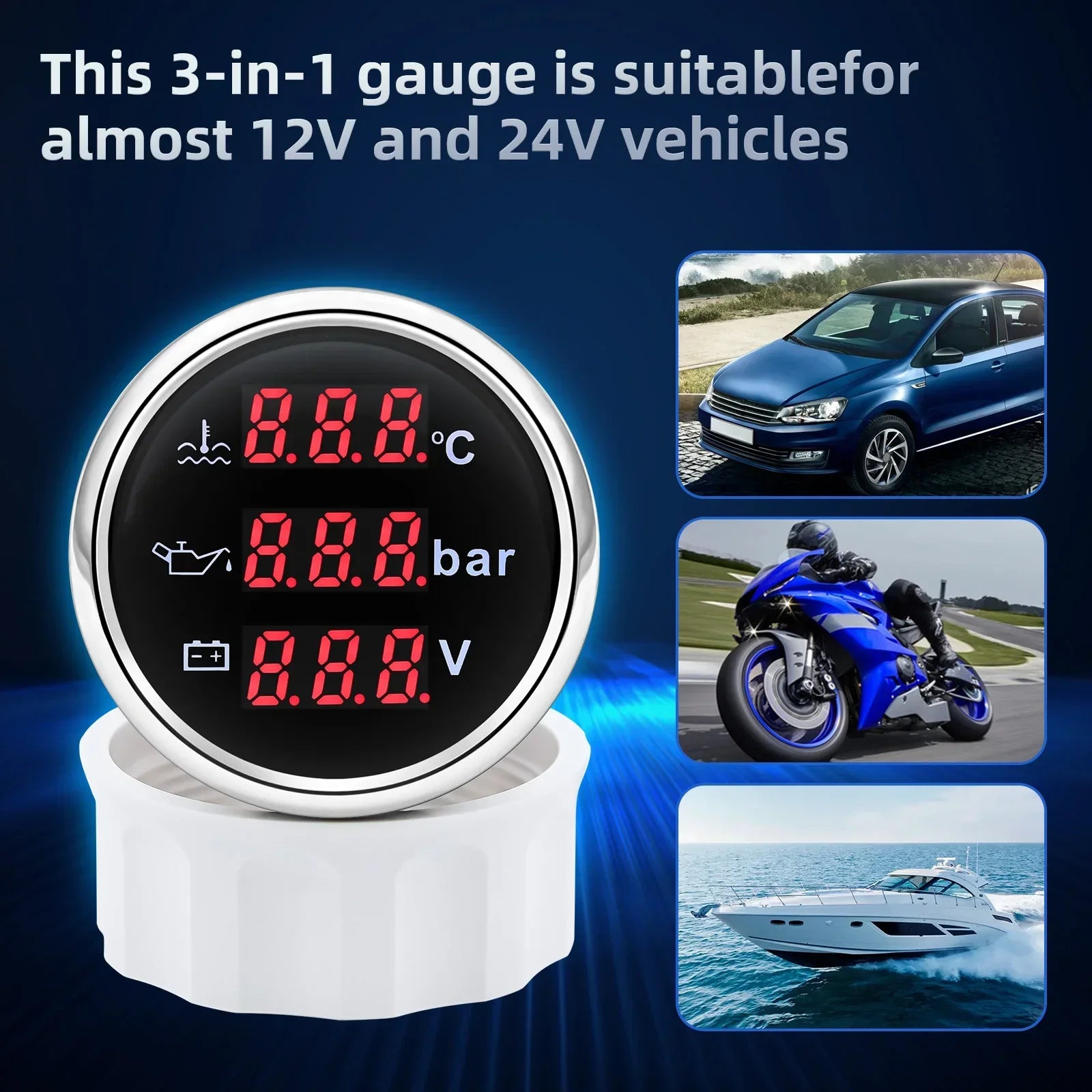

Feature:

- 100% imported MCU, stable performance.
- 316 stainless steel for long-term use even in acid-base, humid environment .

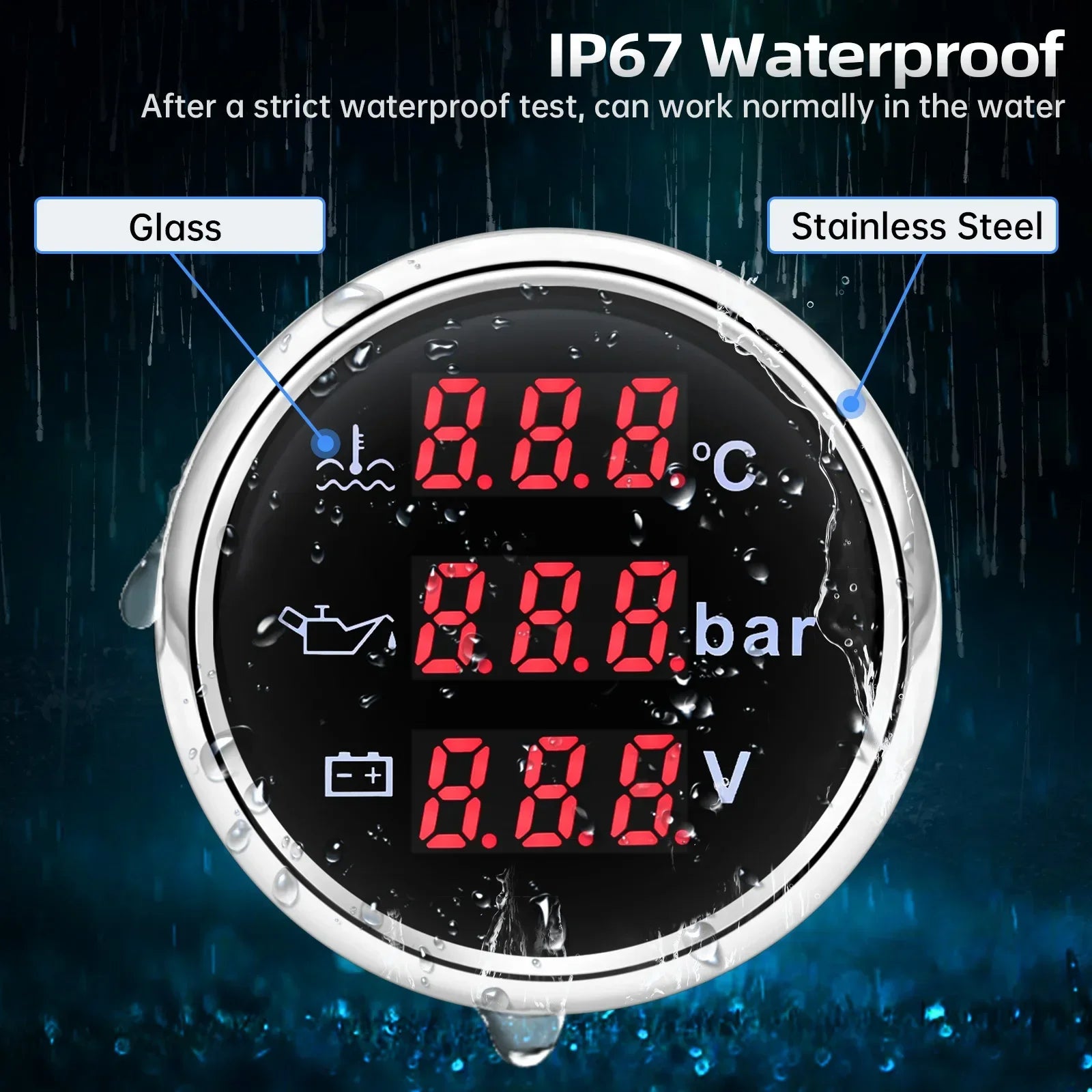

- IP67 waterproof and dustproof grade
- It can an match many kinds of sensor signals, in addition to 0 ~ 190 Ω / 240 ~ 33 Ω, 0 ~ 5 V / 0.5 ~ 4.5 V, 4 ~ 20 ma, it can also connect to any analog signal.
- The instrument has its own alarm signal, and no need additional alarm signal by the sensor.
- Equipped with sensor disconnect alarm function, sensor disconnect display "OFF".
- High brightness LED backlight, high brightness and long life.
- It can be customized according to customers' requirements.
- Applying latest LCD movement technology with display of precision.

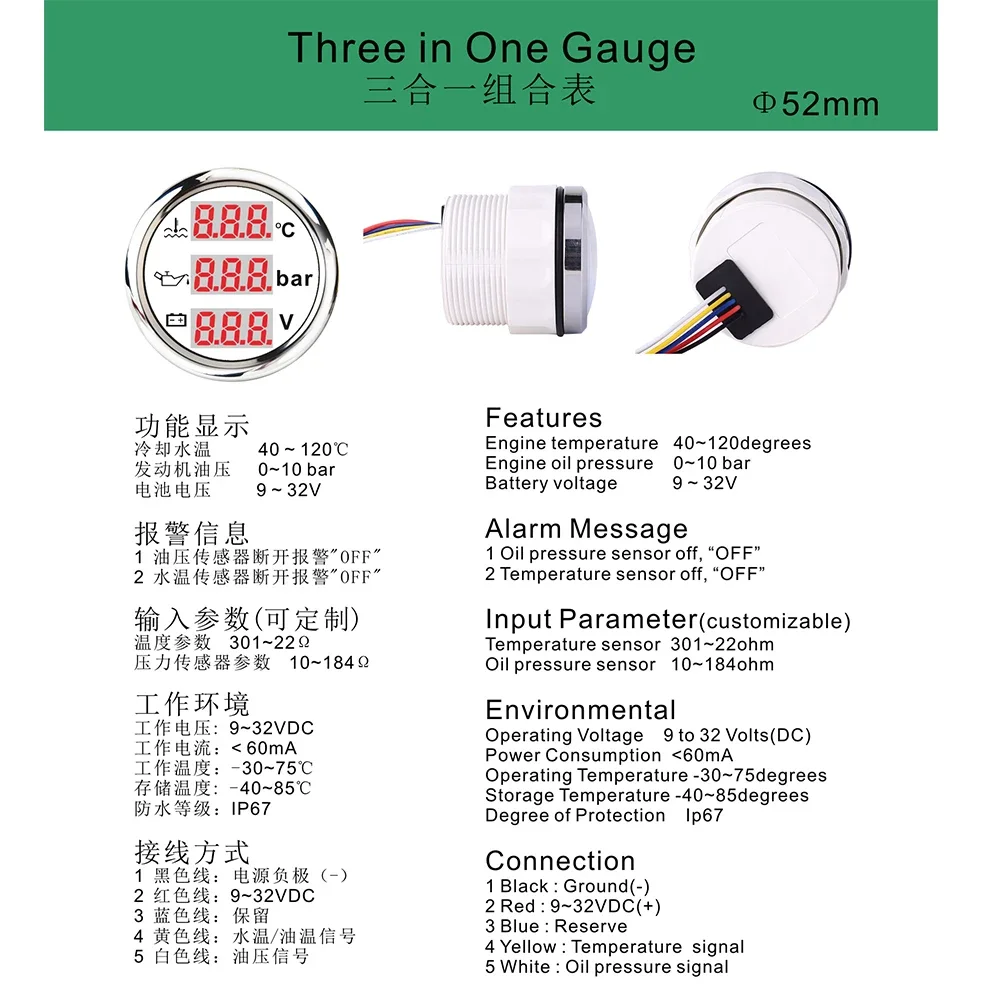

Environmental

- Operating Voltage 9 to 32 Volts(DC)
- Power Consumption <60mA
- Operating Temperature -30~7 5degrees
- Storage Temperature -40~ 85degrees
- Degree of Protection Ip67

Alarm Message

Water temp > 95℃
Oil pressure＜0.8 Bar

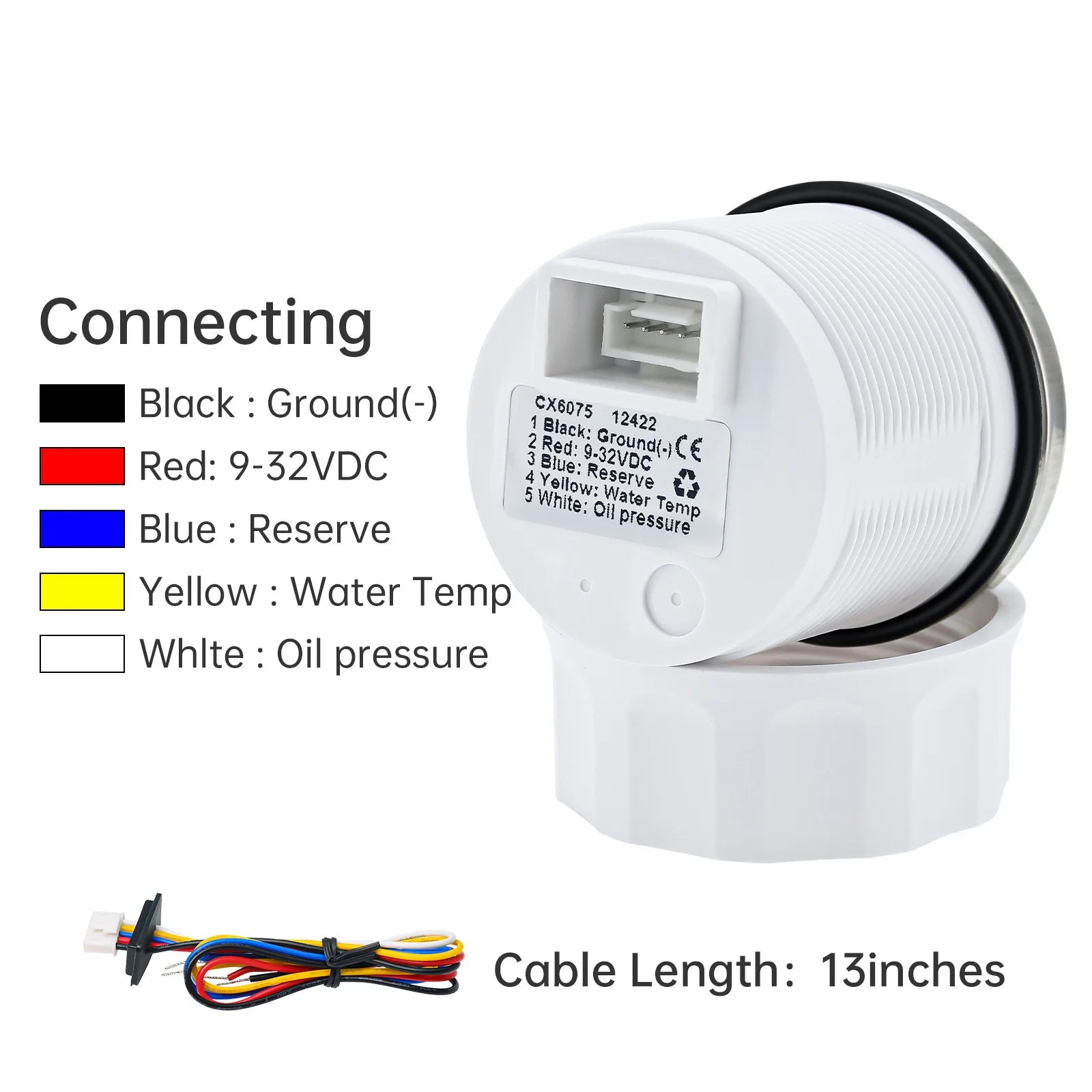

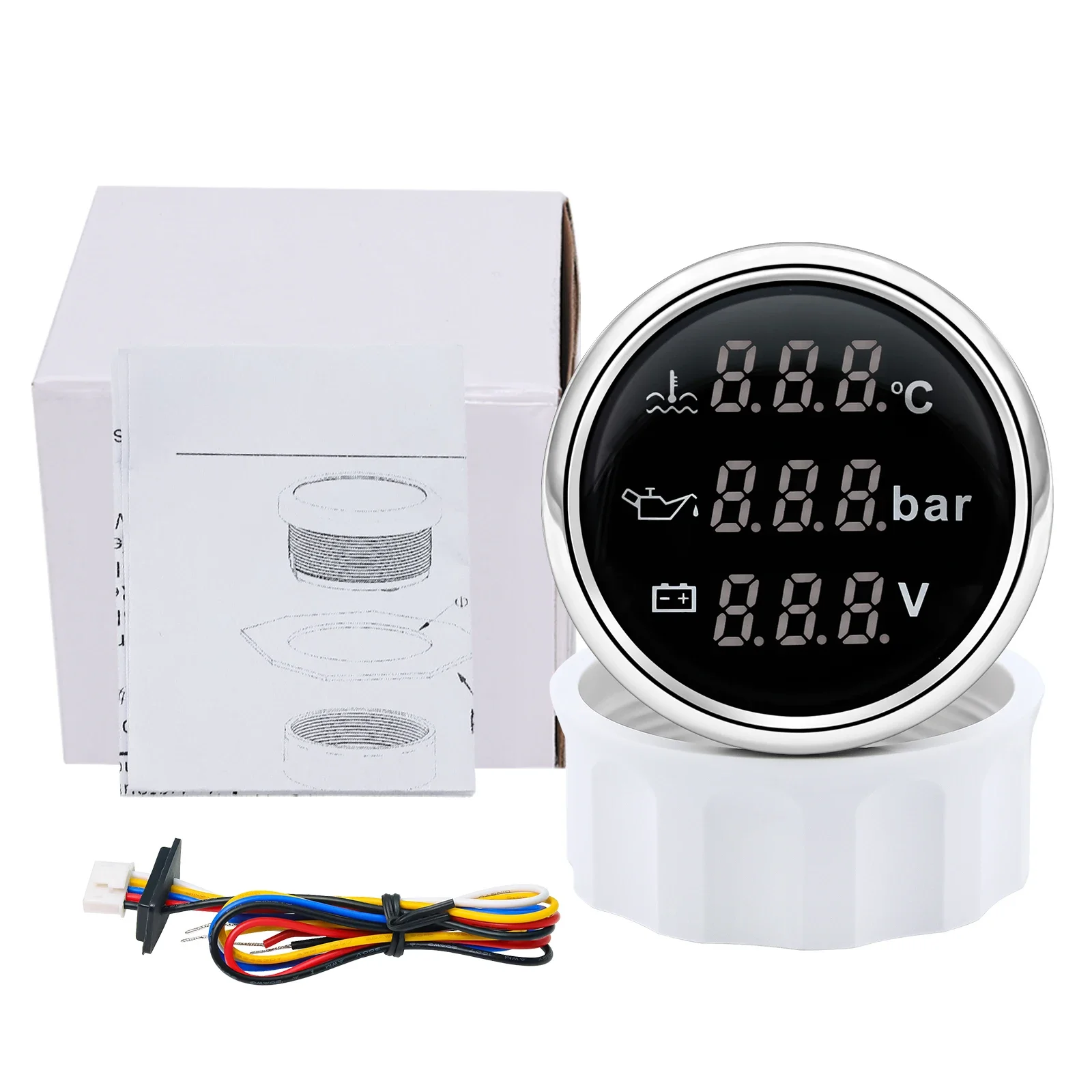

Package:

1 x Wiring Harness
1 x Gauge
1 x Instruction Manual

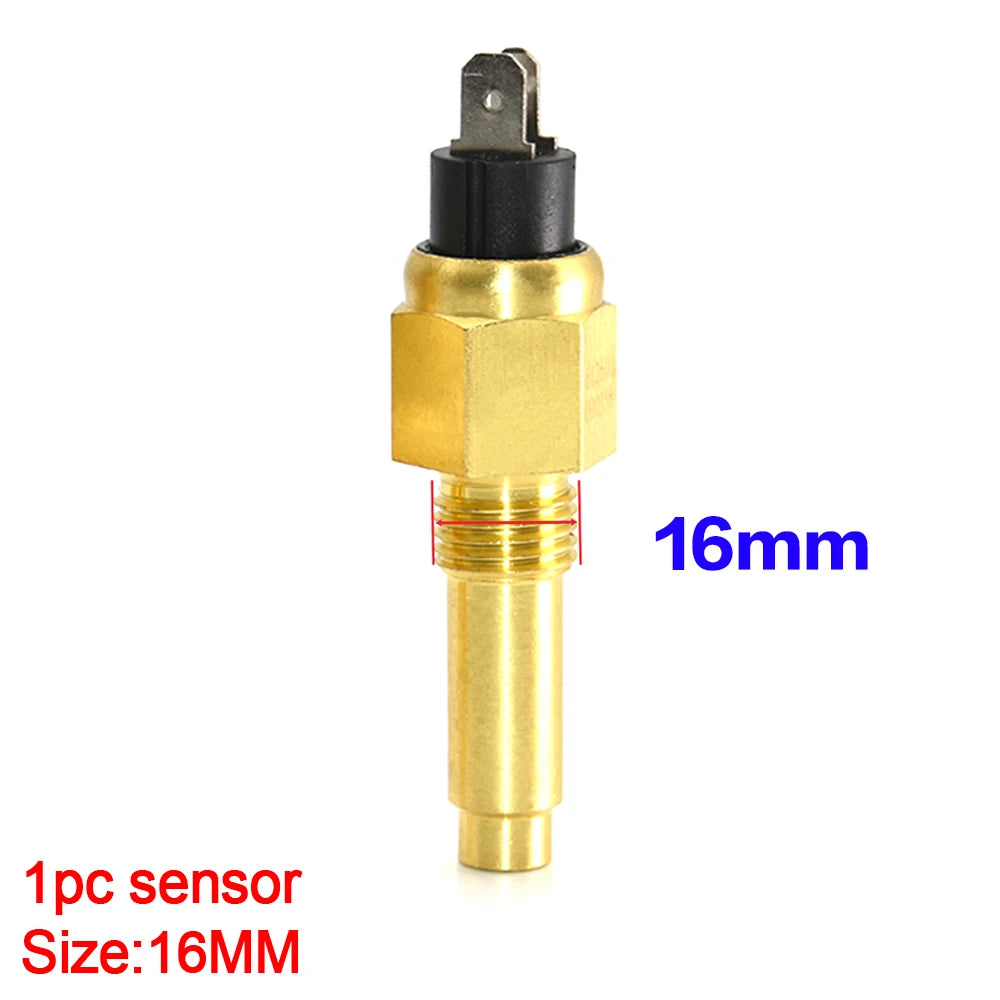

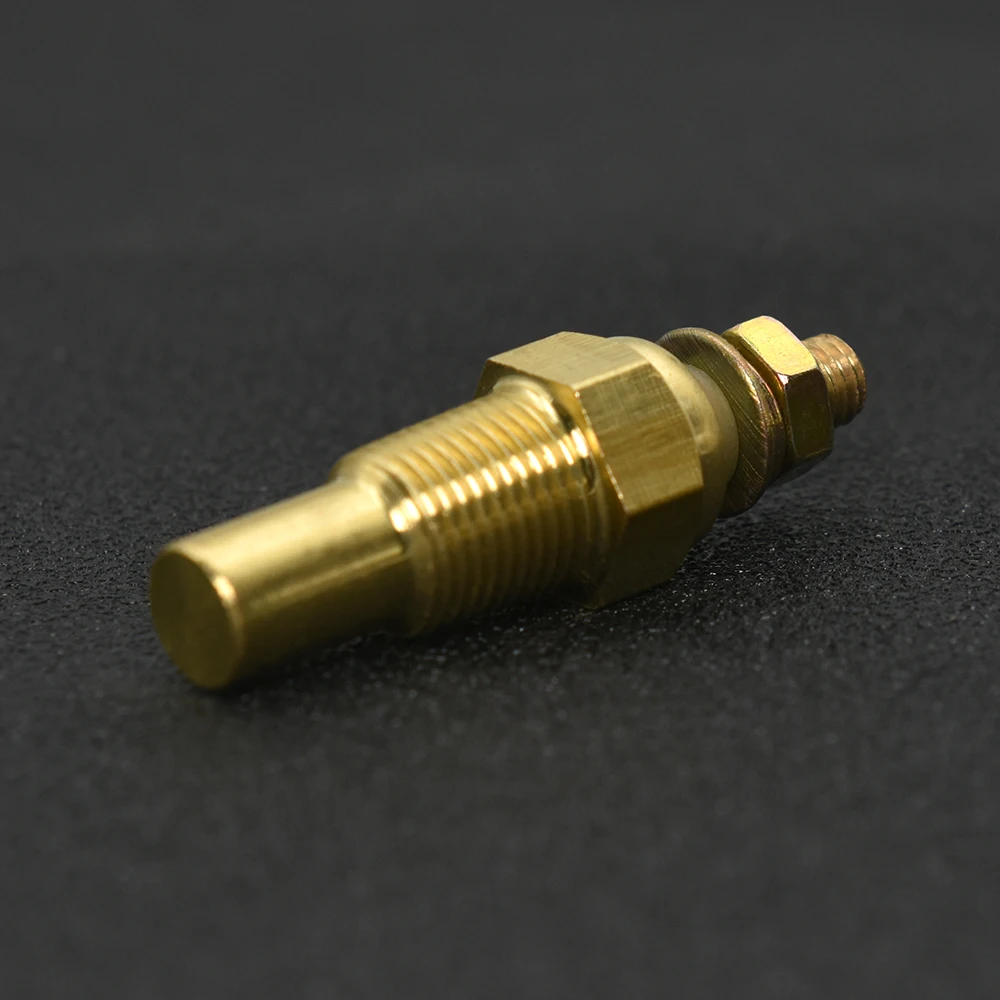

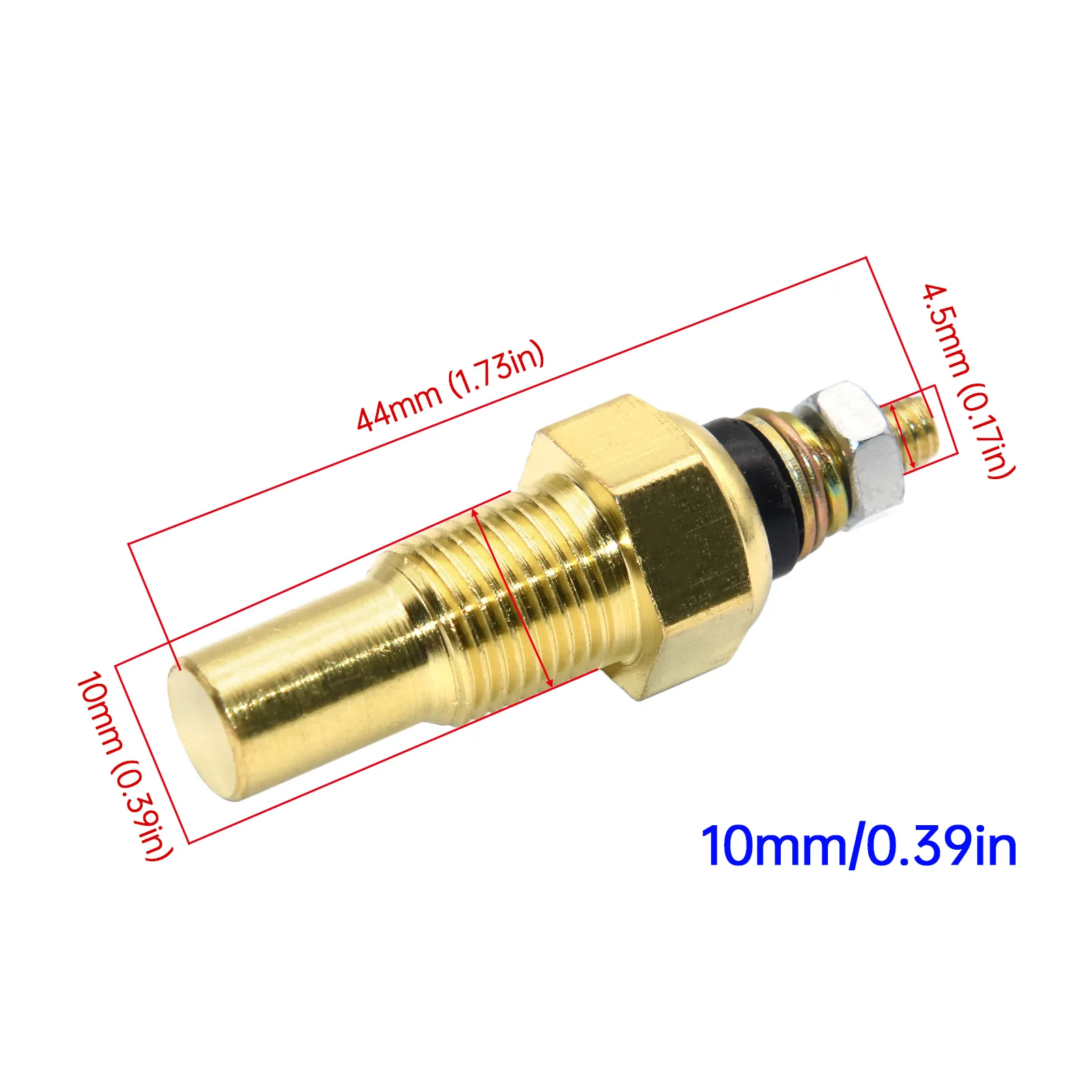

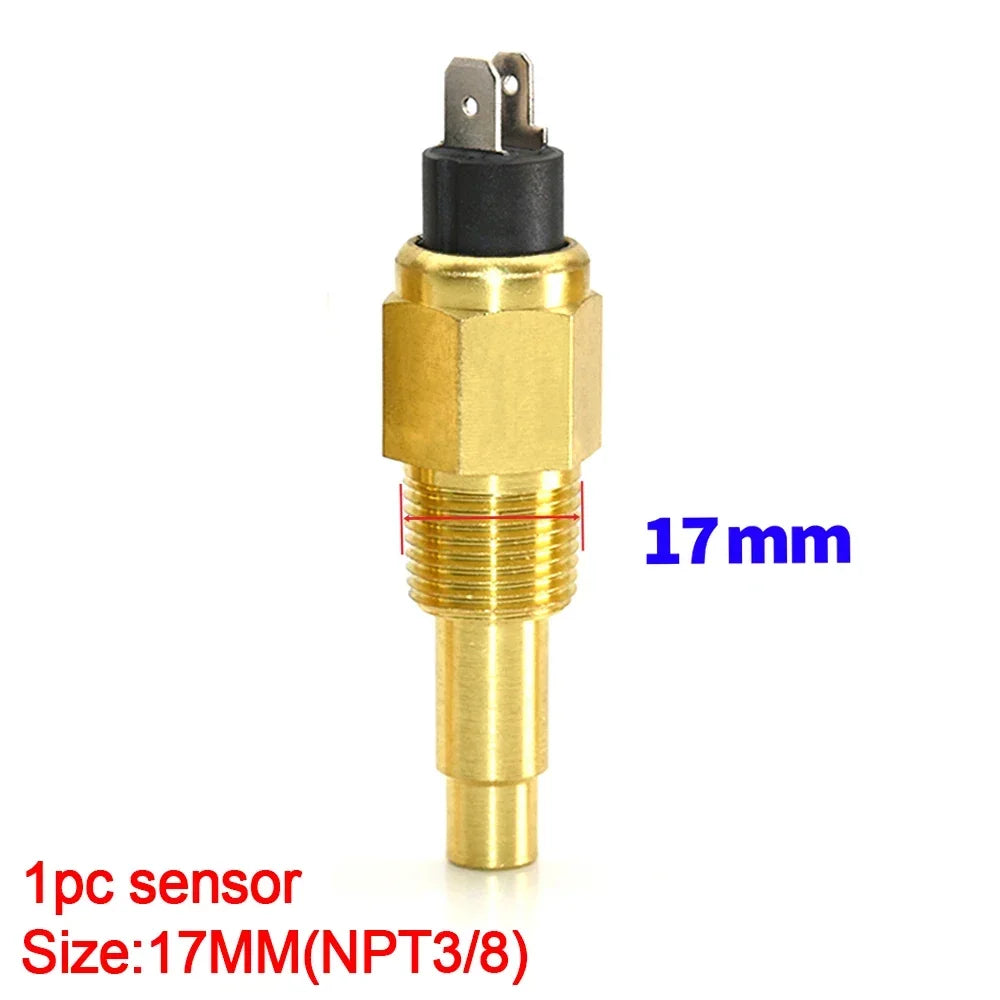

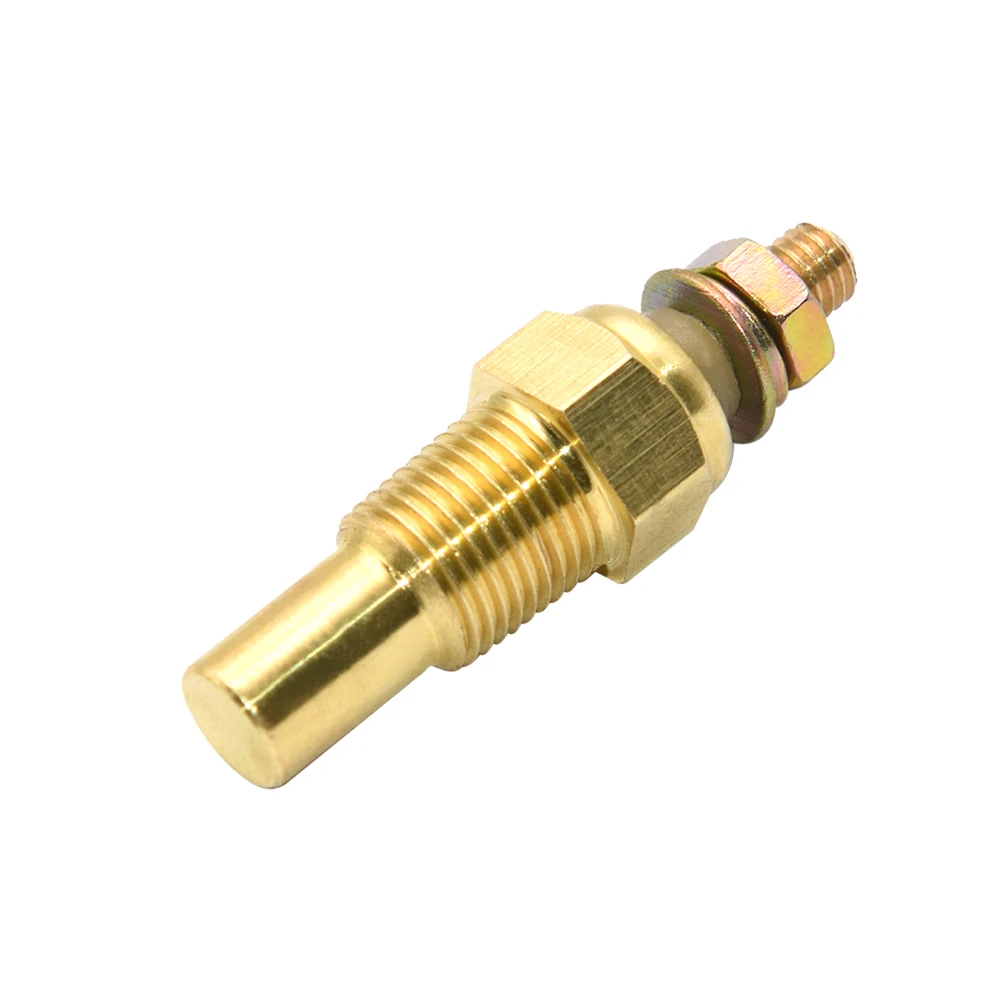

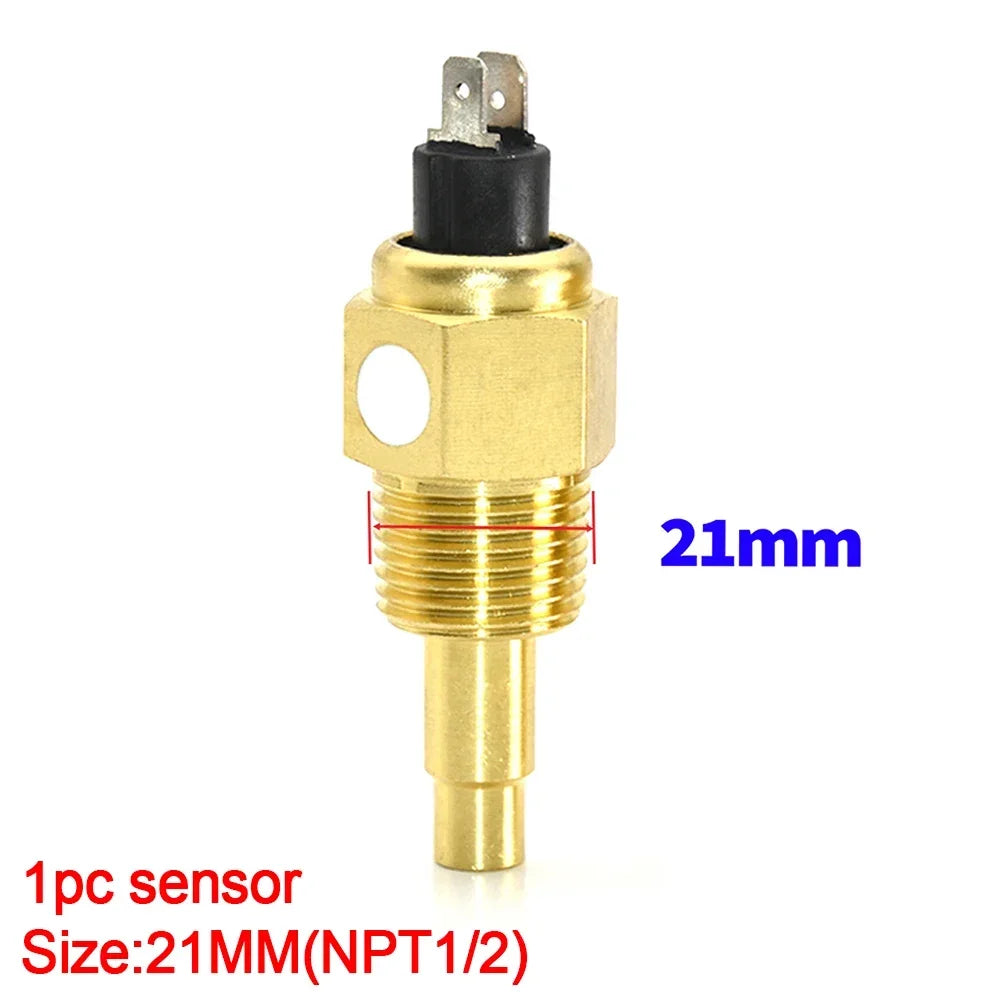

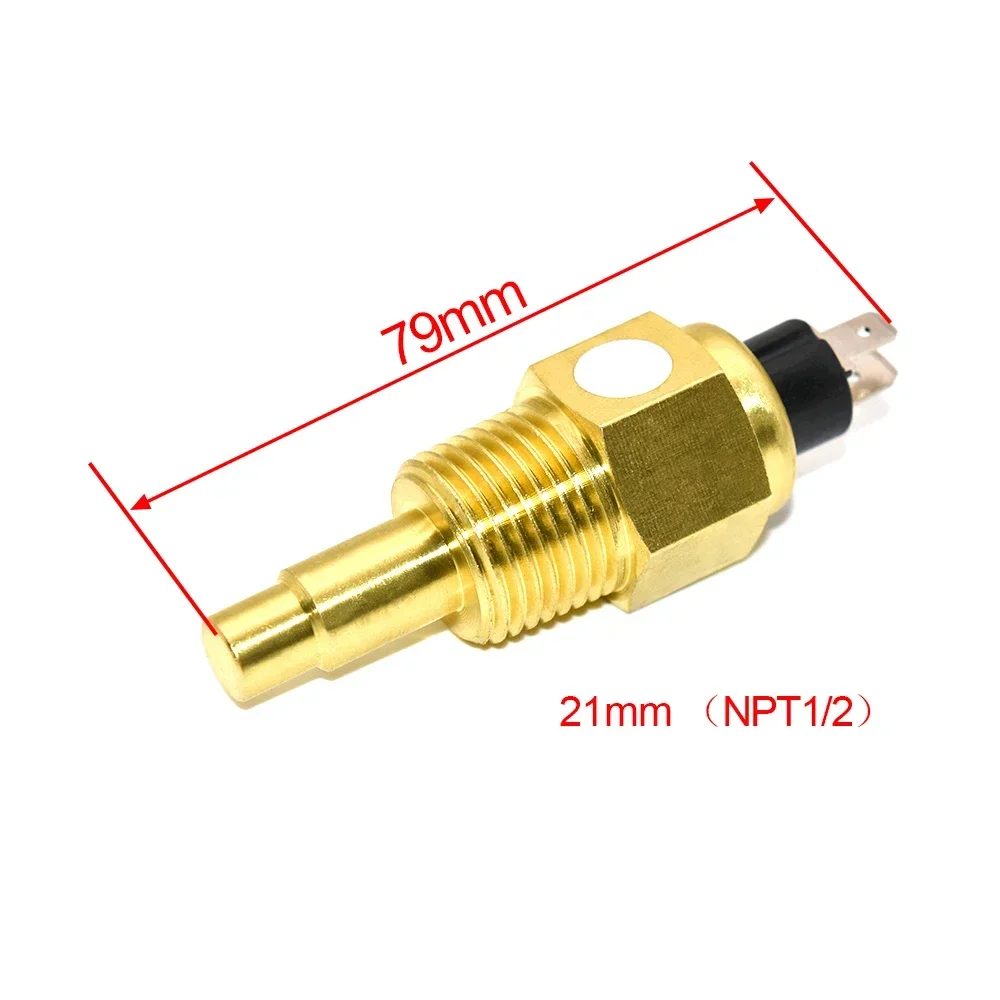

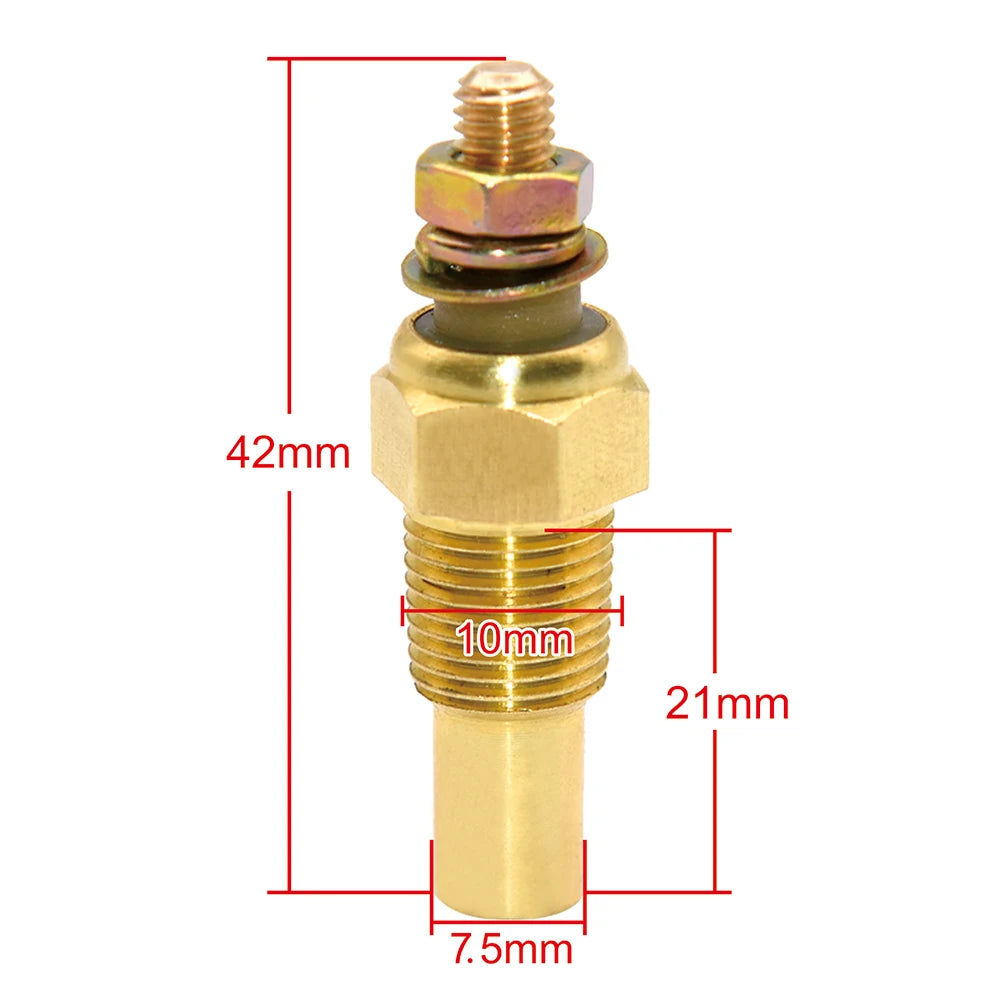

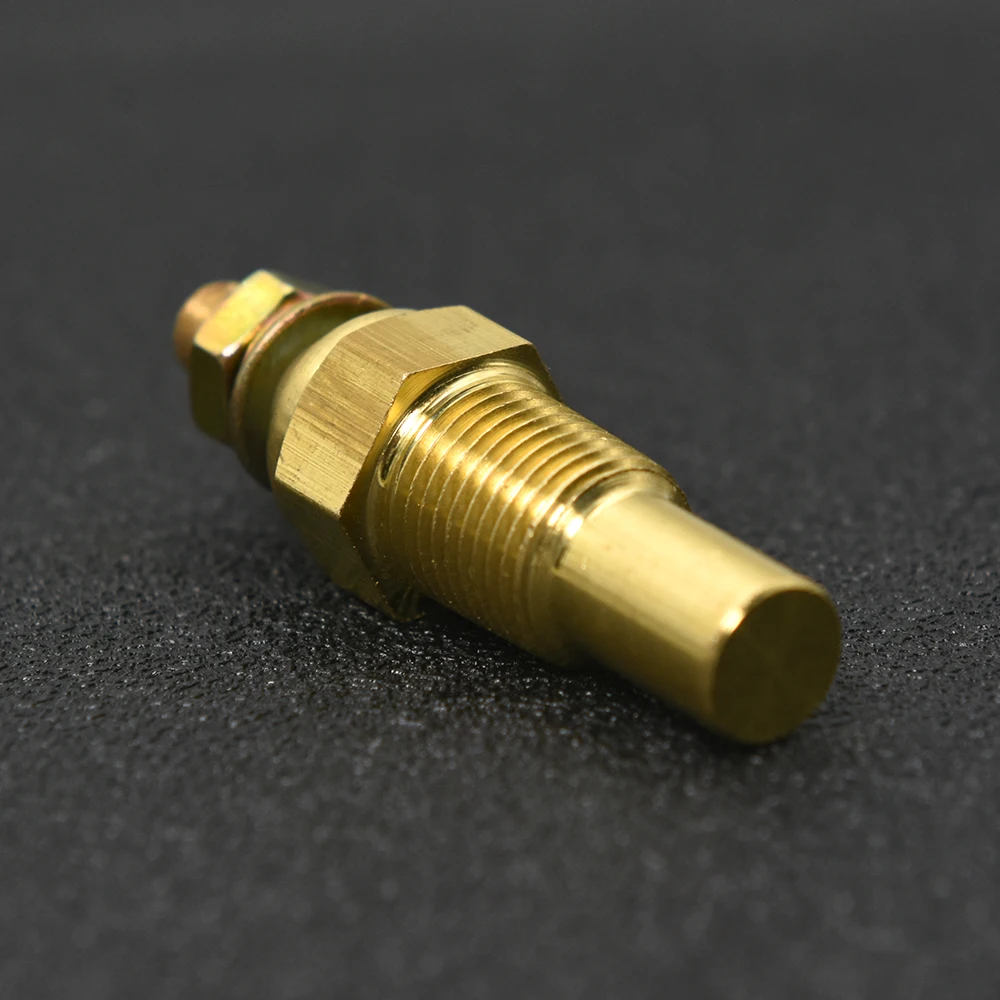

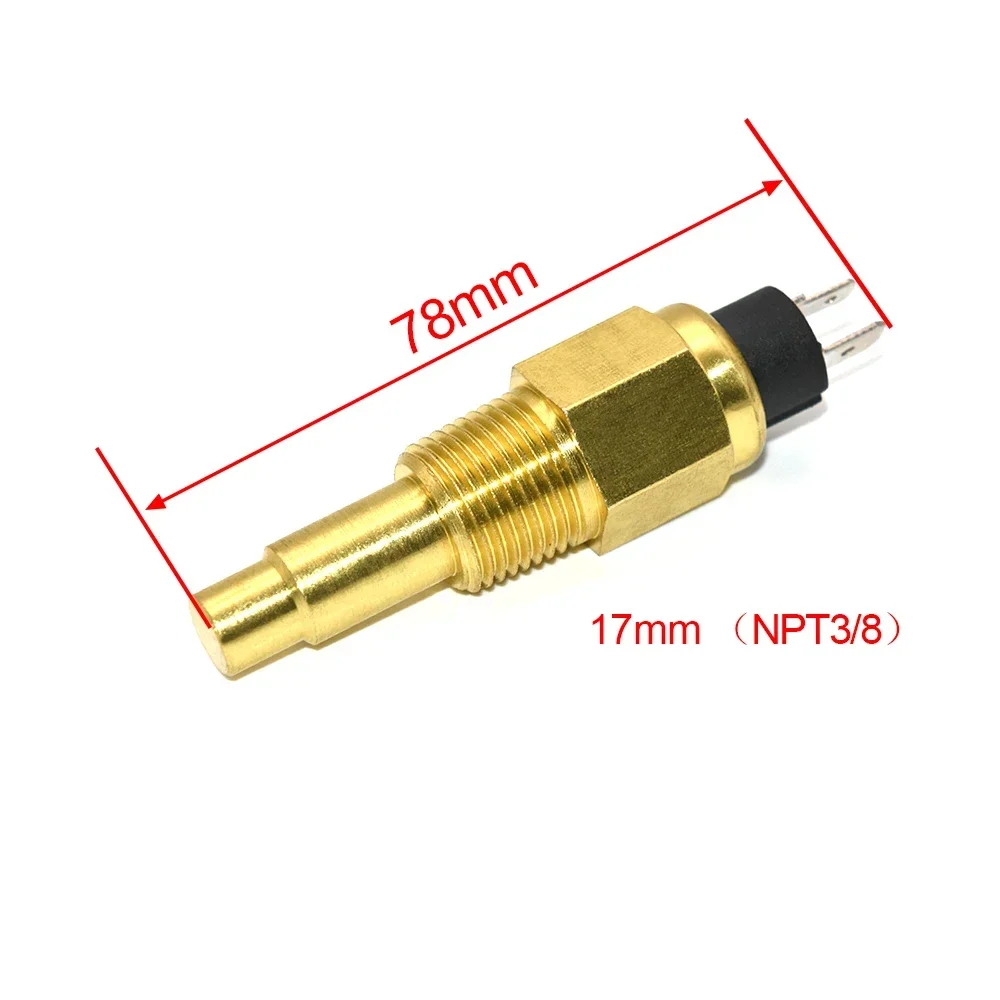

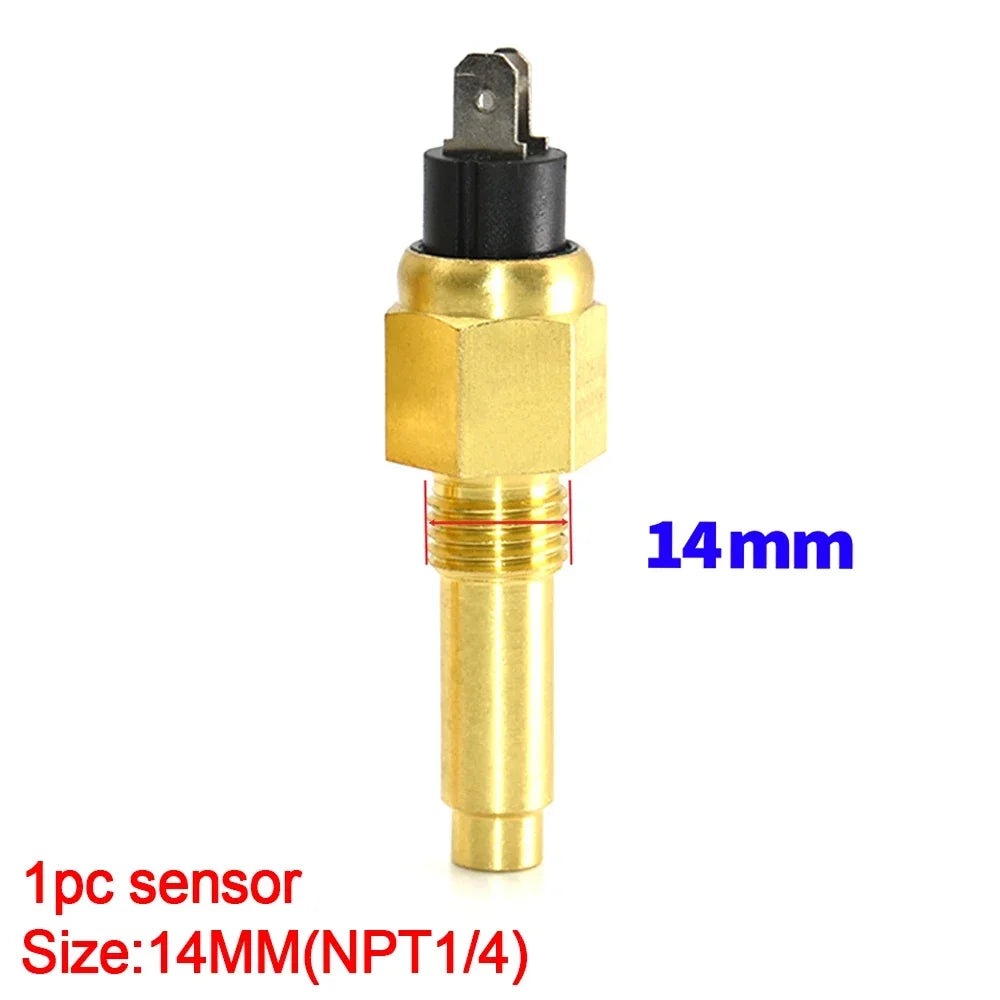

Sensor working principle:

When the water temperature is higher, the resistance value is lower. The lower the water temperature, the greater the resistance value.
Working range: 0-120 degrees.

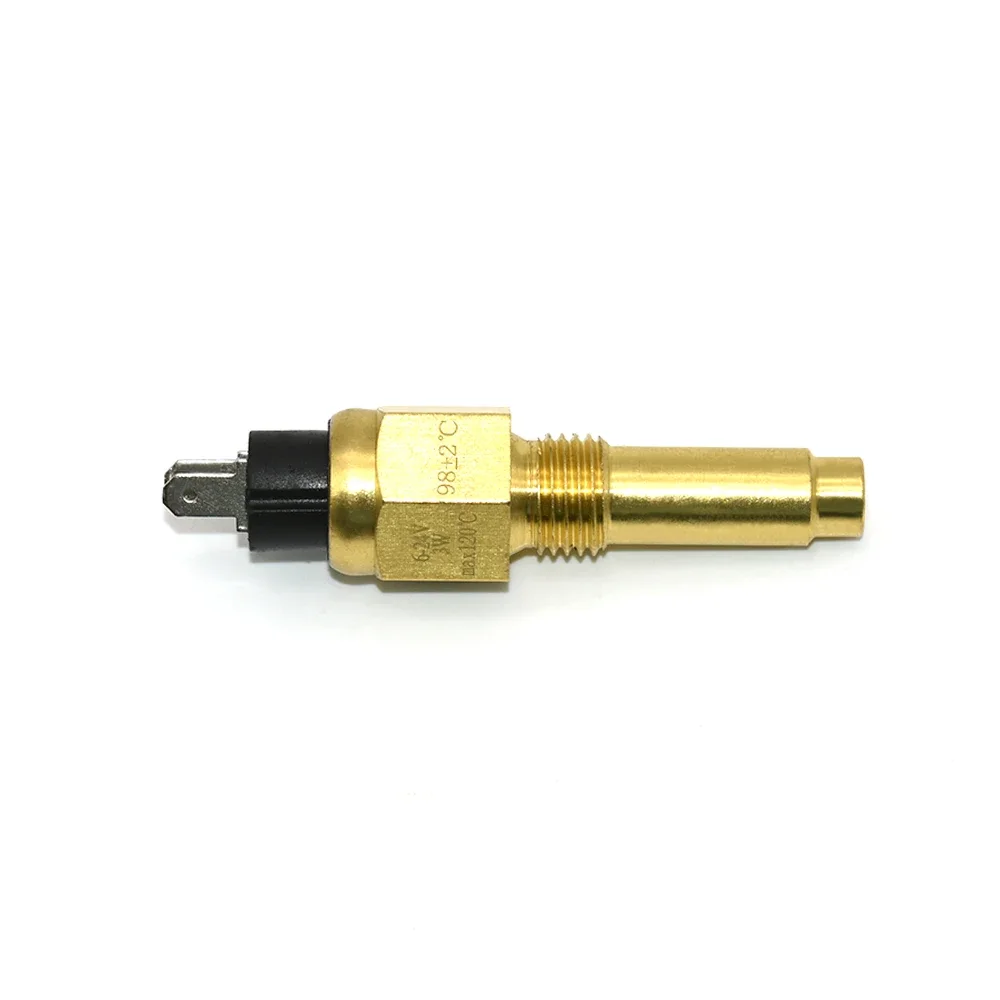

Alarm temperature: 98 + -2 degrees
When the water temperature reaches the alarm temperature and the alarm switch is closed, the alarm light will turn on.
When the water temperature decreases and the alarm switch is turned off, the alarm light will be turned off.
When the alarm temperature is reached, the response time is approximately 1 second.

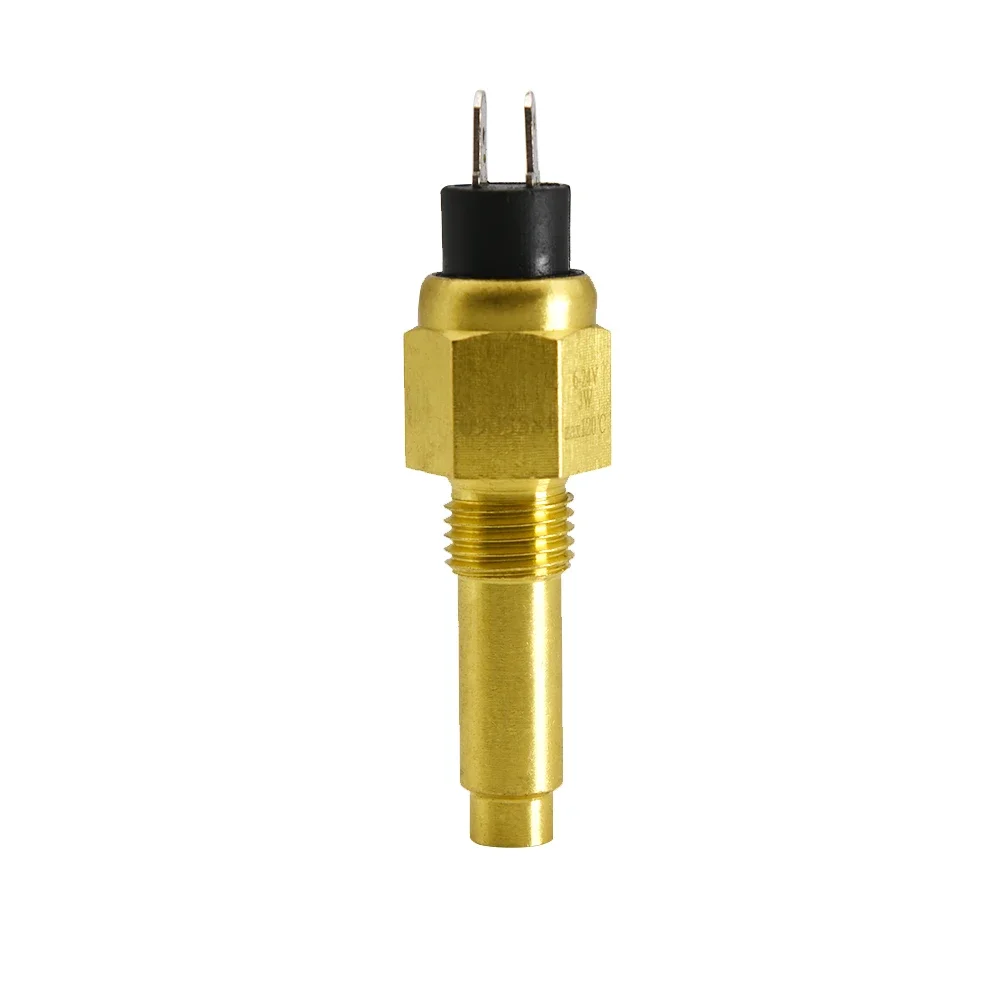

The water temperature sensor has 2 wires, one is connected to the water temperature meter, and the water temperature parameter is displayed.
One connection alarm switch
