Product Highlights

Core Specifications

Basic Storage & Climate

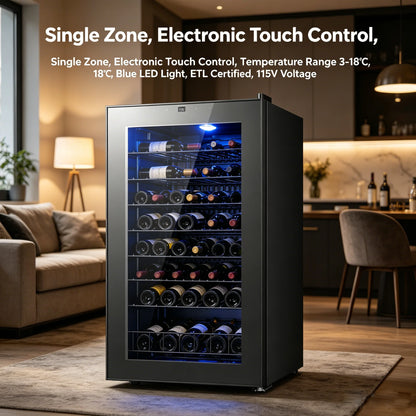

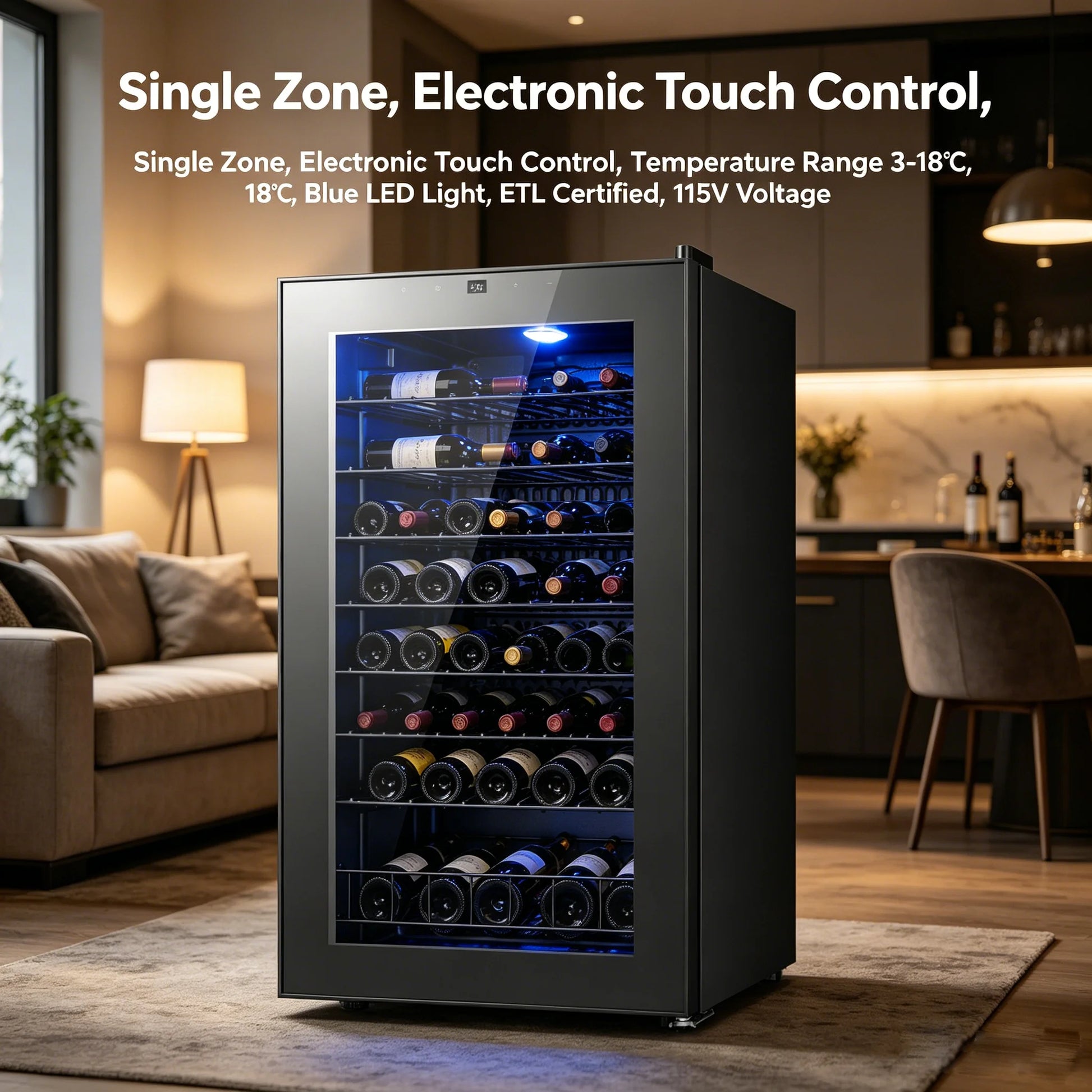

• Zone Quantity: Single Temperature Zone

• Bottle Capacity: 34 bottles (30 standard bottles + 4 non-standard bottom bottles)

• Climate Class: N, SN

• Effective Internal Volume: 95L

• Noise Level: Max 42dB, ultra-quiet operation won’t disturb daily rest

• Annual Power Consumption: 180 kwh/year

• Power Supply: 115V, 60Hz, ETL certified

Precise Electronic Temperature Control

• Control Mode: Digital Electronic Thermostat

• Adjustable Temperature Range: 3–18°C (37–65°F), default factory temp: 54°F

• Temperature Unit Switch: Support Celsius & Fahrenheit conversion

• Temperature Sensor: Single NTC dual temperature sensing probe

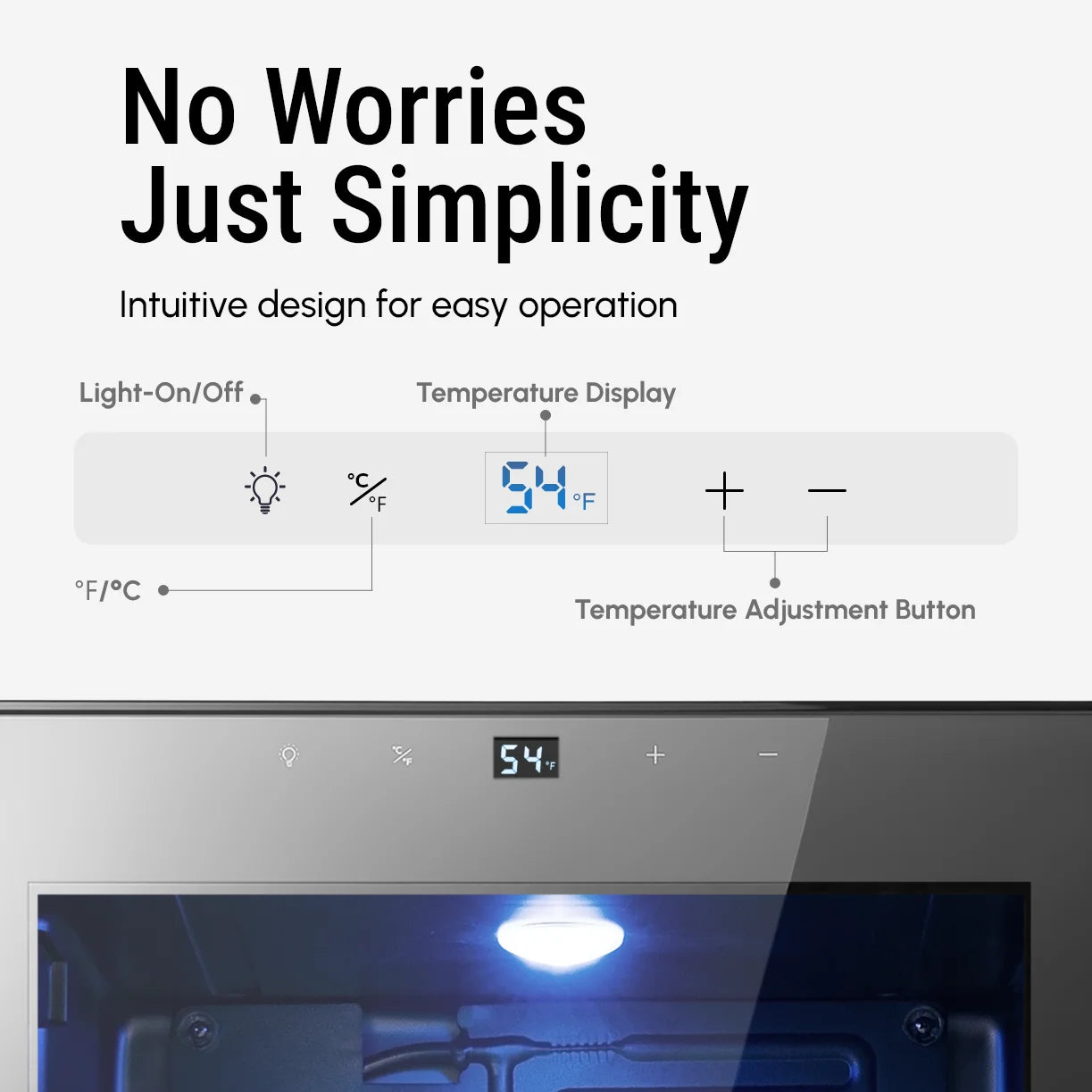

• Control Panel: Touch key light switch, digital electronic display mounted on door

Cabinet & Interior Construction

1. Cabinet Body

   • Exterior Material: 0.4mm A3 pre-coated plate with black sand grain finish

   • Cabinet Structure: Roller box

   • Inner Liner: Black HIPS food-grade plastic

   • Foaming Material: Cyclopentane, 36.5mm thick insulation layer for stable constant temperature

   • Rear Panel: Galvanized sheet

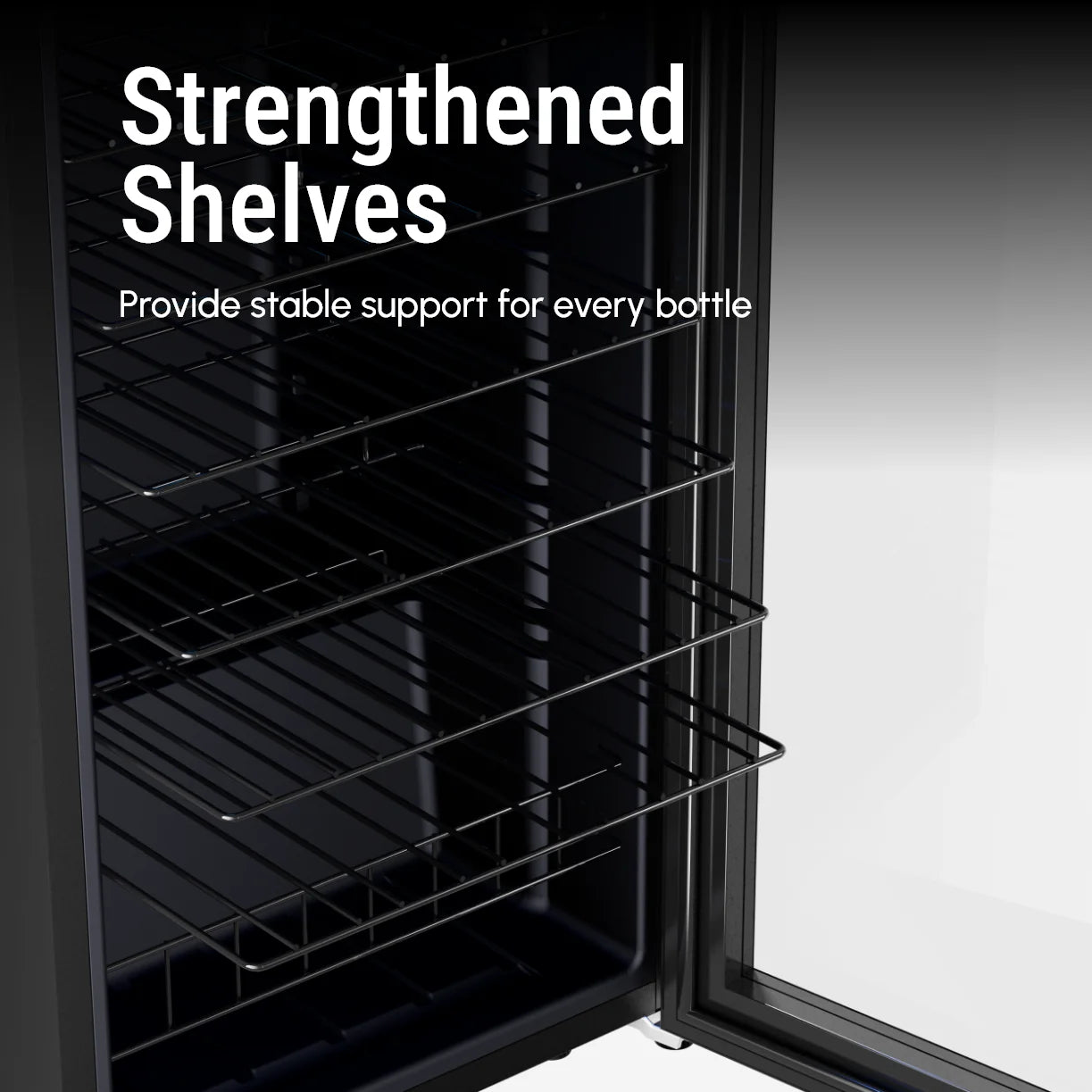

   • Shelving: 6 pieces black dipped flat wine racks, sturdy for long-term bottle storage

   • Adjustable Feet: Support height adjustment for uneven floors

   • Fan Cover: No extra mesh cover

   • Heating System: No PTC heating

   • Air Outlet Grille: No grille design

2. Cooling System

   • Evaporator: 1 piece JC62Q blow-up evaporator

   • Condenser: Two-side layout

   • Compressor: Huazhang B43C5B energy-efficient compressor

   • No internal/external cooling fans, electromagnetic valve, deodorizer, defrost mode

Door Assembly & Appearance

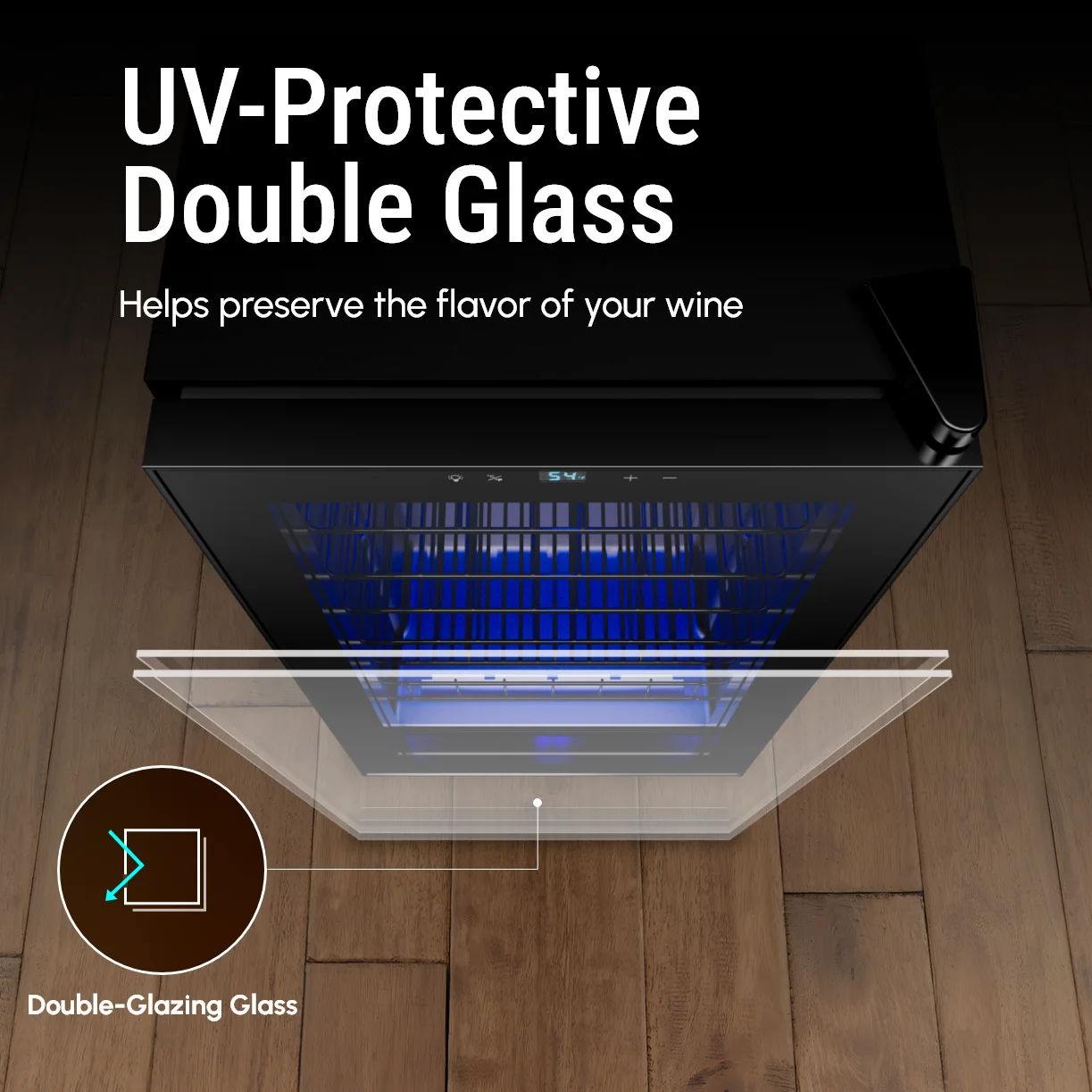

• Door Glass: Insulated hollow glass, outer white steel + inner white glass

• Door Frame: Plastic wrapped edge for glass door, top door hinge

• Door Dimension (WDH): 480×37×810 mm

• Door Seal: Black sealing strip for excellent thermal insulation

• Hinge Type: A3 structure hinge, right-side opening door

• Handle: Left concealed pull handle

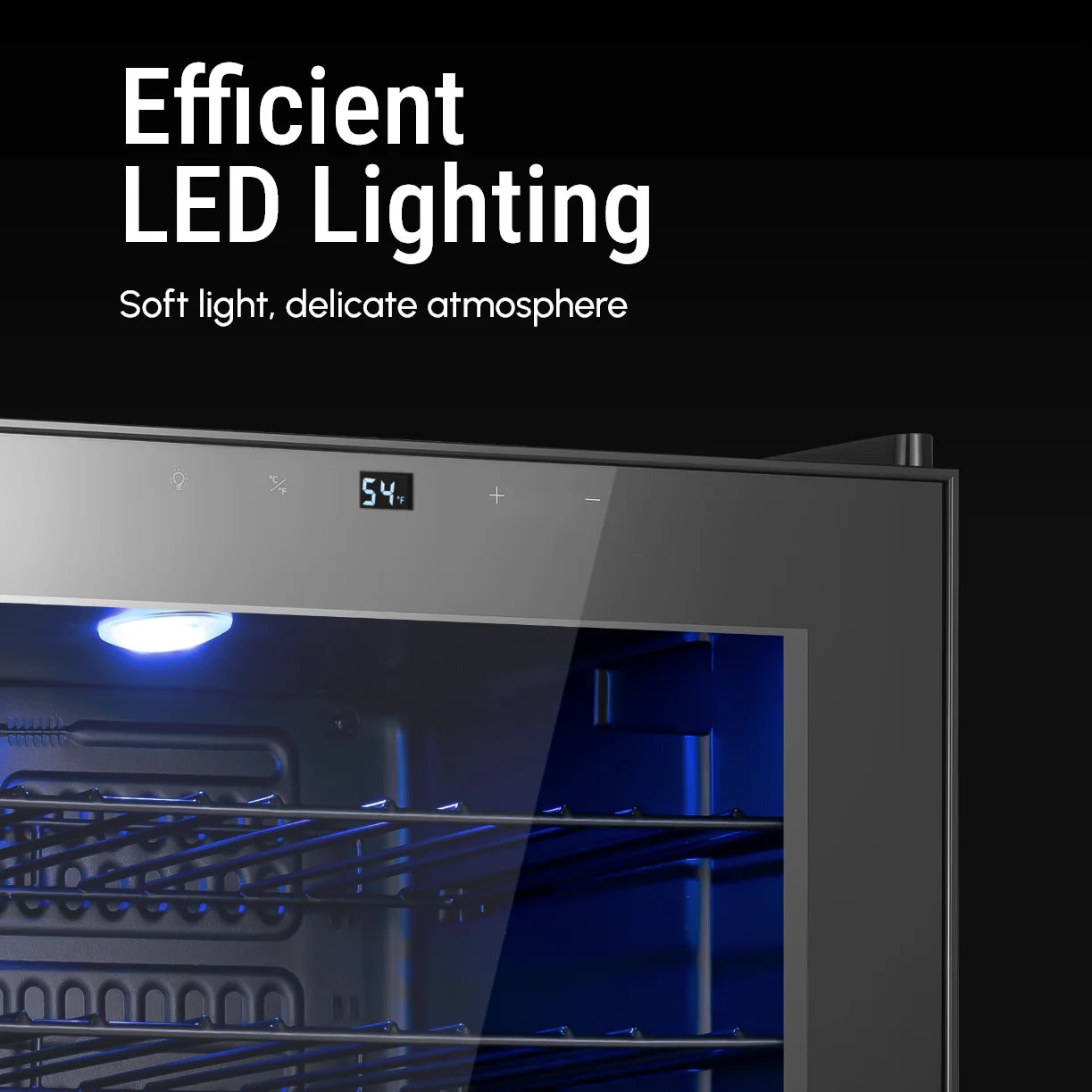

• Interior Light: Soft blue LED inside cabinet; no door opening alarm, over-temperature alarm, sleep mode, WiFi smart control

Dimension & Weight Data

Product Size

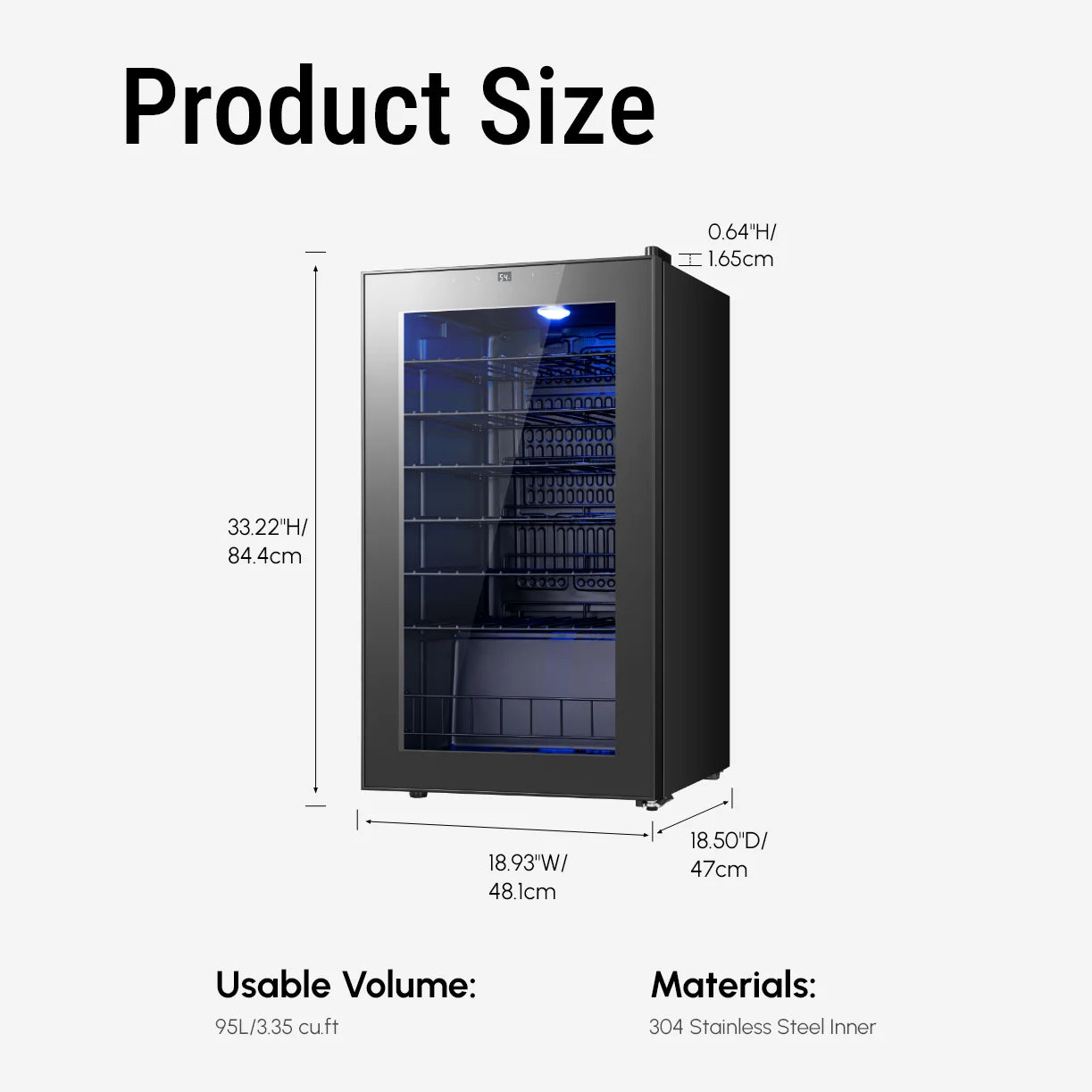

• Overall Unit Size (W×D×H): 480×465×835 mm

• Net Weight: 26 kg

Packaging Info

• Carton Pack Size (W×D×H): 569 × 569 × 930 mm

• Gross Weight: 31.5 kg

• Packing Solution: Custom exclusive customer packaging

• Loading Quantity (40HQ container):

  • Without pallet: 220 units

  • With pallet: 144 units

• Power Board Model: TW-KD-06-P

Main Selling Points

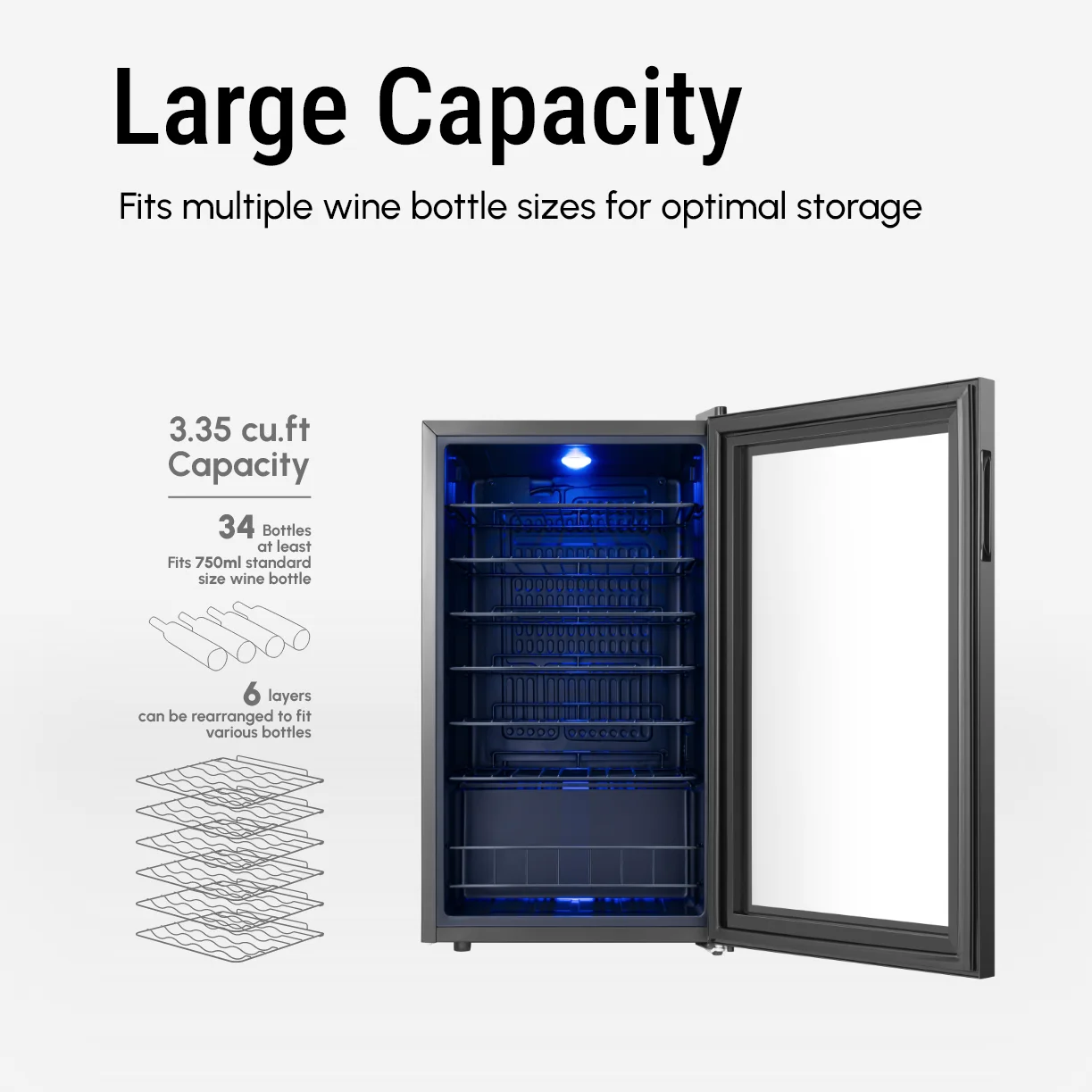

1. Large 34-bottle storage capacity with 6 flat wine racks, fit most standard wine bottles

2. 3–18°C precise digital temperature adjustment, switchable ℃/℉ for all wine types

3. Ultra-quiet 42dB low noise compressor, ideal for bedroom, apartment and home bar

4. Thick 36.5mm cyclopentane foam layer + hollow insulated glass door, lock cold air efficiently

5. Elegant all-black minimalist appearance with soft blue interior ambient light, decorative storage furniture

6. ETL safety certified, 115V 60Hz US standard voltage, safe for North American household use

7. Touch screen control panel on door, easy one-touch light operation and temperature setting

8. Right-opening concealed handle door design, space-saving & modern visual effect

9. Adjustable base feet, easy to balance the fridge on uneven ground

10. Energy-saving low annual power consumption, reduce long-term electricity cost

Package Includes

Notes

• This wine fridge does not support WiFi remote control, auto defrost, deodorization and over-temperature alarm functions

• No sleep mode and door opening reminder function

• Designed for 115V/60Hz US power grid only
