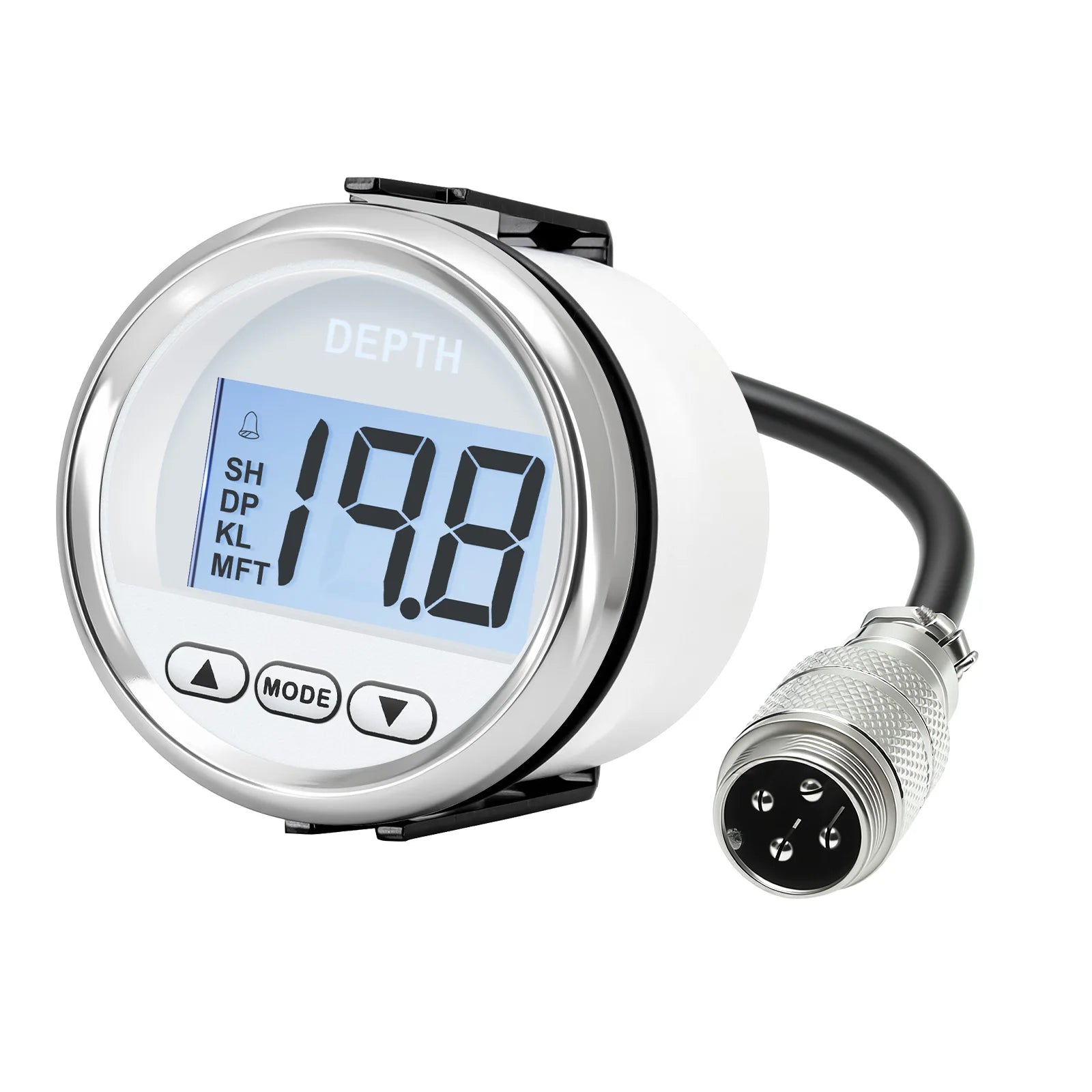

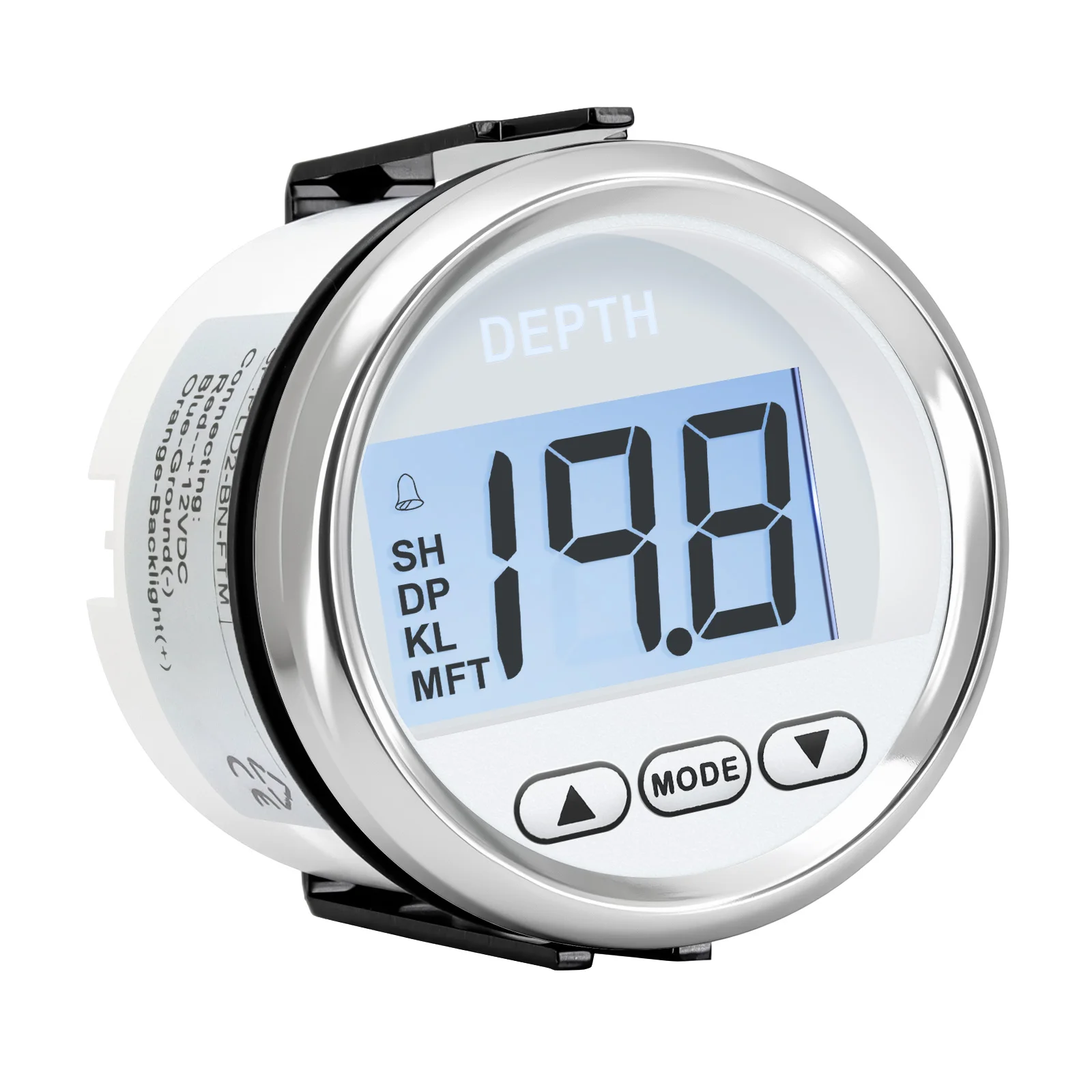

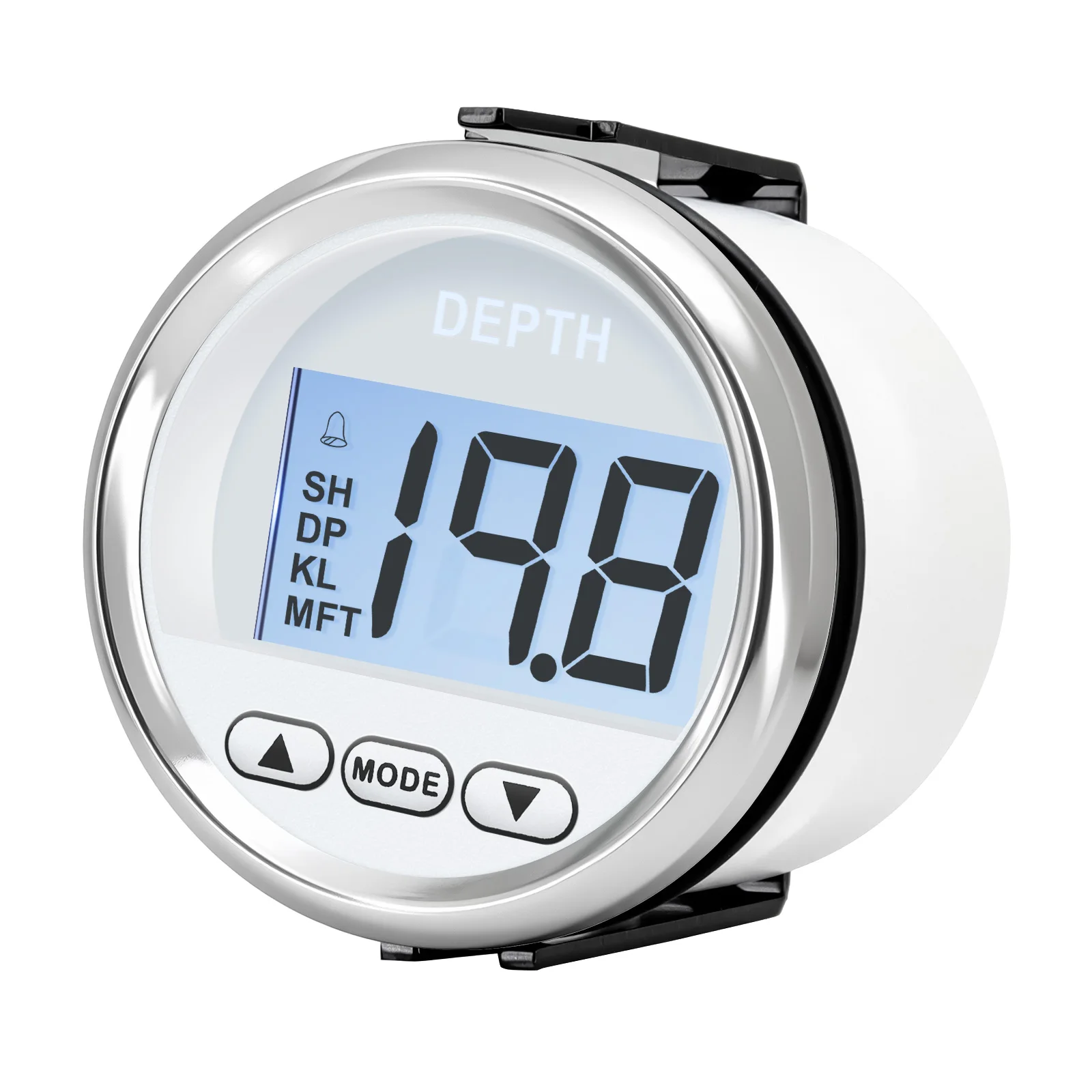

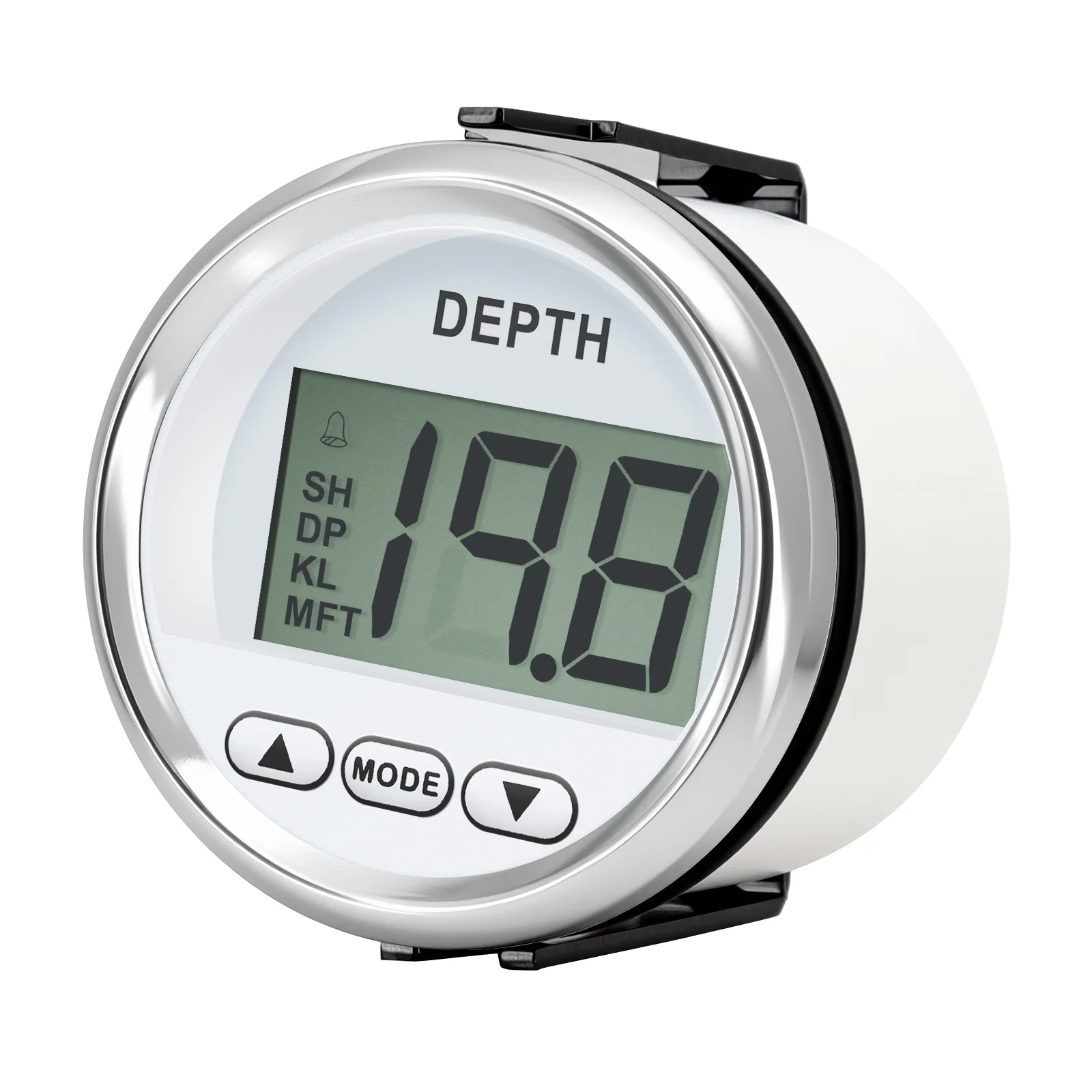

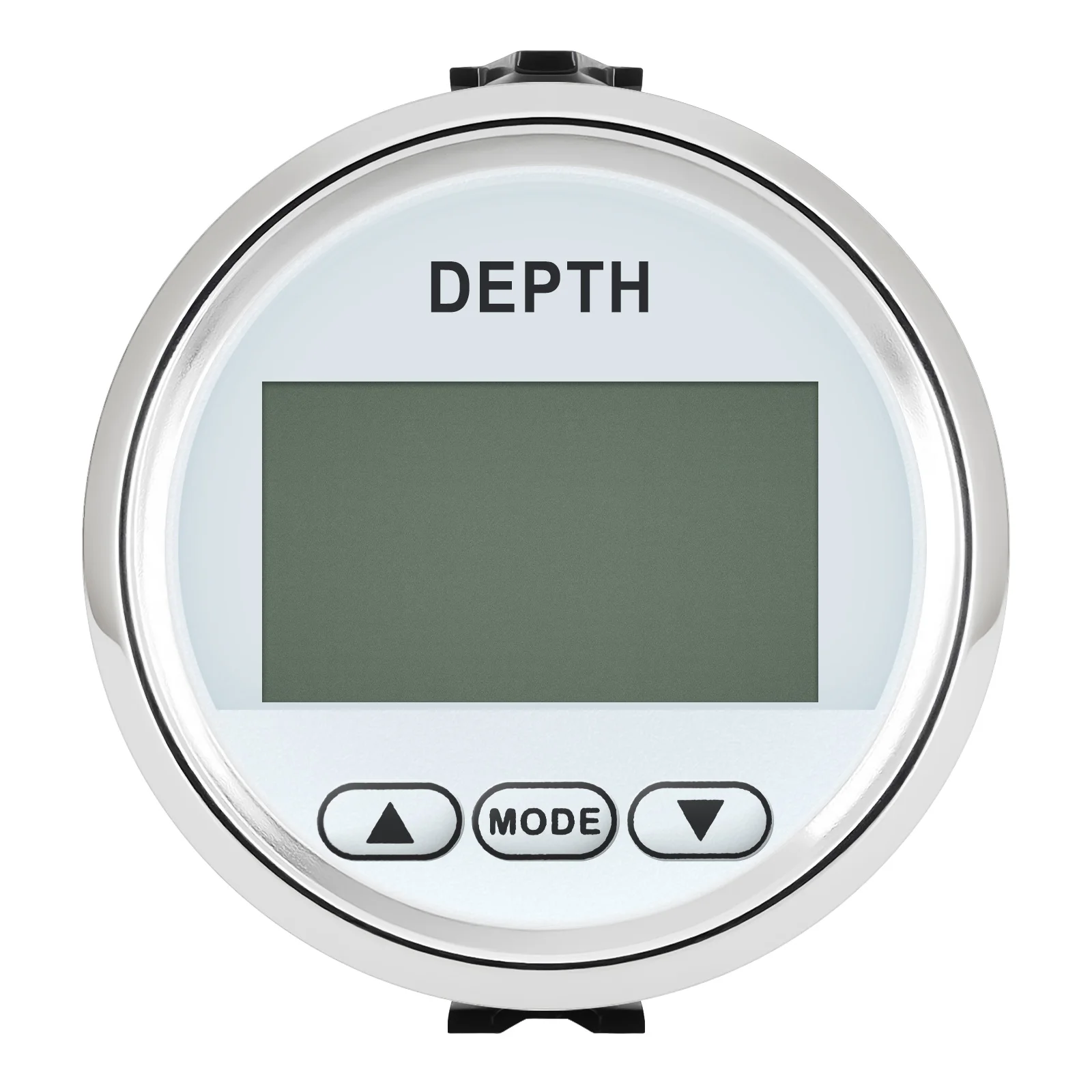

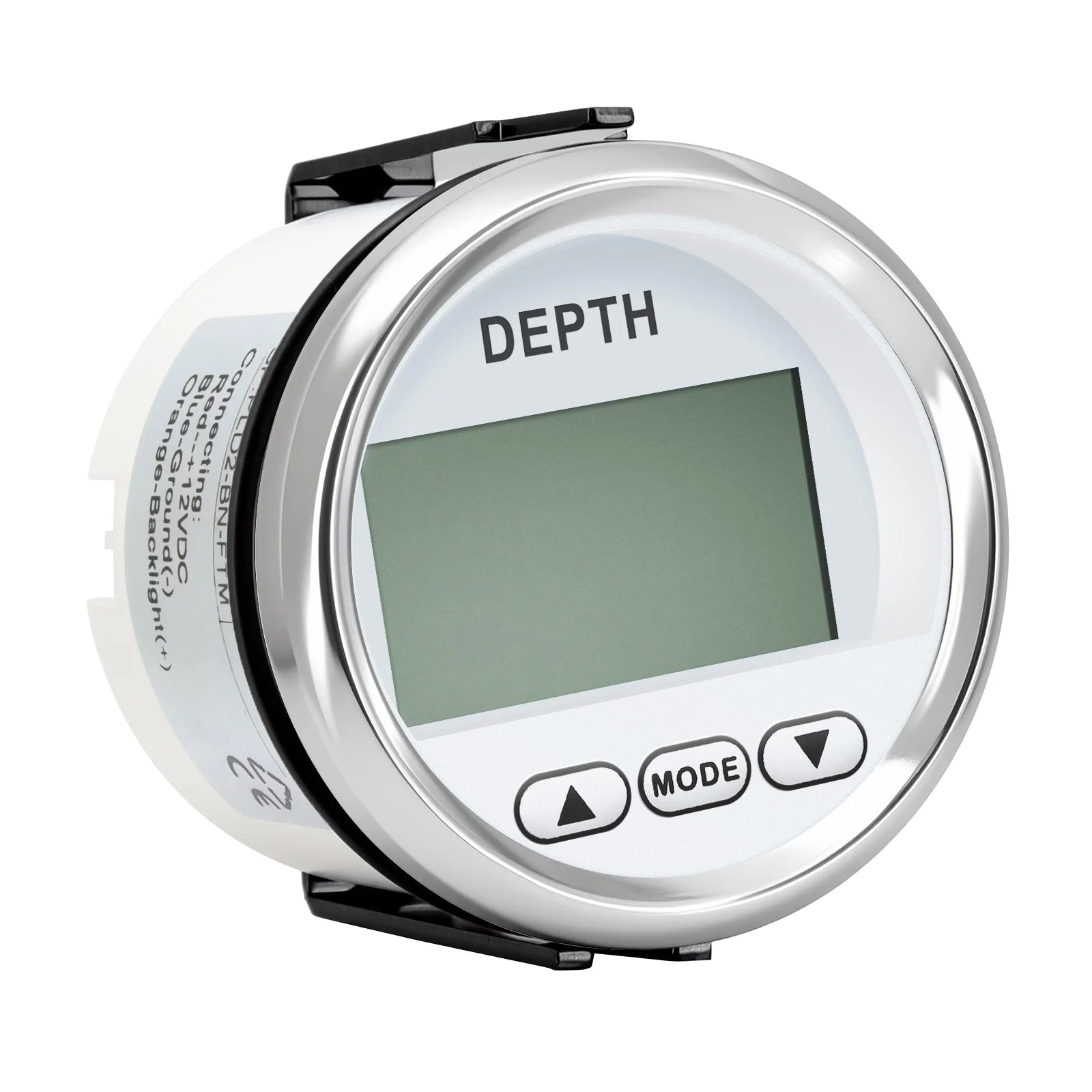

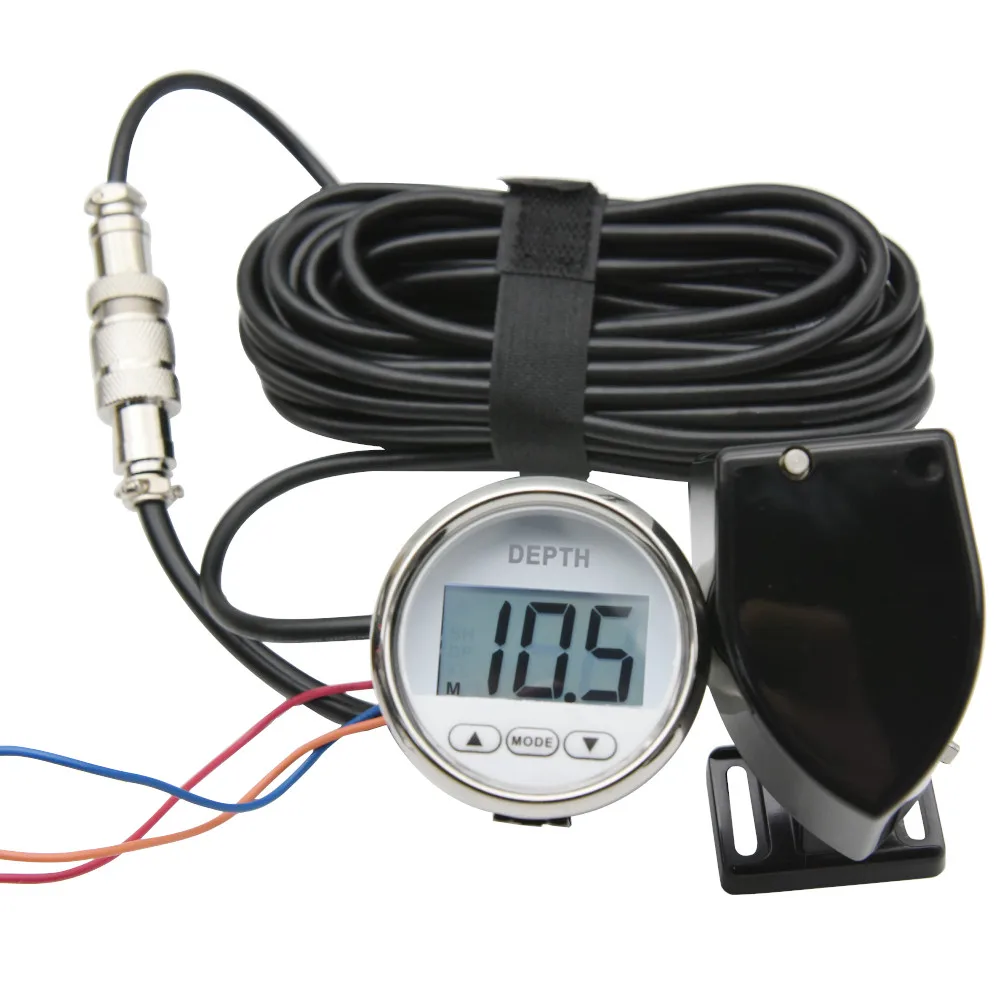

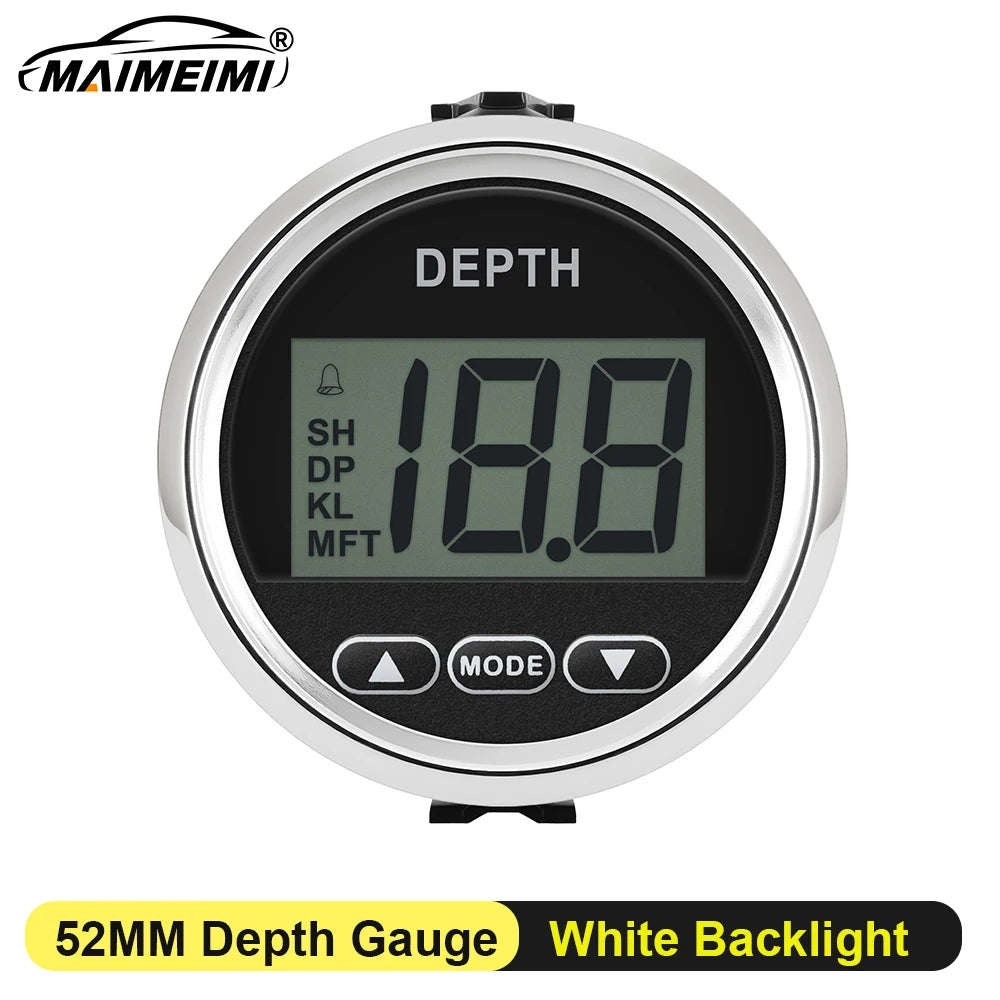

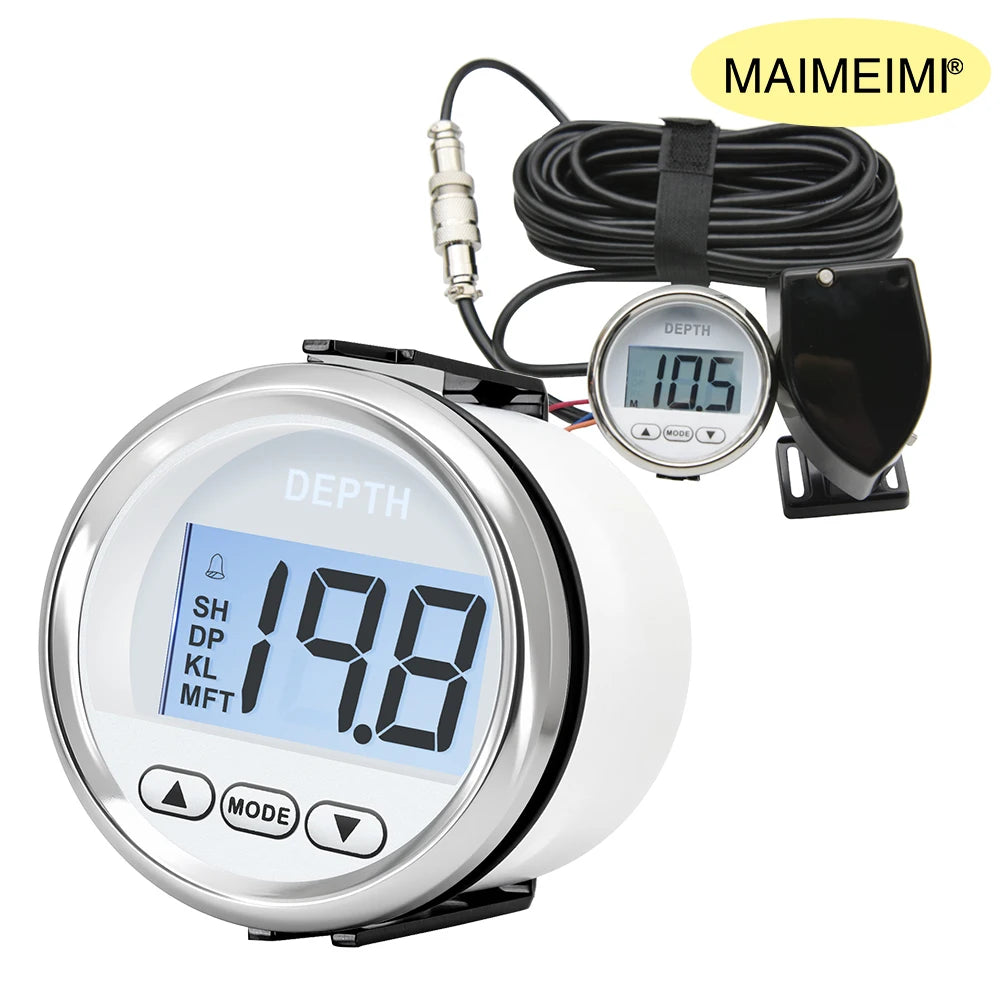

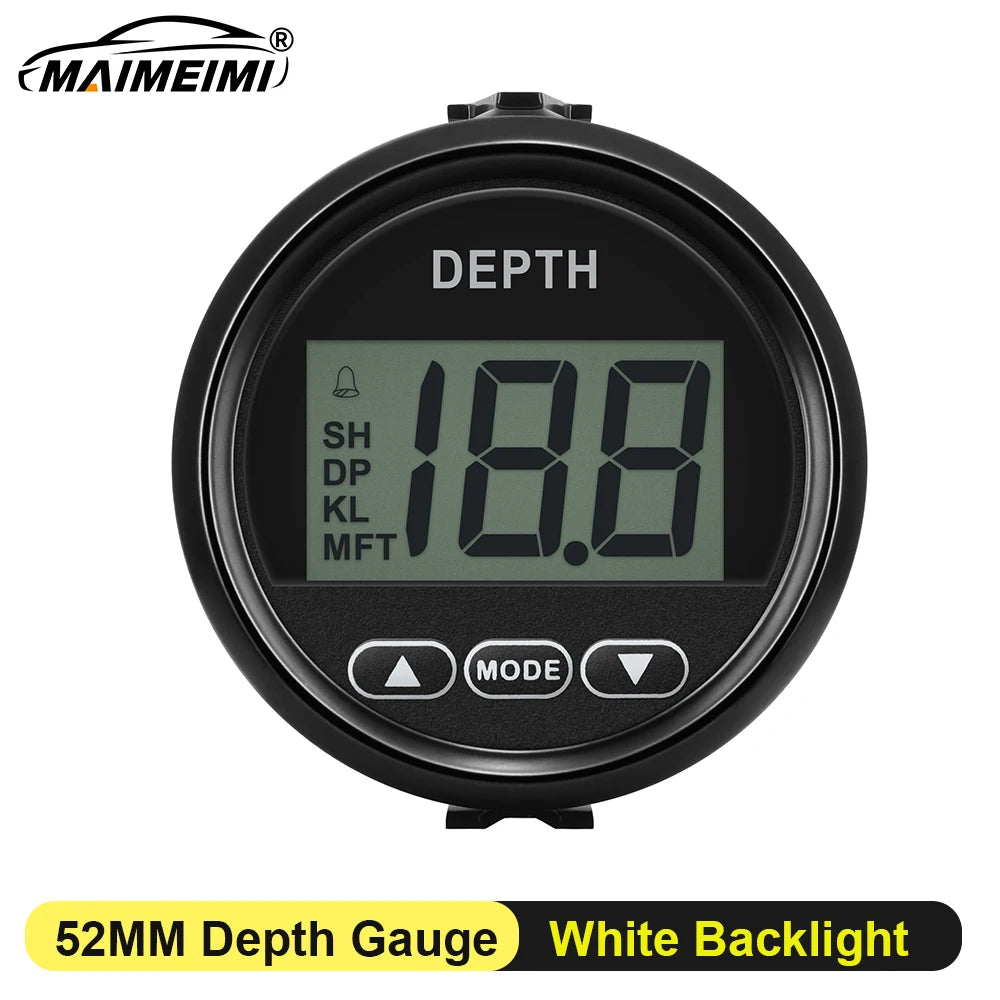

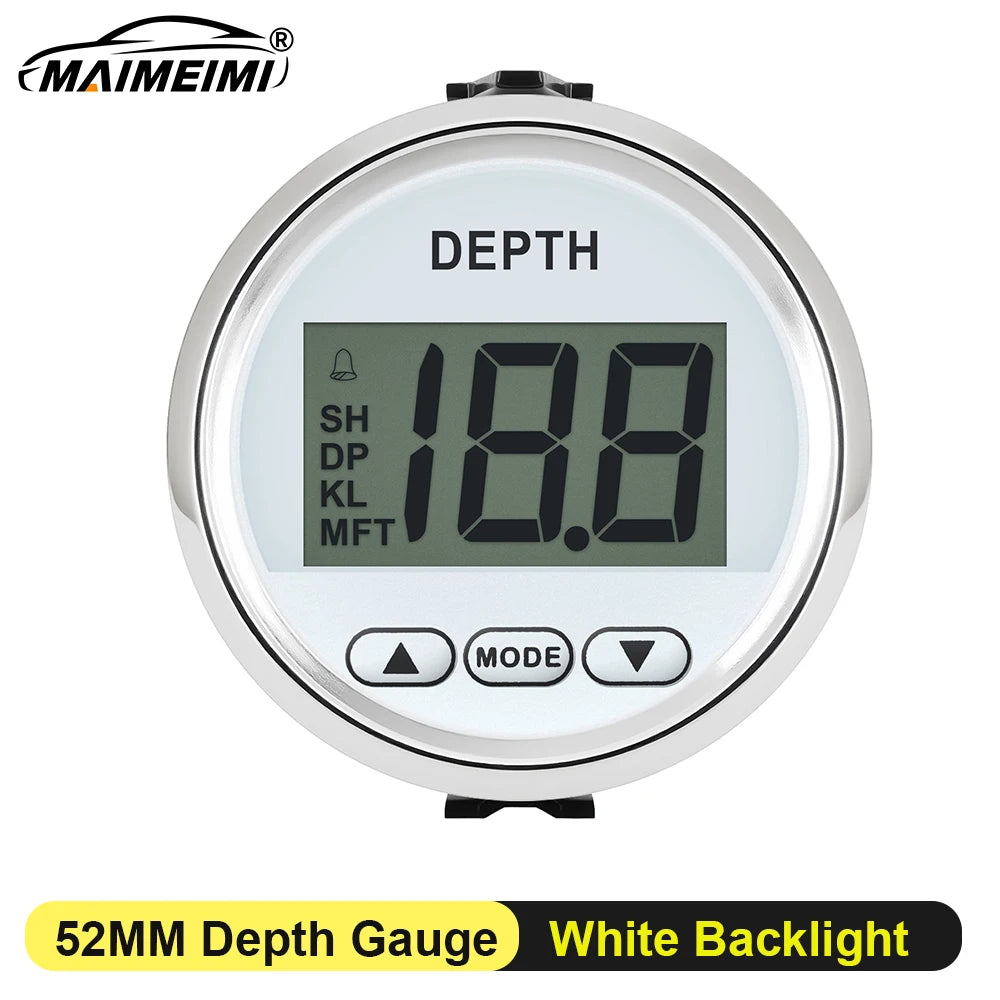

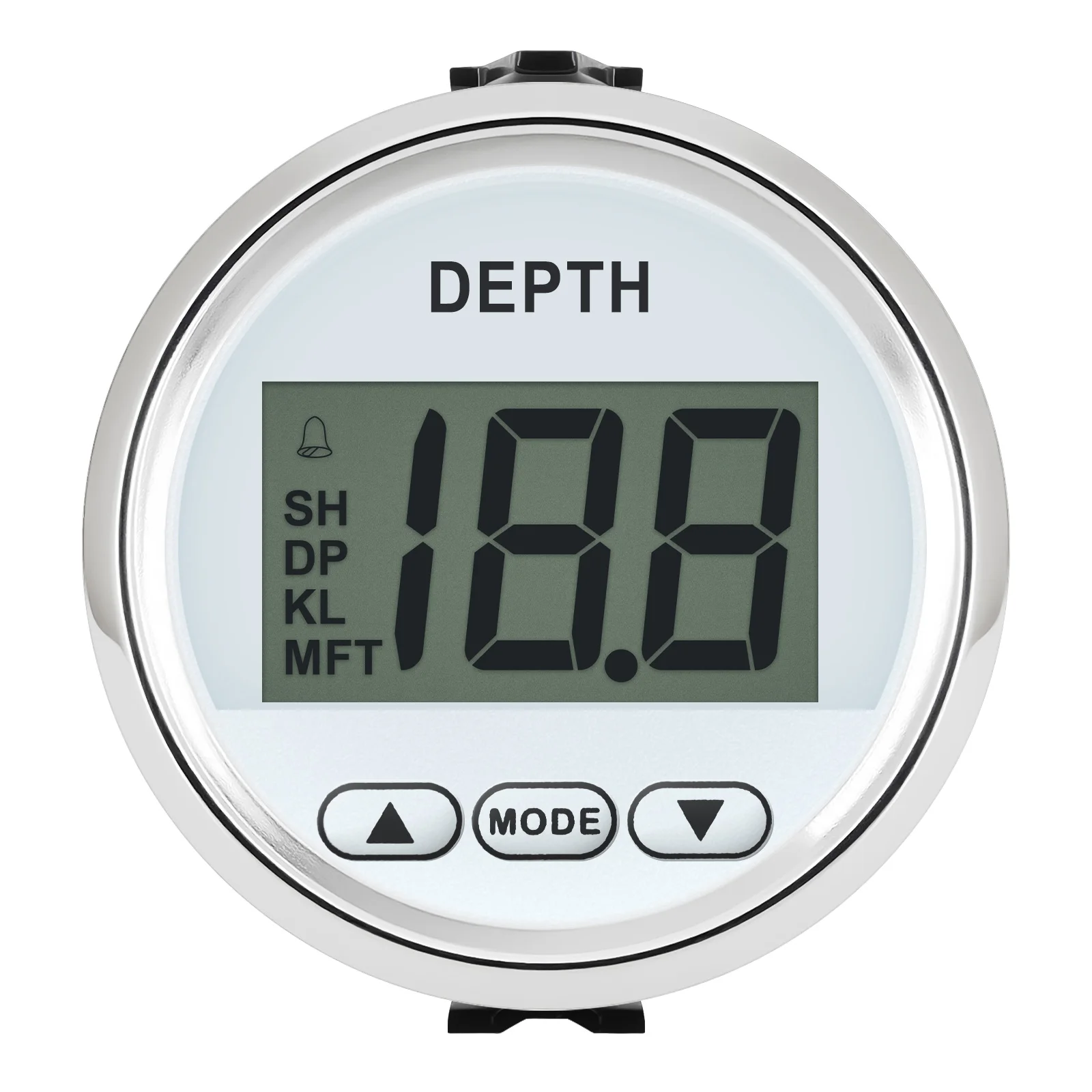

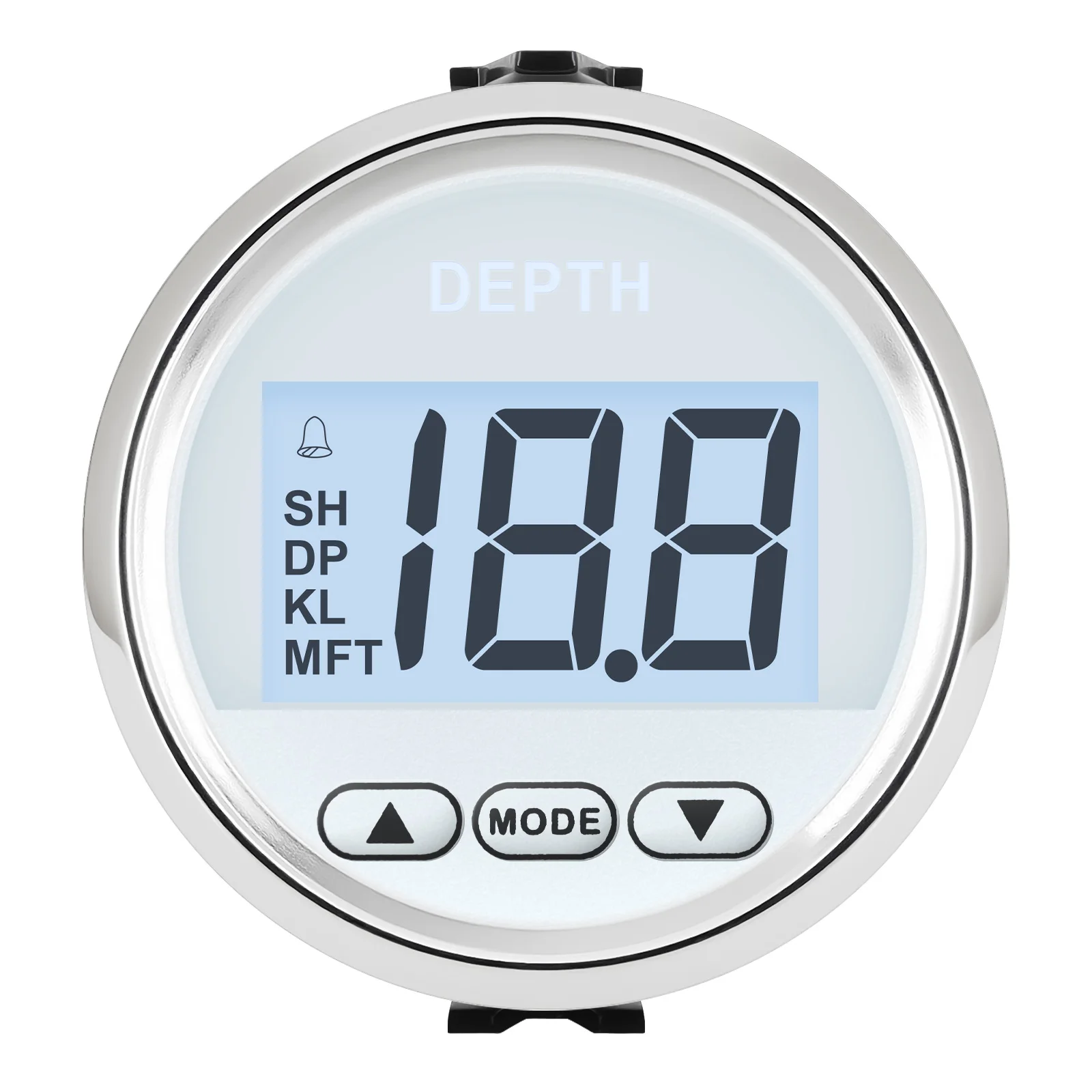

52MM Marine Digital Depth Gauge Indicator Waterproof for for Yachts Fishing Boats Pulse Signal White Backlight Depth Transducer

Feature :

Operation:

A. This device is work with 12V system only, to indicate the depth appointed.
Normally, the buzzer beeps once when it was connected
correctly then turn on the power
B. Keypad"Mode":
Quick press the keypad"Mode" to switch SH/DP/KL/ UN
Hold the keypad"Mode" to turn on/off the monitor
Short press the keypad“▲"“▼"to set the value required
Hold the keypad“▲”“▼"to keep the digital increasing/decreasing
fluently.
Parameter:
SH: (Low level alarm)
Range : 0-0.6-19.9, when the level no more than value(SH) appointed,the
symbol flickering and the buzzer beeps all the time.
If SH=0 -->No alarm
Alarm setting range :0.6-19.9

DP:(Depth alarm):

Range:
1). Unit“M”: 0-99
2). Unit“FT":0-199
3). Unit“F”: 0-49
If the level exceed the a ppointed value , the buzzer will beeps twice
Keel offset (KL):
Range:
1). Unit“M”: 0-6.0
2). Unit“FT":0-19.9
3). Unit“F”:0-3.3

Technical Datas:

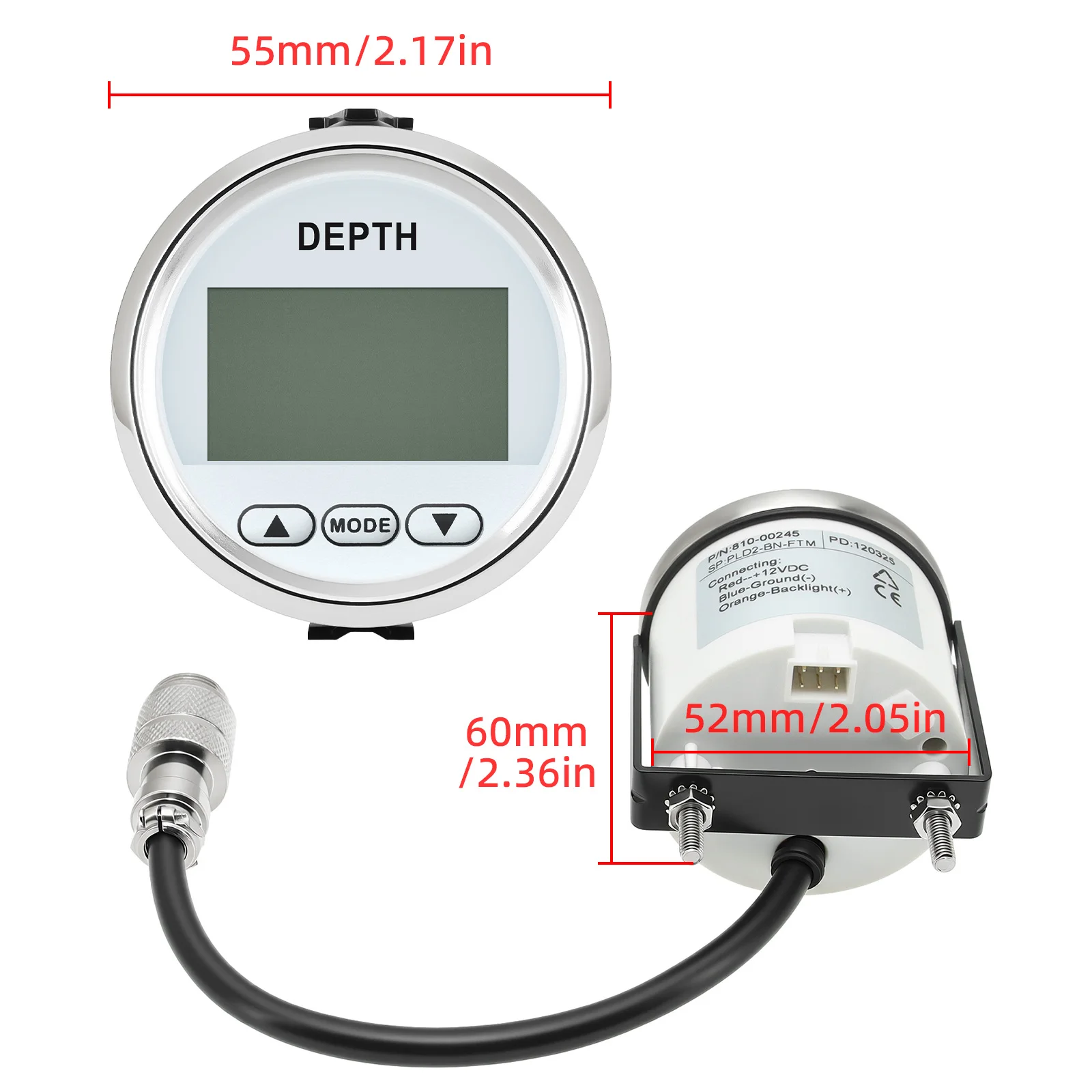

* Name:52mm Depth Gauge meter
* Backlight:White
* Diameter:52mm
* Operating Voltage : 9~32VDC
* Operating current :≤60mA;
* Operating temperature : -30~+75°C
* Storage temperature : -40~+85°C

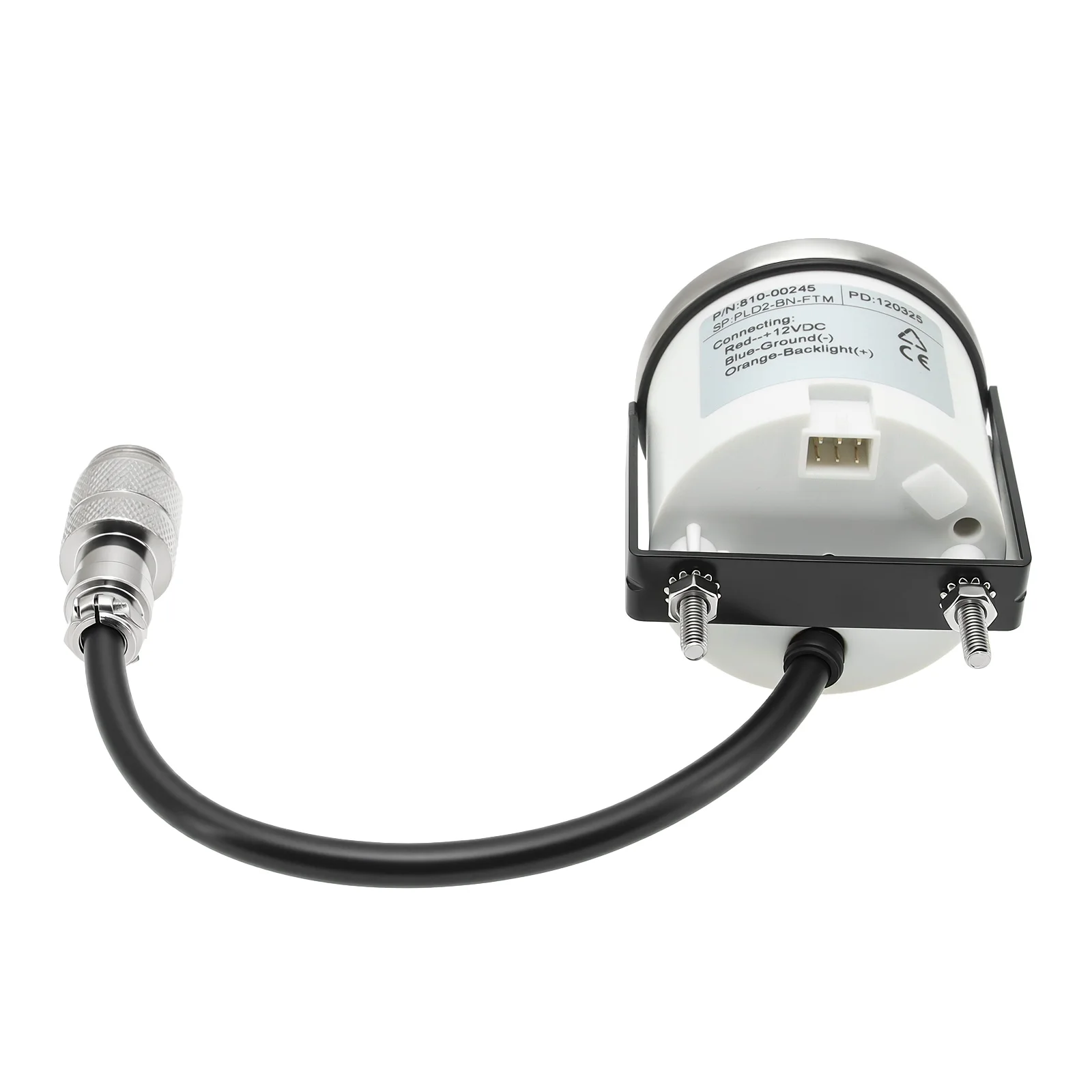

Connection:

1.Red--+12VDC
2.NC
3.Orange--Backlight(+)
4.Blue--Ground(-)

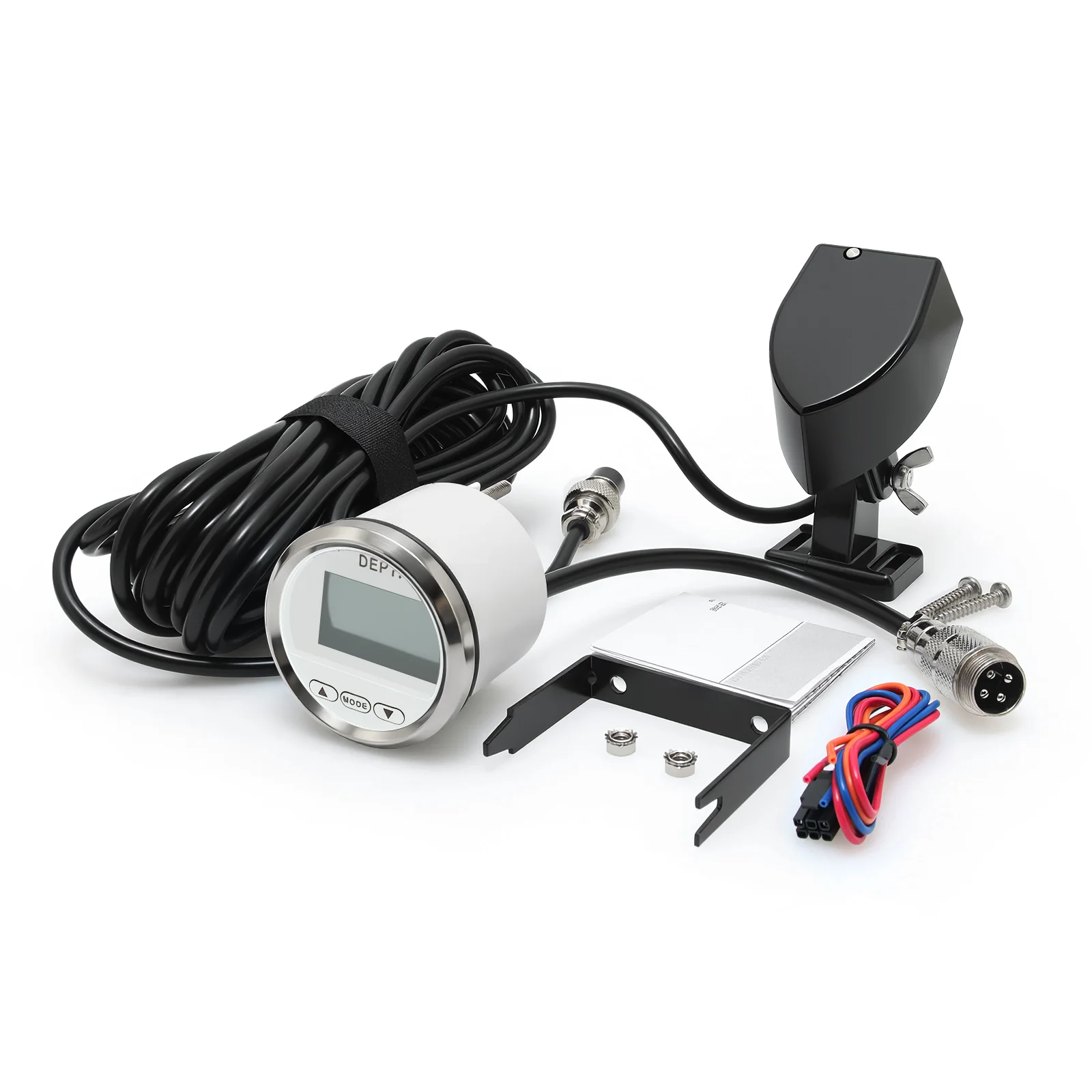

Package Included:

1x Depth Gauge
1x Multi-plug socket
1x Installation Instruction

Note: This product is customized
