SPECIFICATIONS

Brand Name: kbxstart

Choice: yes

High-concerned chemical: None

Model 1: 220V 5500W

Model 2: 220V 3000W

Origin: Mainland China

Power Source: AC

Voltage: 220V

Explanation on purchasing options

1.This product has two power versions: 220V 5500W and 220V 3000W. Please choose one of them when purchasing.

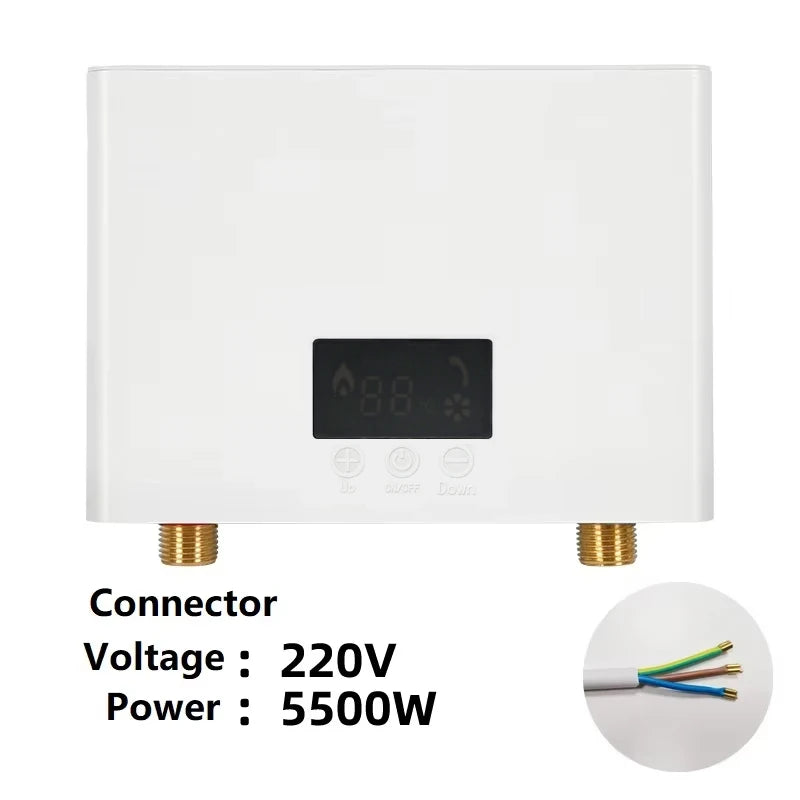

2.The "white" option represents that the product has a voltage of 220V and a power of 5500W. High power appliances do not come with plugs and require connection to circuit breakers or air switches for use

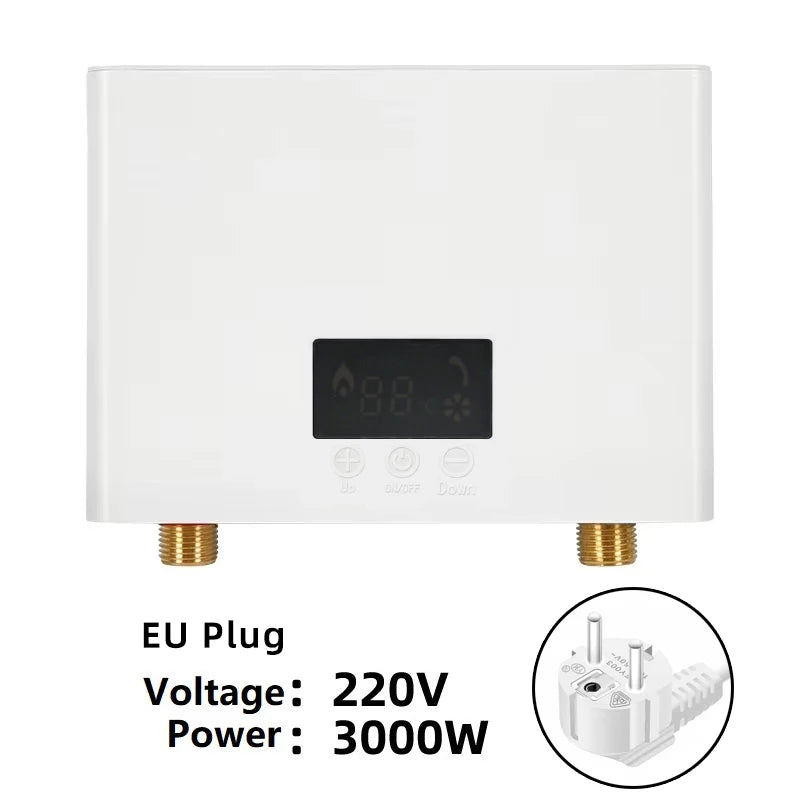

3.The "220V-3000W-EU plug" option represents a product with 220V voltage and 3000W power, equipped with an EU plug that can be connected to a socket for use

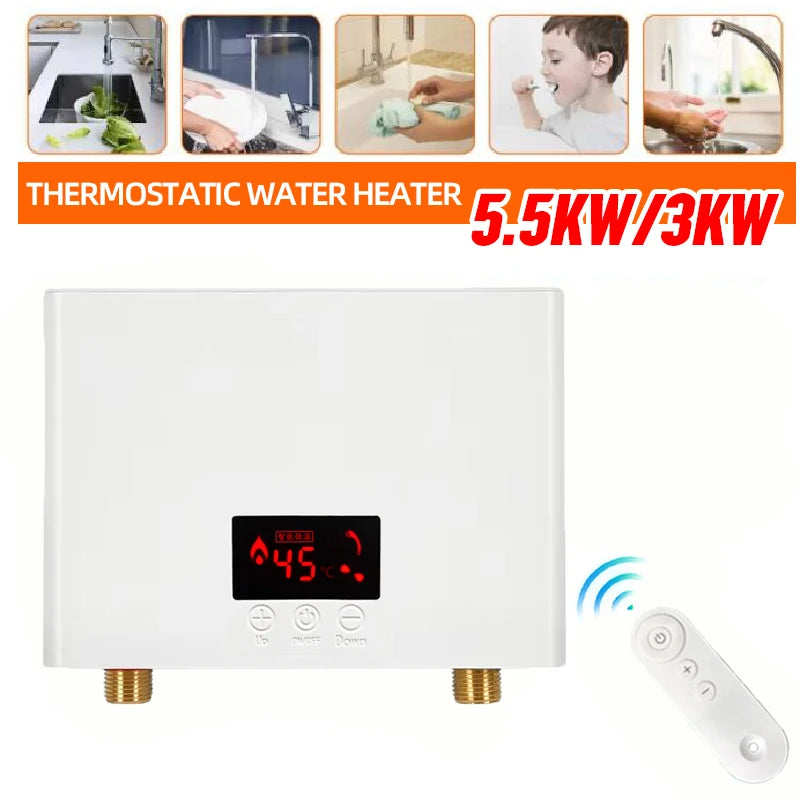

220V 5500W/3000W Instant Water Heater Wall-Mounted Electric Heaters for Bathroom Hot Water Shower and Home Kitchen Heating

Please ensure that the water flow rate is kept within a reasonable range:

1. Instant water heaters do not have a built-in tank; their heating temperature is influenced by the inlet water temperature, water flow rate and power output. As the inlet water temperature and power output are fixed, please refer to the temperature test table and ensure the water flow rate is kept within a reasonable range; otherwise, the desired temperature cannot be achieved.

2. If the temperature fails to reach the set value, this indicates that the water flow rate exceeds the unit’s capacity. Please reduce the water flow rate by adjusting the tap or shower head to keep it within a reasonable range:

3000W model: Maximum water flow rate in summer is 2.1 L/min; maximum water flow rate in winter is 1.0 L/min

5500W model: Maximum water flow rate in summer is 4.3 L/min; maximum water flow rate in winter is 1.8 L/min

Feature:

1.Constant Temperature:This tankless water heater features a 5500W/3000W rapid constant-temperature heating system. This tankless electric water heater delivers instant hot water without preheating, providing hot water within 3 seconds. Its instantaneous, stable, and continuous hot water flow makes it the perfect companion for sinks, offering a comfortable and relaxing experience. A 220V power supply is recommended to achieve the water heater's maximum heating capacity.

2.Safety Protection:This water heater incorporates an integrated cast aluminum heating design, completely separating the electrical and fluid systems to prevent leaks and pipe corrosion while significantly enhancing safety. With robust features including dual electrical walls, dry-burn protection, overpressure protection, ground fault protection, thermostat and scald prevention, IPX4 water resistance, and overheat protection, you can confidently provide a secure water heater tailored to your needs.

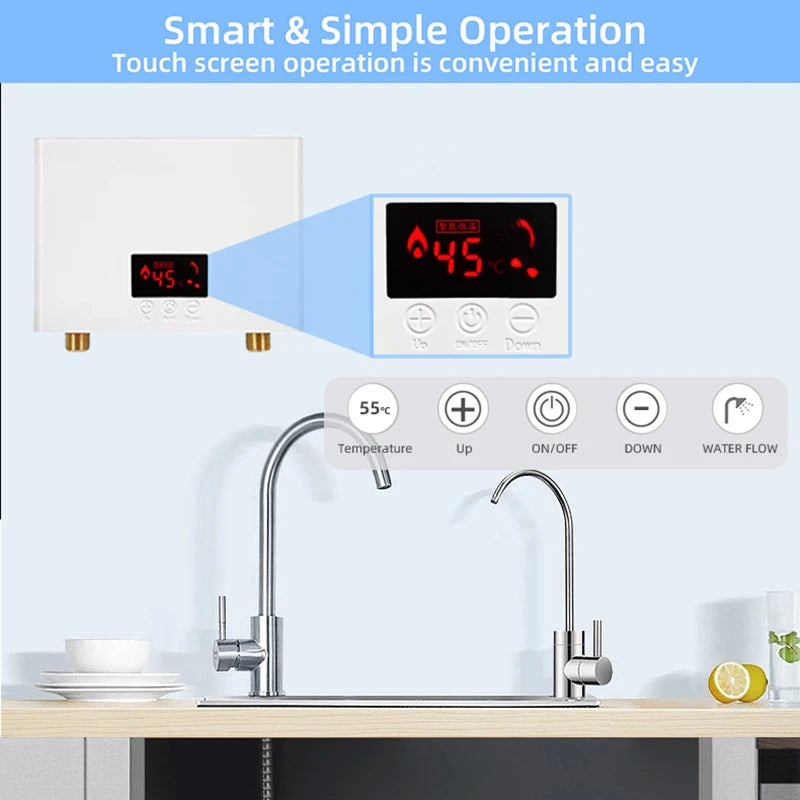

3.Adjustable Temperature:The water heater's touchscreen interface ensures effortless operation. Maintain a constant temperature or adjust power output as needed. Customizable temperature range from 30°C to 55°C enables energy-efficient, continuous heating without repeated cycling.

4.Easy Installation:The compact instant water heater design is smaller than a small suitcase. Installation is unrestricted. Mount it 360 degrees in any tight space like bathroom sinks, kitchens, or laundry rooms. Note: This unit is not suitable for showers or RVs. Additionally, the fully electrical and water-flow zone heater can be installed vertically or inverted to fit your needs.

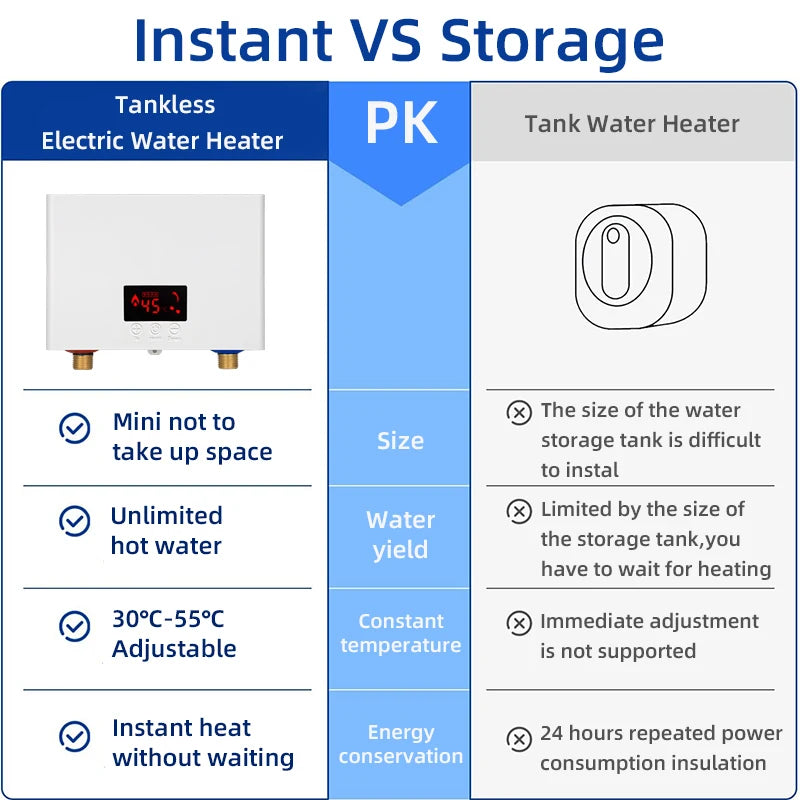

5.Energy-Efficient & Space-Saving:The wall-mounted design ensures powerful performance while significantly freeing up valuable home space. The instant electric water heater boasts 99% thermal efficiency. It heats only the water needed during use, greatly conserving energy while delivering instant hot water. Unlike storage water heaters, instant heaters consume no energy to maintain water temperature when not in use.

Specifications:

Model: FYL-C02-55,FYL-C02-30

Color: White

Voltage and power: 220V 5500W,220V 3000W

Frequency: 50HZ

Temperature：30-55 ℃

Applicable water pressure: 0.04-1.2Mpa

Heating method: cast aluminum heater

Control method: touch + remote control

Waterproof: IPX4

Size: 210 * 150 * 55 mm/8.3*5.9*2.2inch

Weight: 1.8KG

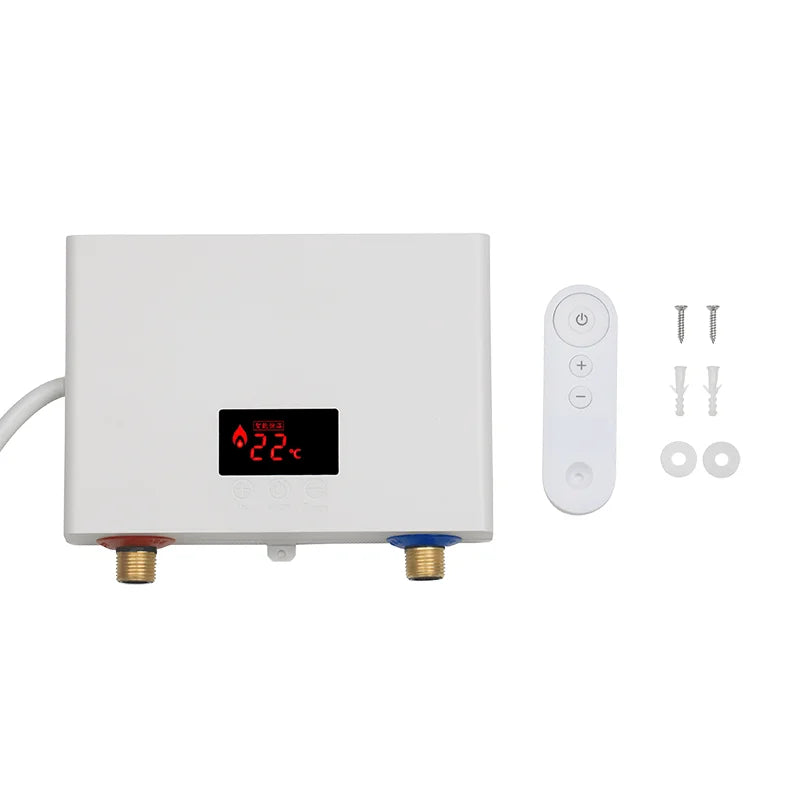

Package Included:

1* thermostatic water heater

1* remote controlle

2*Install components

1*Instruction Manual

Note:

●Press and hold the shutdown button for 2 seconds to turn it off

●The first installation must first connect water and power again

●No freezing power on below zero

●This product must be installed vertically.

●Before using the machine, first turn the water on and then power on. Avoid damage.

Installation method:
