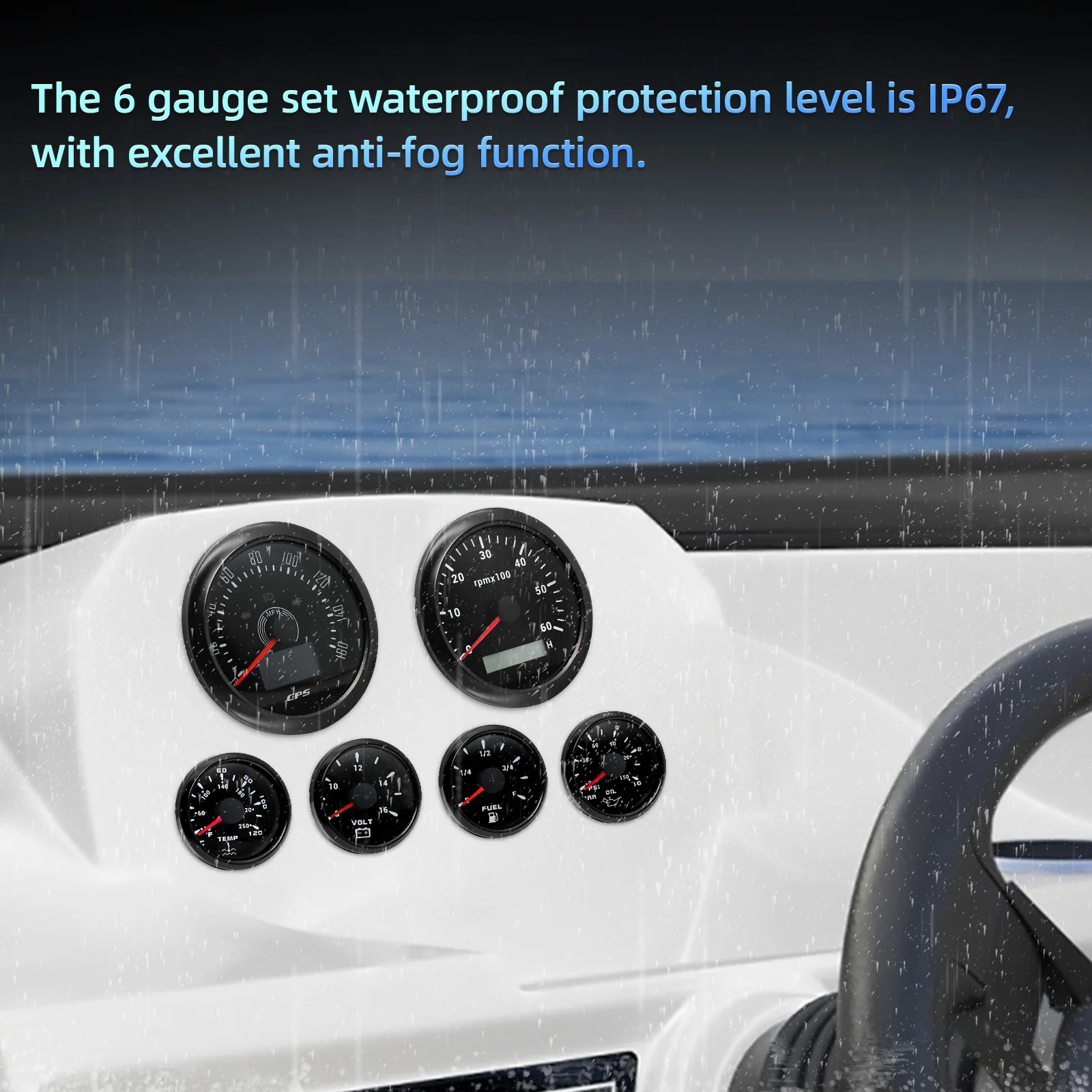

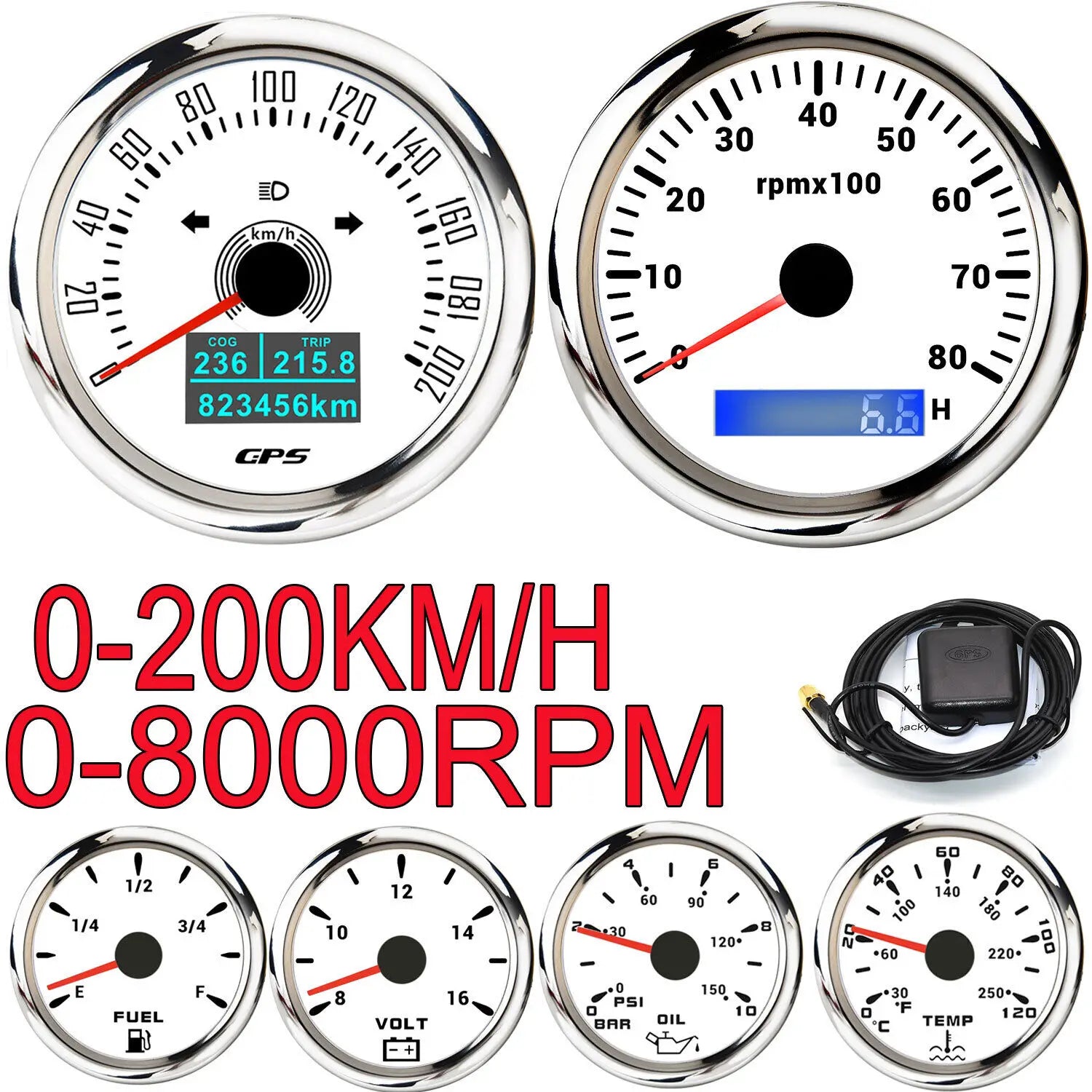

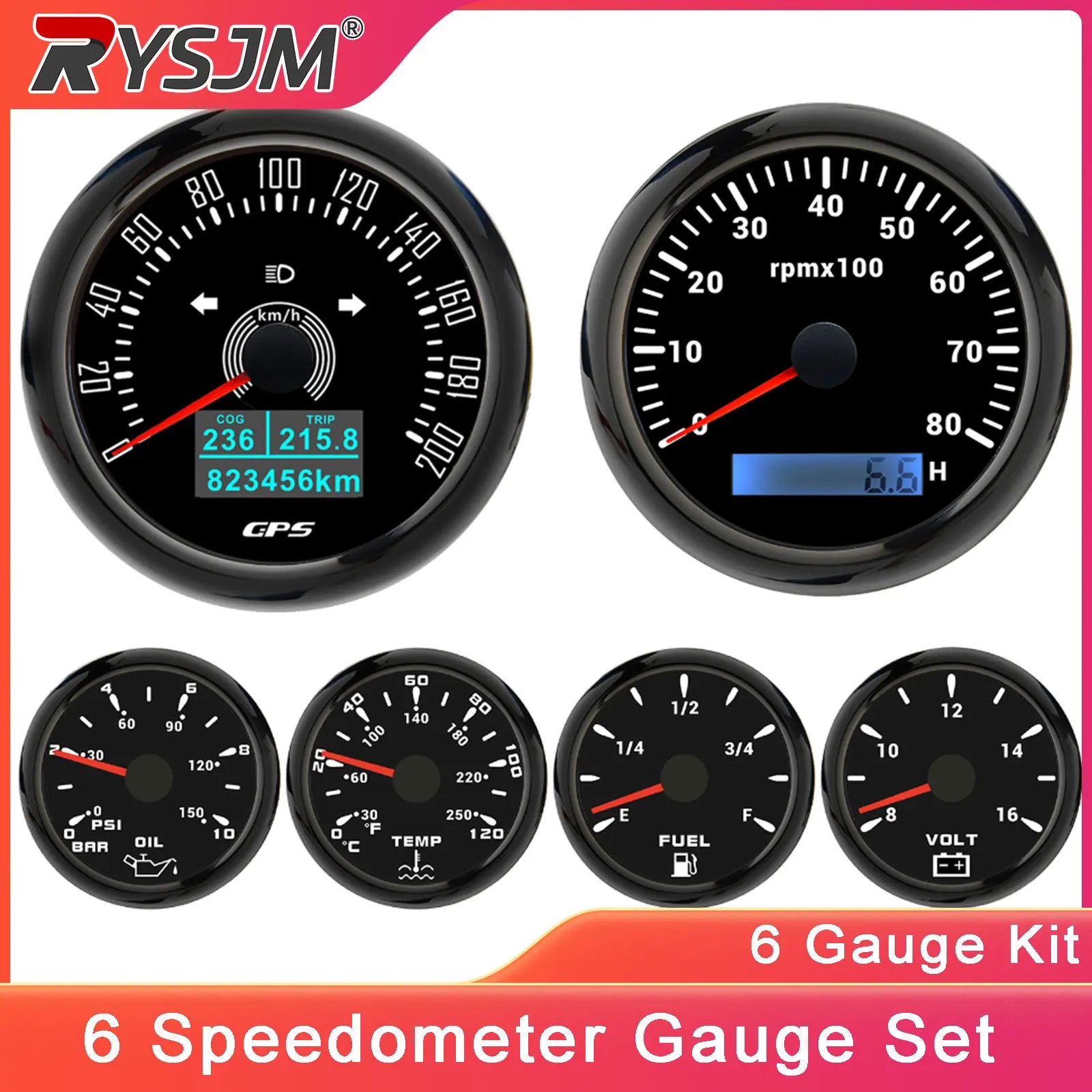

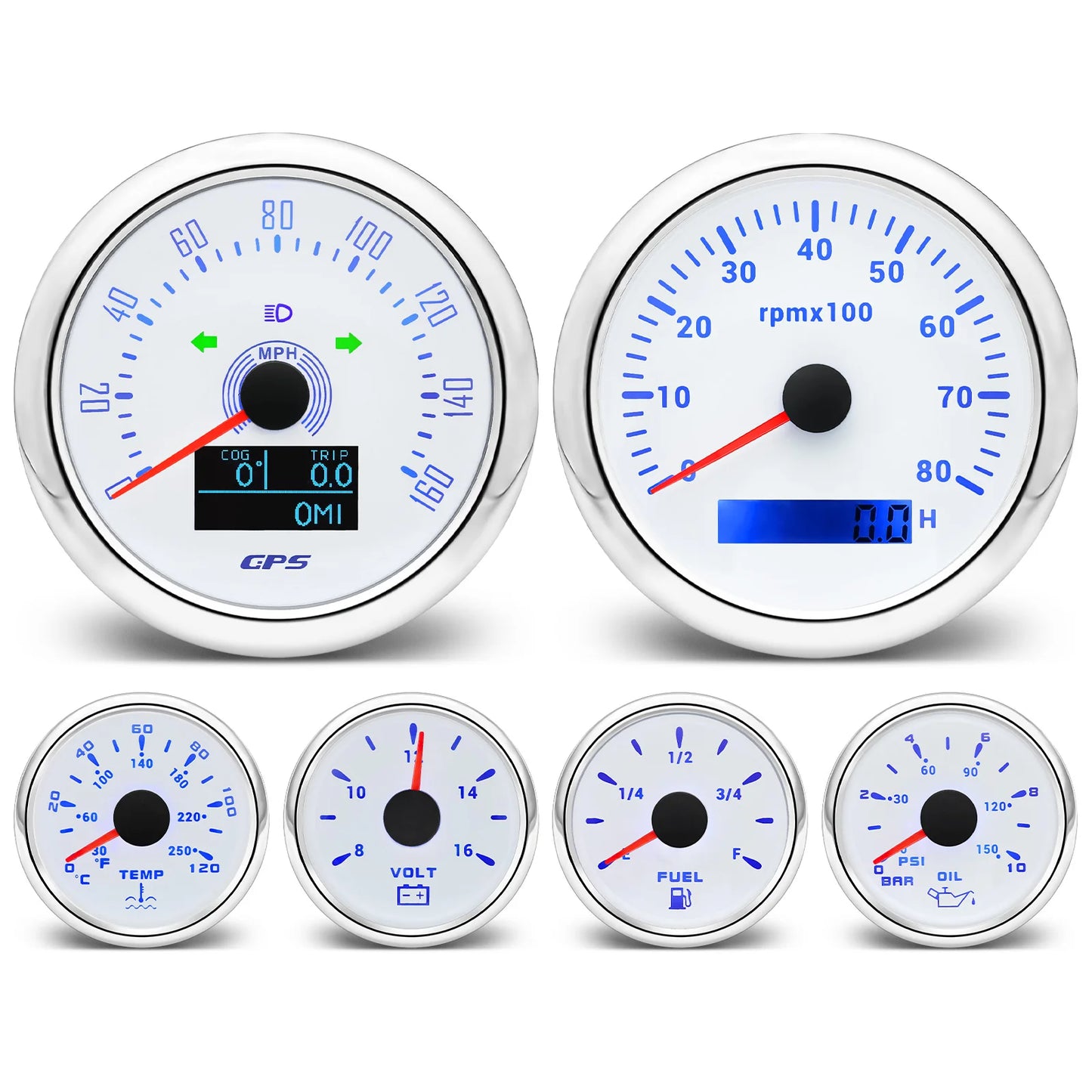

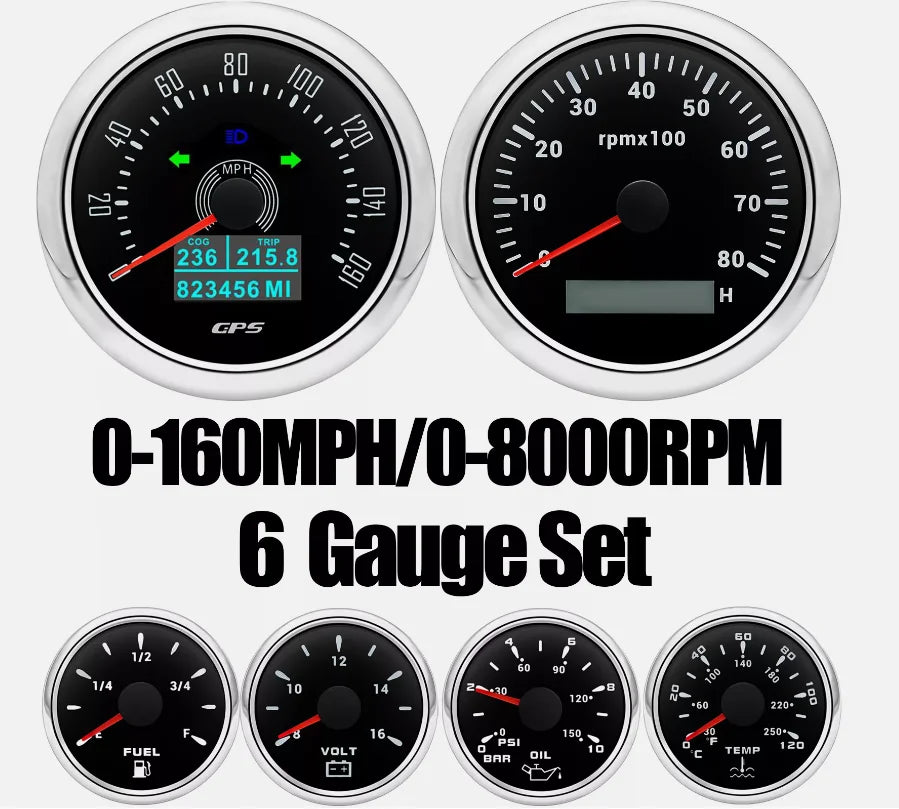

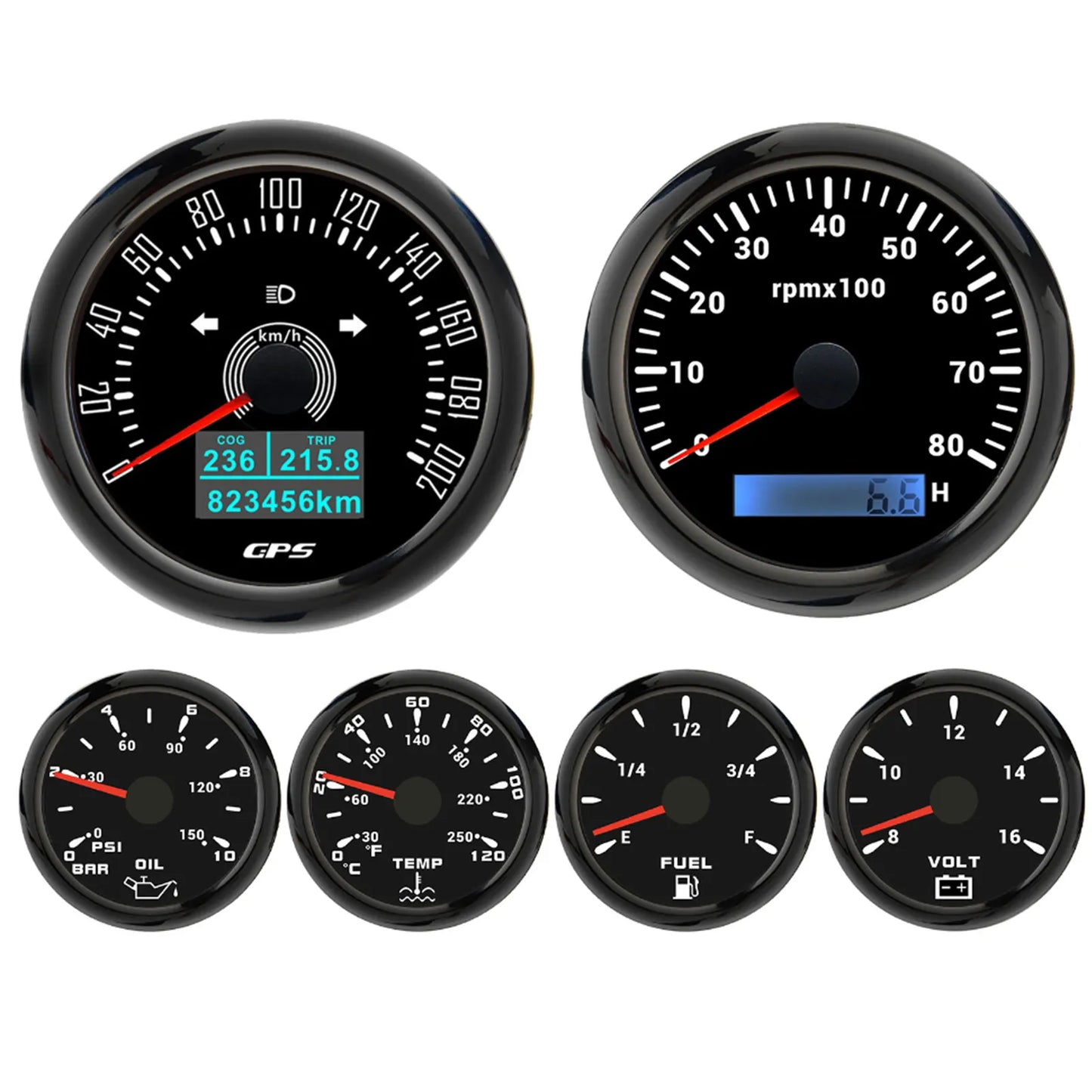

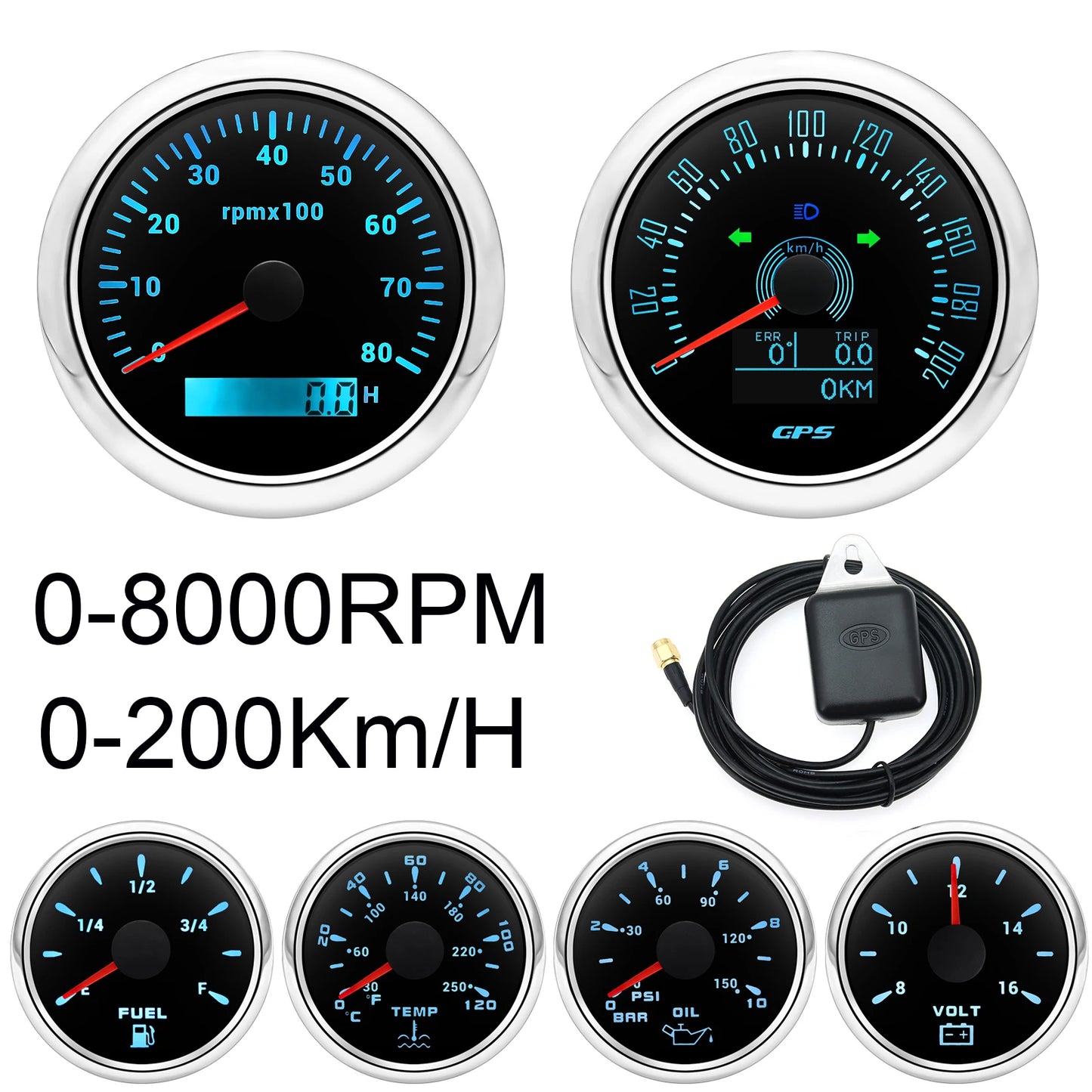

6 Gauge Set:

85mm:
(gps speedometer, tachometer)

52mm:
(fuel level gauge, water temp. gauge)
(oil pressure gauge, voltmeter)

Product Features

-The signal comes directly from the satellite signal receiver(GPS Antenna), don't need other speed sensor.

-Be suitable for all kinds of tacho RPM sensors, and display the rotation speed of the engine.

-Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the oil tank.

-Be suitable for all kinds of water temperature sensors,and display the temperature of the water tank.

-Be suitable for all kinds of pressure sensors, and display the value of oil pressure.

-The gauge has the advantages of high precision, quick location confirmation and short start up time.

Technical Data:

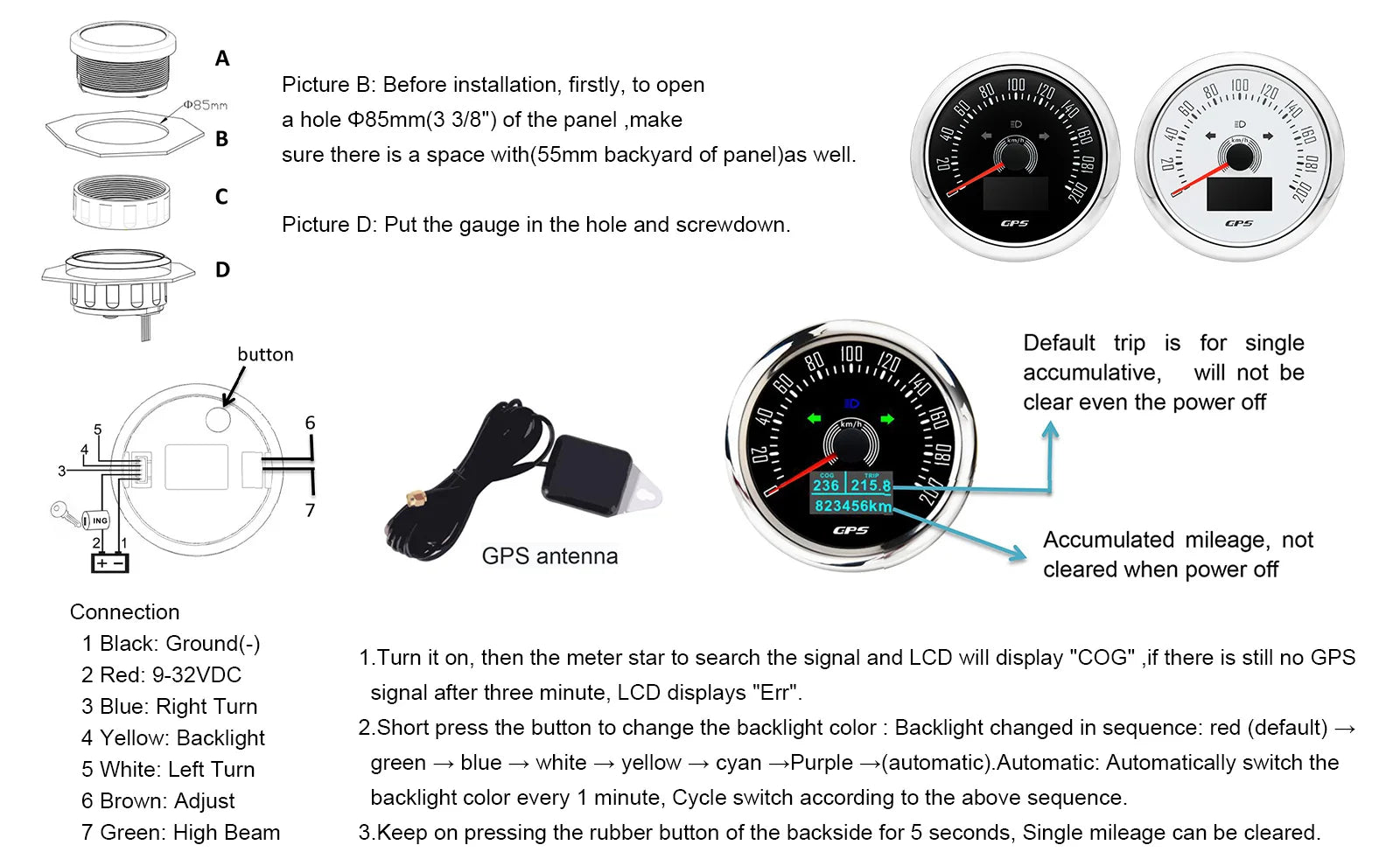

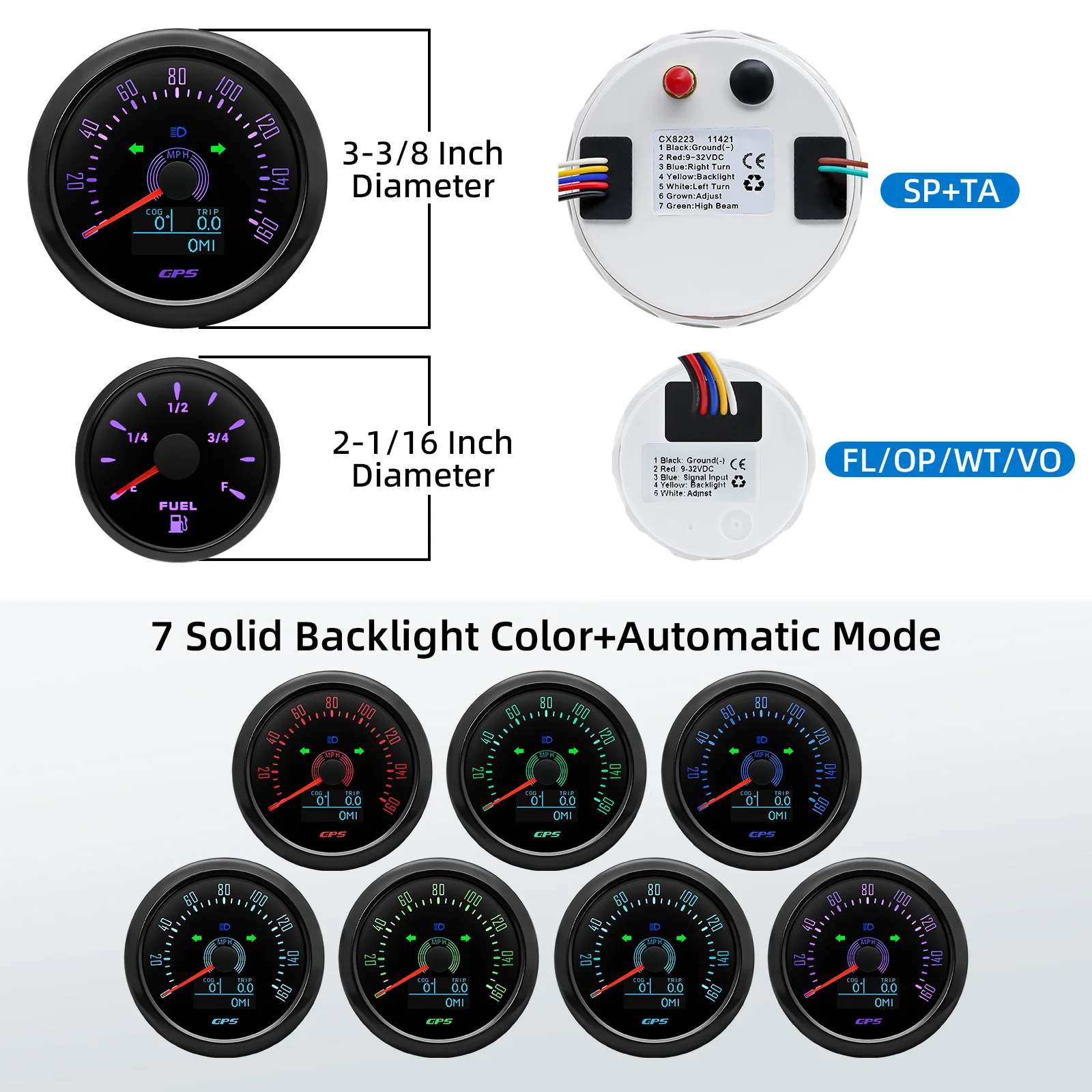

-Fixing dimension: 85mm(3-3/8"):

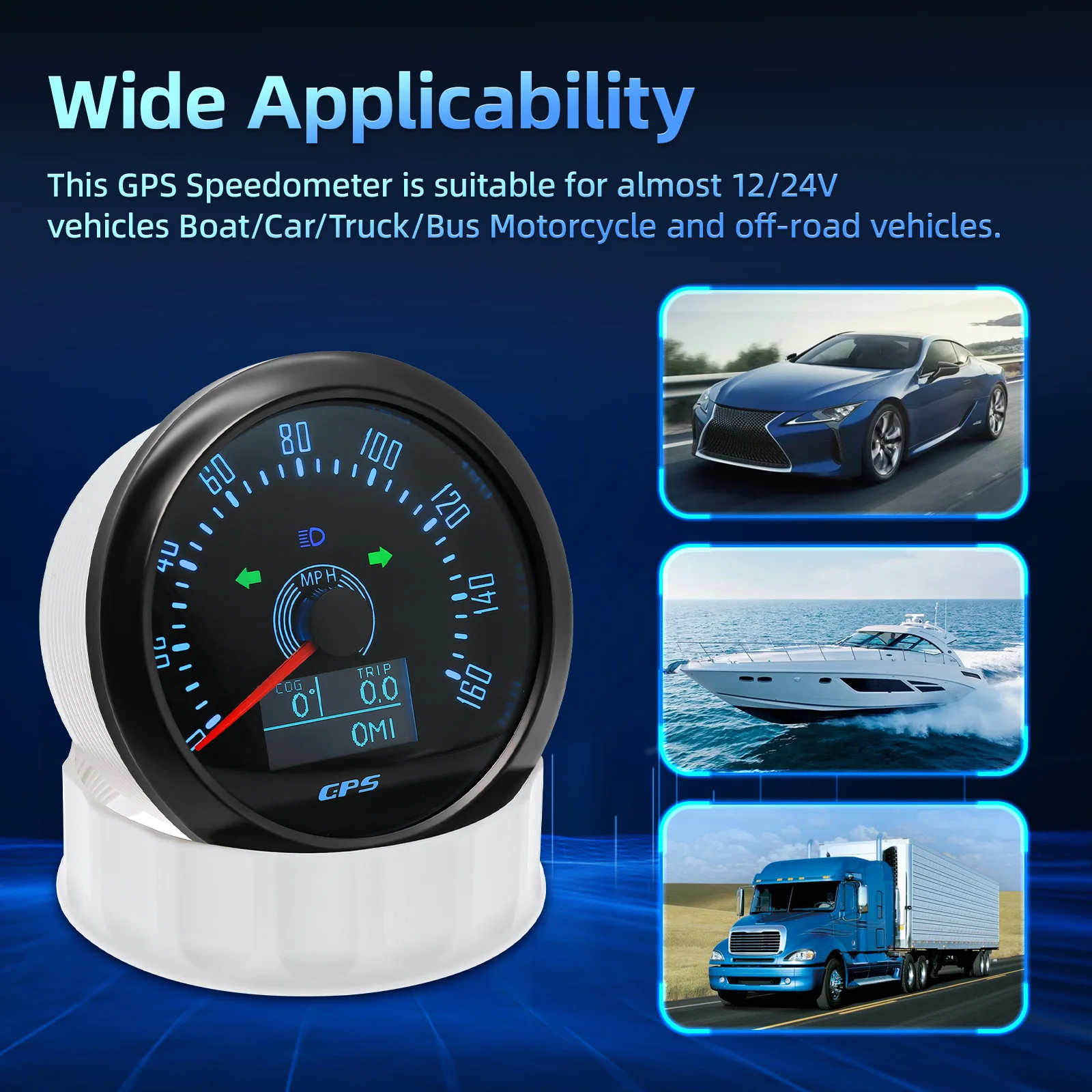

GPS Speedometer, Tachometer

-Fixing dimension: 52mm(2"):
Fuel Level Gauge, Water Temperature Gauge, Oil Pressure Gauge, Voltmeter

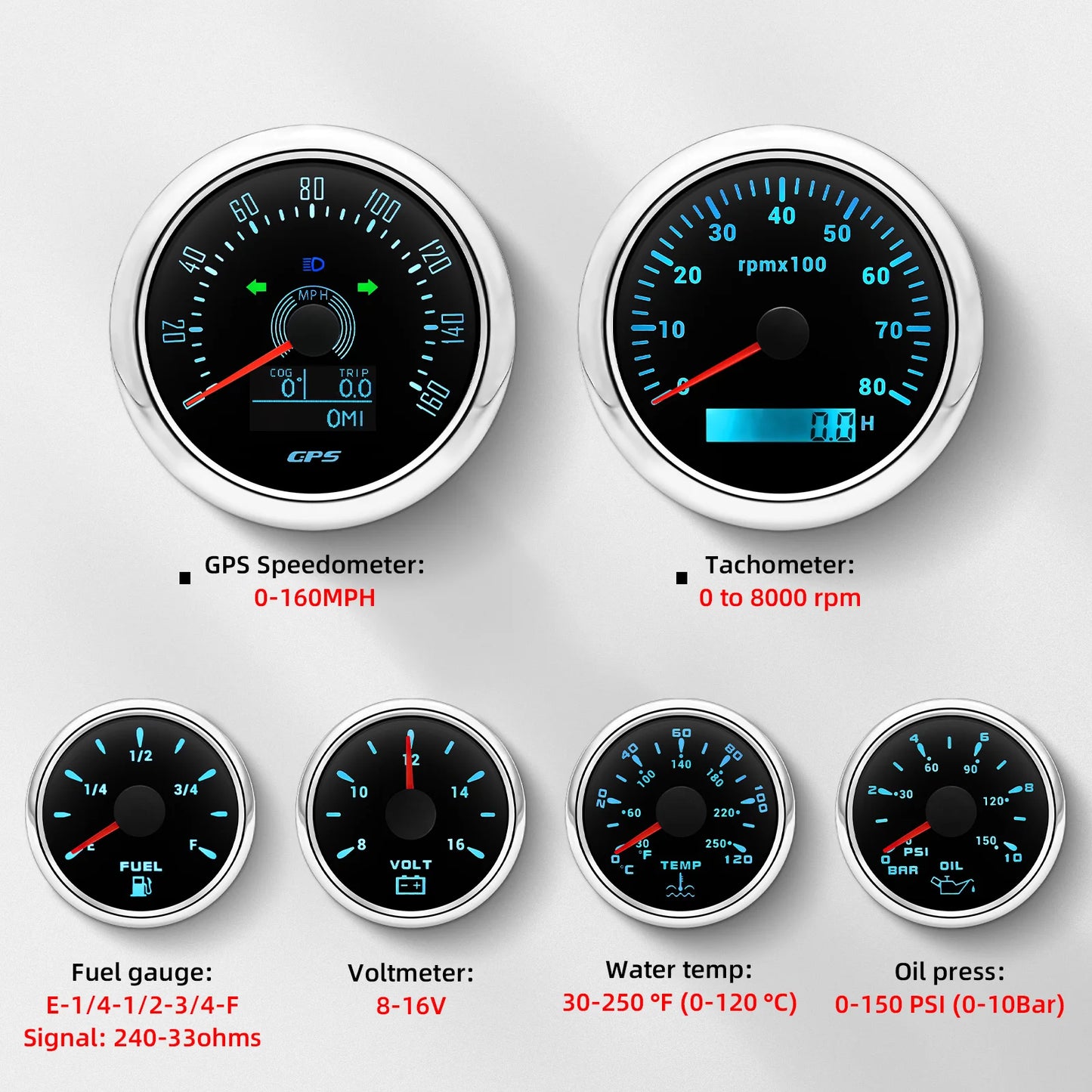

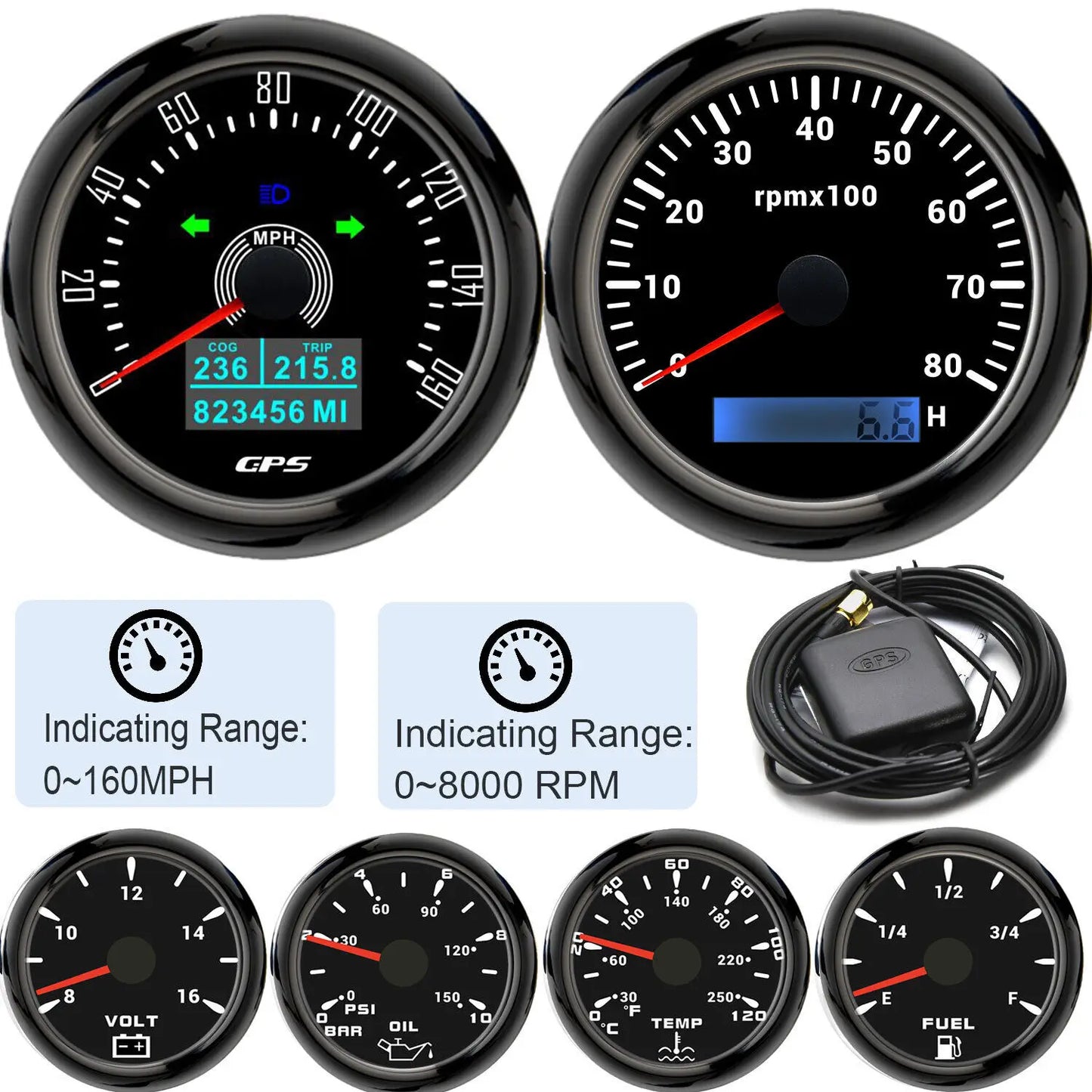

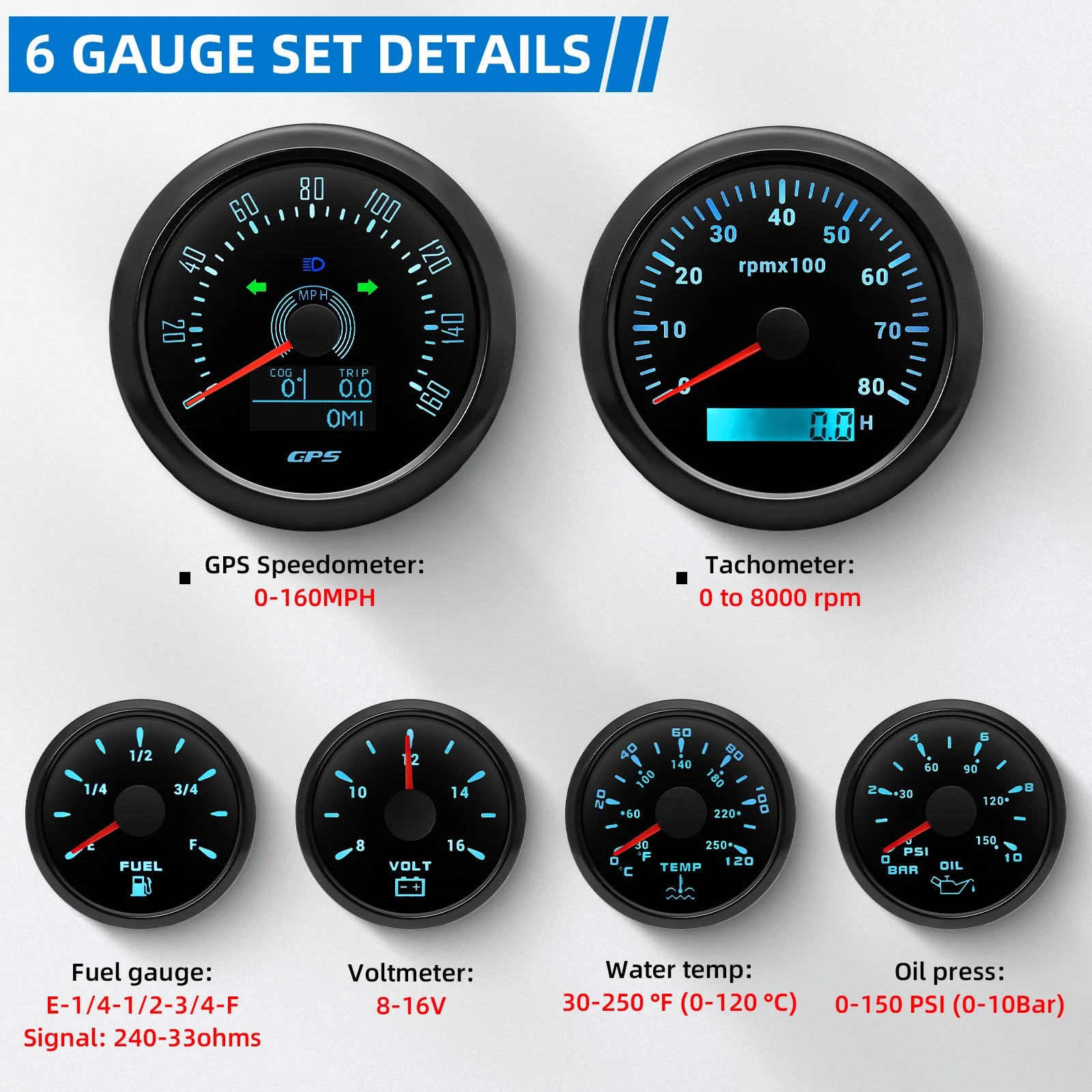

-Indicating Range:

GPS Speedometer: 0-200KM/H 0-160MPH

Tachometer: 0-8000RPM

Fuel Level Gauge:E-1/2-F

Water Temperature Gauge: 0-120°C

Oil Pressure Gauge: 0-10Bar 0-150Psi

Voltmeter: 8-16V

-Working Voltage: 12VDC

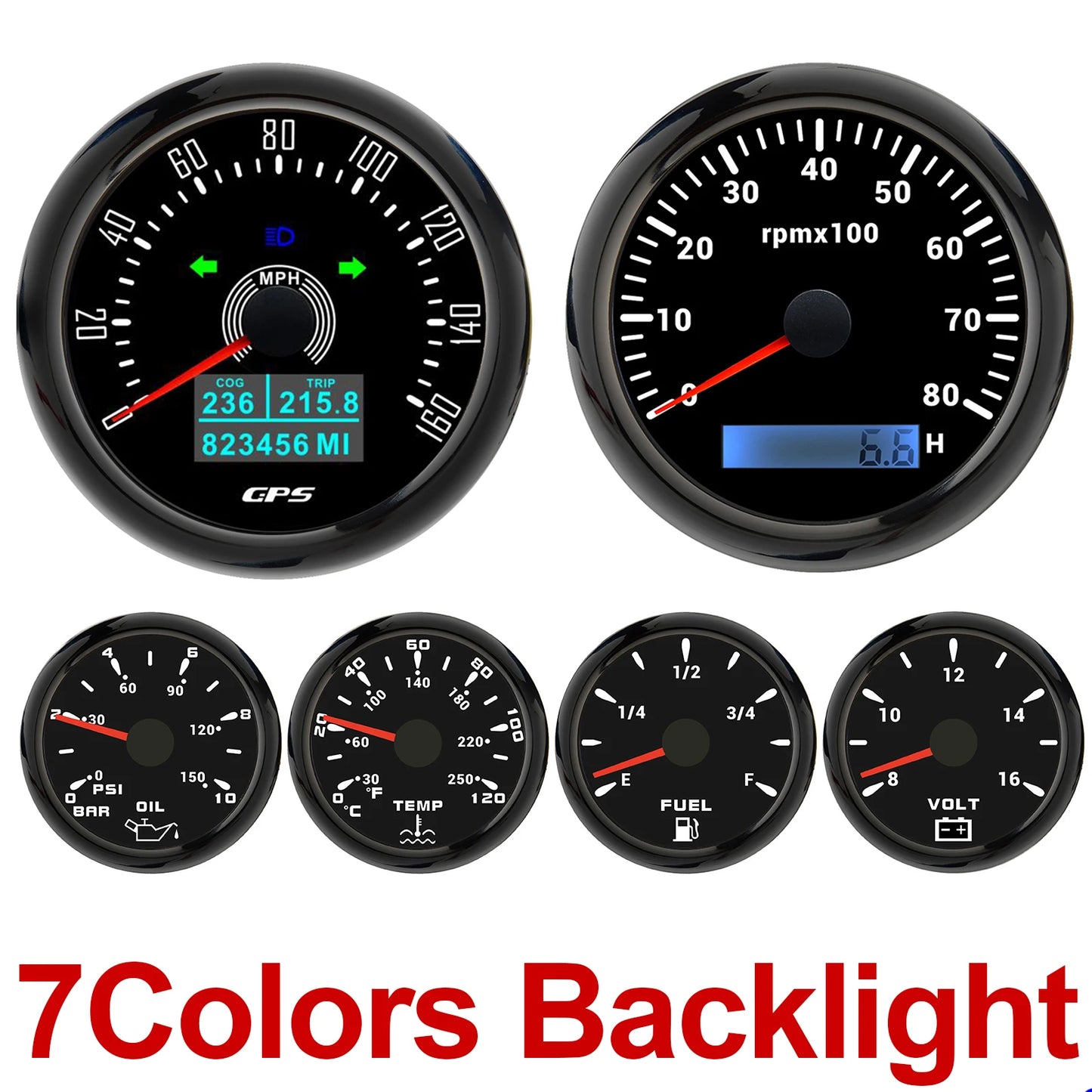

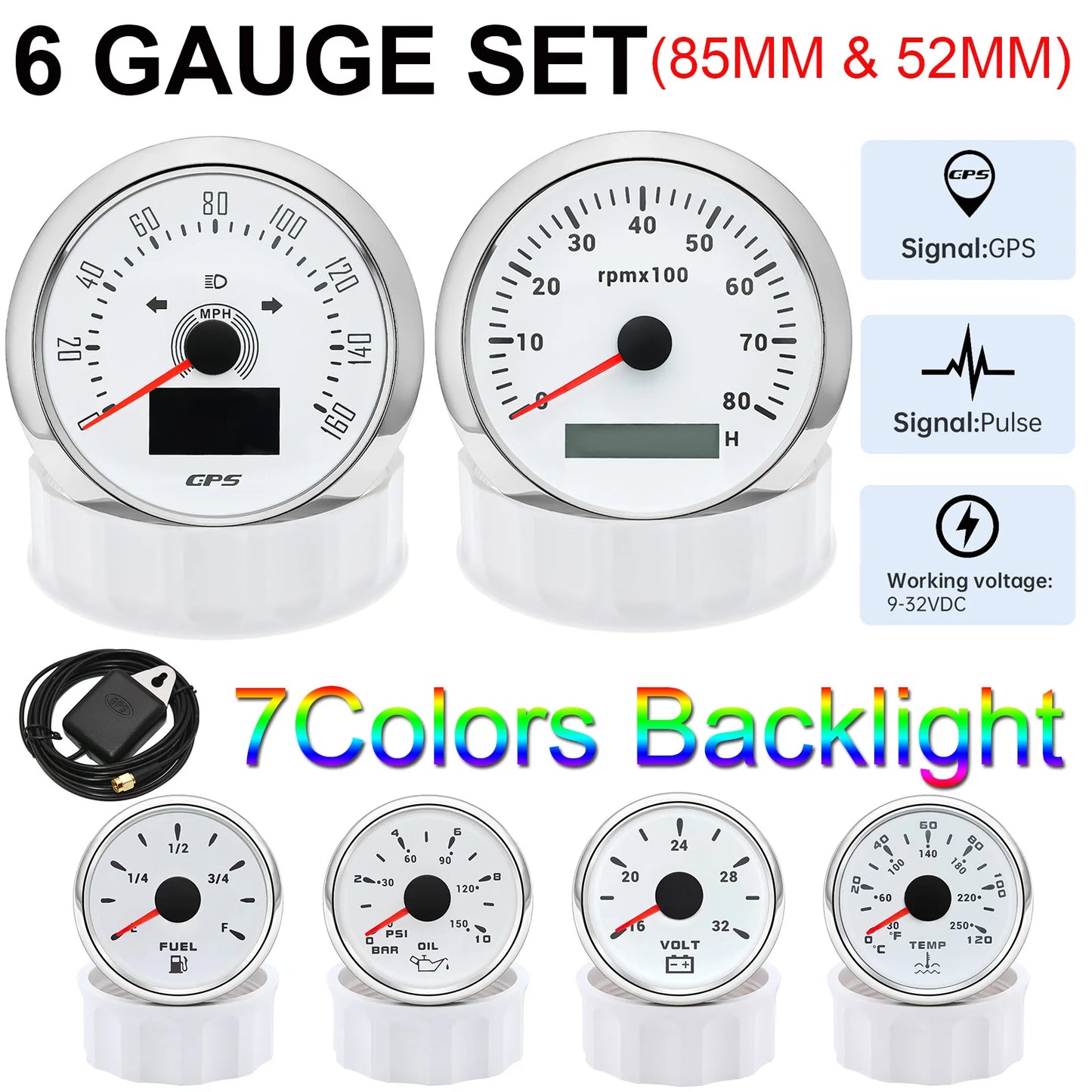

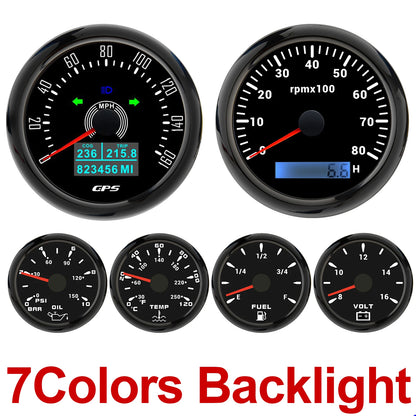

-Backlight: 7 Backlights available (red, green, blue, white, yellow, cyan, purple)

-Left and Right Turn Light and High beam

-Functions:
GPS Speedometer Total mileage: mileage recorded after power off

- TRIP: single mileage will be recorded after power off, but you can press the button for 5 seconds to clear it.

- COG: Course Over Ground
Tachometer: curent tacho/RPM and adjustable hour.

-Signal:
Fuel Level Gauge: 0-190ohm/240-33ohm
Water Temperature Gauge: 1600-22ohm
Oil Pressure Gauge: 10-184ohm

-Operation mode: LCD display, stepper motor
