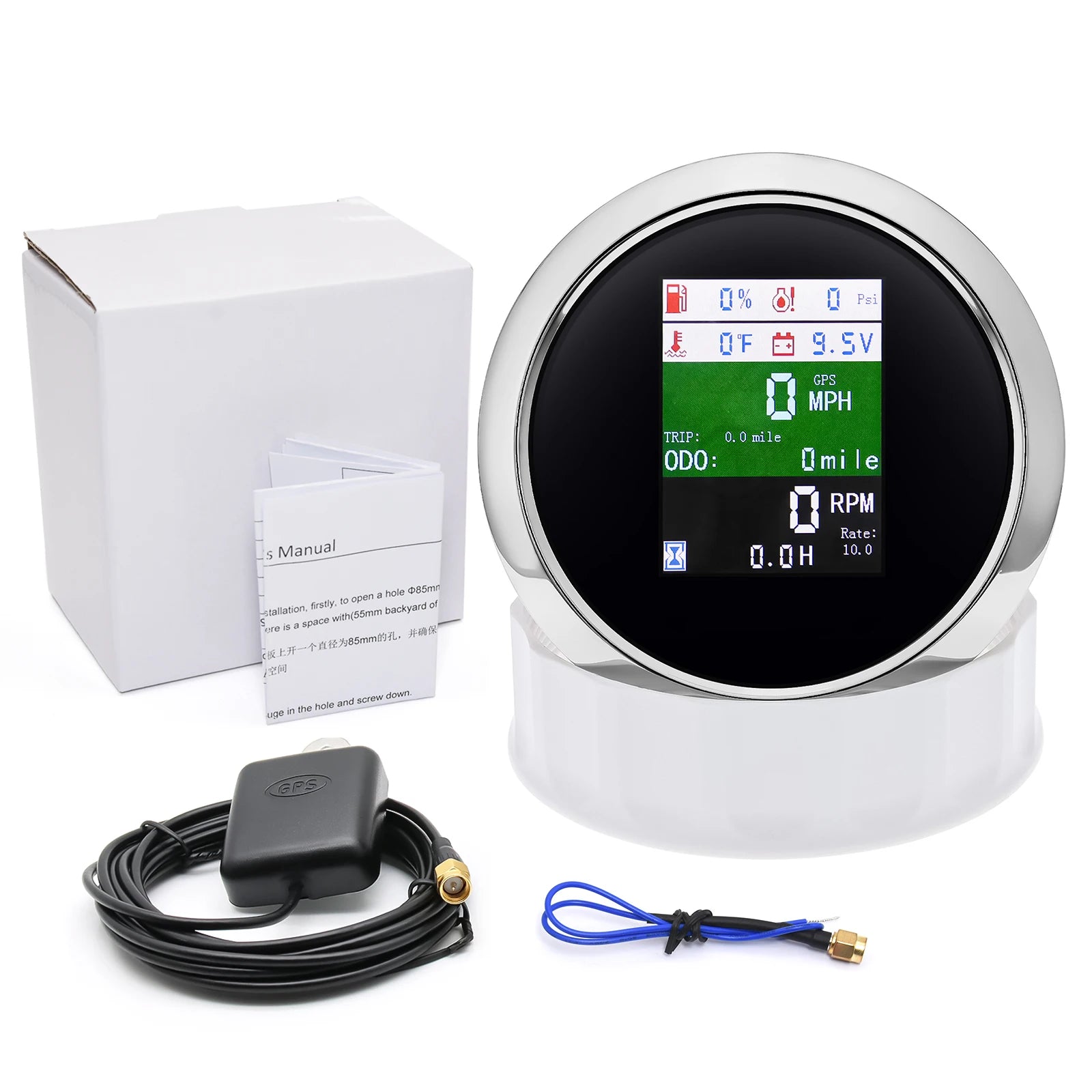

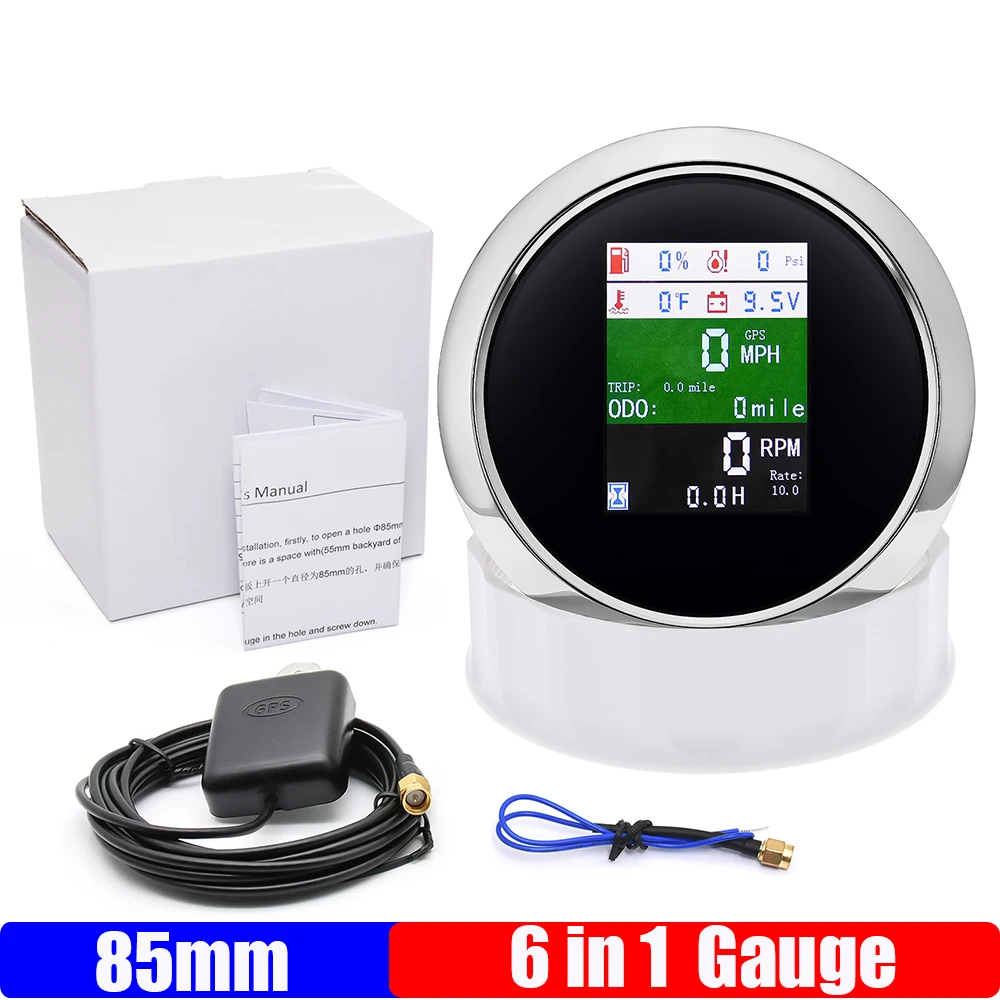

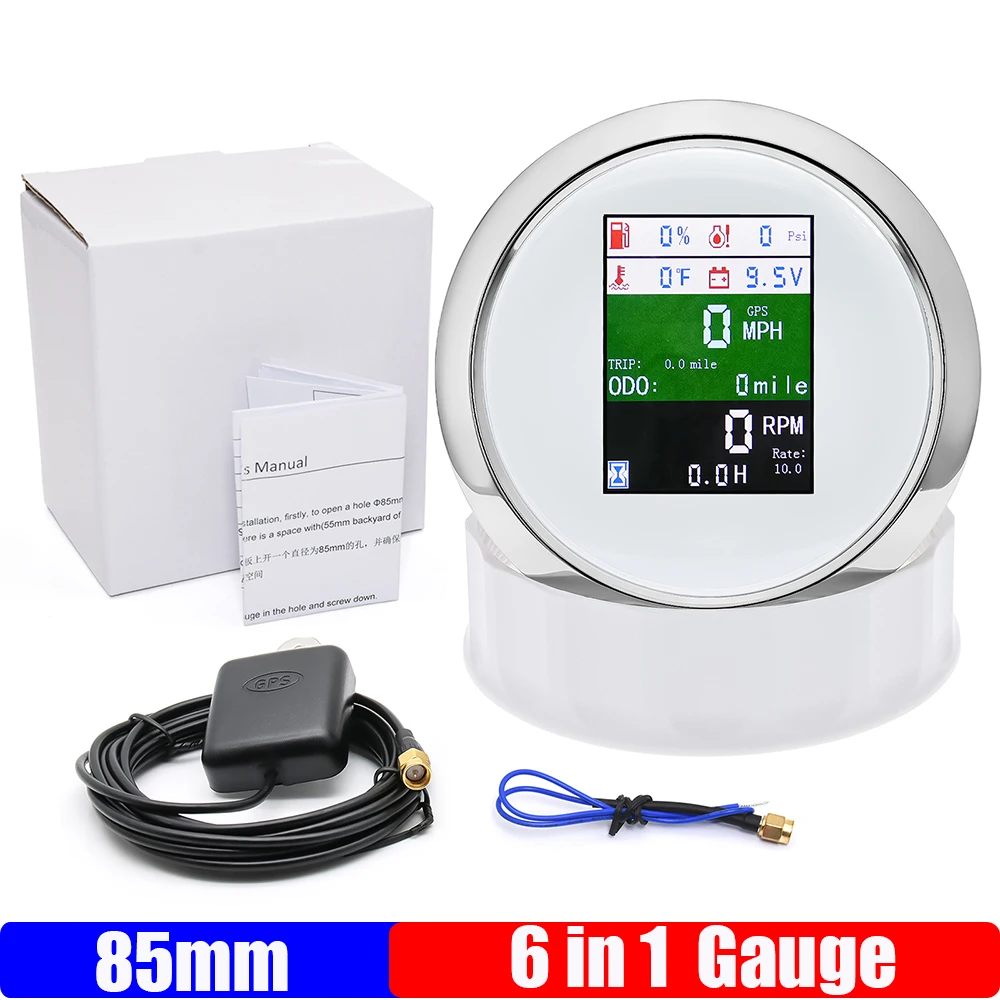

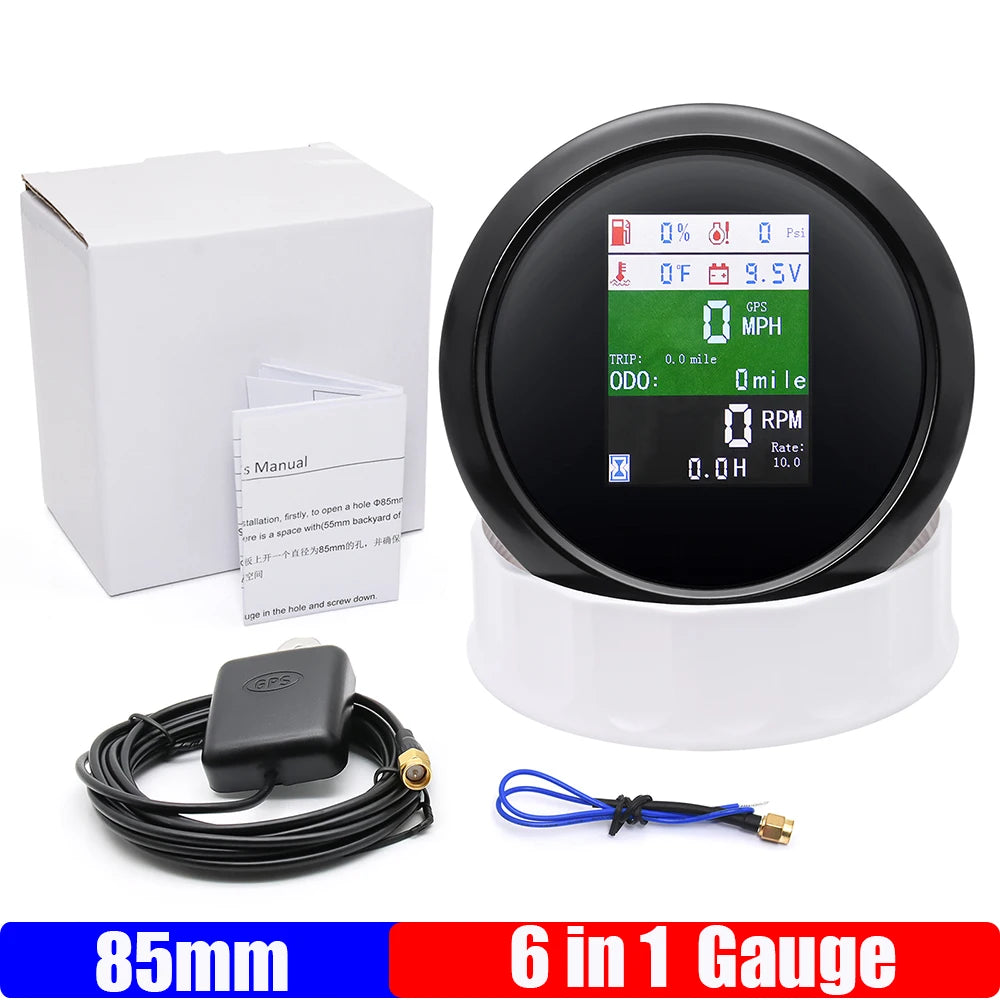

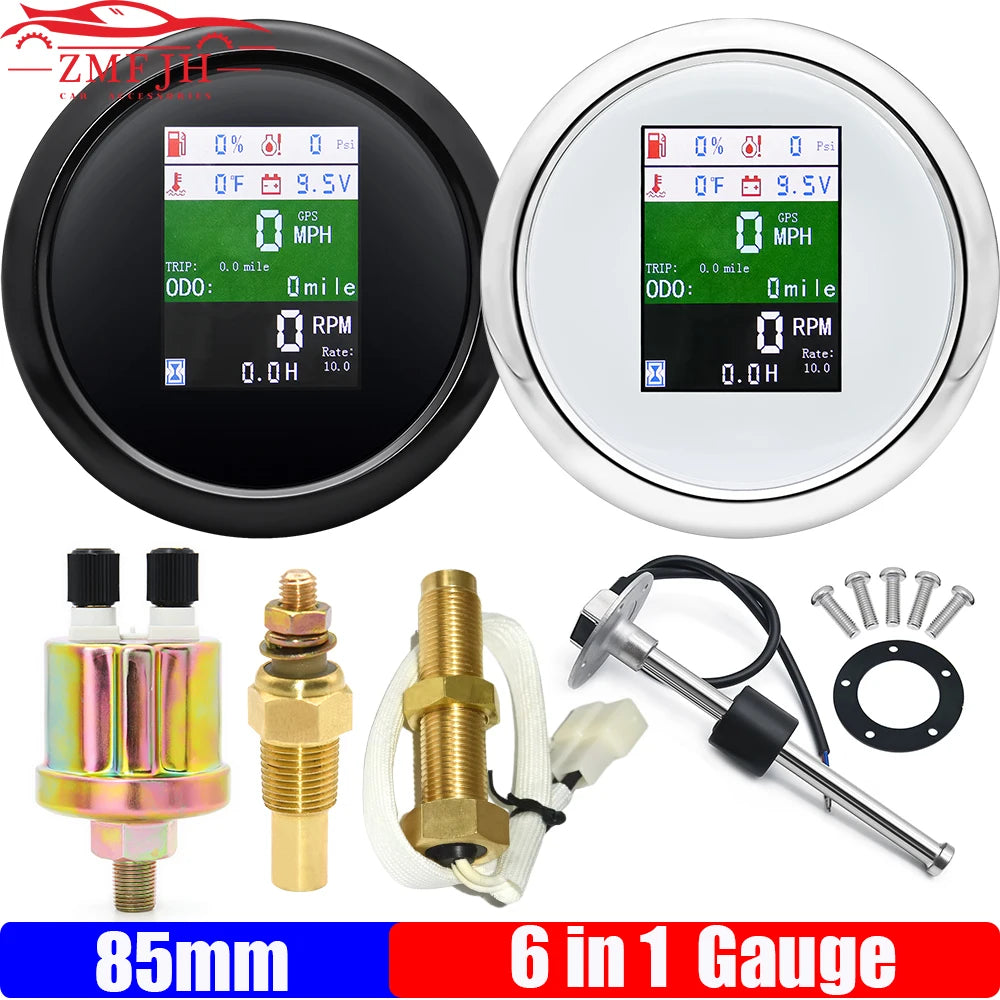

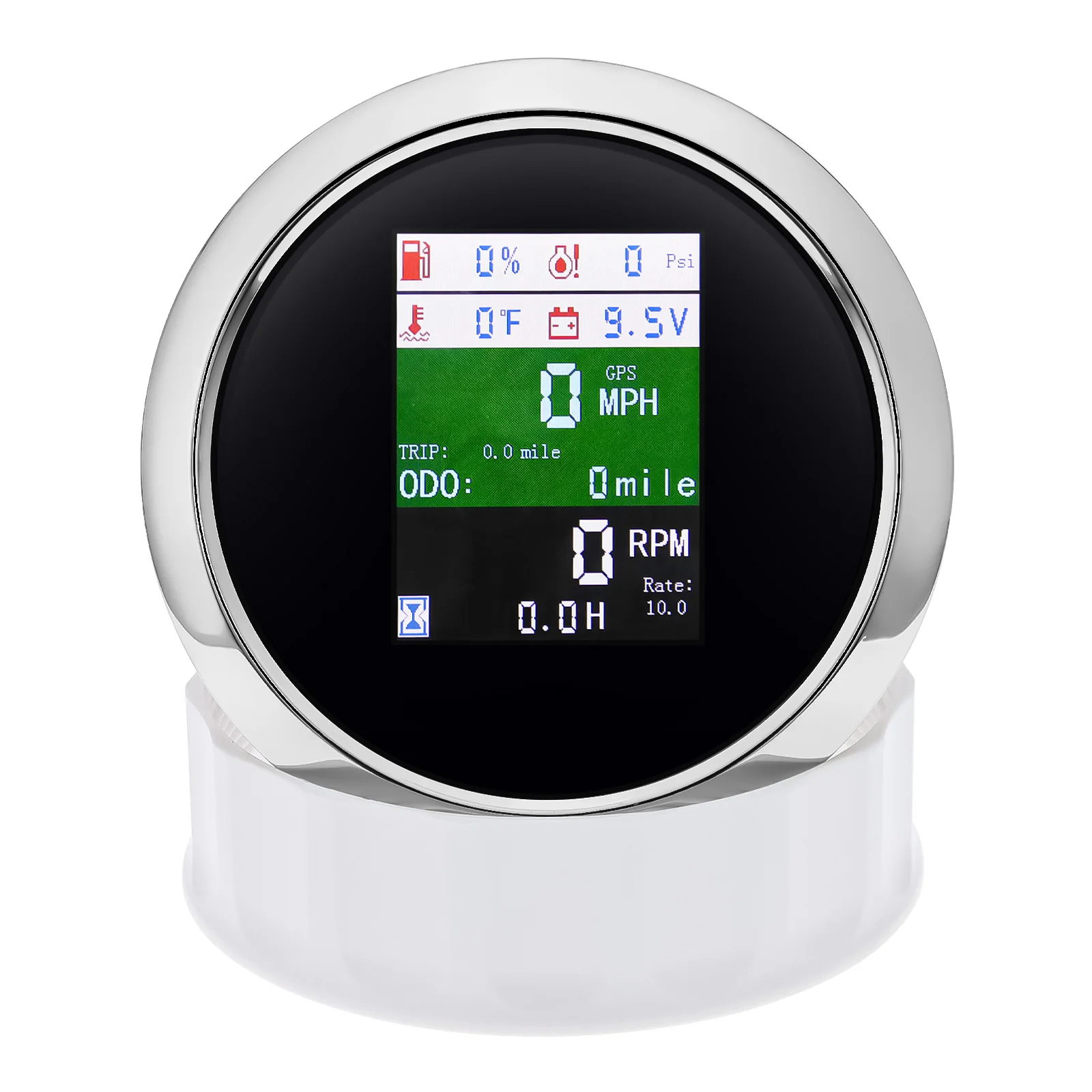

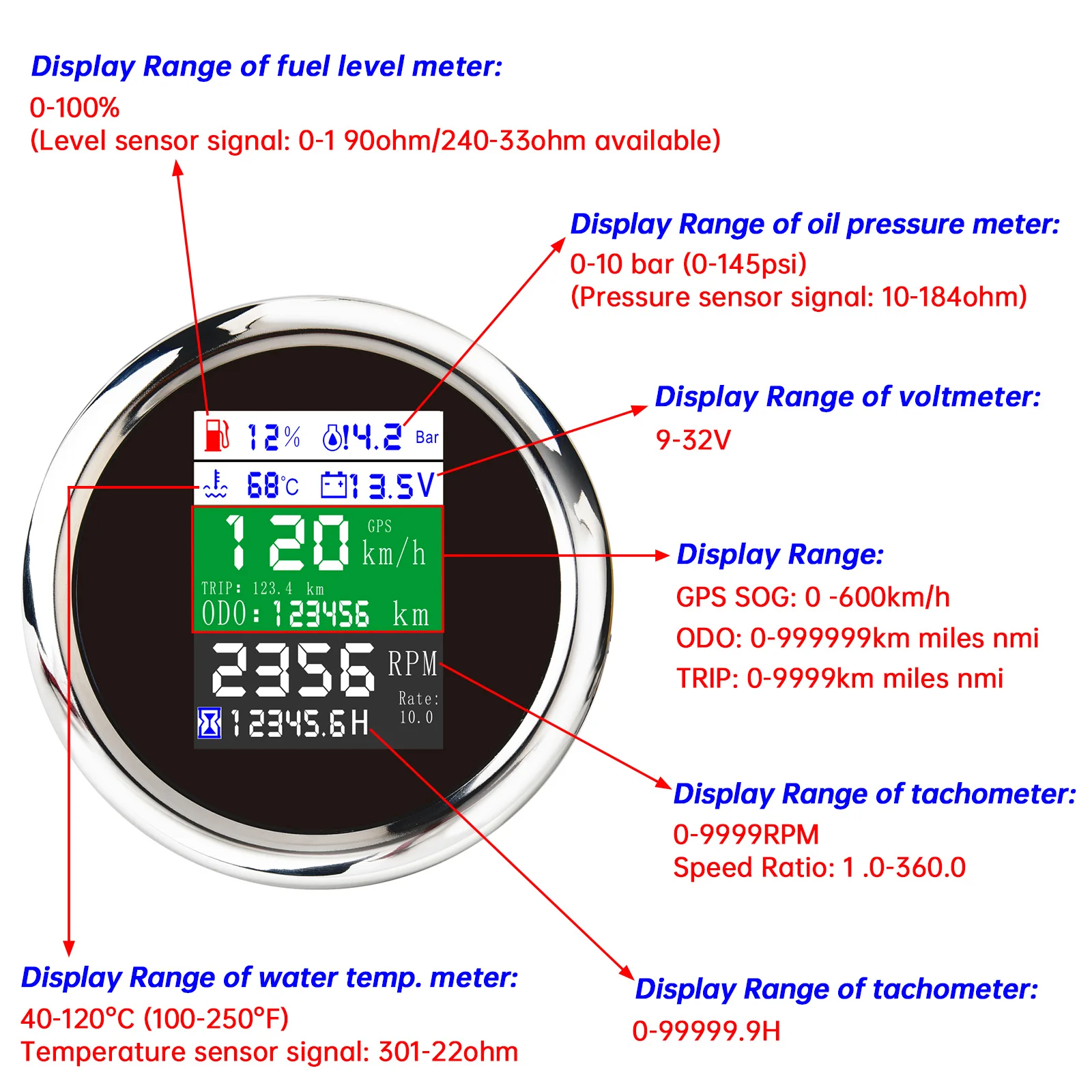

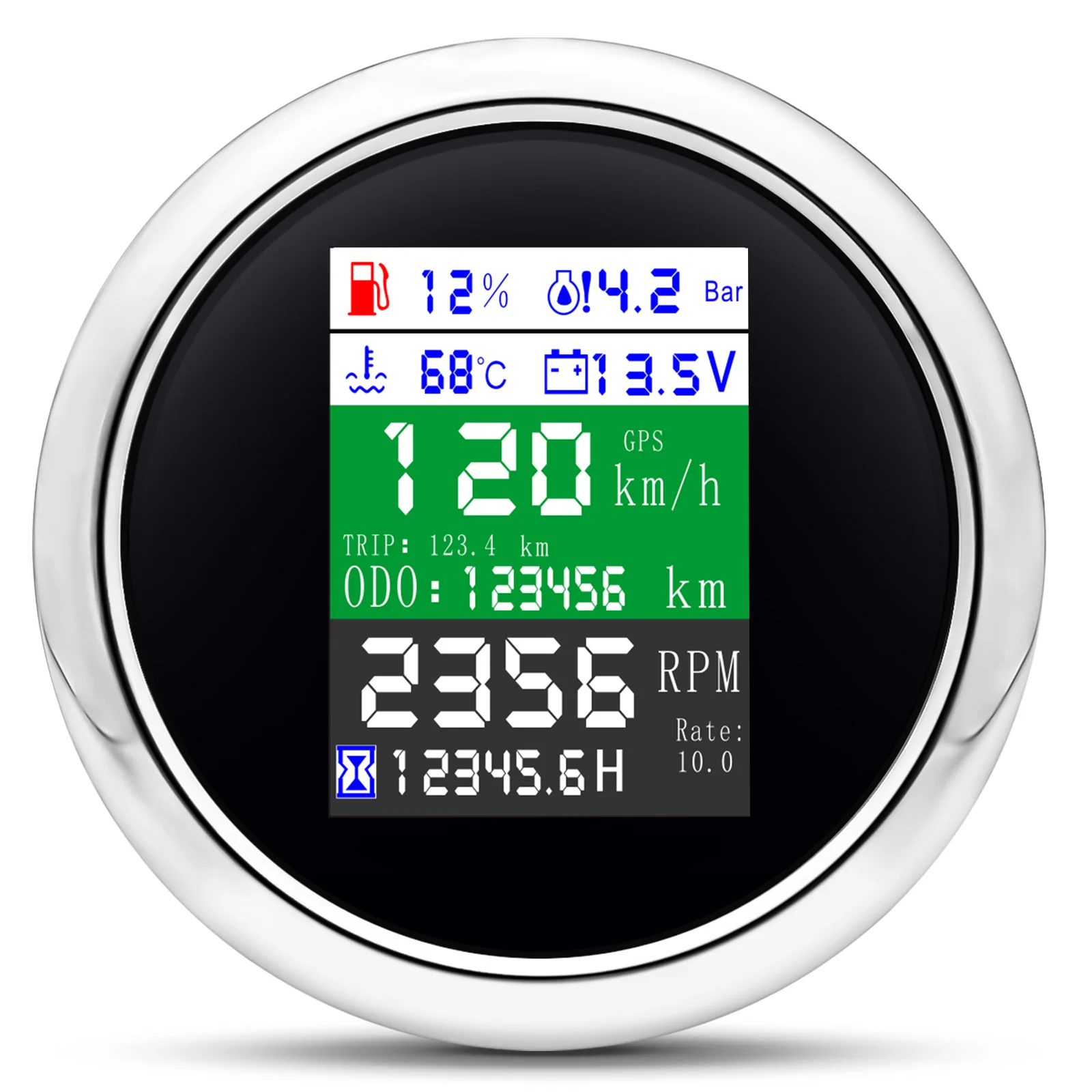

Feature:

- GPS Speedometer: 0-600KMH
- Tachometer: 0-9999RPM
- Oil Pressure: 0-10 Bar
- Water Temperature: 40-120 Celsius
- Voltage: 9-32V
- Fuel Level Gauge: 0-100%

Input Parameter:

- Speed Ratio Adjustable Range: 1.0-360.0

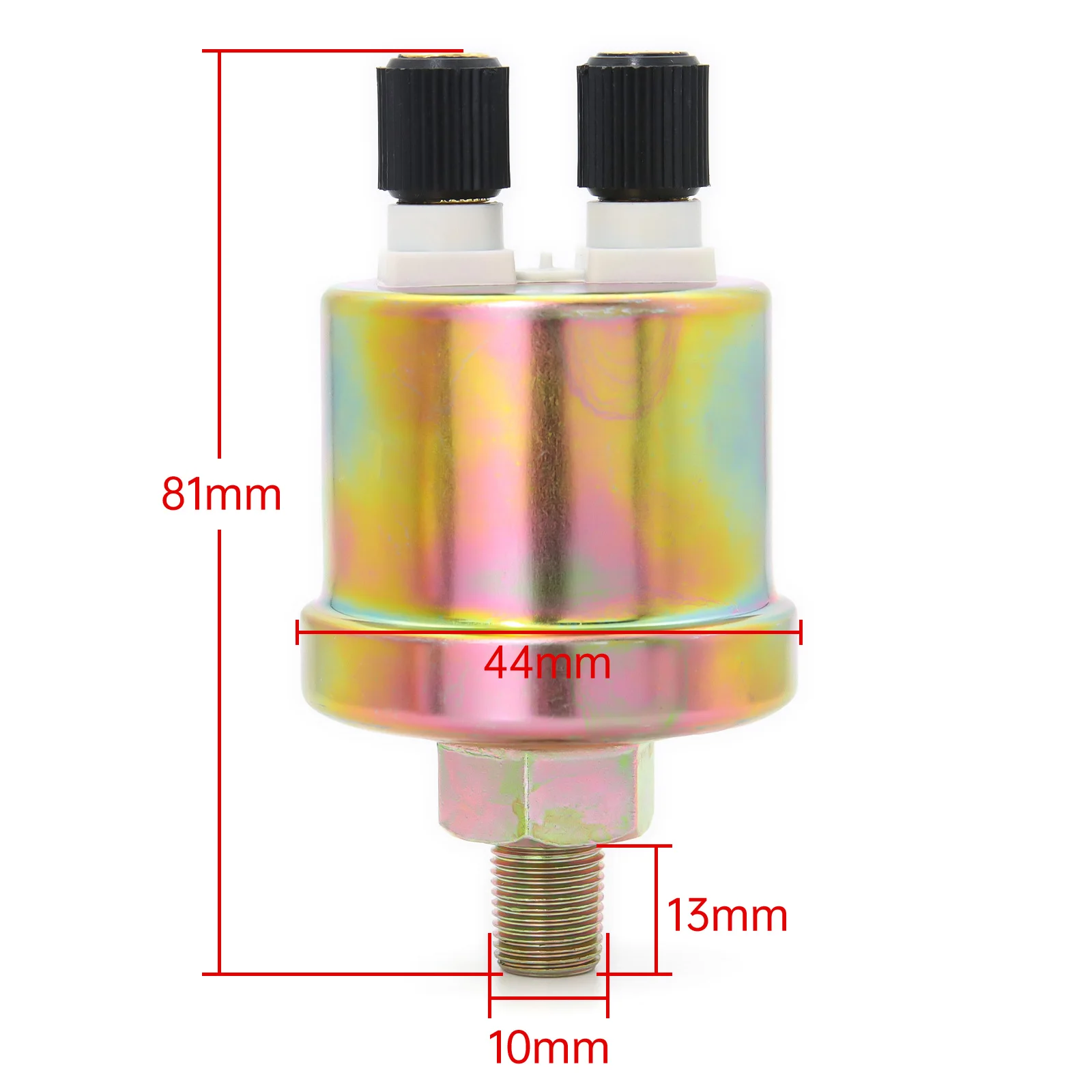

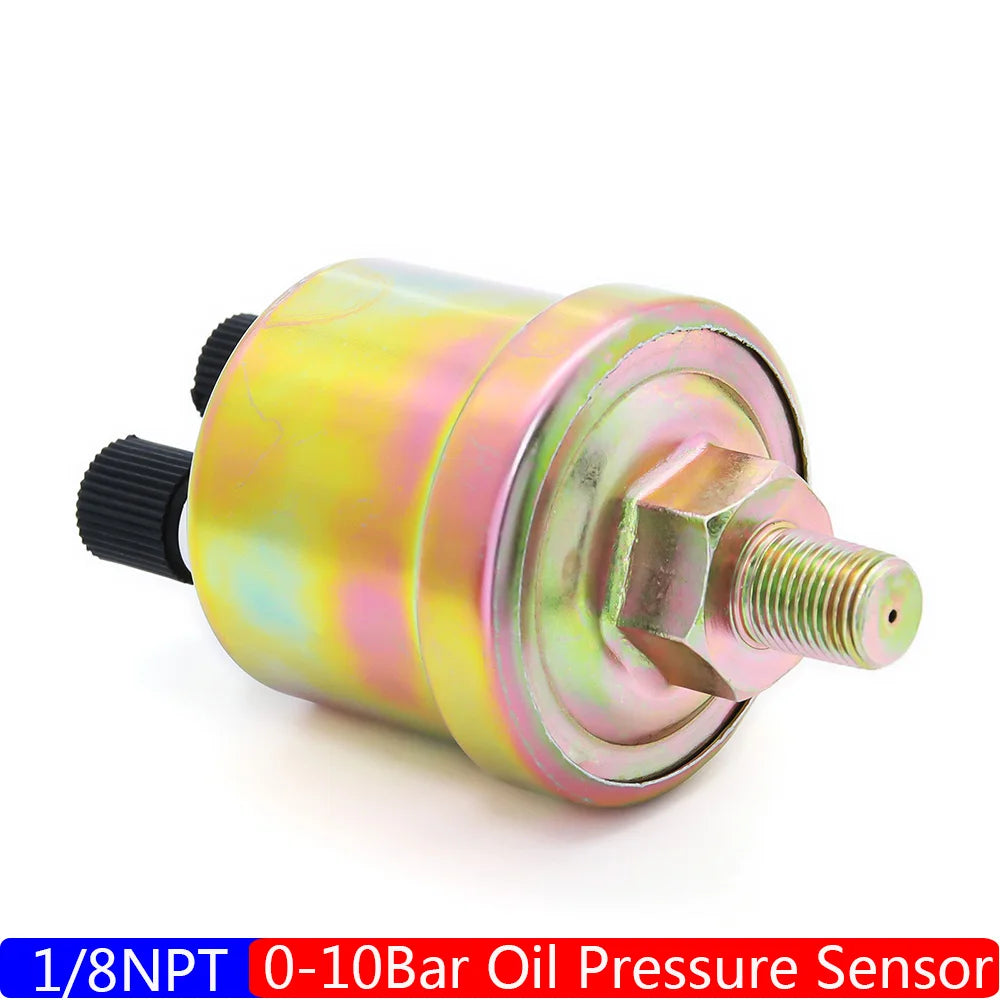

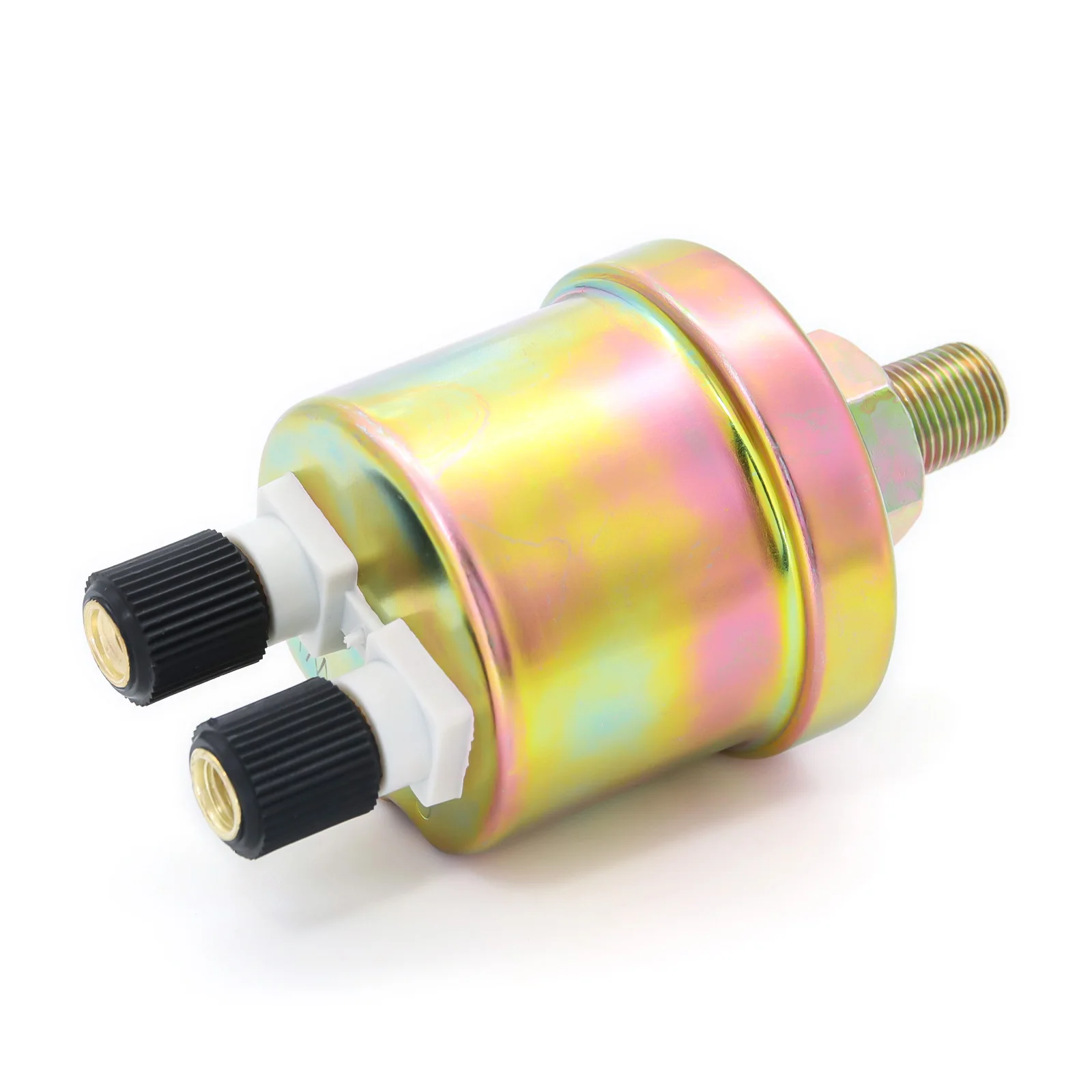

- Oil Pressure Sensor: 10-184 ohm

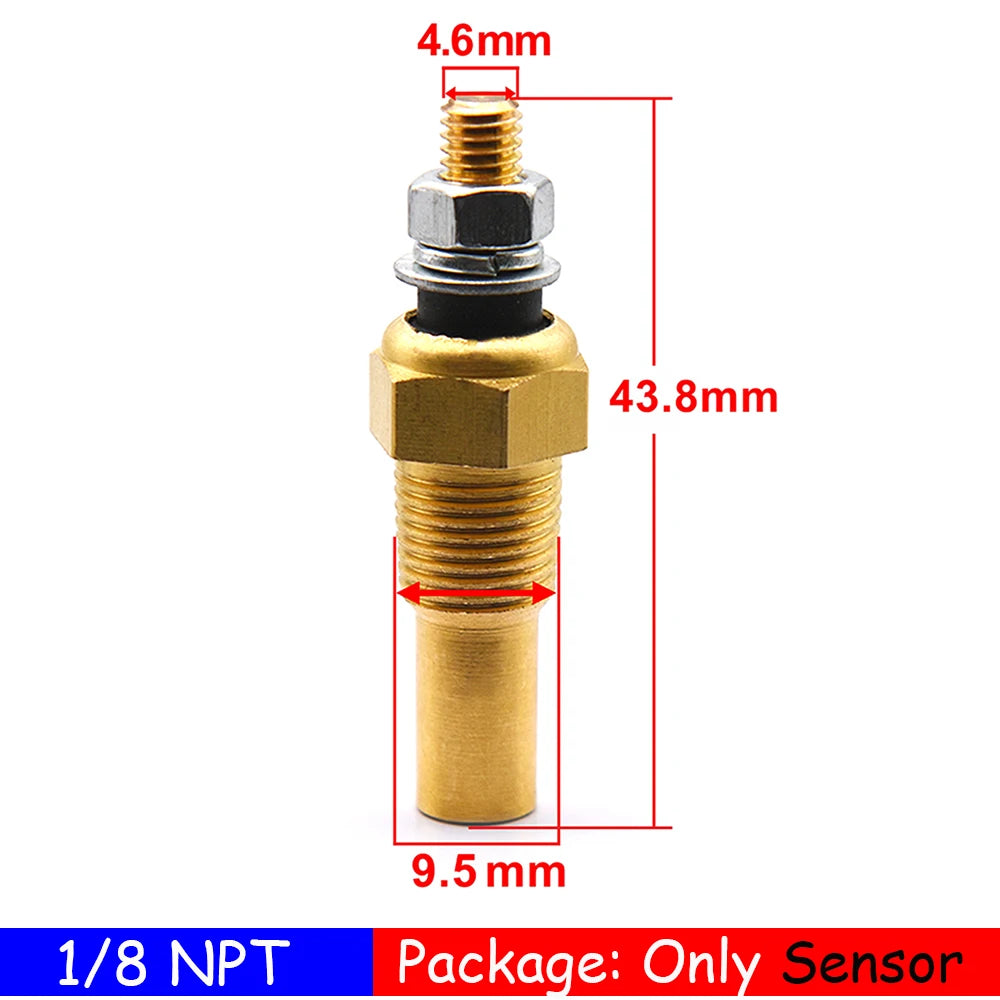

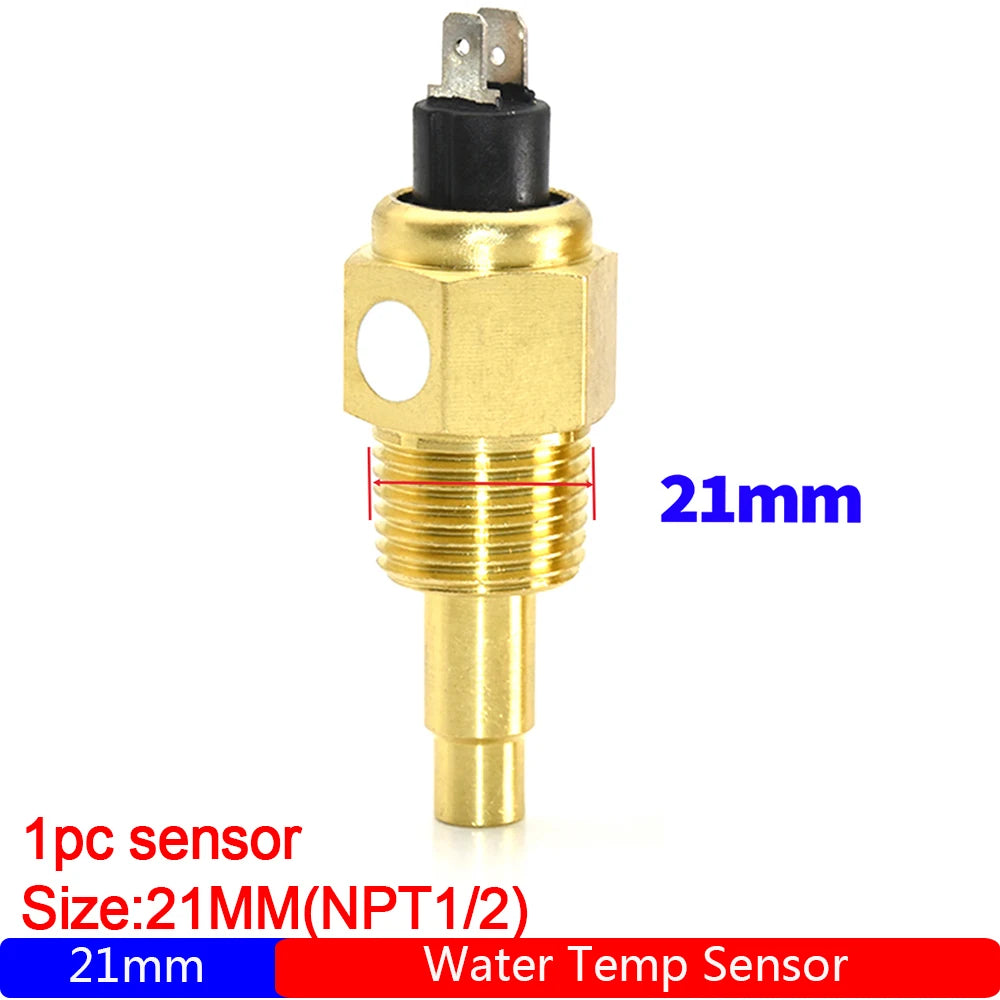

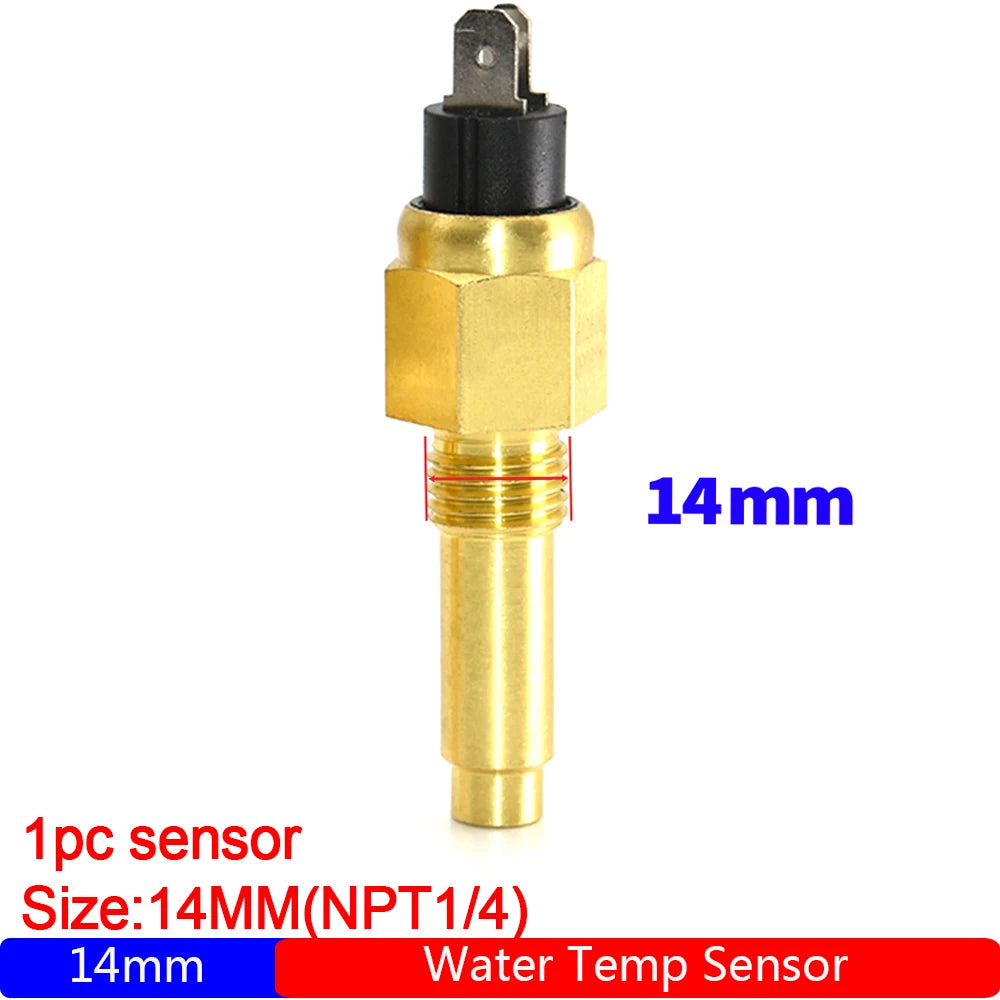

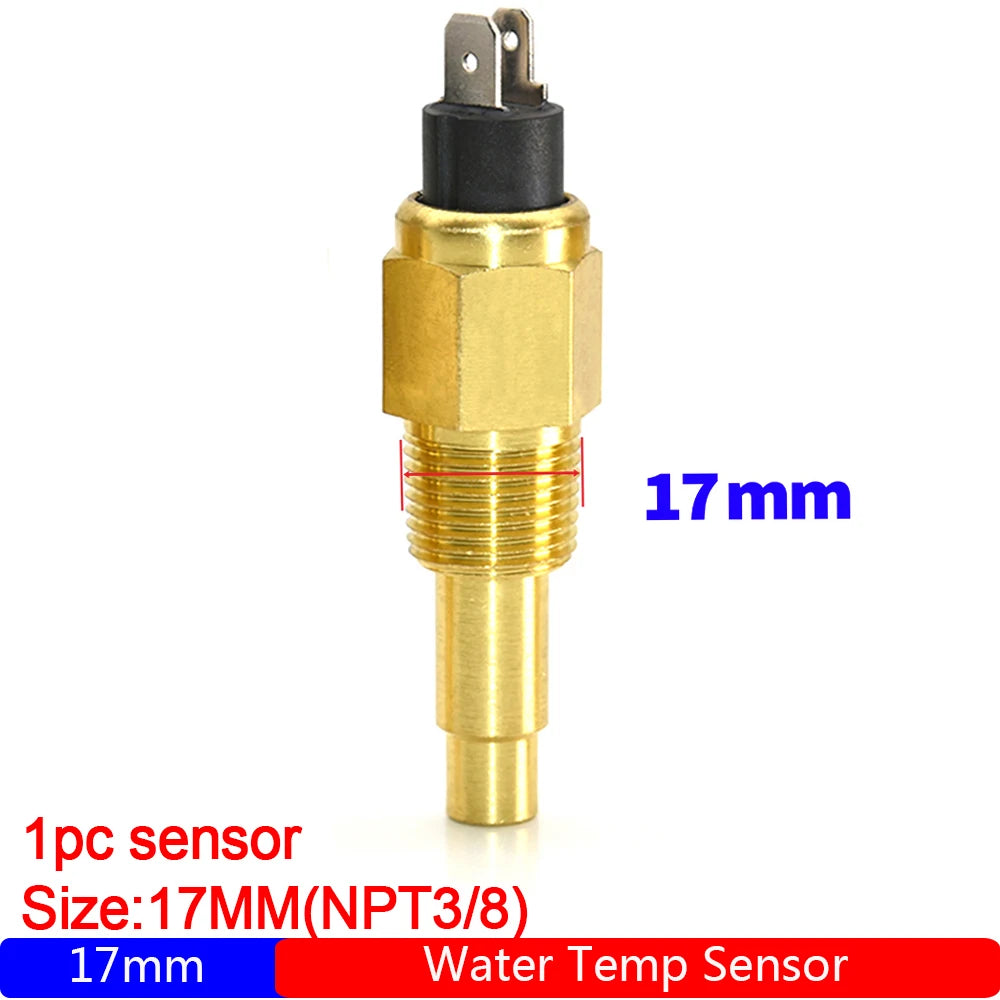

- Temperature Sensor: 301-22 ohm
- Fuel level sensor: 0-190ohm/240-33ohm

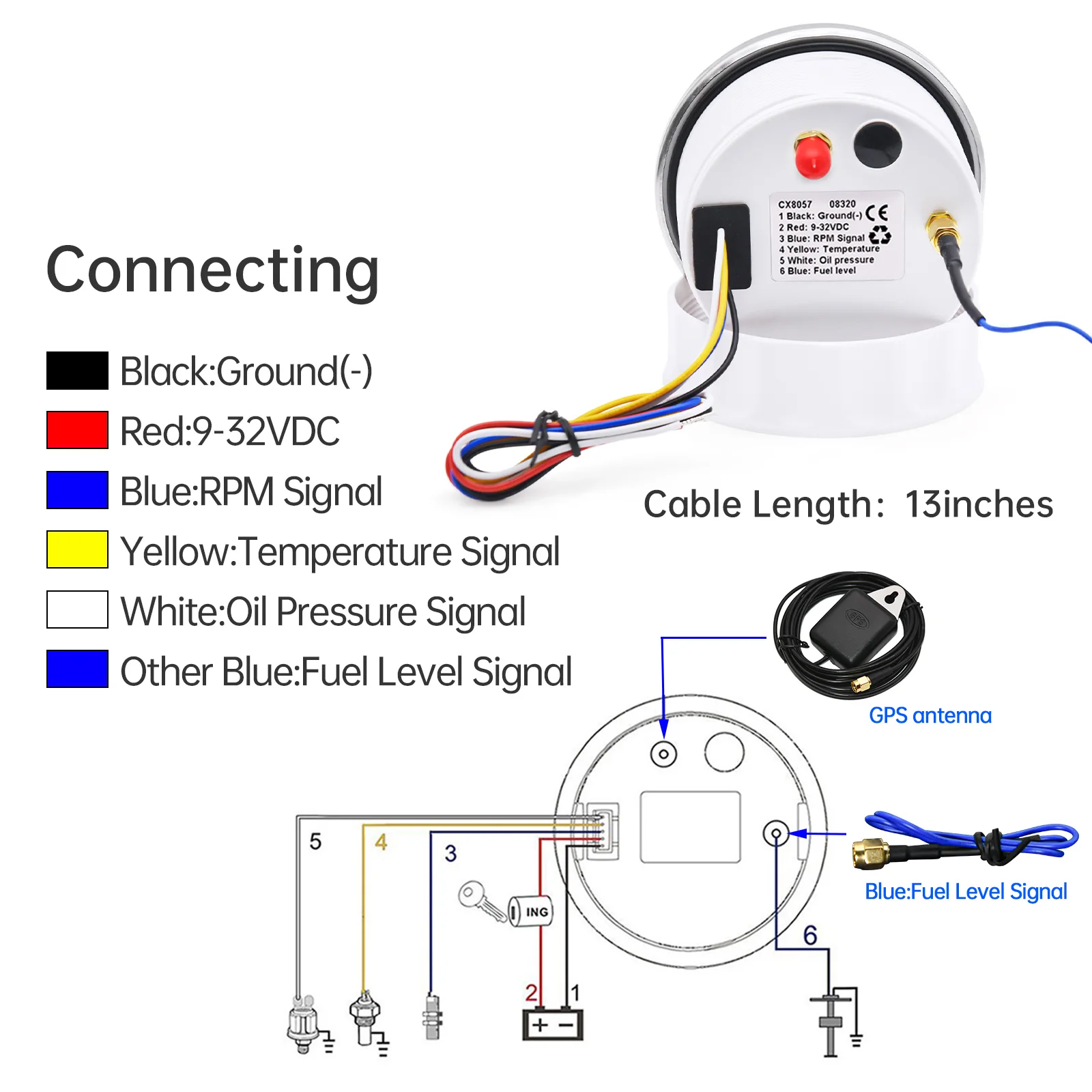

Connection:

1. Black: Ground(-)
2. Red: 9-32VDC(+)

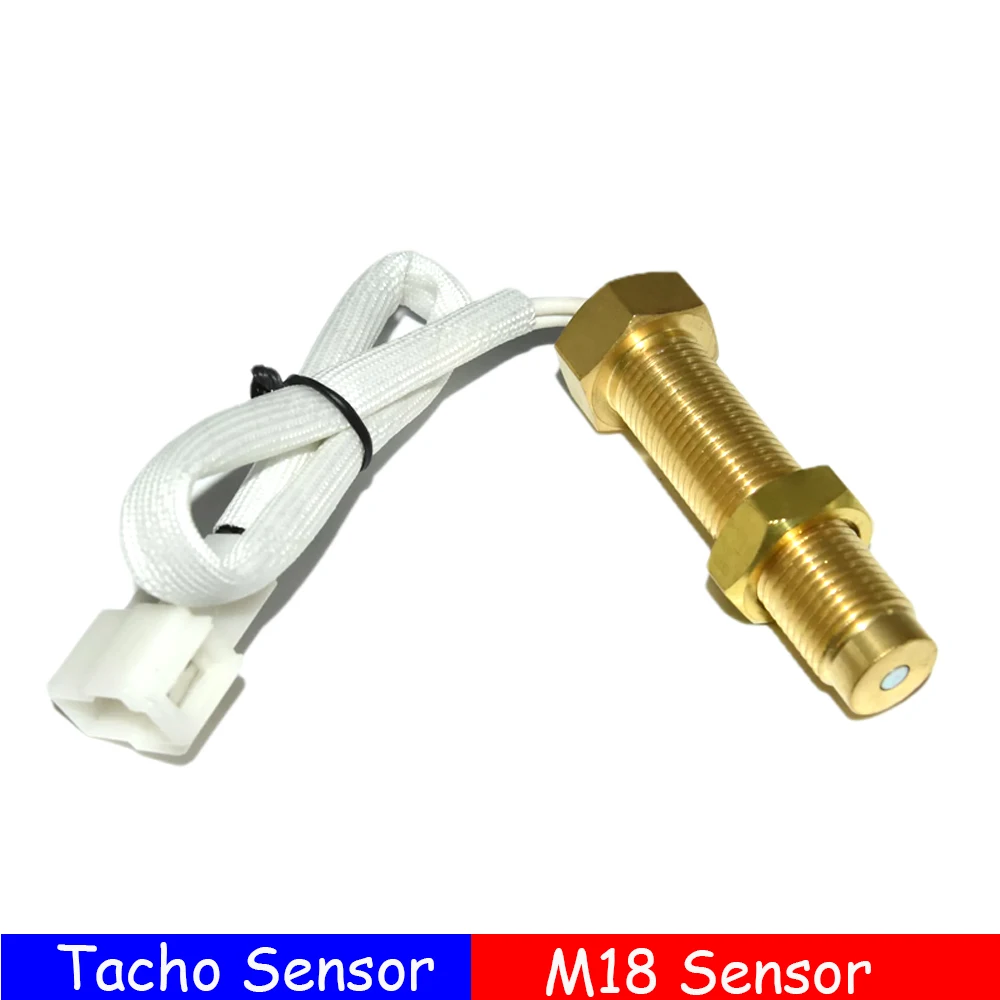

3. Blue: RPM Signal
4. Yellow: Temperature Signal
5. White: Oil Pressure Signal
6. Blue: Fuel Level Signal

Setting Steps:

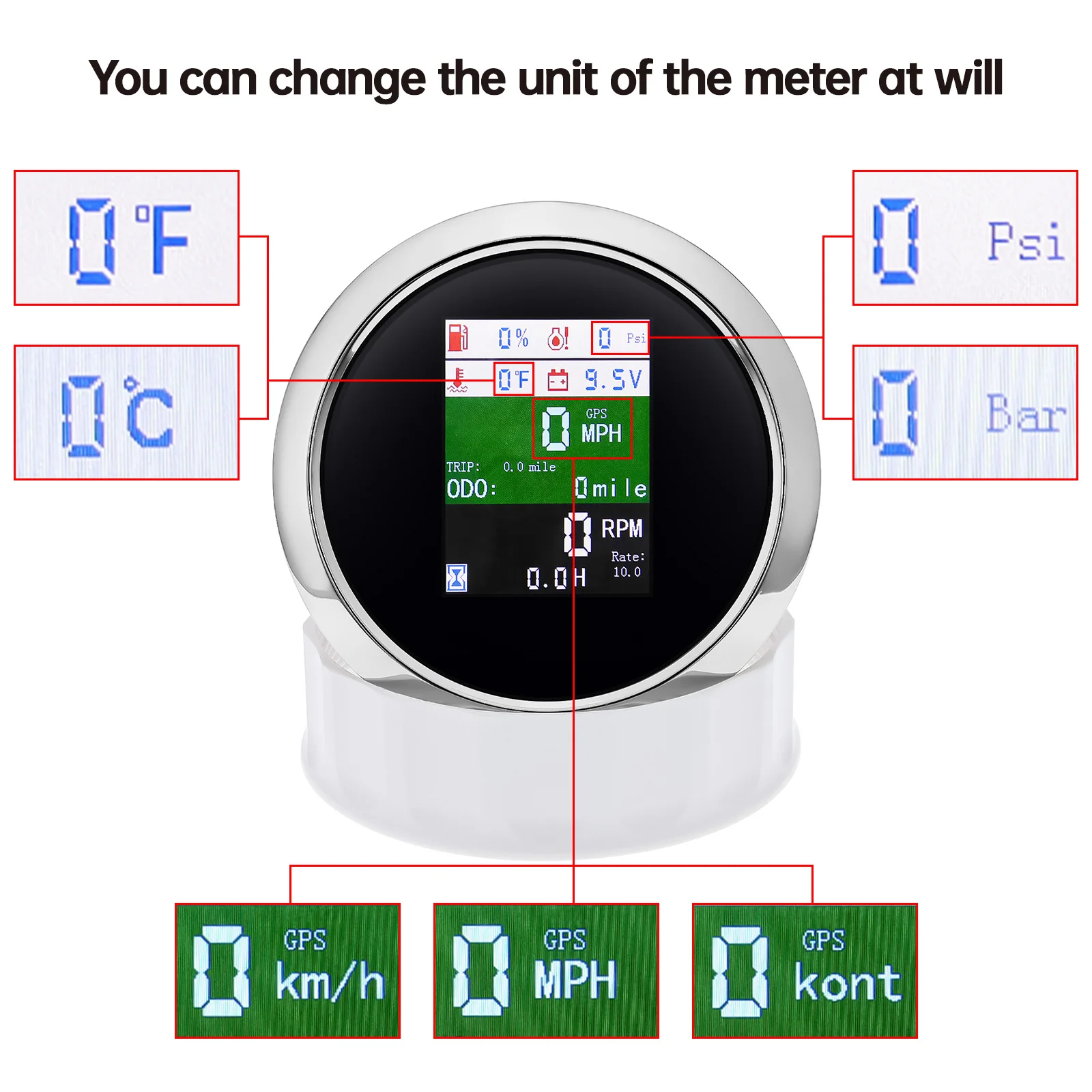

1. After power on, touch the button, we can switch the unit: kn/h,mph,knots,and save automatically.
2. Keep on pressing the rubber button of the backside for 3 seconds, and then enter into setting mode, if leave button
more than 3 seconds, it will be out of setting mode. The value will increase when you press the button. When you leave
the button and then press it again, the value will decrease. The minimum step value is 0.1 and the adjustable range is
1~360. When you get the required speed ratio value after adjustment, please leave the button. The tachometers will
auto save your setup after 3 seconds. If the setup doesn't meet your demand, please re-setup.
3. Press the button first, then power on, and then enter the parameter selection mode, press the button once to select the
0-190ohm(European)level sensor or 240- 33ohm(American)level sensor, press the button twice to select the
temperature unit and pressure unit,(°F and Psi)or(°C and Bar) and the meter save automatically.
4. Quick touch the button for 5 times, and then enter the engine hours setting mode, when you press the button the
engine hours will increase, when you leave the button and then press it again, the engine hours will decrease, when
you get the required value after adjustment, please leave the button, and the meter will auto save your setup after 3
seconds.
5. Then quick touch the button for 5 times again, and then enter into the ODO setting mode, when you press the button
the ODO will increase, when you leave the button and then press it again, the ODO will decrease, when you get the
required value after adjustment, please leave the button, and the meter will auto save your setup after 3 seconds.

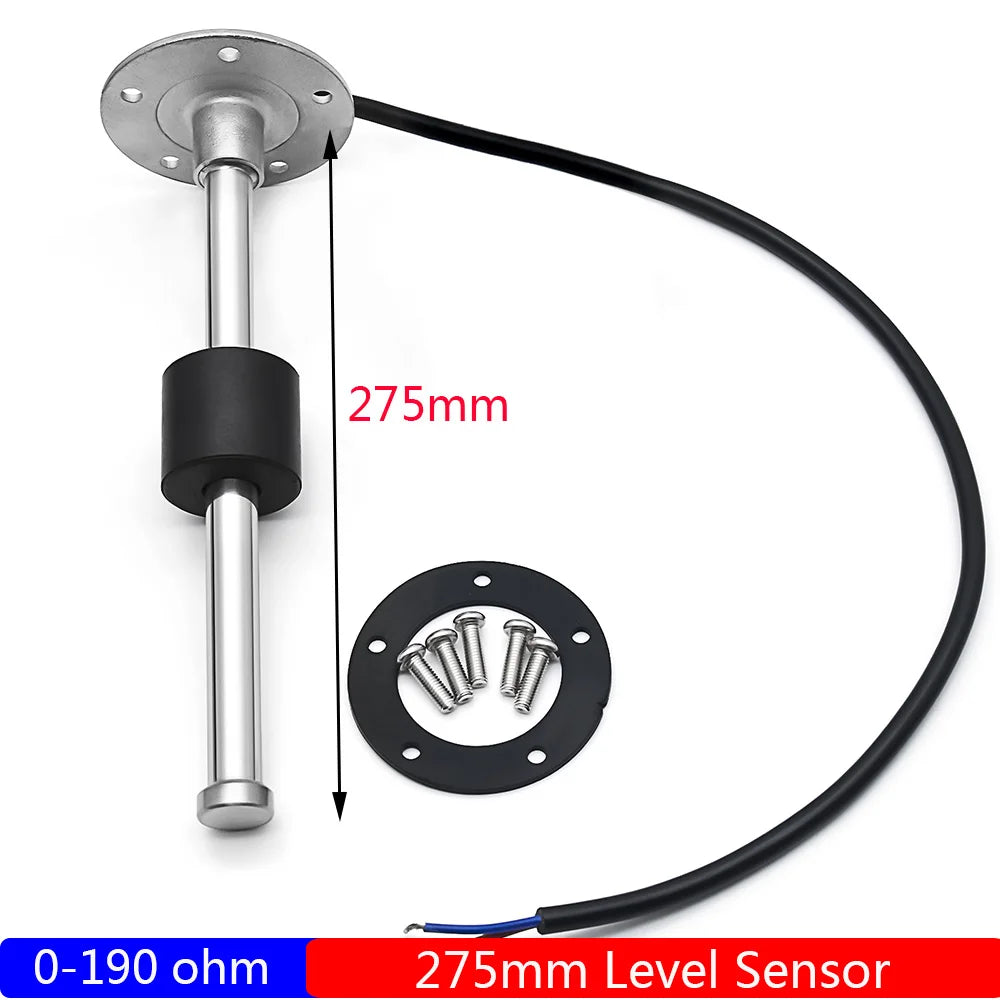

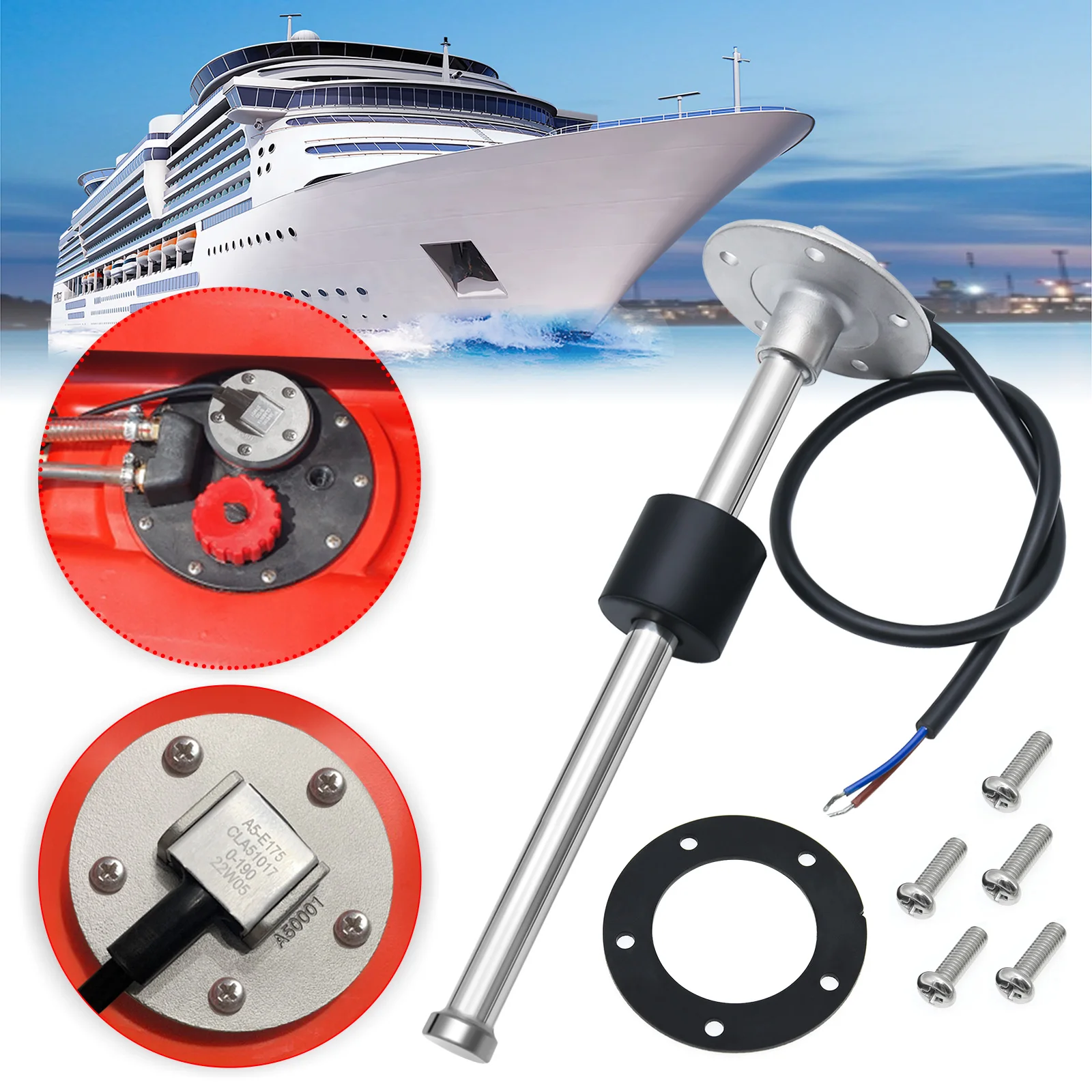

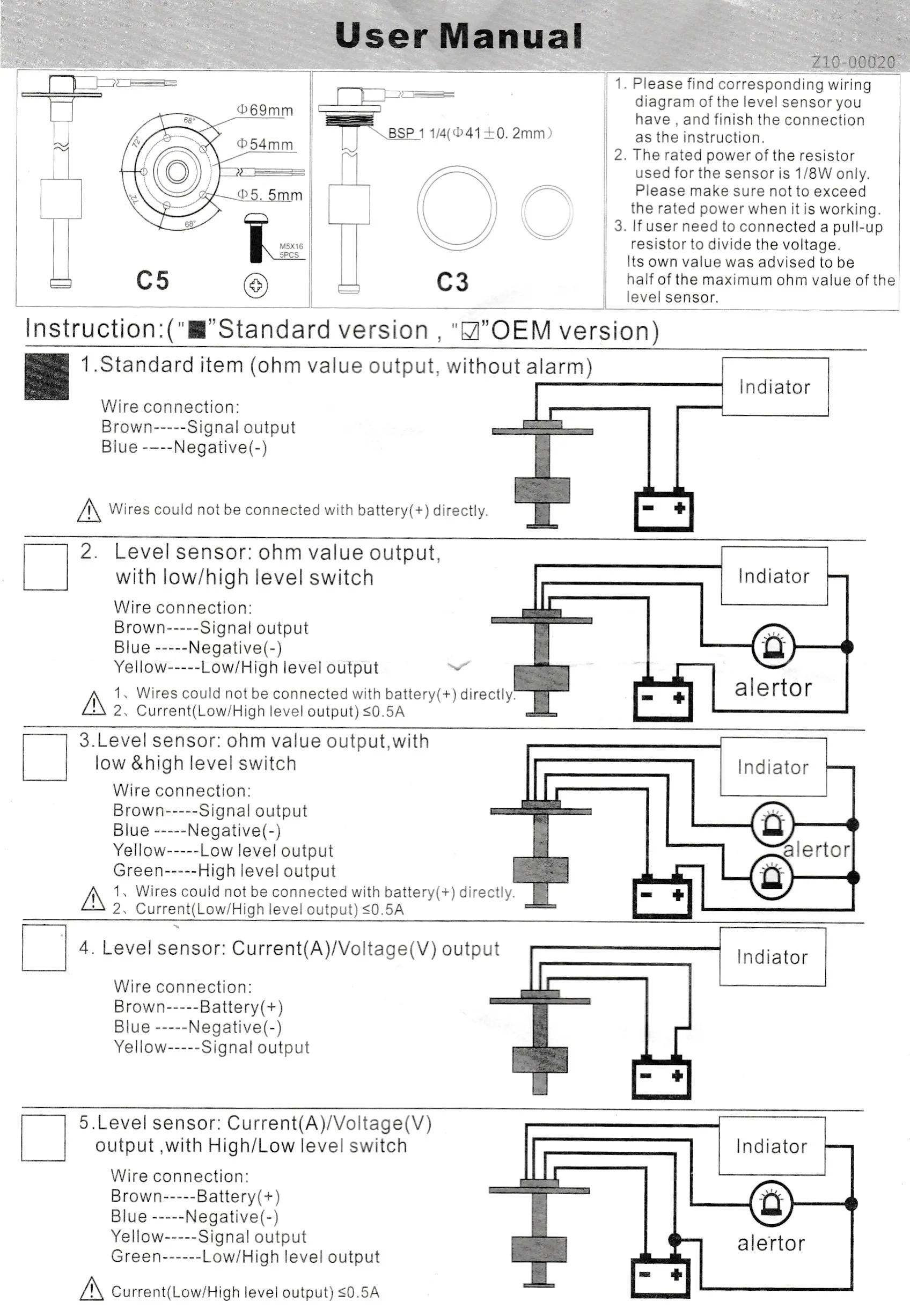

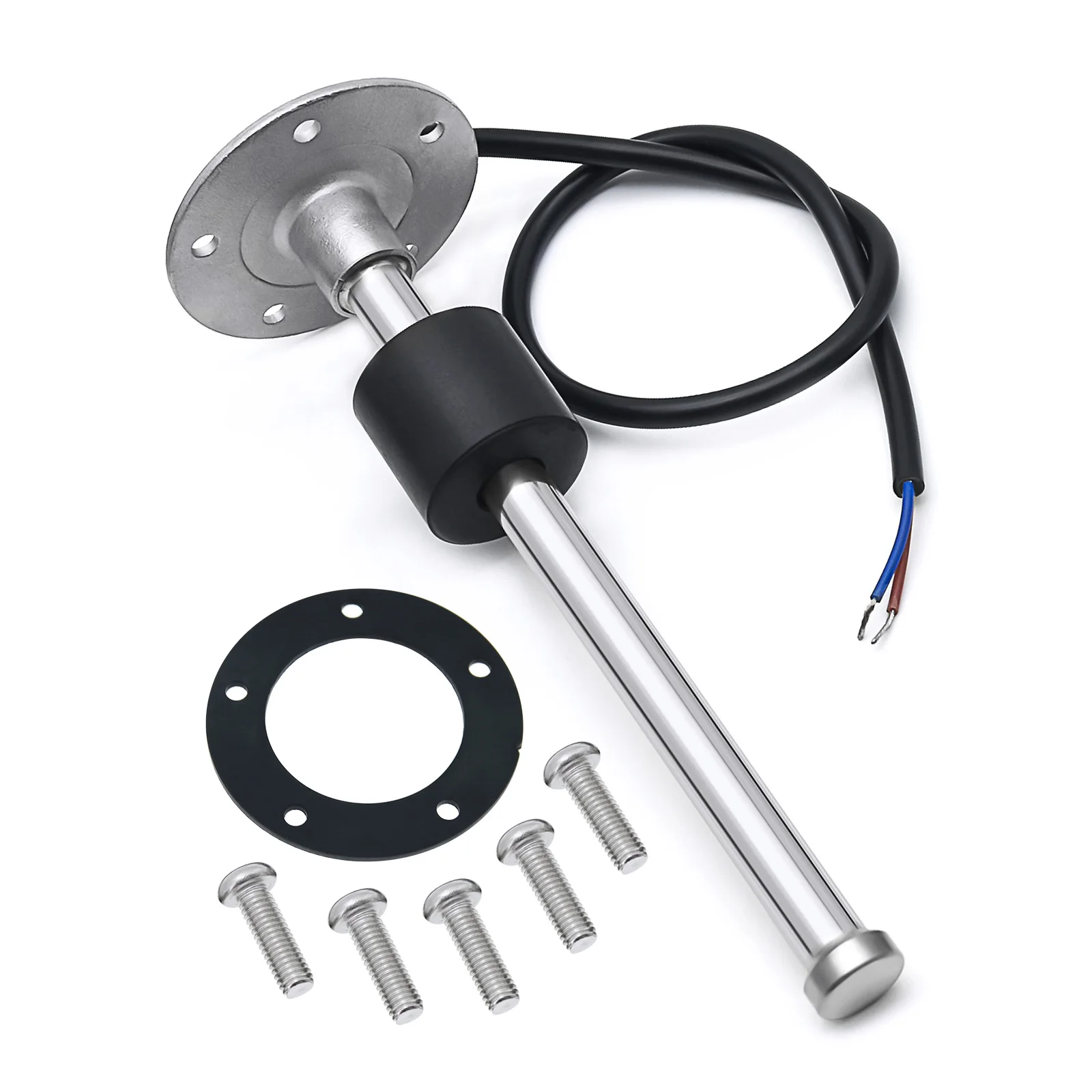

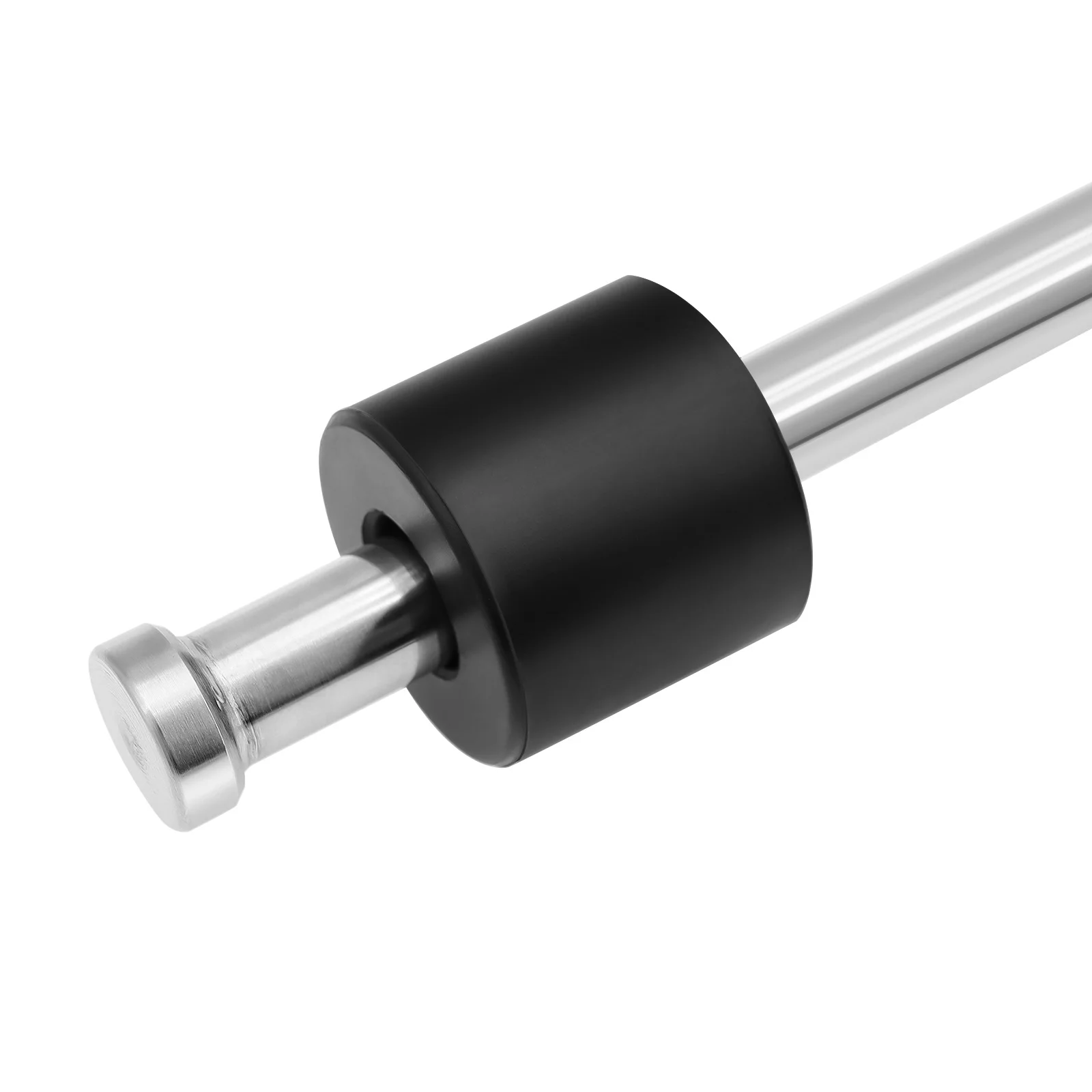

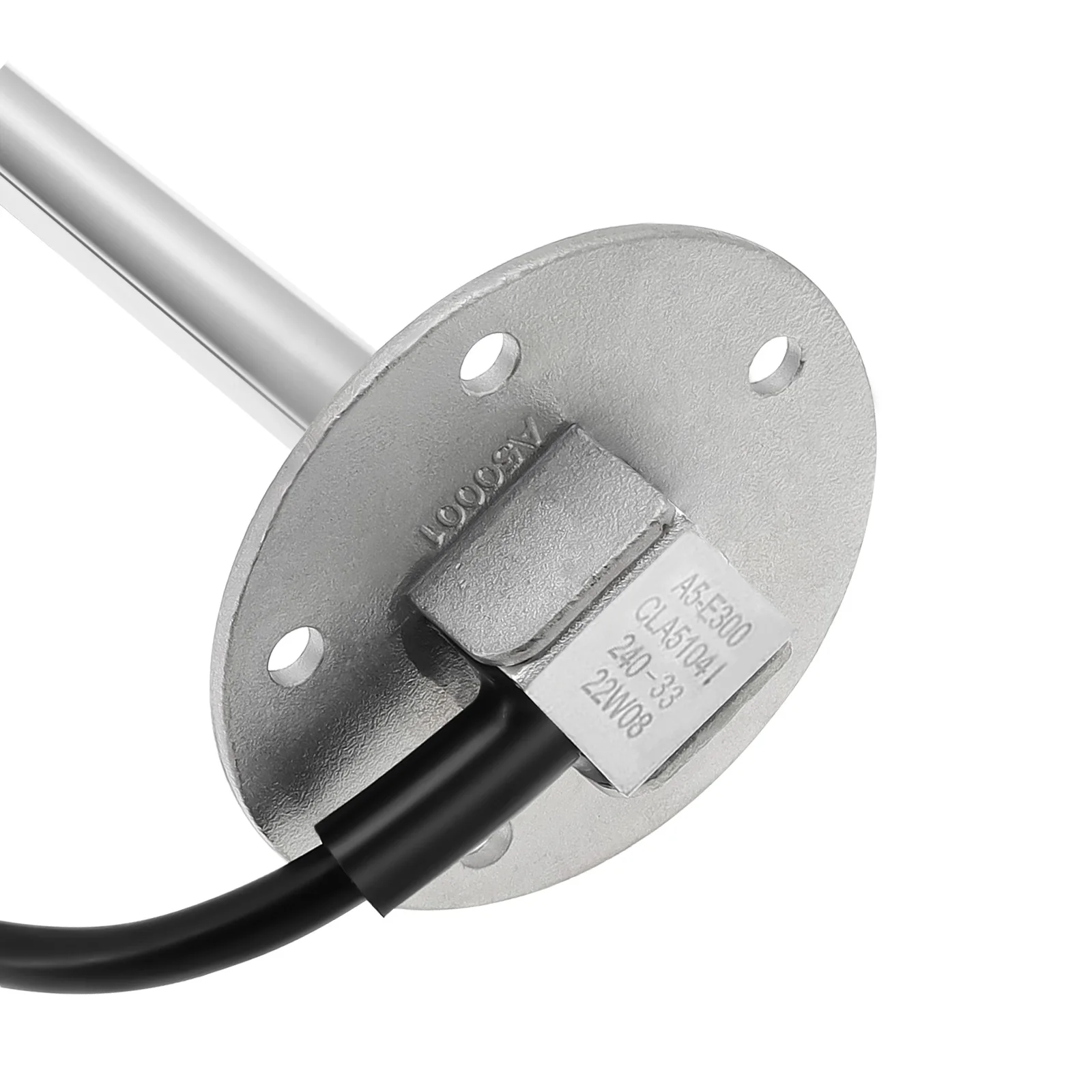

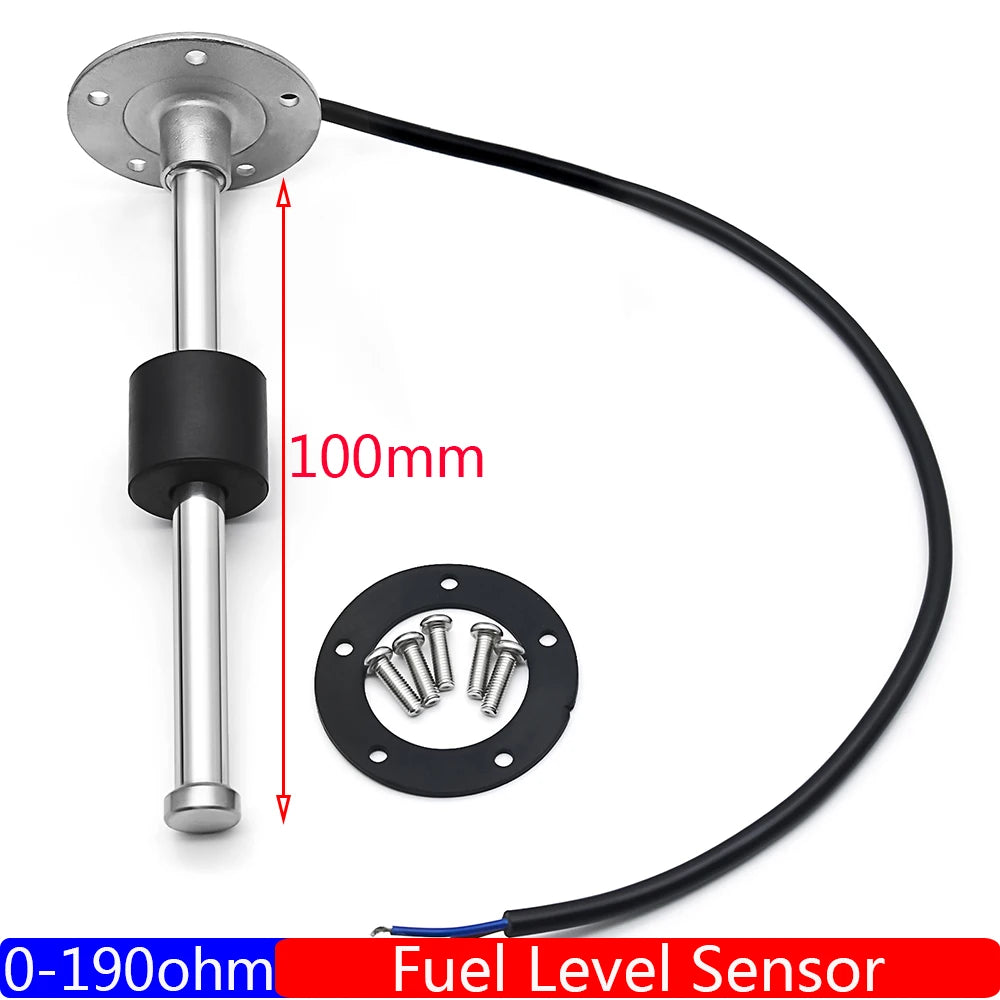

Fuel Level Sensor:

- Protection ank: IP67
- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Fit for Fuel Level Gauge and Water Level Gauge

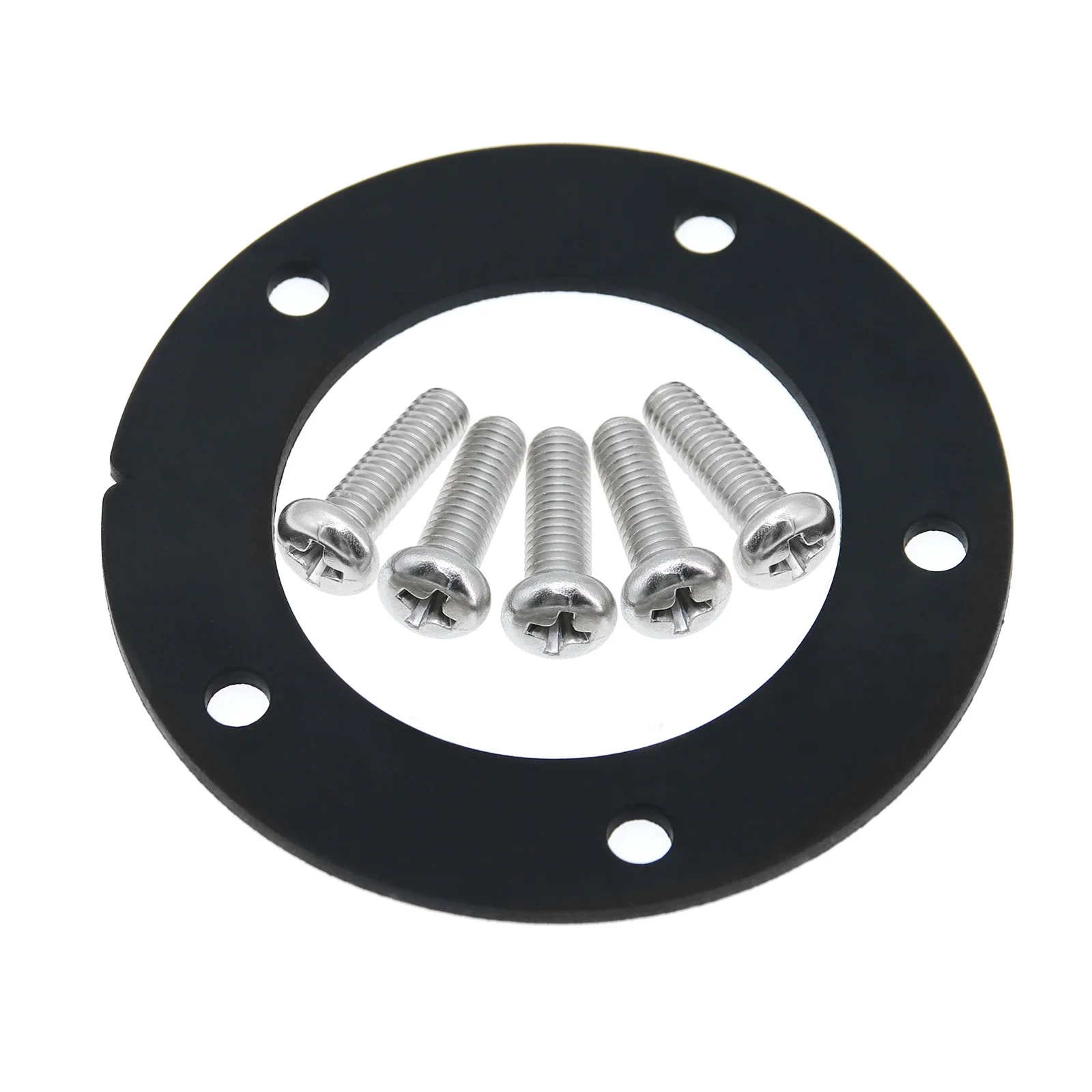

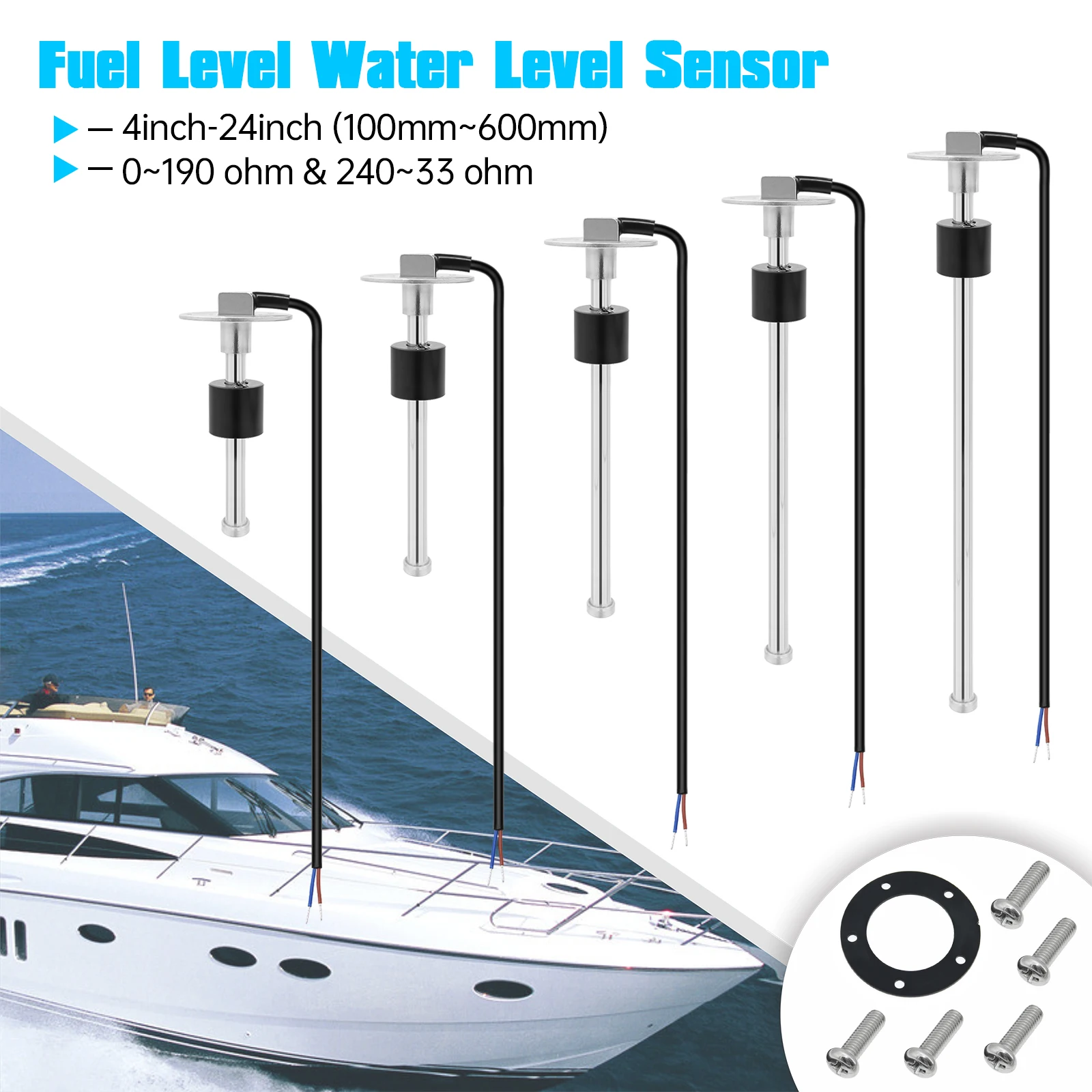

- Sensor Length :150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm - Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European),
fit for water /Fuel Level Gauge: 0-190ohm
- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel
- the blue wire of sensor is connect the Ground line,
- the brown wire of sensor is connect the gauge

Note:

- Empty oil level : 0 ohm /
- Full oil level : 190 ohm
- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~
