Note :This item is have Water Temp/Oil Pressure/Fuel Level and Voltmeter ,before you make the order pls confirm which option you choose !!!

Feature :

- Widely used car, truck, yacht, Boat and marine ect.

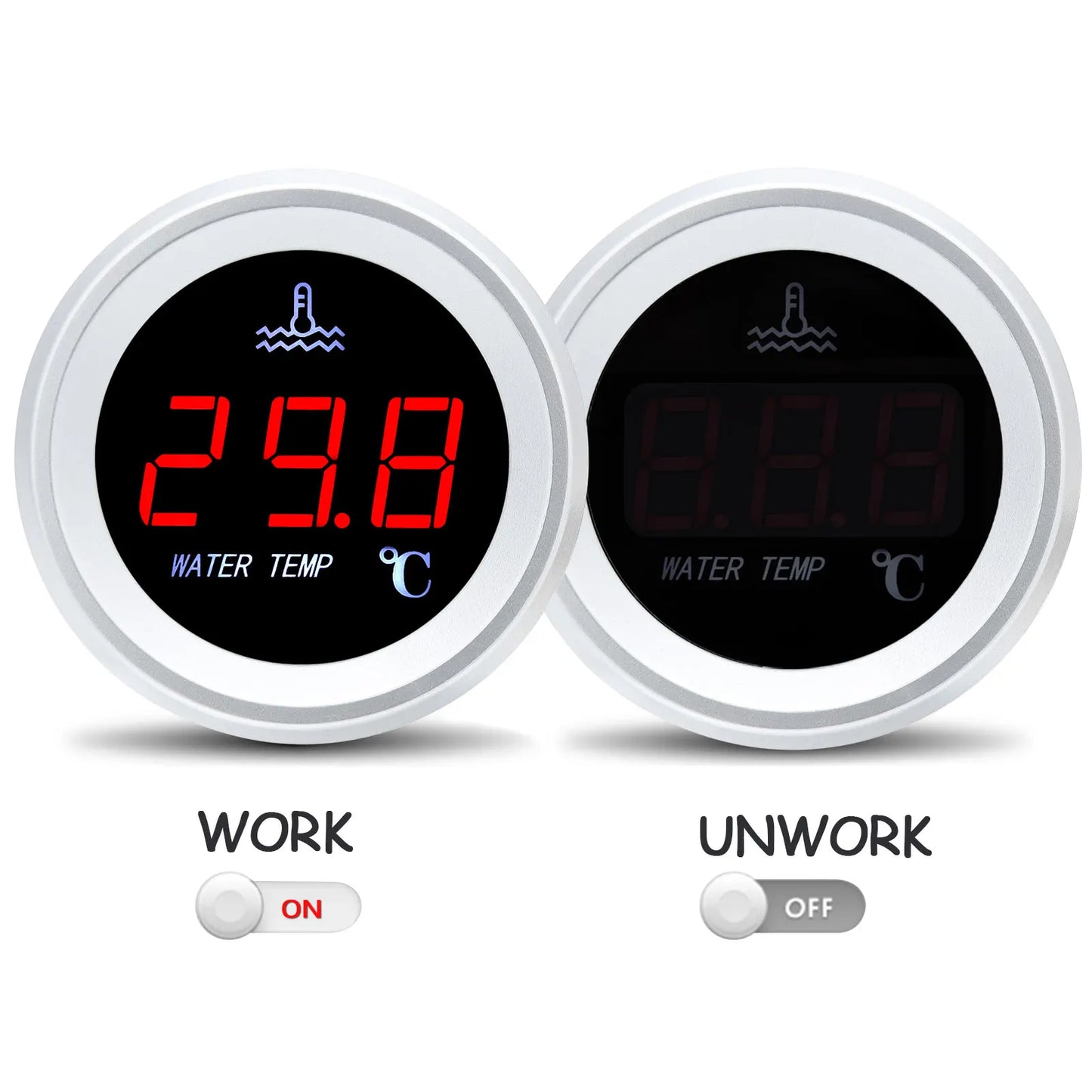

- Self-calibration at start-up ensures the meter operates optimally, smart and effortlessly.
- LED digital screen. Measure water temperature in time. Numbers, degrees show the water temperature. Even at night, you can directly understand the water temperature situation.
- Lightweight with necessary wires for installation. Equipped with water temperature sensor. Plug and play, easy to install.
- Accurately measure water temperature. Accurately understand water temperature conditions. Friendly protection of your engine.

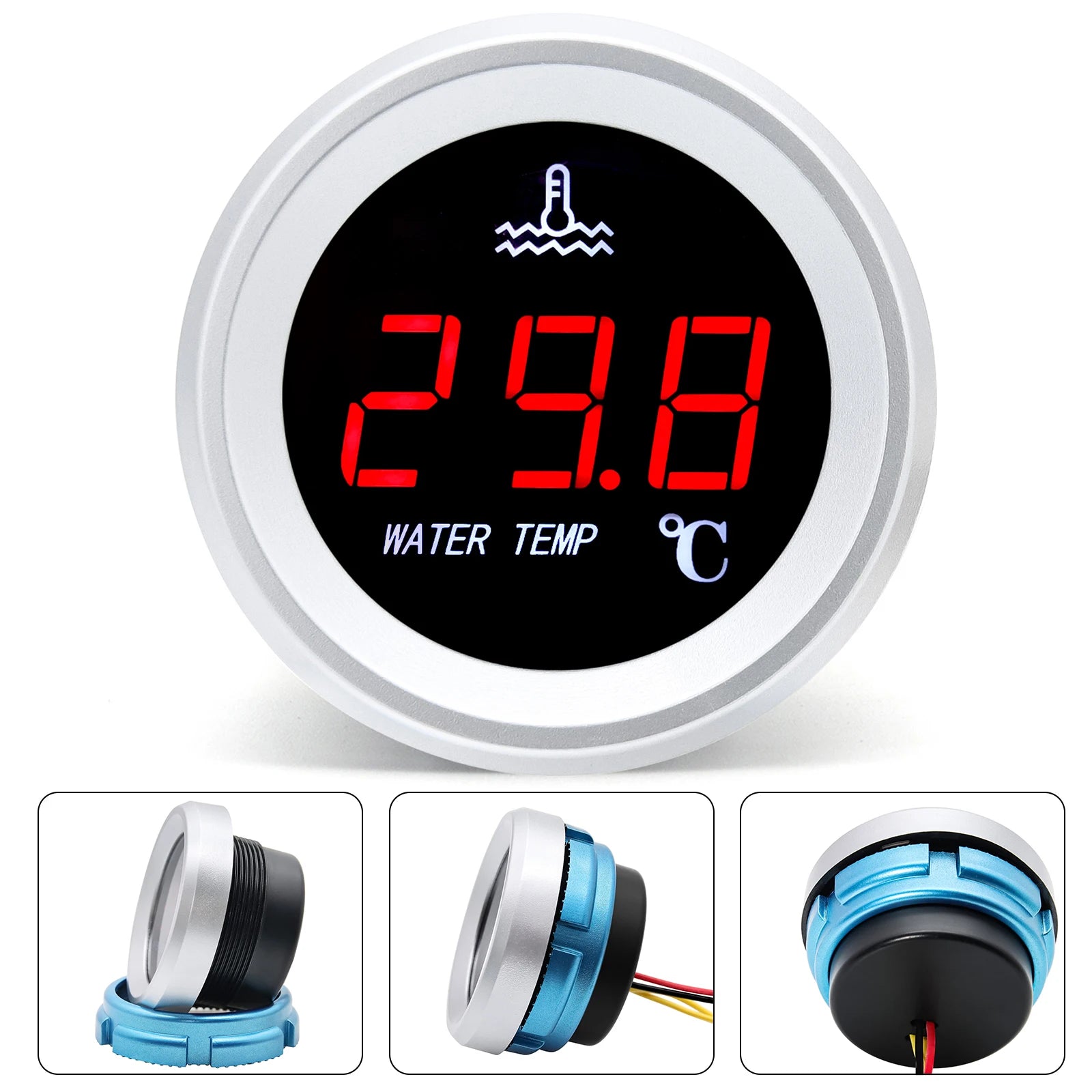

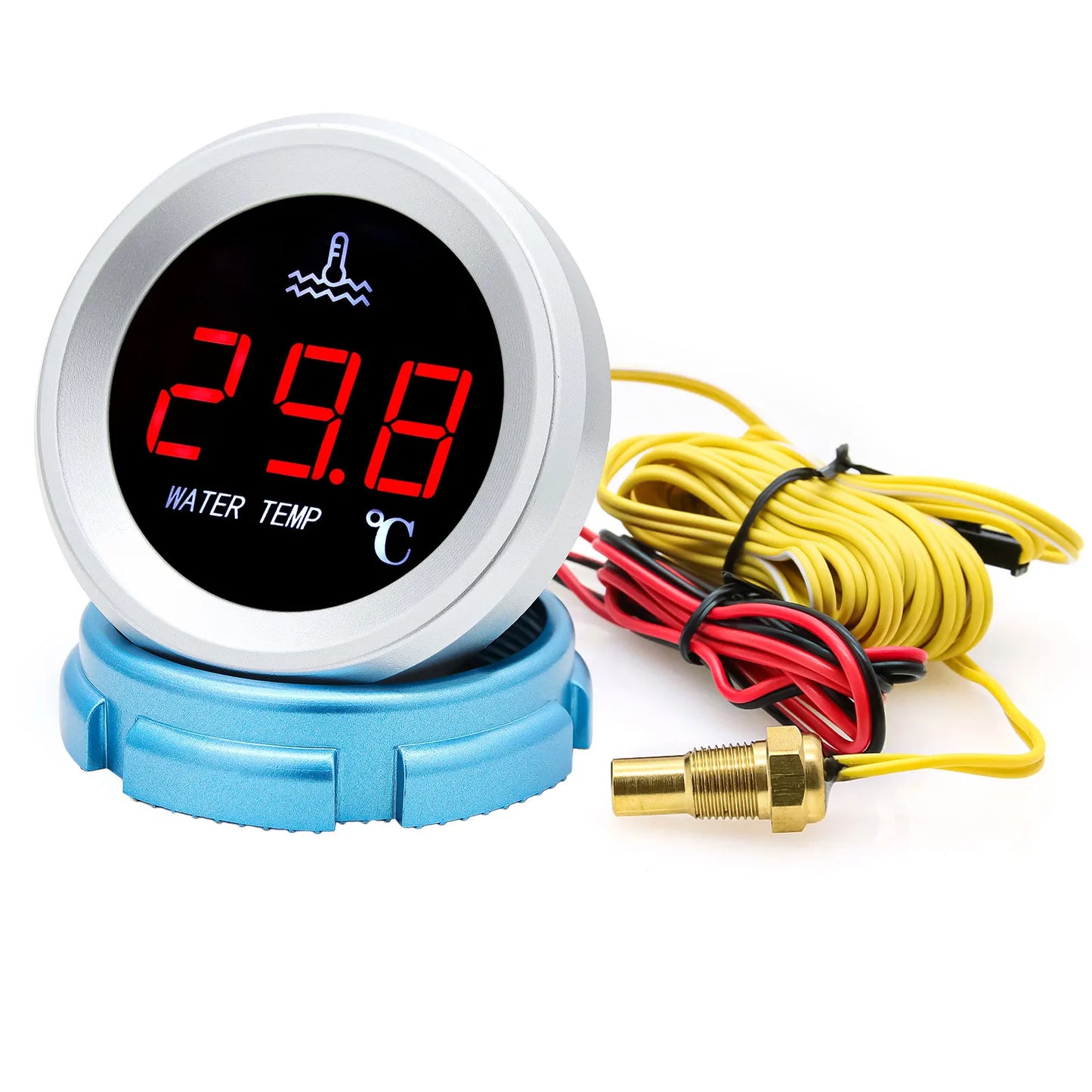

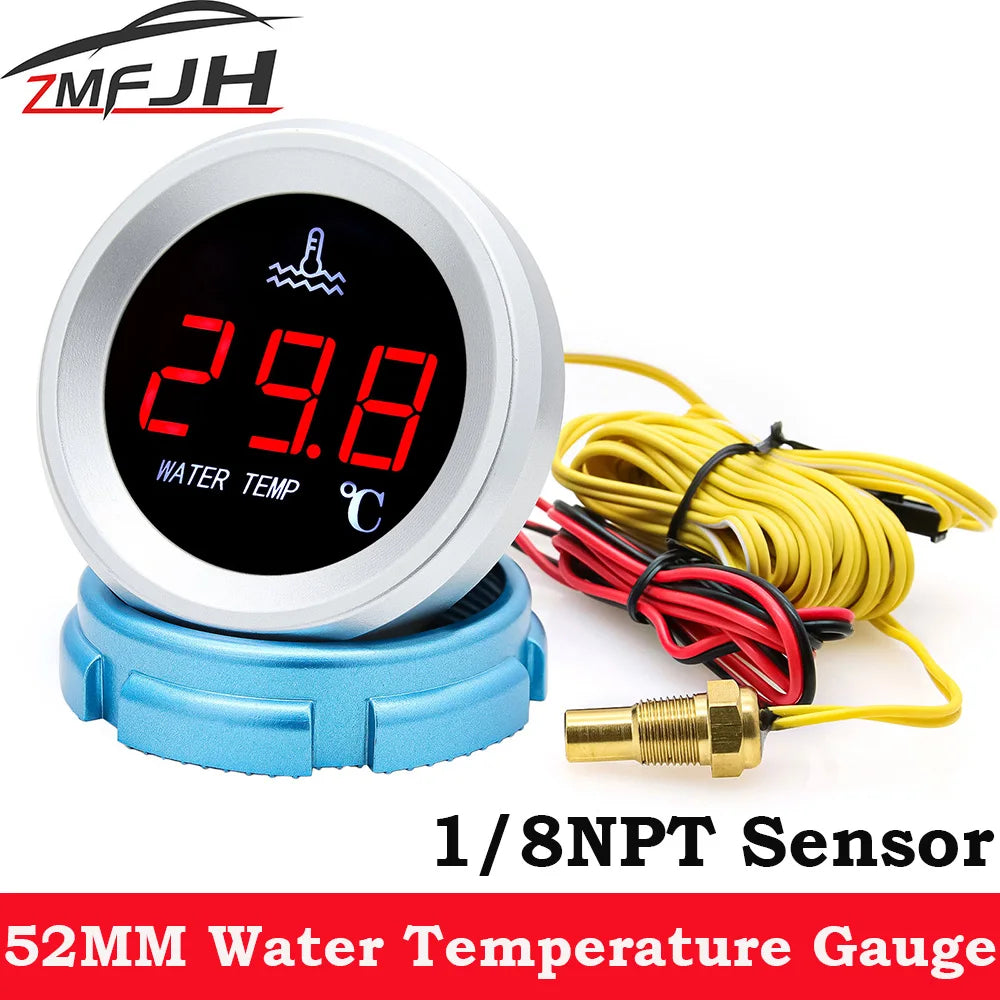

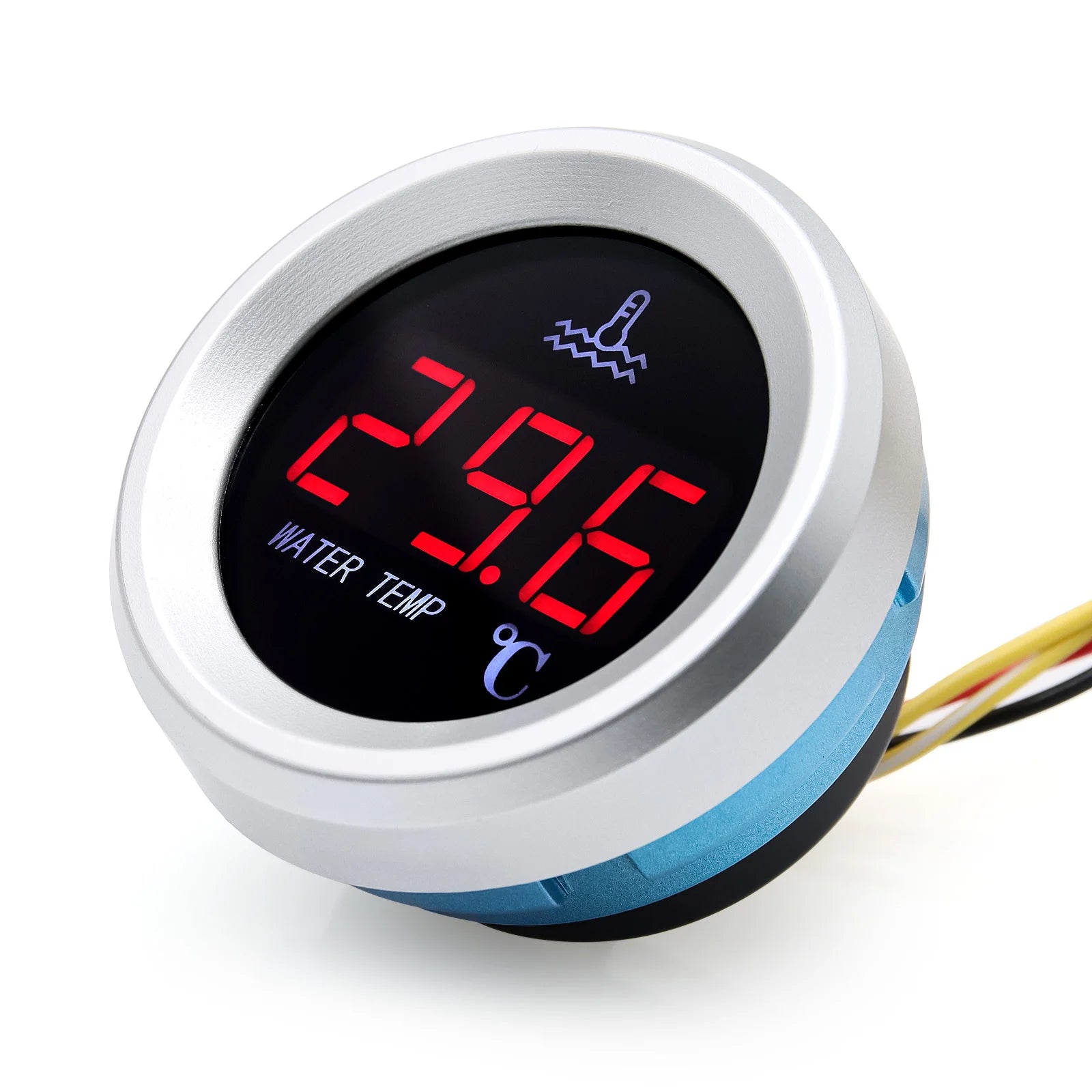

Water Temperature Gauge Specification:

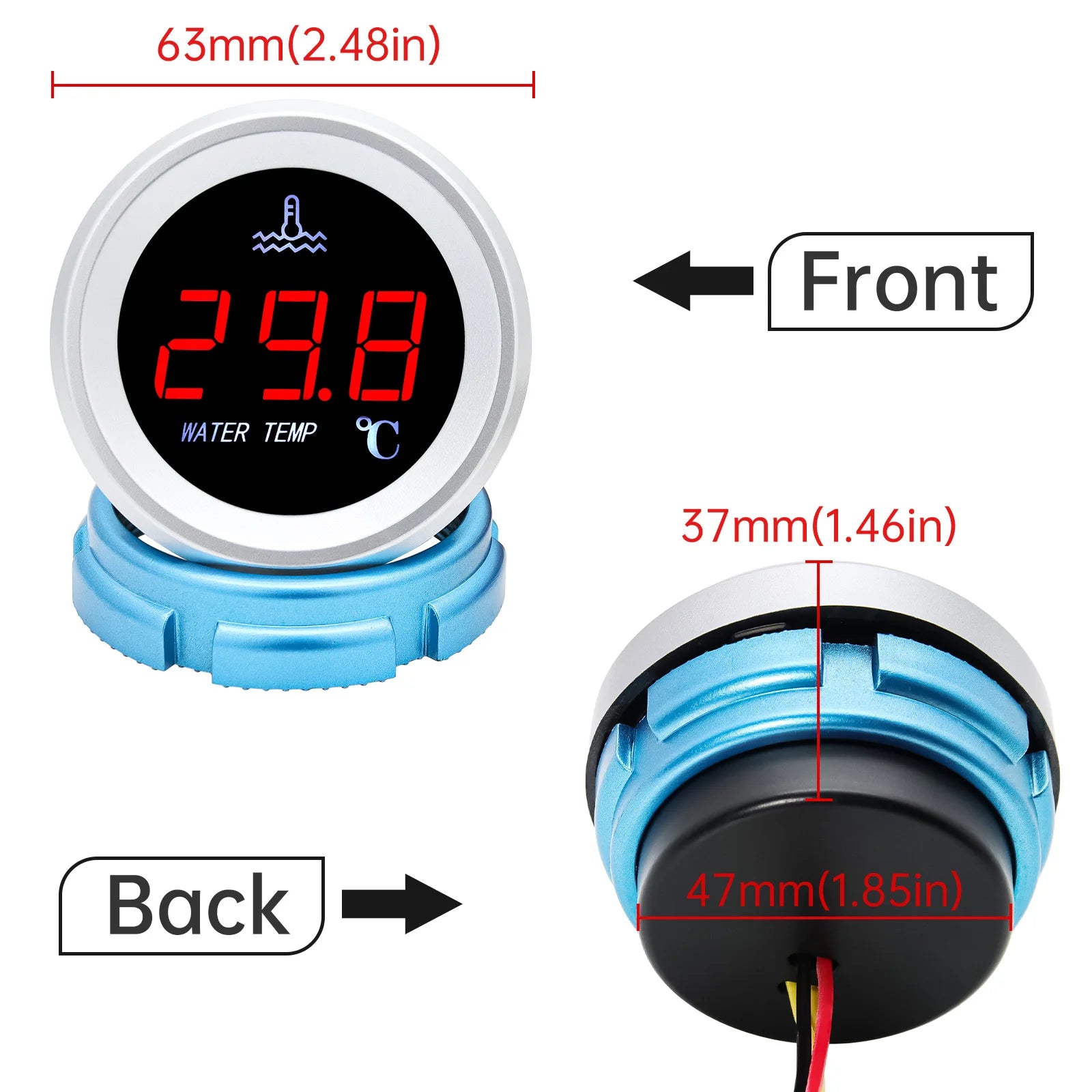

-52mm Water Temperature Gauge
-Working Voltage :9-35V
-Range:0-120℃
-Alarm Temperature :≥96℃
(The Gauge Flash Alarm )
-Water Temp Sensor size :1/8NPT
-Connection:
Red Wire-------------Power (+)
Black Wire ----------Power(-)

Package Include :

1 X 52MM Water Temp Gauge
1 X 1/8NPT Water Temp Sensor

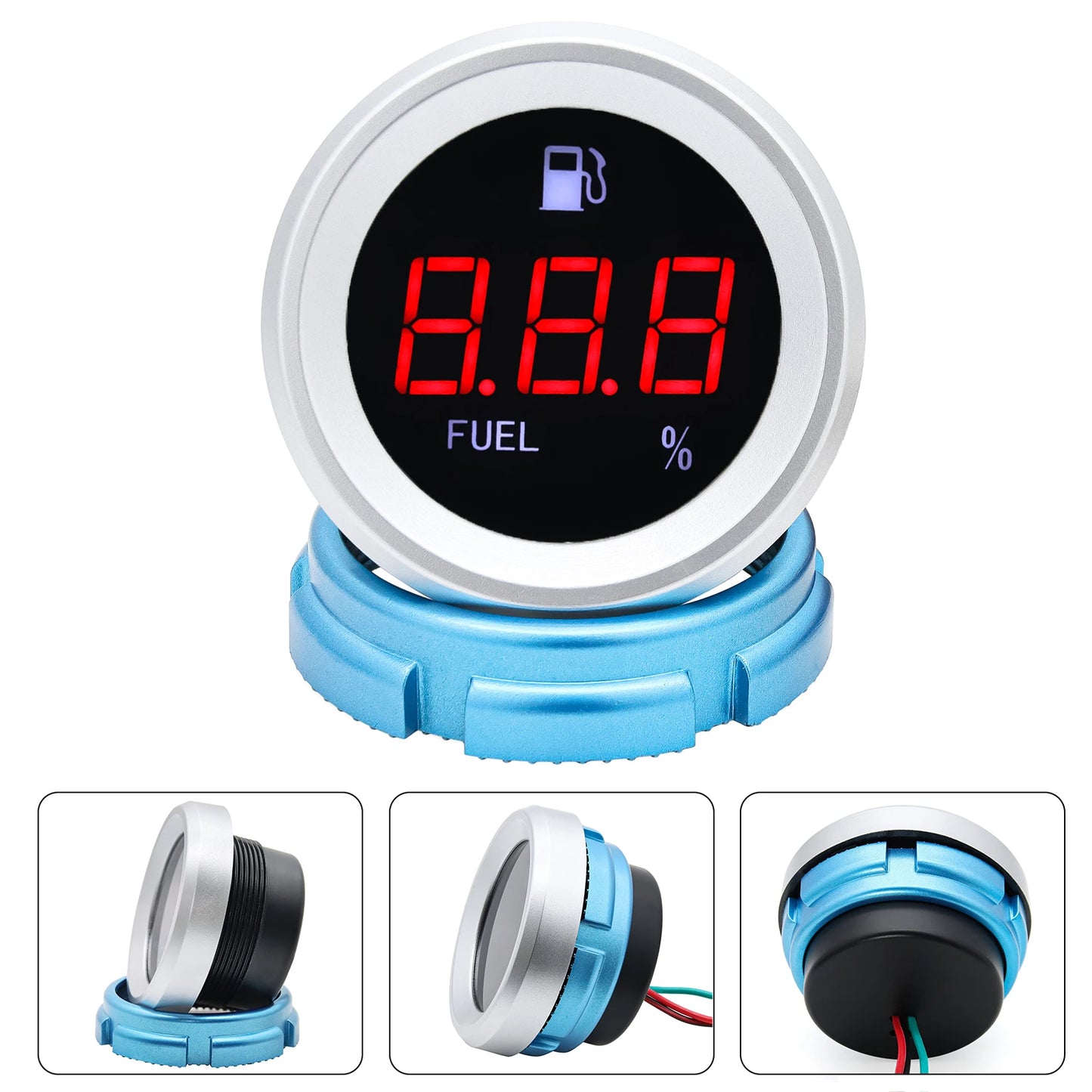

Fuel Level Gauge Specification:

1. Working voltage: 9-35V;
2. Test range: 0-100%;
3. When the Fuel Level is ≤ 10%, the Gauge will flash for alarm;
4. Resistance value of adaptive sensor: 0-190 Ω;
5. The RED wire is connected to the positive pole of the power supply, the BLACK wire is connected to the negative pole of the power supply, and the GREEN wire is connected to the sensor.

Package Include:

1X 52MM Fuel Level Gauge

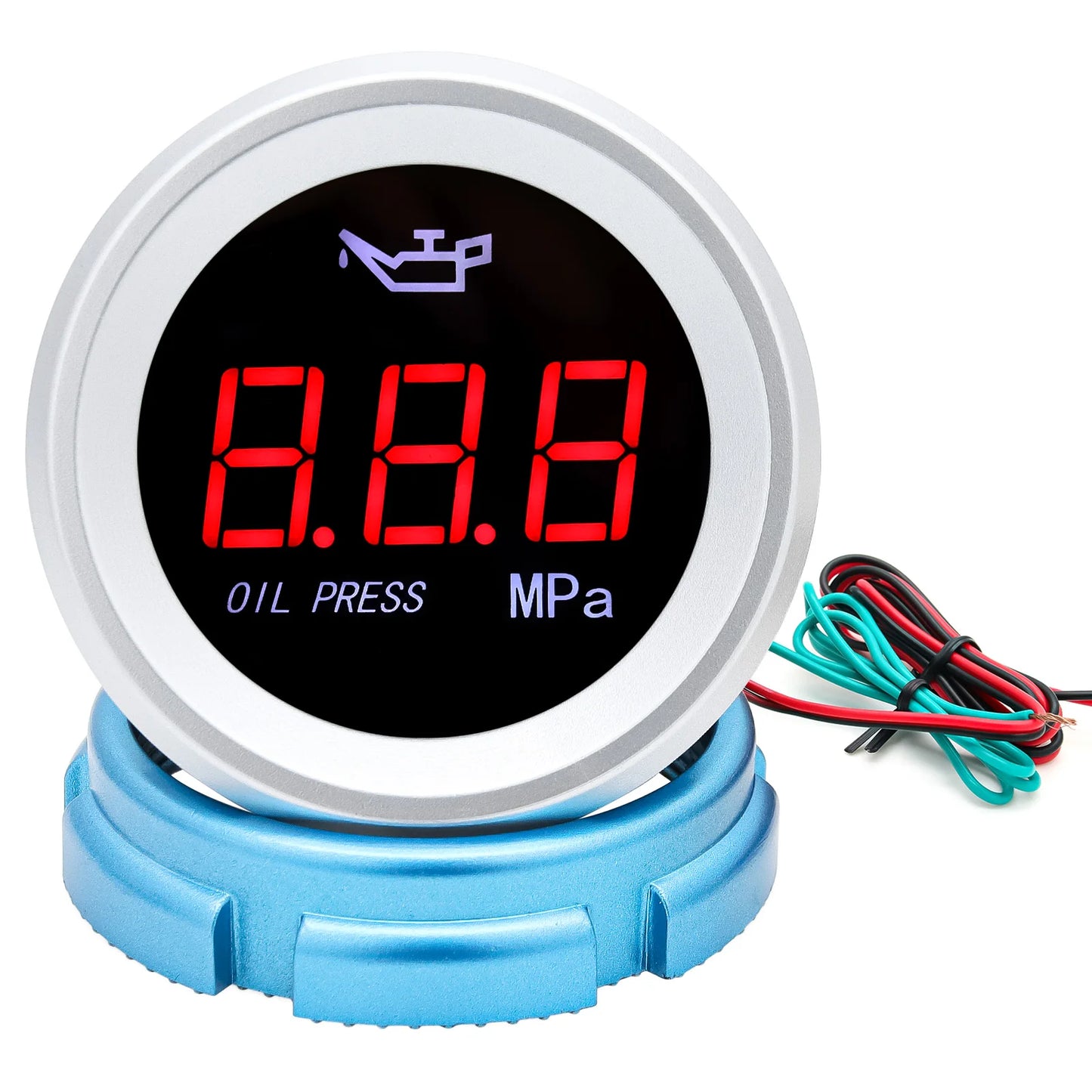

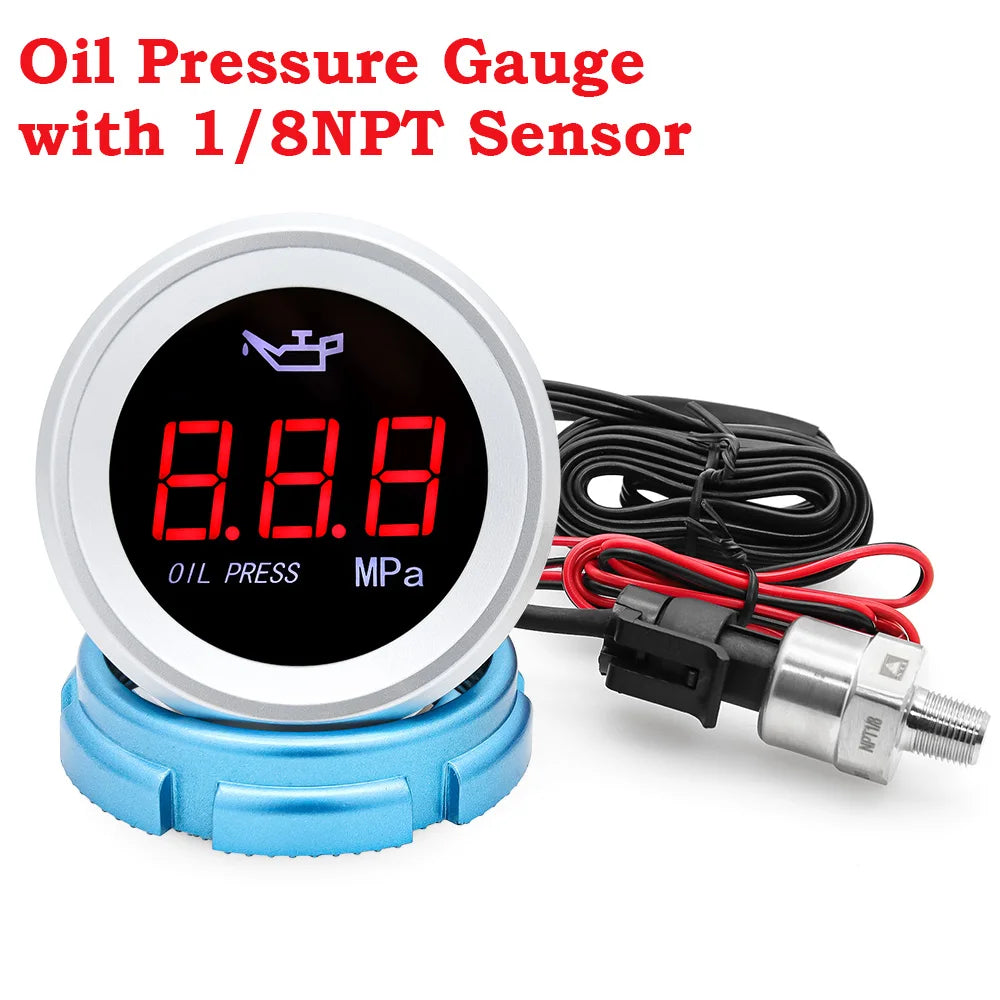

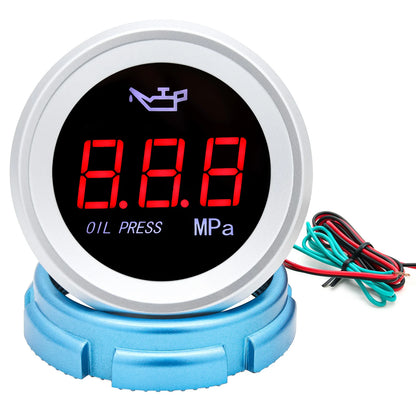

Oil Pressure Gauge Specification:

1. Working voltage: 9-35v;

2. Test range: 0-1.00Mpa;

3. When the Oil Pressure is ≤0.08Mpa,Gauge will flash for alarm .

4.Oil Pressure Sensor :1/8NPT Sensor

5. The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply

Package Include :

1 X 52MM Oil Pressure Gauge

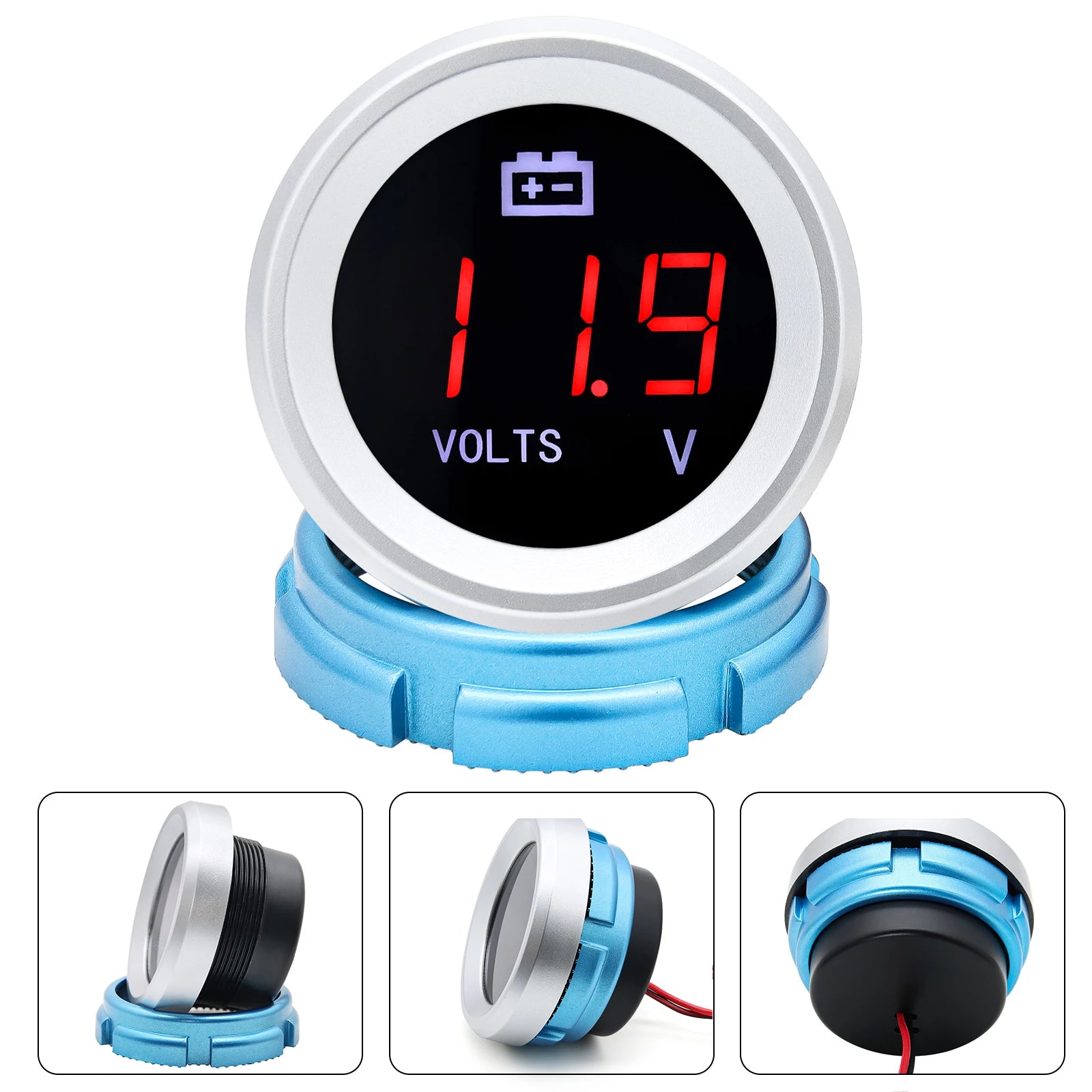

Voltage Specification:

1. Working voltage: 9-35v;
2. Test range: 9-35v;
3. When the voltage value is ≤ 10V or between 14.5 and 21.5v or ≥ 29V, the Gauge will flash for alarm;
4. The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply

Package Include:

1 X 52mm Voltage
