50M BSD Blind Spot Detection System 79Ghz Millimeter Wave Radar Lane Change Assist Highlight Warning Lights Support LCA RCTA



Features:

-BSD System: Helps drivers to monitor their blind spots and effectively improve driving safety in the following driving environments. The system is a vehicle auxiliary device that can help the driver to safely change lanes while driving.

-79Ghz Millimeter Radar: This system product can warn the dangerous targets in the adjacent lanes. The unique ability of 79Ghz millimeter radar to penetrate smoke, fog and dust can realize all-weather and all-time application, detect the objects in the signal area in real time, and calculate the speed, angle and relative displacement of objects at the same time, and finally output the alarm signal, which includes the first-level alarm and the second-level alarm.

-Early Warning: During driving, when the side and rear vehicles are in danger of colliding with my car, the warning light strip will light up to remind the driver. If the left/right turn signal is turned on, it will be accompanied by an audible warning.

-The blind spot detection system can distinguish between stationary objects and moving objects. Stationary objects do not alarm. Pedestrians and vehicles in a driving state will sound an alarm when they are detected.

-When waiting for traffic lights: After parking, the car behind is still, and the blind spot detection system does not alarm.

-Normal driving: When the car behind is slower than us, there is no danger of collision and there is no warning. Similarly, when we overtake, the speed is faster than the car behind and there is no warning.

Specifications:

Applicable conditions: Universal (Special Note: There must not be any metal objects or irregular objects in front of the radar signals to block the radar signals, otherwise the test will not work).

Operating frequency band: 79Ghz 1 Radar Sensor

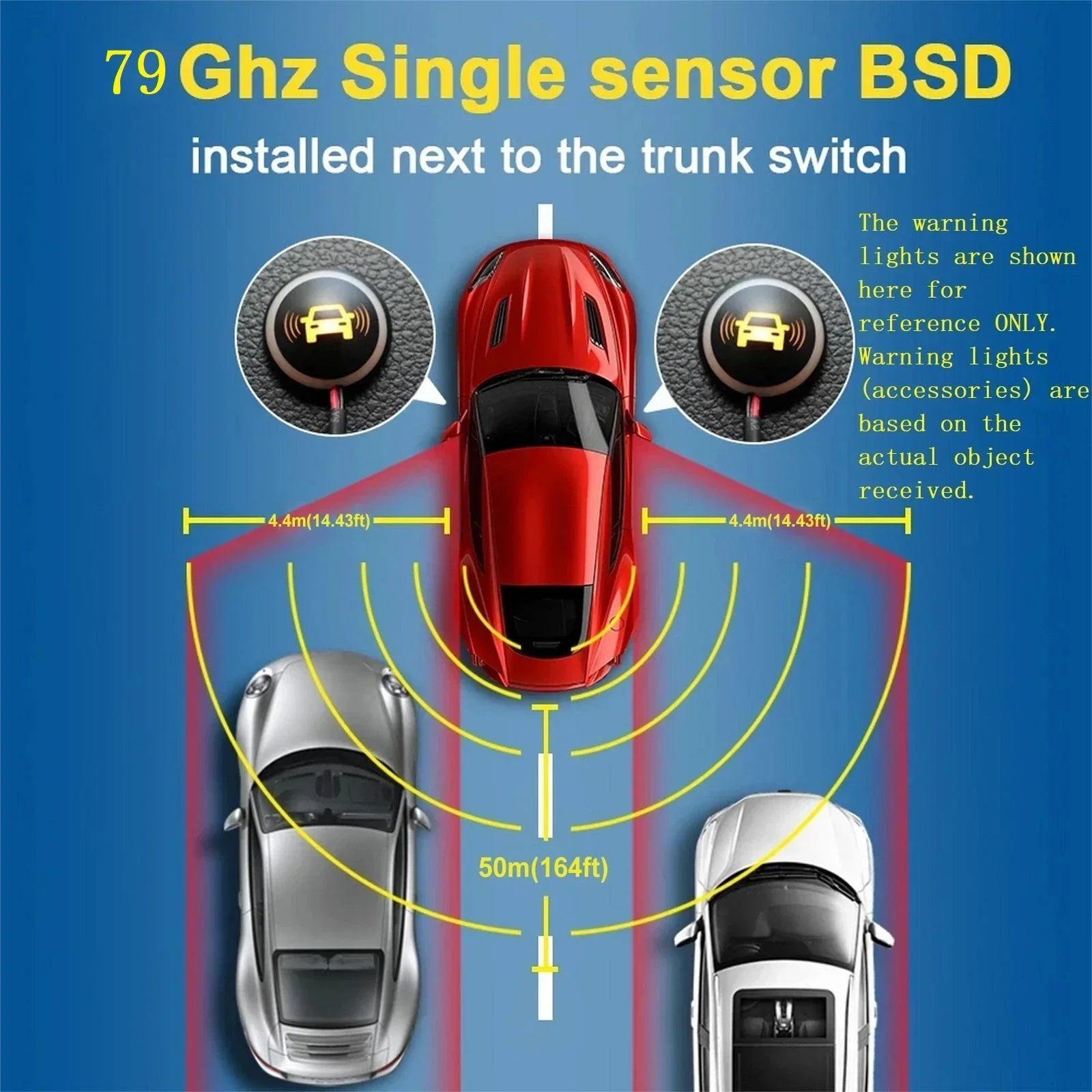

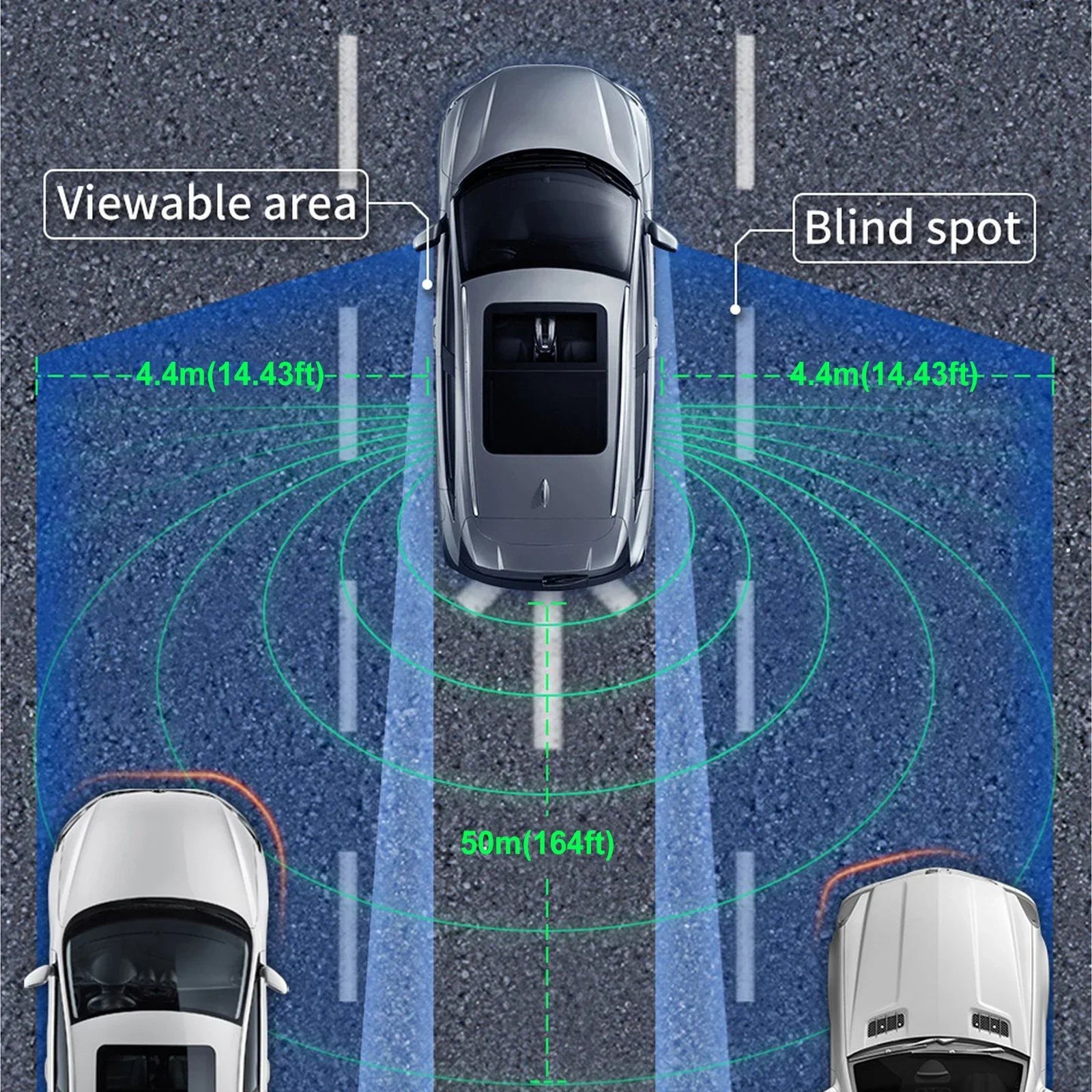

BSD Blind Spot Detection distance: 0-50M

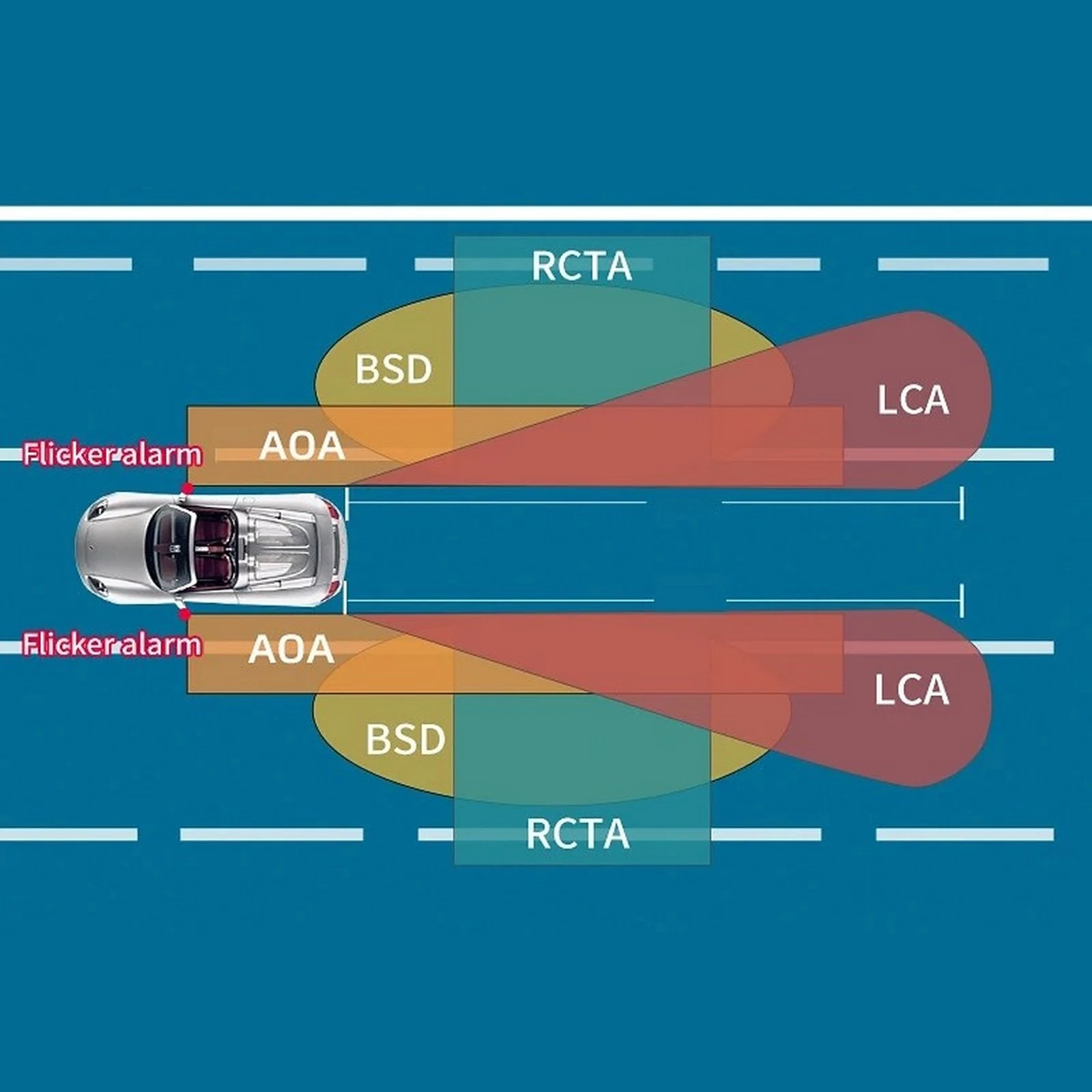

Blind Spot Detection function: BSD, support. Indicator lights up to indicate that there is a vehicle in the blind spot that is going faster than your own vehicle.

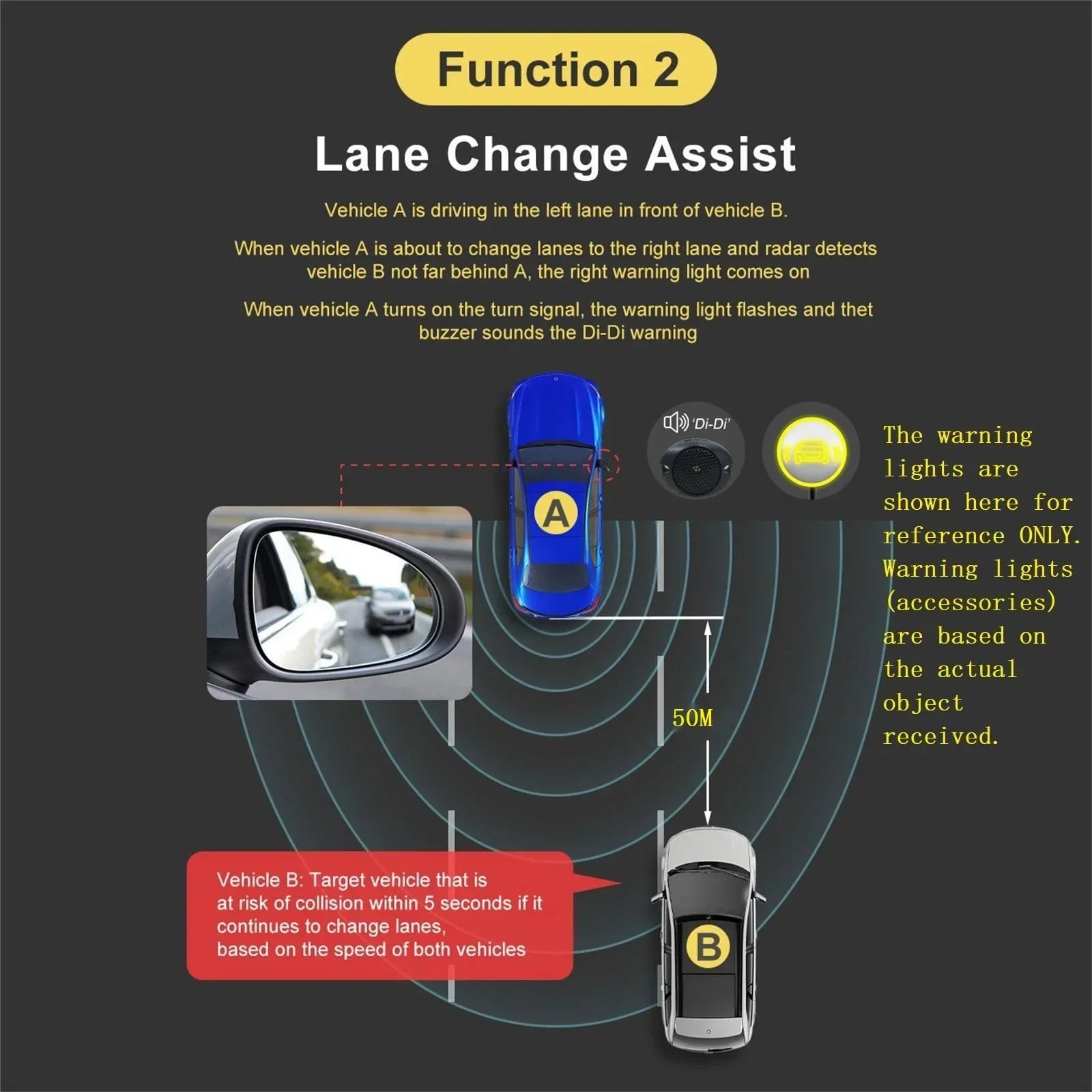

Lane Change Assist function: LCA, support. There is a vehicle in your blind spot that is going faster than you are, and the buzzer sounds when you hit the turn signal.

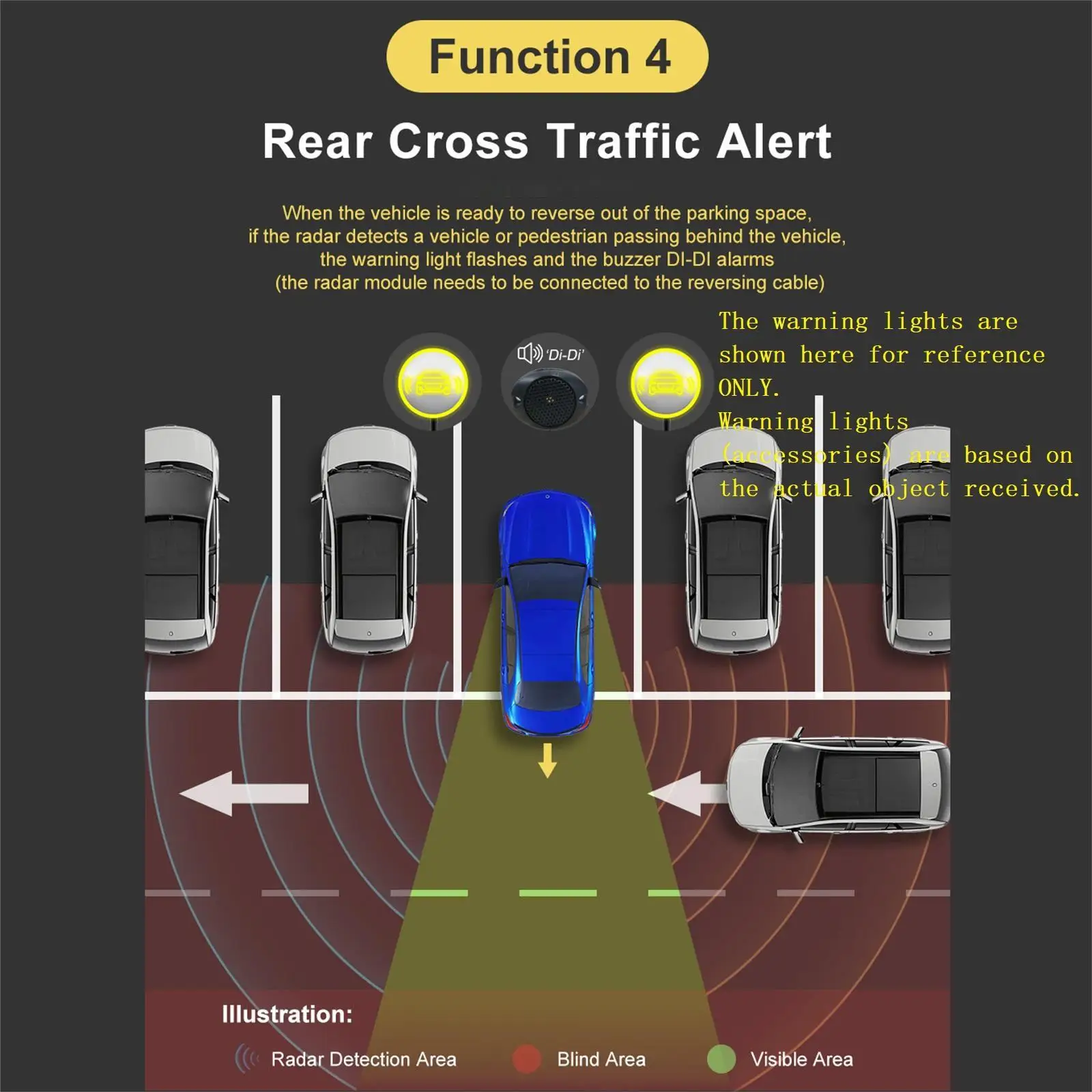

Rear Cross Traffic Alert: RCTA,support. Lights indicate when a car is crossing while backing up.

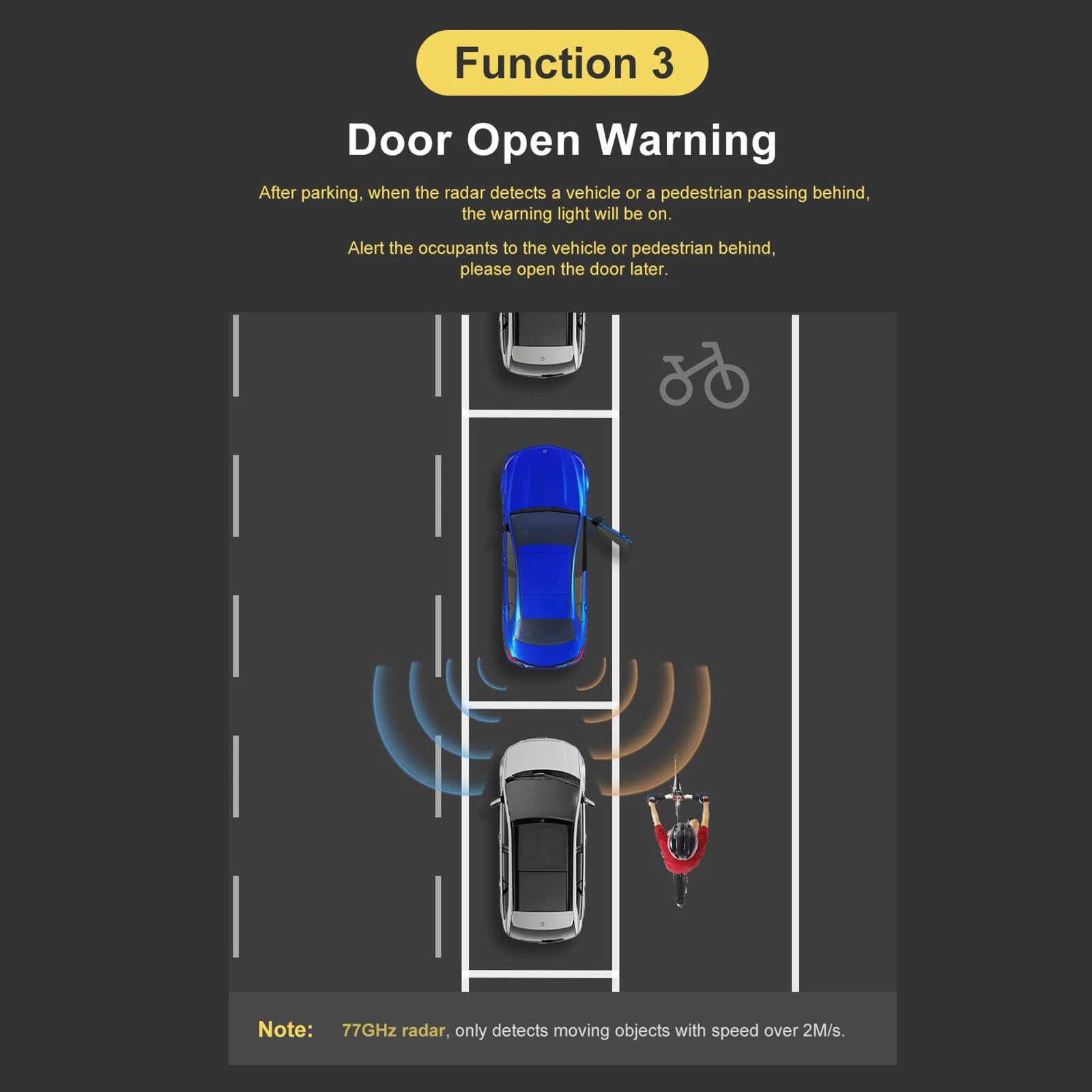

Door Open Warning: DOW,support.

Warm tips: there are two understandings of the door open warning: 1. is in the case of the door open warning without turning off the engine, this is itself with; 2. is in the case of turning off the engine and stopping the car, through the time-delay switch, so that the product delayed 59 seconds to work the warning, which needs to be added to the time-delay switch.

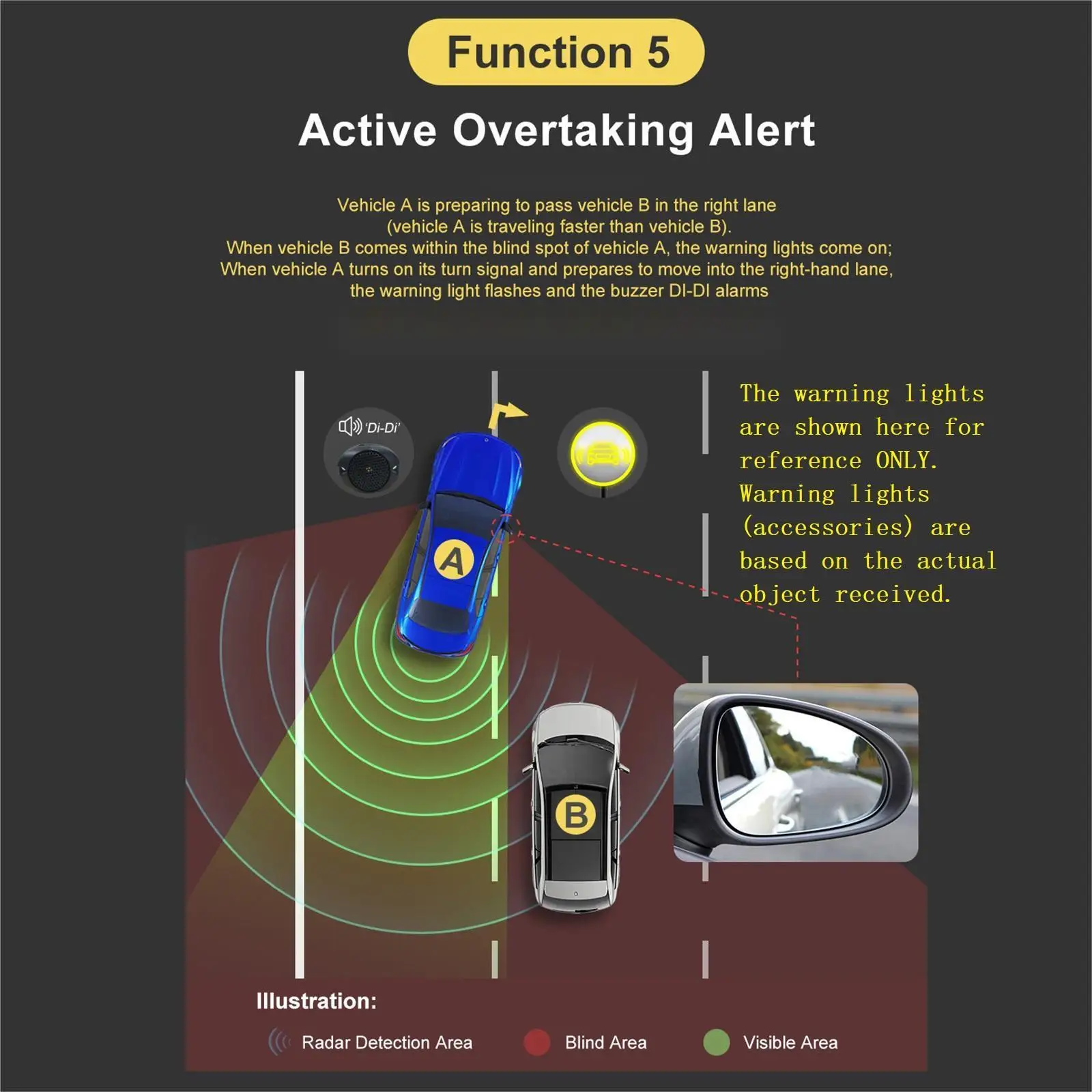

Active Overtaking Alert function: AOA,support. Light warning when your own vehicle overtakes the other vehicle.

Dual color light: 2 color warning

Radar sensor: 79Ghz, dual transmitter and four receivers

Third Lane Shield: Support. In order not to interfere with the signal.

Start-up speed: 10KM/h

B-pillar blind zone same speed warning: support

Alarm method: method 1 => LED light turn on.

Method 2 => LED flash and buzzer sound.

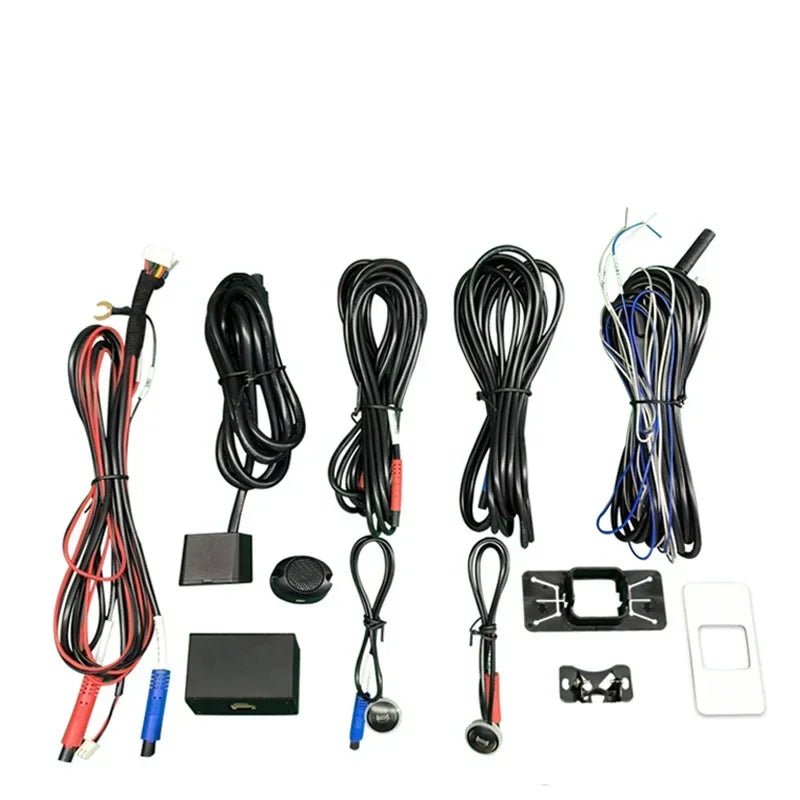

Packing List: 1*Radar. 1 Set* Radar adapter cable. 2*Warning light. 2*Warning light extension cable. 1*Buzzer. 1*Power cable. Several* Mounting accessories. 1*User manual. 1* Control box (to control the two colors of the warning light, which may be integrated directly into the warning light at a later stage).

The appearance of accessories may change at any time, please refer to the goods received.



Note:It is recommended that the installation be carried out by professionals.

The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions.

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. Please allow for some measurement error.
