BSD BSM BSA Blind Spot Monitor Radar Sensor Compatible For Buick GL8 GL6 2017-2025 Automotive Driving Alert Safety Replacement
BSD BSM BSA Blind Spot Monitor Radar Sensor Compatible For Buick GL8 GL6 2017-2025 Automotive Driving Alert Safety Replacement
SPECIFICATIONS
Brand Name: HESHECAM
Certification: CE,CE
Fit 1: For Buick GL8 GL6 2017-2025
High-concerned chemical: None
IS It With PCB: Yes
Material Type: ABS
Model: BSD
Operating current: 200MA
Origin: Mainland China,Mainland China
Supply Voltage: 12V
Talk Range: 15M
Type: Visible,Visiable
Product desciption:
1.This system is a vehicle assistance device that helps driver lane changing safely during driving.
2.With the aid of 24GHz microwave sensor, probe the side / rear of the vehicle for those moving objects into the blind spot of the detection zone.
3.The system works in a set of a control box (controlled by computer), two microwave sensors, two blind region monitor (or LED light), a buzzer and the wire harness which is the perfect connection of microwave and computer.
4.There is blind zone at the rear of the vehicle which is easy to endanger driving safety.! When you installed BSM into your lovely car, no matter it's day time, night time or even in the snow,you can be alerted whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on , blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.
5.After the vehicle is stopped, the system delays for 30s. When there are bicycles, electric cars, motorcycles, pedestrians and other vehicles near the vehicle, the system will light up and there is a risk of opening the doors. Please confirm the safety before opening the doors.
Why install BSD blind zone assist system?
blind spots are prone to collisions when changing lanes, and blind spots may cause "self-injury" when driving in a straight line. The blind spots are the high causes of accidents and the severe weather intensifies the obstruction of vision.

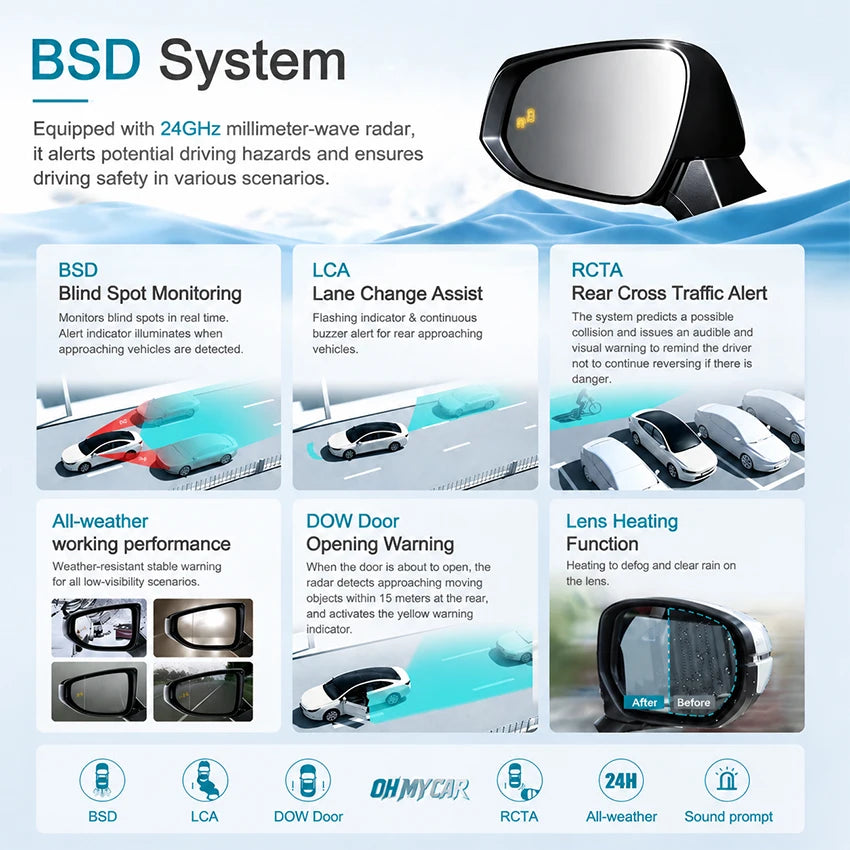

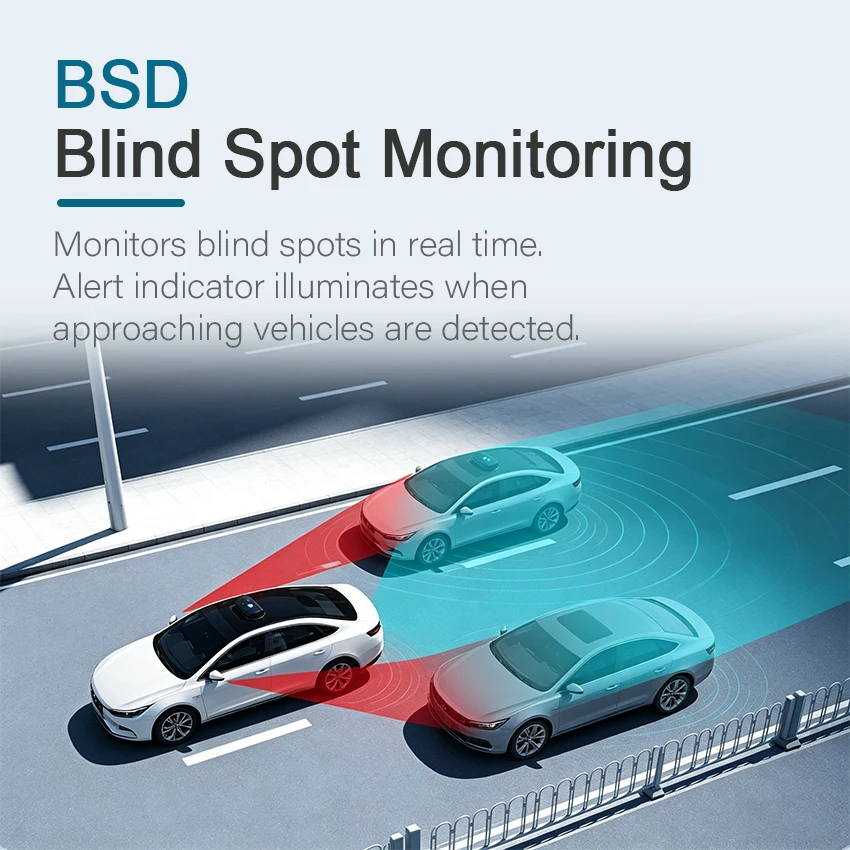

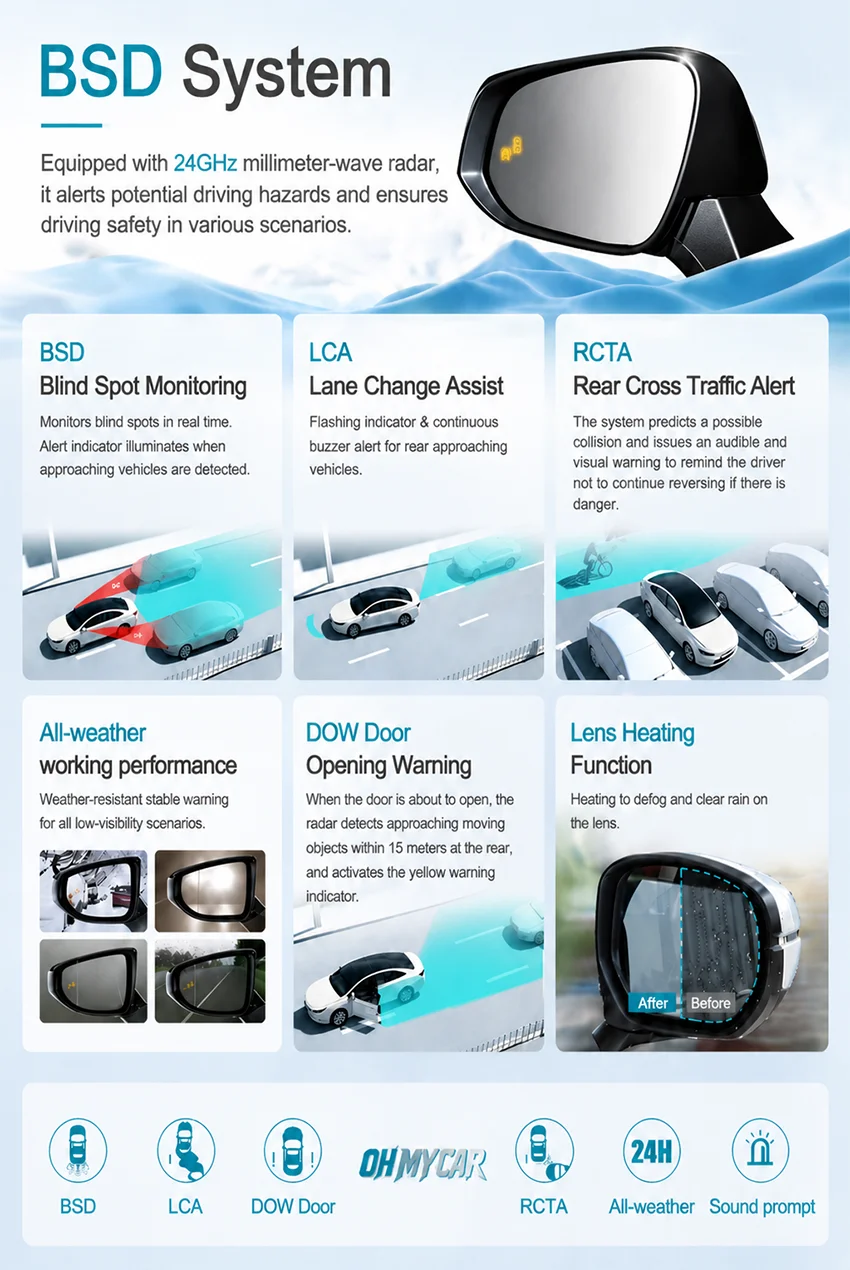

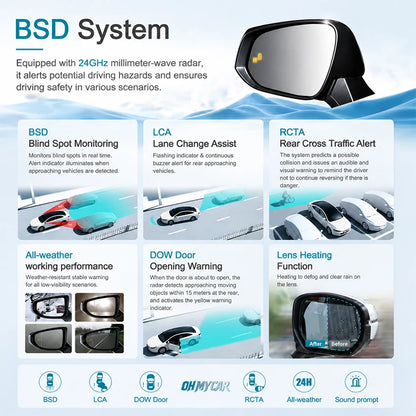

BSD Blind Spot Monitoring
Monitors blind spots in real time.Alert indicator illuminates whenapproaching vehicles are detected,

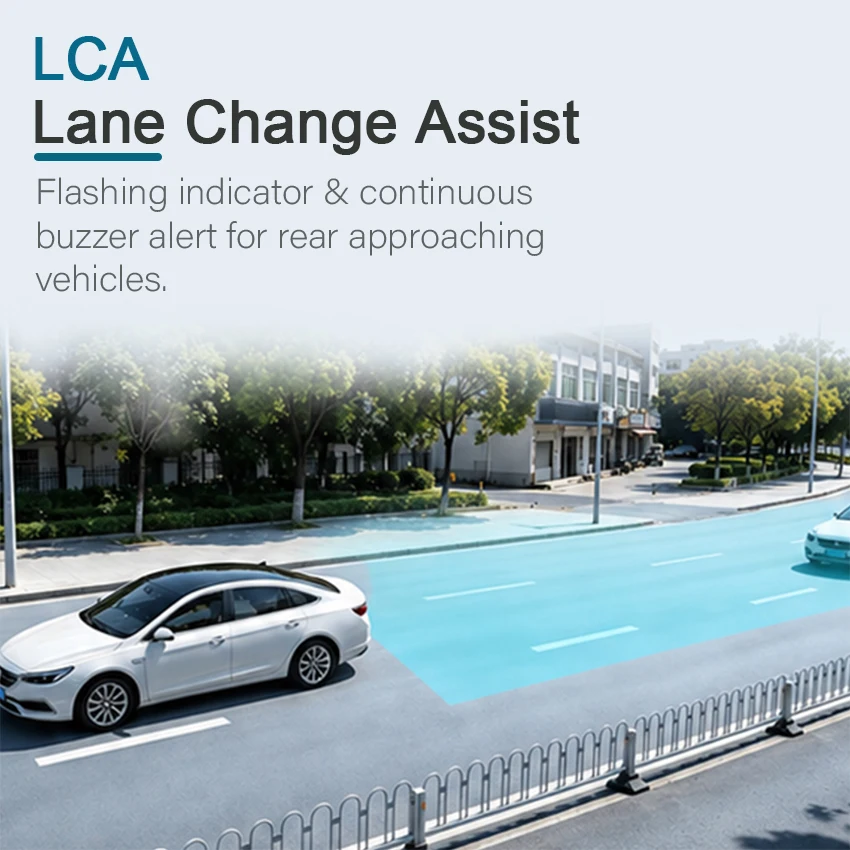

LCA Lane Change Assist
Flashing indicator & continuousbuzzer alert for rear approaching vehicles.
RCTARear Cross Traffic Alert
The system predicts possible collisionsand Sound and visual warnings as reminders

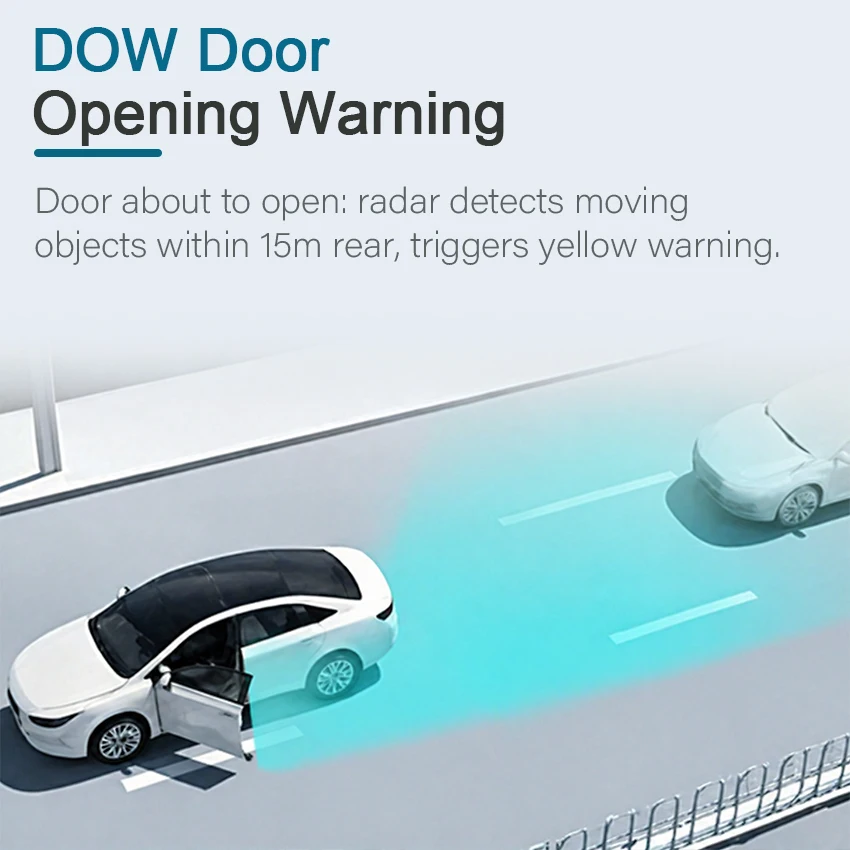

DOW Door Opening Warning
Door about to open: radar detects movingobjects within 15m rear, triggers yellow warning.

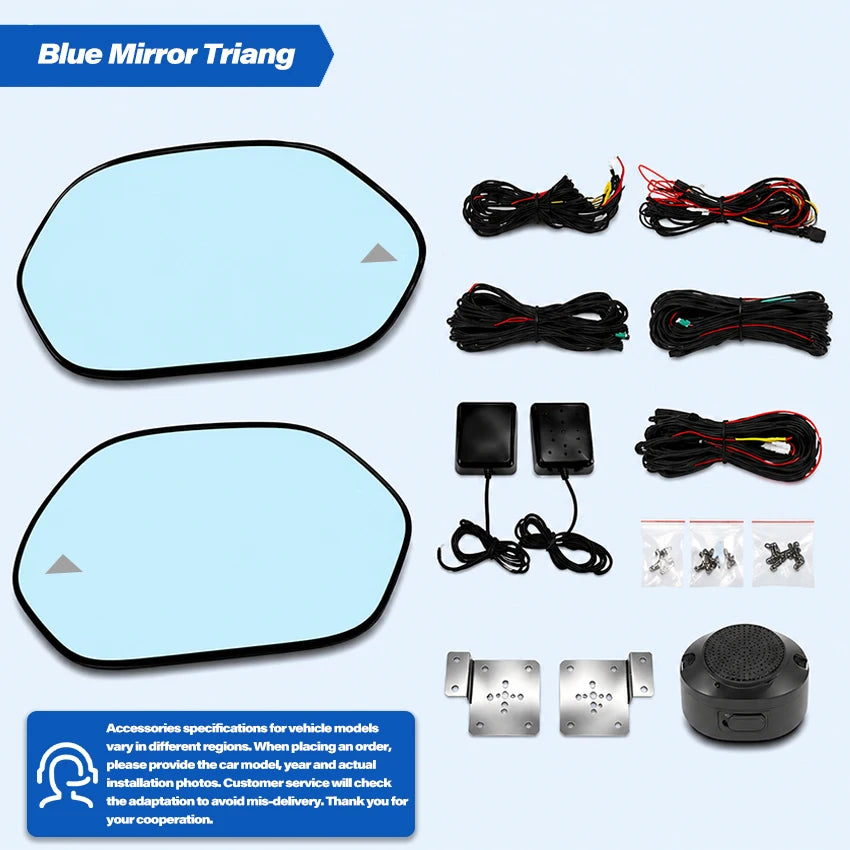

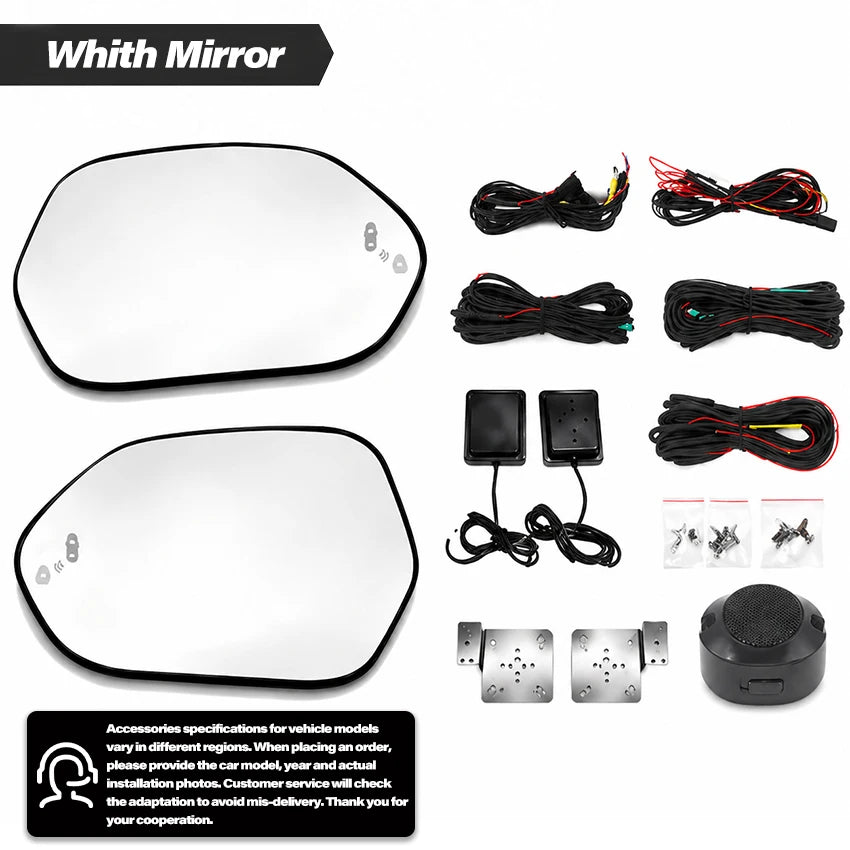

White vs Blue Mirror
Choose the best mirror for clear and comfortable driving.

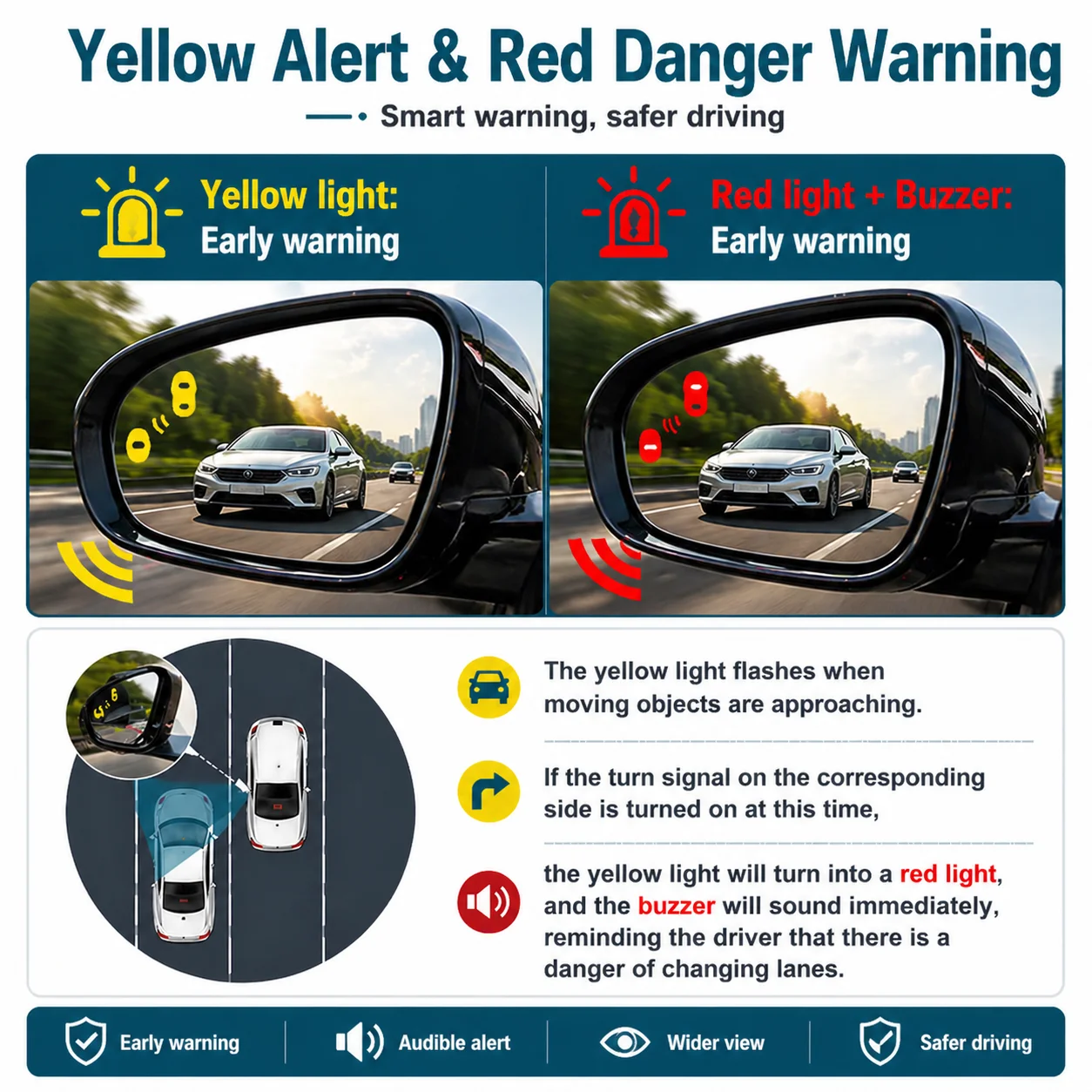

Yellow Alert & Red Danger Warning
Smart warning, safer driving
Mirror Heating
Automatically heats the side mirrorsto quickly remove frost, snow, and fog,ensuring a clear view in all conditions.

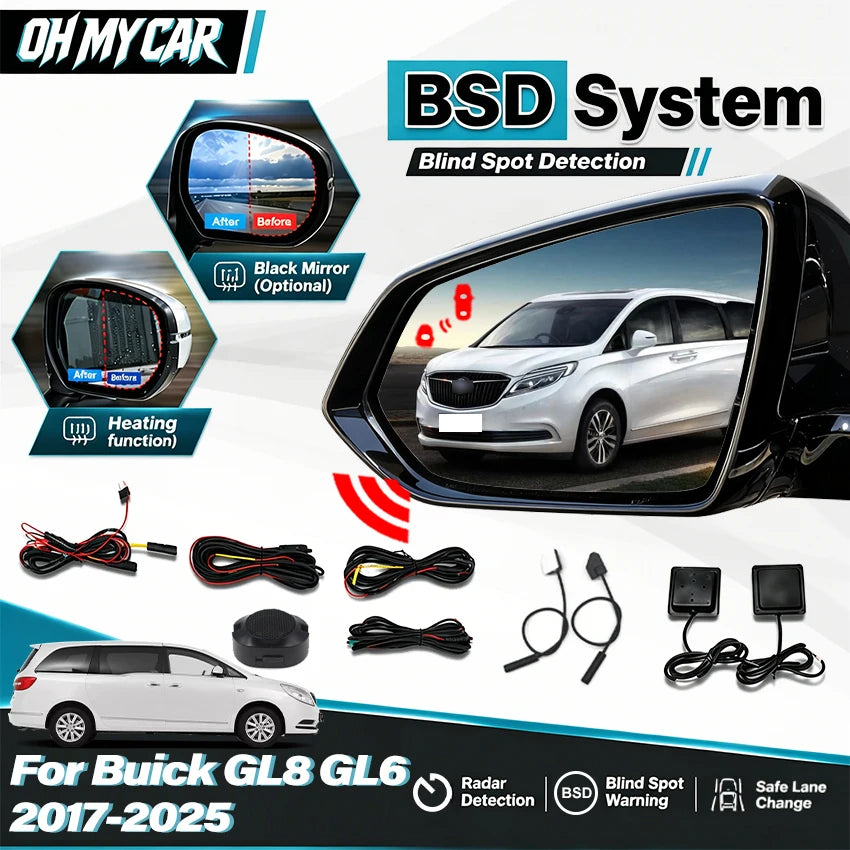

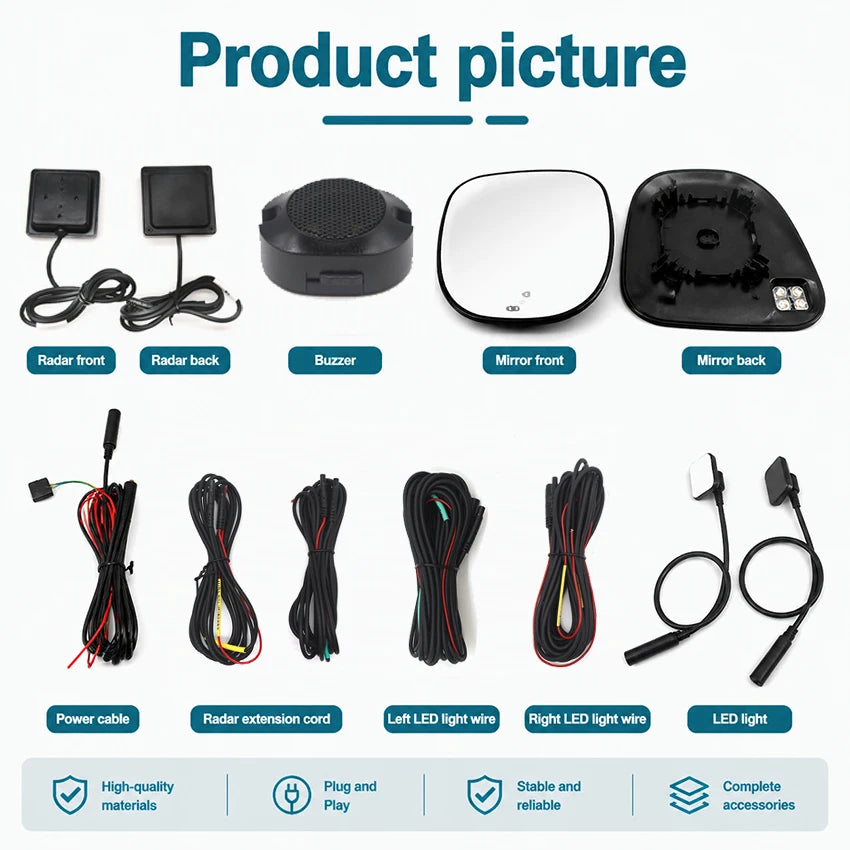

Product display
1)BSD host 1 PCs
2)Sensor 2 PCs
3)LED warning light 2 pcs Optional: Special rear mirror 2 pcs
4)External buzzer 1 PCs
5)Main harness 1 PCs
6)BSD wiring harness 1 pcs
7)Extension cord 4 pcs
8)Fixed bracket 1 pcs
9)3M tape 4 pcs
10)Manual 1 pcs
11)Angle feet 1 pcs

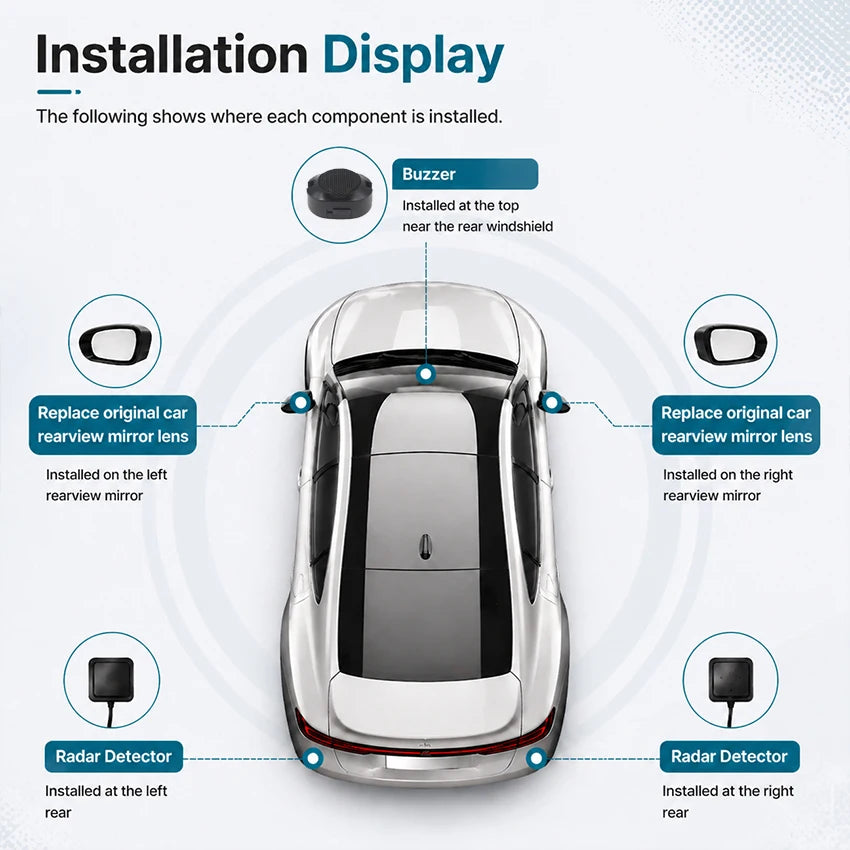

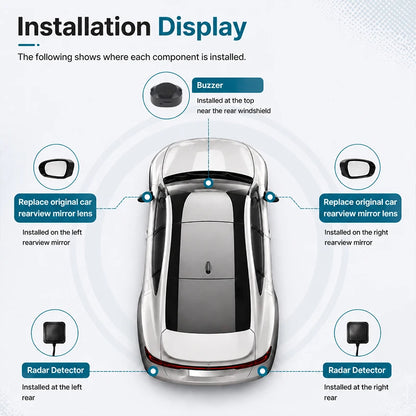

Display product installation:
Wiring:
Yellow line is connected with common battery, battery B +
red line then ACC +
Black line grounding -
Turn lights connect to the positive of the corresponding lamp
Other extension wire directly marked according to the mark
Installation requirements:
The signal transmitting surface of the sensor can only penetrate the plastic bumper shell and can not penetrate the metal.
The sensor may be affected by fluorescent light
The sensor should be firmly fixed with a bracket or 3M glue without shaking.
The sensor terminals are vertically downward and parallel outward 25 °

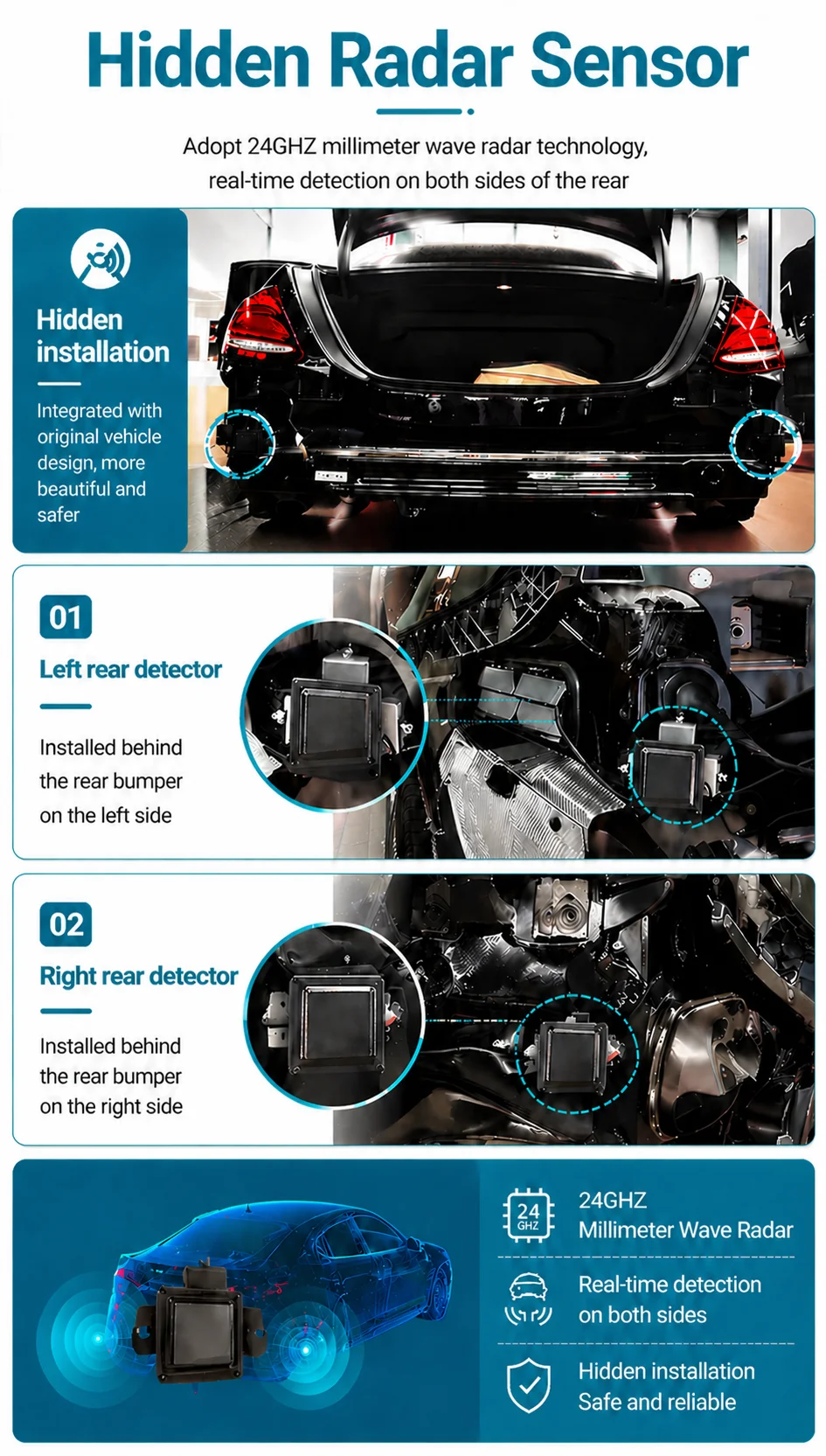

Hidden Radar Sensor
Adopt 24GHZ millimeter wave radar technology,real-time detection on both sides of the rear
