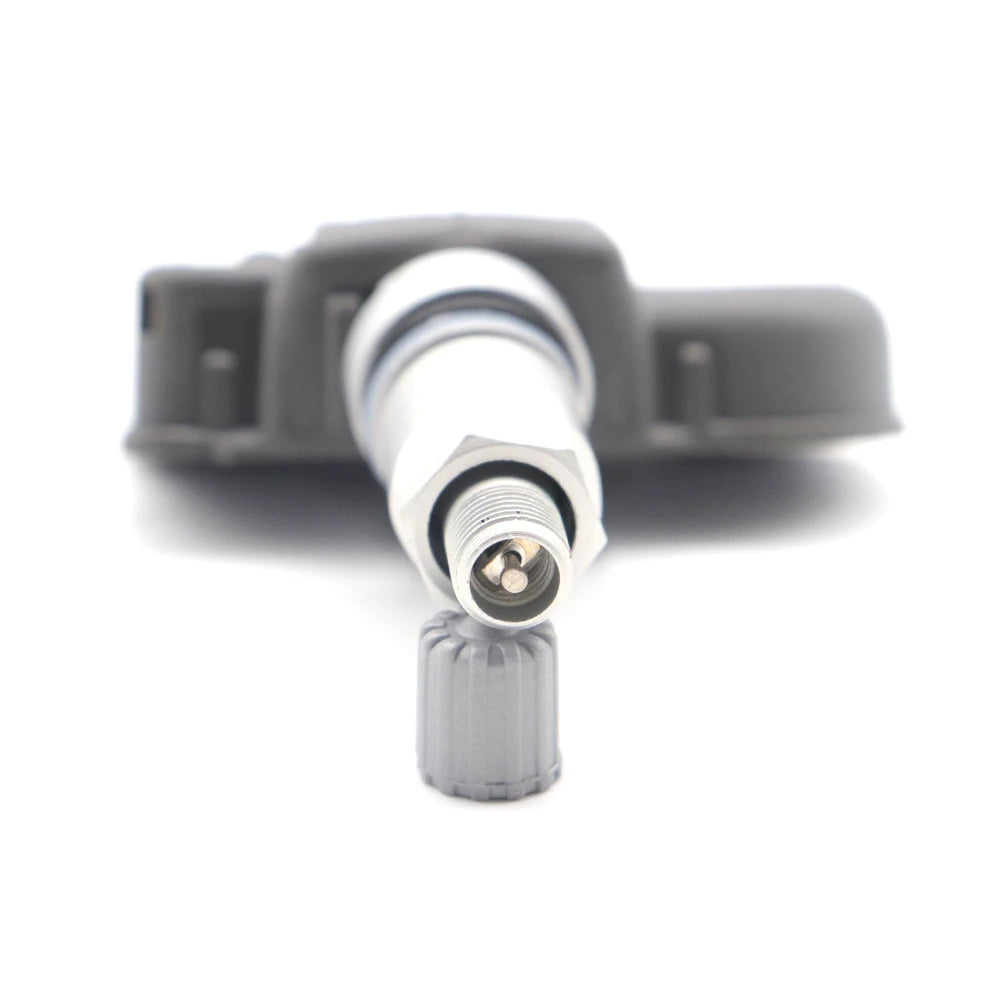

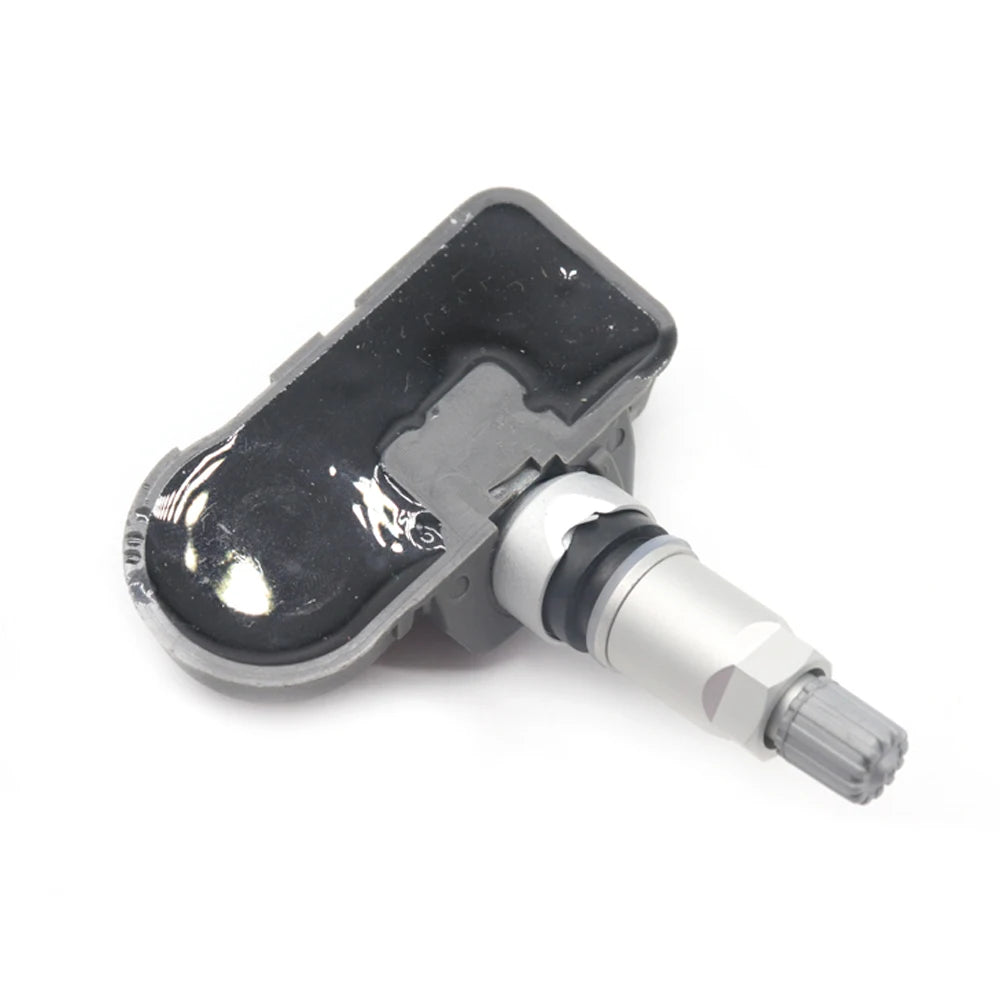

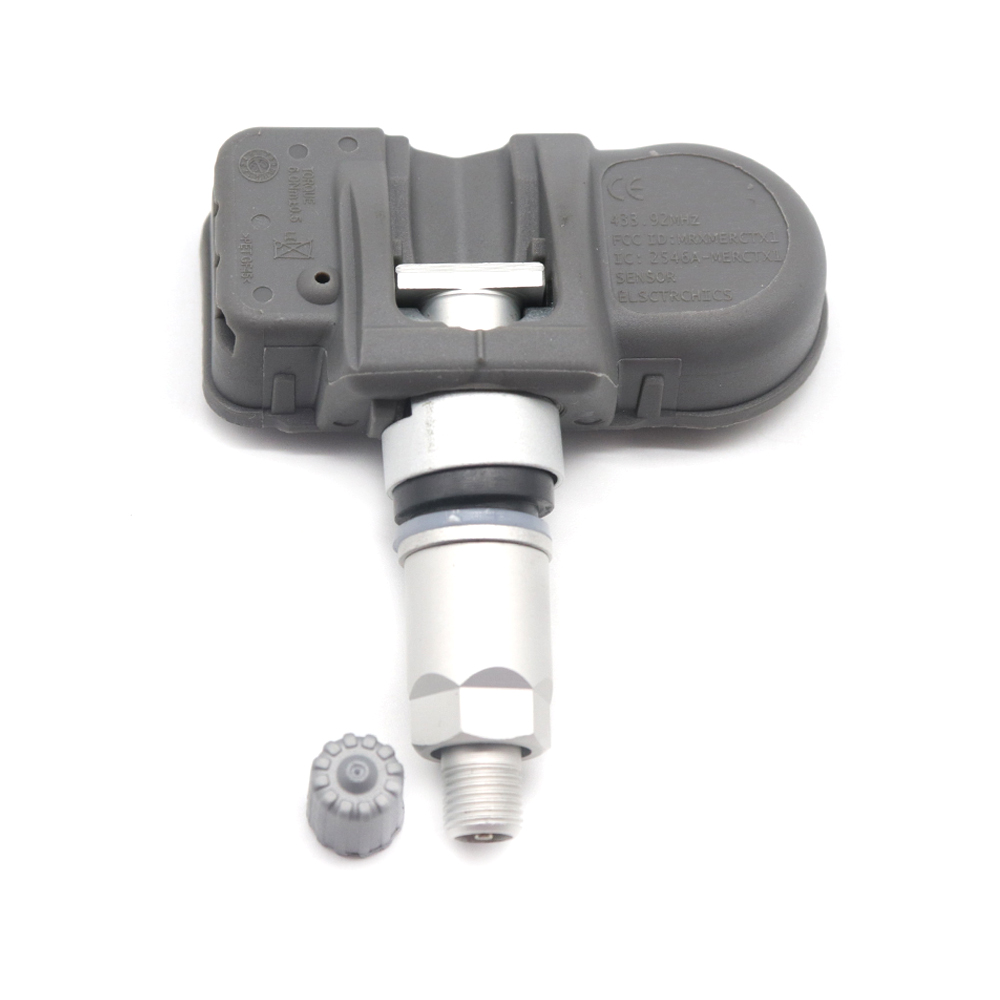

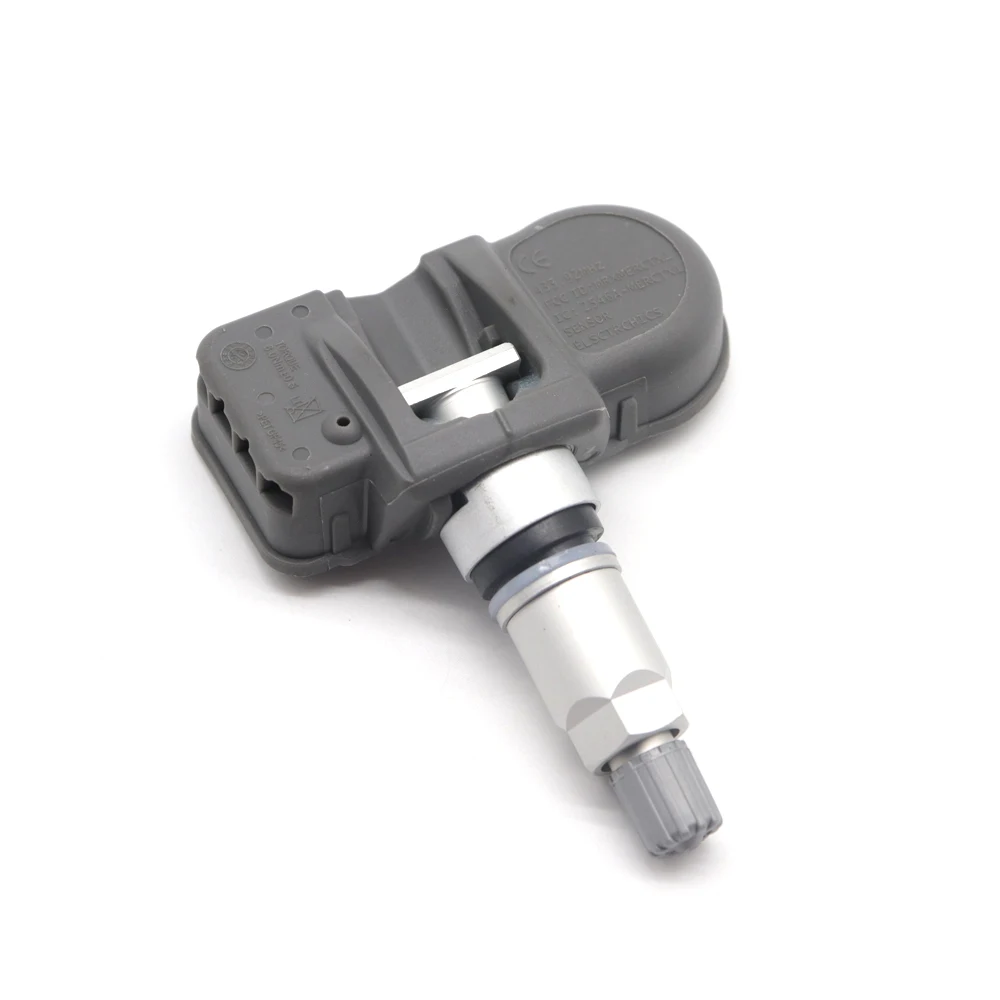

Car 56029400AE Tyre Pressure Monitoring System Tire Air Pressure Sensor For Chrysler 300 300C For Lancia Thema 2011-2021 433mhz

$29.42 AUD

~~$31.71 AUD~~ $29.42 AUD

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: IWOKPHD

Choice: yes

High-concerned chemical: None

Material: auto part,car accessories,Auto Wheel Pressure Sensor,For Lancia

Model Number: 56029400AA;56029400AC; 56029400AD;56029400AE;68374924AA For Chrysler

OEM NO.: 56029400AE

Origin: Mainland China

Get Coupons Now!

Description:

Replace For Part Number:

56029400AA; 56029400AC; 56029400AD; 56029400AE; 68374924AA

Operating Frequency: 433MHz

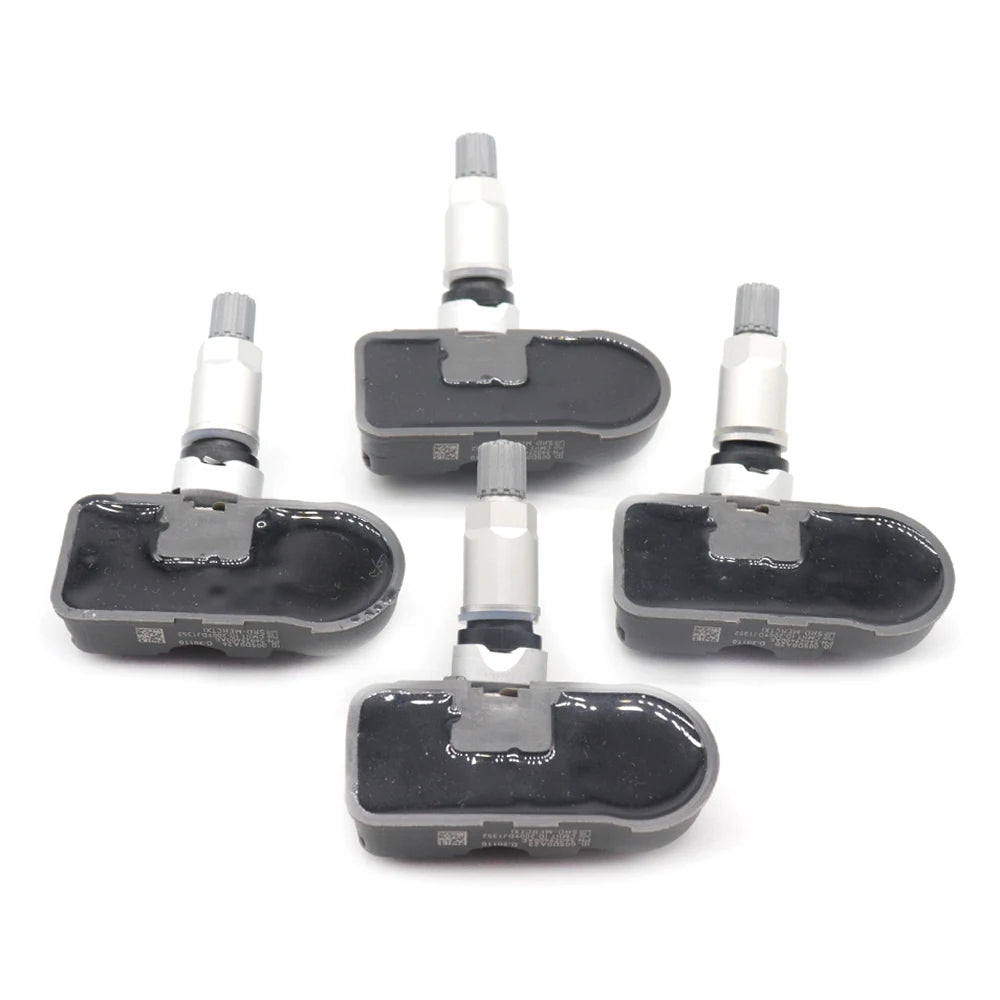

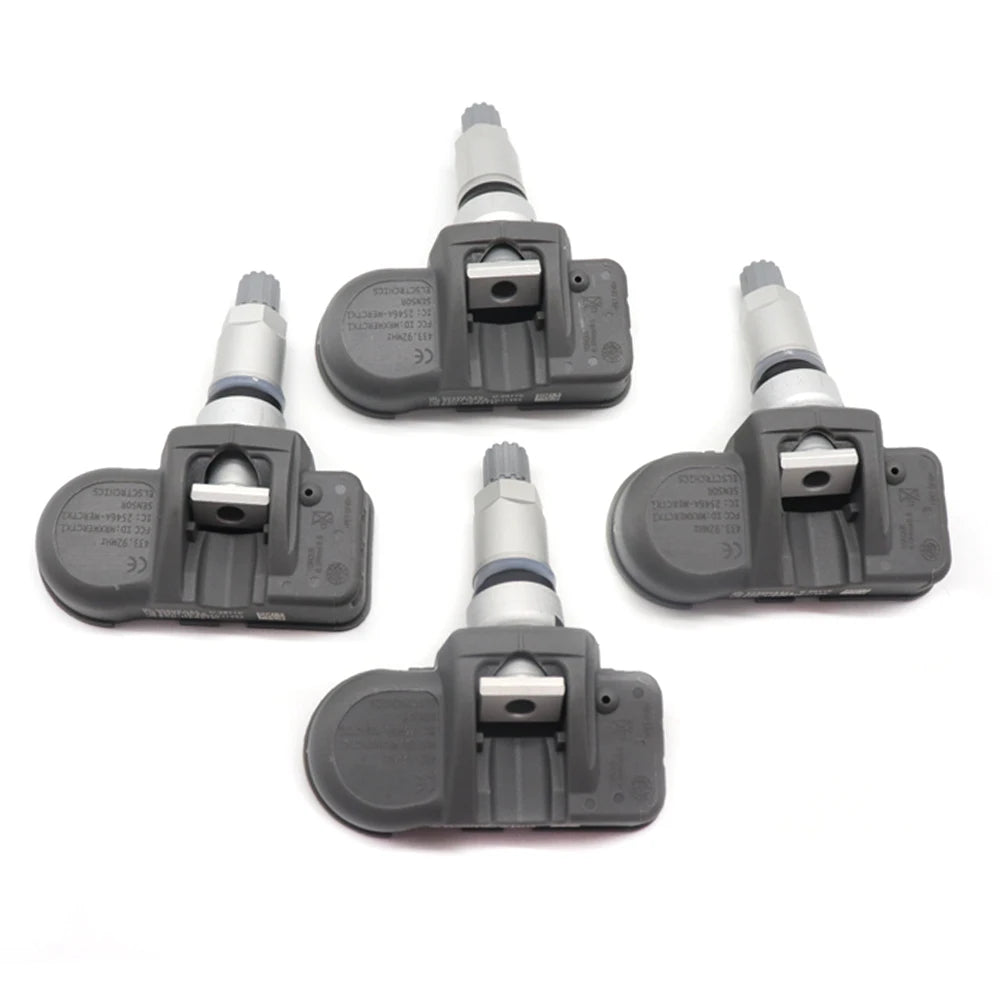

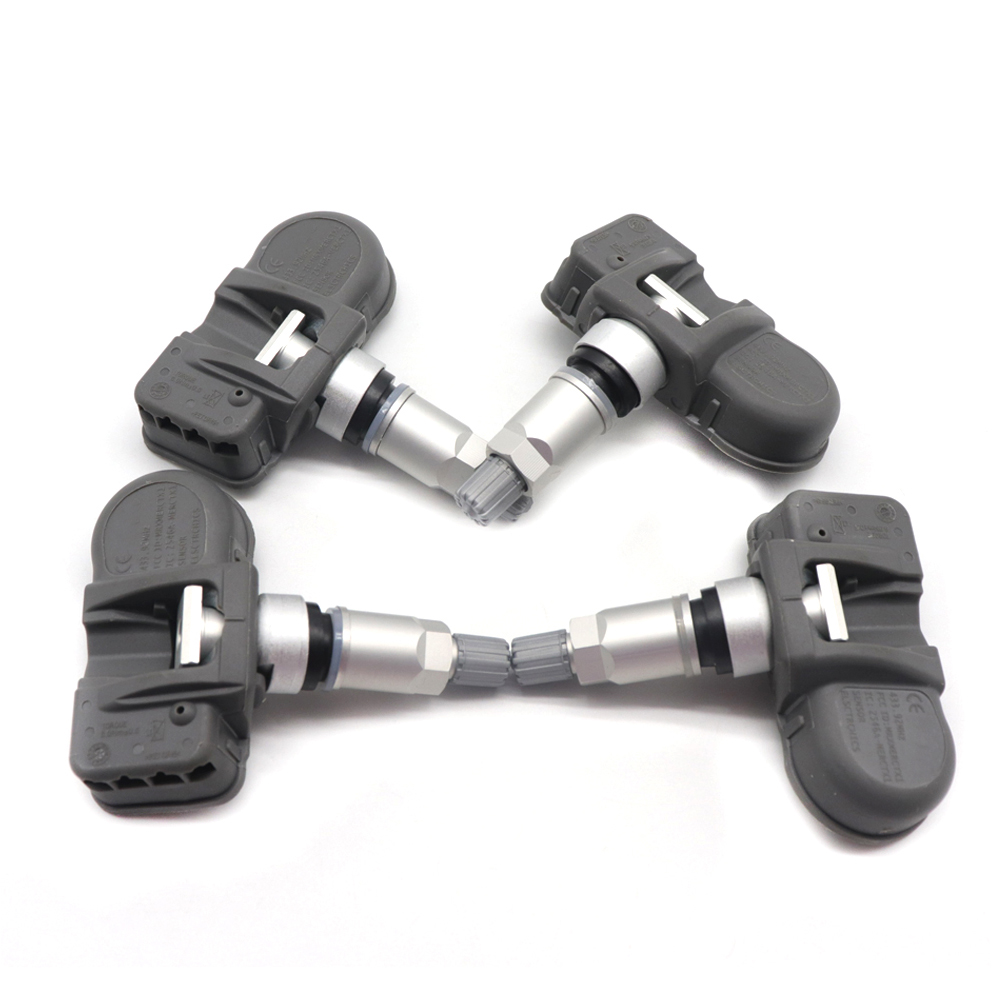

Package Content: 1 / 4 TPMS SENSOR

Application:

For Chrysler 300(from 2011-07 to 2021-03)

For Chrysler 300C(from 2012-04 to 2021-04)

For Lancia Thema(from 2011-02 to 2016-06)

Note:

1. If you can not make sure which item fit for your car,please send the VIN CODE to us confirm it before order.

2.【No sensor programming Required】:

The Tire Pressure Sensor is 100% new and come pre-programmed specifically for your make/model/year of vehicle,need activate them by scal tool or "re-learning".

Simplified Relearn :OBDIIrequired

*Installation of TPMS is recommended to be performed only by trained professionals.

3.Installation Process

Ⅰ. Loosen the tire: Remove the valve cap and core and deflate the tire.

Ⅱ. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o'clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.

Ⅲ. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.

Ⅳ. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.

Ⅴ. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
