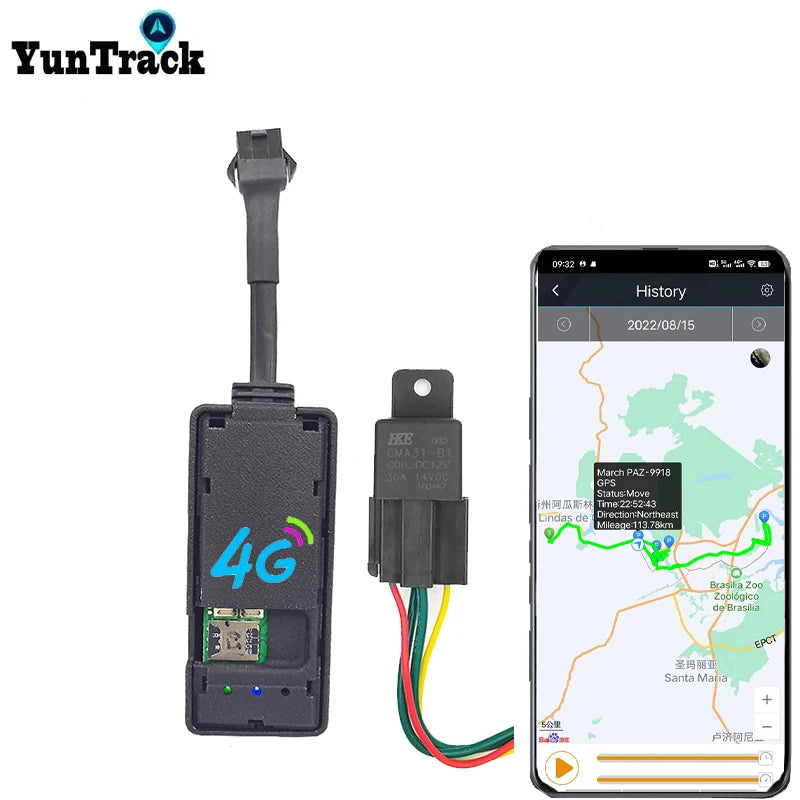

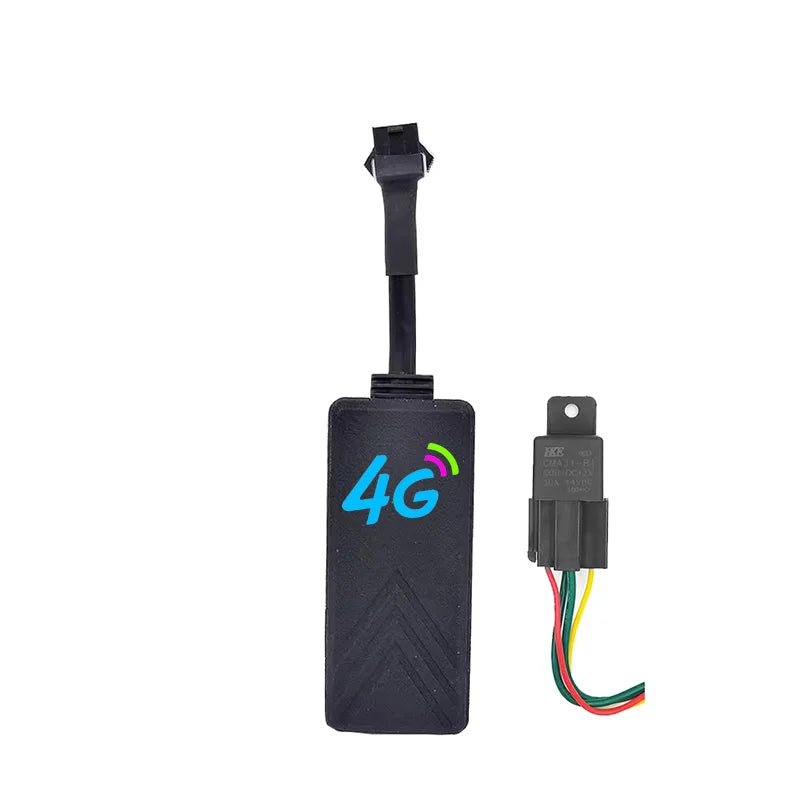

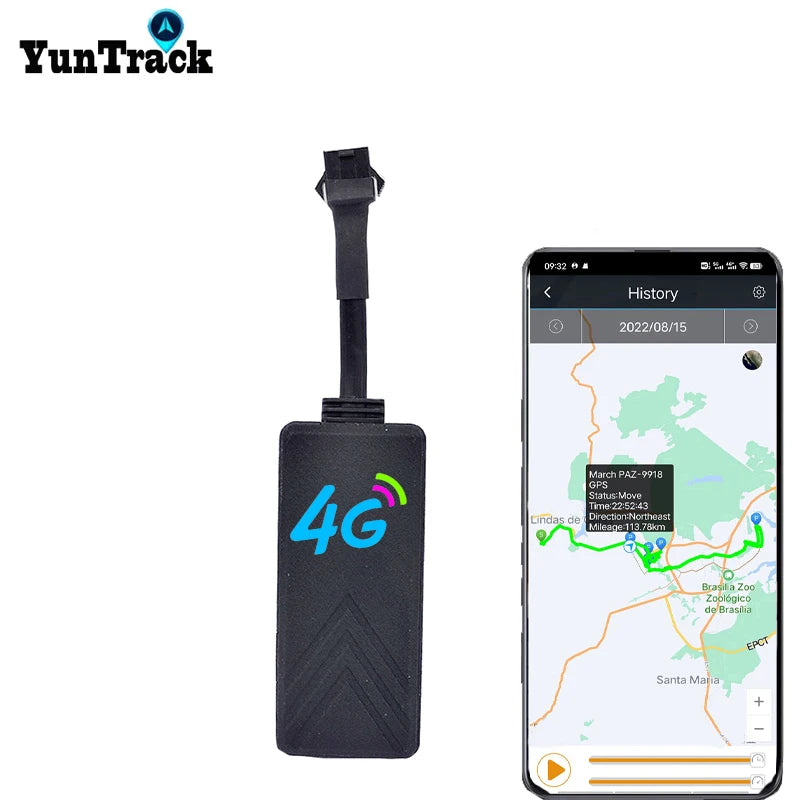

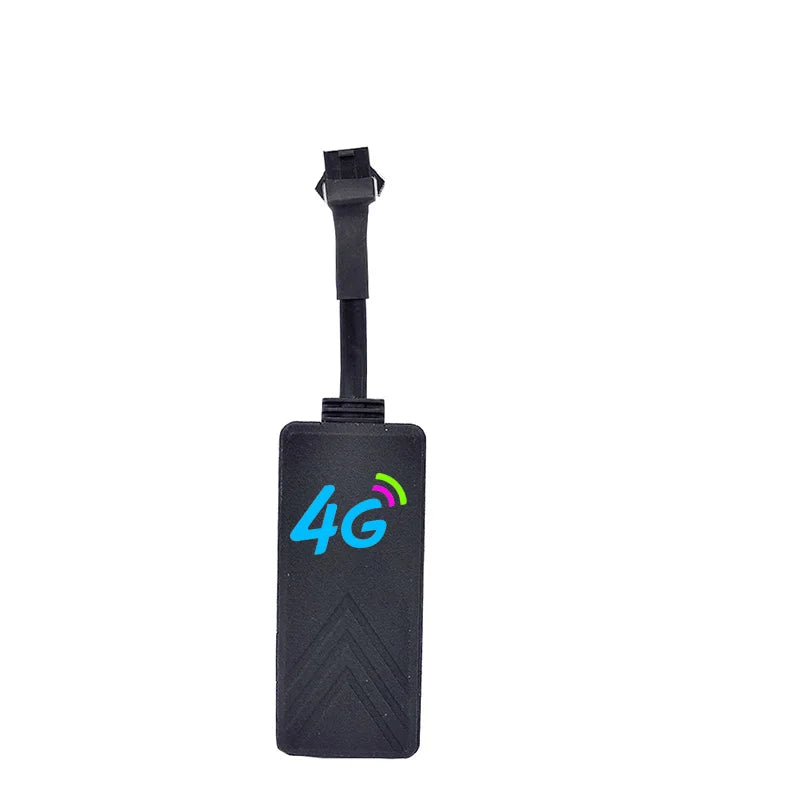

Car Motorcycle Bike 4G GPS Tracker Engine Relay Cut Oil Tracking ACC Towed Away Call SMS SOS Alarm Location System Monitor APP

Car Motorcycle Bike 4G GPS Tracker Engine Relay Cut Oil Tracking ACC Towed Away Call SMS SOS Alarm Location System Monitor APP

$88.42 AUD
$90.56 AUD $88.42 AUD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

4GFDD-LTE-: 1/2/3/4/5/7/8/28/66

Battery Life: 1 To 4 Hours

Brand Name: YunTrack

Certification: CE,RoHS

GPS type: GPS Tracker

GSM: 850/900/1800/1900

Gps Module: GSM

High-concerned chemical: None

Is it wireless: Yes

Large capacity battery: 3.7V 180mAh

Model Name: CJ780 Pro

Multiple satellite positioning: GPS BDS GLONASS QZSS

Origin: Mainland China

Out Power: AN

Screen Size: No screen

Special Features: Remote Control

Voltage: 48V

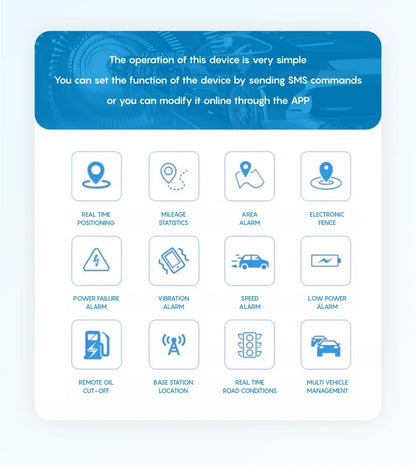

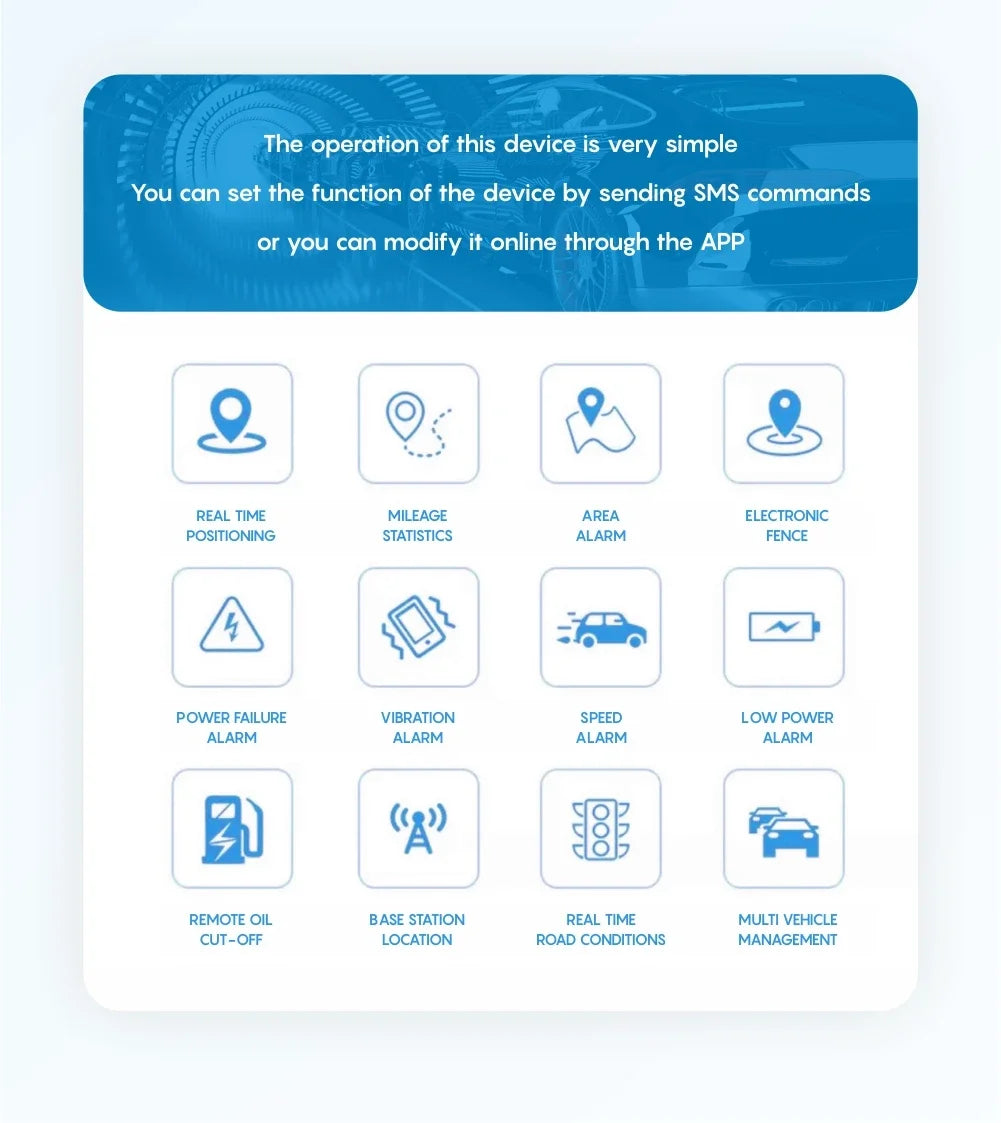

◆ Real-time tracking  ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert  ◆ Geo-fence
◆ History Route ◆ Cut and resume oil remotely  ◆ AGPS locating

Frequency


GSM    850/900/1800/1900MHz 4G FDD-LTE-:1/2/3/4/5/7/8//28/66

Networks

GSM/GPRS

Backup Battery

3.7V 180mAh

Operating voltage

8-95V

Location time

Cold start 35s-80s

Hot start 1s

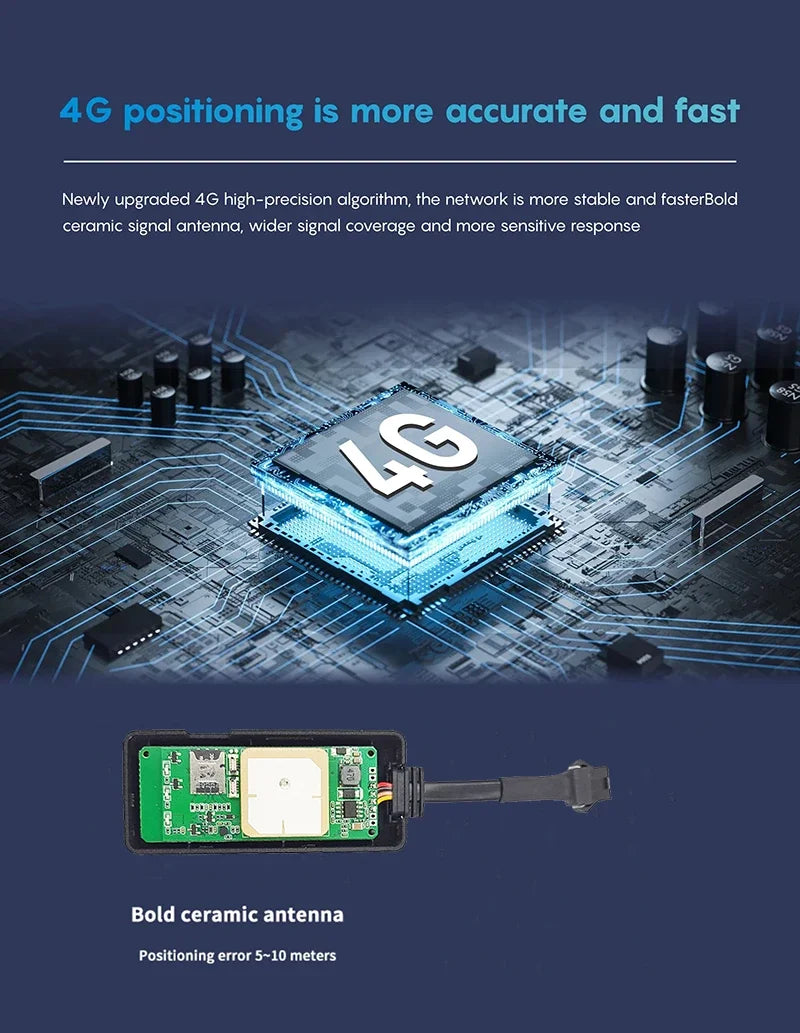

Location accuracy

5 meters

Operating temperature

-20℃~+55℃

Dimension

74*25*13mm

Weight

 40 g

Note: against pseudo base-station&detect function should under power save work mode! The device would wake

up when move and speed above 20km/h.

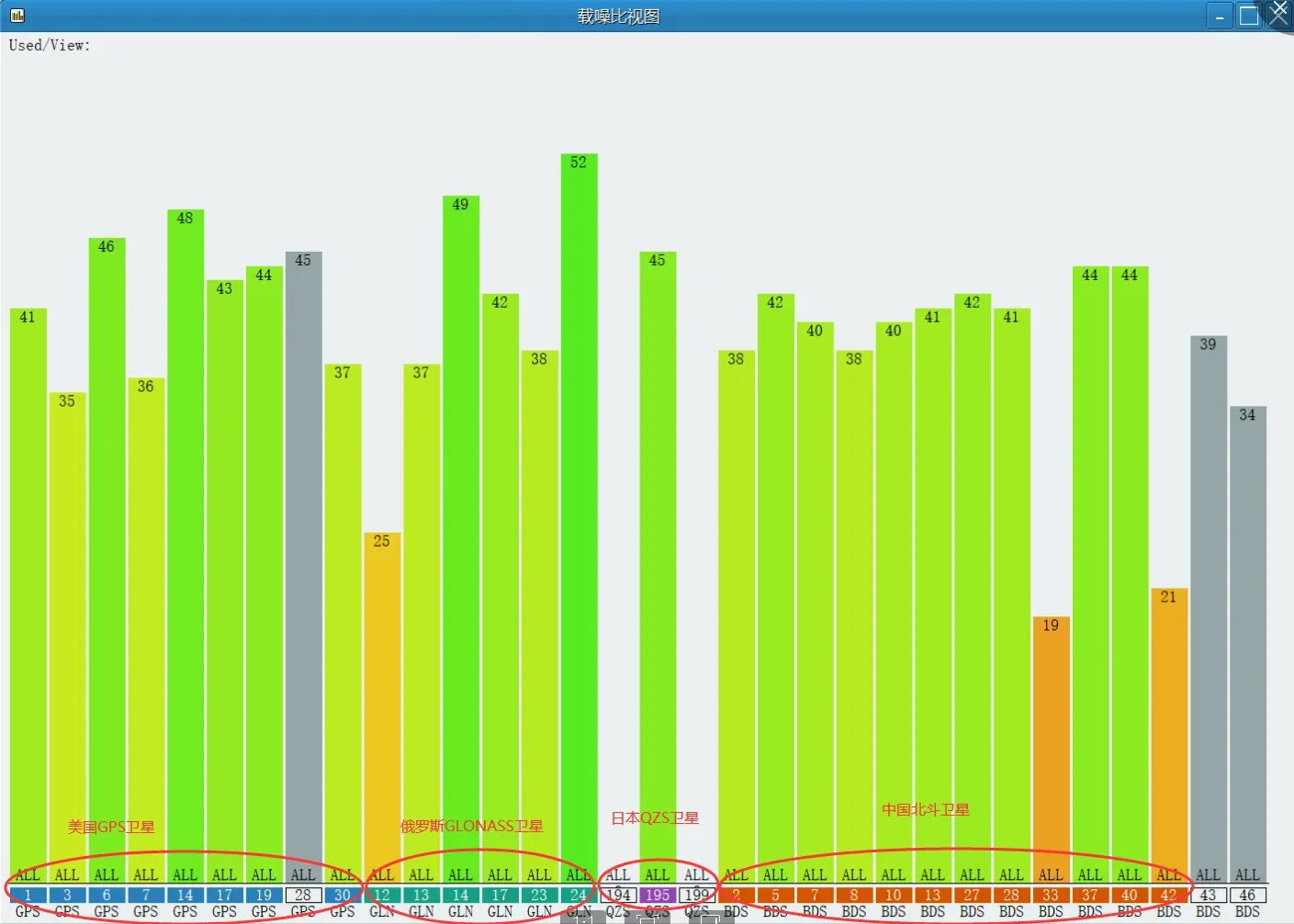

Multiple satellite positioning
Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite)

navigation system), GPS in the US, GLONASS in Russia, GALILEO in the EU, QZSS in Japan

And satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). It is a true six-in-one multi-mode satellite navigation and positioning device, including 32 tracking channels, which can be connected simultaneously.

Receive GNSS signals from six satellite navigation systems and realize joint positioning.

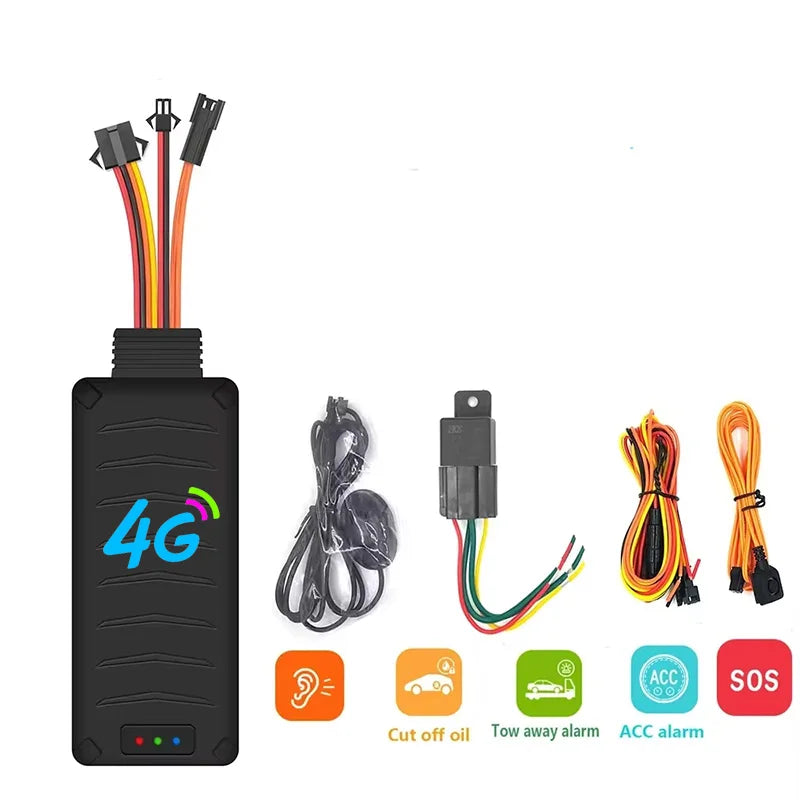

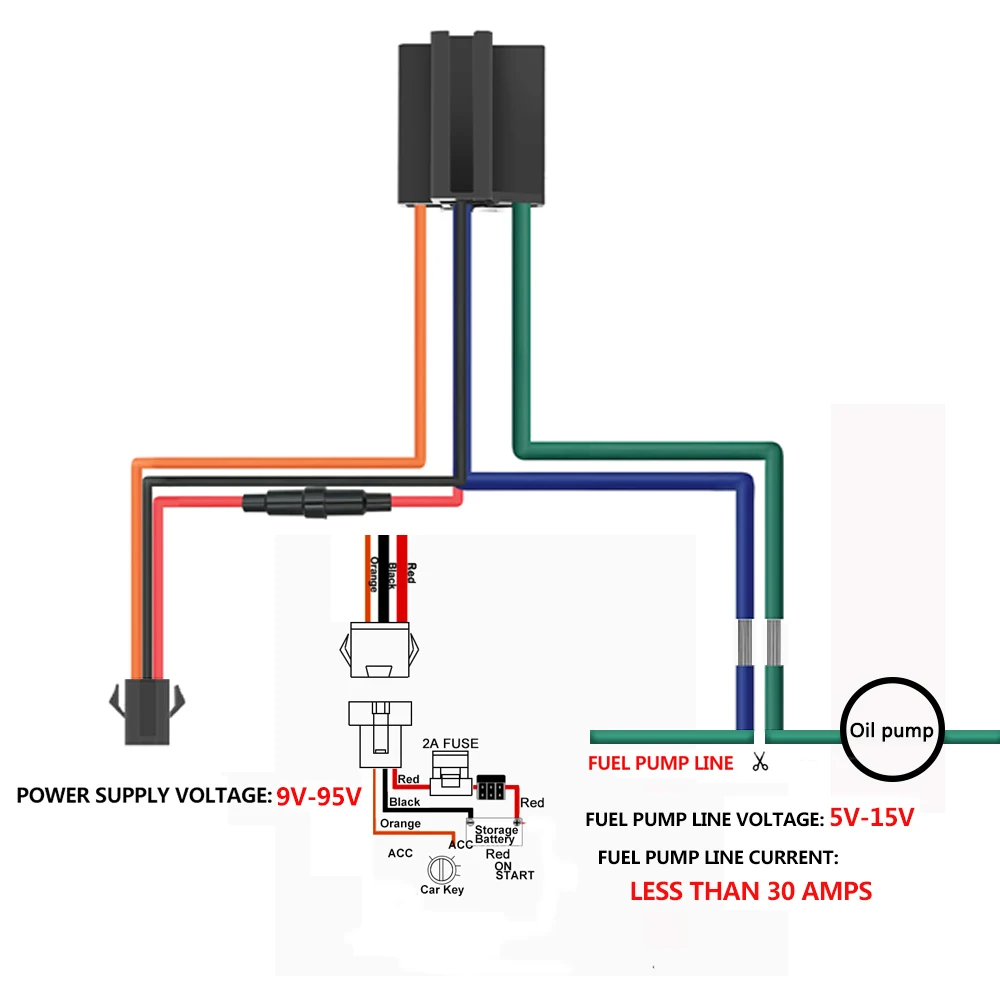

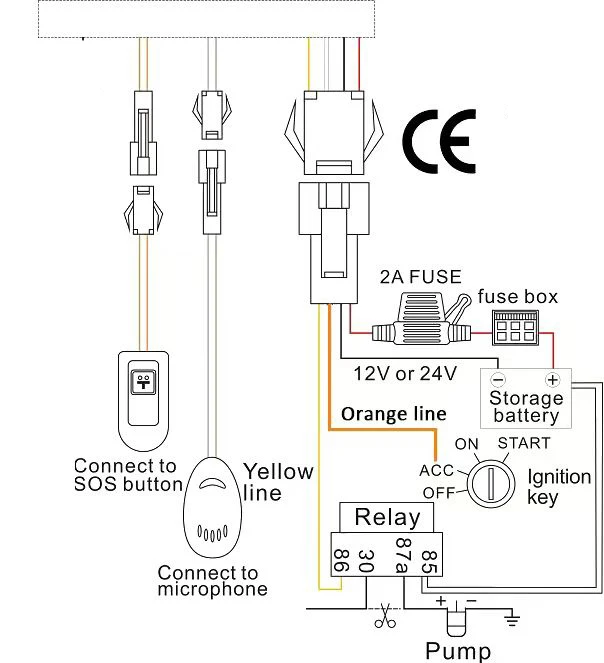

Functions and Product parameters (CJ780 Pro / Off petrol and electricity Need to match relay)

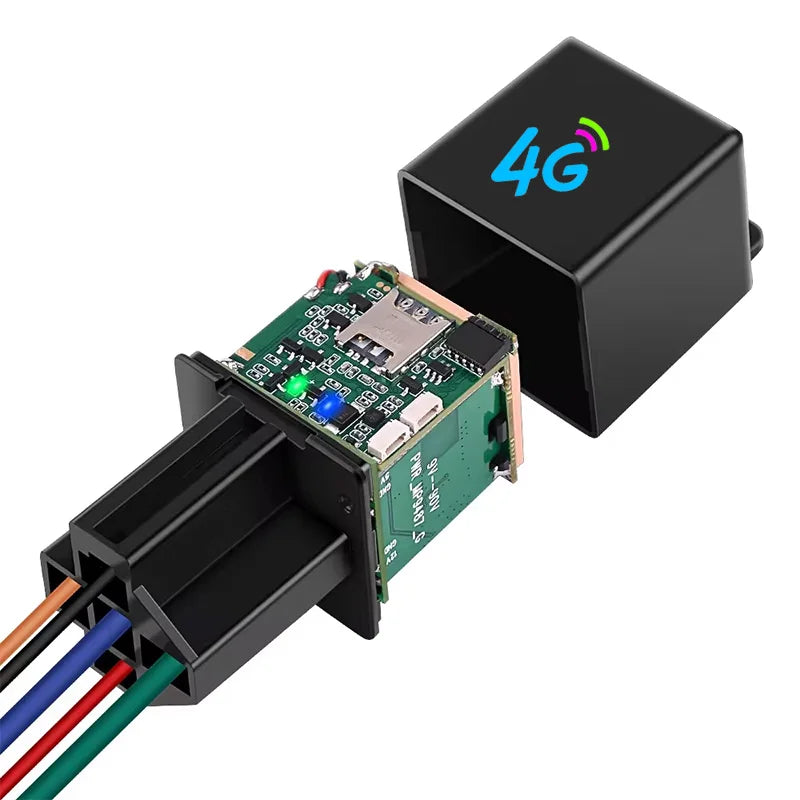

LED Indicator Definition

Green Indicator:GPRS

Status of indicator

Meaning

Flash

GSM/GPRS conversation start

Continuously in bright status

No GPRS signal

Green Led off

Power off or in sleep mode

Blue Indicator:GPS

Status of indicator

Meaning

Flash

GPS location successful

Continuously in bright status

GPS signal searching

Blue led off

Power off or in sleep mode

Red Indicator:Power charge

Status of indicator

Meaning

Continuously in bright status

charging

Red led off

Power off or charged full

More Commands

Function

Command Format

Reply

Delete

for example

APN

apn+123456+space+content

apn ok


apn123456 cmnet

apnuser+123456+space+content

apnuser ok



apnpasswd+123456+space+content

apnpasswd ok



admin number

admin123456+space+admin phone number

admin ok

noadmin123456

admin123456 186********

time zone

timezone+123456+space+GMT No.

timezone ok


timezone123456 +1

Power save(default)

sleep123456 time

sleep time ok



shock sleep

sleep123456 shock

sleep shock ok



no sleep

sleep123456 off

sleep off ok



upload frequency

upload123456+space+time

upload ok


upload123456 10

Cut and resume oil

555

Cut oil OK

666


Arm&Disarm

111 or SF

Arm delay in 0s

000 or CF


Position

G123456# or where

Google map



Restart

rst

restart ok



Back to factory

format

No reply









Faults & The solutions

Q:Start up Fail?
A:Check the cable connect right or not.
Q:The device can not obtain location information?
A:Place the unit at the open area to test.
Q:How to choose SIM card?
A: the SIM card must support GSM&GPRS,and ensure that the
card has enough currency and credit.
Q: How to use in the foreign countries?
A:please set the APN before use,please edit the text "APN123456
CMNET " and send it to the SIM card of the device,CMNET is
Chinese operator's APN, Replace the corresponding APN when
use in other countries, APN details, please consult your local SIM
card carrier.
 Cautions
Please comply with the instructions to extend the unit life:
1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or
damage the inside circuitry.
2. Don't use & store the unit in dusty places.
3. Don't put the unit in overheated or over cooled places.
4. Handle carefully. Don't vibrate or shake it violently.
5. Clear the unit with a piece of dry cloth. Don't clean in chemicals,
detergent.
6. Don't paint the unit, this may cause some foreign materials left in
between the parts.
7. Don't disassemble or refit the unit.
8. Please use the battery and charger provided by manufacturer.
Using other batteries and chargers will cause unwanted situation


Color
