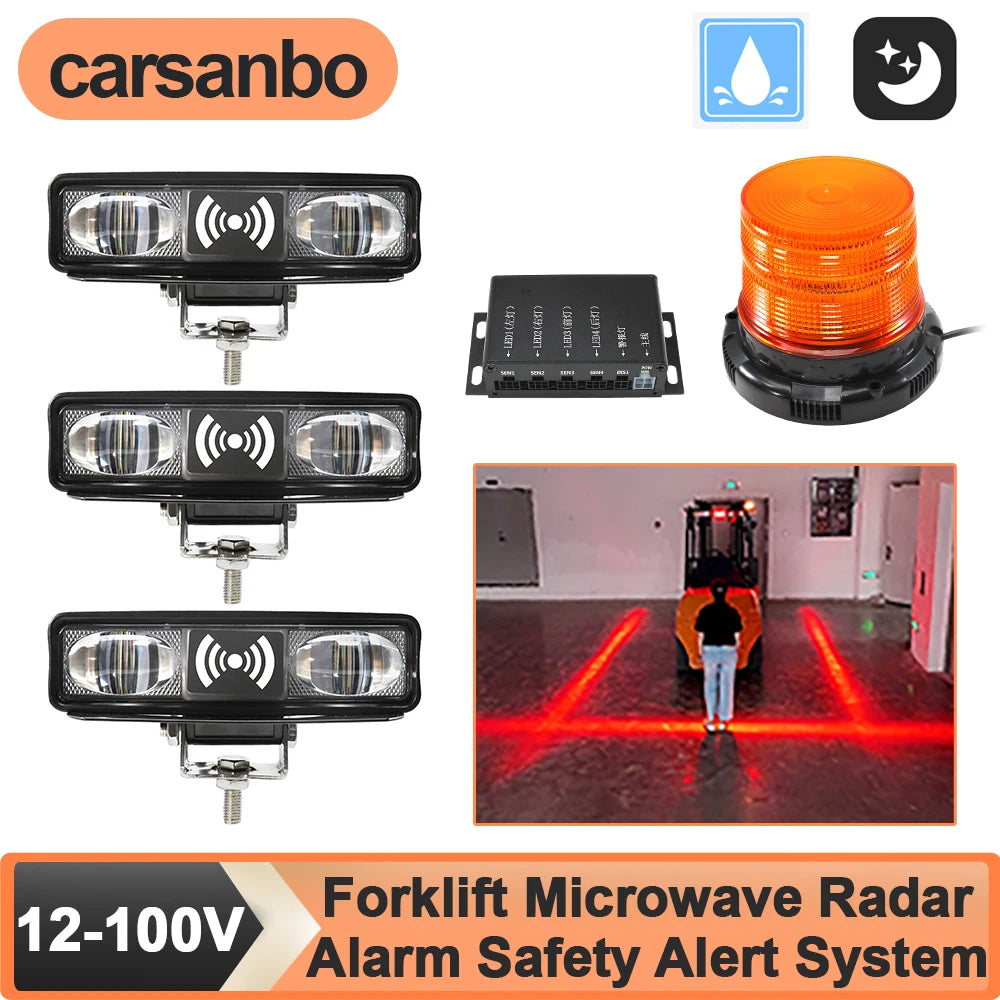

Forklift Area Radar Warning and Safety Alert System
Product Specification:
1) Product Name: Regional Radar Security Alert System
2) Product LED Beads: 6 pieces (with radar warning light) and 24 pieces (voice alarm light)
3) Applicable Voltage: DC12-100V
4) Product Power: 30W (with radar warning light), 12W (voice alarm light)

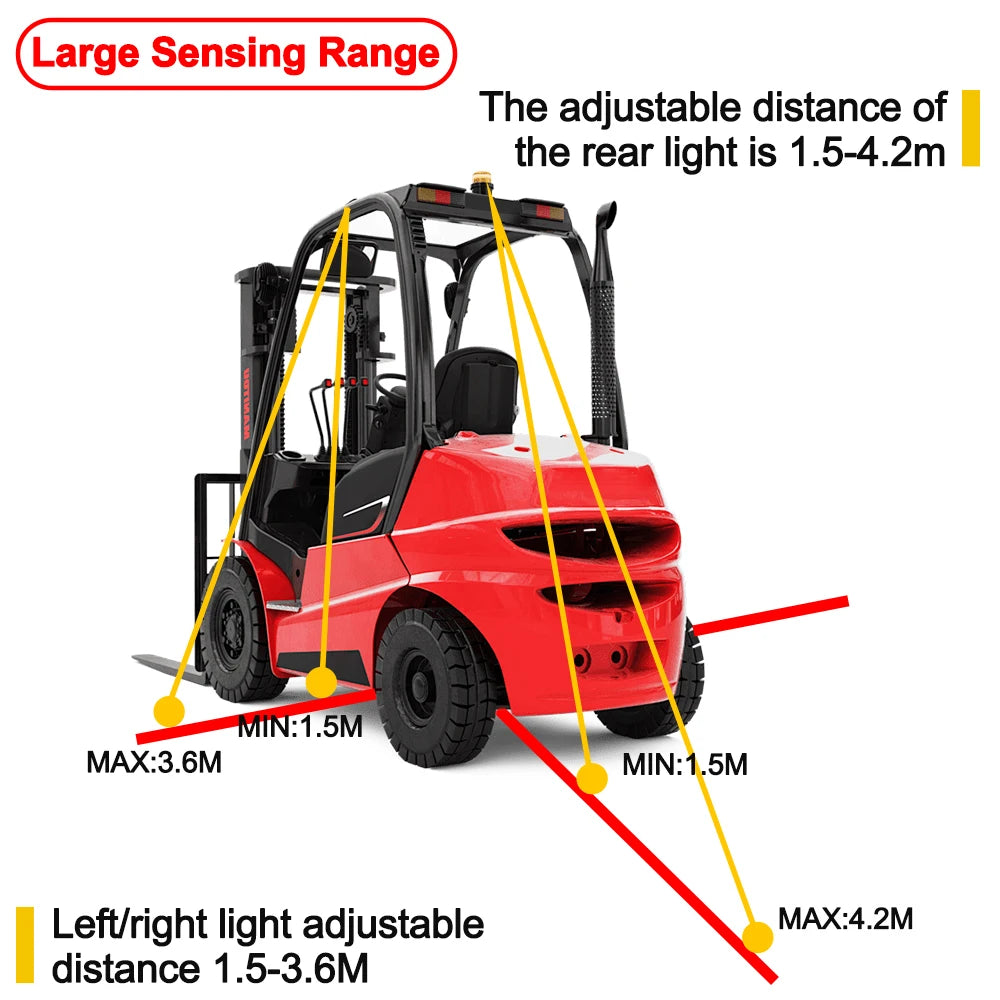

5) Radar Effective Sensing Distance: 1.5-3.6M (left and right lights), 1.5-4.2M (rear light)
6) Product Specifications:
14.9 * 4.4 * 4.6CM (with radar warning light)
Bottom diameter 12.5CM, Height 10.2CM (voice alarm light)

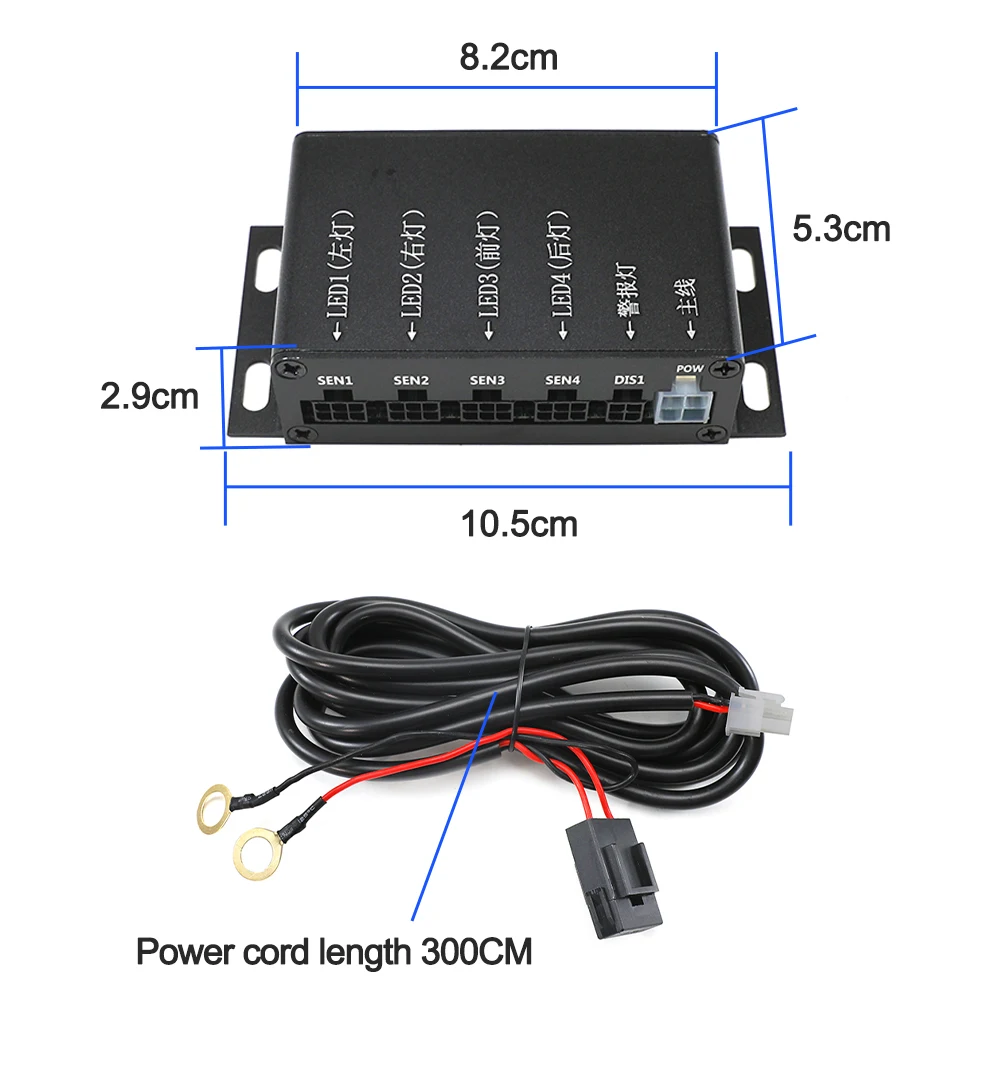

10.5 * 5.3 * 2.9CM (host box)
7) Product Material:
LED beads, aluminum alloy shell, tin plated copper wire, acrylic curved lens (with radar warning light)
LED beads, PC material face mask, engineering plastic base, copper core wire (voice alarm light)
8) Wiring Method: Warning lights and warning lights come with their own plugs, which are inserted into the host box accordingly
9) Host Box Power Cord: black wire connected to negative pole; Red wire connected to positive electrode
10) Applicable Vehicle Models: mainstream brand forklifts, intelligent handling equipment, etc
Attention: Automotive lighting fixtures must not be used beyond pressure or range.

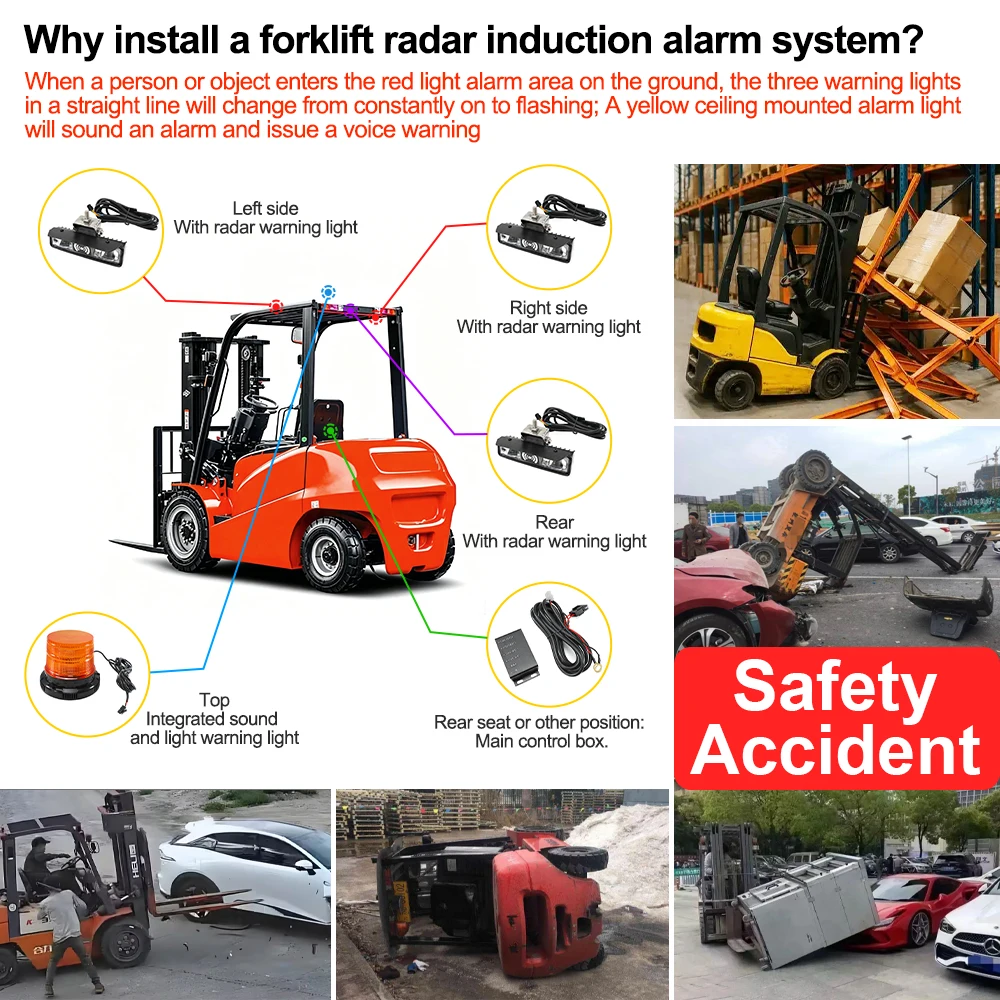

1.Why install a forklift radar induction alarm system?
When a person or object enters the red light alarm area on the ground, the three warning lights in a straight line will change from constantly on to flashing; A yellow ceiling mounted alarm light will sound an alarm and issue a voice warning.

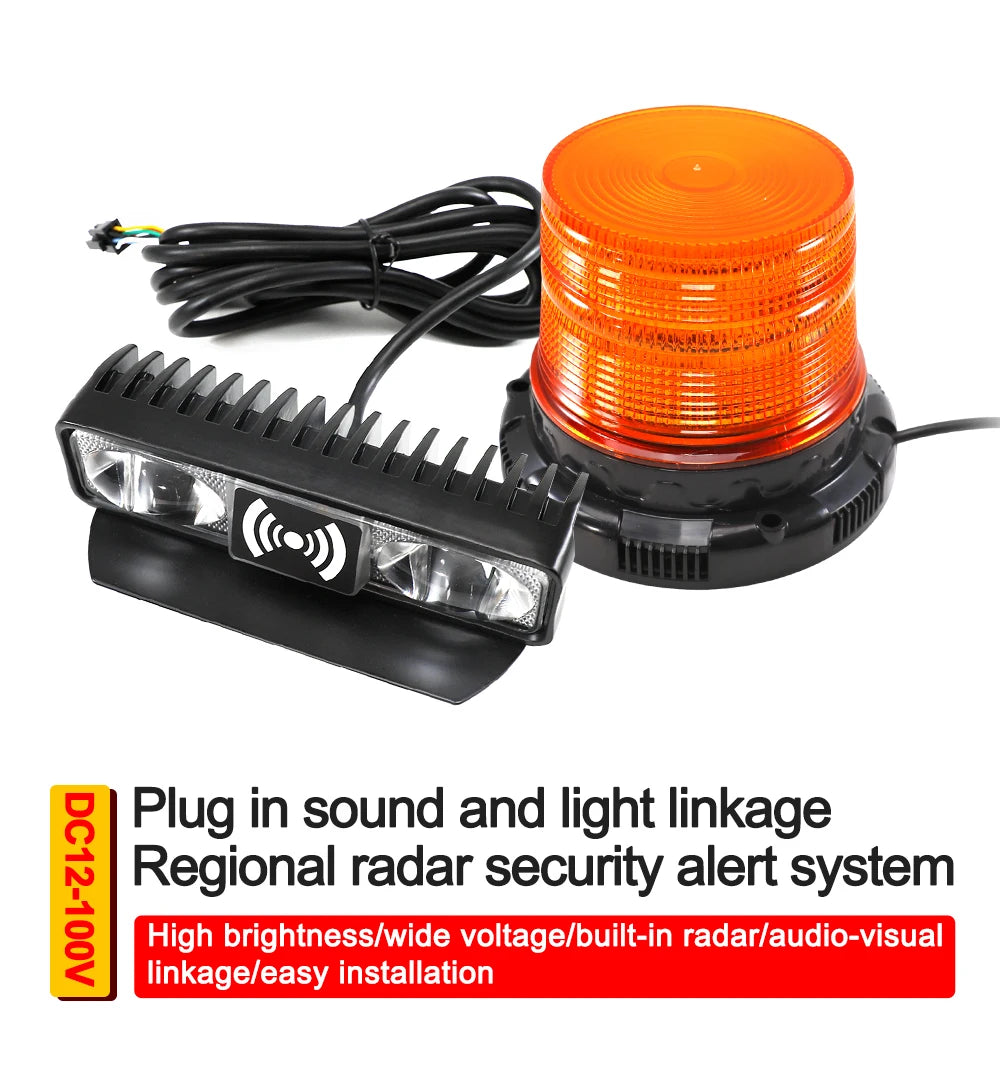

2. Product Features
- Plug in sound and light linkage
- Regional radar security alert system
- Wide Voltage: DC12-100V
- High brightness
- Easy installation

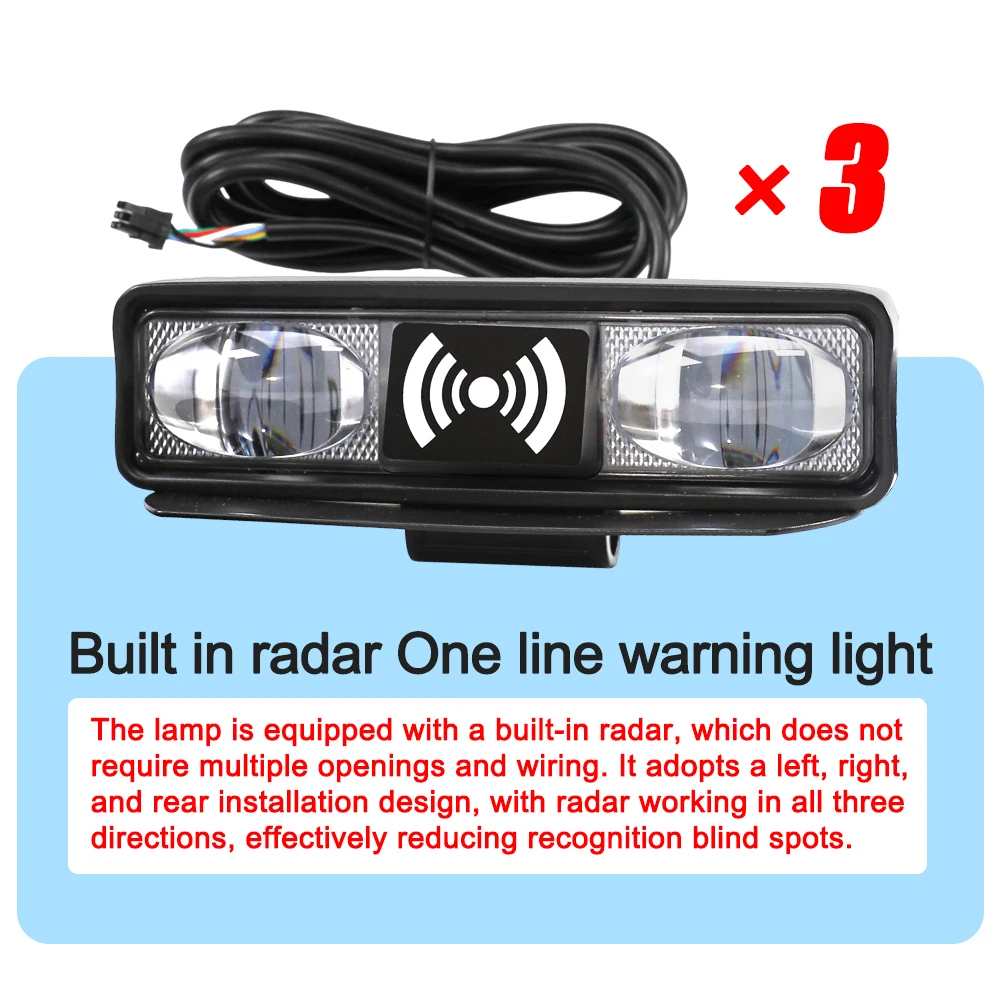

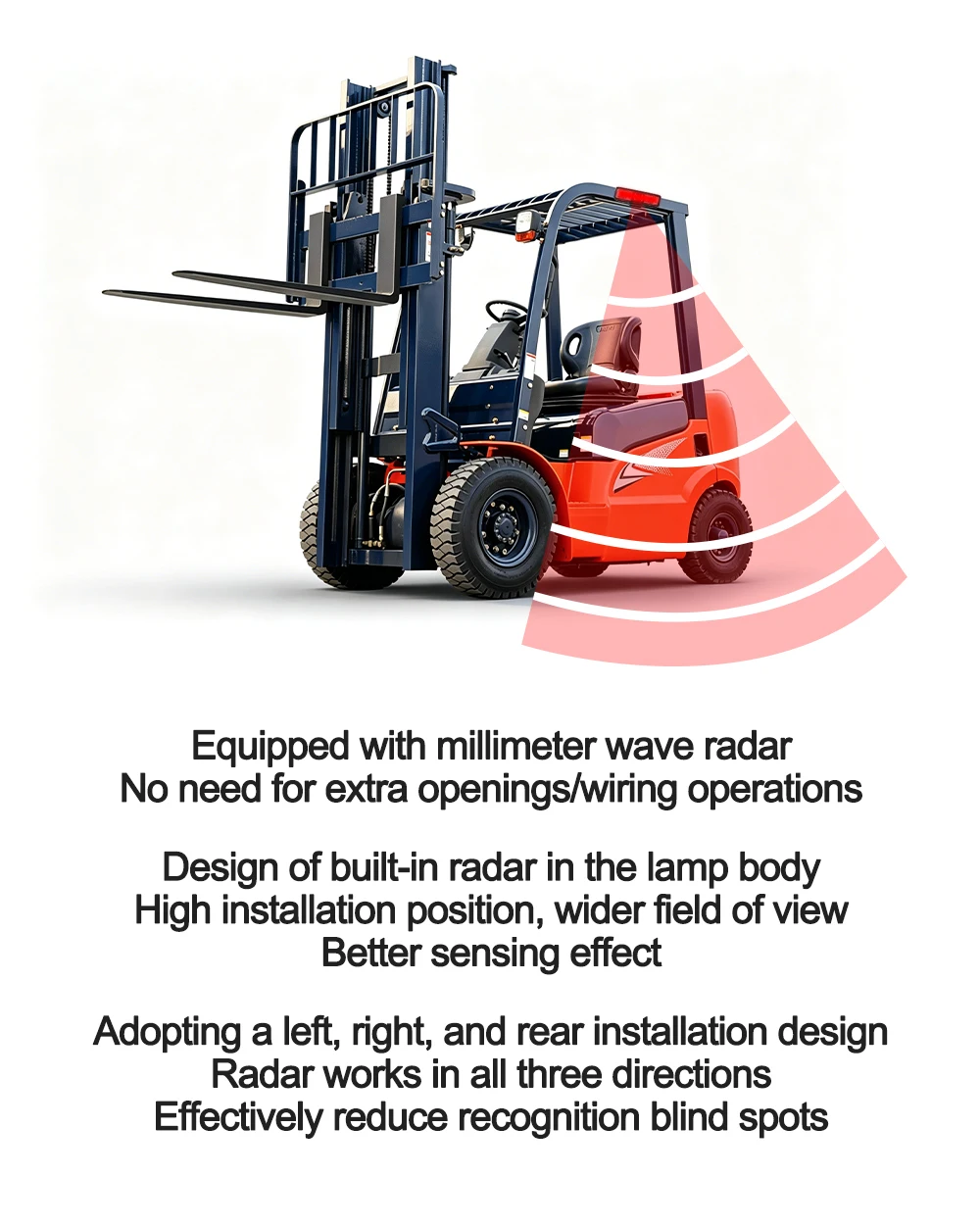

3. Built in Radar Linear Warning Light
The lamp is equipped with a built-in radar, which does not require multiple openings and wiring. It adopts a left, right, and rear installation design, with radar working in all three directions, effectively reducing recognition blind spots.

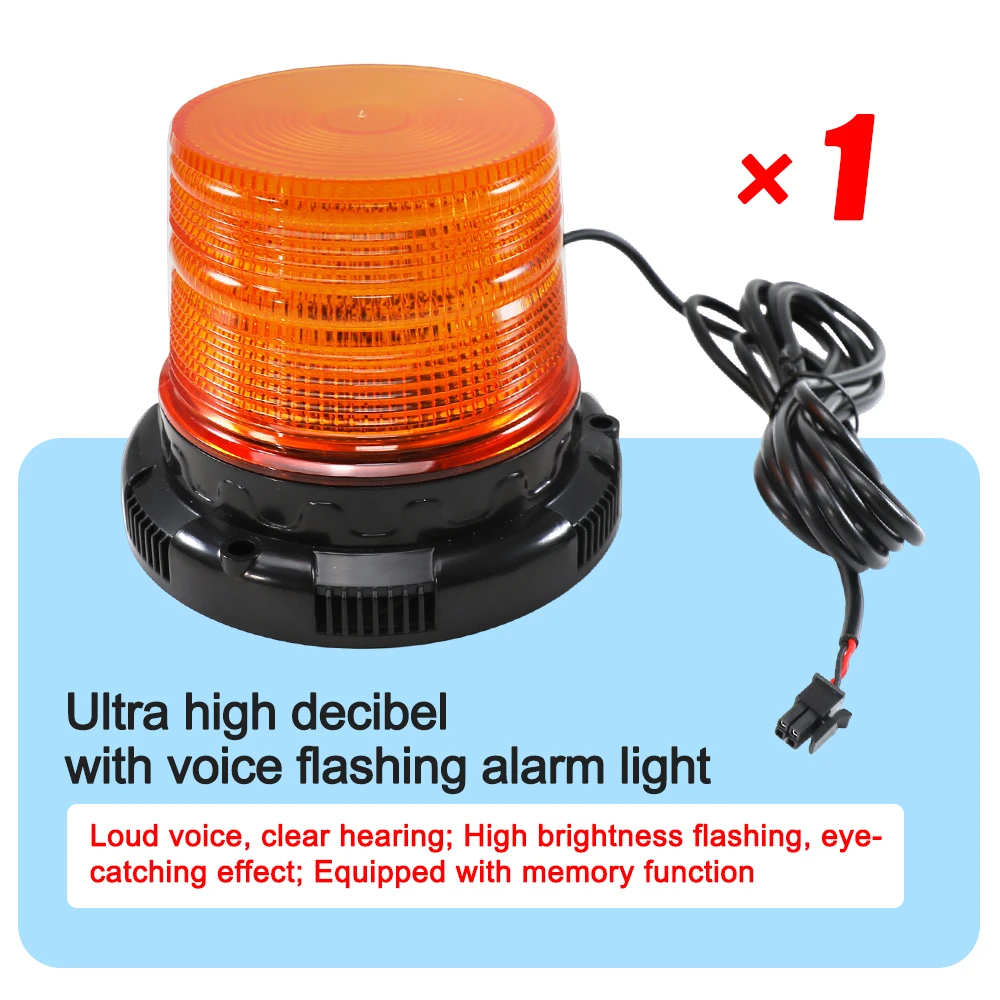

4. Super Decibel with Voice Flashing Alarm Light
Loud voice, clear hearing; High brightness flashing, eye-catching effect; with memory function.

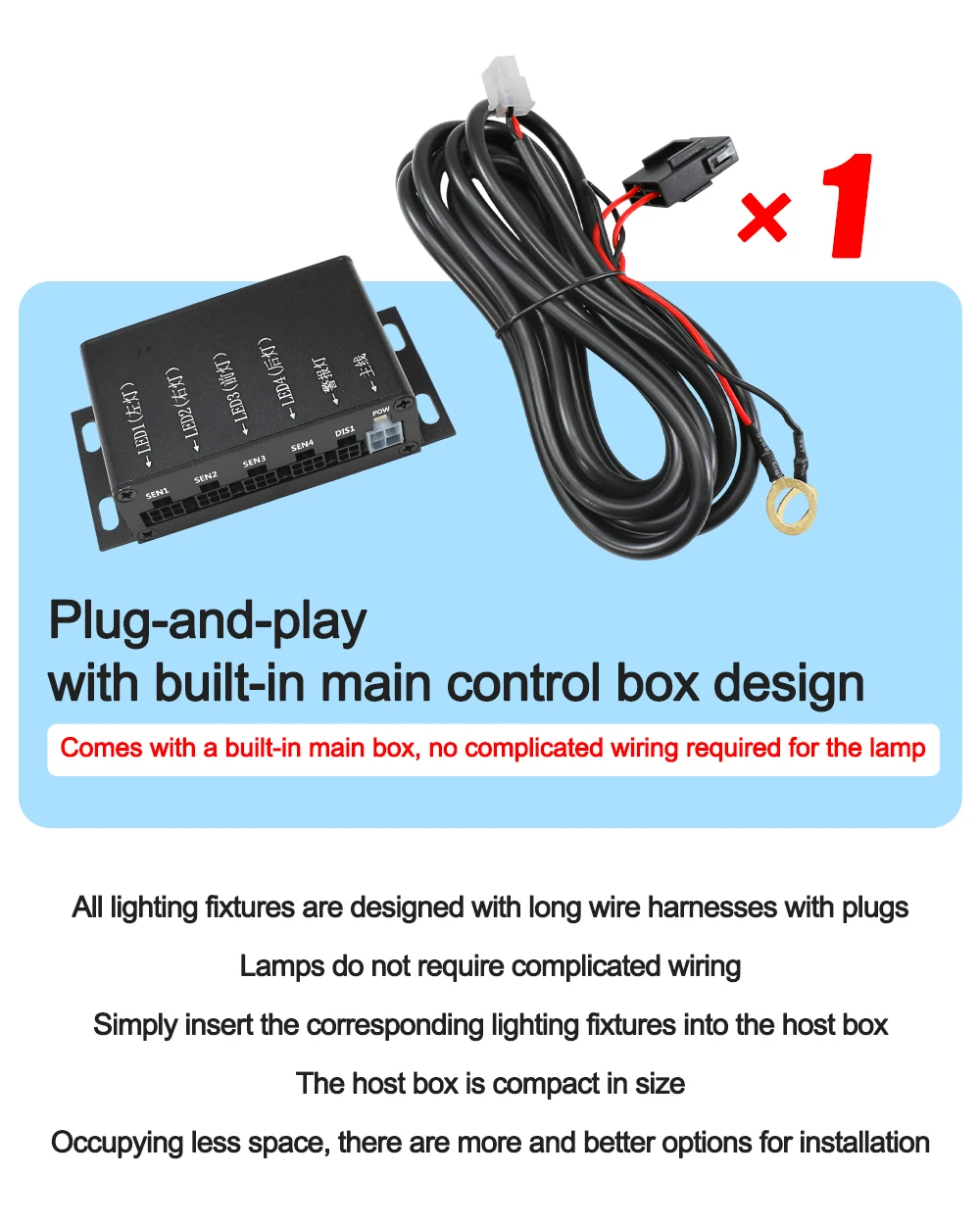

5. Plug and play, with built-in host box design.

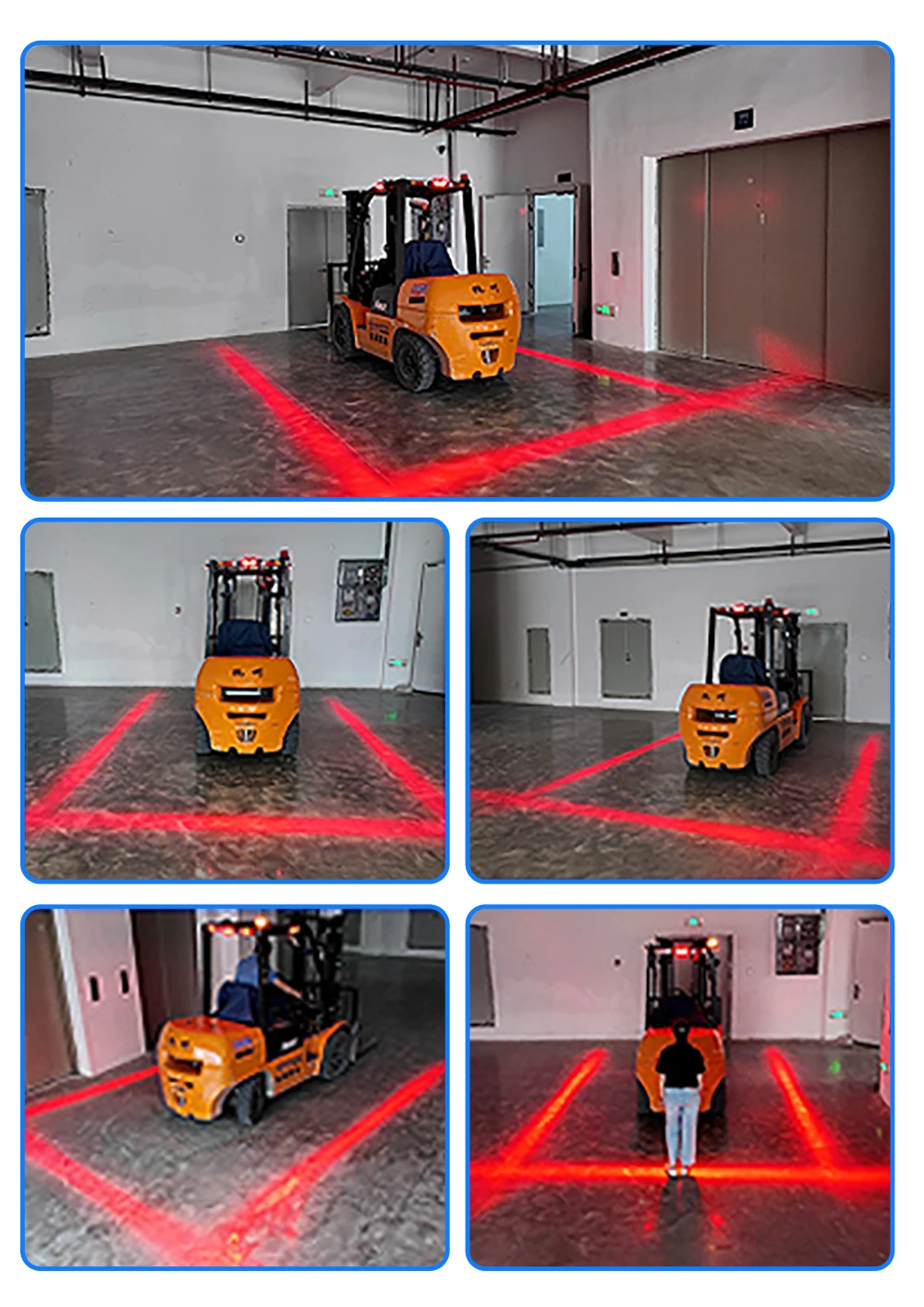

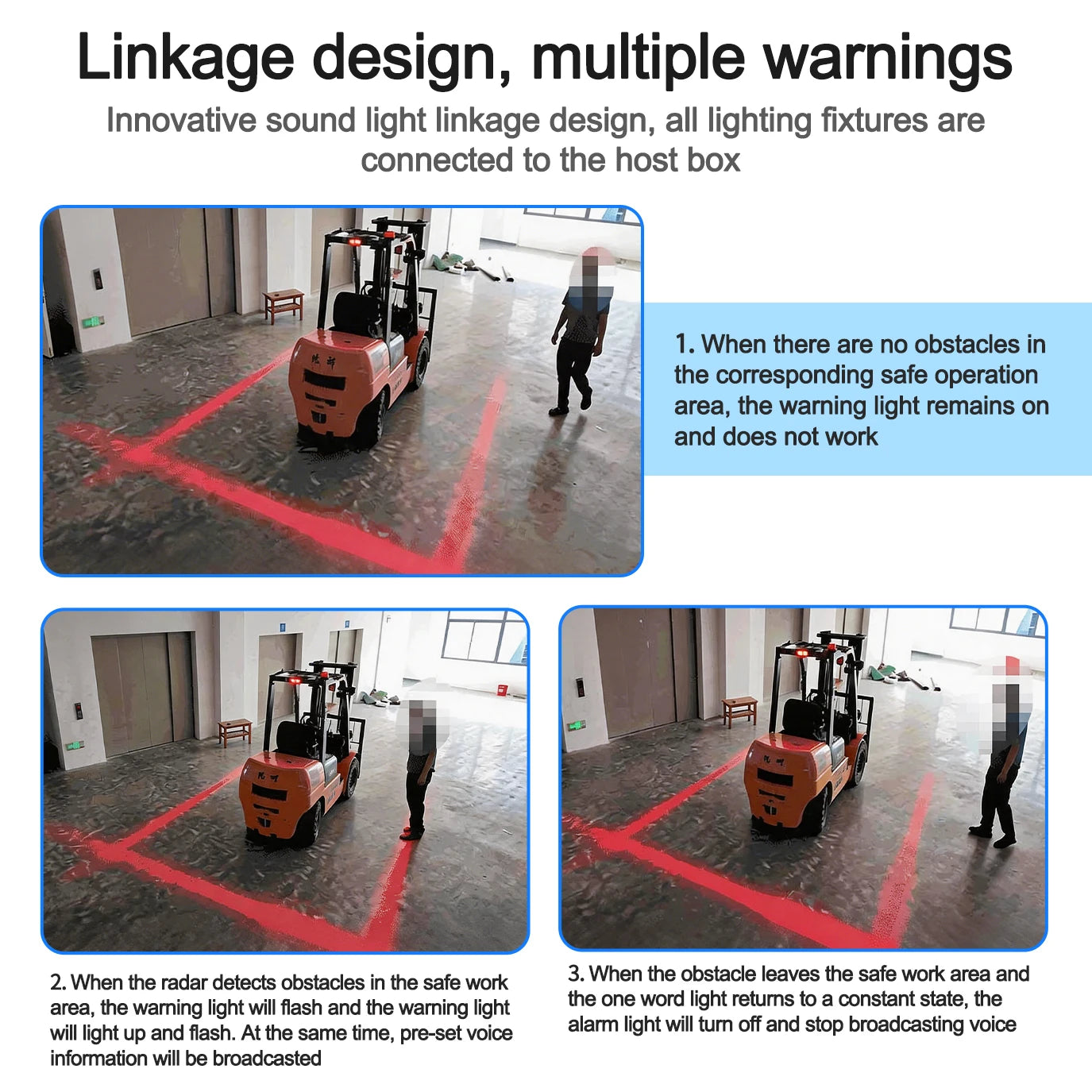

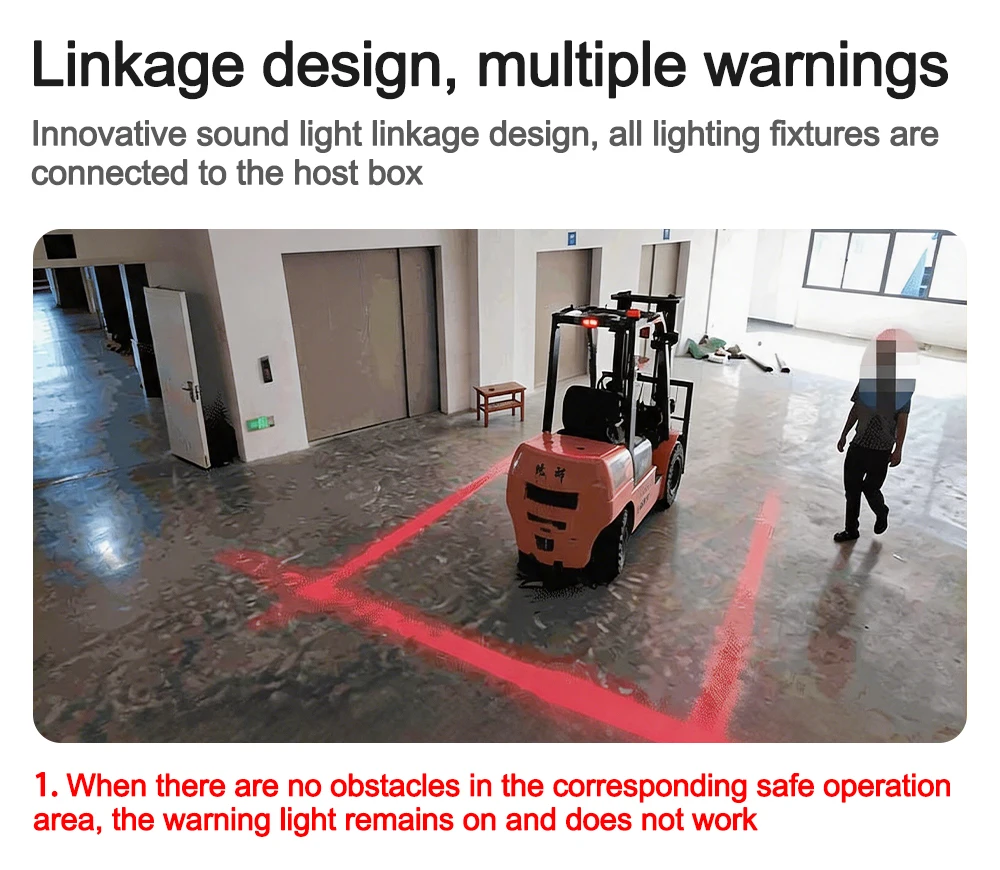

6. Linkage Design, Multiple Warnings (the effect scenarios are shown below)
Innovative sound light linkage design, all lighting fixtures are connected to the host box.
① When there are no obstacles in the corresponding safe operation area, the warning light remains on and does not work.

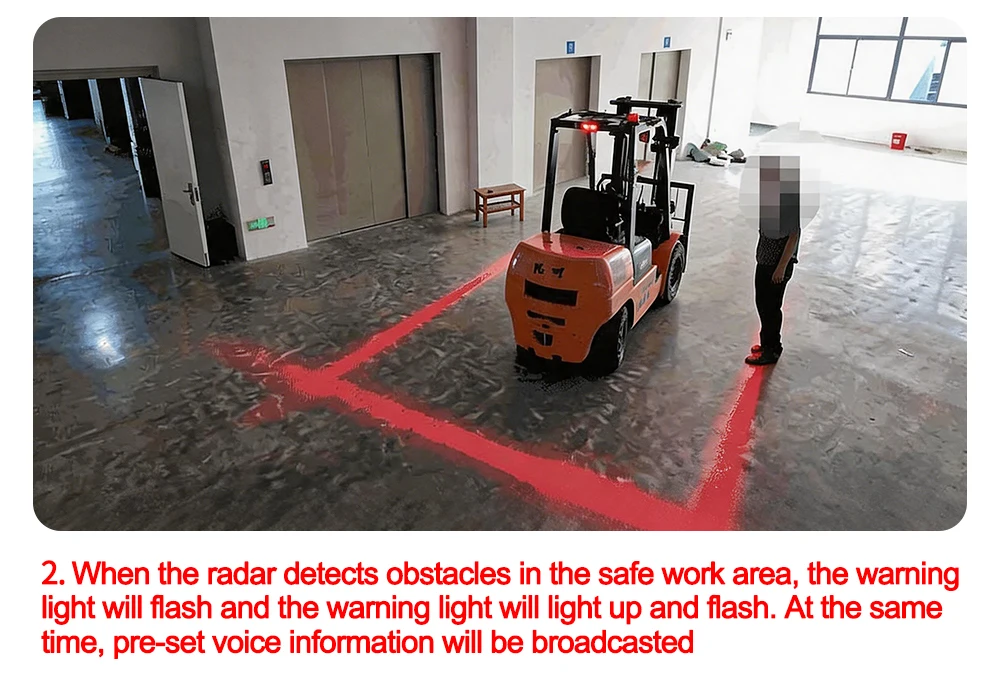

② When the radar detects obstacles in the safe work area, the warning light will flash and the warning light will light up and flash. At the same time, pre-set voice information will be broadcasted.

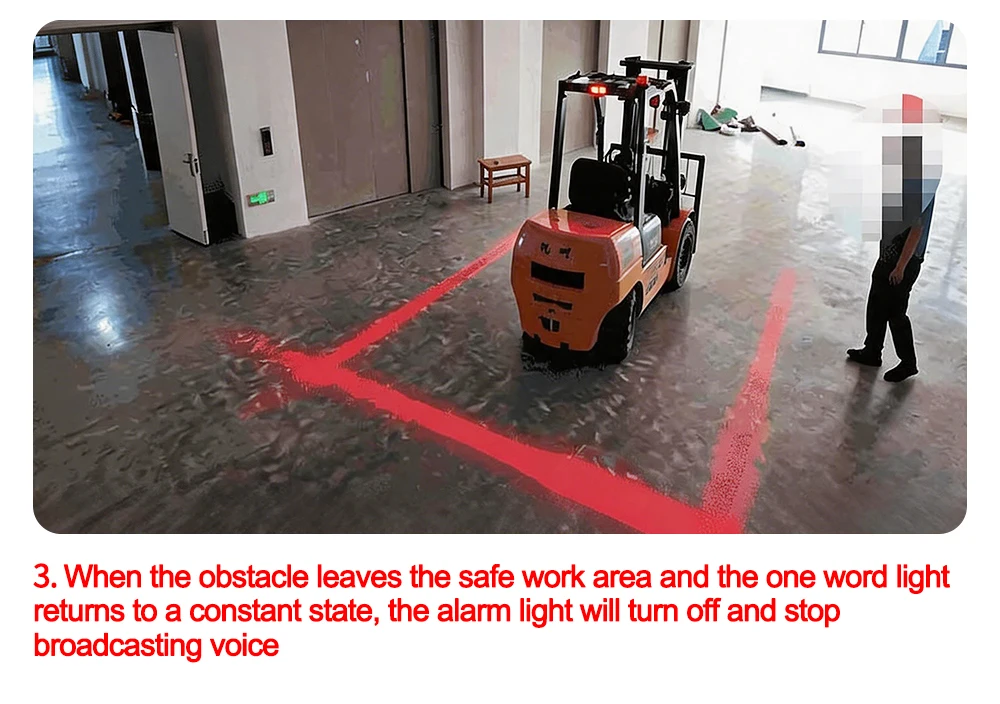

③ When the obstacle leaves the safe work area and the one word light returns to a constant state, the alarm light will turn off and stop broadcasting voice.

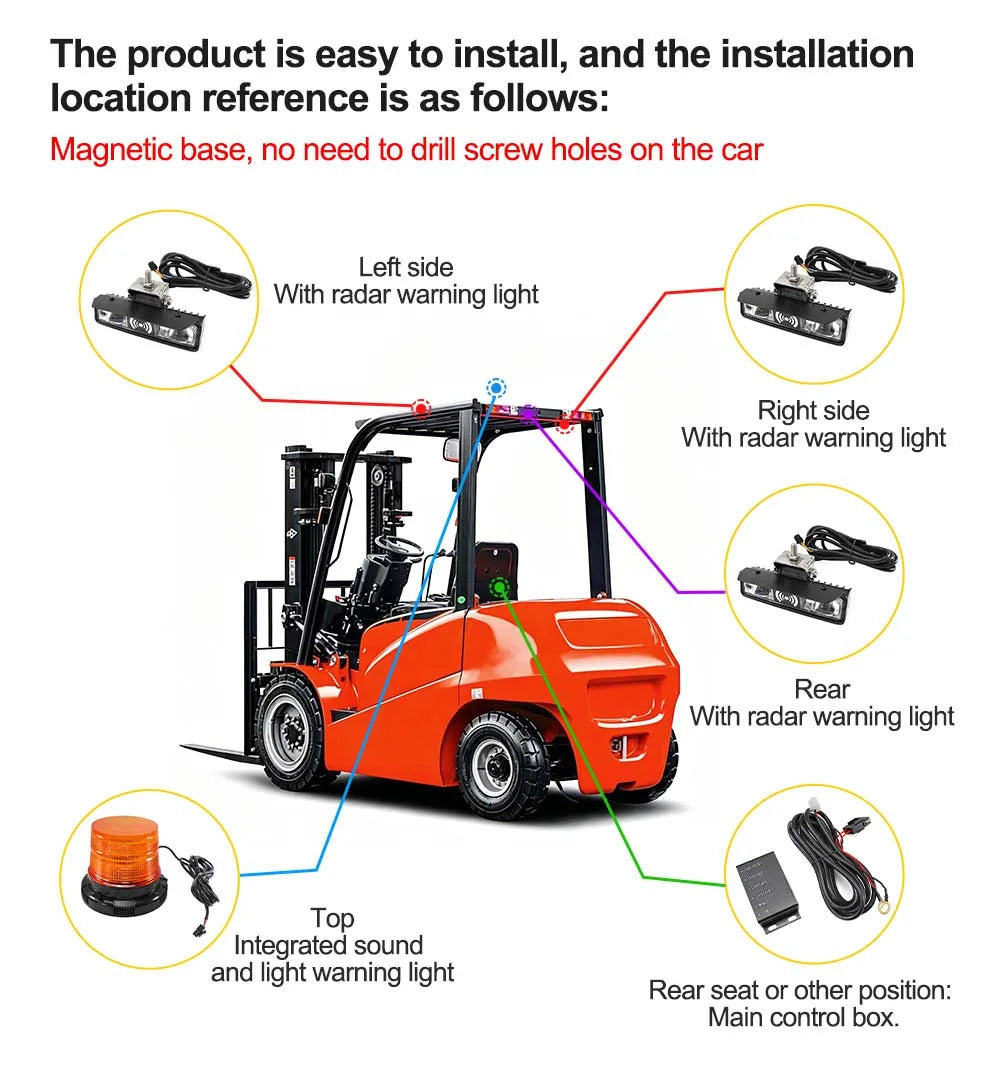

7. The product is easy to install, and the installation location reference is as follows:

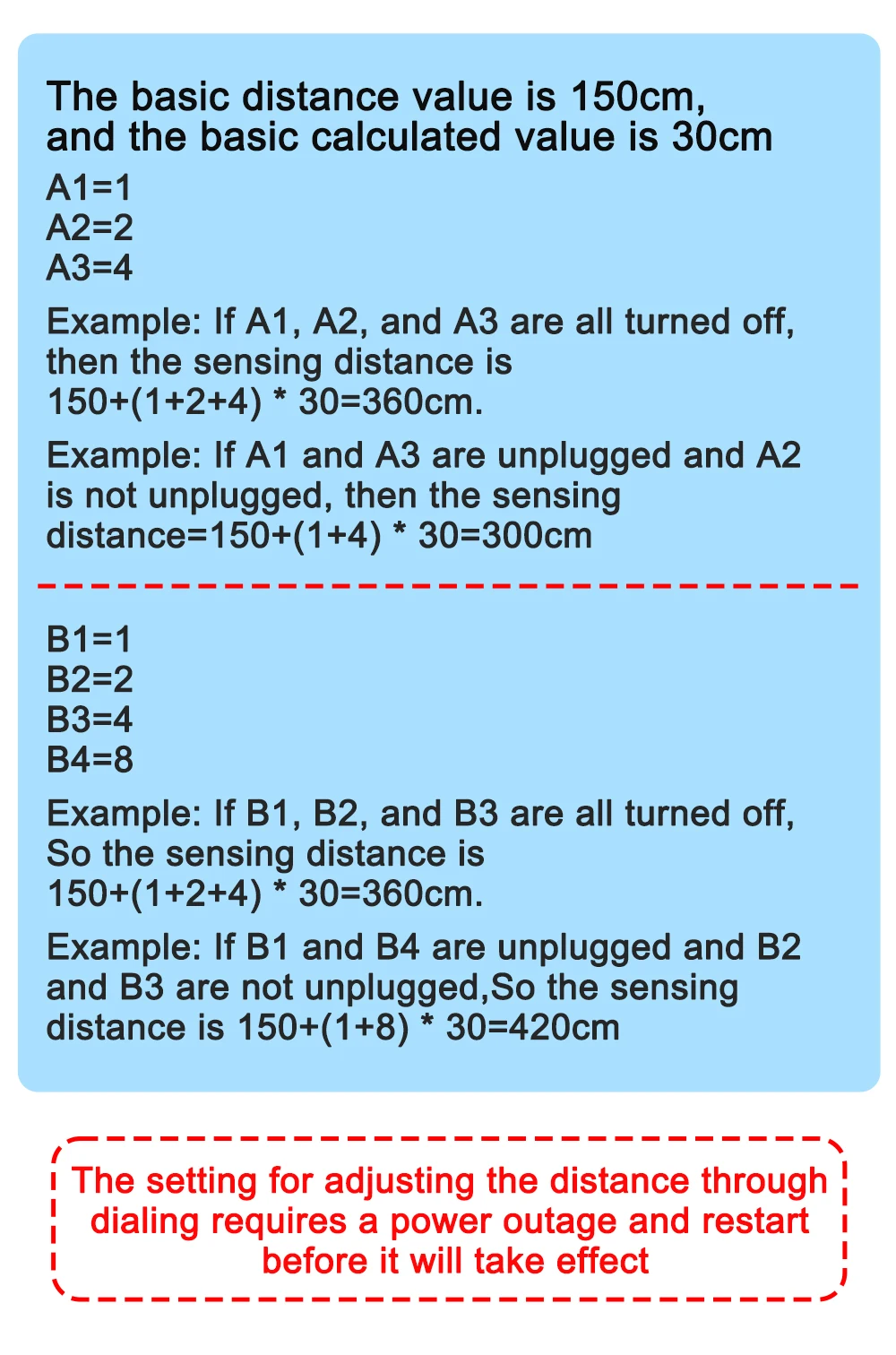

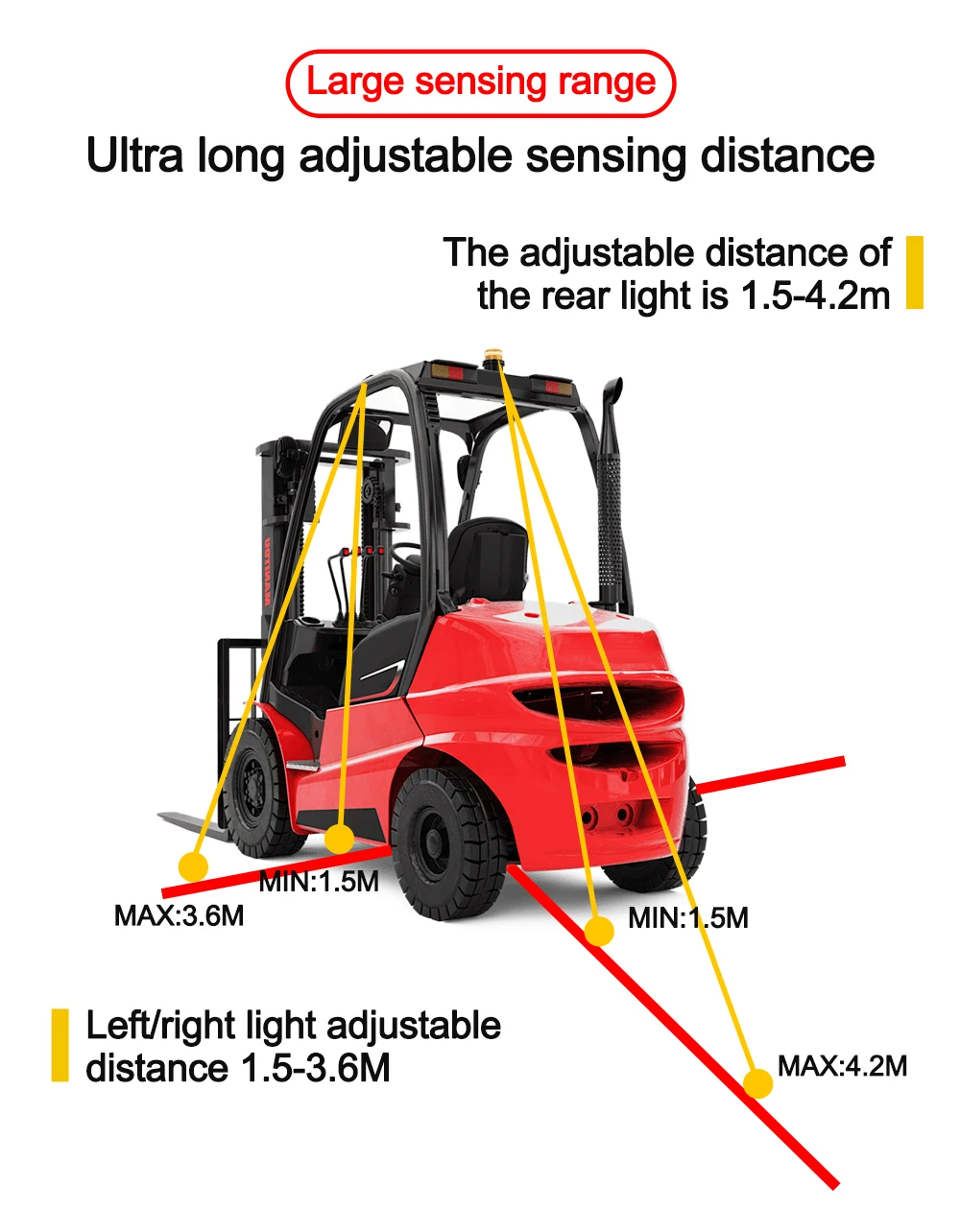

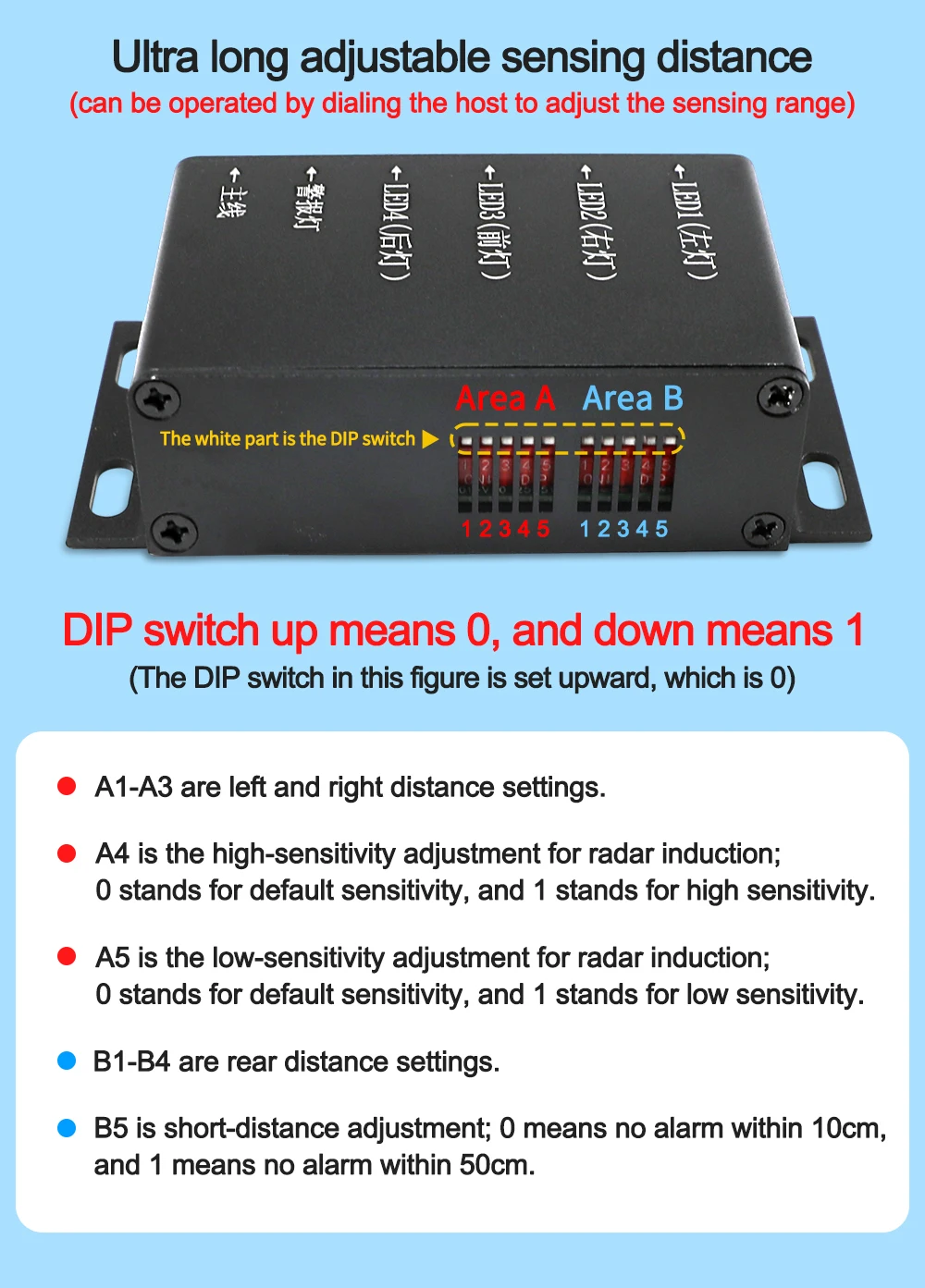

8. Ultra Long Adjustable Sensing Distance (can be operated by dialing the host to adjust the sensing range)

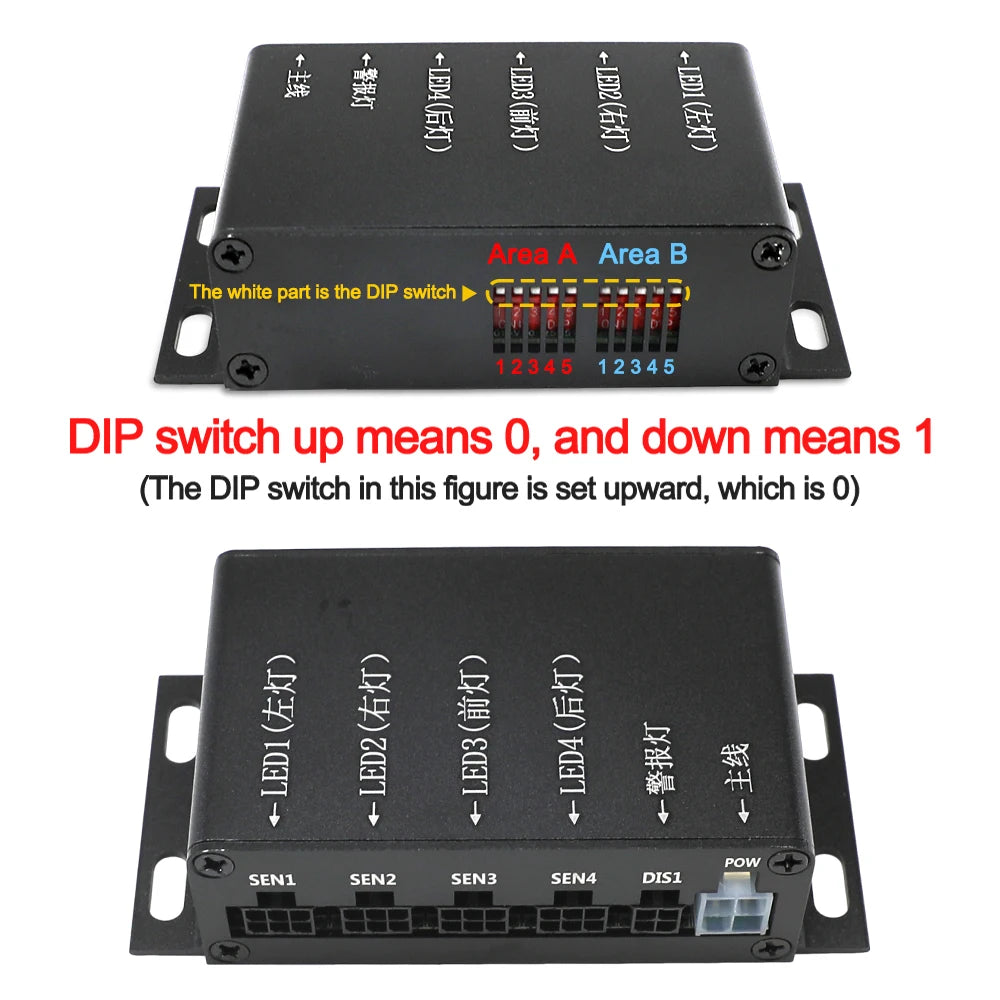

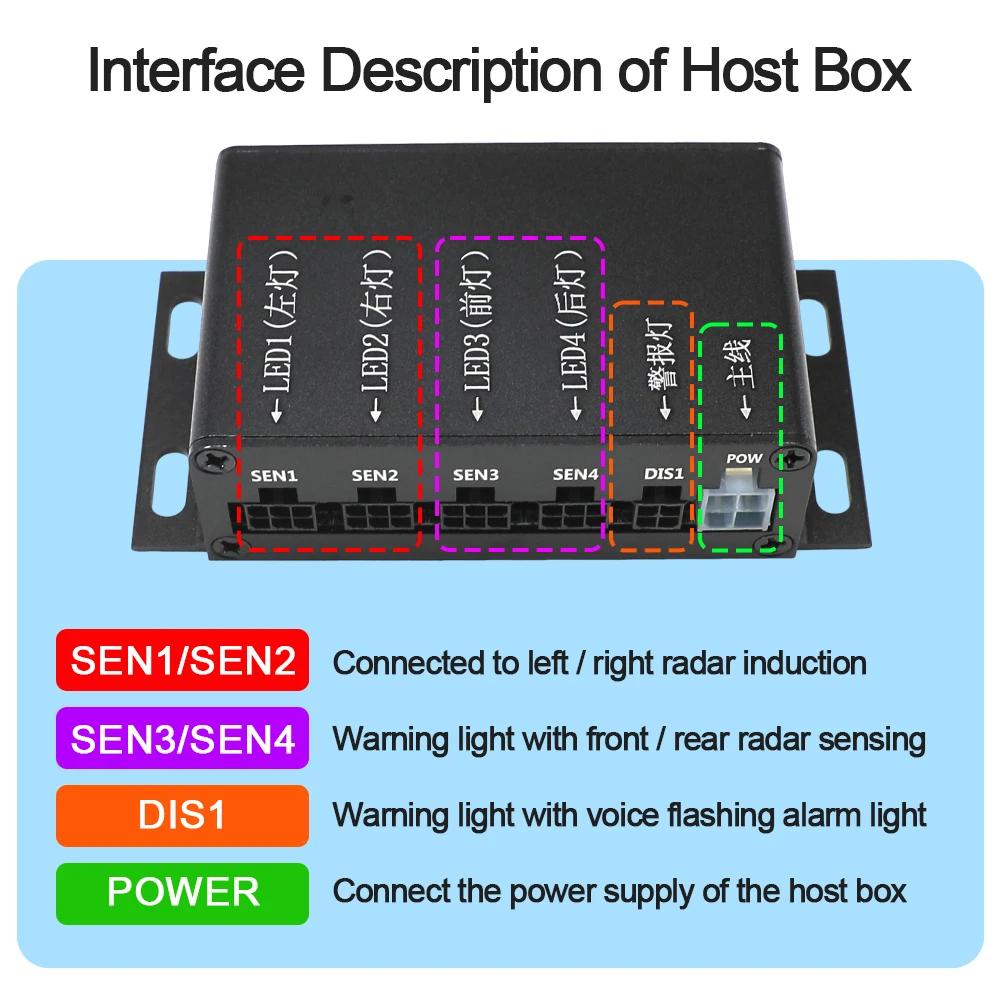

9. Interface Description of Host Box

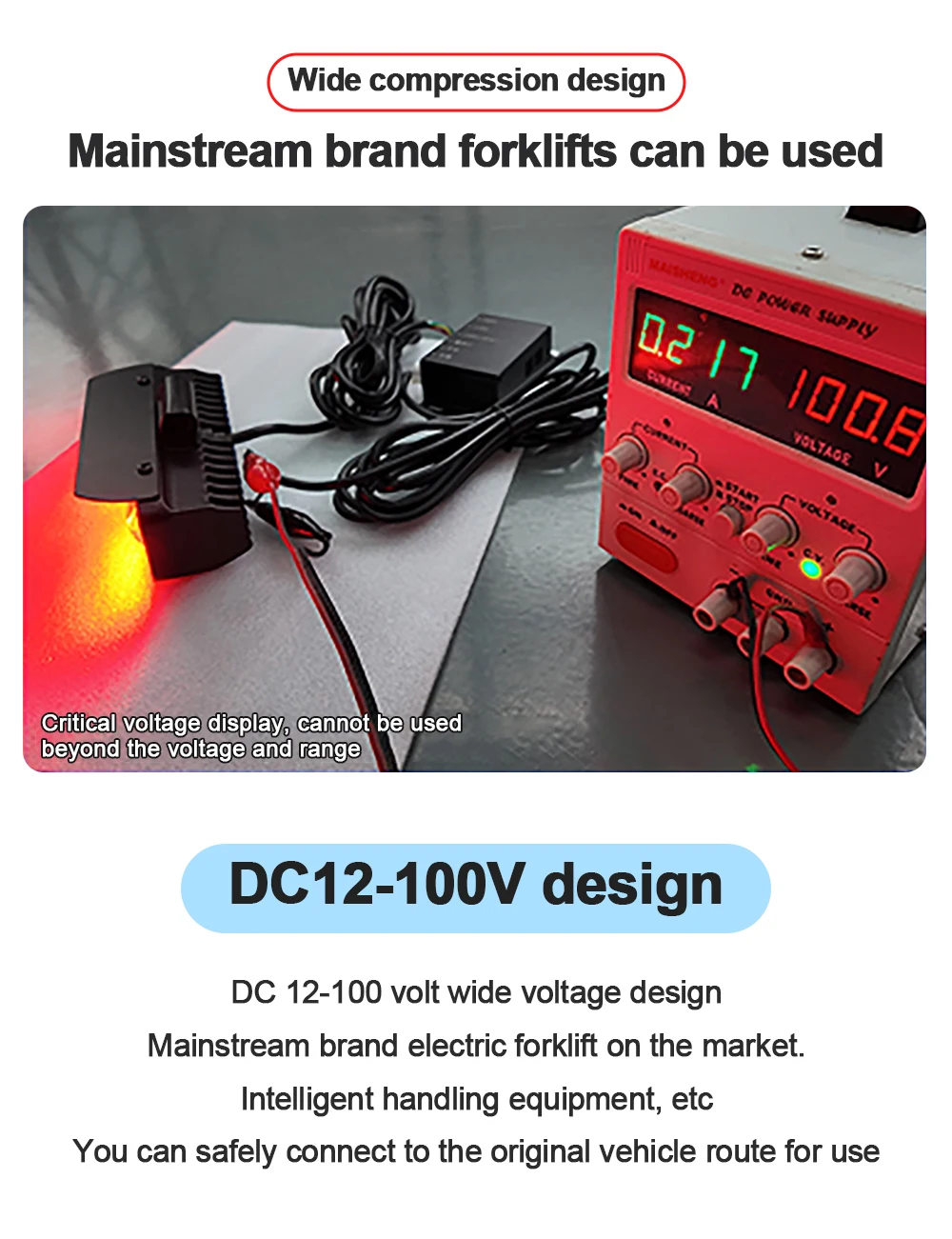

10. The product adopts a wide voltage design and can be used with DC12V-100V voltage equipment.

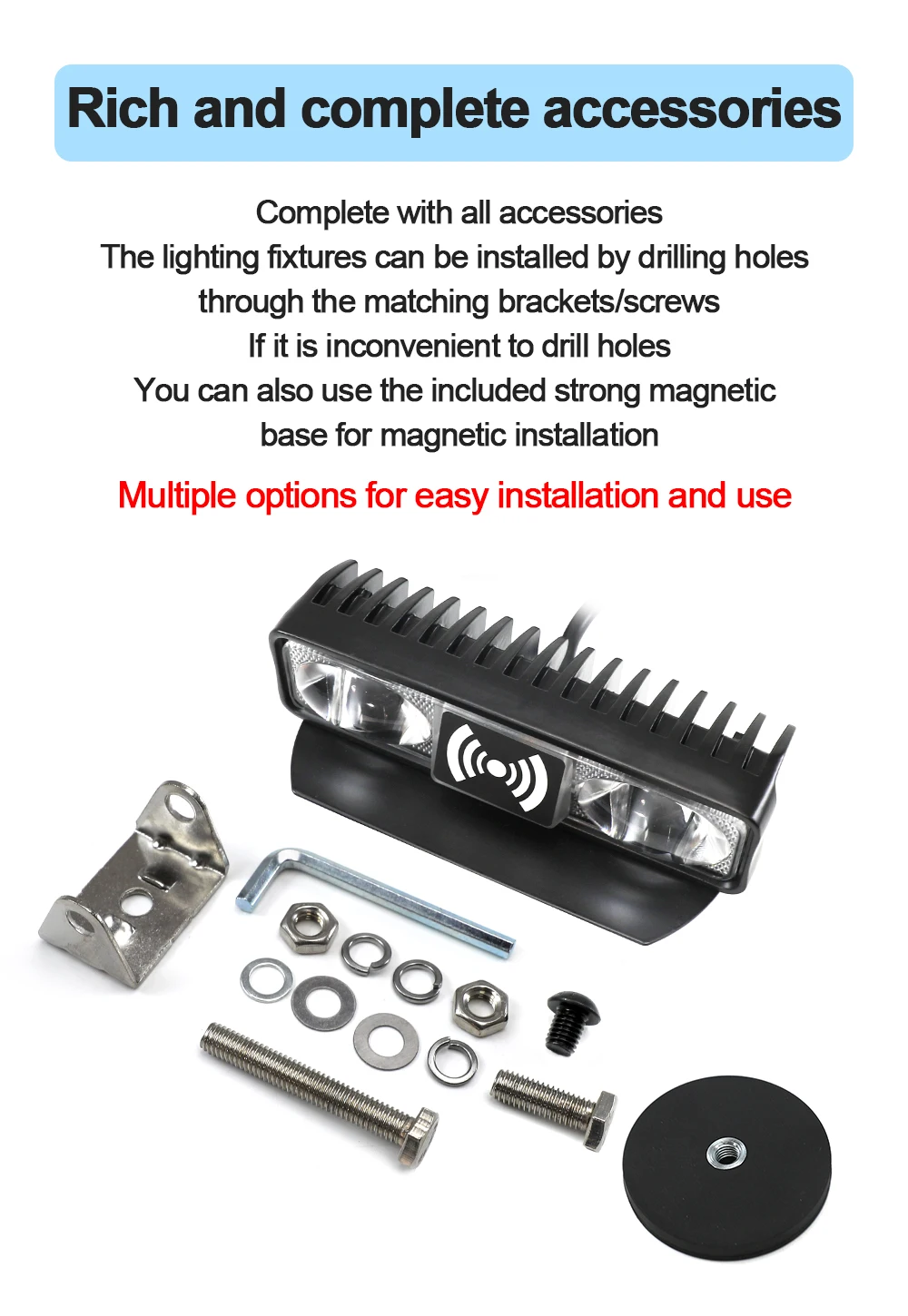

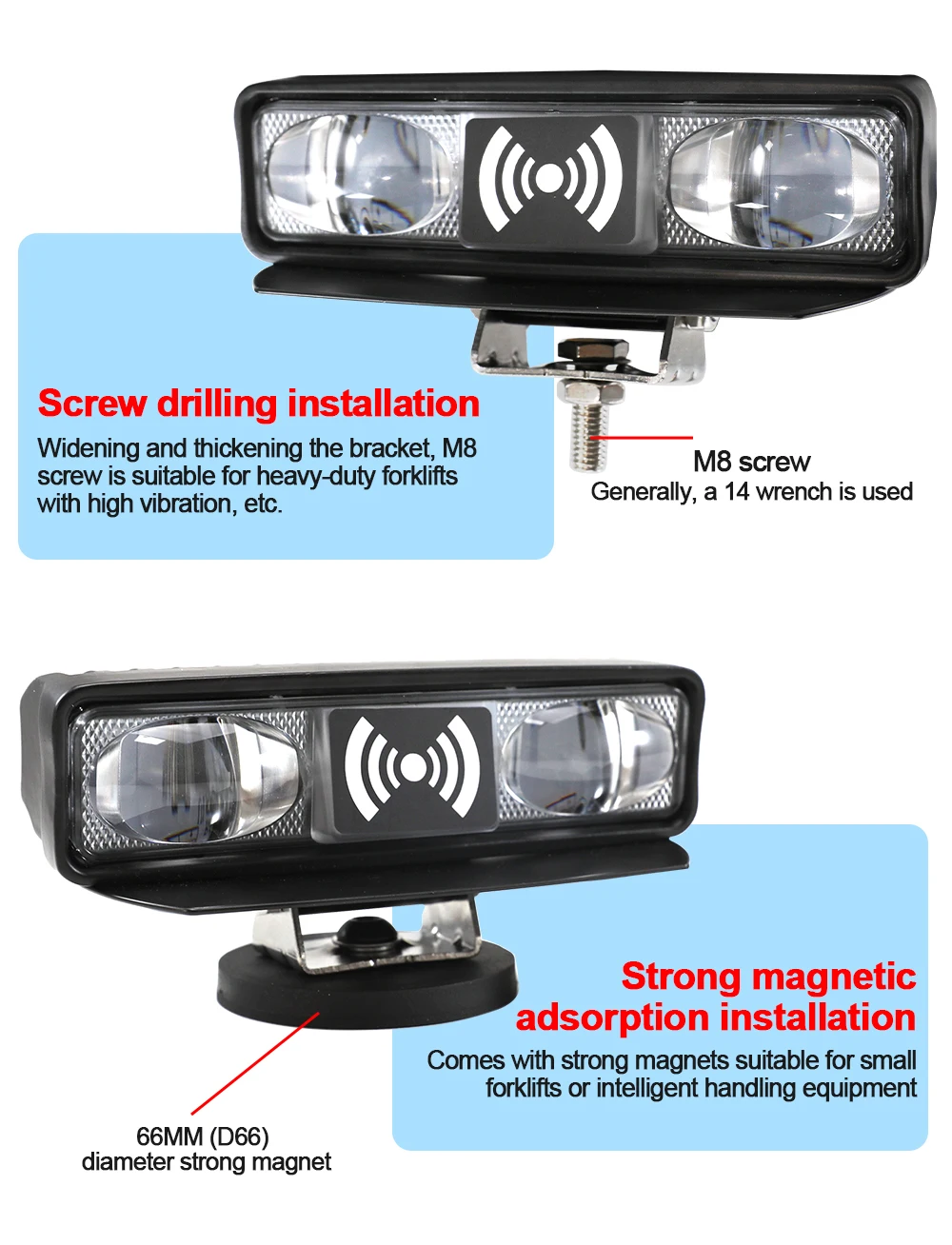

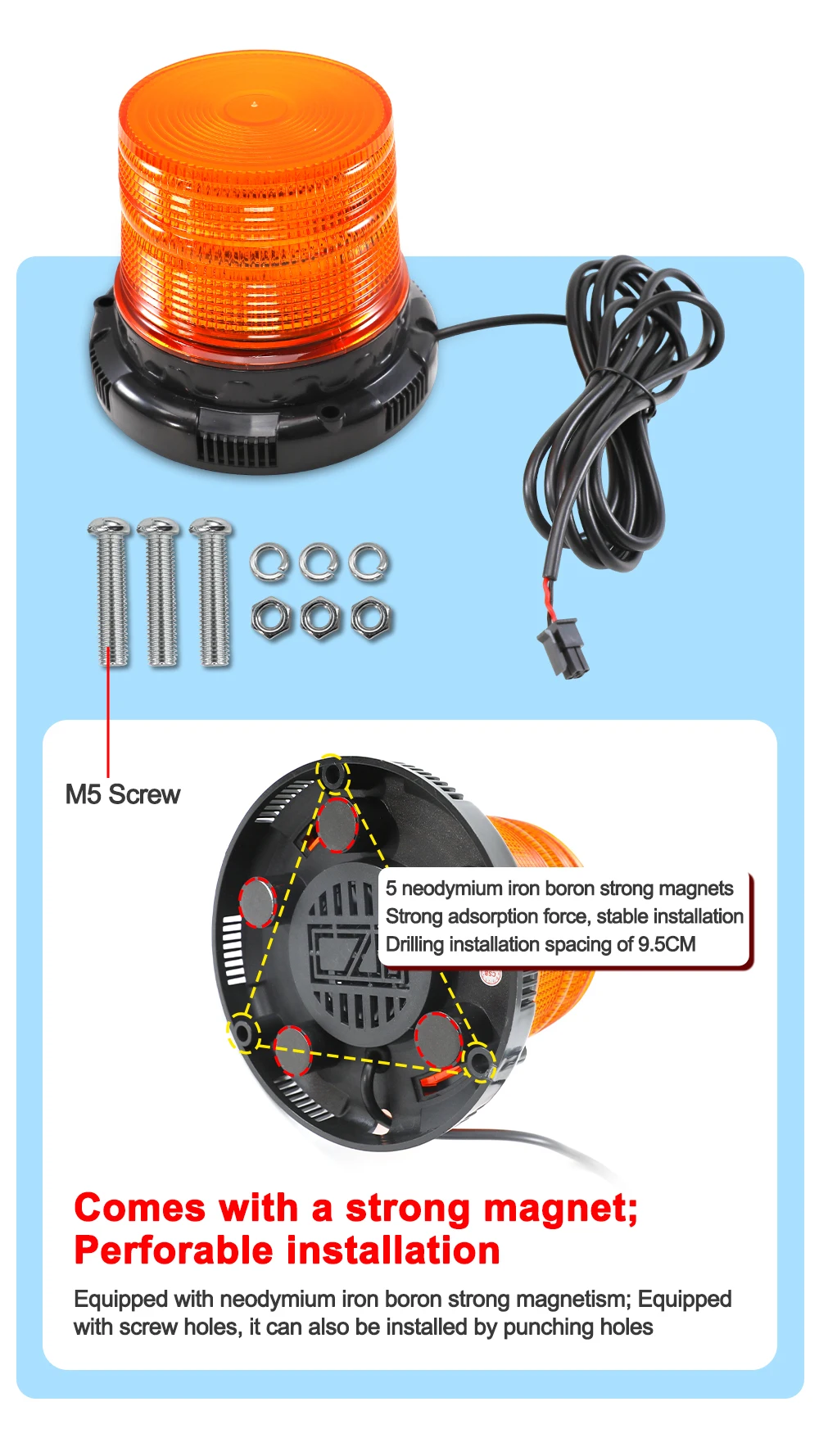

11. The product has two installation methods to choose from, using screw drilling installation or strong magnetic adsorption installation.

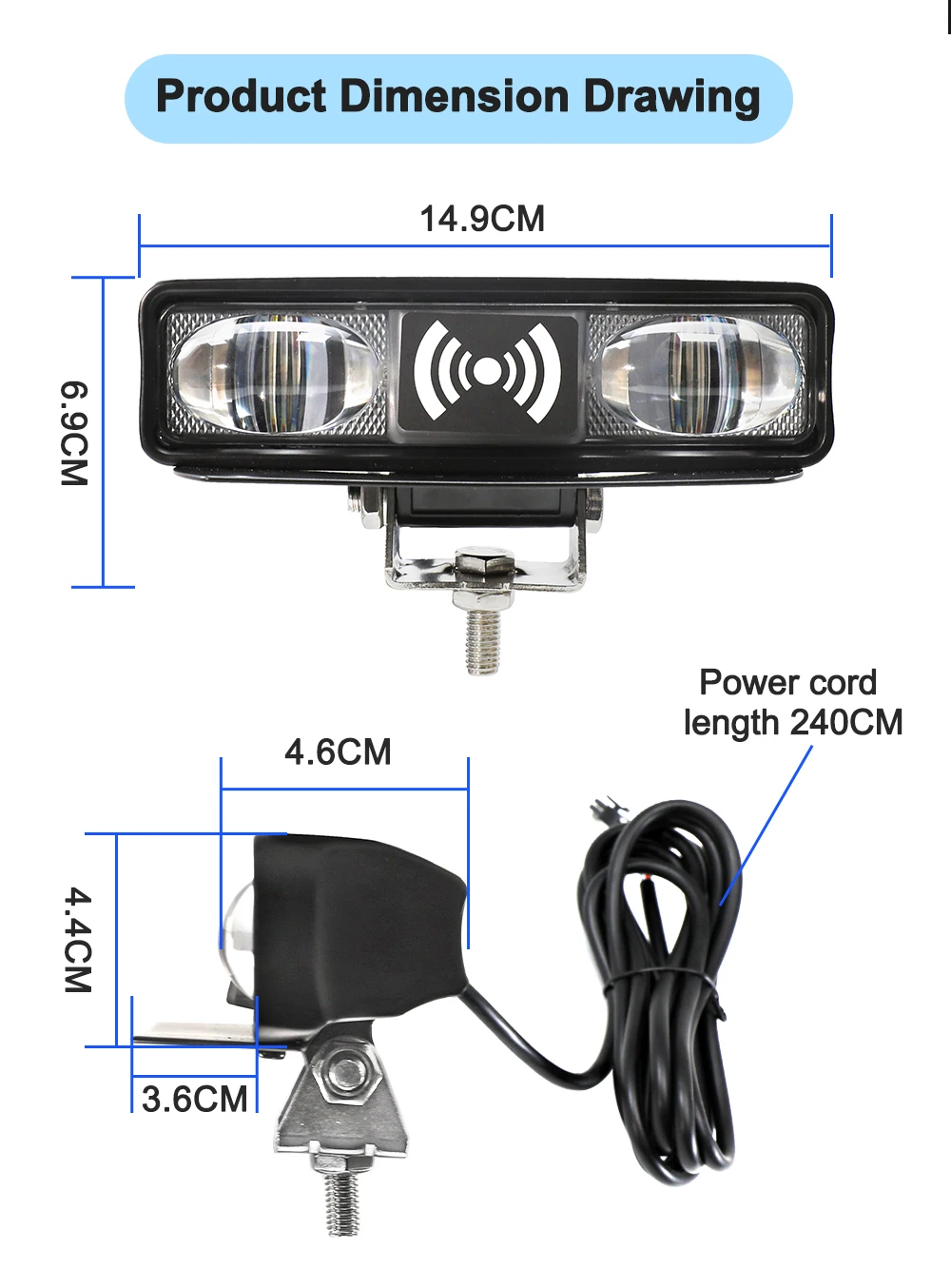

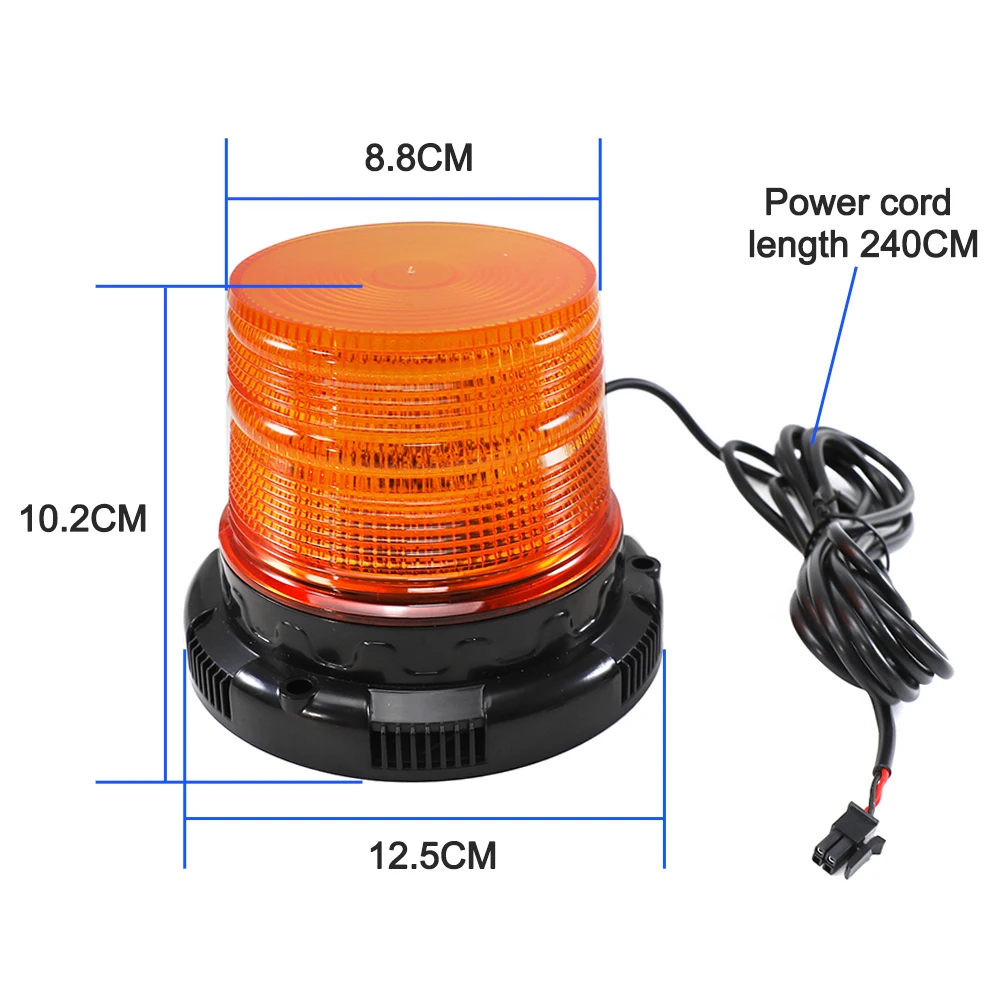

12. Product Dimension Diagram

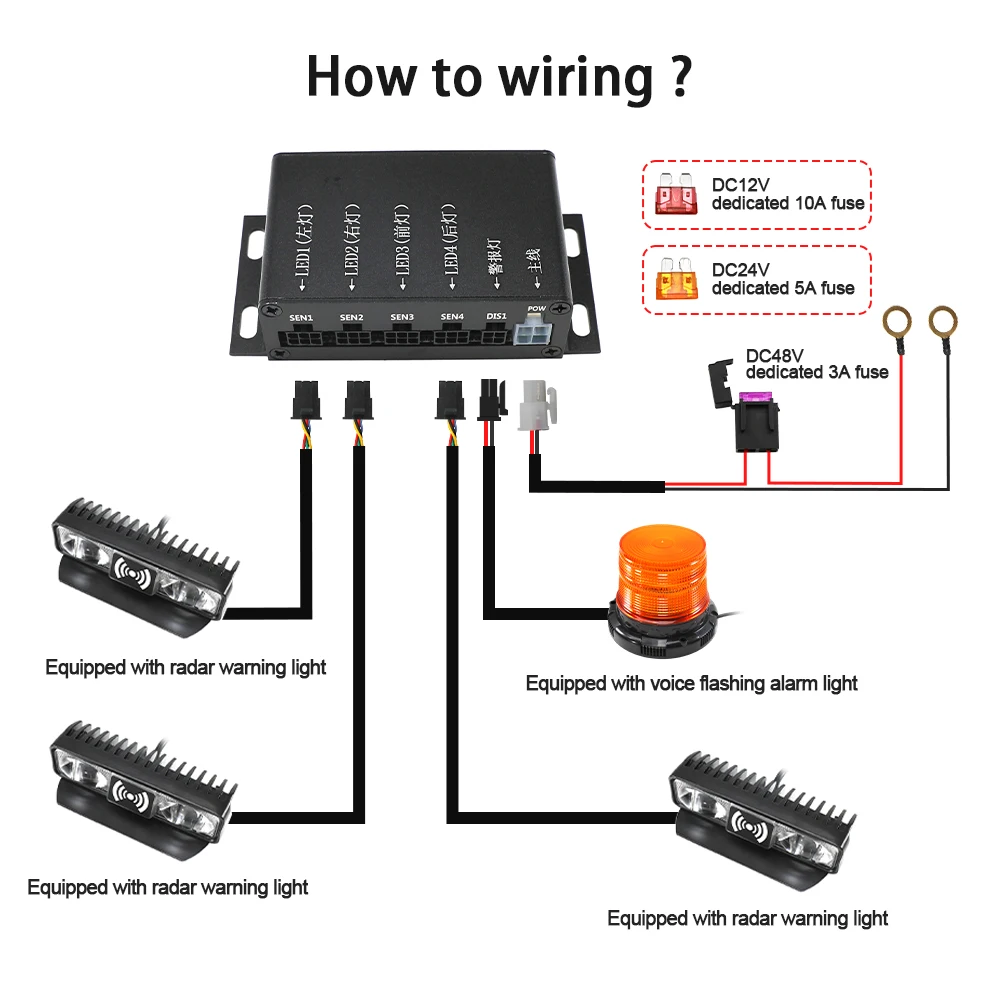

13. Product Wiring Diagram

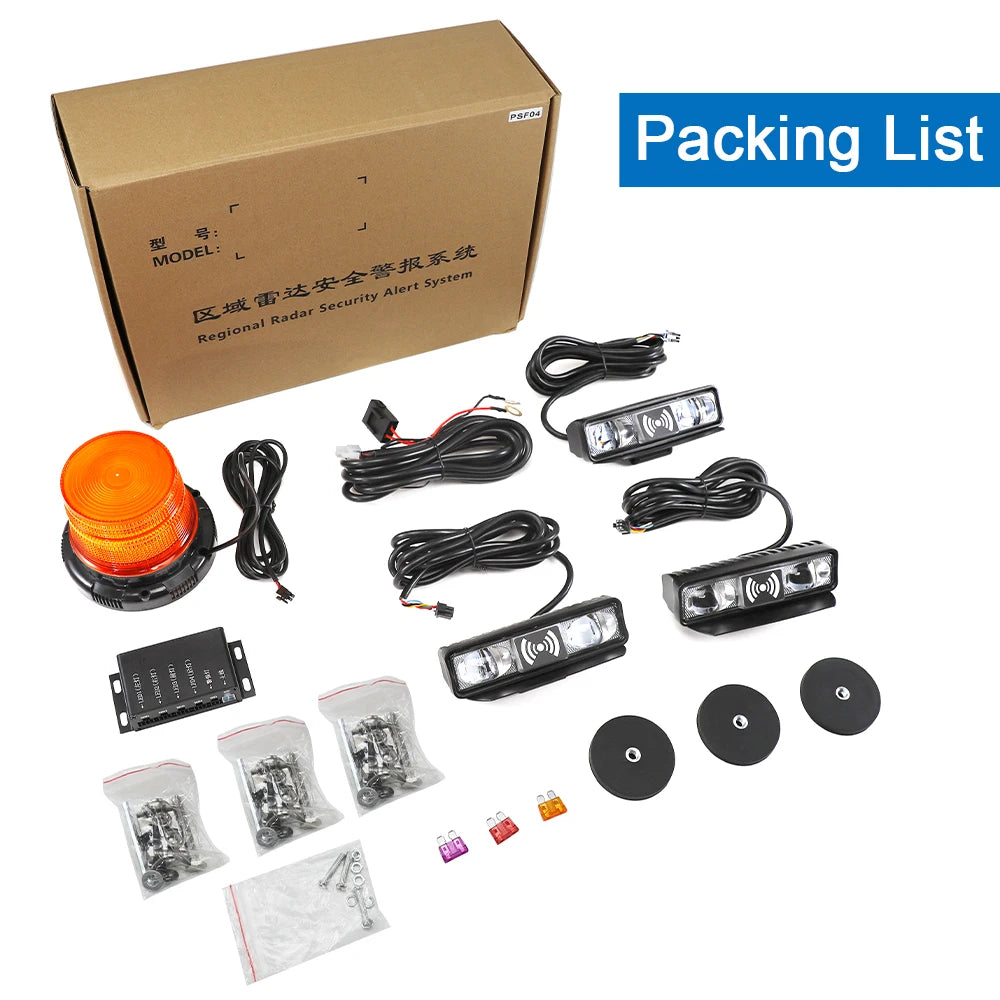

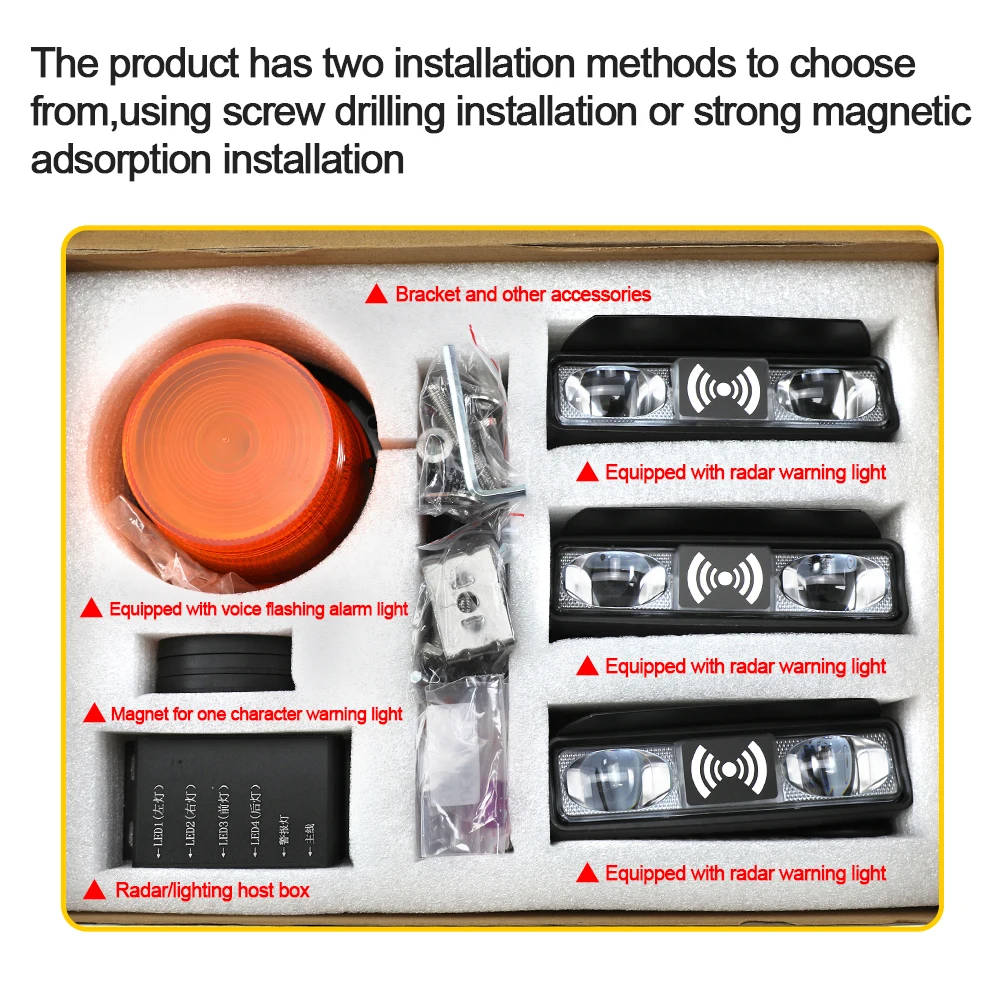

14. Product Packing List
