SPECIFICATIONS

AHD Camera: NOT Support

Brand Name: DIYSECUR

CVBS Camera: Support

Certification: E-Mark,CE,FCC,KC

High-concerned chemical: None

IS It With PCB: Yes

Material: ABS

Model Name: 041

NOTE: NOT includ camera and monitor

OSD Language: English

Origin: Mainland China

PCB included: Yes

Power Input: 12V DC

Talk Range: 0.3-2m

Type: Visible

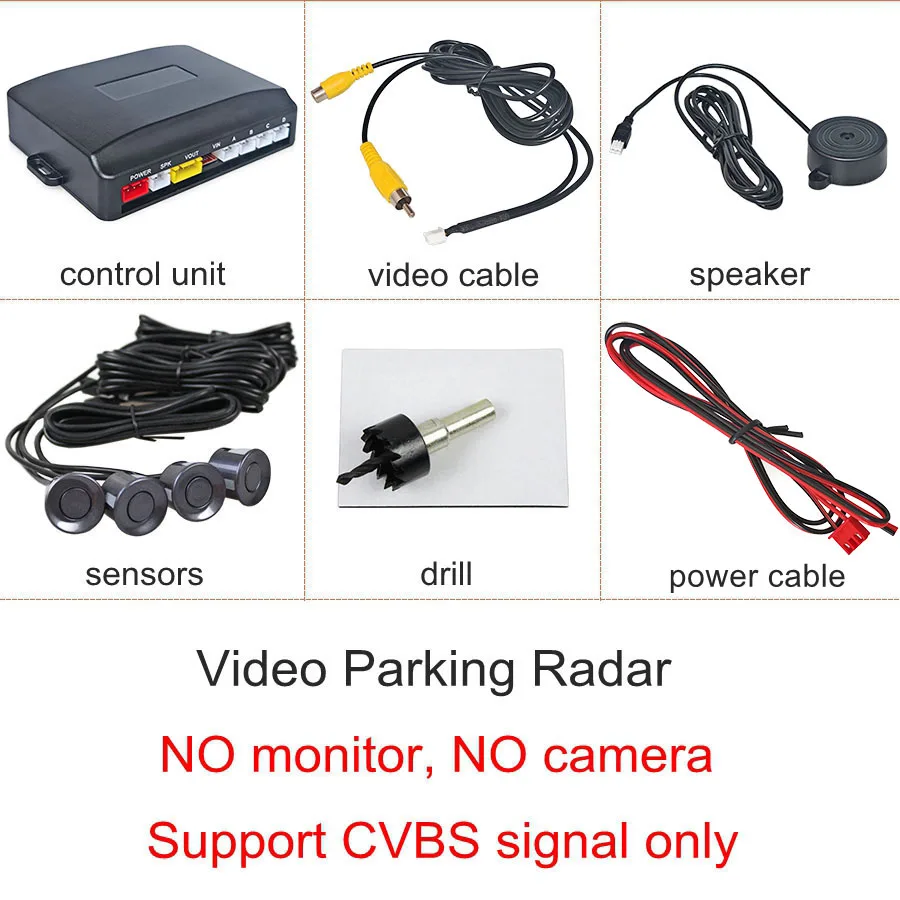

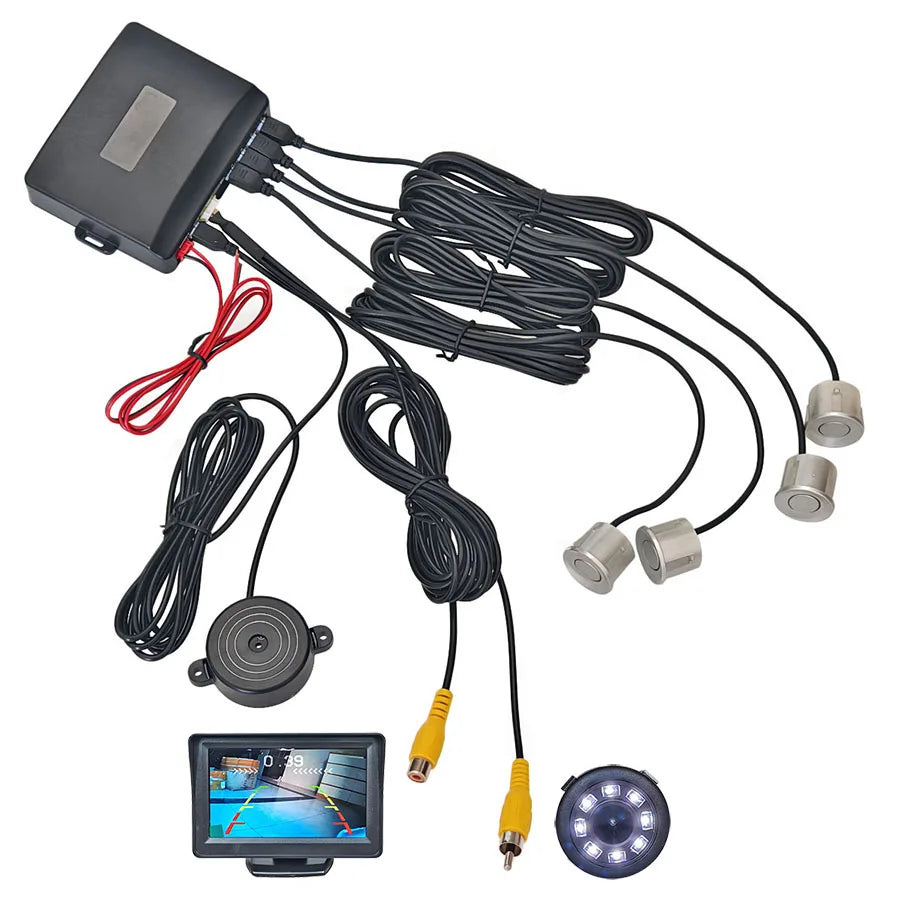

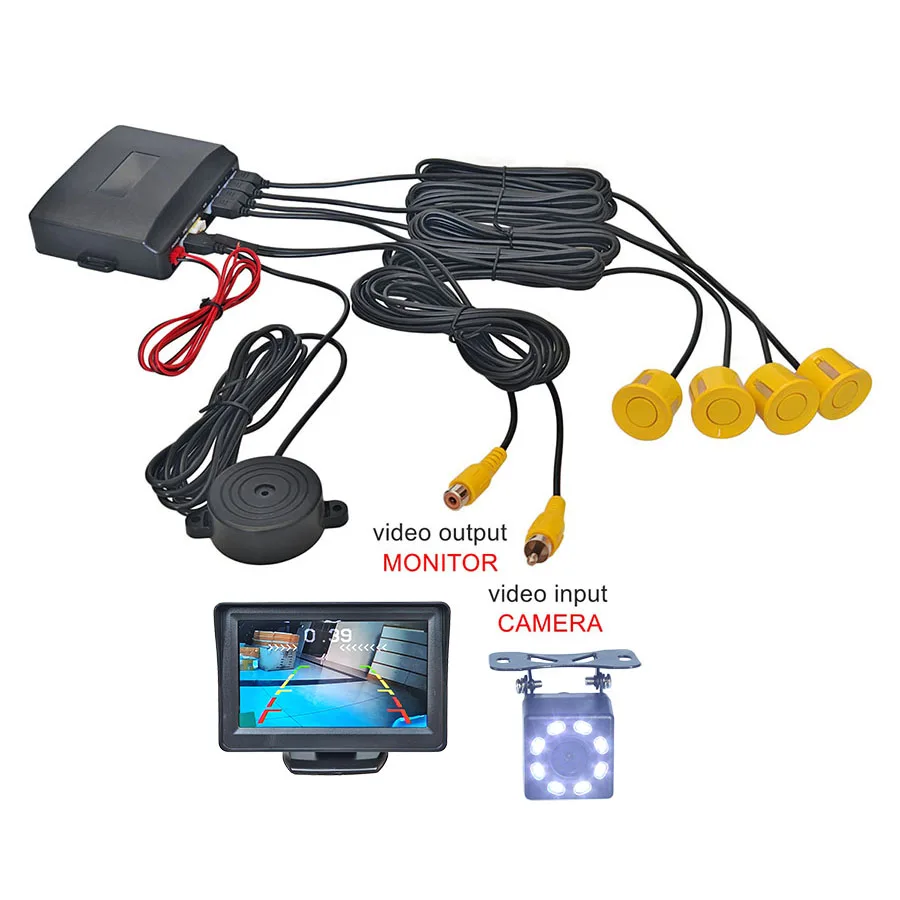

Reversing Video Parking Sensors 4 Sensor Kit

Five different frequencies of alarm sound according to distance

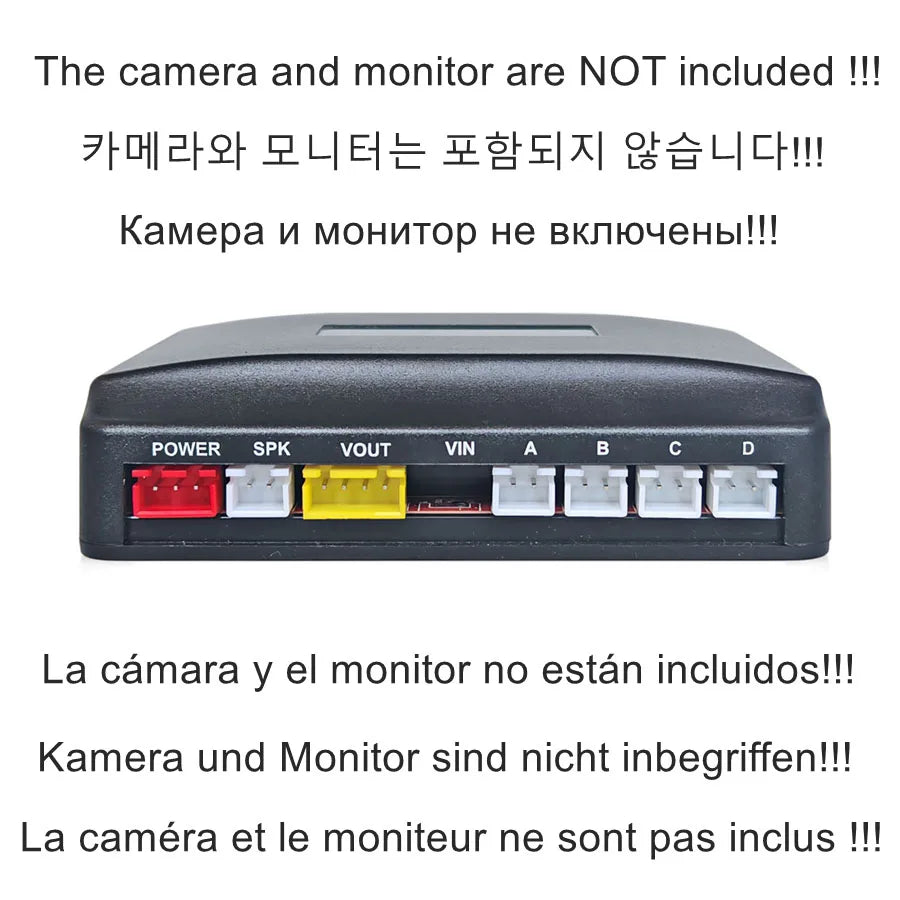

NOTE: the monitor and camera are not included, if you need please feel free to contact us.

This item can not working with AHD Camera and AHD Monitor!!

With this Parking Sensor system installed, drivers can lower the risk of accident. This affordable parking sensor enhances the process of parallel and backup parking designed for your concerns about safety and for vehicles that have poor rear visibility. The system will work automatically to detect the obstacles at the rear of your car at any time. All parts are designed with professional grade quality.

Specifications:

Voltage: DC 9V-DC 15V
Rated voltage: DC 12V
Power cost: Max 1.5W
Respond distance: 0.4m-2.0m
Alarm distance: 0m-2.0m

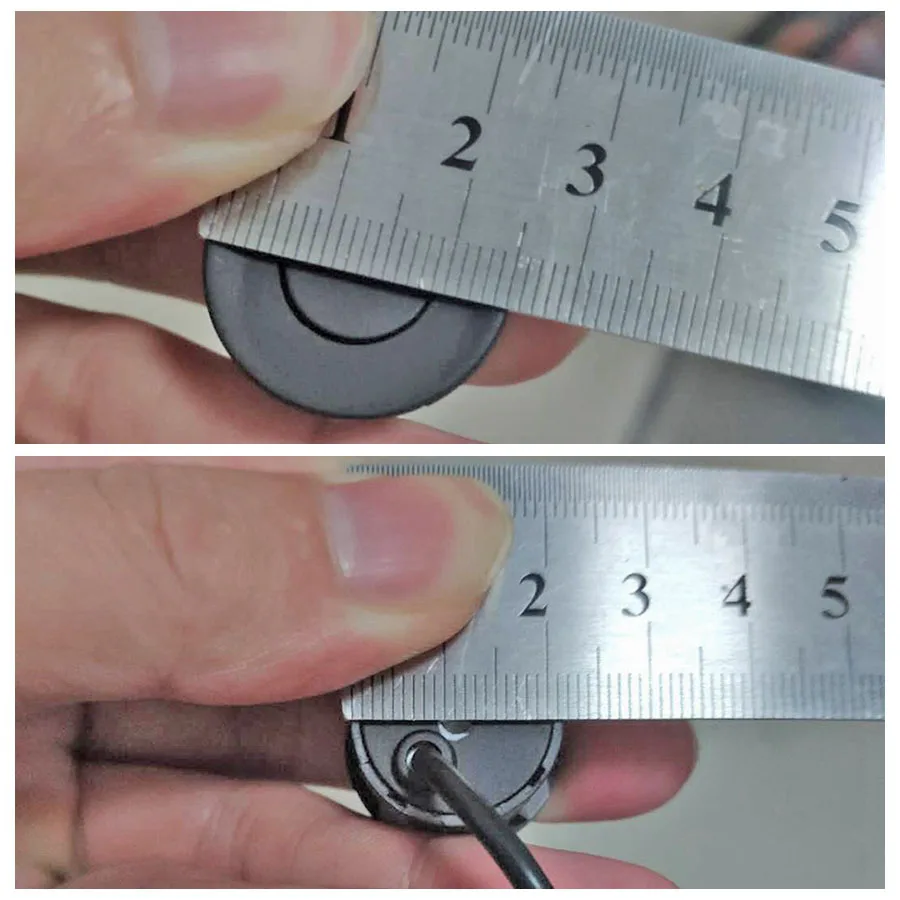

Sensor diameter: 22mm
Install mode: drill
Sensor angle: X, Y, 60c
Work temperature: -30°c-80°c
Alarm volume: 65dB

The alarm sound would become more rapid when the distance gets shorter and shorter, alarm mode and danger mode.

How does it work?

The system is automatically activated when you engage reverse gear. Small sensors are recessed to the rear of the vehicle, they send and receive ultrasonic radio waves, which bounce off obstacles and alert you to their presence. The internal buzzer that gradually increases in frequency as you approach the object.

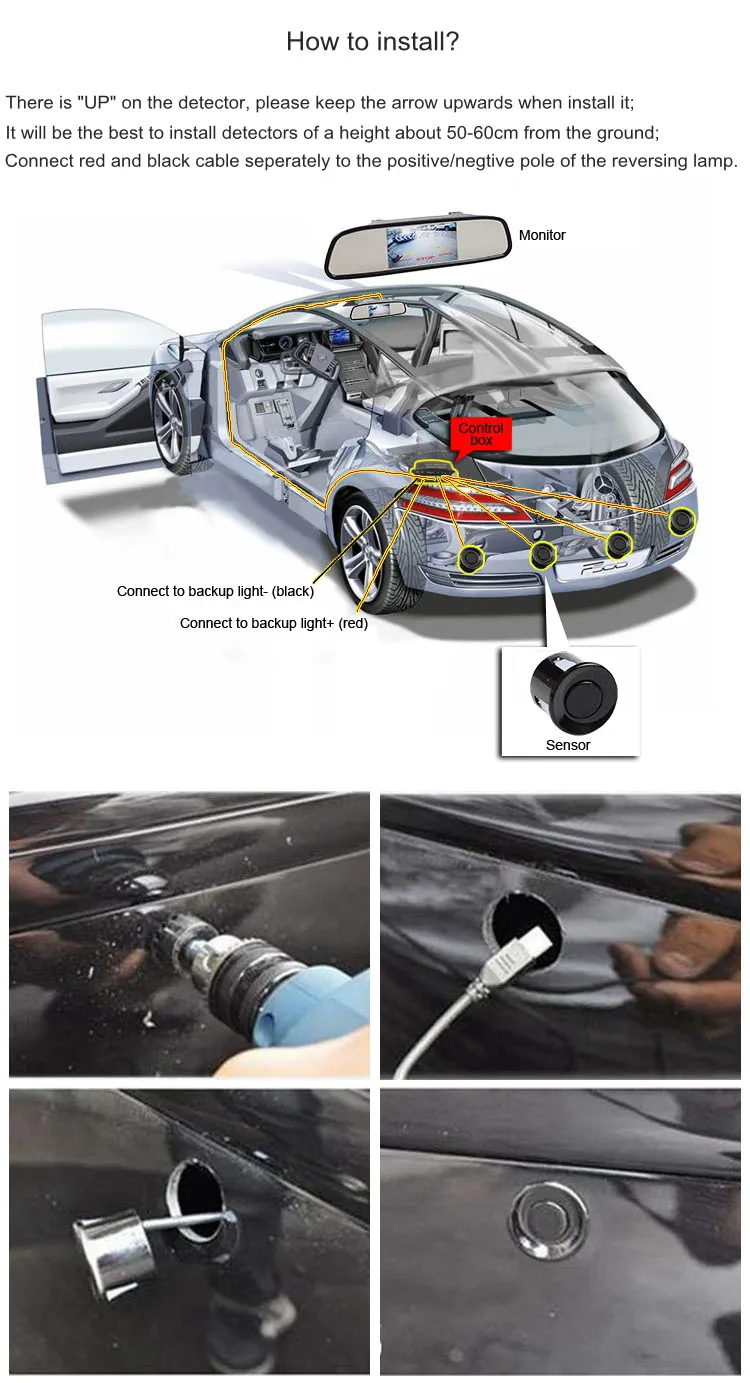

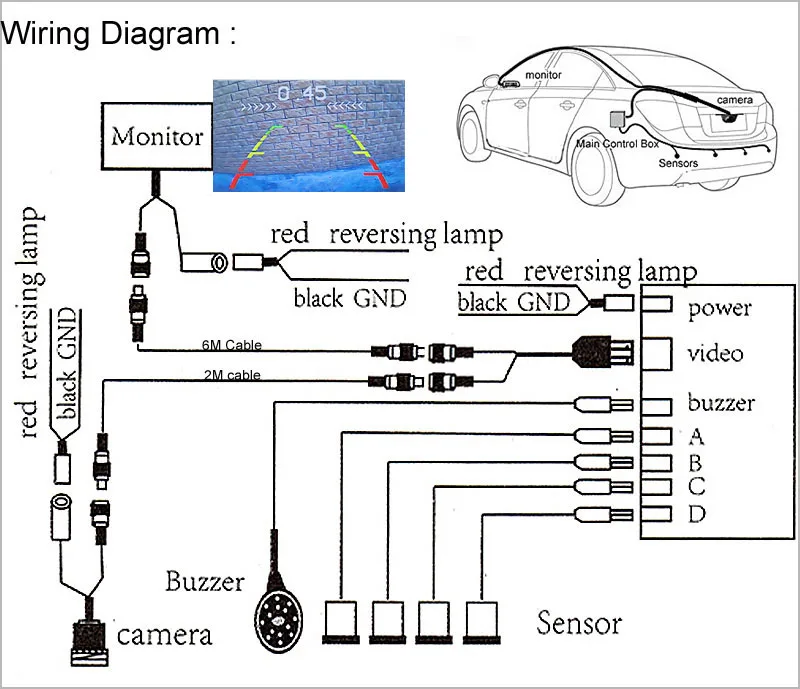

How to install?

There is"UP"on the detector, please keep the arrow upwards when install it;
It will be the best to install detectors of a height about50-60cmfrom the ground;
Connect red and black cable seperately to the positive/ negtive pole of the reversing lamp.
