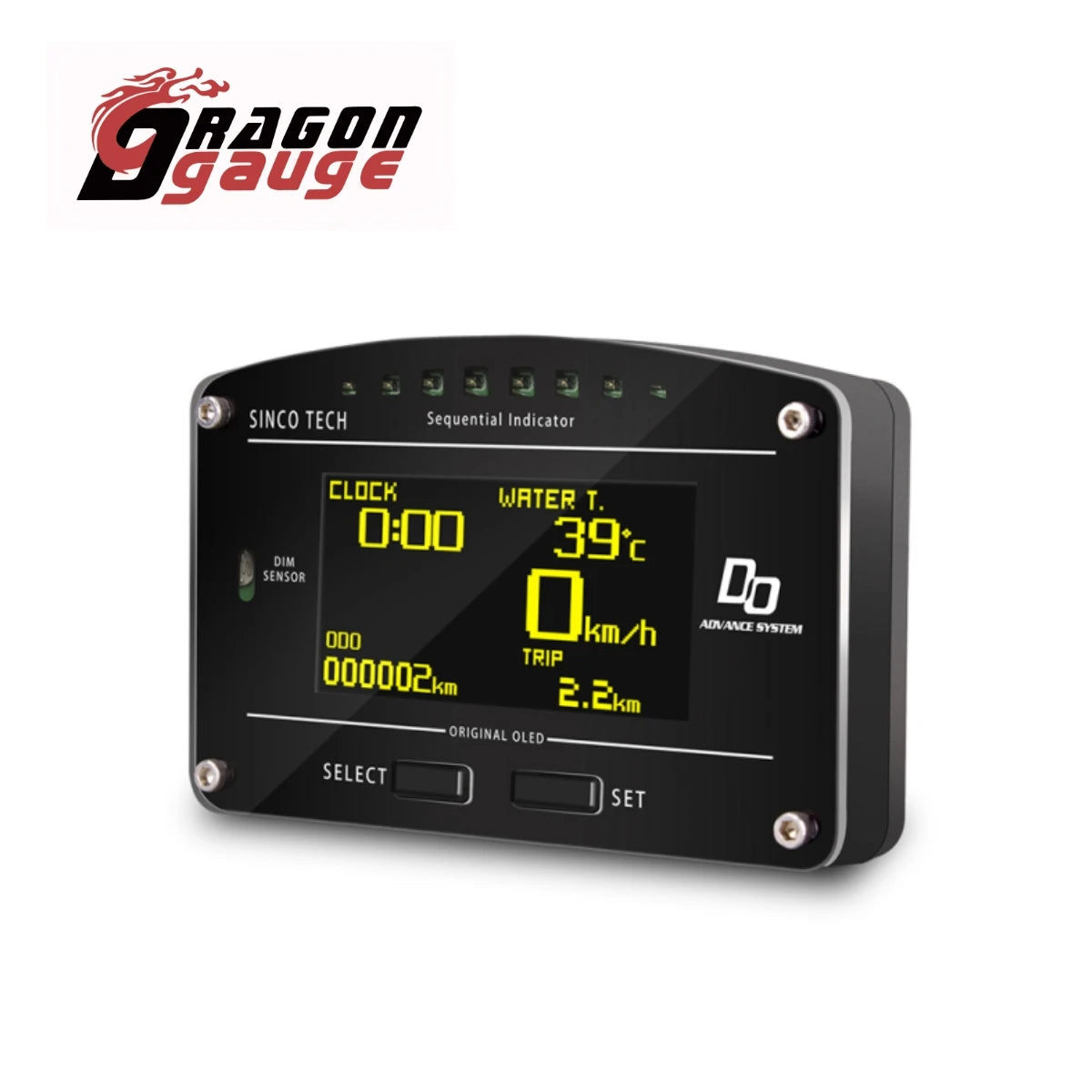

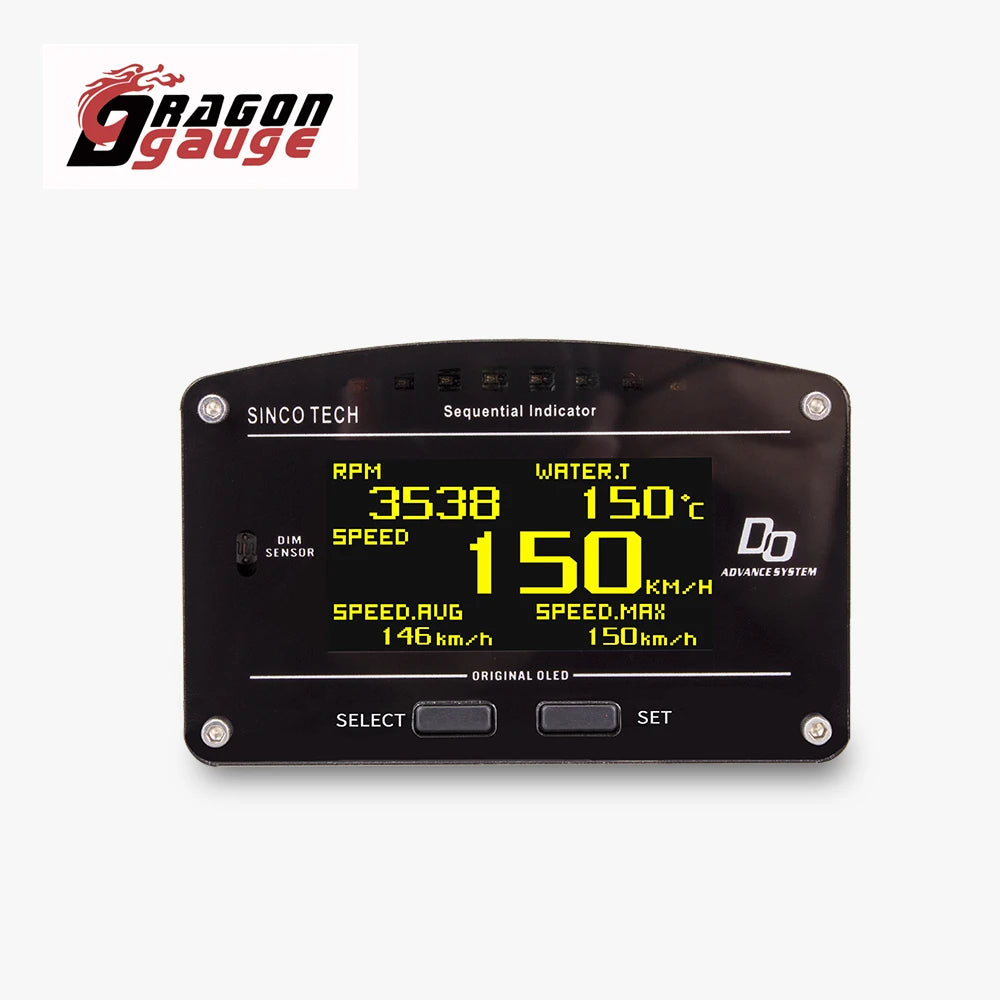

DRAGON GAUGE 10 in 1 Race Dash Panels OLED Digital Display Full Sensor Kit Car Multi-Function Dashboard Fit for 12V Car

$326.16 AUD

~~$328.18 AUD~~ $326.16 AUD

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Air Fuel Ratio Gauge: 20:1~10:1

Boost Guage: -1~3Bar/-15~45PSI

Brand Name: DRAGON GAUGE

Clock: 24H

Country/Region of Manufacture: China

Exhaust Temp Meter: 0~1300℃/0~2400℉

High-concerned chemical: None

Interchange Part Number: Race Dash Panel

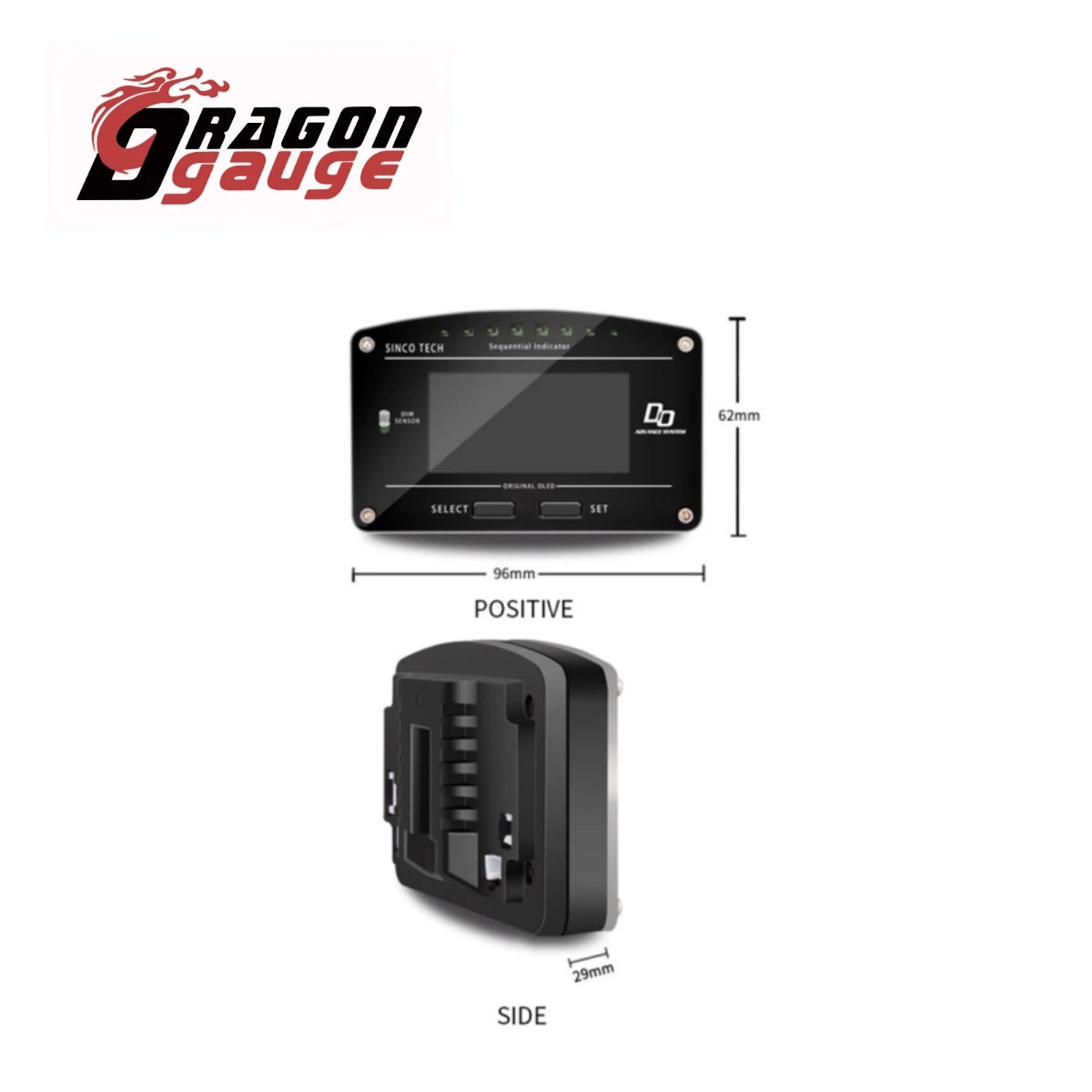

Item Height: 62mm

Item Length: 96mm

Item Weight: 2kg

Item Width: 29mm

Manufacturer Part Number: DO907

Material: Plastic + Metal+OLCD

Oil Press Gauge: 0~150PSI/0~10Bar

Oil Temp Gauge: 0~150℃/0~300℉

Operating Voltage: 9V-16VDC

Origin: Mainland China

Other Part Number: Race Dashboard

Placement on Vehicle: Front

Special Features: Test various data indicators of the car

Speedometer: 0~255KM/H

Tachometer: 0~11000RPM

Voltmeter: 10~16V

Water Temp Gauge: 0~150℃/0~300℉

DRAGON GAUGE 10 in 1 Race Dash Panels OLED Digital Display Full Sensor Kit Car Multi-Function Dashboard Fit for 12V Car

1.High-brightness and high-definition OLED display, which can adjust the brightness automatically or manually.

2.Covers 12 kinds of important parameter data of racing cars, bid farewell to the cumbersome multi-instrument mode, the application is more convenient..

3.Can set speed/boost/water temp/oil temp/oil press/air-fuel ratio/ exhaust temp alarm reminder function, through the sound and 8 LED indicators to remind.

Parameters:

Dissipation current：+B Line <200MA(WHEN IGN ON) <1MA(WHEN IGN ON)<5MA

range of working temperature：-20~+60℃ （humidity<80%）

range of storage temperature：-30~+80℃ （humidity<80%）

Corresponding vehicle speed pulse:2、4、6、8 pulse

pulse free:1,274~16,562pulse/KM（Equla to pulse of 2~26）

Corresponding cylinder number：1、2、3、4、5、6、8（LOOP）

Fitment:

for all 12V vehicles

Tips:

1. Manual measurement, please allow 1~3 mm error, thank you.

2. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!

3.There are instructions, but professional installation is strongly recommended.
