Notes:

There are some different speed range and unit,fuel level signal in the options, please choose the correct option when you are ordering.

Thanks

-Suitable for all vehicles, motorcycle, cars, trucks, etc.

-The signal comes directly from the satellite signal receiver(GPS Speed Sensor)

-The gauge has the advantages of high precision, quick location confirmation and short start up time

-Be suitable for all kinds of tacho RPM sensors, and display the rotation speed of the engine.

-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

-IP67 waterproof and dustproof grade

-Stepper motors used for full range of stepping gauges, great feature with its less power consumption,

longer life, higher precision, etc.

-With curved glass (with anti-fogging function)

-With ultra-wide working voltage design, long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)

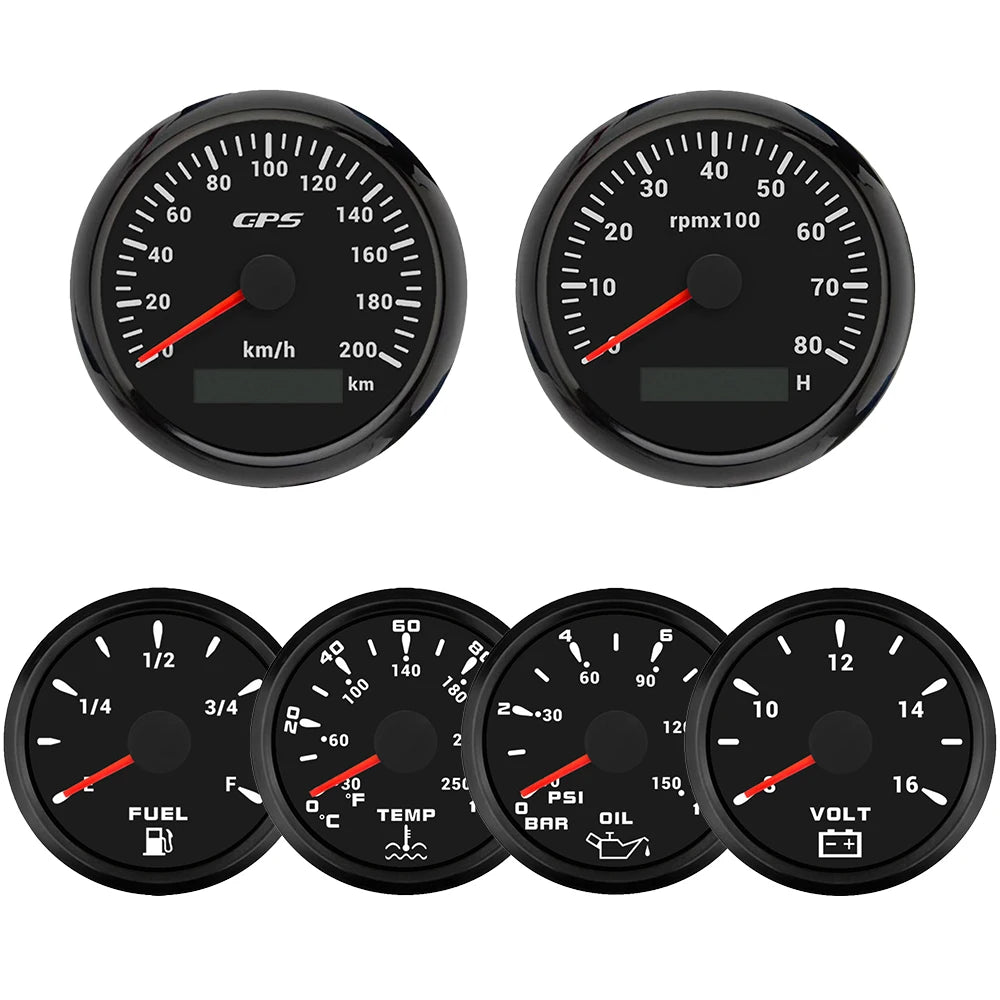

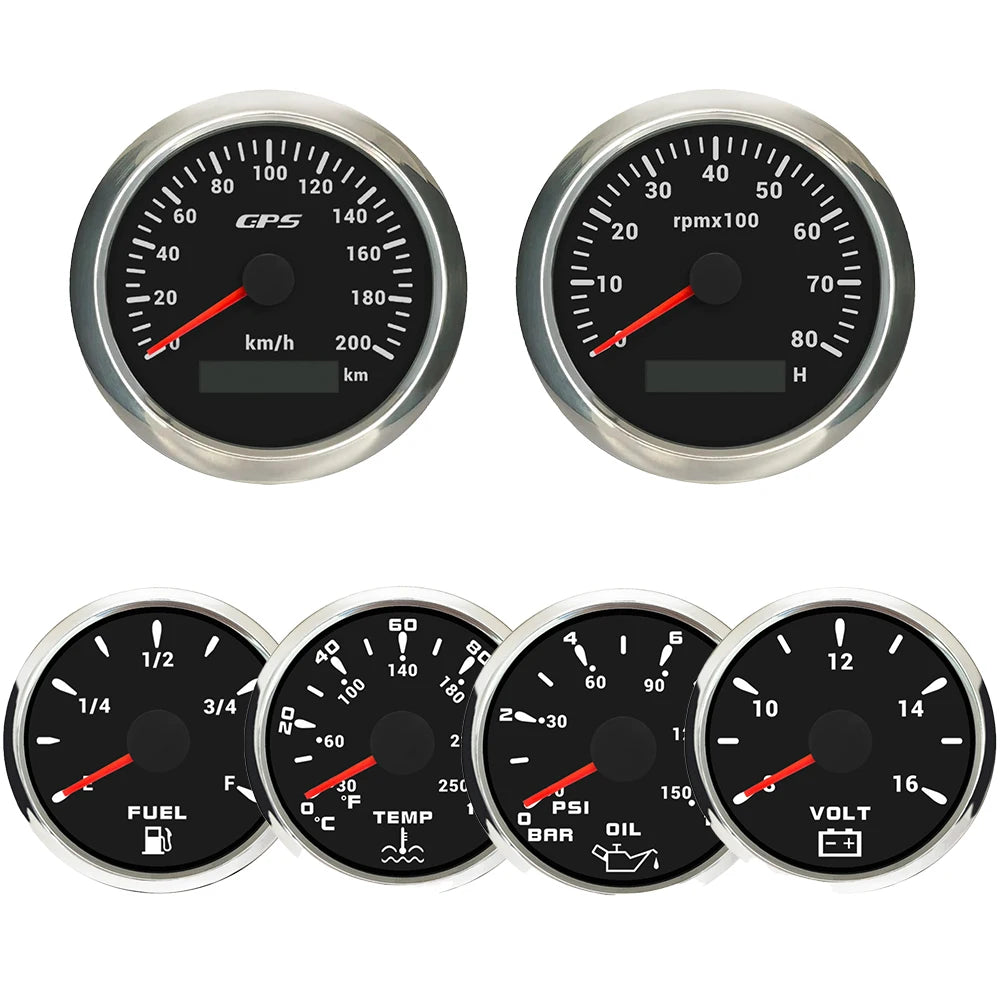

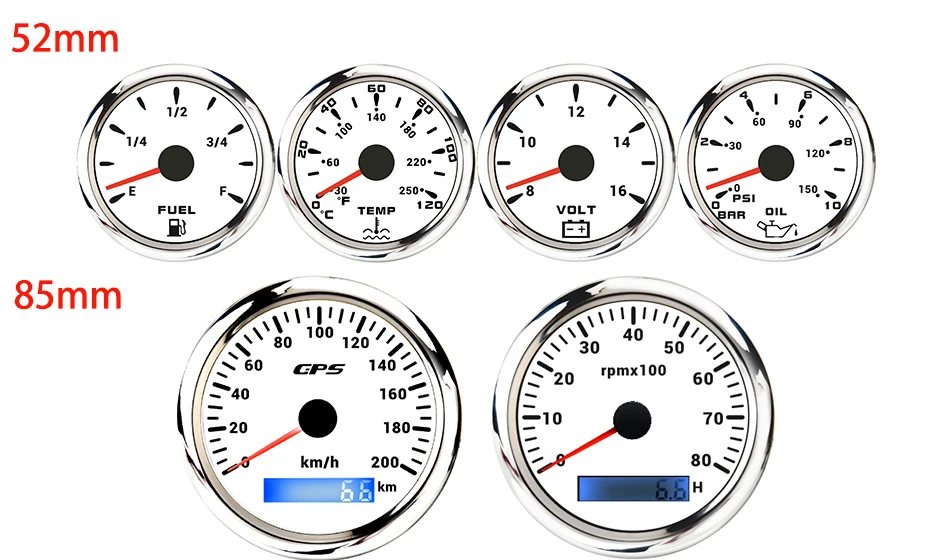

85mm GPS Speedometer:

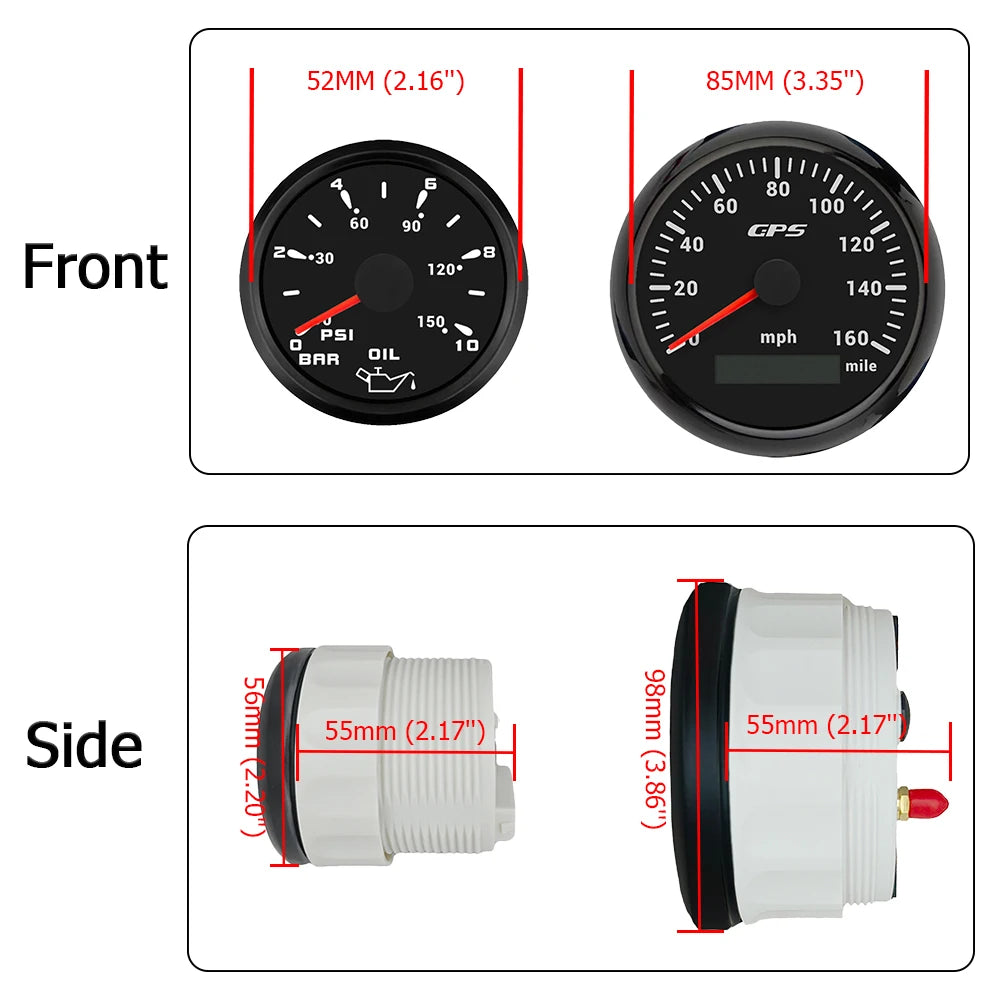

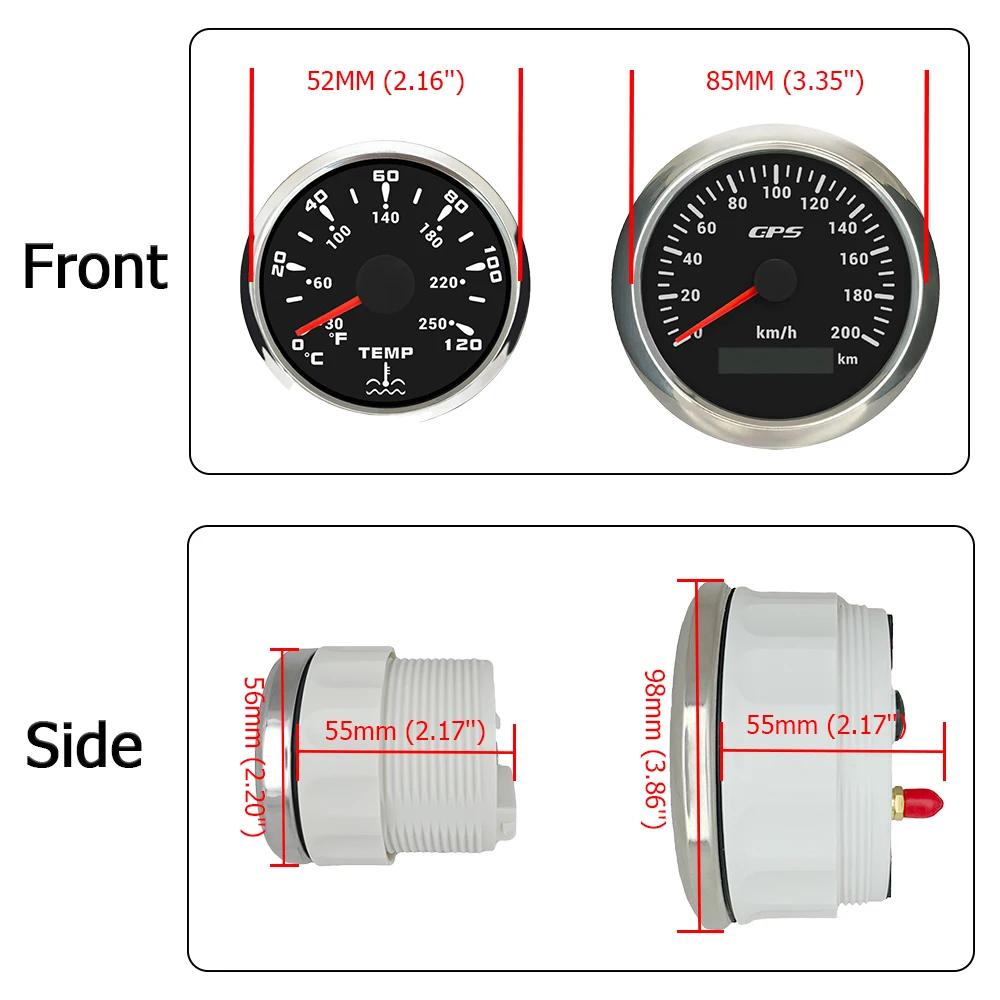

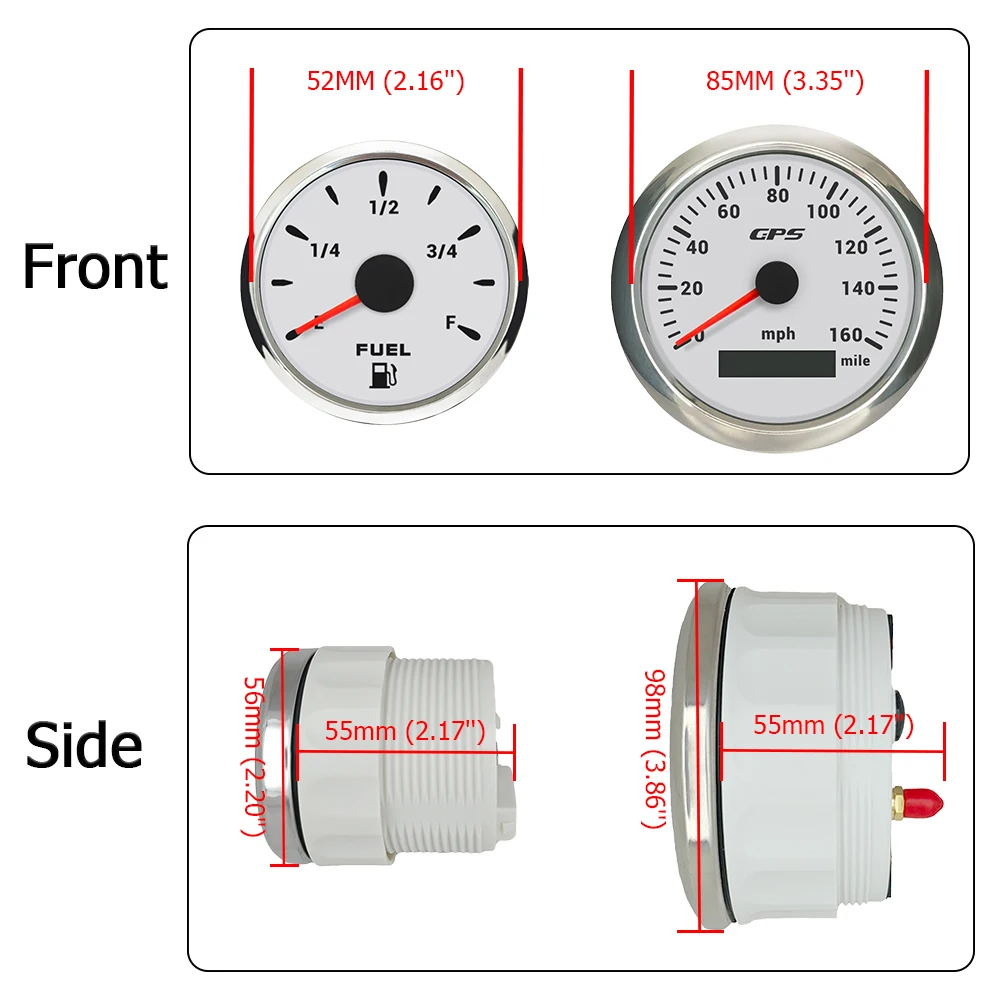

-Fixing dimension: 85mm(3-3/8")

-Indicating Range: 0-200km/h 0-160MPH

-Working Voltage: 9-32V(12V/24V)

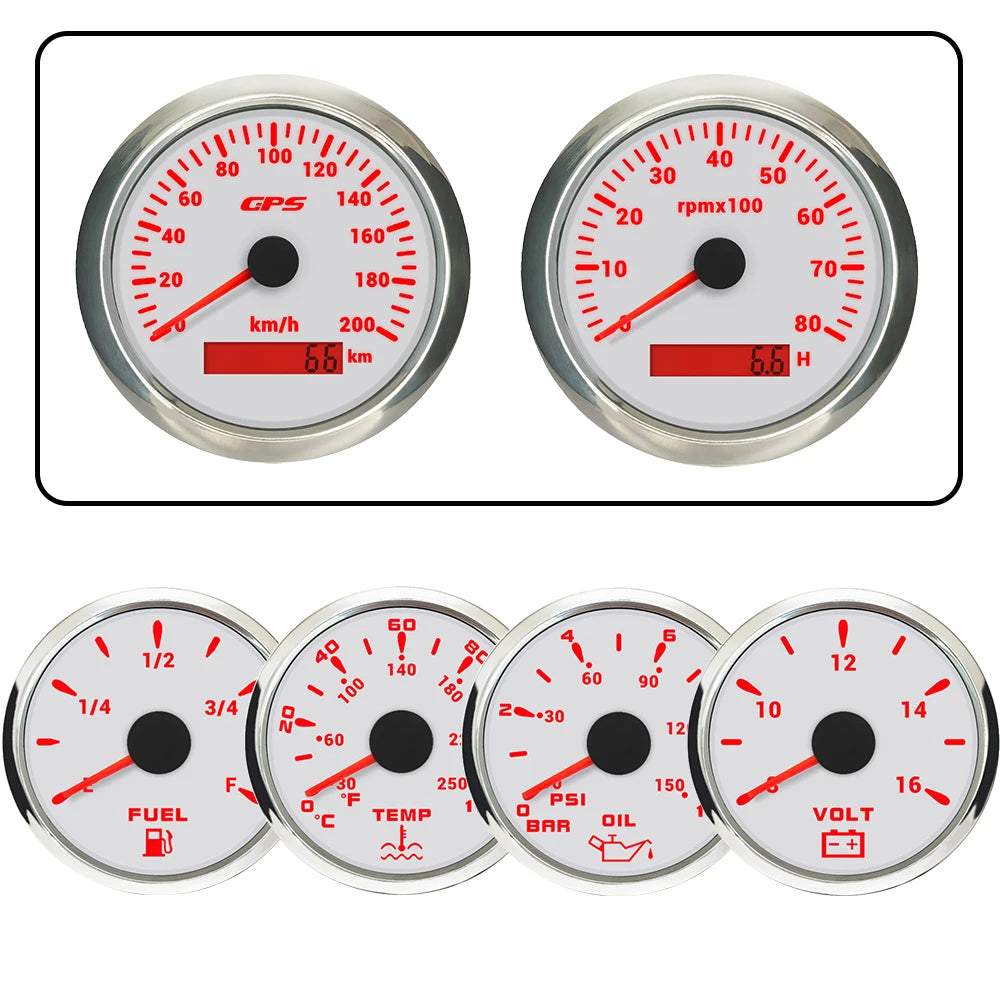

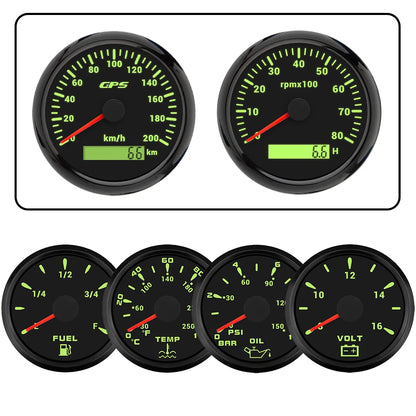

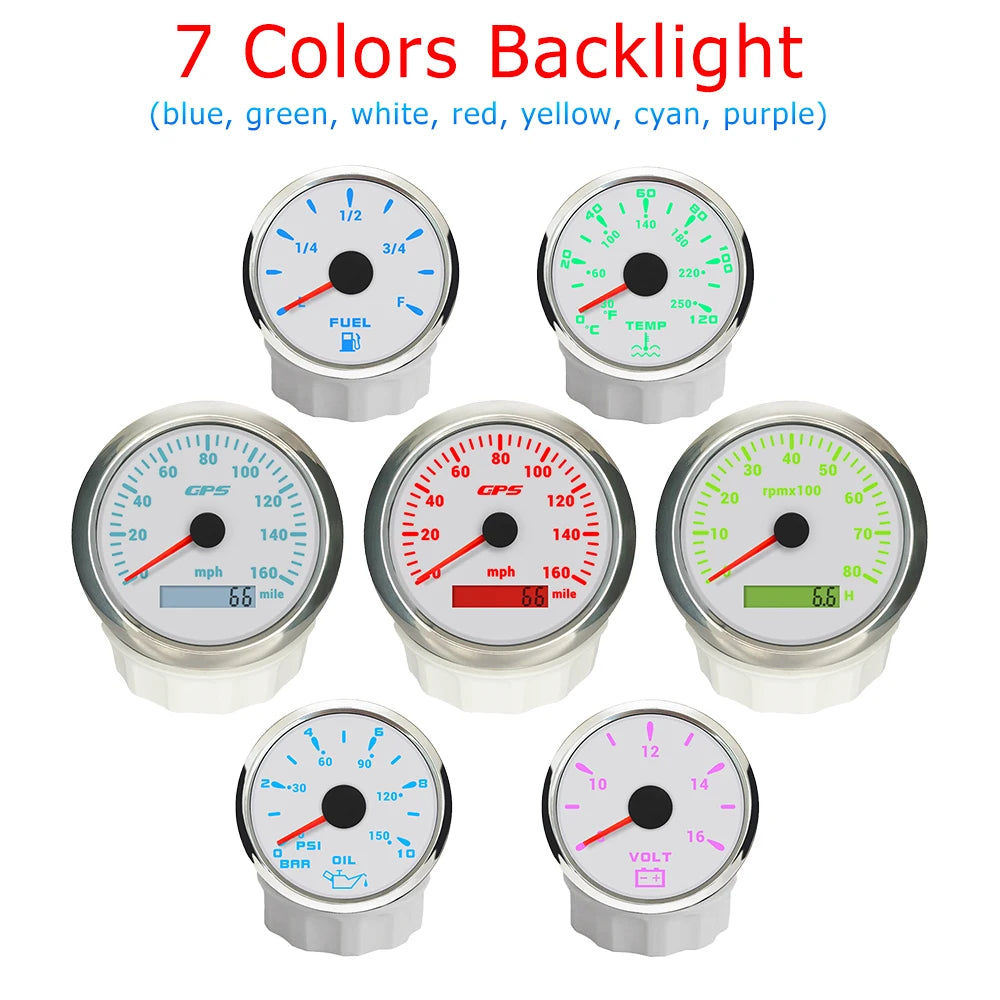

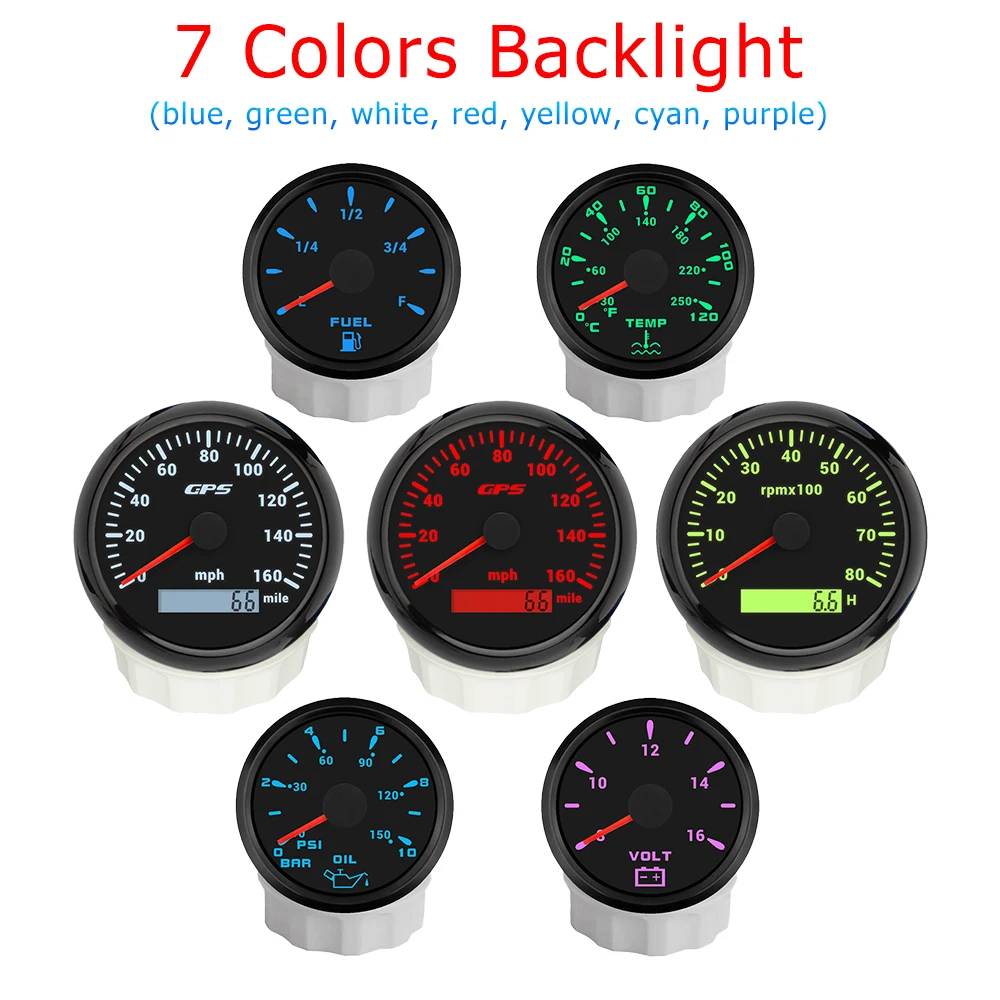

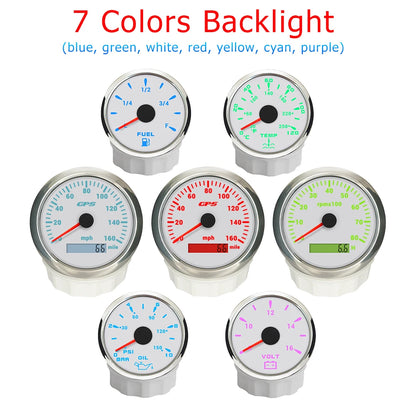

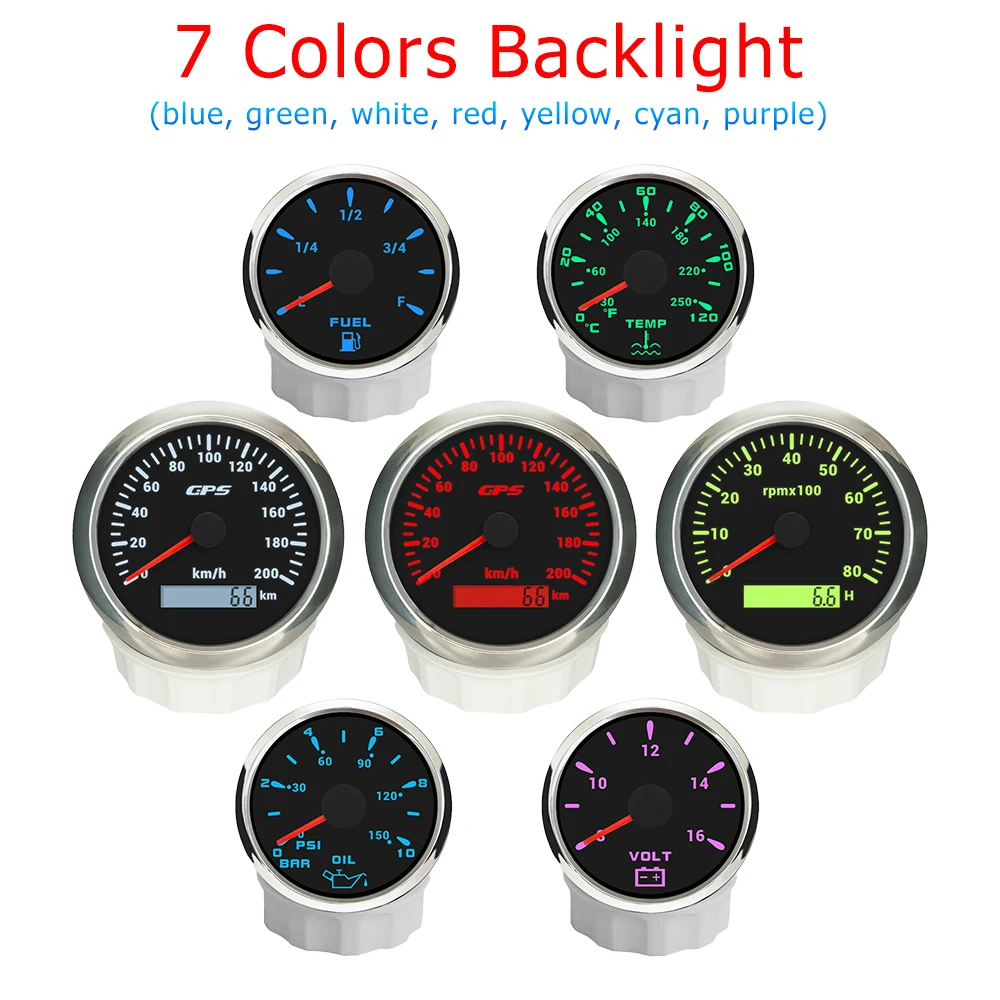

-Backlight: 7 Backlights available (red, green, blue, white, yellow, cyan,purple)

-Functions: Current speed and accumulative ODO(record the mileage after power off)

-Operation mode: LCD display, stepper motor

85mm Tachometer:

-Fixing dimension: 85mm (3-3/8")

-Indicating Range: 0-8000RPM

-Adjustable Speed Ratio: 1.0-360

-Working Voltage: 9-32V (12V/24V)

-Backlight: 7 backlights (red, green, blue, white, yellow, cyan, purple)

-Functions: current tacho/RPM and adjustable hour

-Operation mode: LCD display, stepper motor

52mm Fuel Level Gauge:

-Fixing dimension: 52mm(2")

-Indicating Range: E-1/2-F

-Signal: 0-190ohm  240-33ohm

-Working Voltage: 9-32V(12V/24V)

-Backlight: 7 backlights (red, green, blue, white, yellow, cyan, purple)

-Operation mode: LCD display, stepper motor

52mm Water Temp. Gauge:

-Fixing dimension: 52mm(2")

-Indicating Range: 0-120℃ / 30-250℉

-Signal: 1600-22ohm

-Working Voltage: 9-32V(12V/24V)

-Backlight: 7 backlights (red, green, blue, white, yellow, cyan, purple)

-Operation mode: LCD display, stepper motor

52mm Oil Pressure Gauge:

-Fixing dimension: 52mm(2")

-Indicating Range: 0-10Bar 0-150Psi

-Signal: 10-184ohm

-Working Voltage: 9-32V(12V/24V)

-Backlight: 7 backlights (red, green, blue, white, yellow, cyan, purple)

-Operation mode: LCD display, stepper motor

52mm Voltmeter:

-Fixing dimension: 52mm(2")

-Indicating Range: 8-16V

-Working Voltage: 12V

-Backlight: 7 backlights (red, green, blue, white, yellow, cyan, purple)

-Operation mode: LCD display, stepper motor

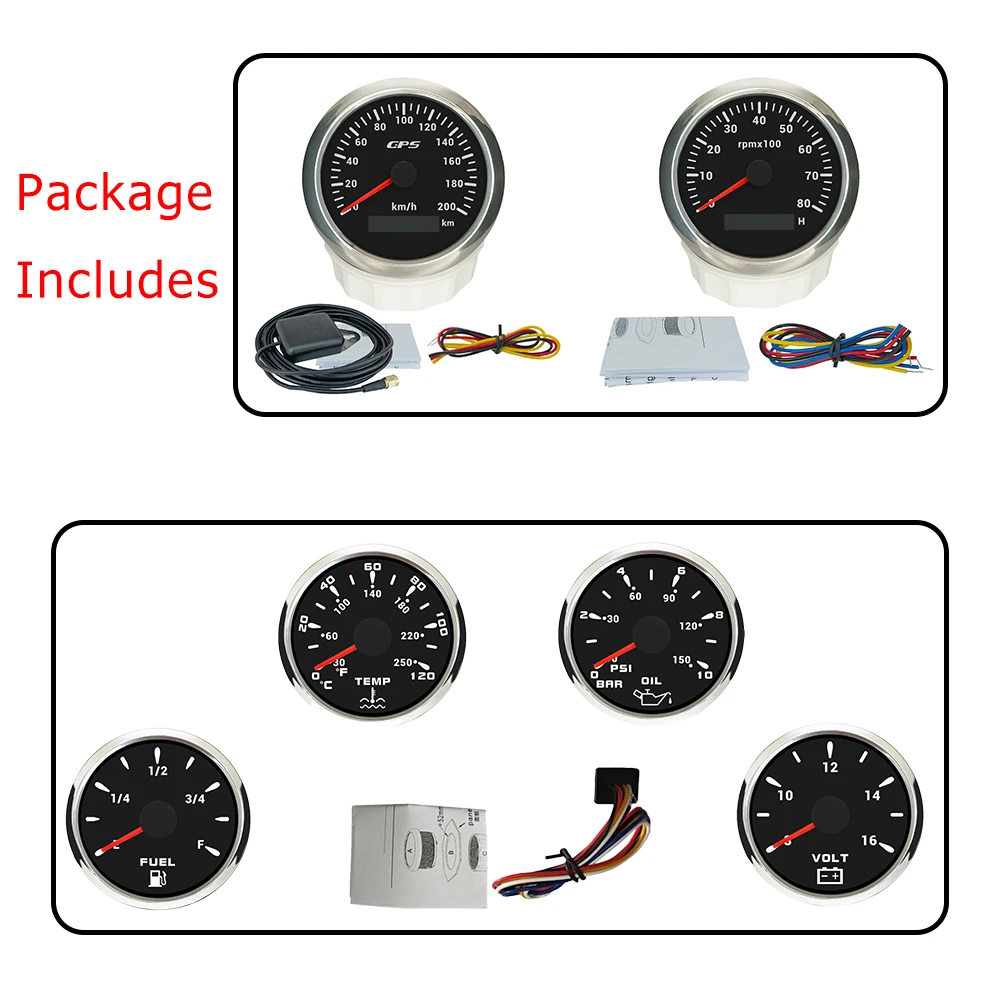

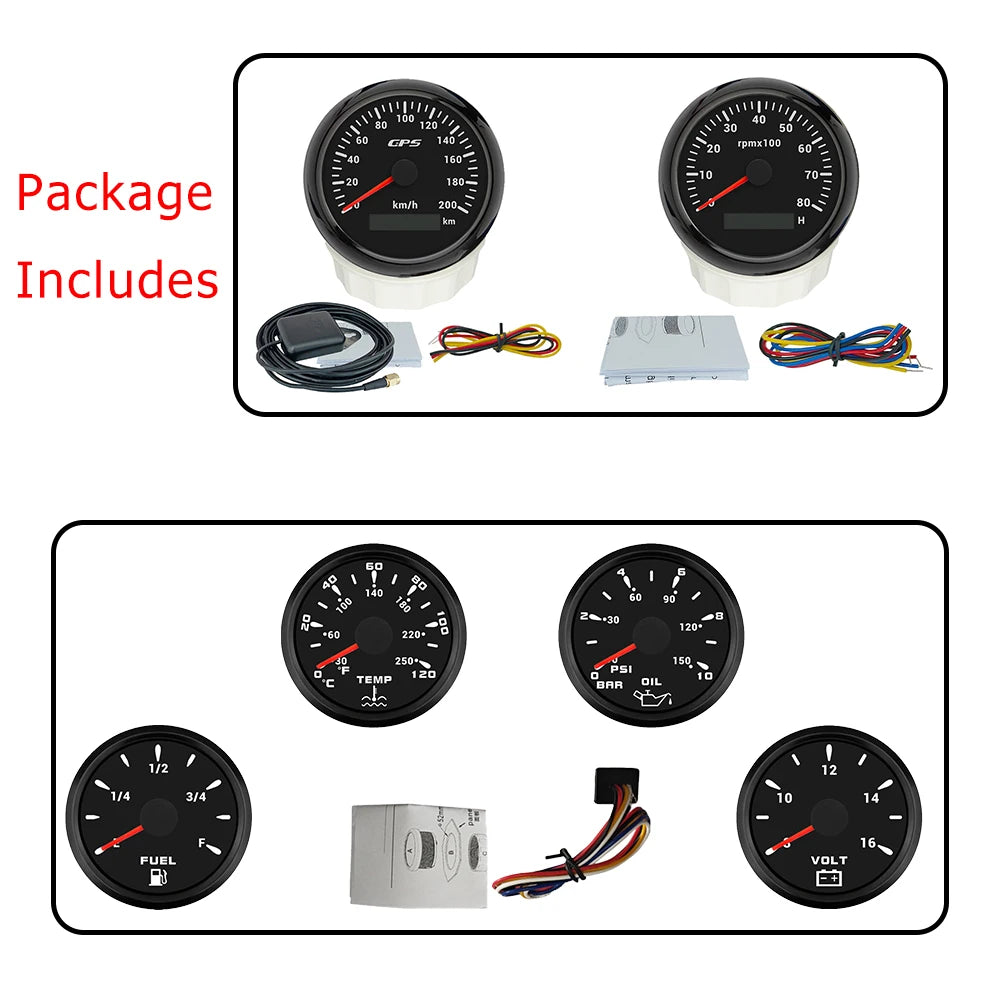

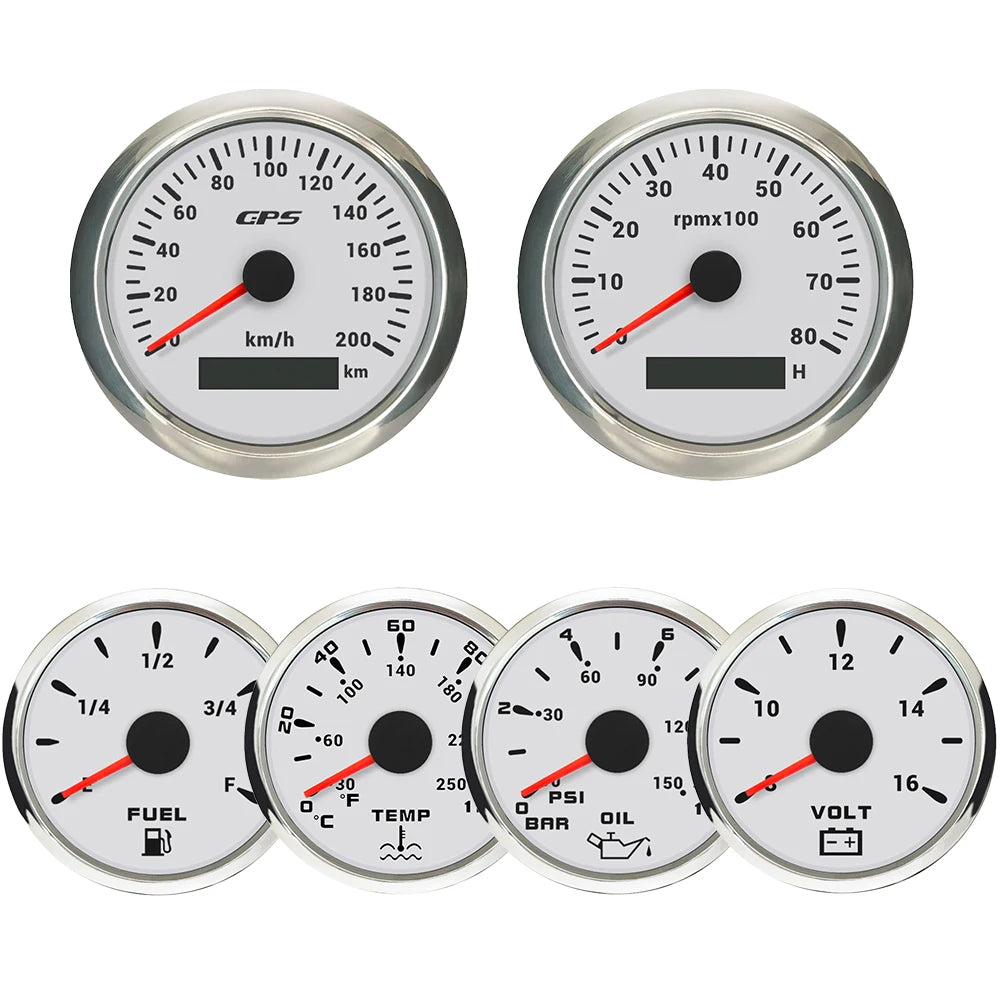

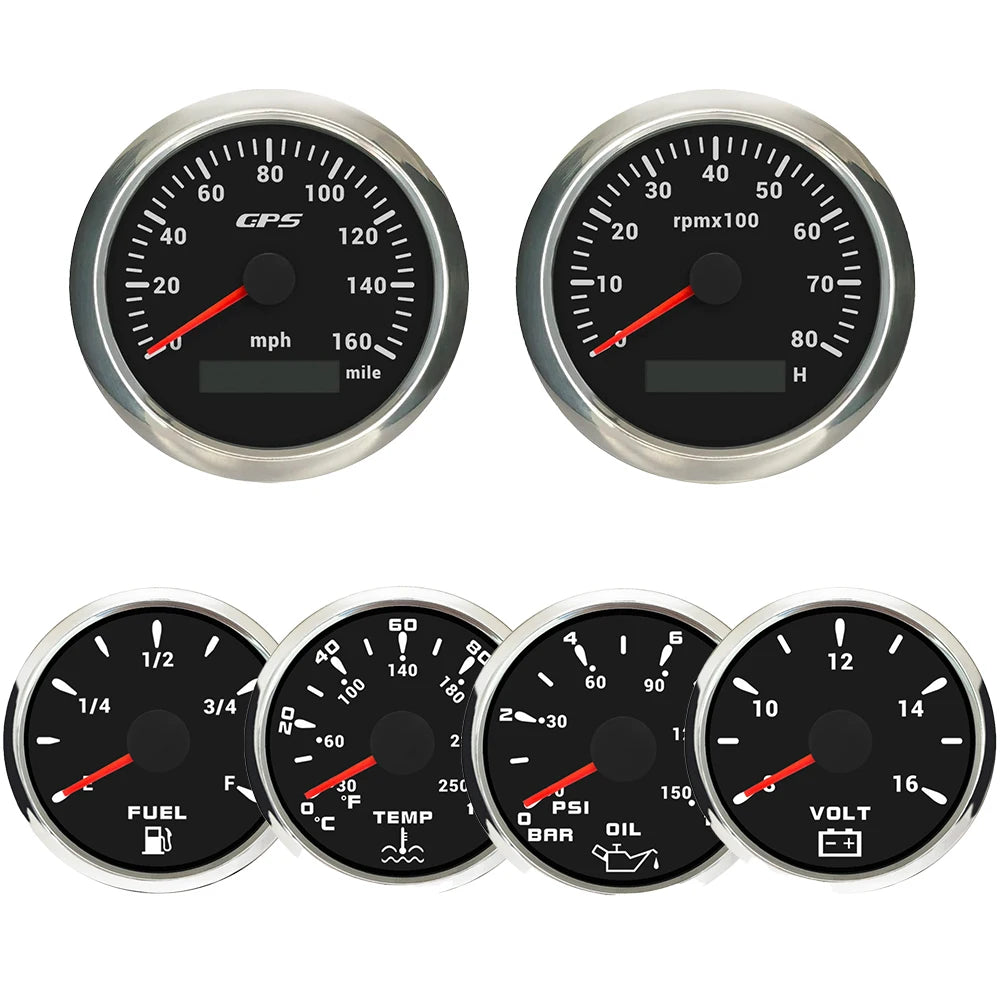

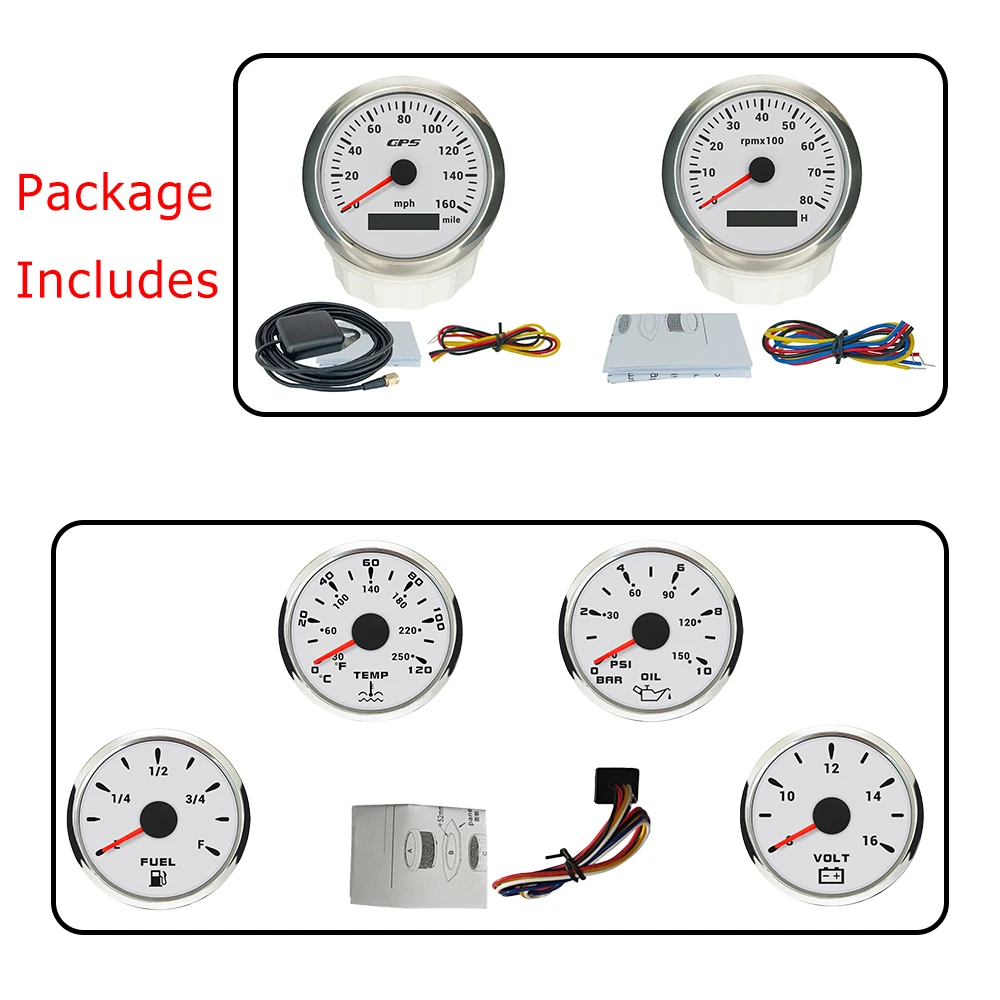

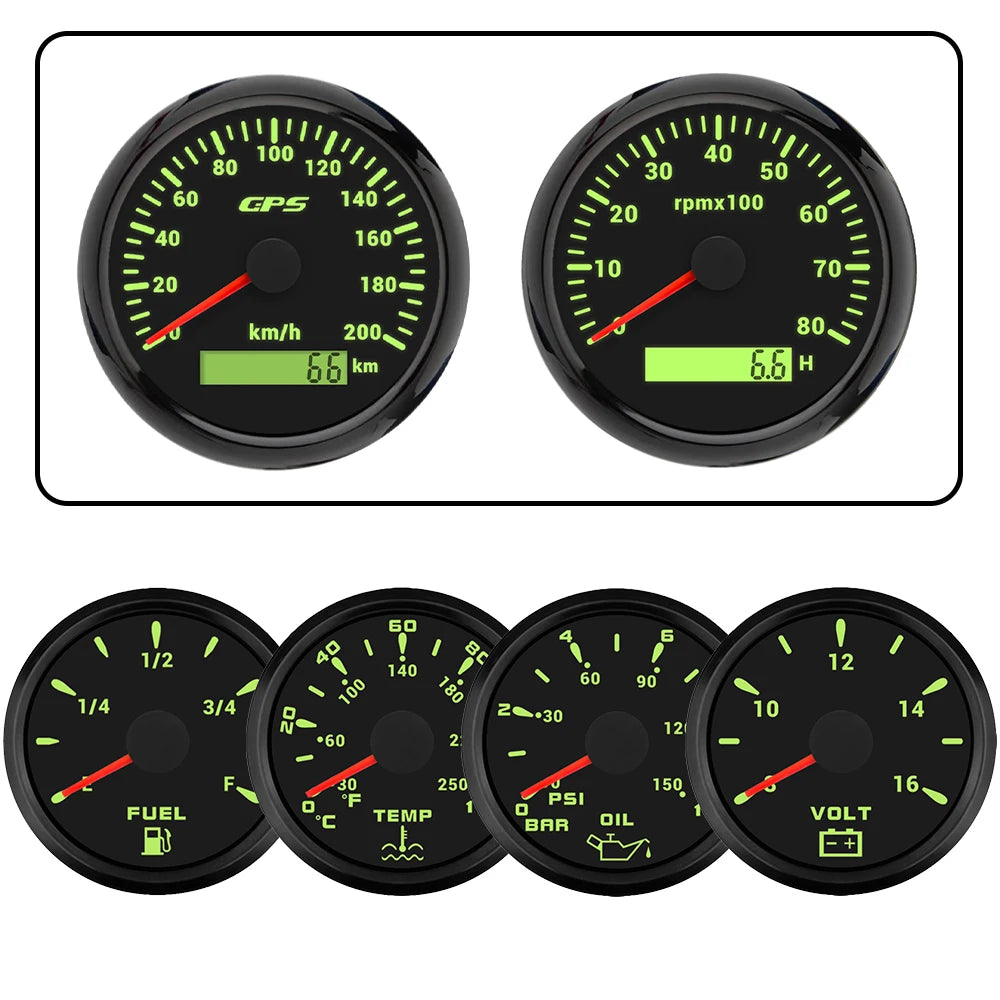

1 x 85mm GPS Speedometer

1 x 85mm Tachometer

1 x 52mm Fuel Level Gauge

1 x 52mm Voltmeter

1 x 52mm Oil Pressure Gauge

1 x 52mm Water Temp Gauge
