SPECIFICATIONS

Brand Name: ELING

Choice: yes

Country/Region of Manufacture: CN

High-concerned chemical: None

Interchange Part Number: 000

Item Height: 56MM

Item Length: 85MM

Item Weight: 0.4KG

Item Width: 85MM

Manufacturer Part Number: CX

Material: stainless steel, plastic, glass

Origin: Mainland China

Other Part Number: 4 in 1

Placement on Vehicle: FRONT

Special Features: Multi-function

Please note:

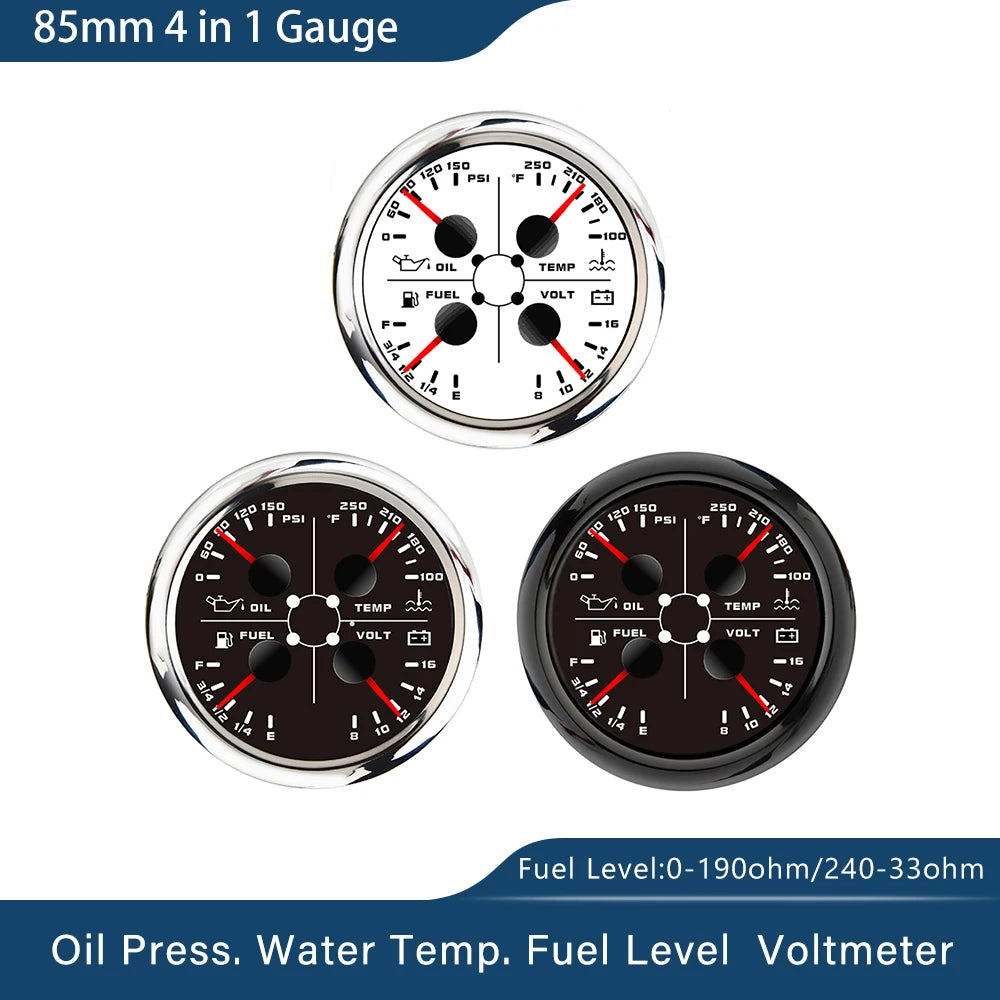

There are different options for sensors and gauges in the link.

Each option is marked with a name and a picture.

Please confirm whether the option you ordered is the product you need.

Thank you.

Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability

and stability, drive and control is relatively simple and so on. Using a stepper motor drive pointer, accurate display of the

fuel level, water temp., oil pressure, voltage.

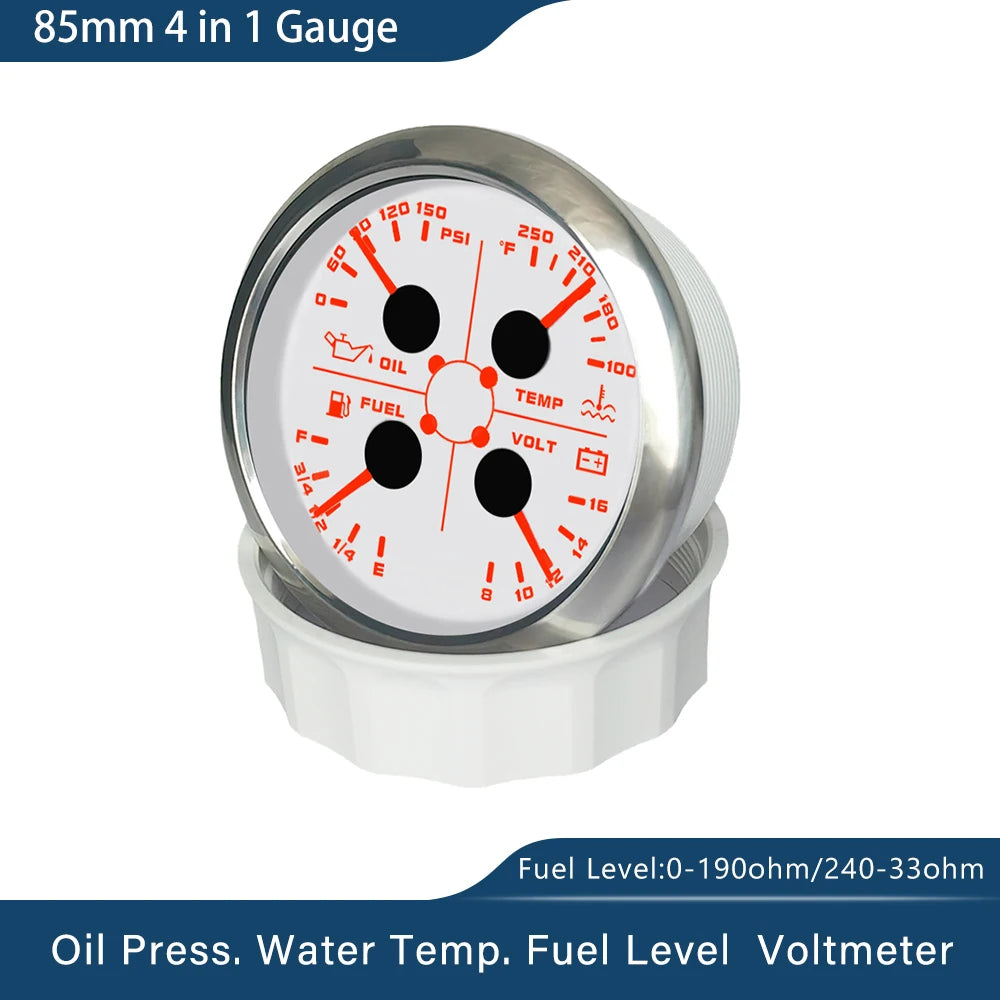

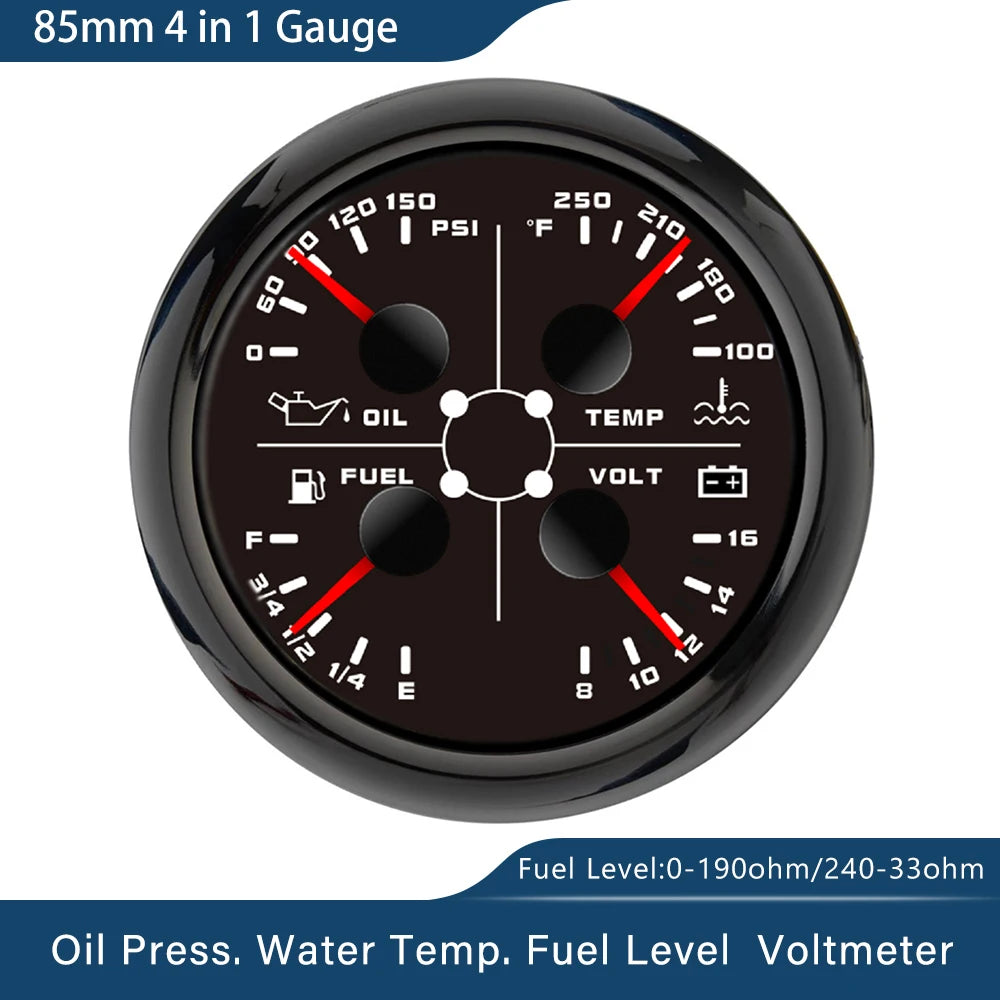

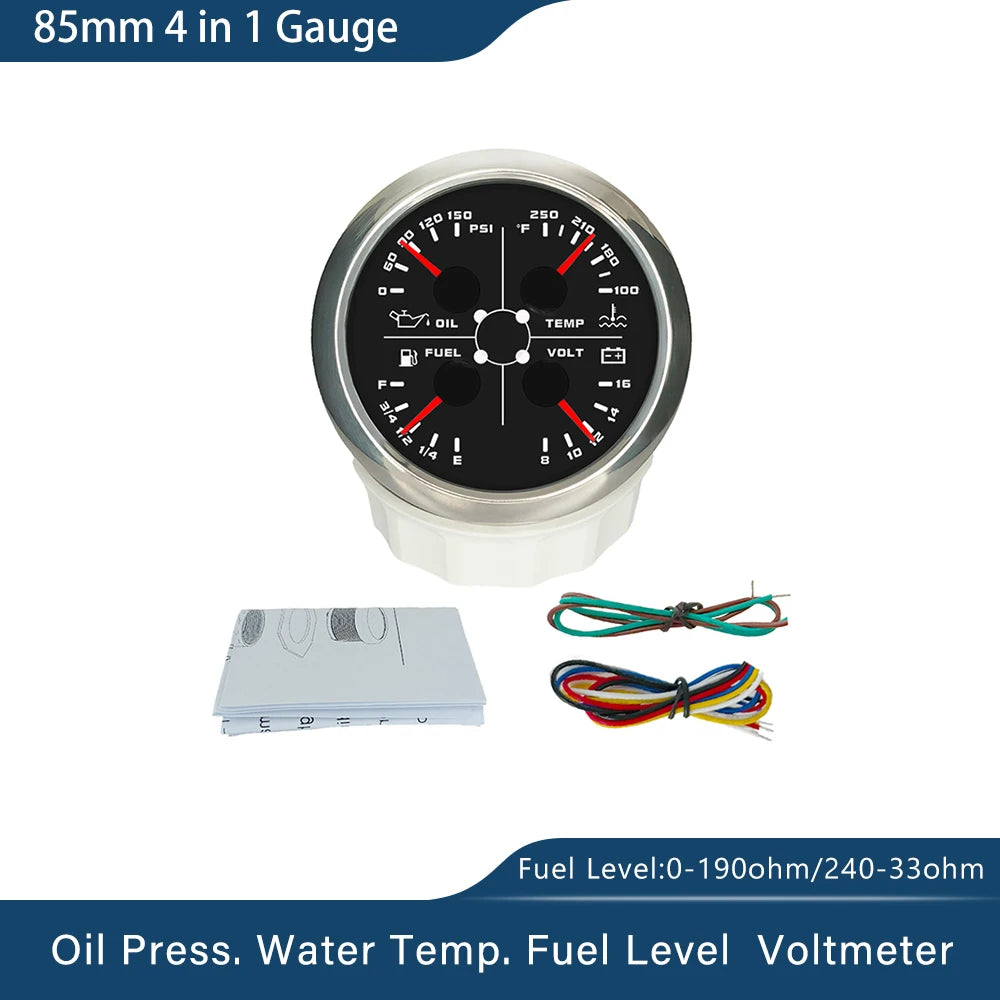

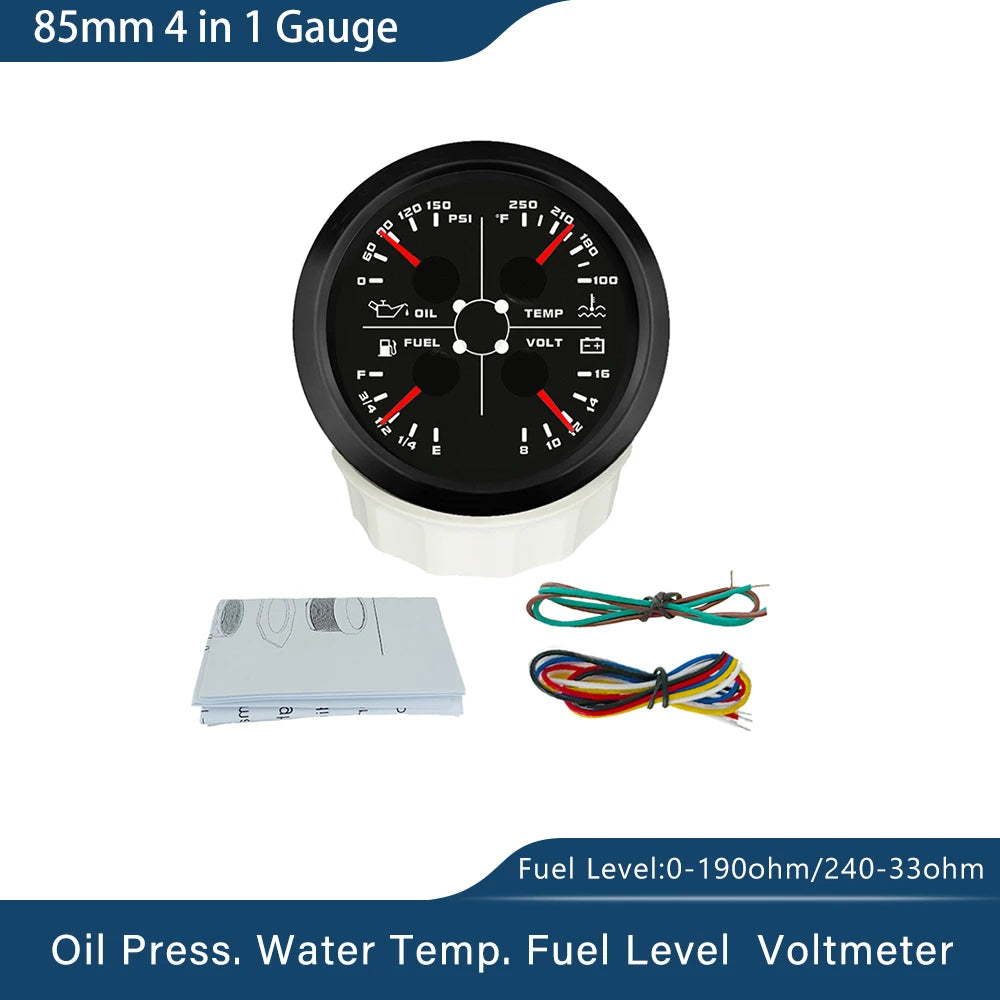

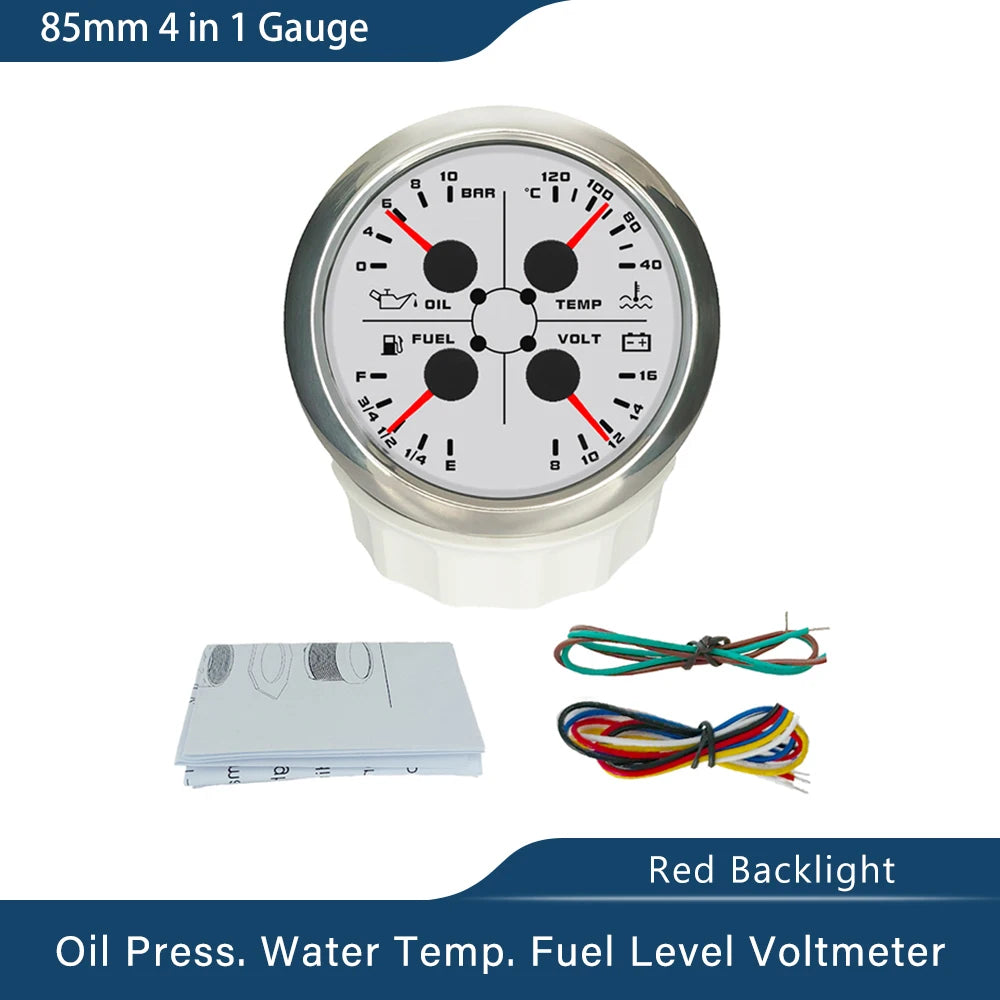

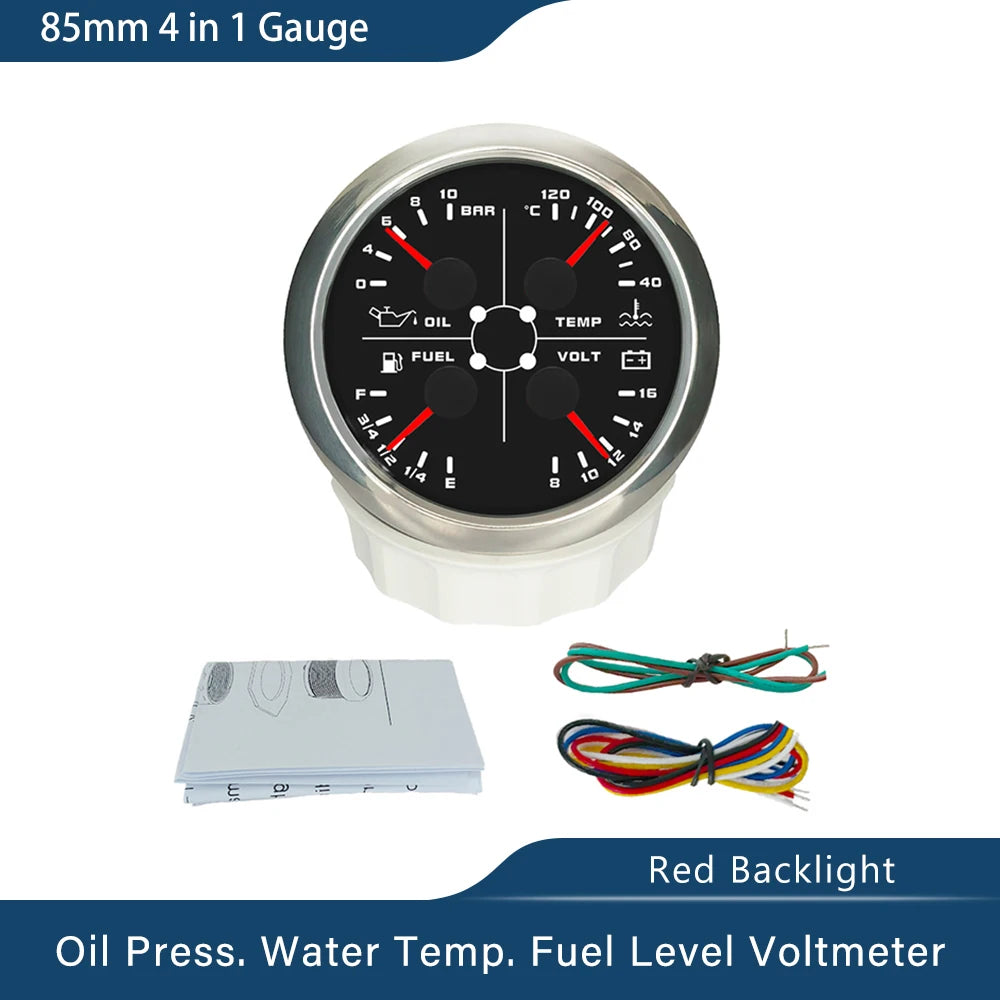

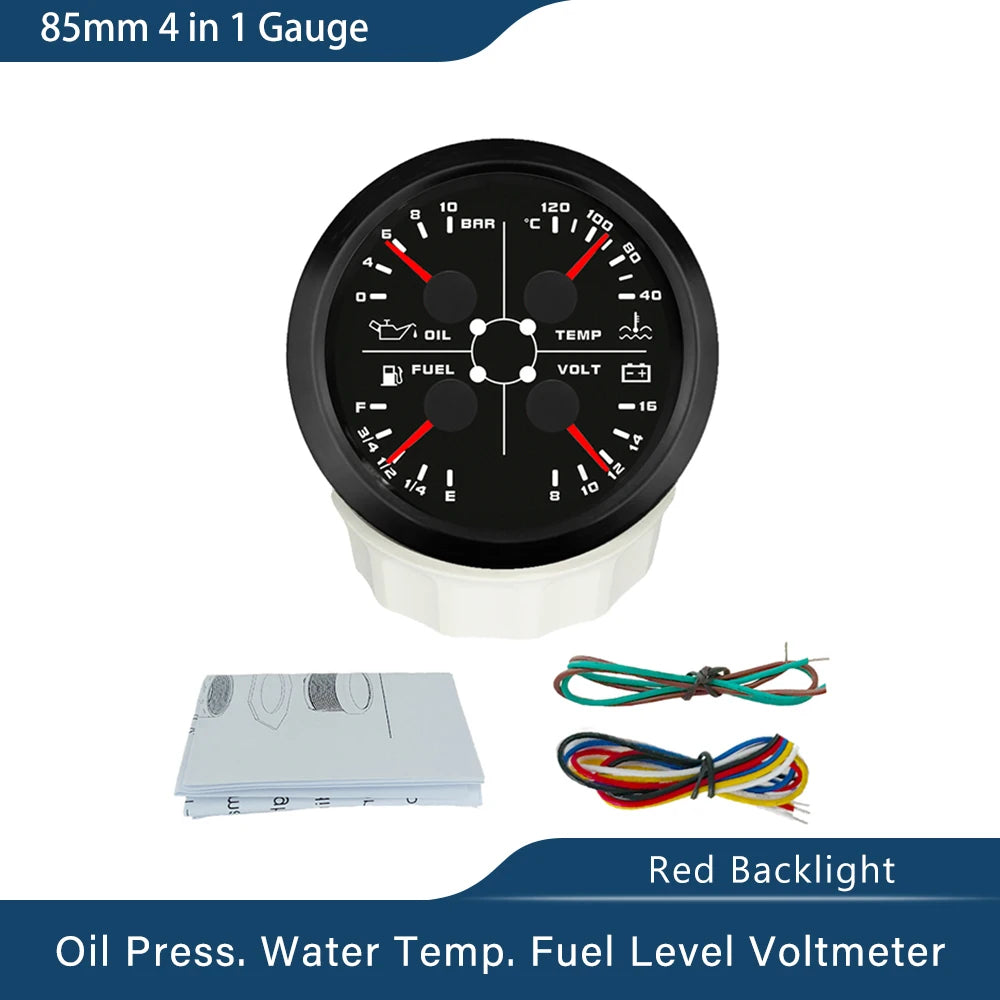

-Name: 4 in 1 Multi-function gauge

-Materials: stainless steel+nickel-plated plastic

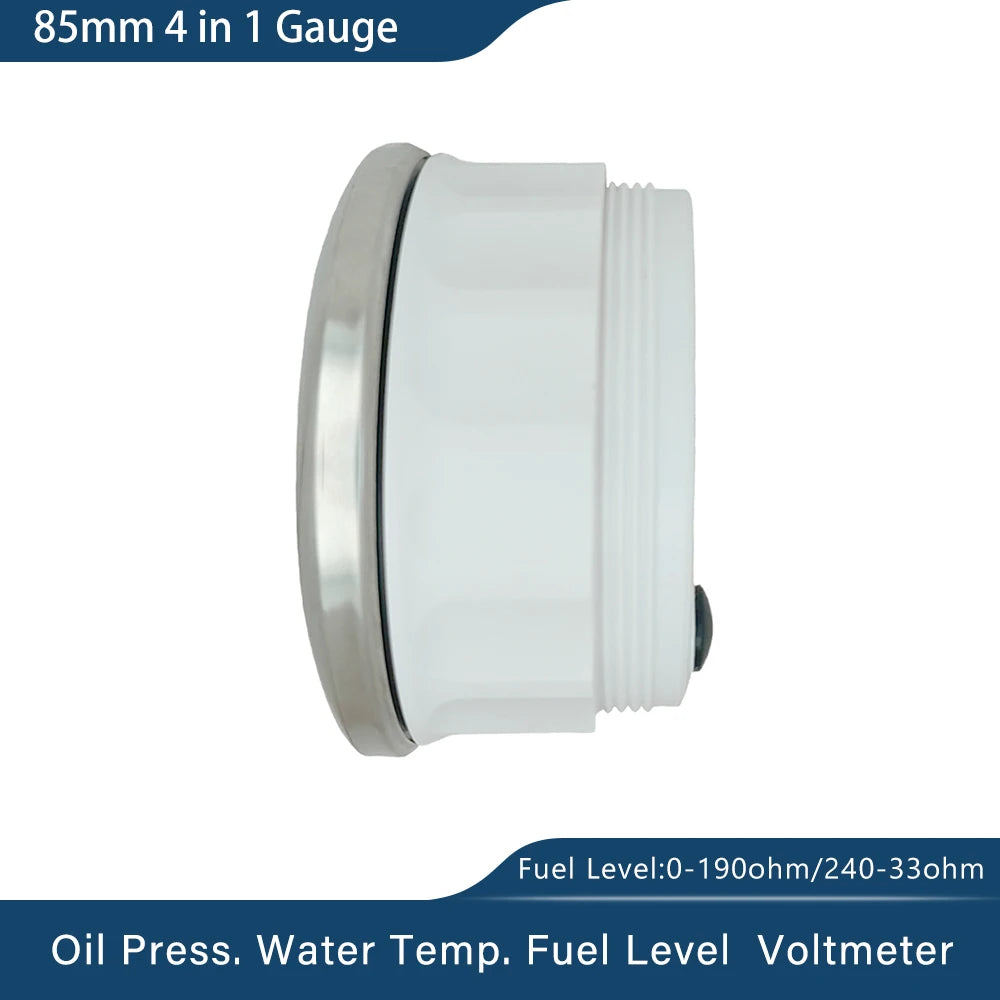

-Installation Dimension: 85mm

-Indicating range:

Oil pressure: 0-150PSI (Signal:10-184ohm)  / 0-10Bar

Water temperature: 100-250℉ (Signal:301-22ohm) / 40-120℃

Fuel level: E-1/2-F (Signal:0-190ohm/240-33ohm)

Voltmeter: 8-16V

-Alarm: Oil pressure< 11.6PSI; Water temperature> 203℉; Fuel Level< 1/8; Voltage < 11.5V

-Alarm: Oil pressure< 0.8Bar; Water temperature> 95℃; Fuel Level< 1/8; Voltage < 11.5V

-Degree of Protection: IP67

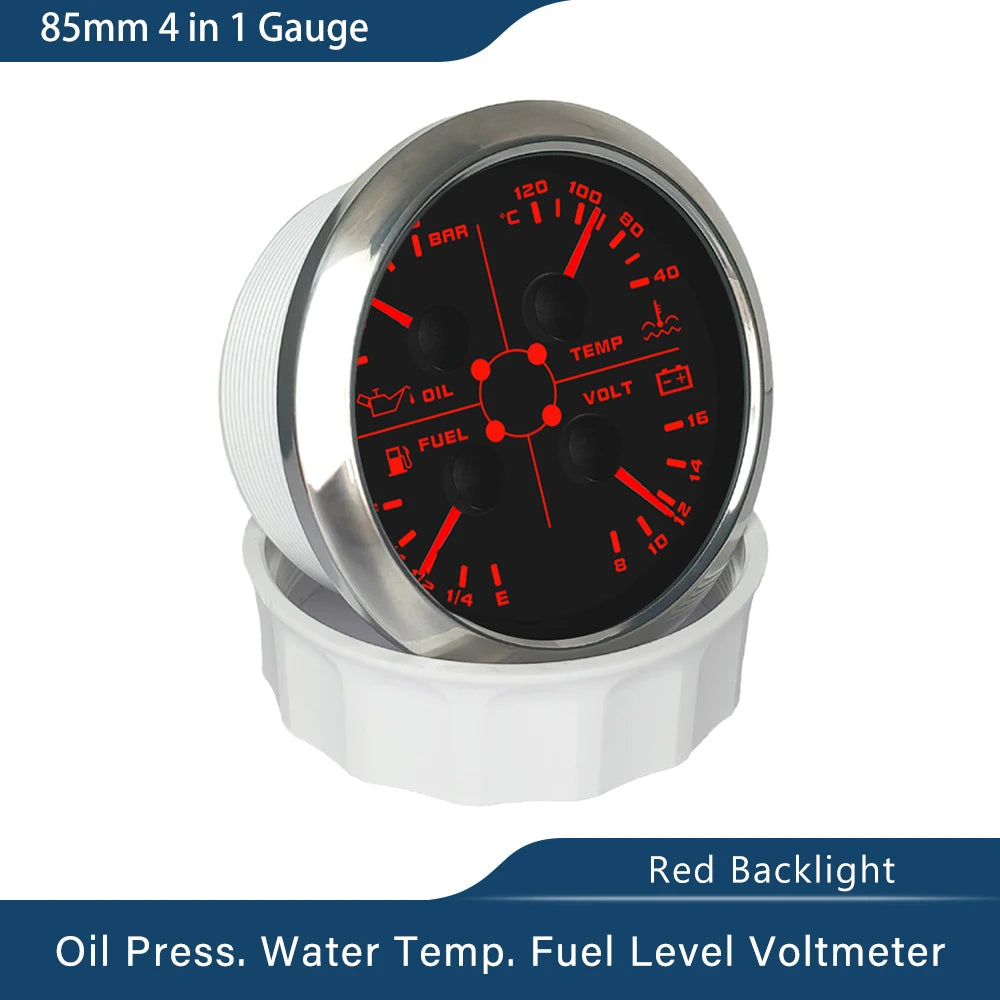

-Backlight: Red Backlight

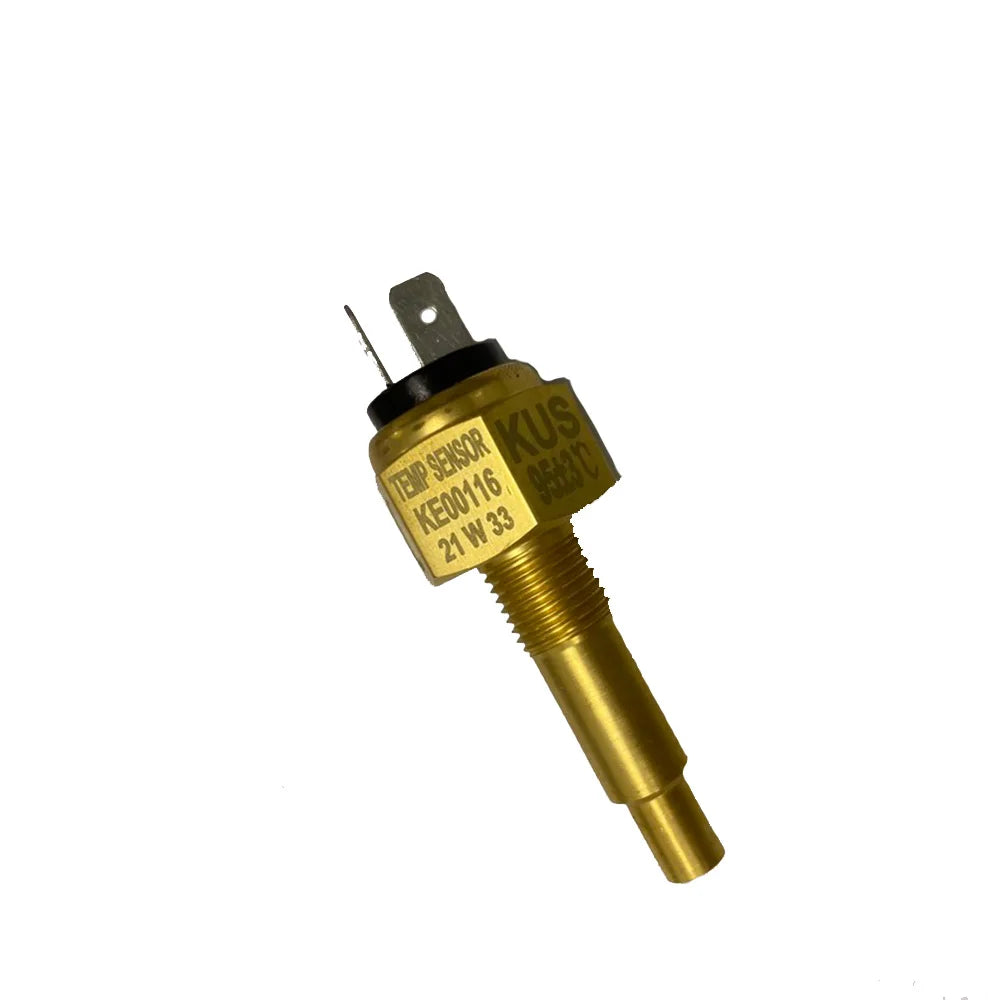

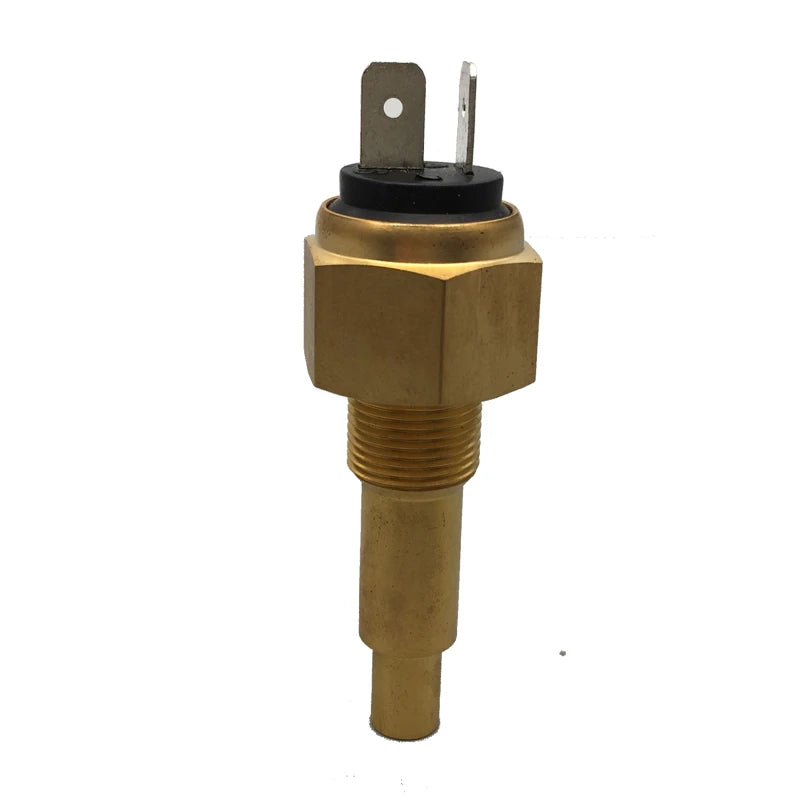

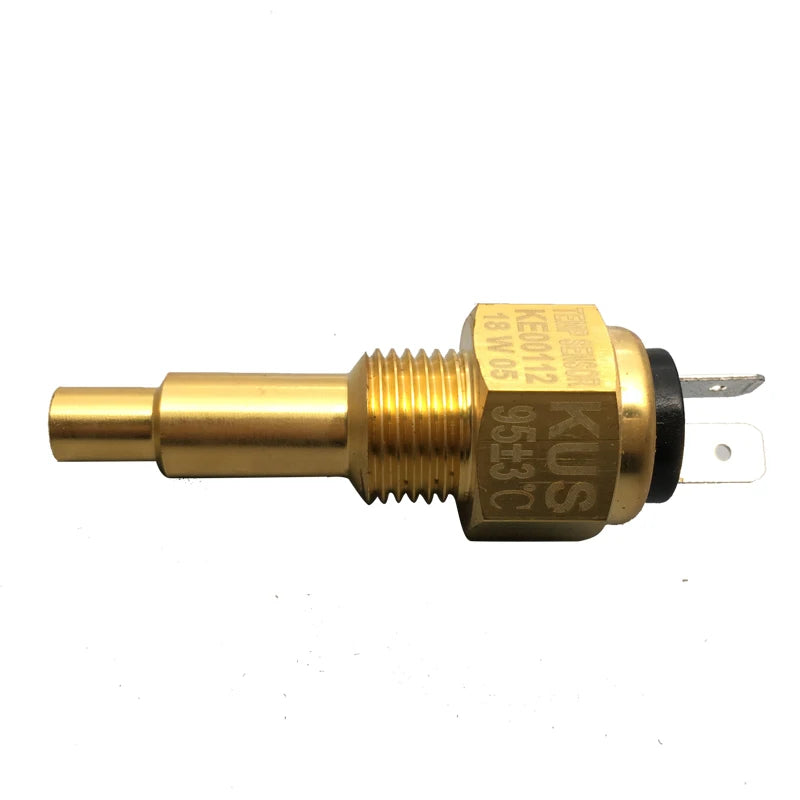

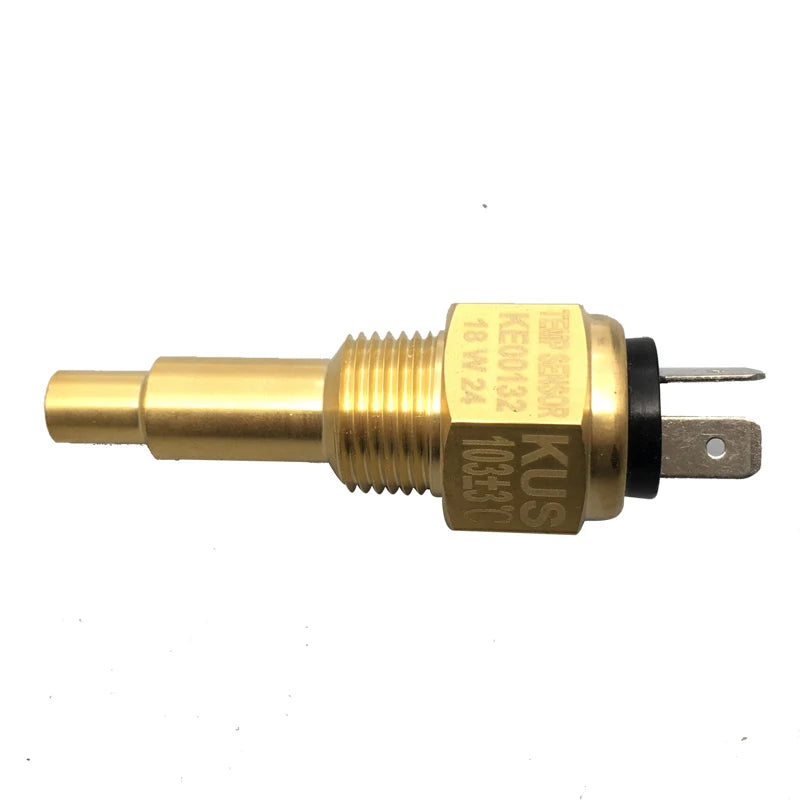

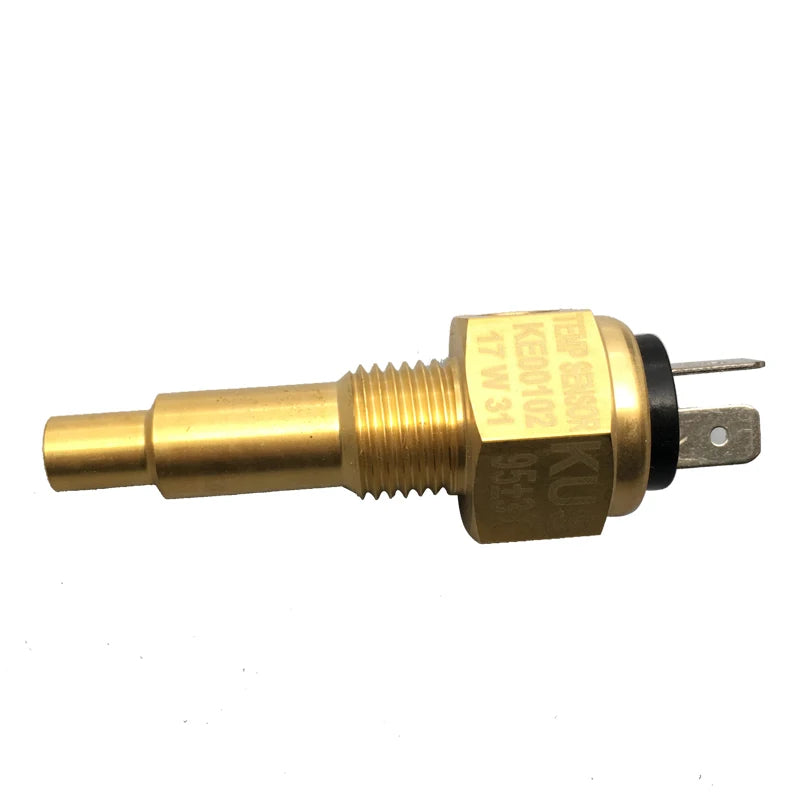

Water Temp Sensor Thread Type:

M12*1.25(95 degree alarm)-L1=41mm, L2=71.5mm

M14*1.5(95 degree alarm)-L1=41mm, L2=71.5mm

M16*1.5(95 degree alarm)-L1=41mm, L2=71.5mm

M18*1.5(98 degree alarm)-L1=41mm, L2=71.5mm

3/8"-18NPT(103 degree alarm)-L1=41mm, L2=71.5mm

-Protection rank: IP67

-The main body is made of brass

-Temperature response time: Minimum 3mins after power supply electrified

-The temperature alarm tolerance: ±3°C

-Rated power for alarm switch: 1.2W-3W

-Rated voltage: 6V-24V

-Protection Class: IP67, can work underwater 1m position

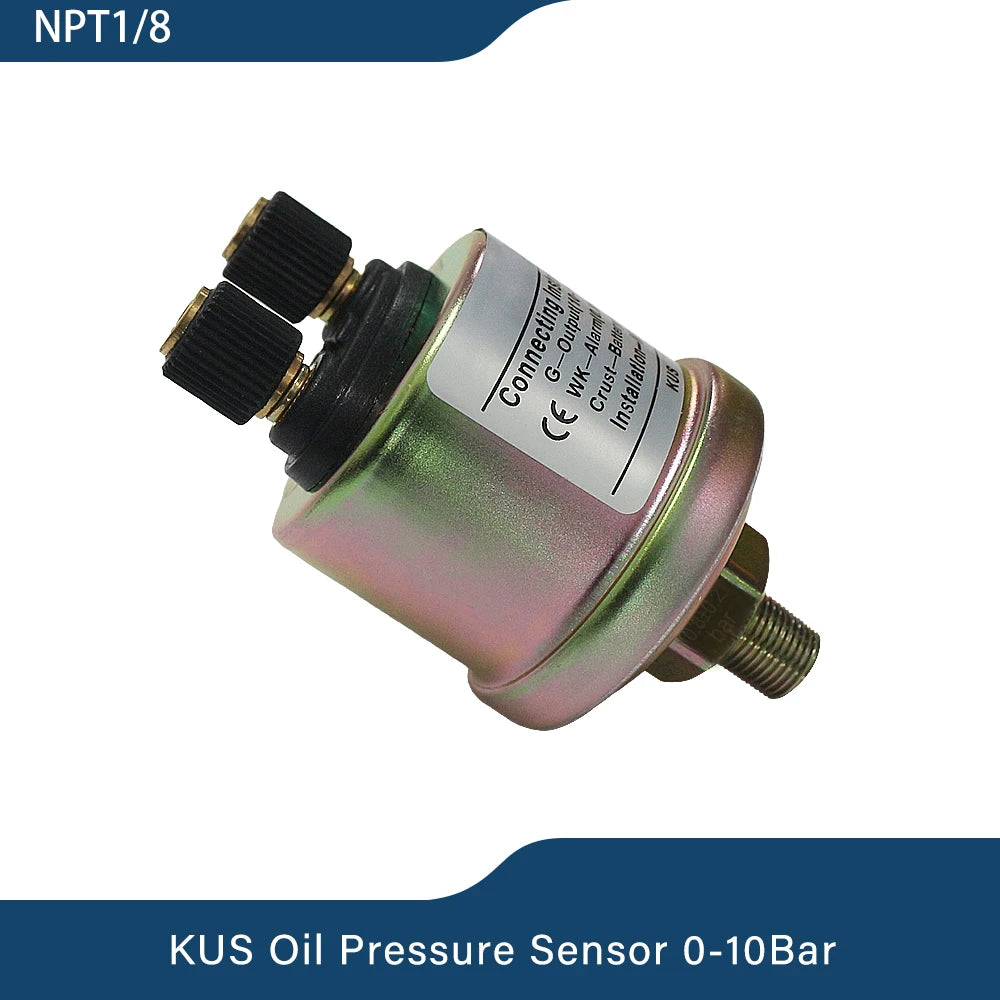

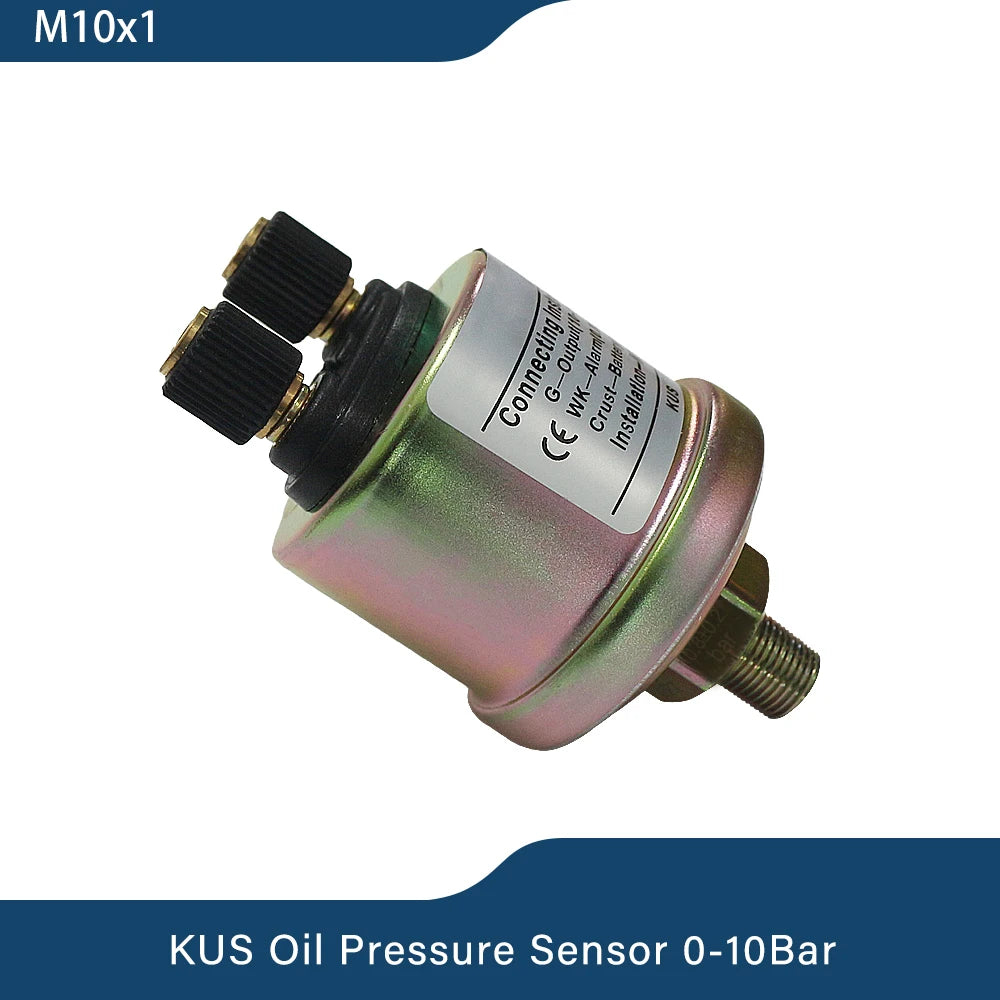

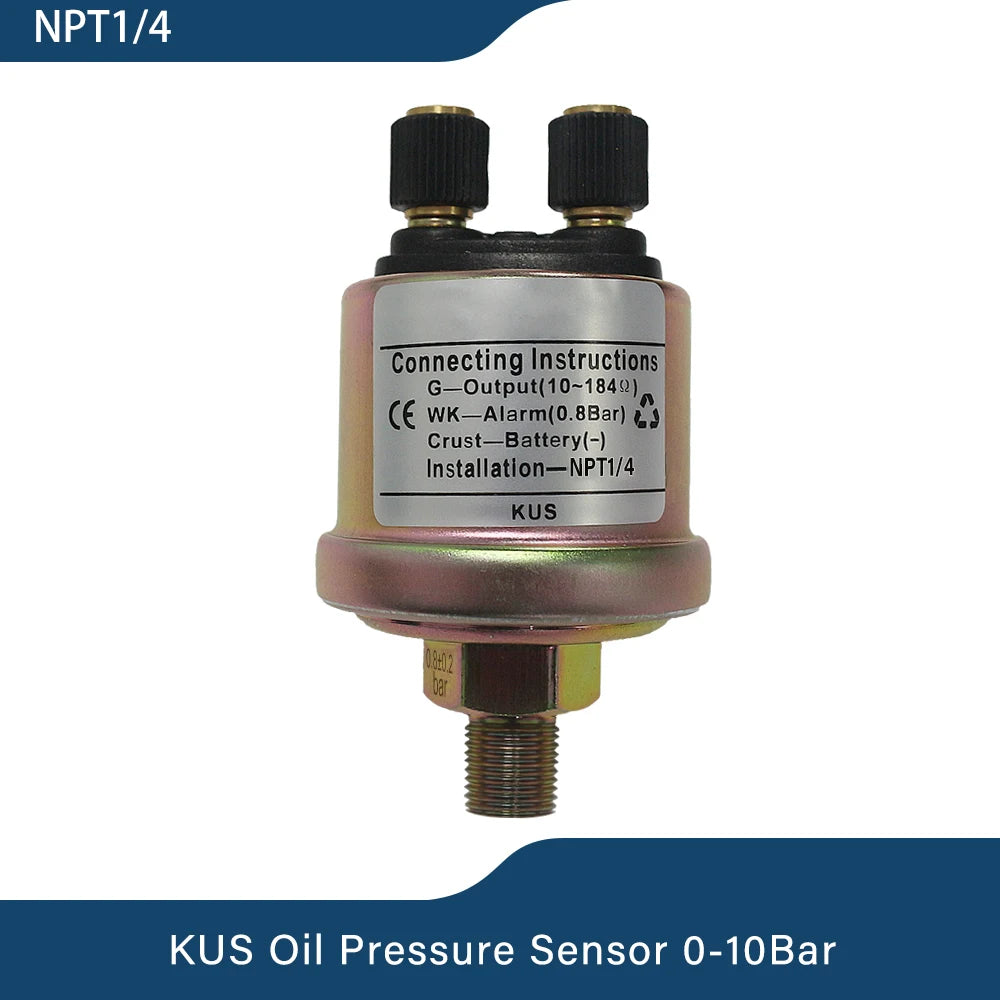

Oil Pressure Sensor:

-Conducting power: < 5W

-Operating temperature: -25 ~120°C (120°C MAX 1H)

-Measuring range: 0-10Bar

-Alarm: 0.8Bar or 1.4Bar

-Output signal: Standard resistance value: 10~184Ω

-Thread Type: 0-10Bar : NPT-1/4(alarm: 0.8Bar), NPT-1/8(alarm: 0.8Bar), M10*1.0(alarm: 1.4Bar)

-It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range

of operating temperature, etc.

-It is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of

industrial process, hydraulic and pneumatic control project, etc.

-Protection rank: IP67

-Operating voltage: 6~24V

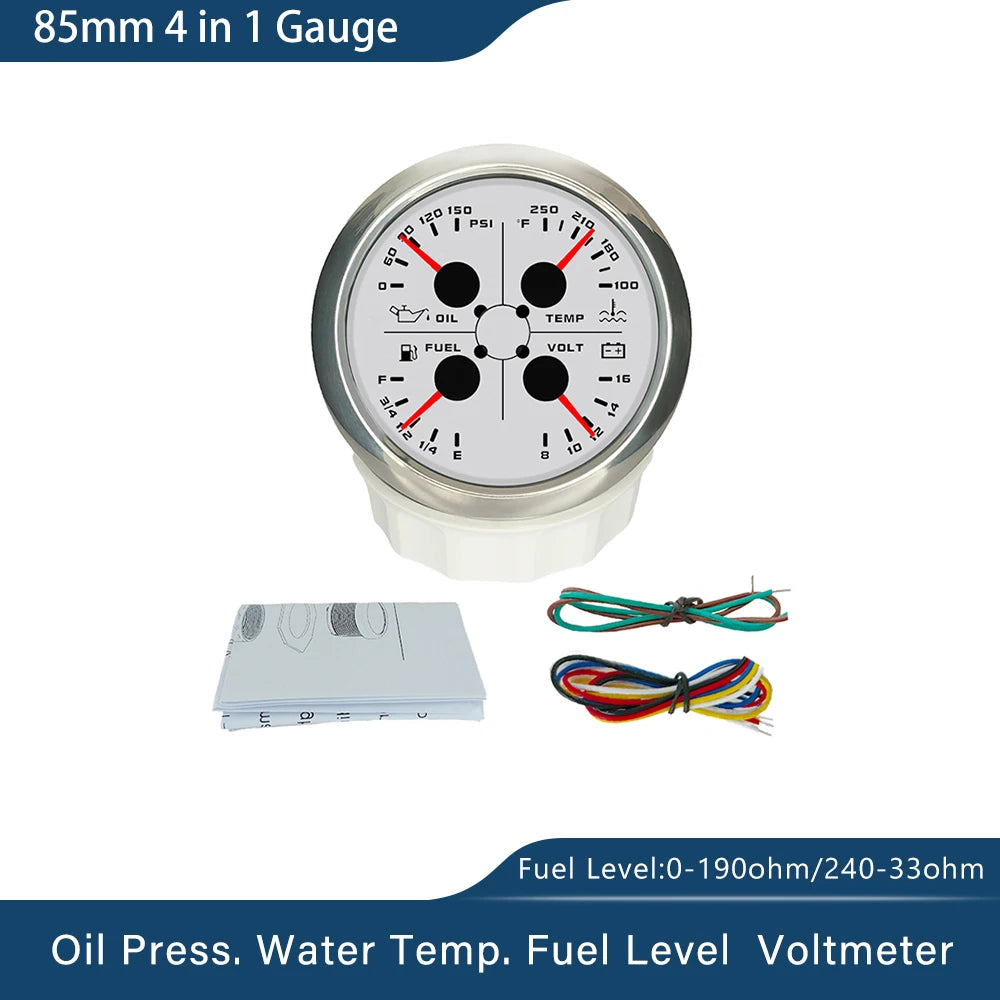

1 x 4 in 1 Multi-function gauge  2 x Cable  1 x Owner's Manual
