Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision,

repeatability and versatility, reliability and stability, drive and control is relatively simple and so on.

Using a stepper motor drive pointer, accurate display of the fuel level, water temp., oil pressure, voltage.

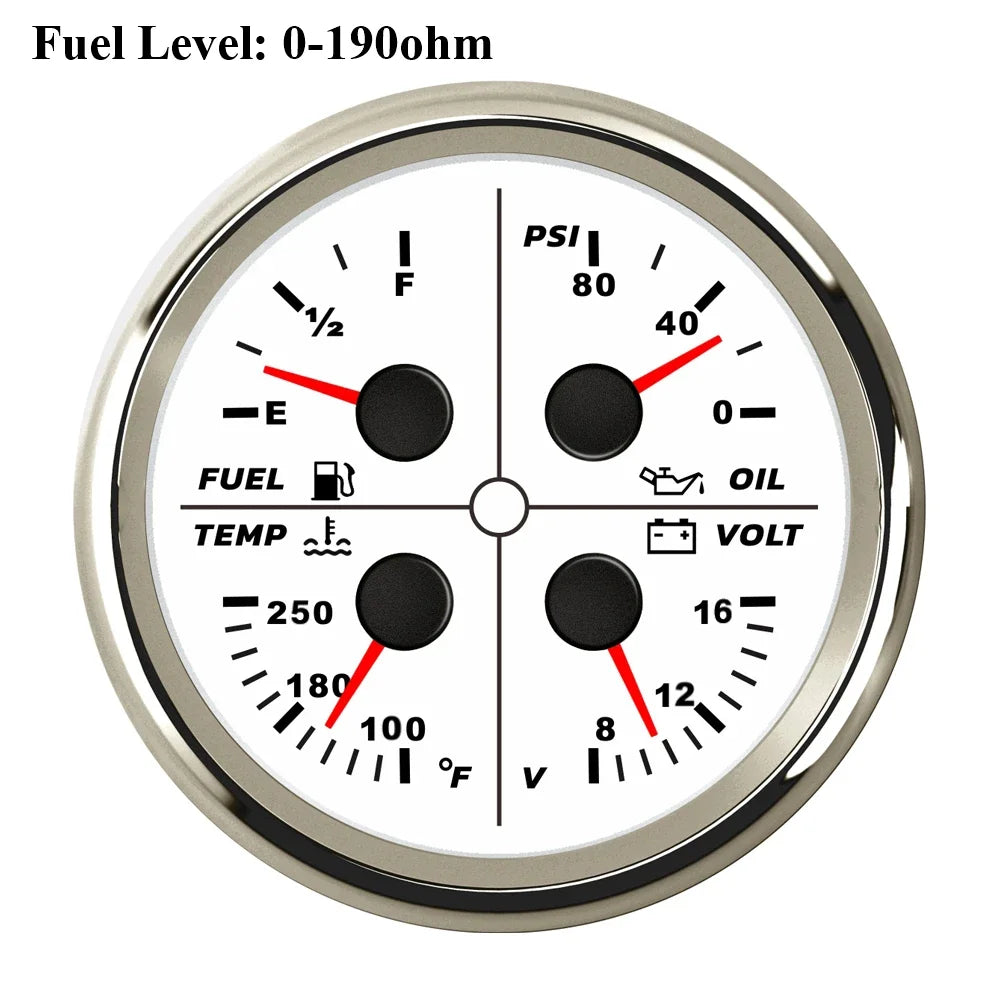

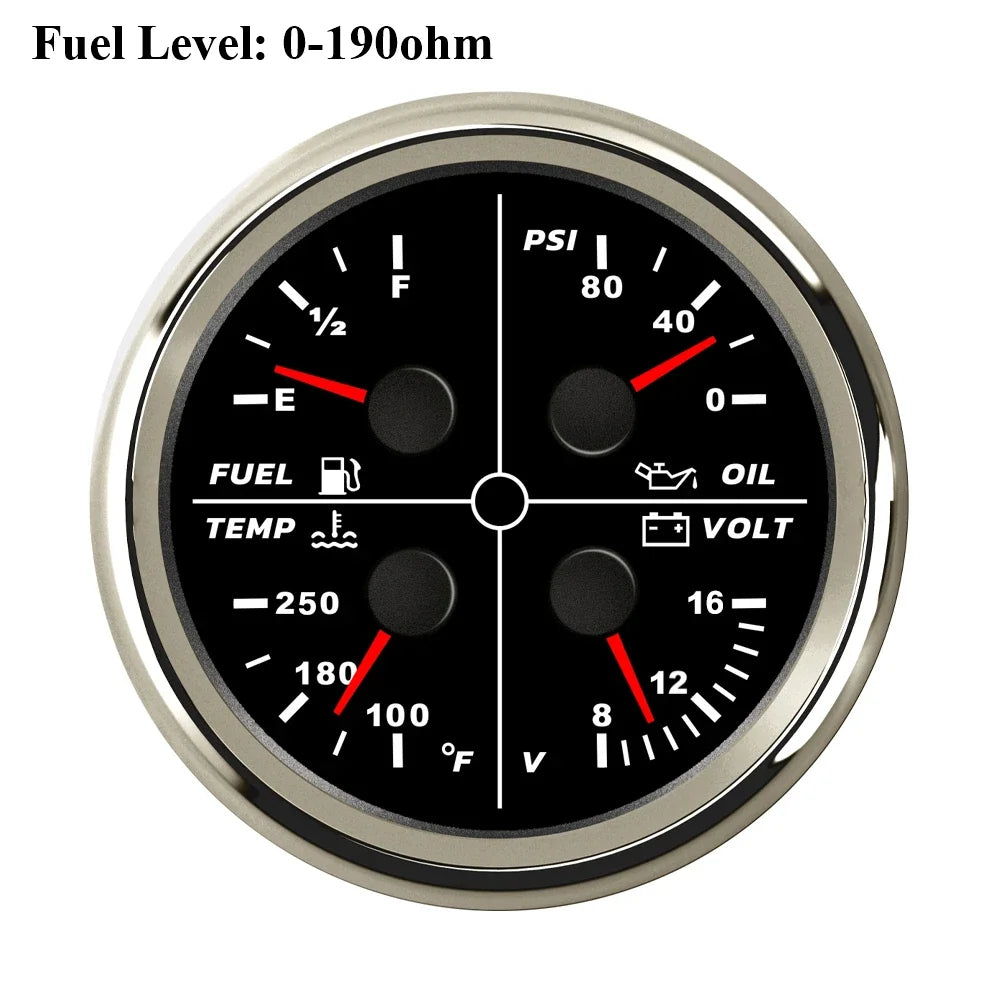

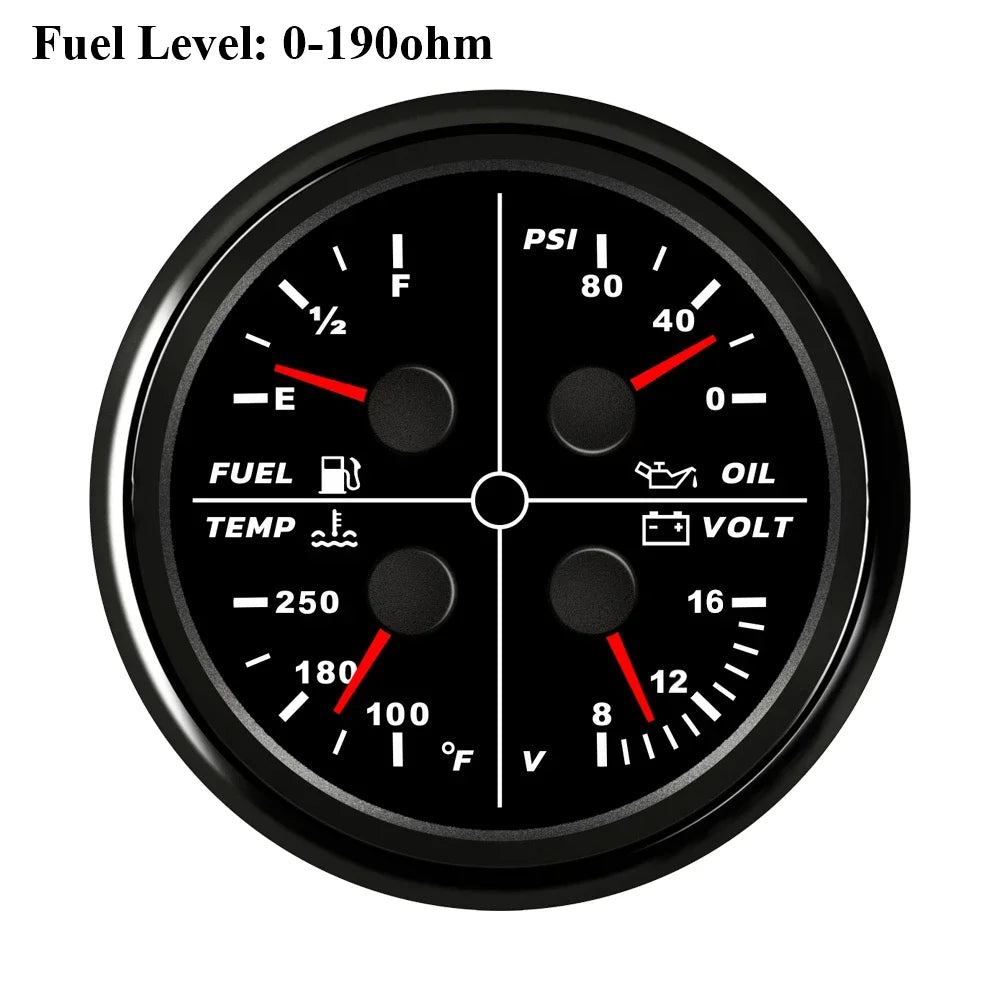

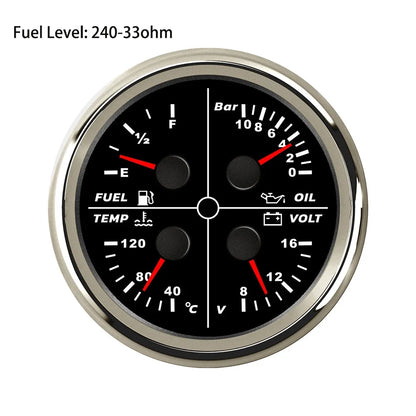

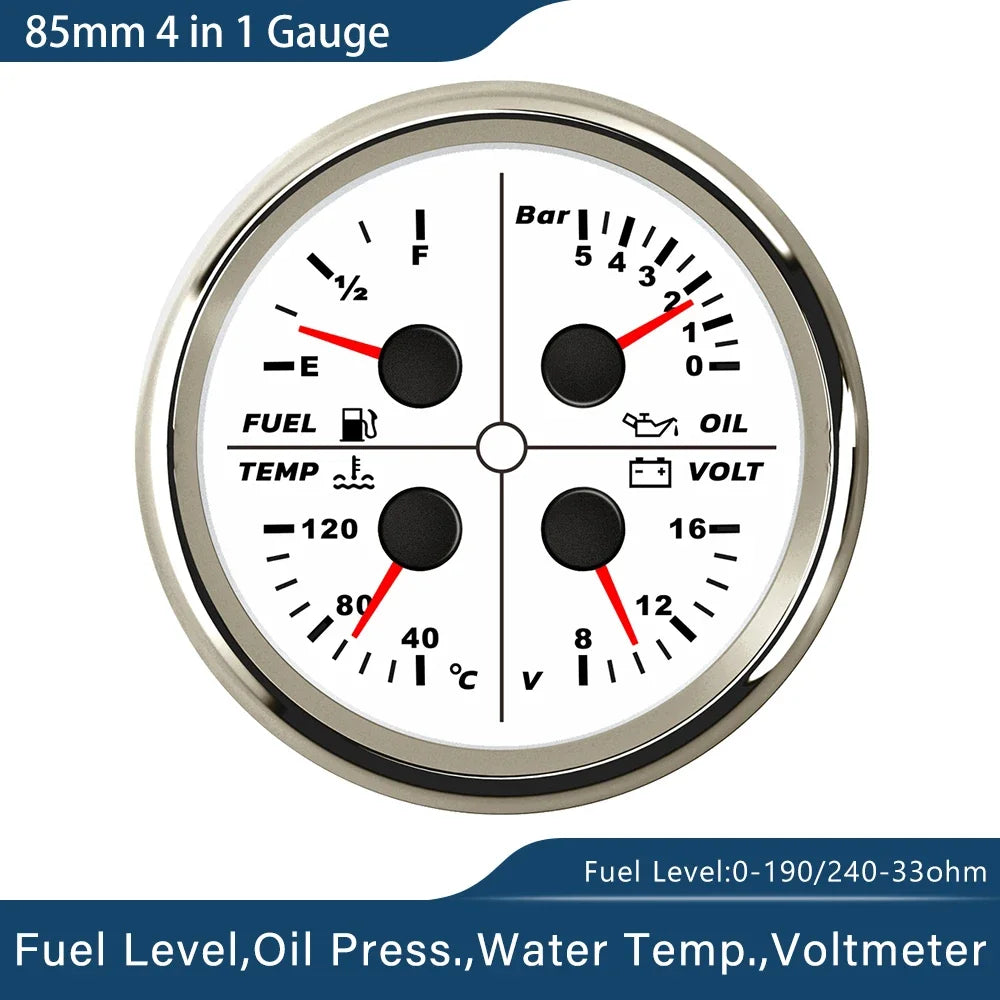

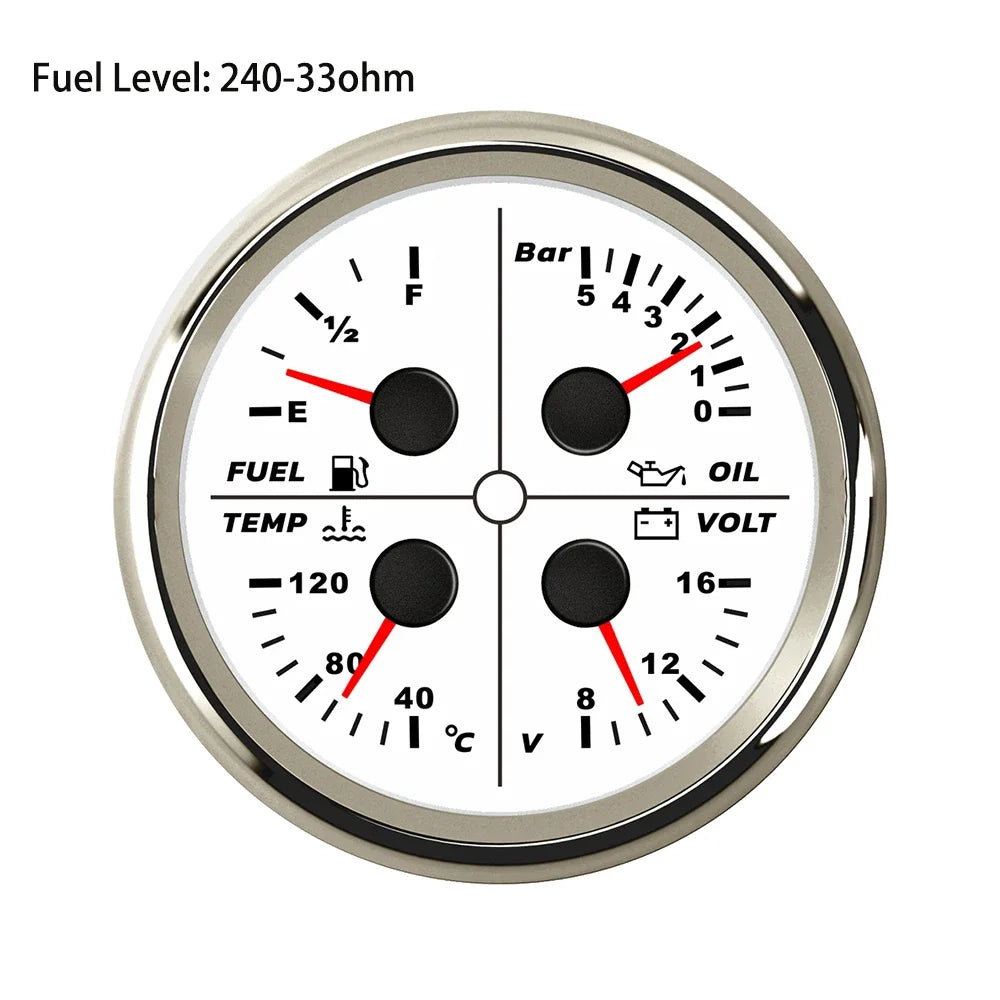

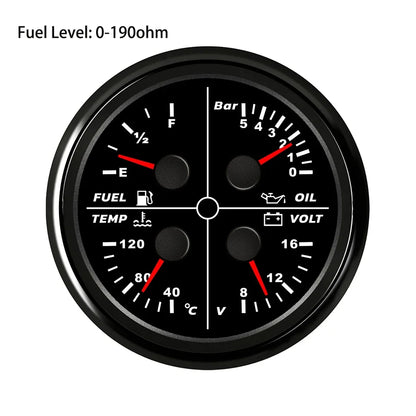

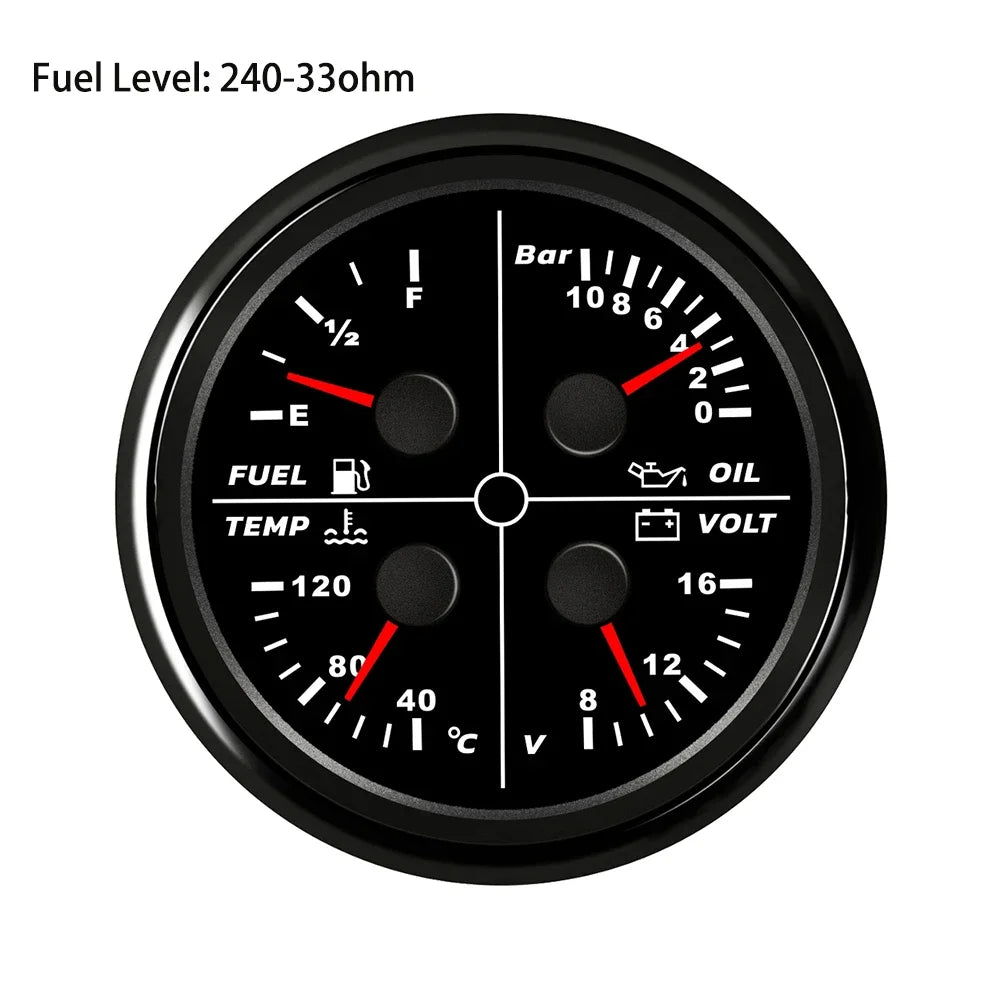

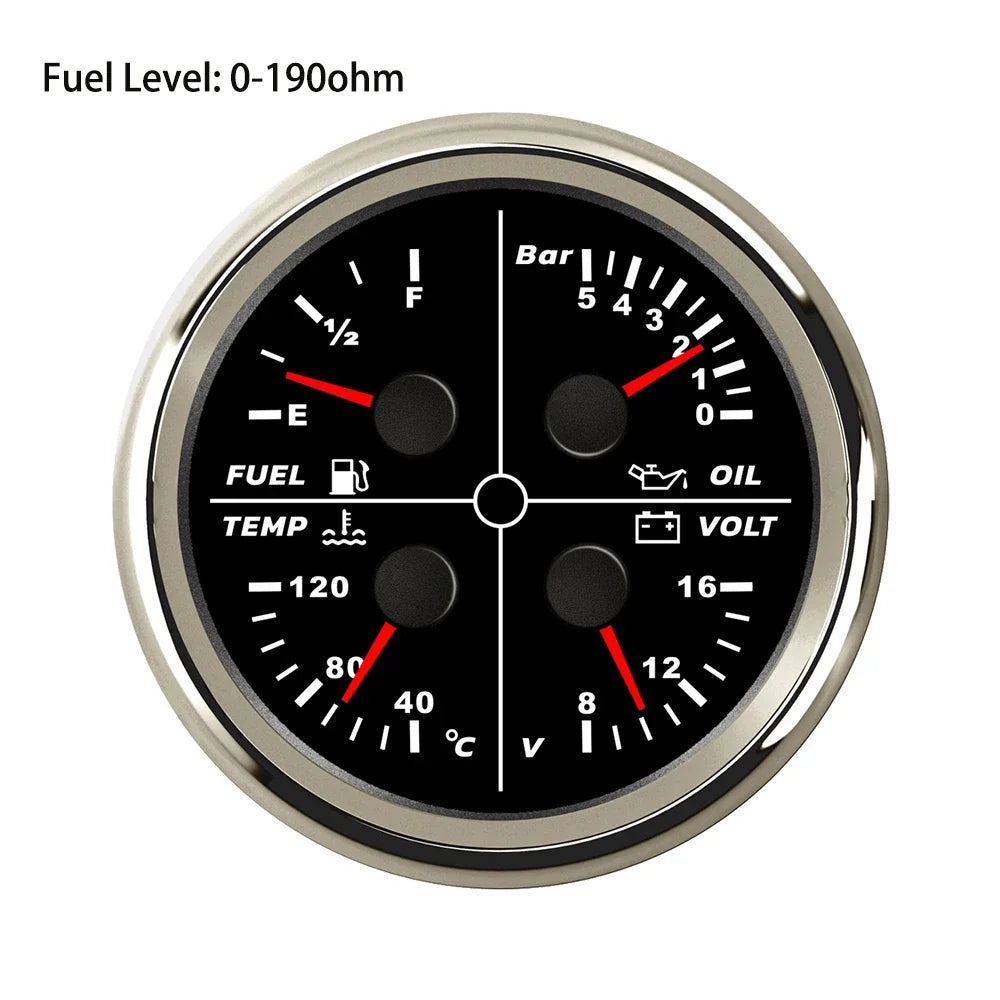

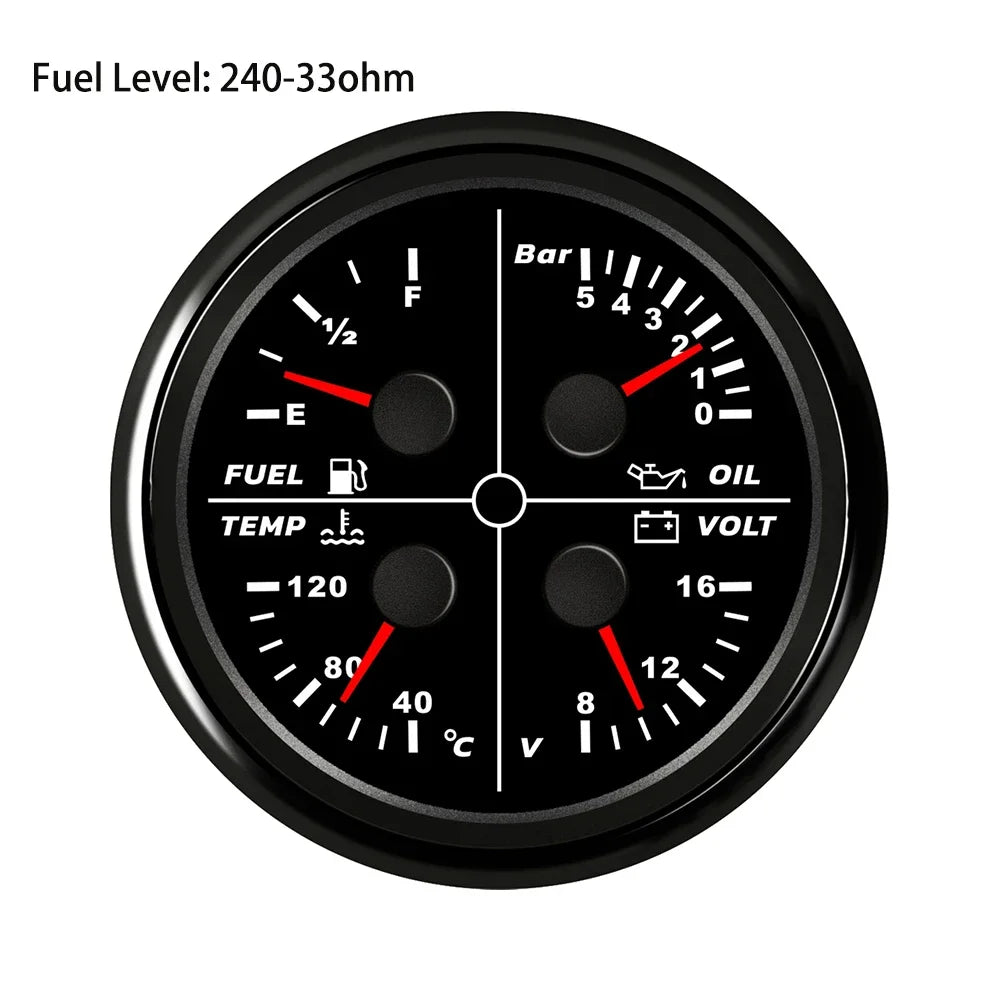

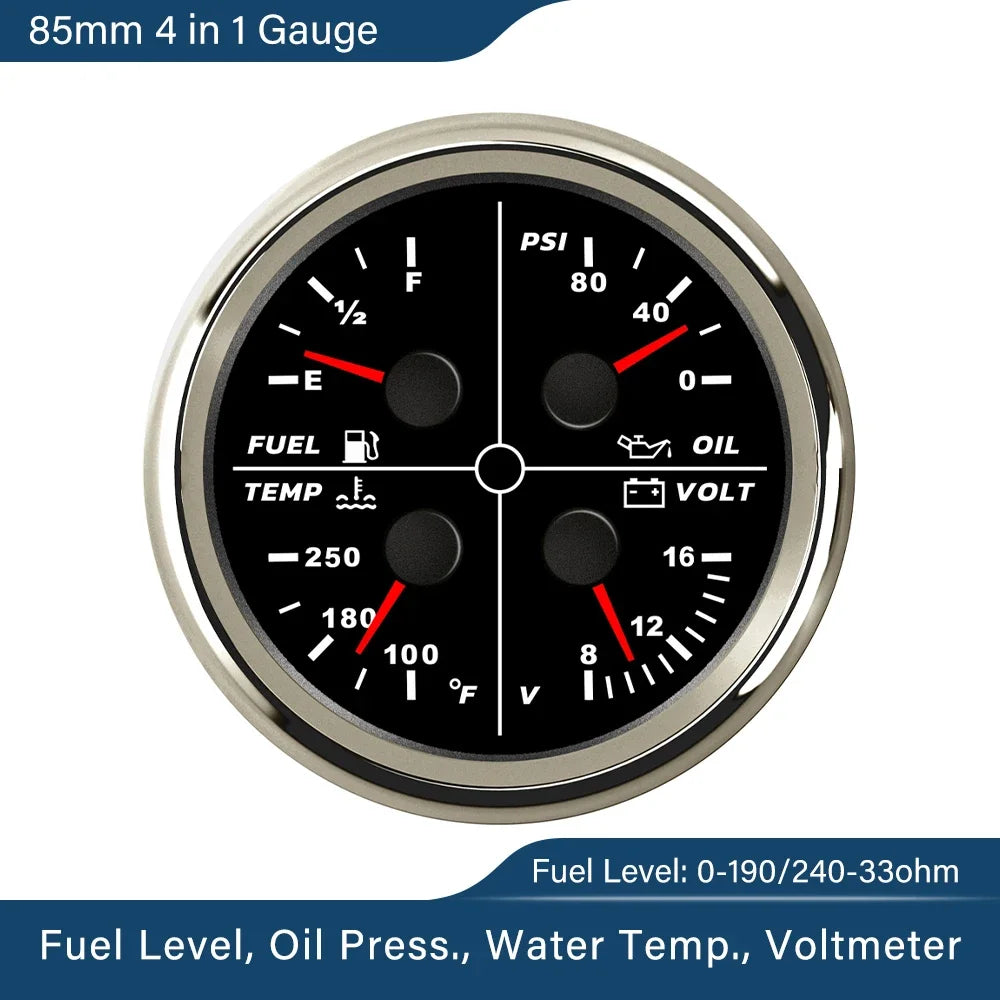

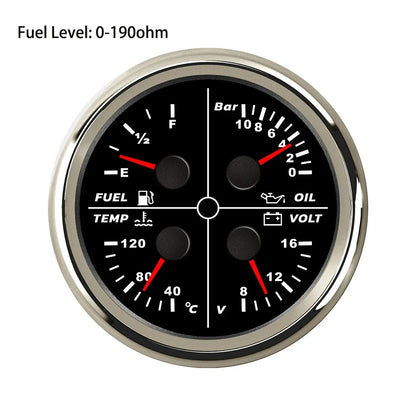

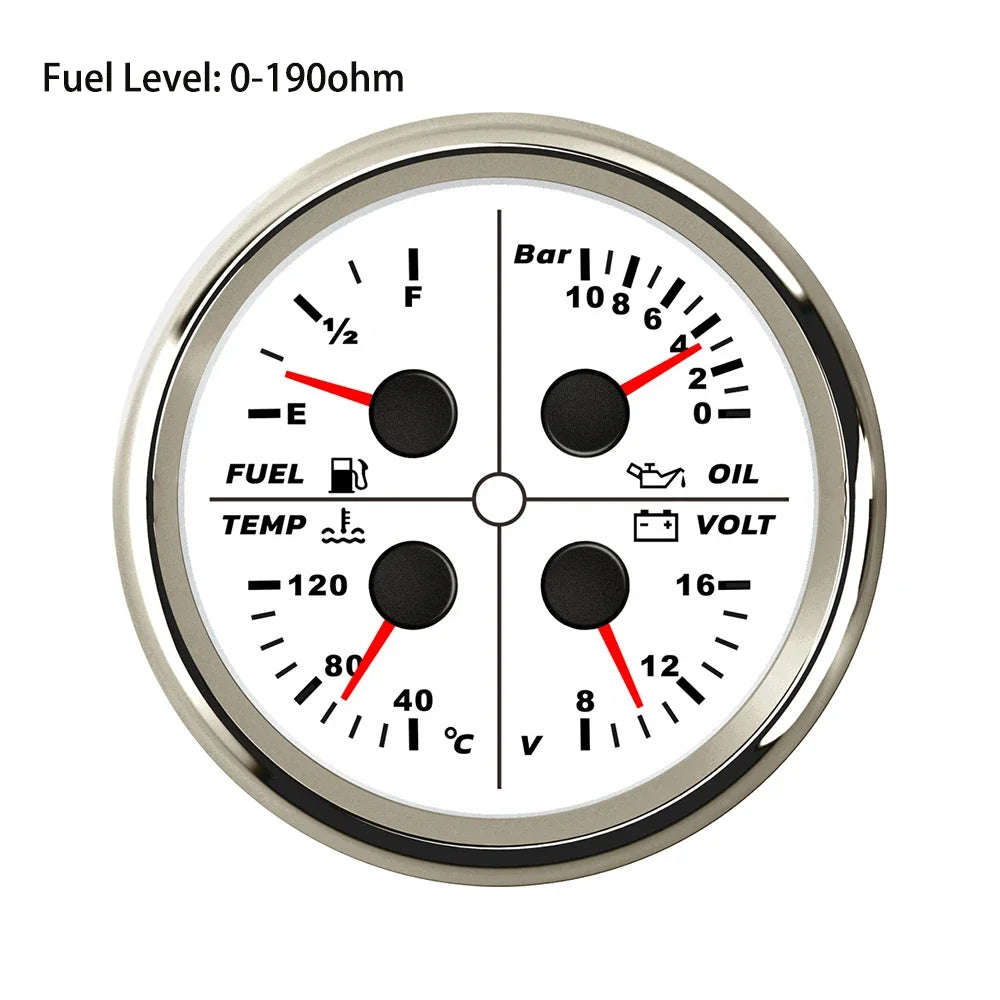

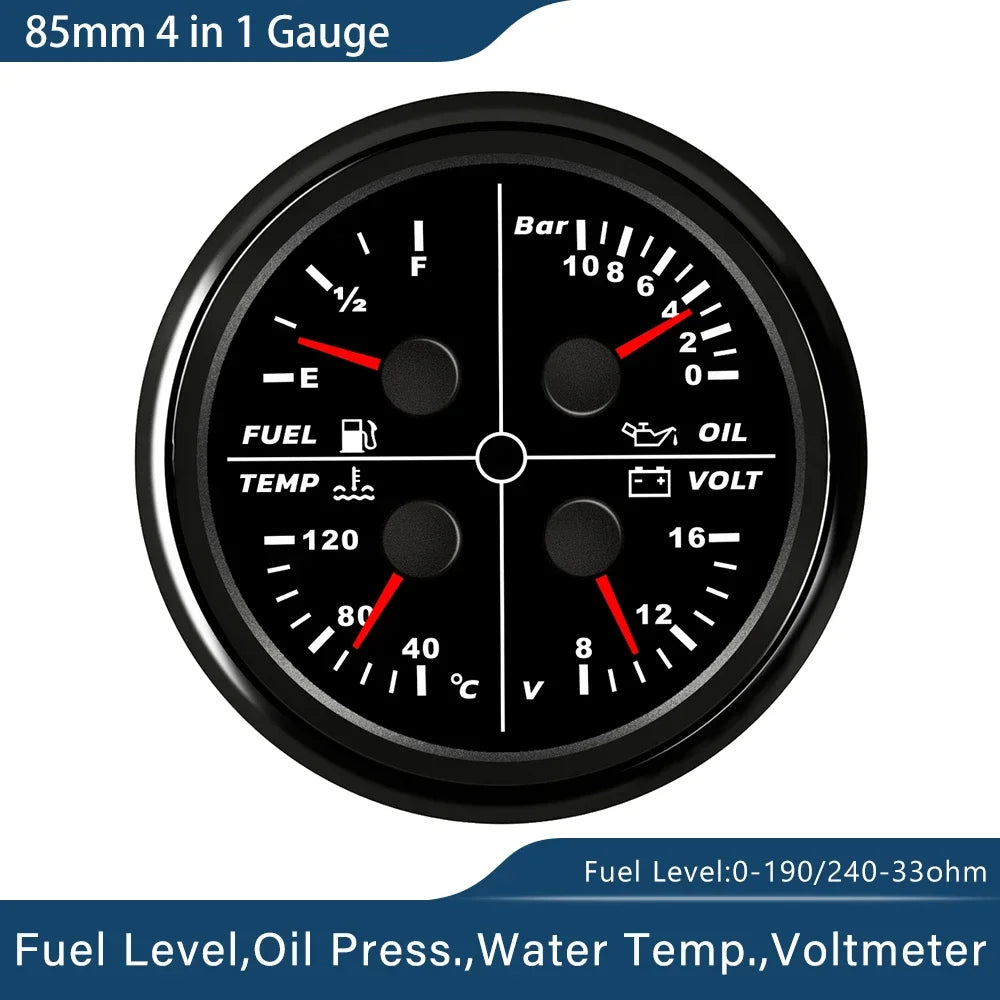

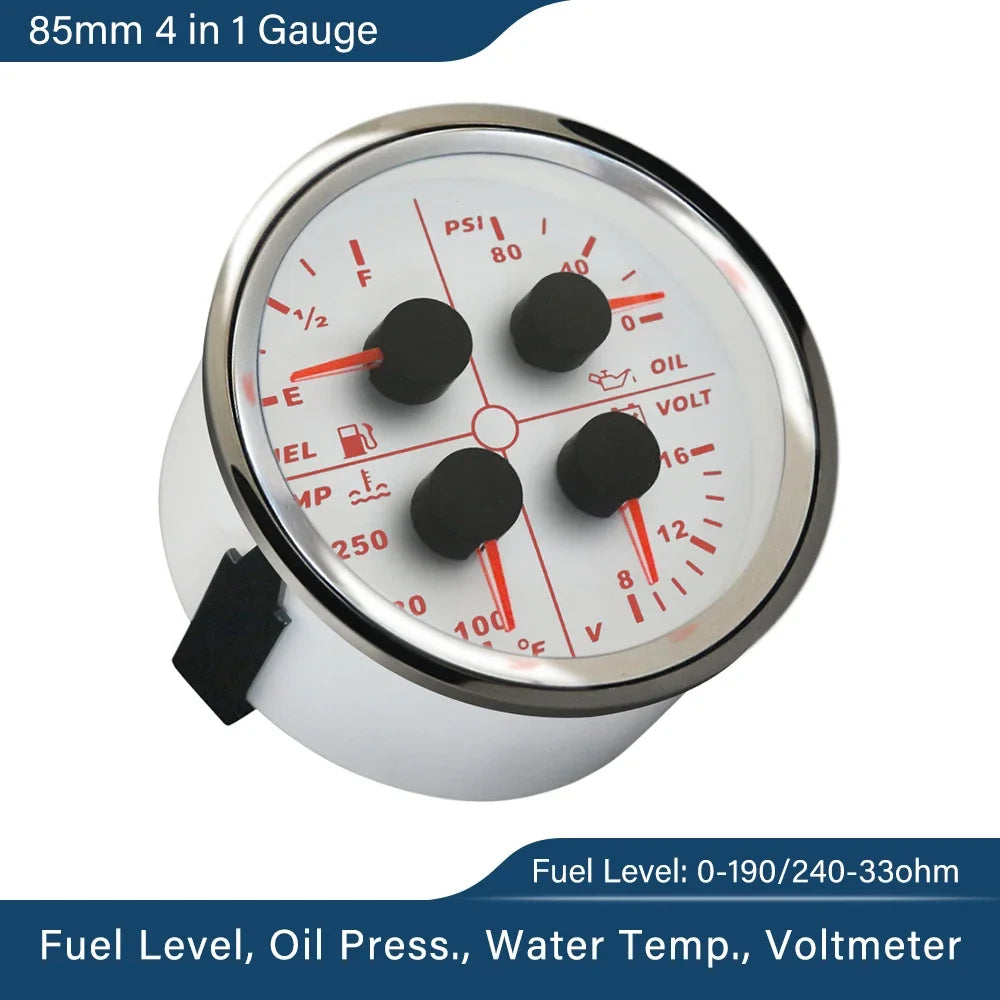

-Name: 4 in 1 Multi-function gauge

-Materials: stainless steel+nickel-plated plastic

-Operating Voltage: 12V

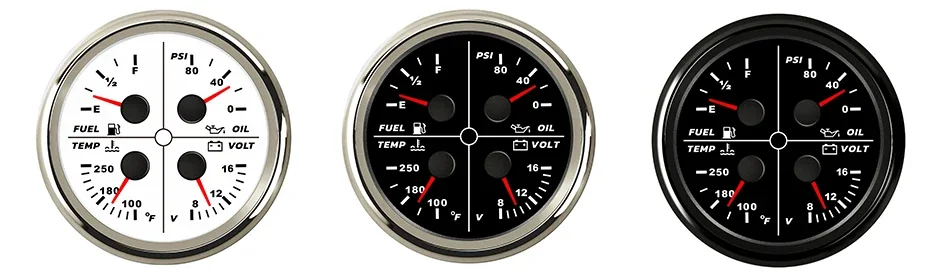

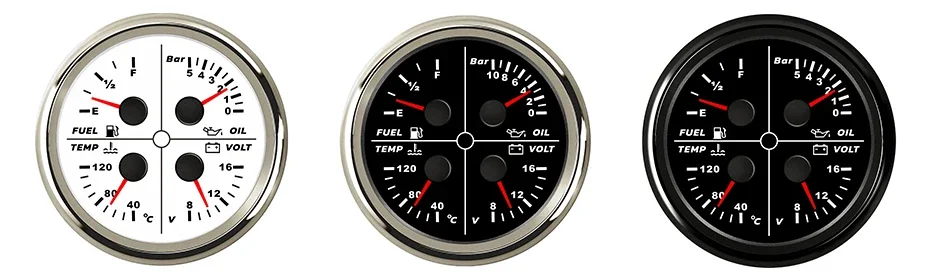

Indicating range:

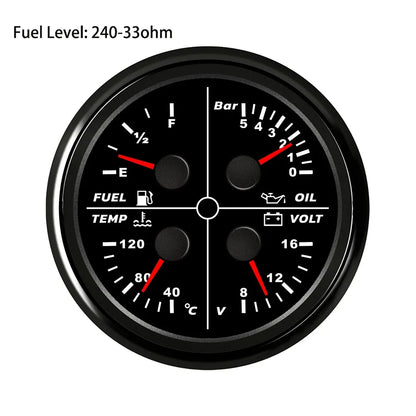

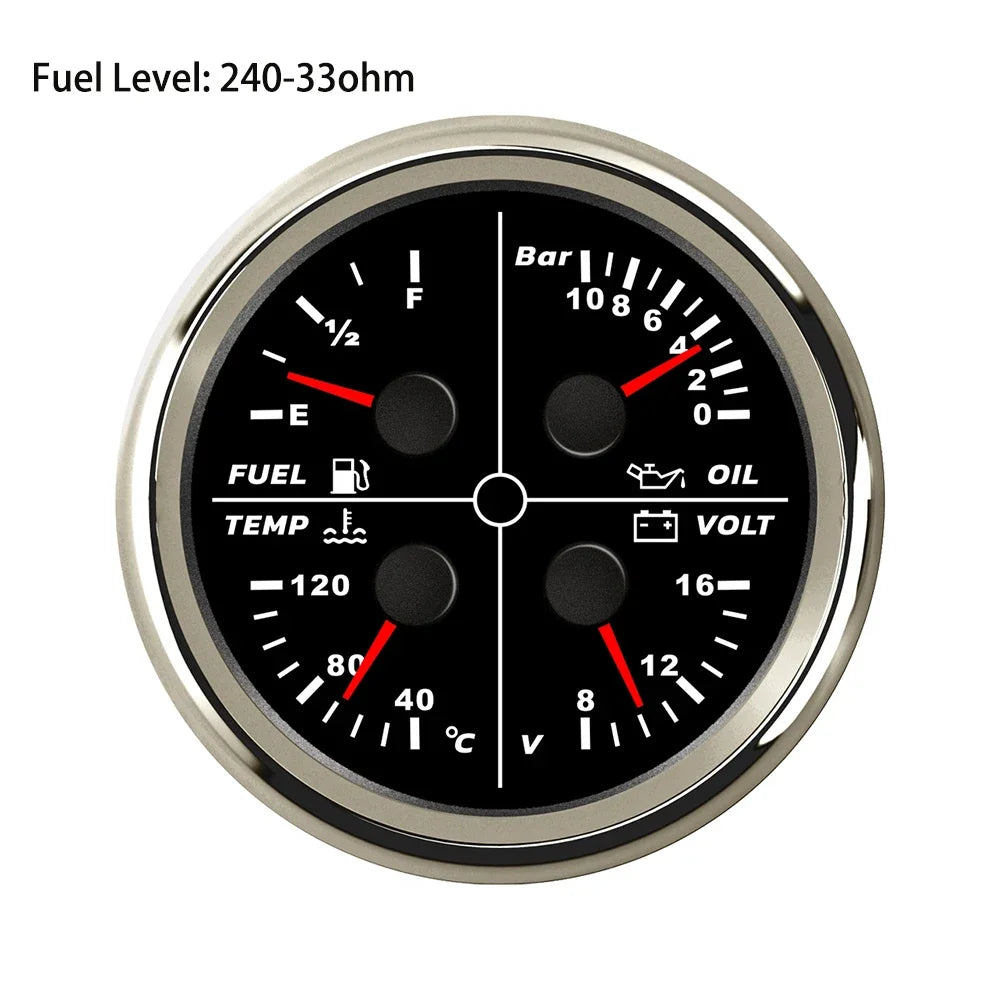

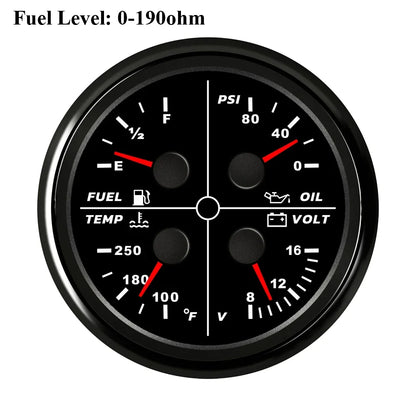

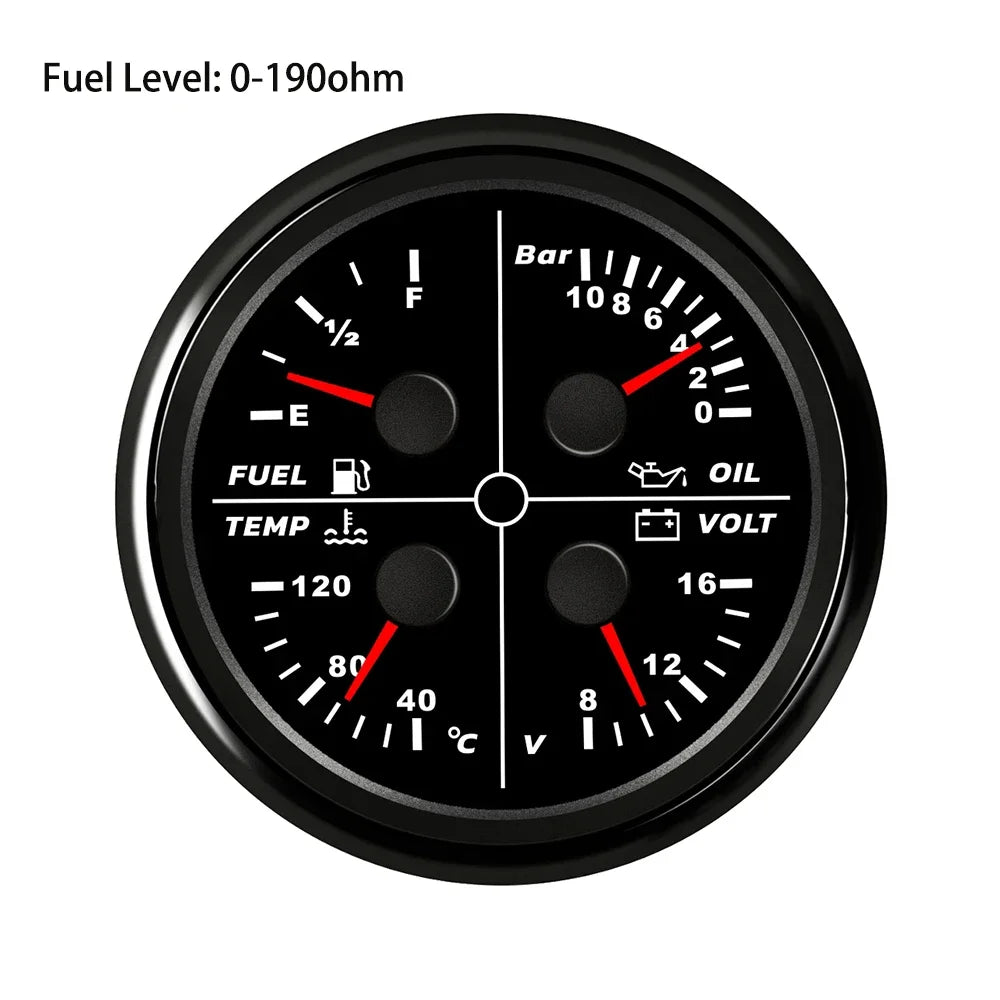

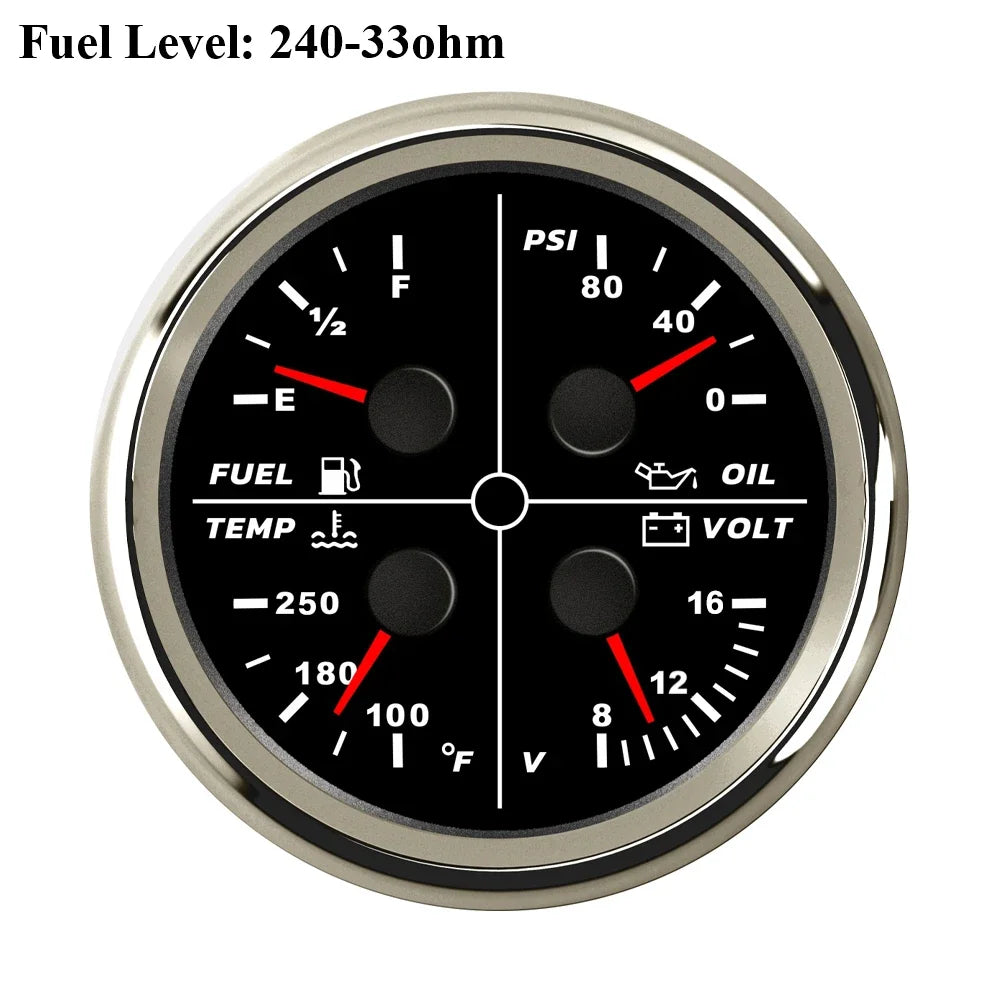

-Fuel level: E-1/2-F

-Water temp: 100-250℉/40-120℃

-Oil pressure: 0-80Psi/0-5Bar/0-10Bar

-Voltmeter: 8-16V

Input signal:

-Fuel level: 240-33ohm or 0-190ohm

-Water temp: 320-22ohm

-Oil pressure: 10-119ohm

-Protection Class: IP67, can work underwater 1meter position

-Sensors need to be purchased separately

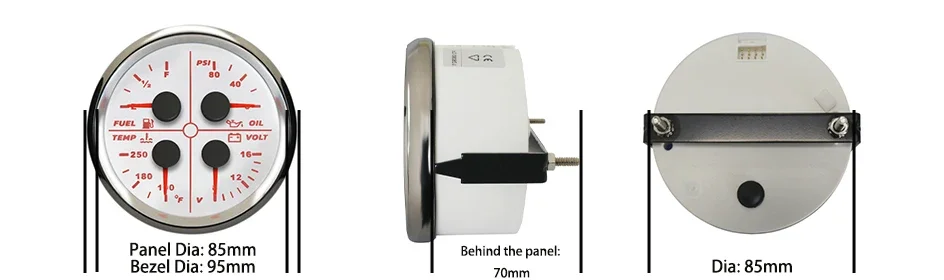

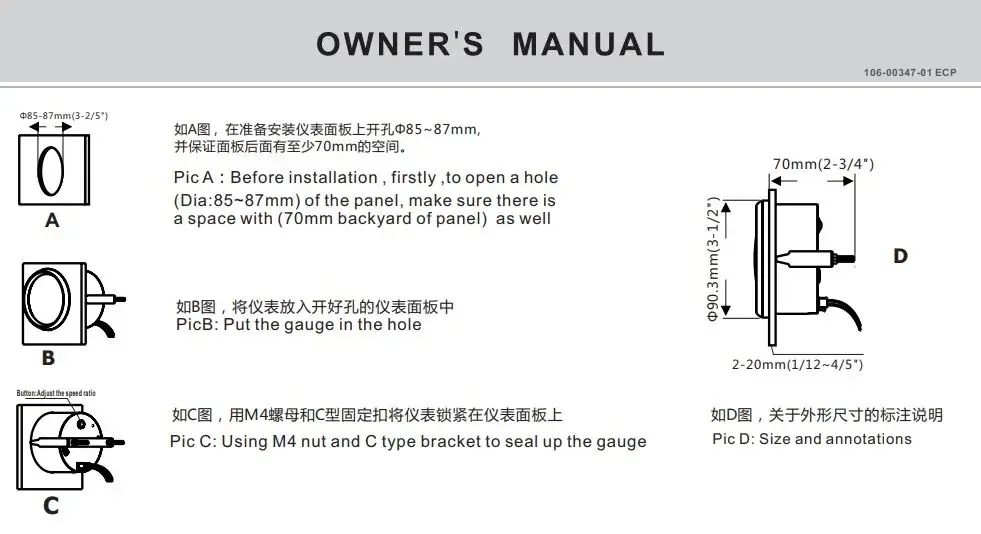

Before installation, firstly, to open a hole (Diameter: 85~87mm) of the panel,

make sure there is a space with (70mm backyard of panel) as well, put the gauge in the hole.

Using M4 nut and C type bracket to seal up the gauge.

Notes: Due to the manual measurement, there might be some error.

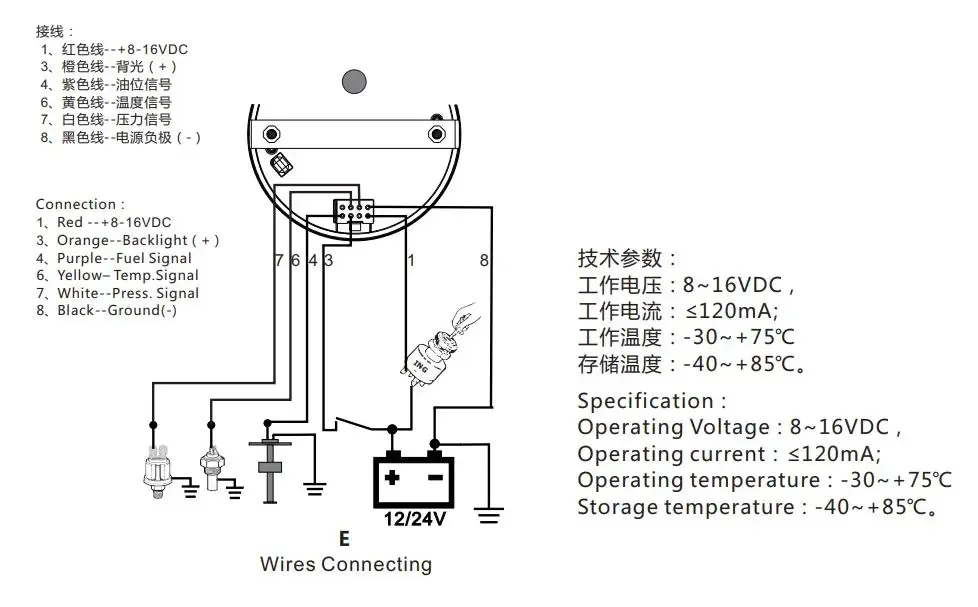

Connection:

Red--Battery(+8-16VDC)

Orange--Backlight(+)

Purple--Fuel signal

Yellow--Temp signal

White--Press. signal

Black--Ground(-)

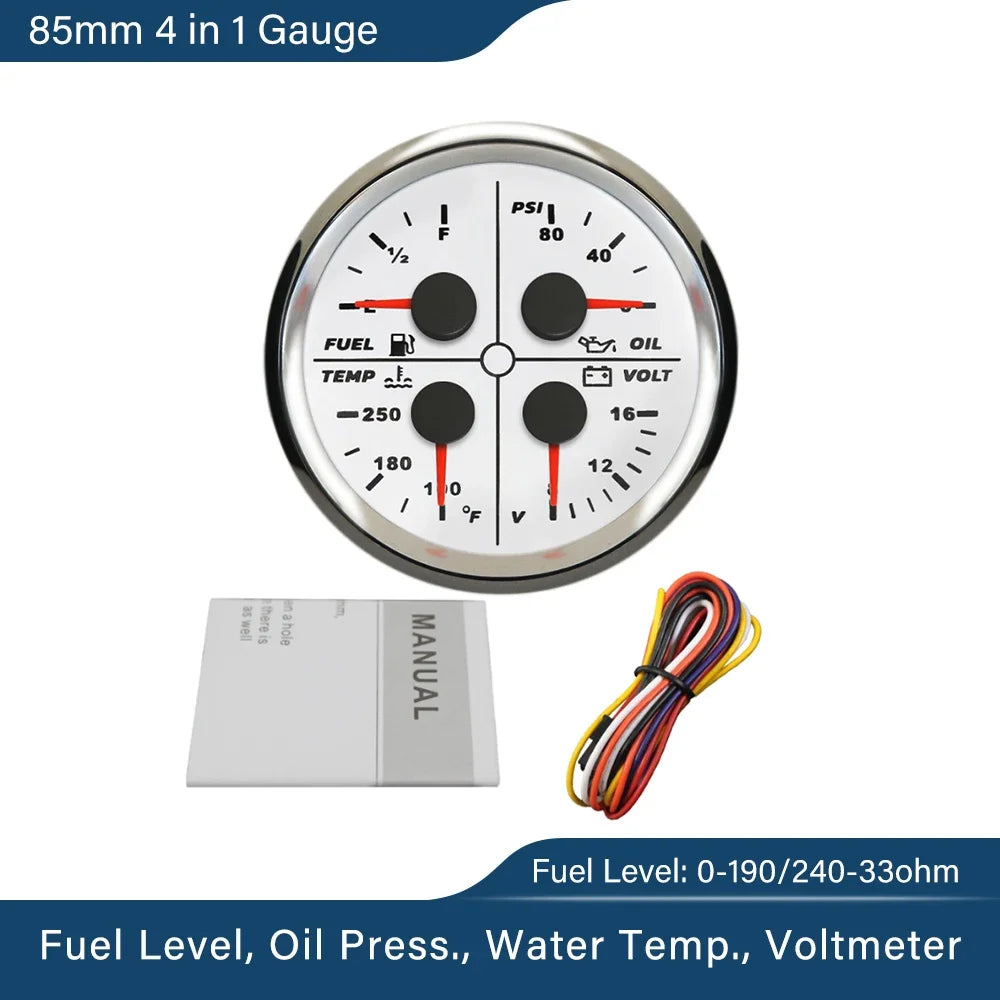

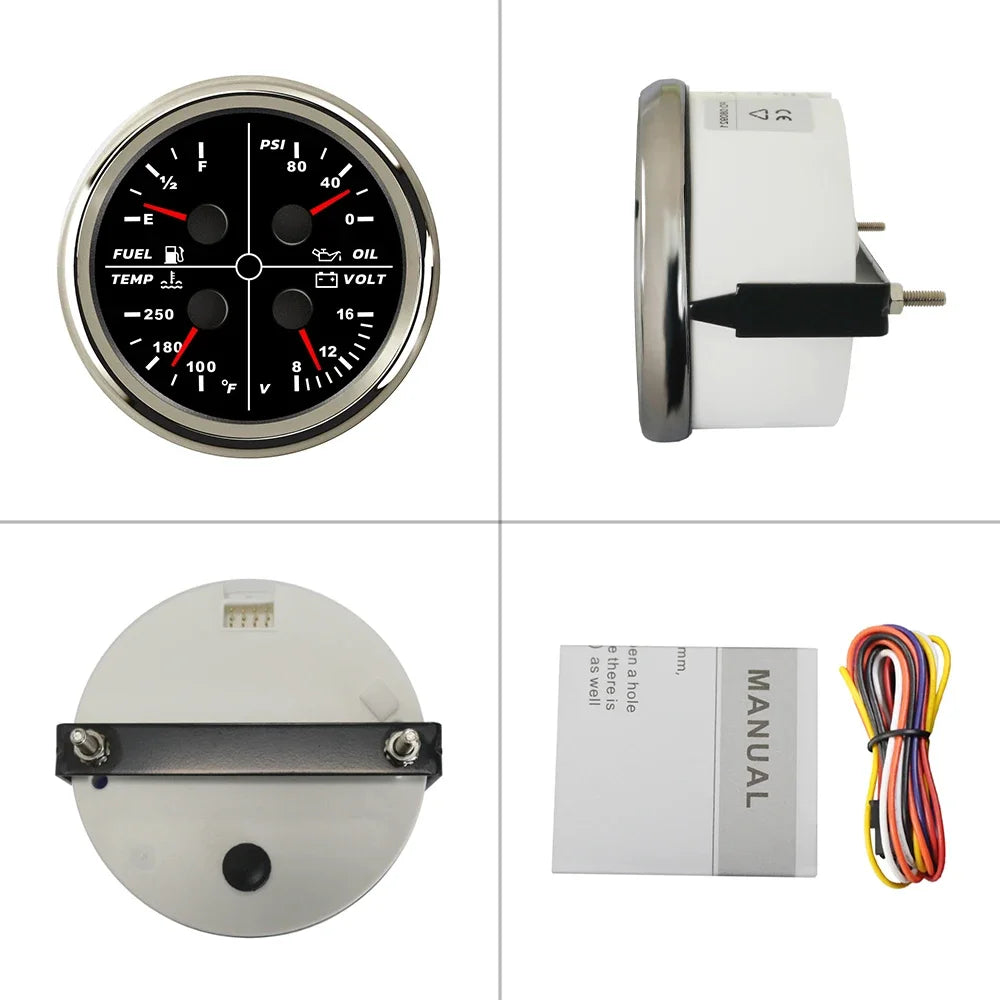

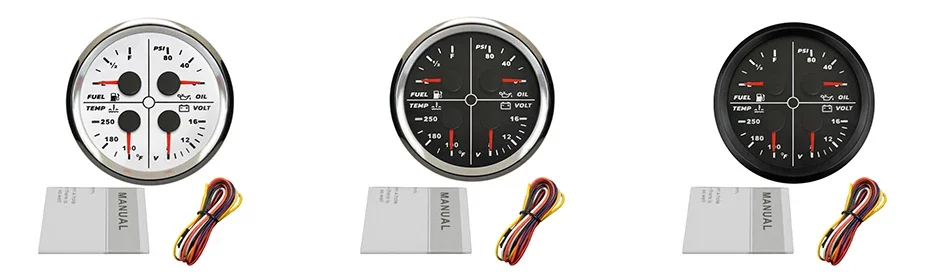

1 x 4 in 1 Multi-function gauge  1 x Cable  1 x Owner's Manual
