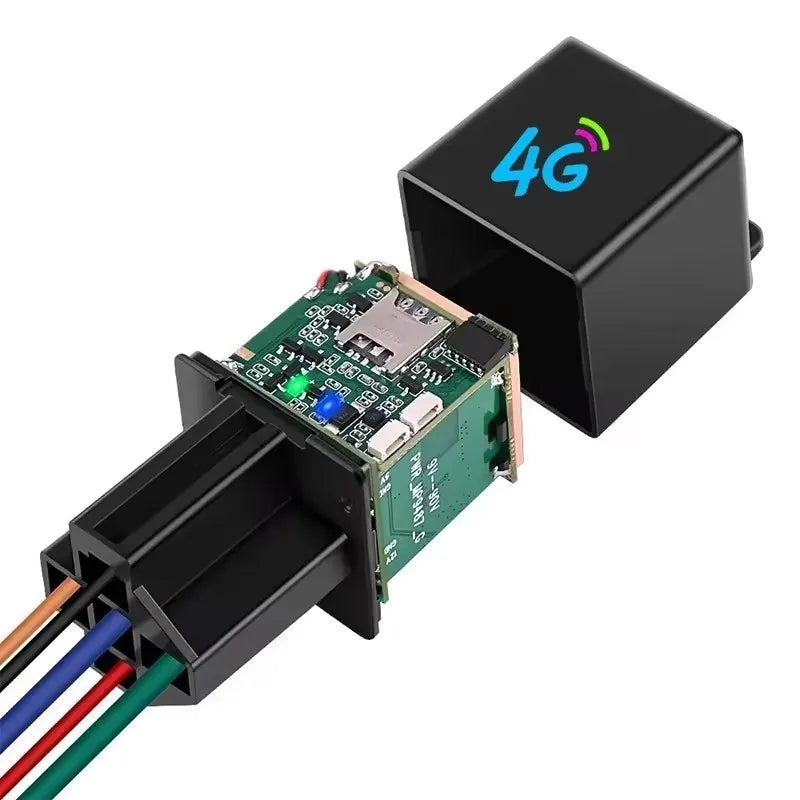

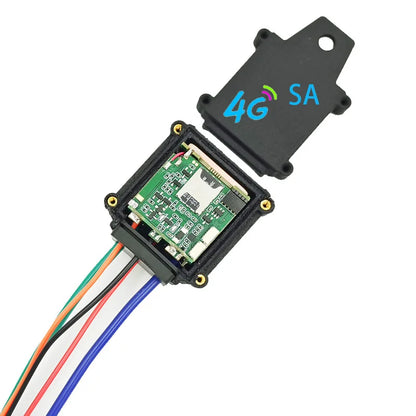

Hidden Relay 4G GPS Tracker Towed Move Tracking Car Vehicle Cut Off Oil ACC Monitor Locator SMS Call Alarm Anti-theft System

Hidden Relay 4G GPS Tracker Towed Move Tracking Car Vehicle Cut Off Oil ACC Monitor Locator SMS Call Alarm Anti-theft System

$102.44 AUD
$104.55 AUD $102.44 AUD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

2G Band: 850/900/1800/1900Mhz

4G G: 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41

4G SA: 1/2/3/4/5/7/8/28/66

Battery: Support 30 minutes, power off alarm

Battery Life: 1 To 4 Hours

Brand Name: YunTrack

Cerificate: CE & RoHS

Certification: CE,RoHS

Fuel pump power line Current: Max 60 amps normally 20 amps

Fuel pump power line voltage: 5V-30V

GPS type: GPS Tracker

Gps Module: Yes

High-concerned chemical: None

Is it wireless: Yes

Item Size: 36*36*16 mm

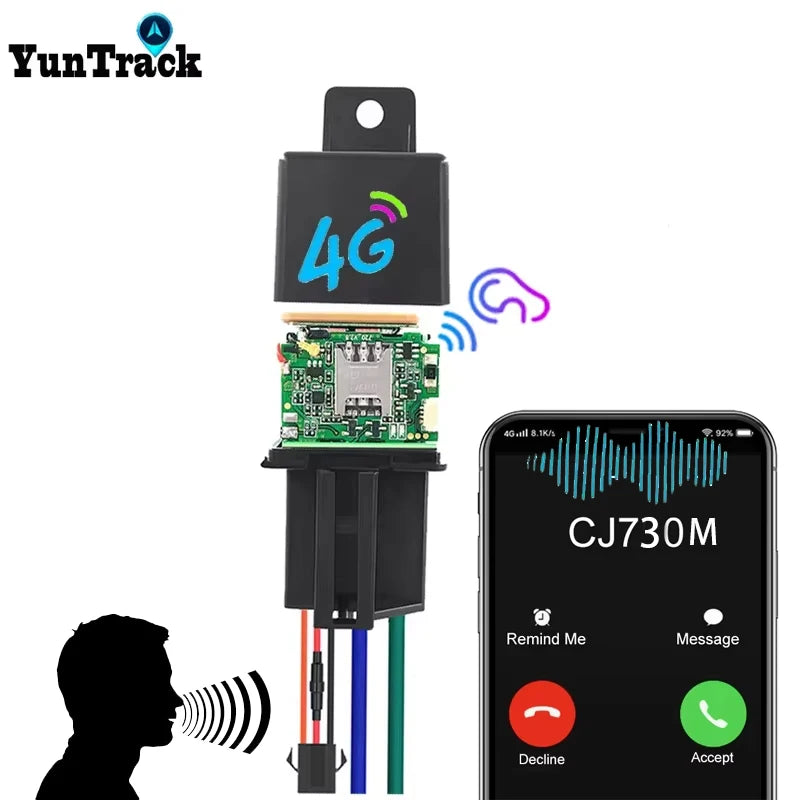

Model Name: CJ730M 4G

Network: GSM/GPRS, 2G 4G LTE FDD

Origin: Mainland China

Screen Size: No screen

Special Features: Remote Control

Voltage: 12 V

voltage: 9-95V

Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  Ā  CJ730 Plus New version April

Ā  Ā  Ā  Voltage range upgrade:9V-95VĀ Increased applicable vehicle range

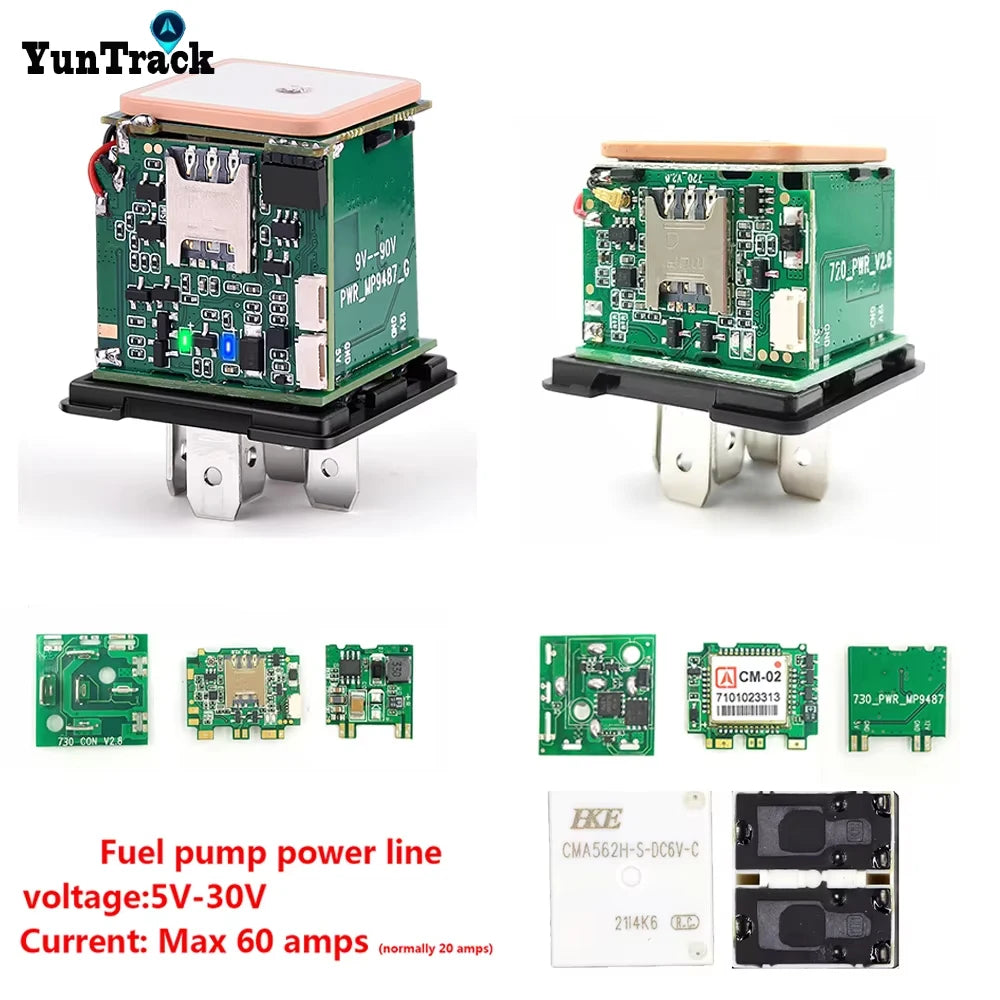

Ā  Ā  Ā  Ā Fuel pump power line voltage:5V-30V ,
Ā  Ā  Ā  Ā Fuel pump power line Current: Max 60 amps (normally 20 amps).

4G band selection:

FDD-LTE-BAND:1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41

GSM:850/900/1800/1900

Dual IP/Dual Protocol

GPS multi-mode positioning:

Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite)

navigation system), GPS in the US, GLONASS in Russia, GALILEO in the EU, QZSS in Japan

And satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). It is a true six-in-one multi-mode satellite navigation and positioning device, including 32 tracking channels, which can be connected simultaneously.

Receive GNSS signals from six satellite navigation systems and realize joint positioning.

Ā



Vehicle stopped: ACC off status.

Vehicle sending movement,Ā You will receive text messages and phone calls.

Towed away move alarm

ACC:OFF态Motorcycle Car Towed away move 300 meters alarm 态The GPS device will issue: SMS alarm, phone alarm,

How to drag away the alarm function:

1. Link ACC, (Need to perform alarm function by monitoring ACC status.)
2. Set the main control number: admin123456 + 86186 ****** (+ 86186 ***** should be youe phone number)
3. Send SMS command: tow1,300 (tow1-4: 1 is SMS alarm, 2 is phone alarm, 3 is SMS + phone alarm, 300 is distance)

TowĀ trackĀ afterĀ theĀ carĀ wasĀ stolen

ACC:OFF态MotorcycleĀ CarĀ TowedĀ awayĀ moveĀ DrivingĀ trajectory态Track, start, end,

ACC status automatic arming function:
ACC is off: SMS and phone alert will be issued automatically when the vehicle vibrates.
ACC is on: The vehicle vibrates without sending SMS and phone alerts.

ACC status monitoring ļ¼šON OFF

Intelligent anti-theft system

Car start, automaticallyĀ cancel the anti-theft mode; stop the fire, the positioner
Ā automatically enters the anti-theft mode

Ā Fuel cut function installation method 2: Link fuel relay

Multiple location trackingā€”24 hour upload

Beidou+GPS+LBS multi-mode positioning system makes the acquired positionĀ

information more accurate and reliable, and rejects all errors;

Electric fence

Set the security zone. When the car enters or leaves the security zone, the mobileĀ

phone will receive the reminder at the first time. You can keep track of the car dynamicsĀ

without opening the app.

Historical trackā€”180 days

Free storage of the cloud, recording the car's 180-day driving trajectory throughout the

Ā day, in case of special circumstances, do not worry, the phone can be seenĀ

anytime, anywhere, it is so capricious.

Vehicle vibration alarm

When the car is stationary, the positioner automatically enters the fortified state. When the car is moved or bumped, the positioner will immediately send an alarm message to the owner (sms, phone, APP, multiple alarm prompts)

Equipment removal alarm

The device is equipped with a sensitive sensor, and when the device is removedĀ

or destroyed, the owner will immediately receive an alarm message.

Ā
How to use

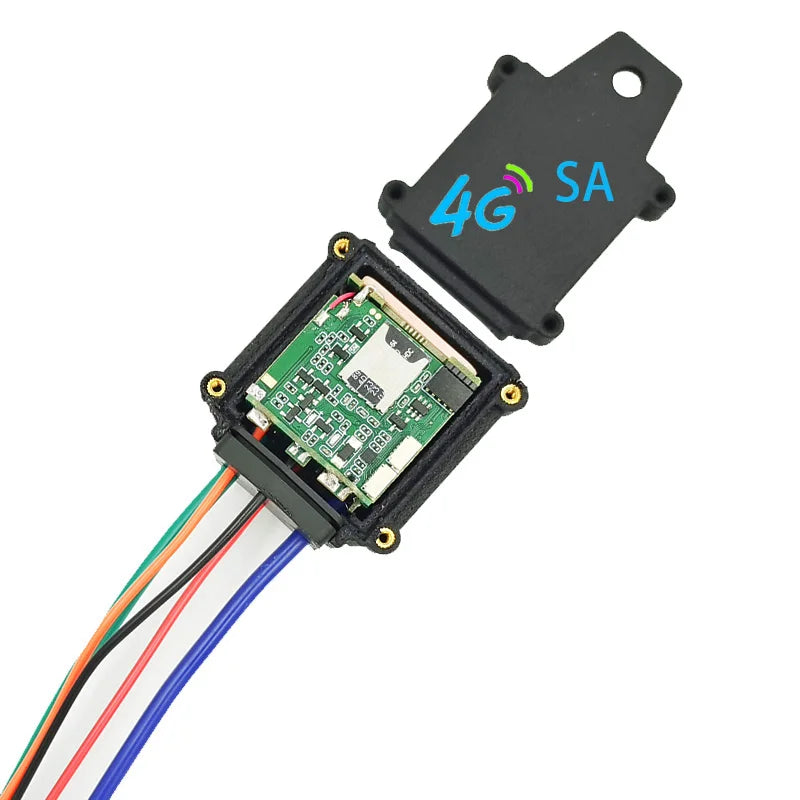

1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up态(blue light flashes, green light flashes,)
2.Set APN: APN123456 CMNETļ¼ˆplease use your local APN instead of CMNETļ¼Œif you do not know the APN content,you should contact your SIM card supplierļ¼‰
3. Set admin number by sending a SMS command to the SIM card inside device
For example: admin123456+86186******(+86186*****should be youe phone number)
4.Connect cable follow the picture态ļ¼ˆOil cut test wiring video: https://www.youtube.com/watch?v=FiUN5nbAVMAļ¼‰ć€

Special Note:
Oil pump line search
Need professionals.
Or auto mechanic repair shop to help find.

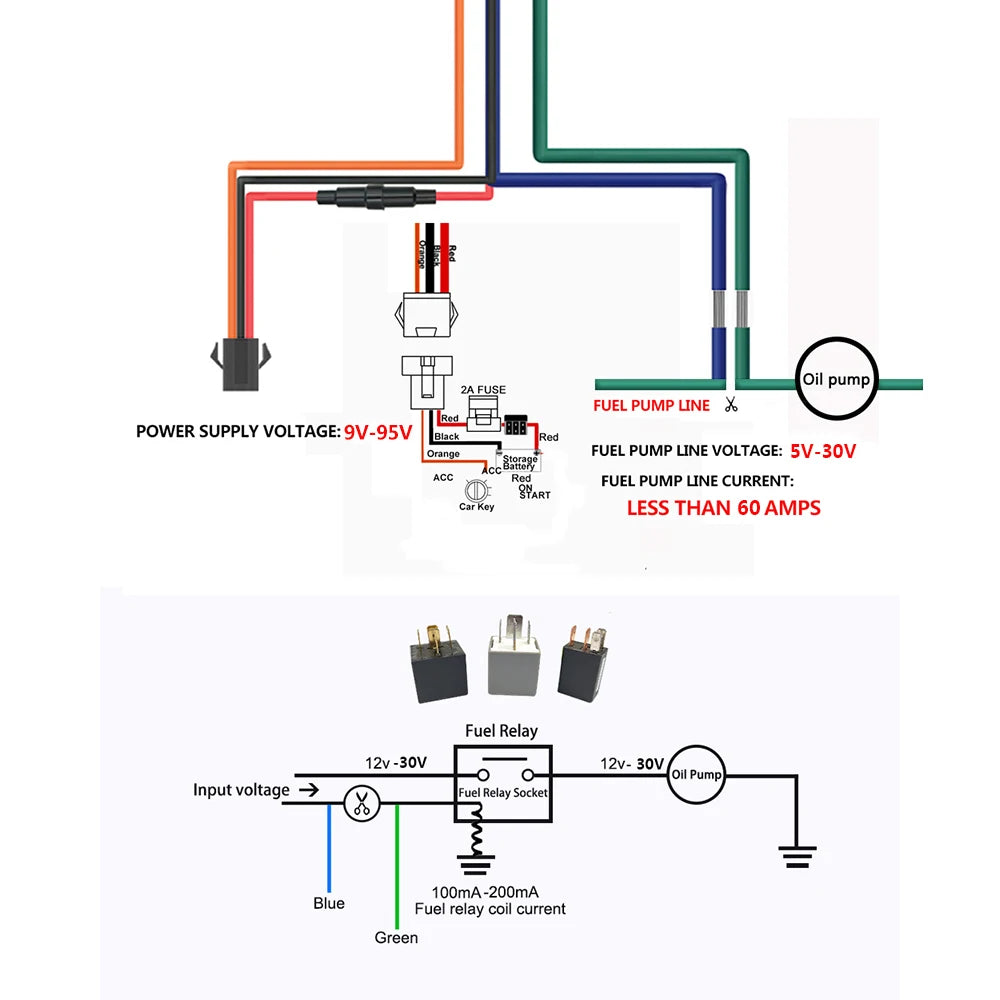

Power supply, fuel cut control line
(1) The standard power supply of this equipment is 10V-50VDC, the red line is the positive pole of the power supply, and the yellow (black) is the negative pole of the power supply; when installing the negative pole of the power supply, please select the grounding or grounding separately, and do not share with other ground lines;
(2) The oil cutoff control line (green/blue line) is connected to the oil pump line.
Send Command
Cut off OilĀ (The car can't be started, it can only start normally after it needs Restore Oil, and the speed is 60KM/H Cut off Oil - it can go out normally after about 2 minutes.)

GPS and Russian GLONASS dual-mode positioning

ā—† Real-time trackingĀ Ā ā—†against pseudo base-station&detect
ā—† Vibration/Displacement/Low battery/Power off/over speed alert
ā—† Main power cut off alertĀ Ā ā—† Geo-fence
ā—† History RouteĀ ā—† Cut and resume oil remotely Ā ā—† AGPS locating

FunctionsĀ and Product parameters ļ¼ˆRelay GPS TrackerCJ730/Off petrol and electricityļ¼‰
Terminal size : 31x 31x 57mm
Weight:50g
Network: GSM/GPRS
Network Band: 850/900/1800/1900Mhz
GPS module: MTK2503
GPS sensitivity: -159dBm
GPS position accuracy: 10m
First positioning time: Cold start 45-120 seconds
Warm start: 35 seconds
Hot start : 1 second
Operating voltage: 10-50V input
Battery : Built-in lithium battery 3.7V 110mAh
Storage temperature: -40Ā°C to +85Ā°C
Operating temperature: -20Ā°C to +55Ā°C
Humidity :5% - 95% Non-solidified

Faults & The solutions

Qļ¼šStart up Fail?
Aļ¼šCheck the cable connect right or not.
Qļ¼šThe device can not obtain location information?
Aļ¼šPlace the unit at the open area to test.
Qļ¼šHow to choose SIM card?
A: the SIM card must support GSM&GPRSļ¼Œand ensure that the
card has enough currency and credit.
Q: How to use in the foreign countries?
Aļ¼šplease set the APN before useļ¼Œplease edit the text ā€œAPN123456
CMNET ā€œ and send it to the SIM card of the deviceļ¼ŒCMNET is
Chinese operatorā€™s APN, Replace the corresponding APN when
use in other countries, APN details, please consult your local SIM
card carrier.
Ā Cautions
Please comply with the instructions to extend the unit life:
1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or
damage the inside circuitry.
2. Donā€™t use & store the unit in dusty places.
3. Donā€™t put the unit in overheated or over cooled places.
4. Handle carefully. Donā€™t vibrate or shake it violently.
5. Clear the unit with a piece of dry cloth. Donā€™t clean in chemicals,
detergent.
6. Donā€™t paint the unit, this may cause some foreign materials left in
between the parts.
7. Donā€™t disassemble or refit the unit.
8. Please use the battery and charger provided by manufacturer.
Using other batteries and chargers will cause unwanted situation
