SPECIFICATIONS

Adjustable Speed Ratio: 0.5-250 for 0-3000RPM, 0-4000RPM, 0-6000RPM 1.0-10.0 for 0-8000RPM

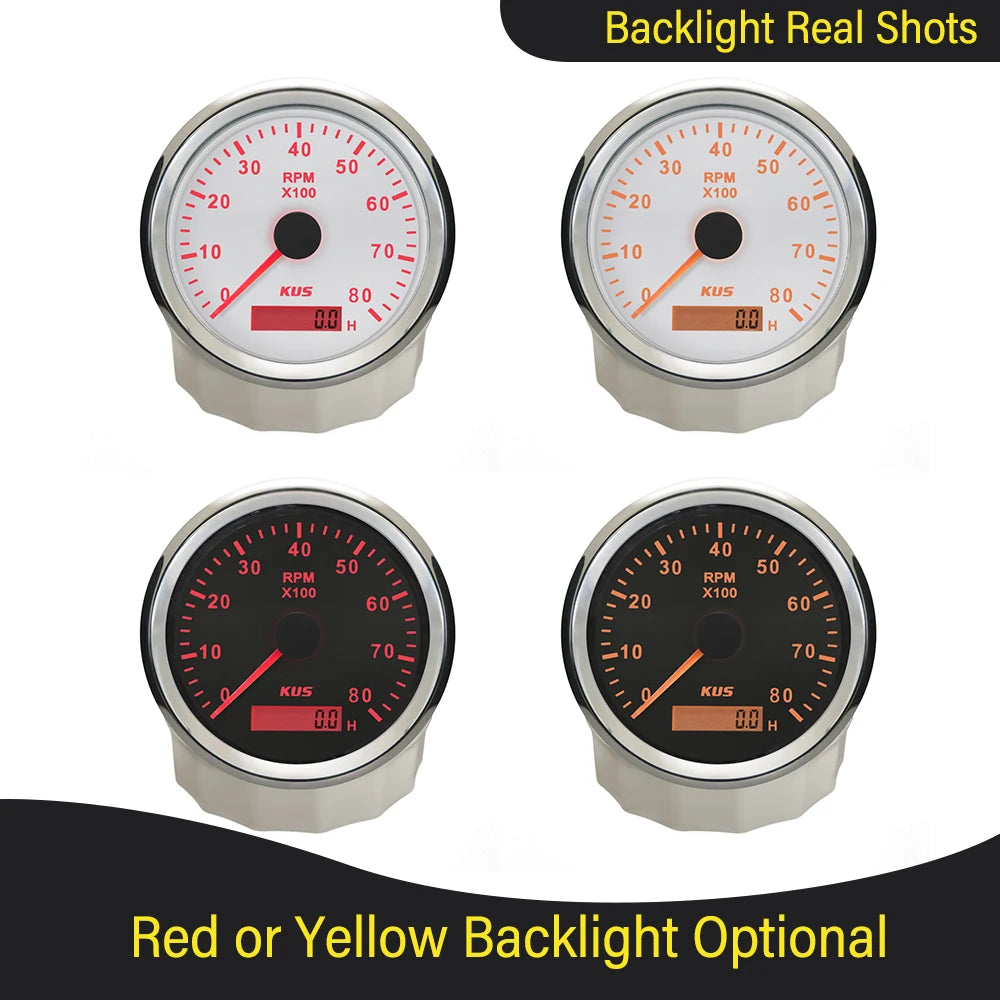

Backlight: Red and Yellow available

Brand Name: ELING

Country/Region of Manufacture: CN

Function: Tachometer

High-concerned chemical: None

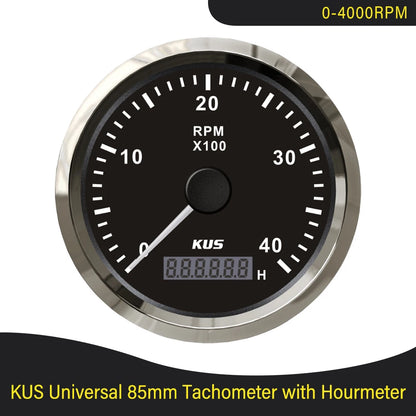

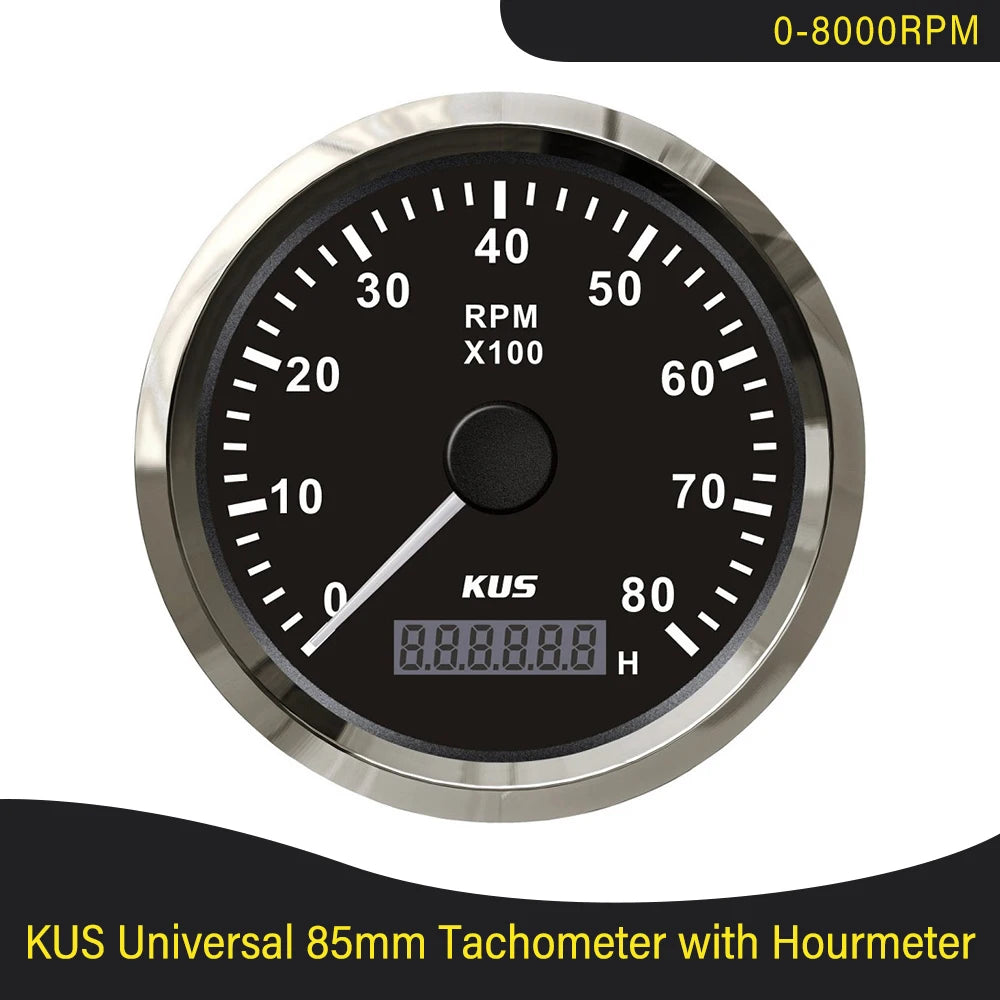

Indicating Range: 0-3000RPM 0-4000RPM 0-6000RPM 0-8000RPM

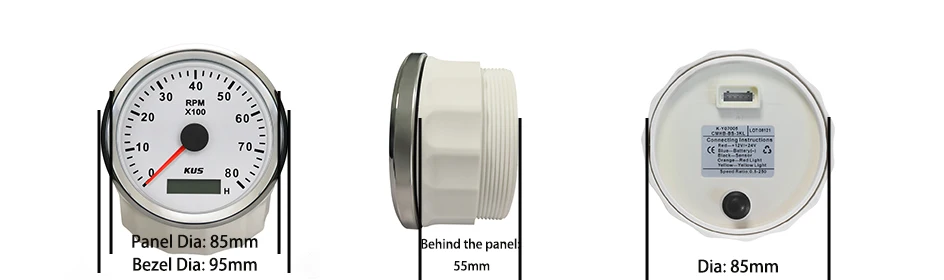

Installation Dimension: 85mm

Interchange Part Number: 000

Item Height: 55MM

Item Length: 85MM

Item Weight: 0.4KG

Item Width: 85MM

Manufacturer Part Number: KY

Material: stainless steel with plastic

Origin: Mainland China

Package: White Box

Placement on Vehicle: FRONT

Special Features: NO

Warranty: one year

Working Volt: 9-32V

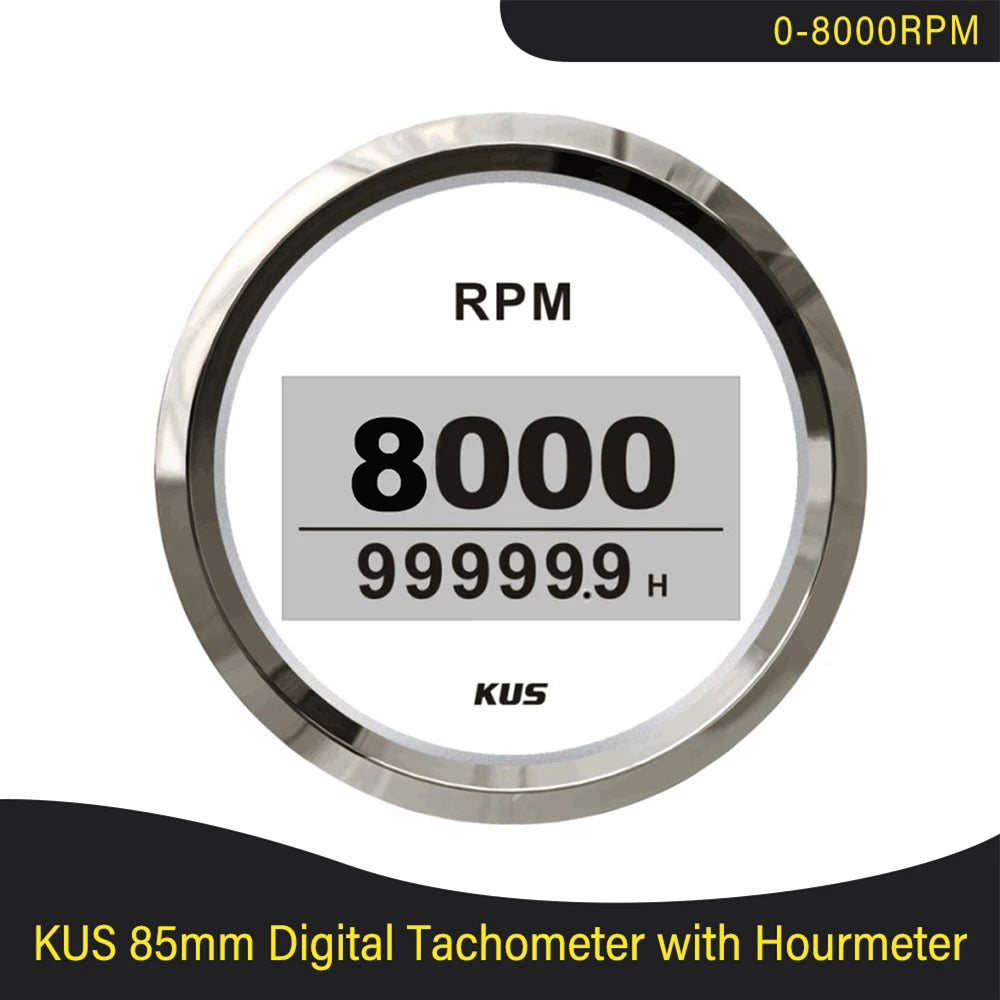

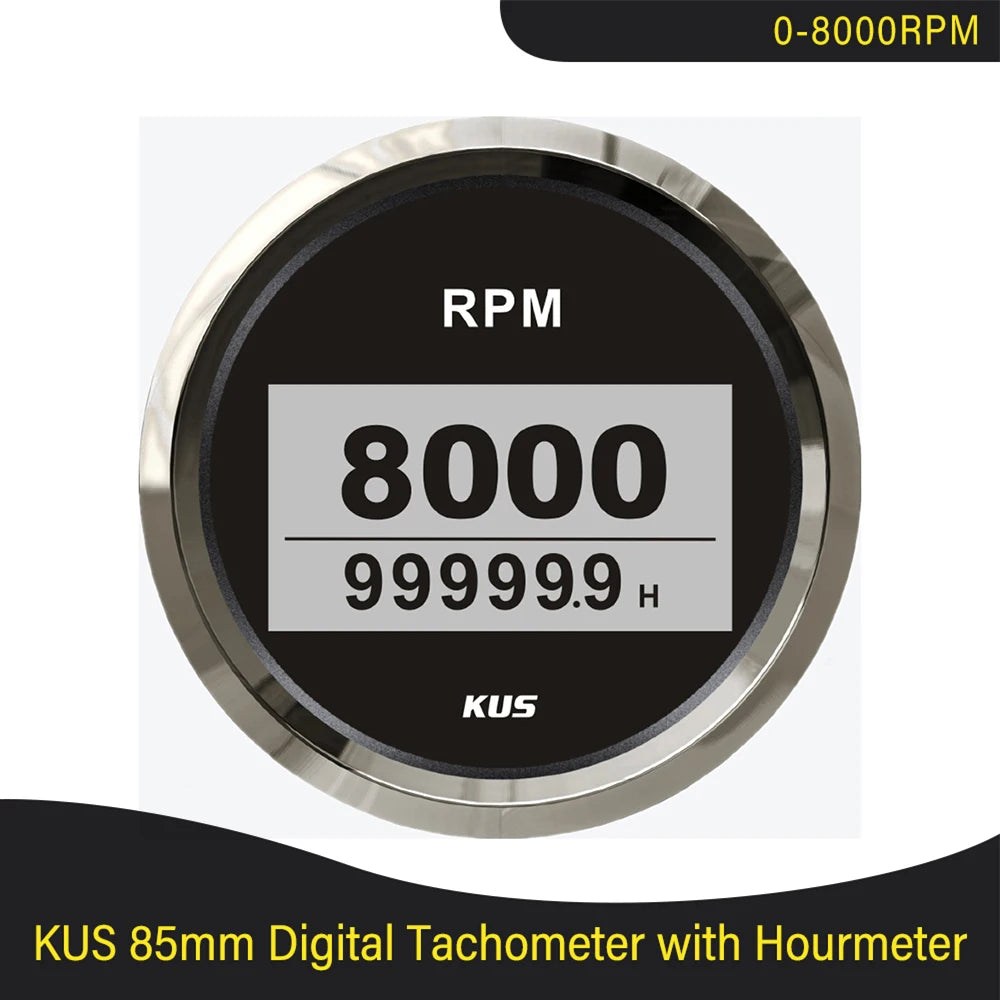

Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display engine RPM, and with the LCD display clear display hour, with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on

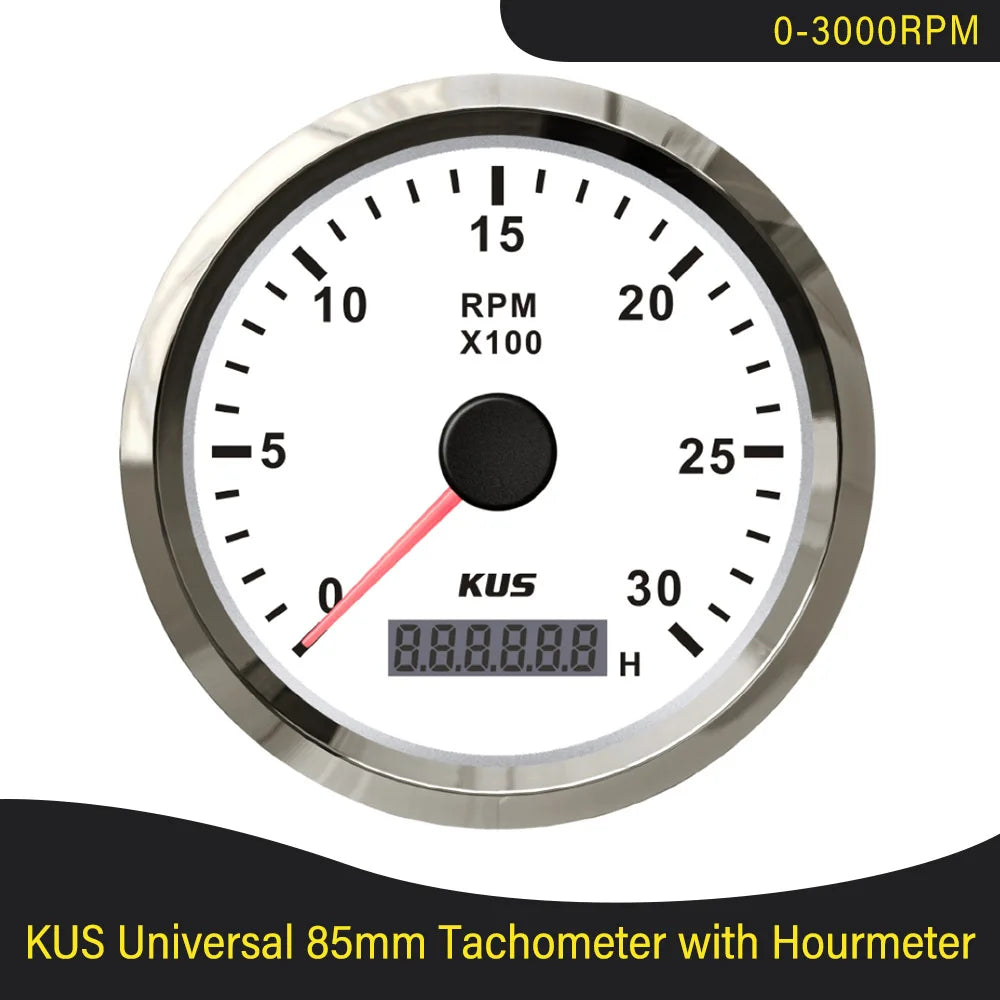

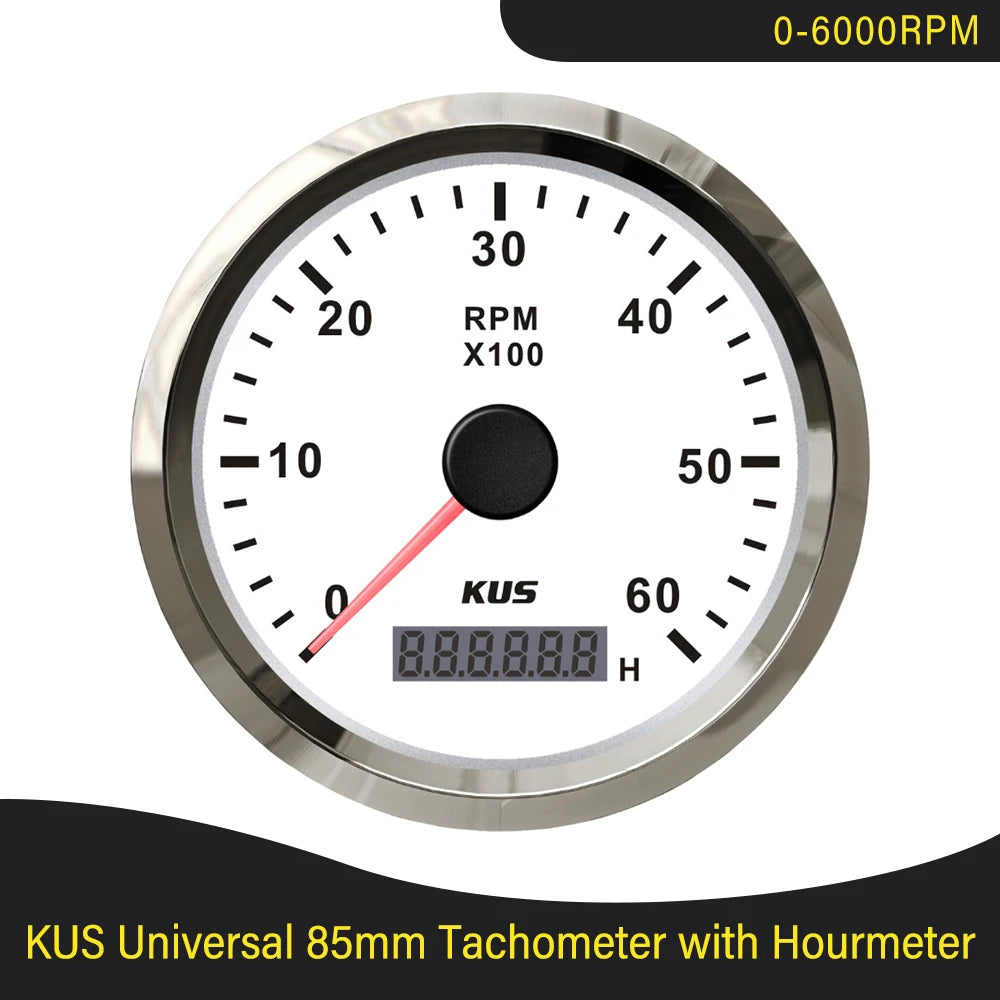

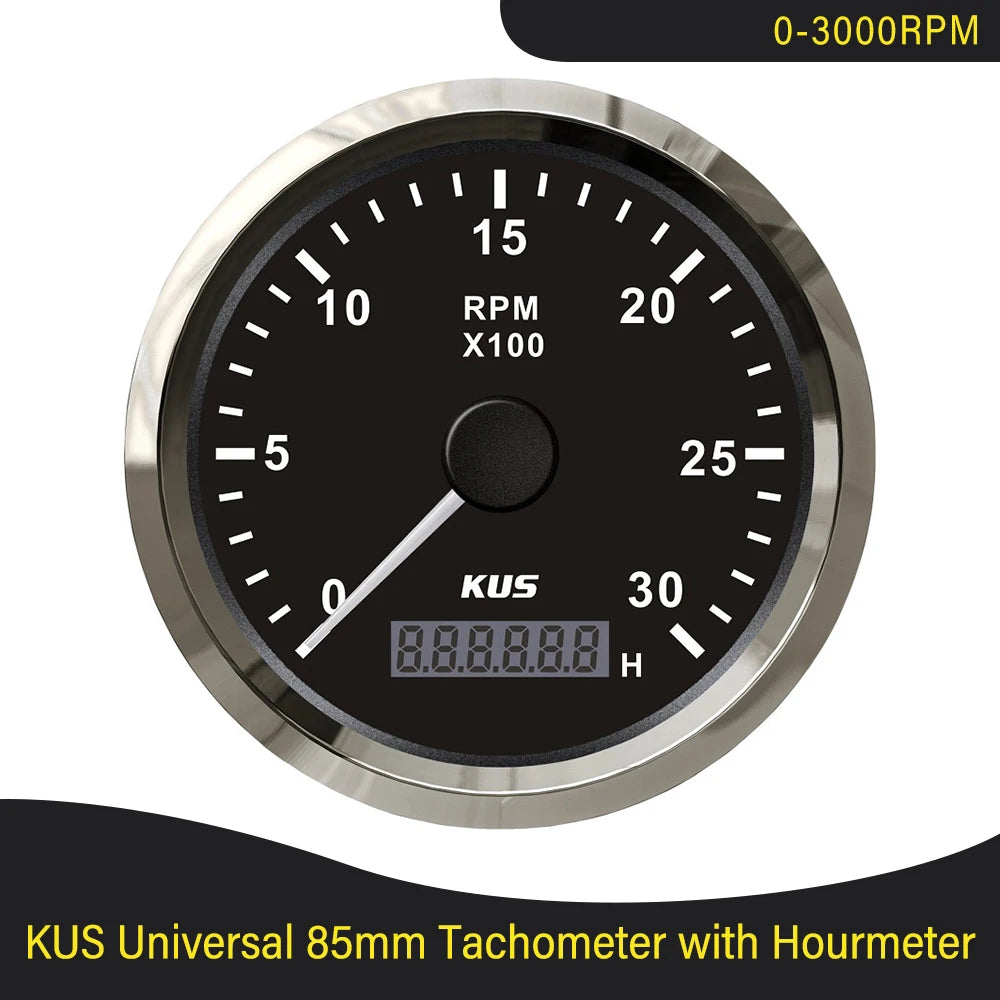

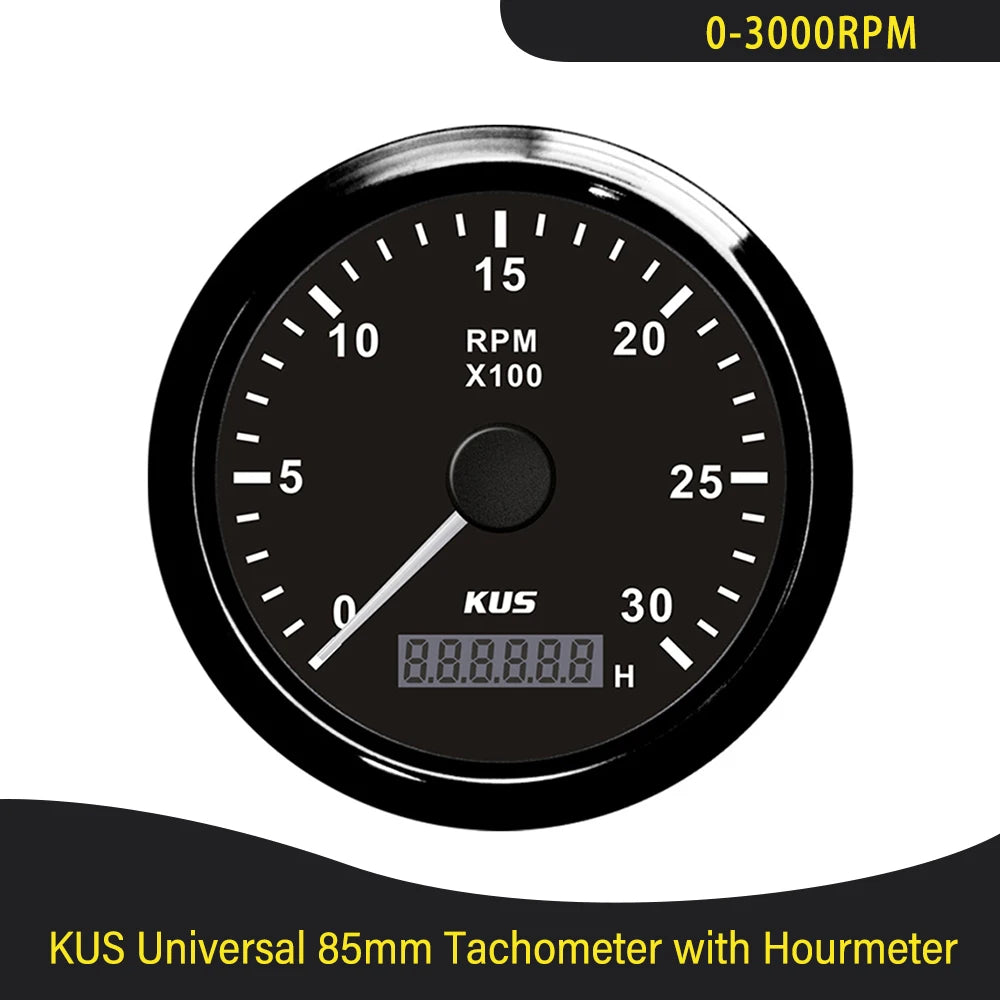

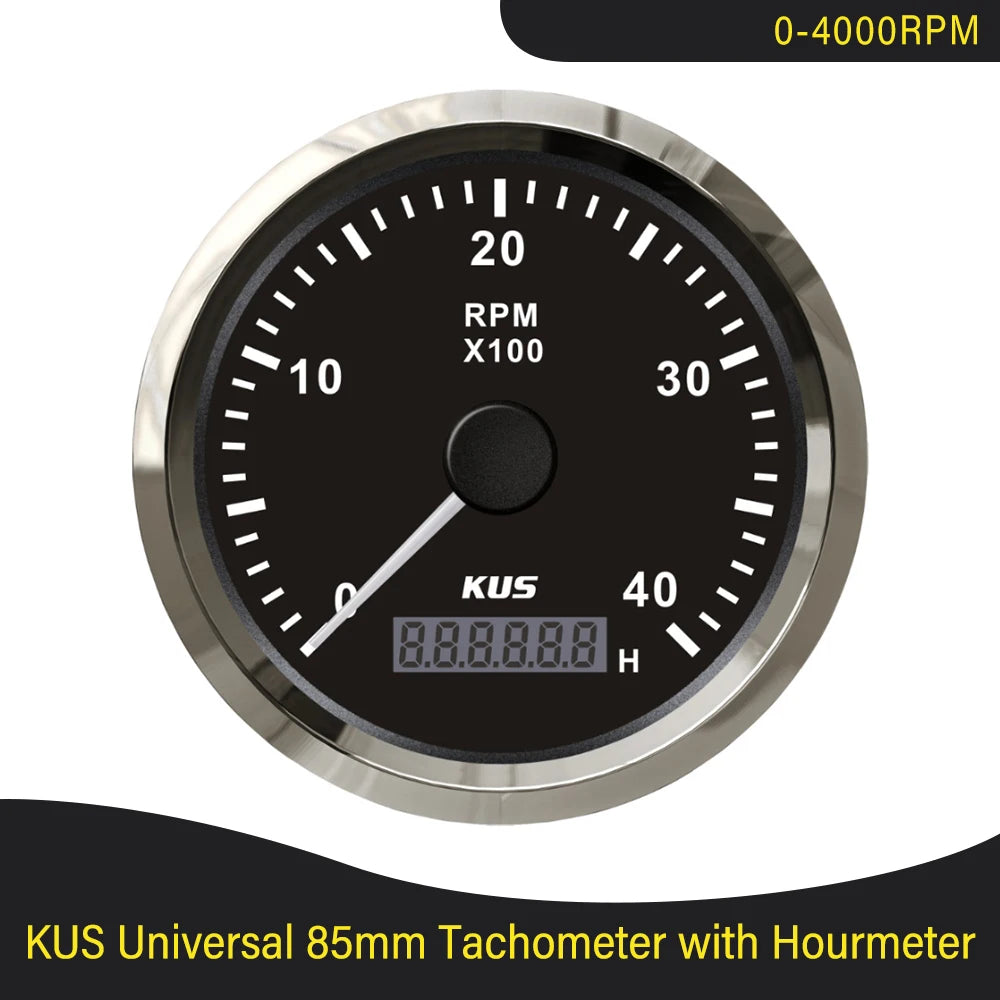

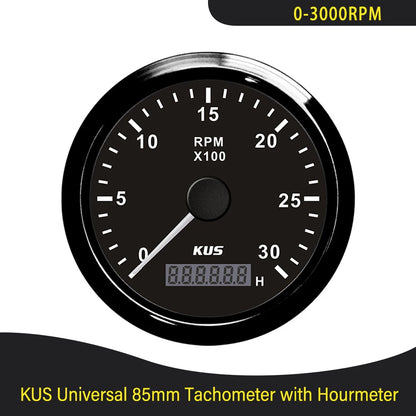

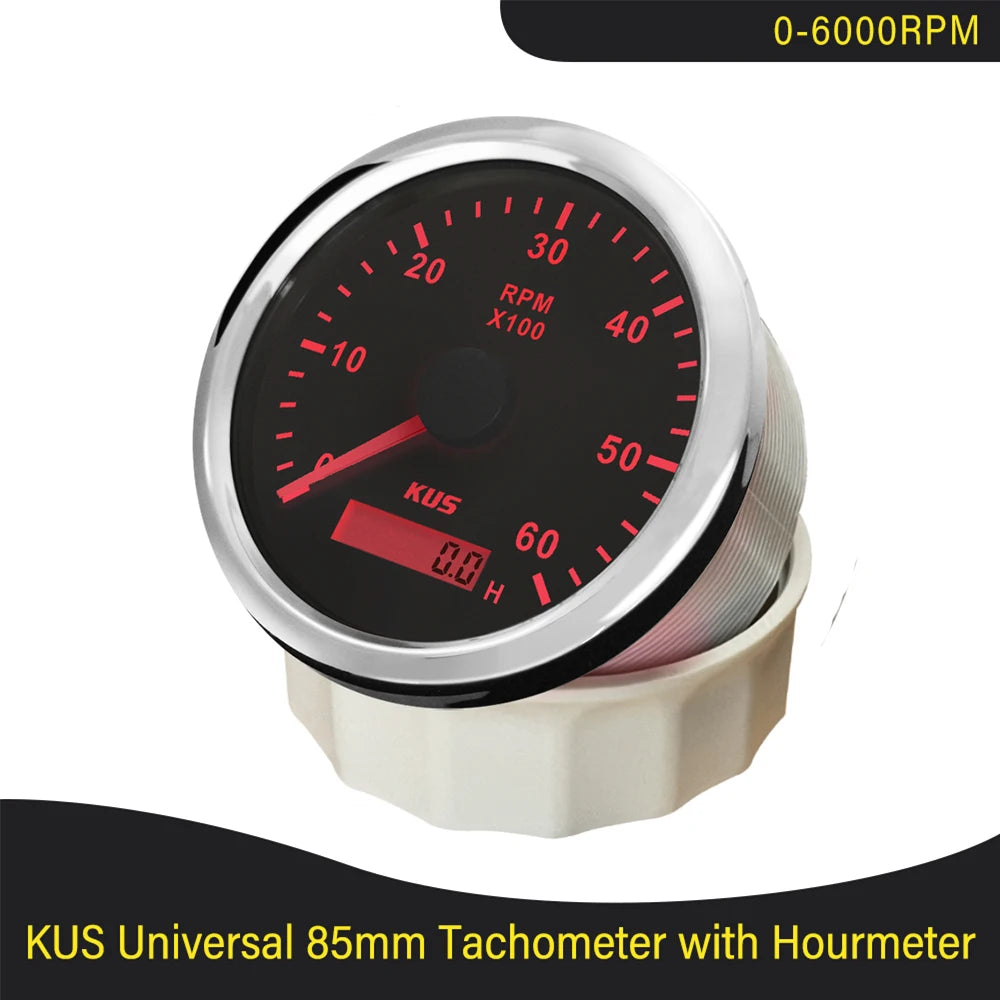

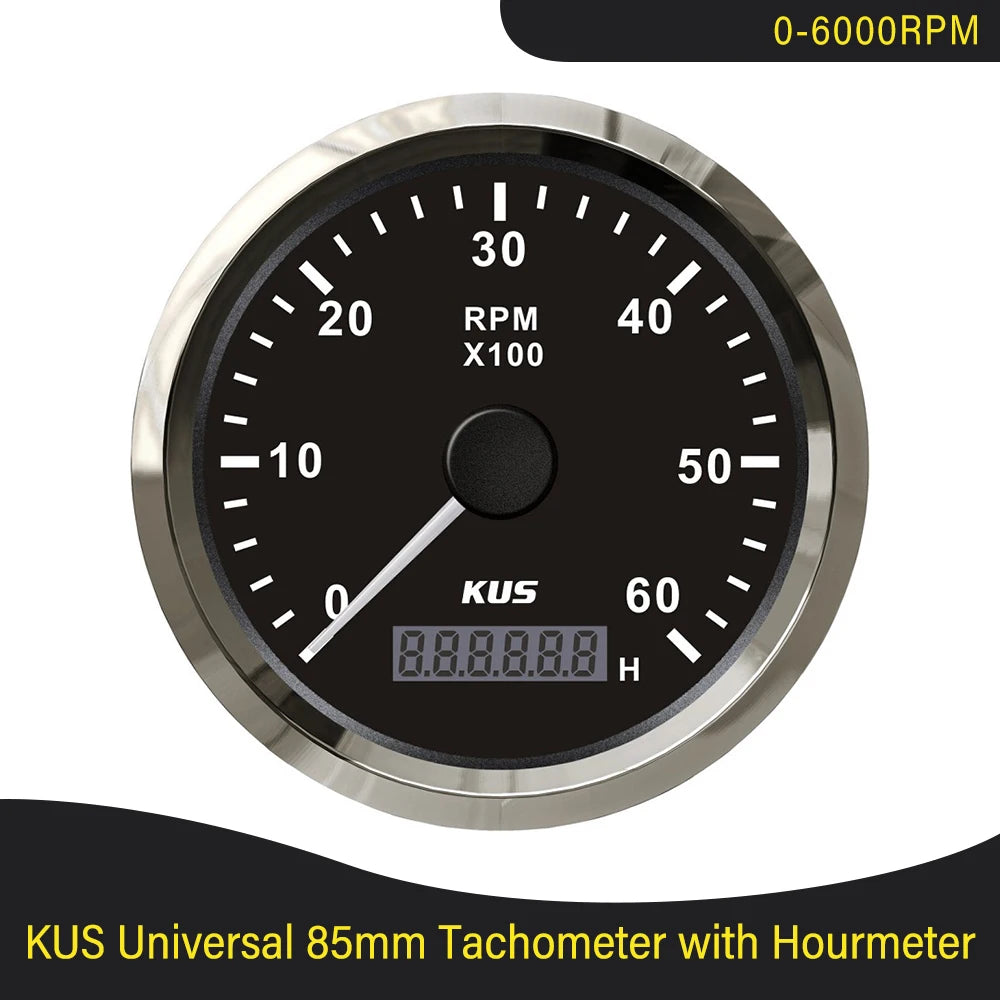

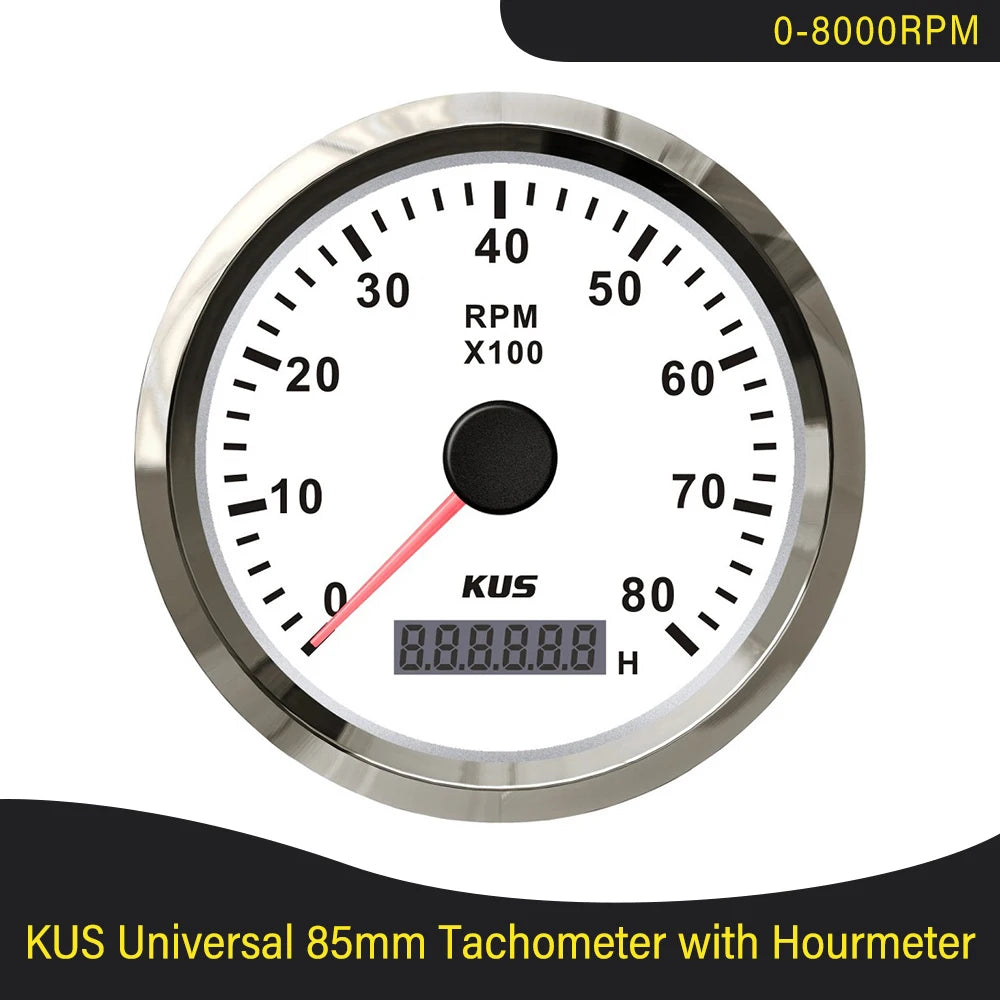

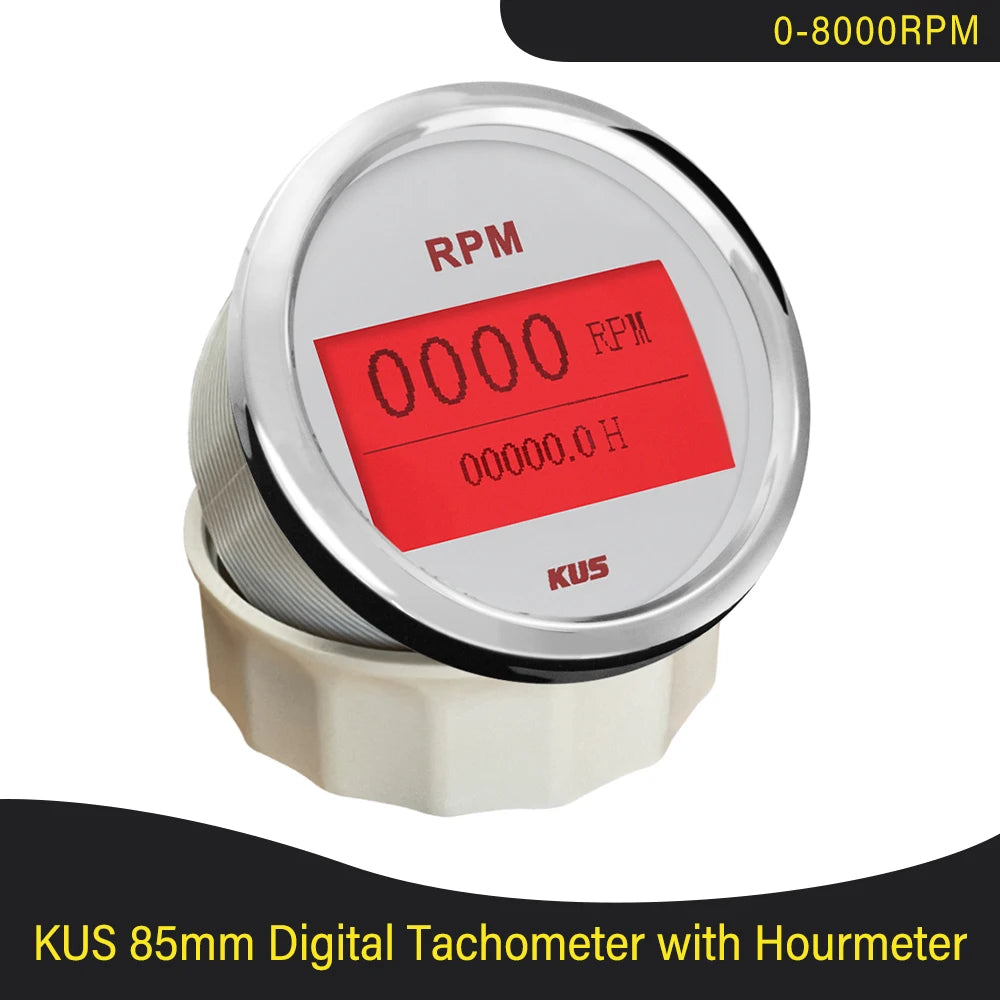

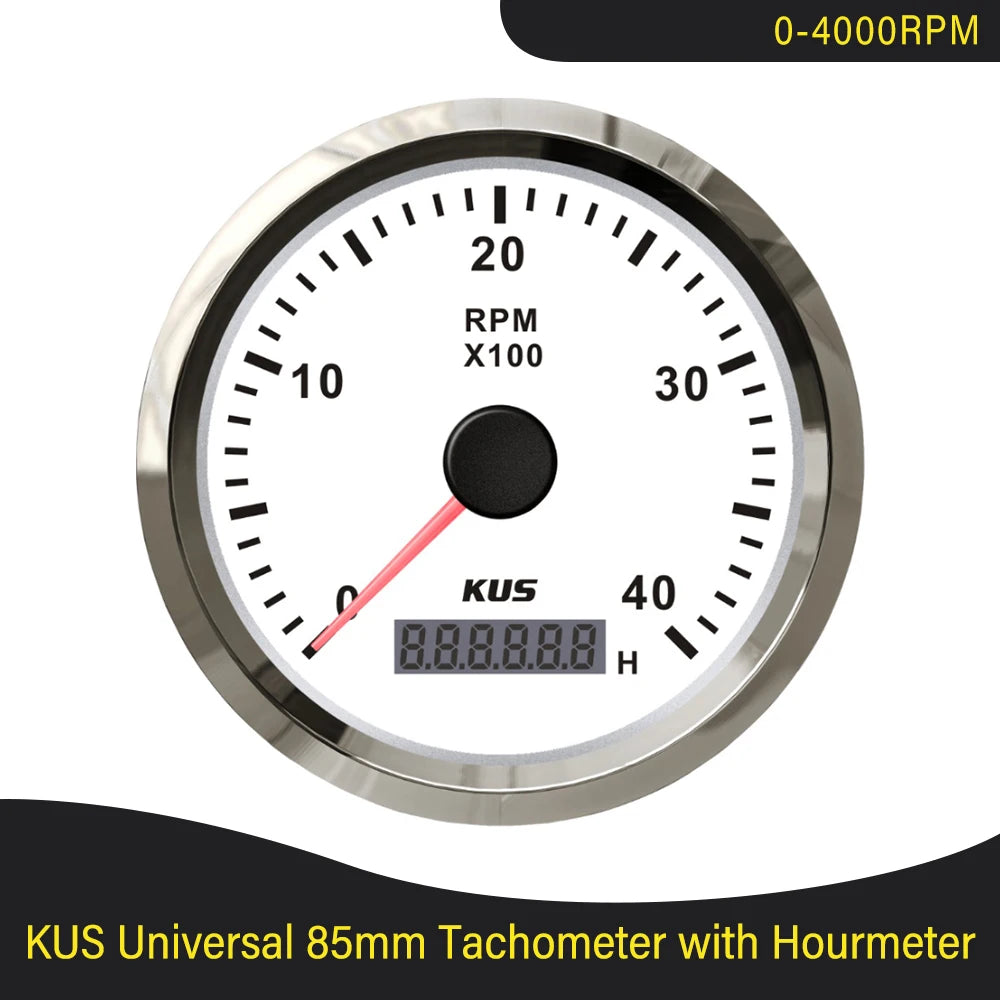

Tachometer using stepper motor drive pointer, accurate display of the engine RPM, and with the LCD display clear display hour

Name: Tachometer

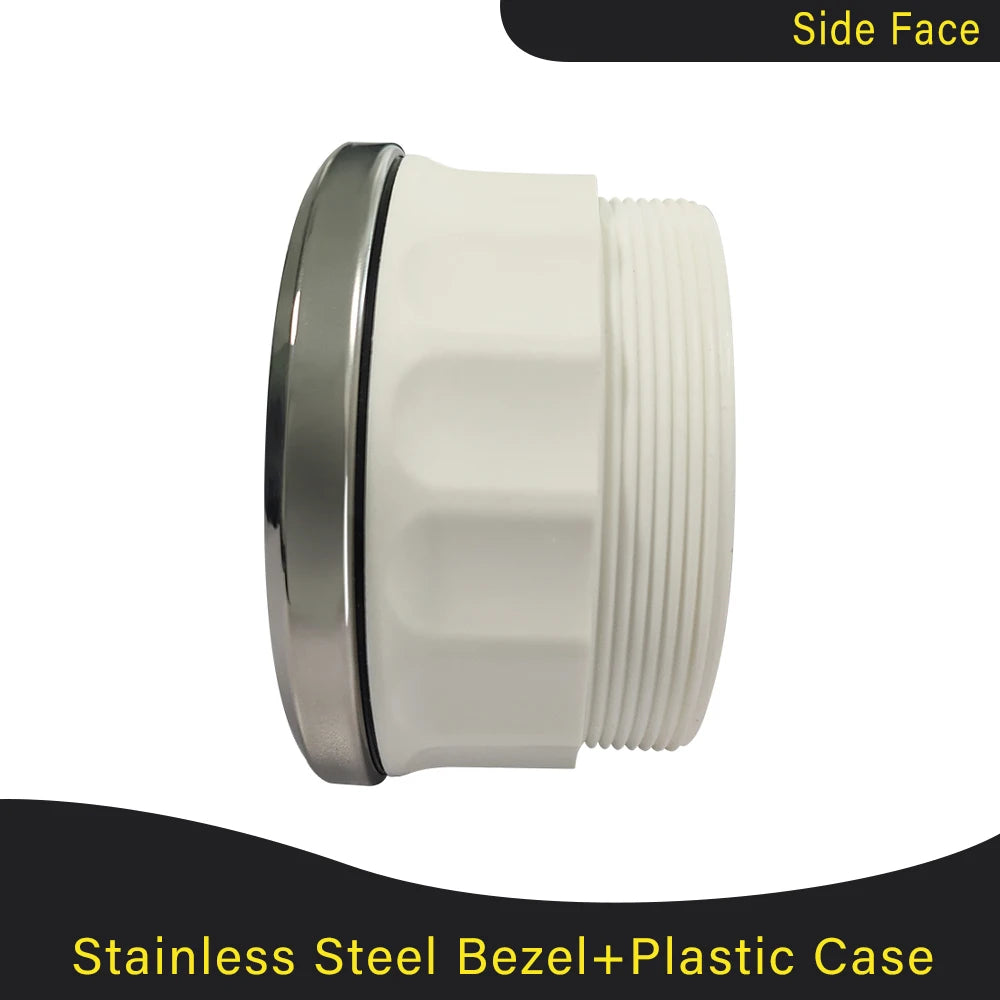

Materials: stainless steel+nickel-plated plastic

Operating Voltage: 12V/24V

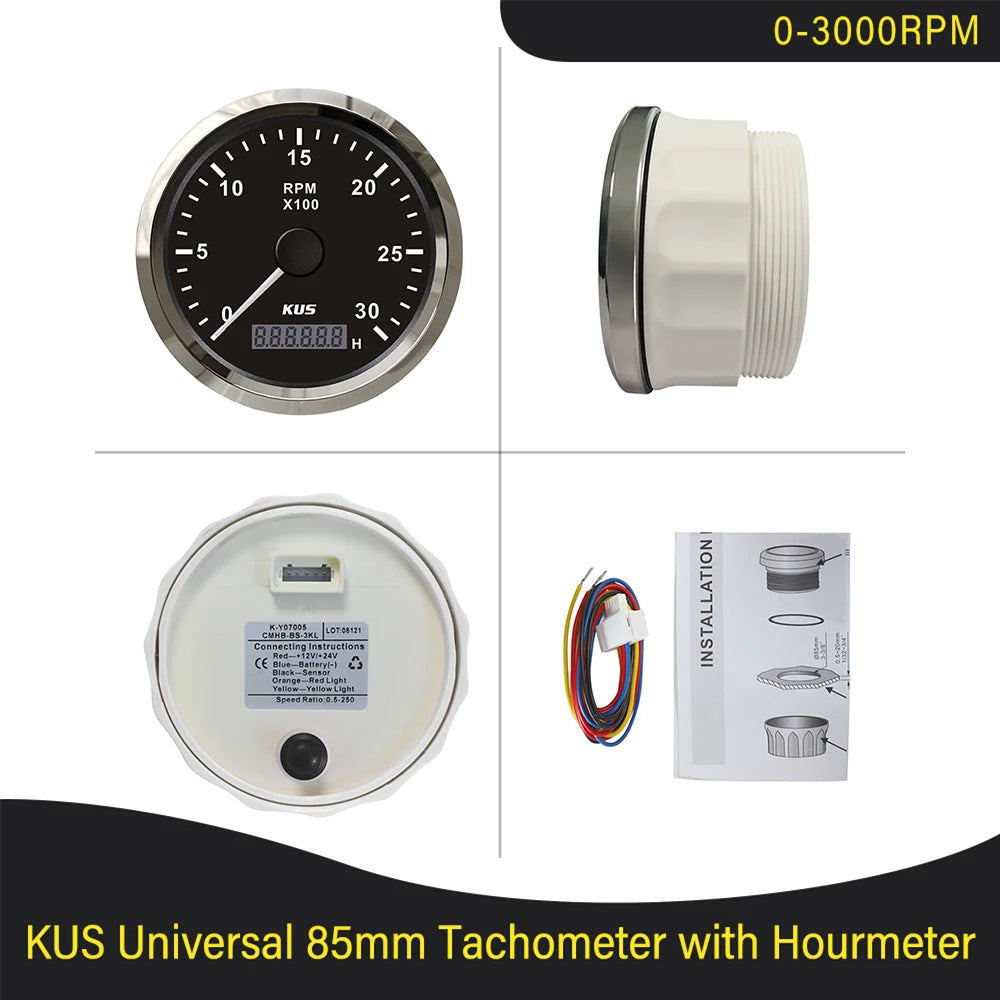

Connection: Red-Battery(+9-32VDC) Blue-Battery(-) Black-Signal Orange/Yellow-Backlight(+9-32VDC)

Indicating Range: 0-3000RPM 0-4000RPM 0-6000RPM 0-8000RPM

Input Signal: Pulse Signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.

Adjustable speed ratio: 0.5-250 for 0-3000RPM, 0-4000RPM, 0-6000RPM / 1.0-10.0 for 0-8000RPM

Protection Class: IP67, can work underwater 1m position

1 x Tachometer  1 x Cable  1 x Installation Instructions

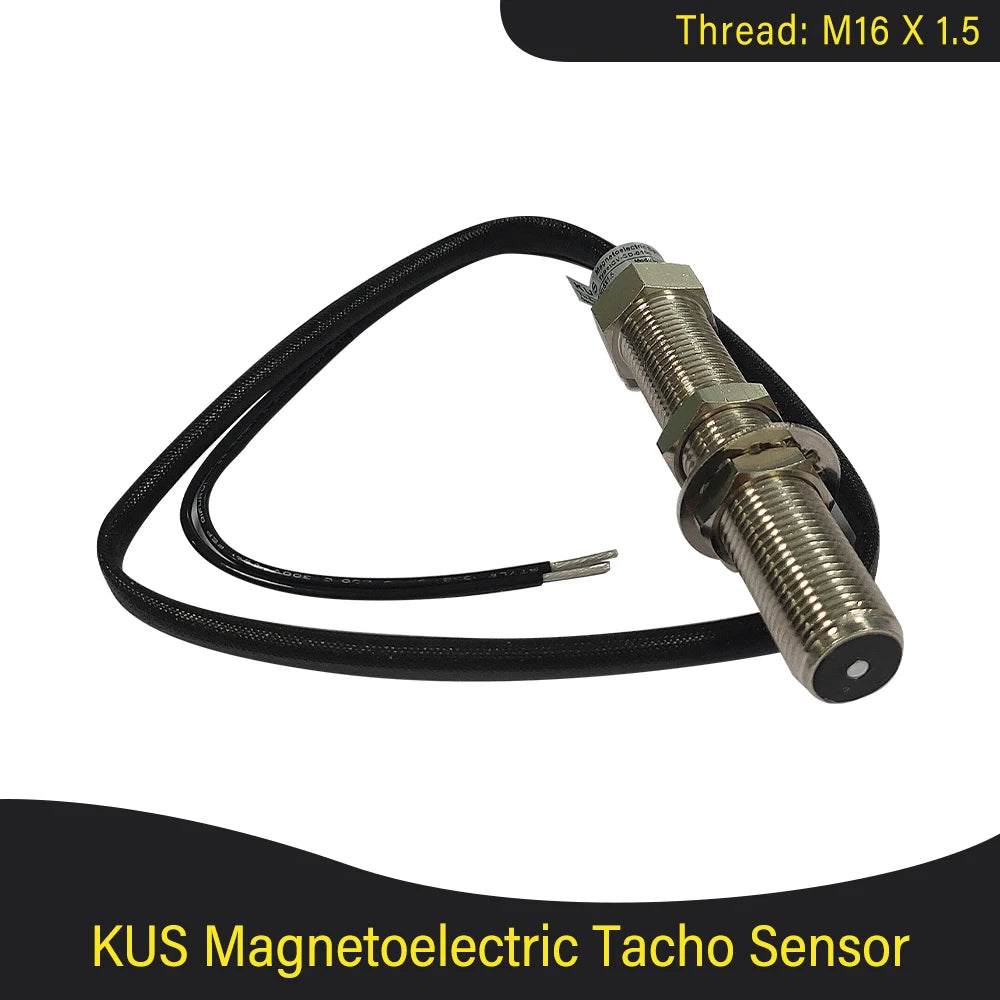

Be used for gear rotation speed measurement

Combining the advantages of stable signal, wide range of operating temperature, small size, simple assembly, etc.

It covers a wide range of measurement, and it is able tomeasure the zero rotation speed

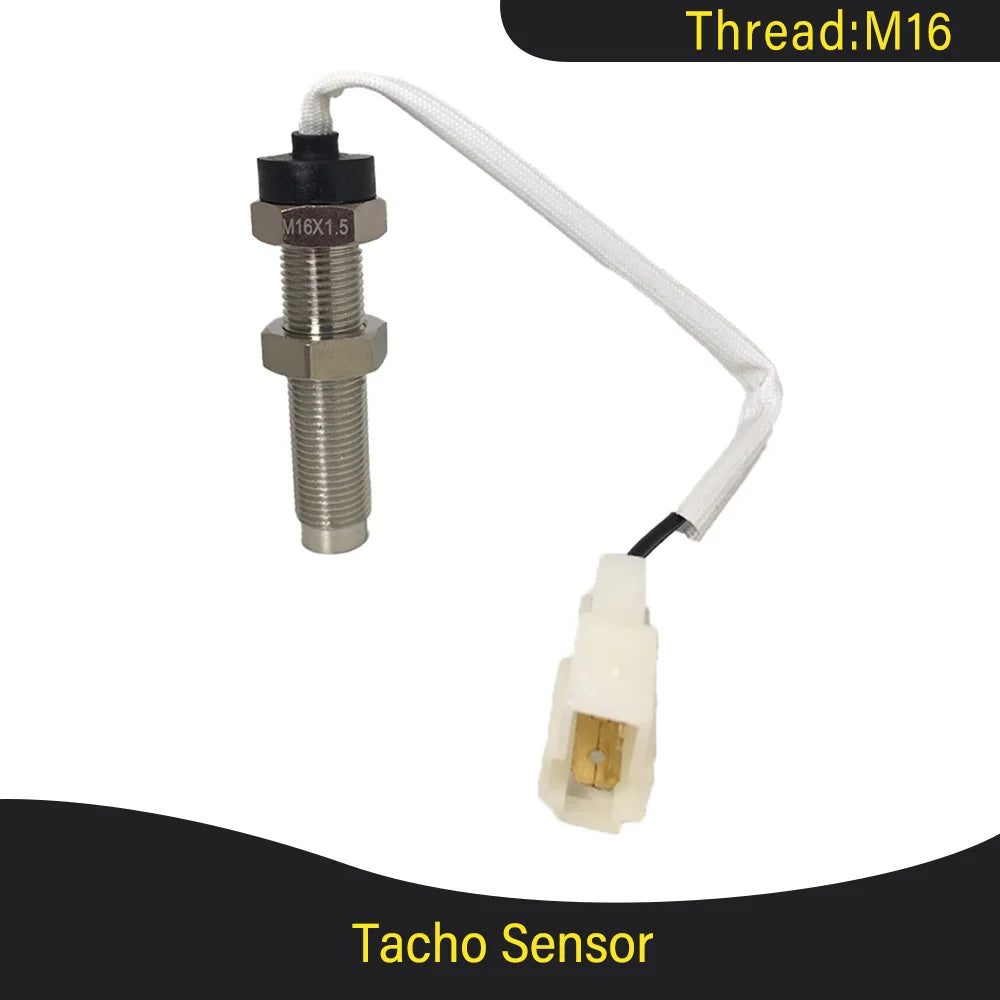

-M16*1.5 (2-wires)

Operating temperature: -40 ~85℃

Output signal: sine wave

Signal duty factor: 47±5%

Inductance distance: less than 1mm

Tooth module: 2~6

Connecting way: two wires

Protection rank: IP65

Length: L=100MM L1=80MM

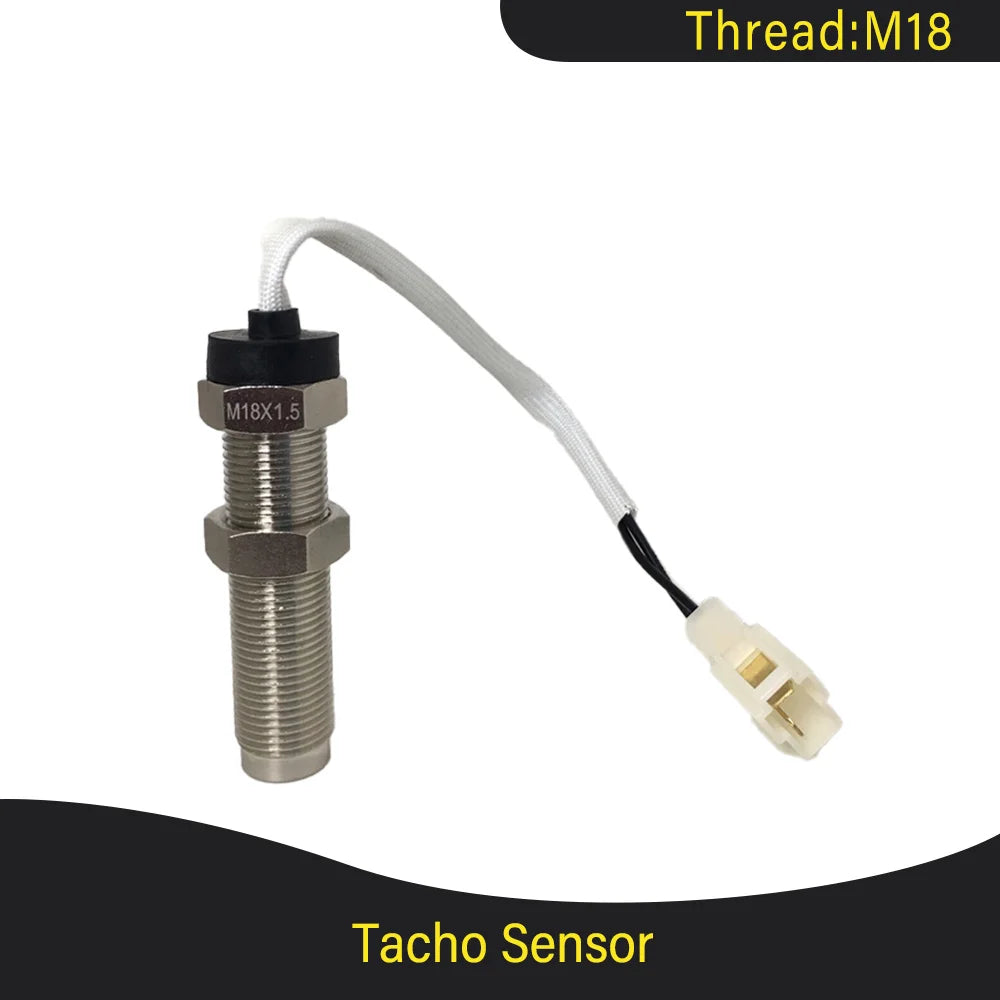

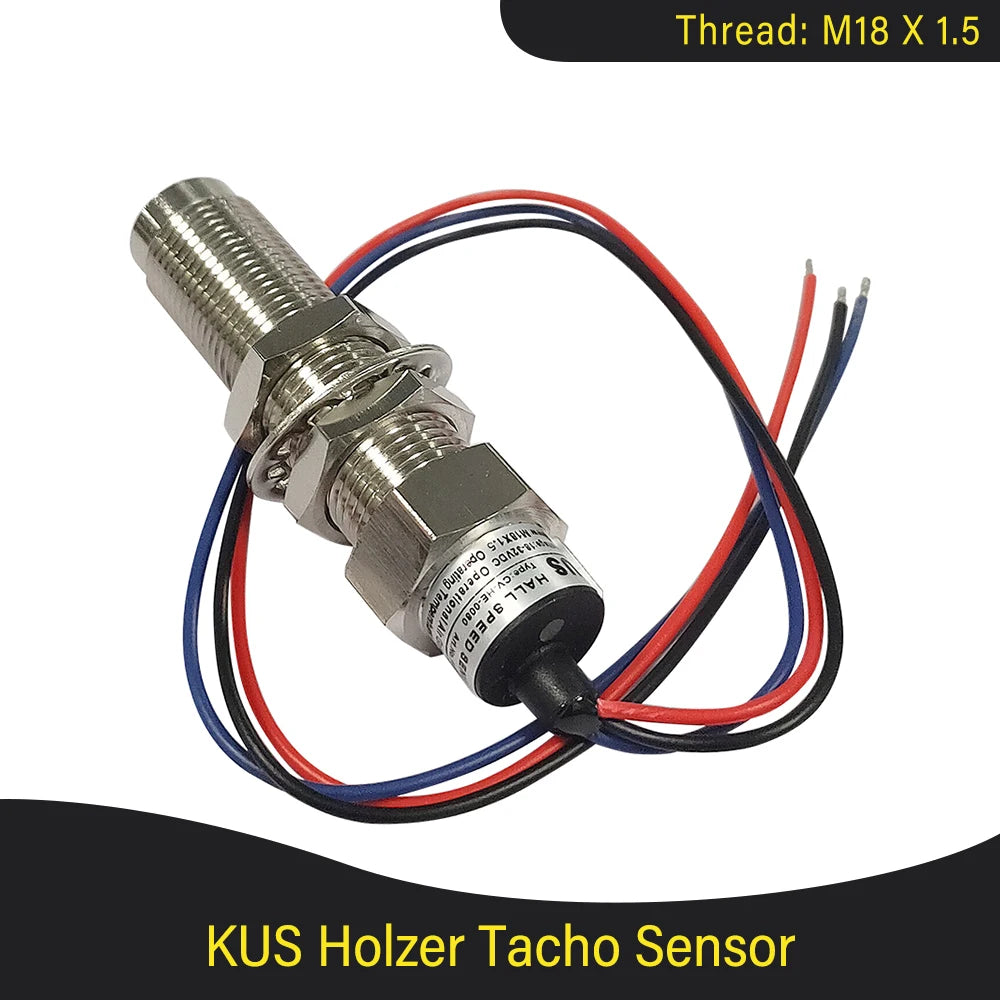

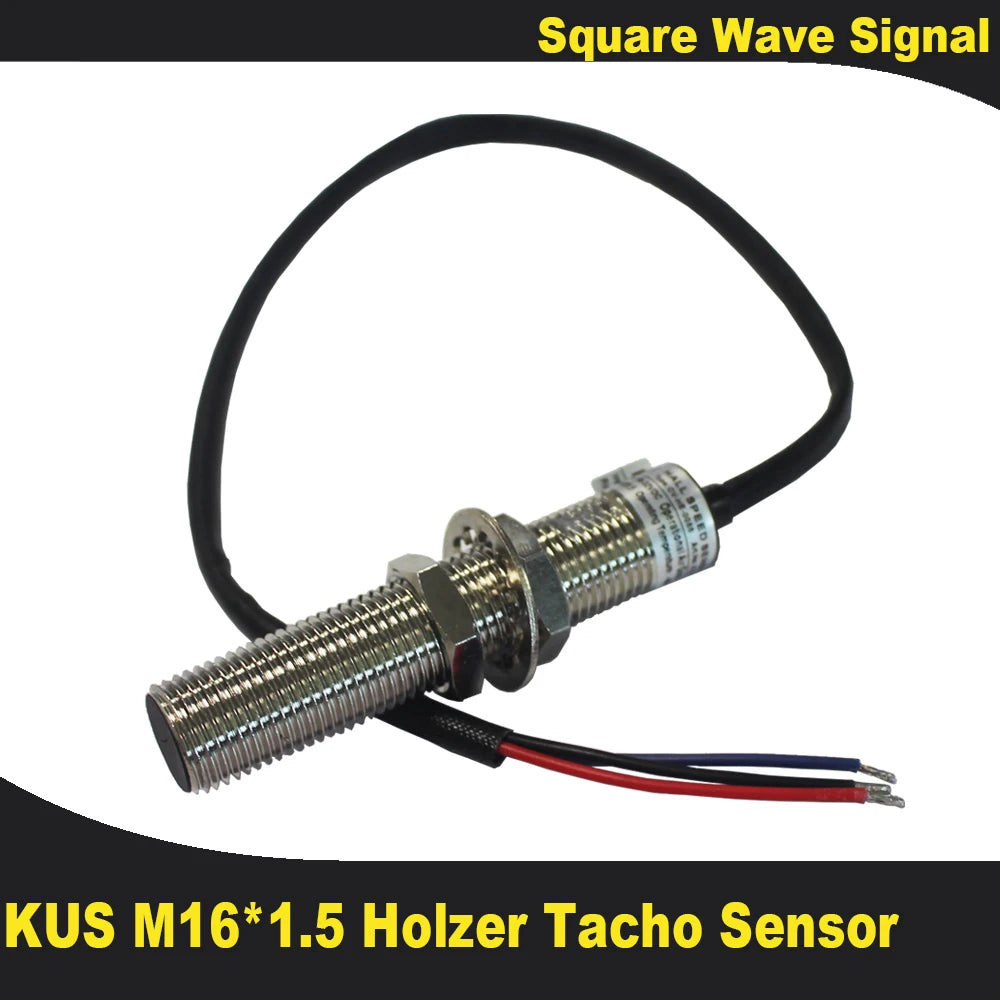

-M18*1.5 M16*1.5 Holzer Tacho (3-wires)

Operating temperature: -40 ~85℃

Output signal: square wave

Inductance distance: less than 2mm

Operating voltage: 8~32V with polarity protection

Connecting way: three wires

Protection rank: IP65

Length: L=80MM L1=60MM

M16*1.5   M18*1.5

Operating Temperature: -40  to 85℃

Output Signal: Sine Wave

Signal Duty Factor: 47±5%

Inductance Distance: Less than 1mm

Tooth Module: 2~6

Connecting Way: Two Terminals connection
