QXNY 24V Wireless Solar Charging 4 Parking Sensors Kit Backup Radar Rear Parktronic for Truck Pickup Van Fifth Wheel RV Camper

QXNY 24V Wireless Solar Charging 4 Parking Sensors Kit Backup Radar Rear Parktronic for Truck Pickup Van Fifth Wheel RV Camper

Regular price $181.23 AUD
Regular price $183.21 AUD Sale price $181.23 AUD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: QXNY

Certification: FCC

Choice: yes

Connection method: Wireless

High-concerned chemical: None

IS It With PCB: No

Material: ABS

Model Name: Wireless Solar Charging

Monitor: Solar Charging

OSD Language: Chinese (Simplified),English

Operating Voltage: 12V/24V

Origin: Mainland China

Signal receiving range: 50 M

Talk Range: 0.3M ~ 2..3M

Type: Invisible



Your Choice?
Choose Us (Solar & Wireless):
Save time and effort, with zero cabin wires! The display powers by the sun and connects wirelessly to the main unit. No car dismantling, perfect interior preservation, and no risk of rattles from installation.
Choose Traditional Wired:
Difficult installation, your car suffers! tedious dismantling and wiring not only waste time but also damage your interior, creating the root cause of future rattles and squeaks.

The choice is clear.
Want to save time, avoid hassle, and keep your interior absolutely pristine?
→ Choose Us Without Hesitation!


Characteristics of solar wireless reversing radar
1:It is an upgraded version, it is common for truck, working voltage is 12V/24V

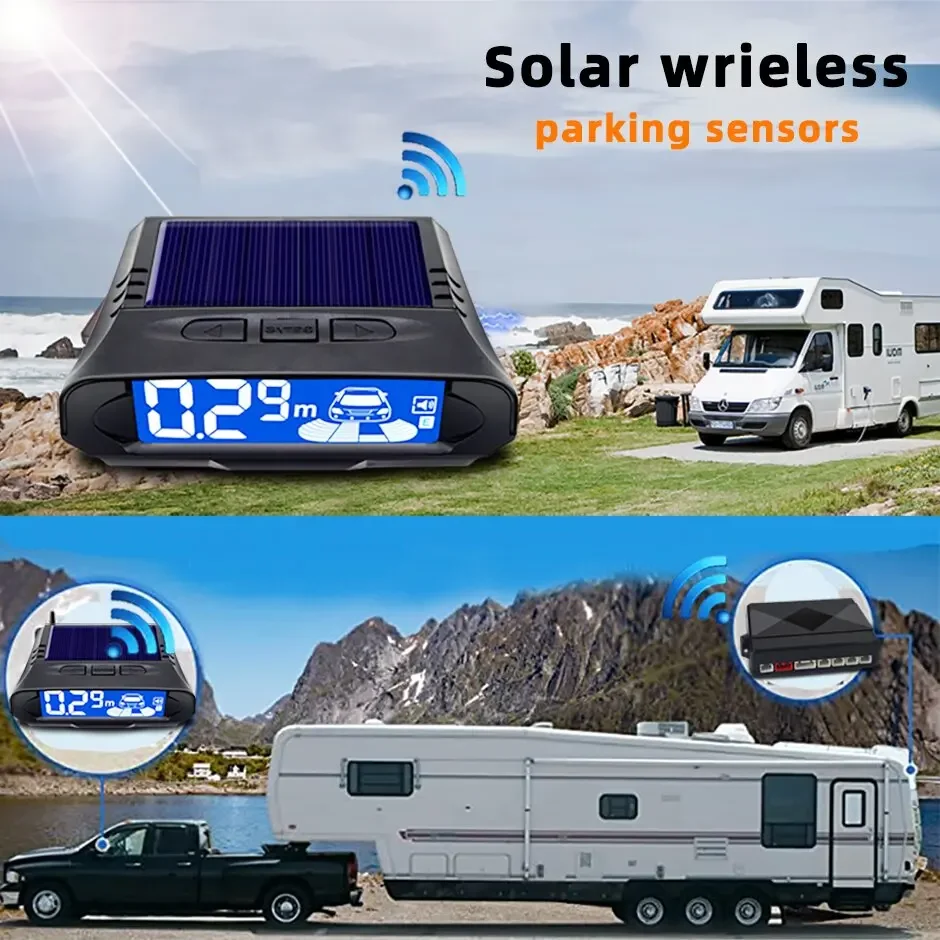

2:The display powers by the sun and connects wirelessly to the main unit.
3:4 alarm sound modes can be switched, Adjustable volume
4: Rate current: 100mA - 300mA
5:Ultrasonic frequency: 40KHz
6:Control moudle working temperature: -30 - 80 celcius degree
7:Display working temperature: -20 - 70 celcius degree
8:Sensor diameter: 22mm
9: Installation mode: Drilling
10: Sensor detection distance: 0.3M~2.3M

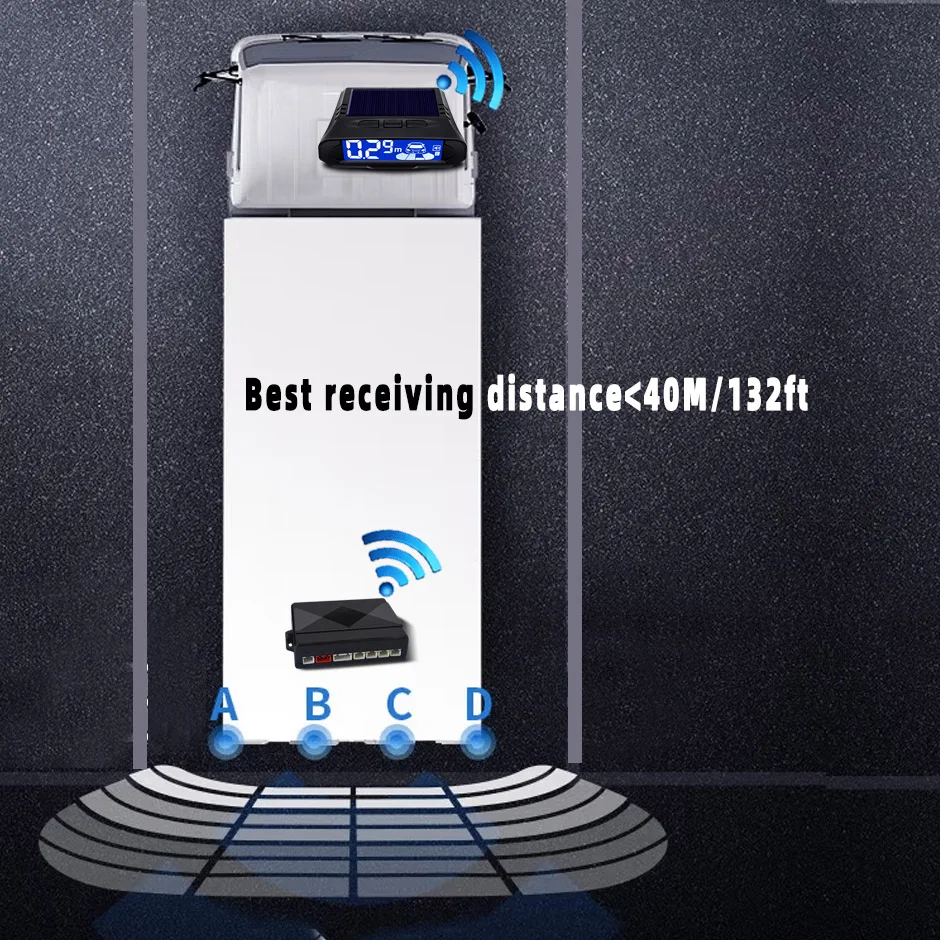

11:Maxreceiving distance 50M/164ft

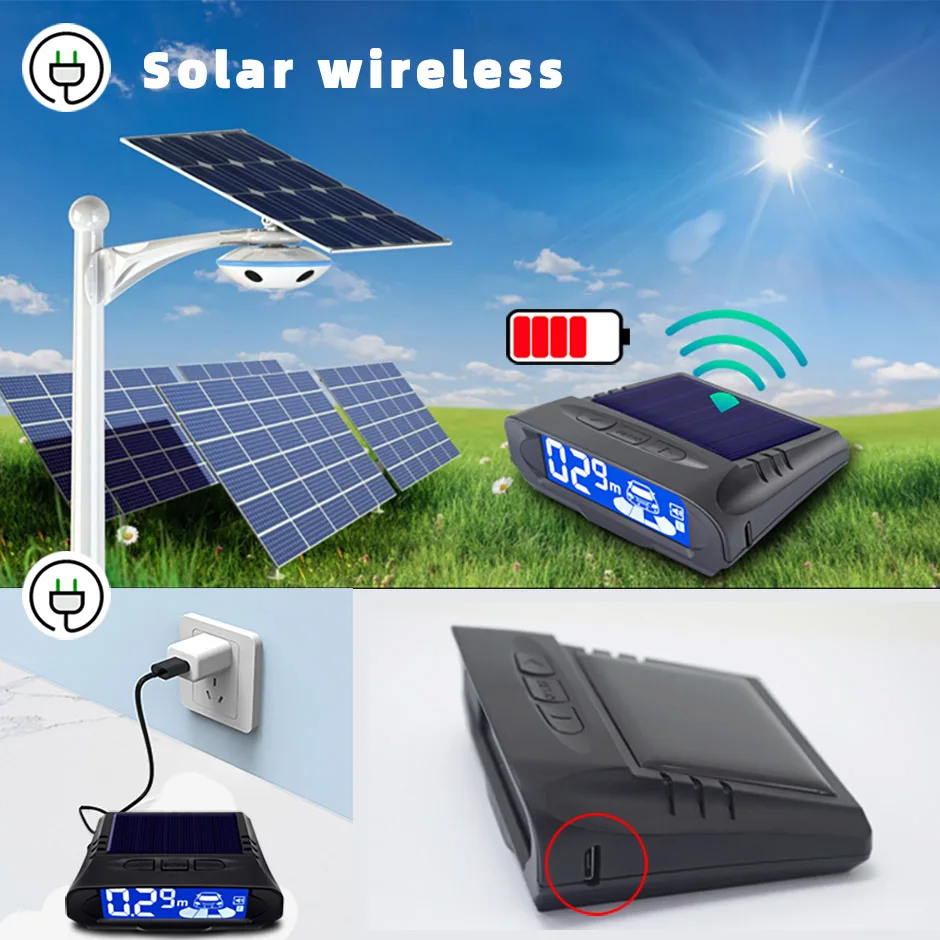

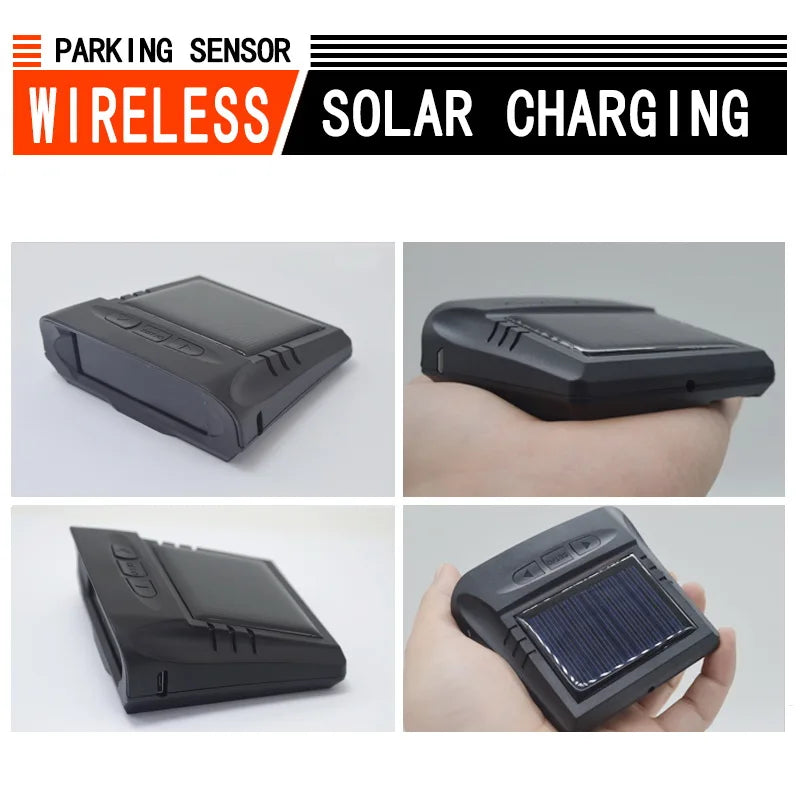

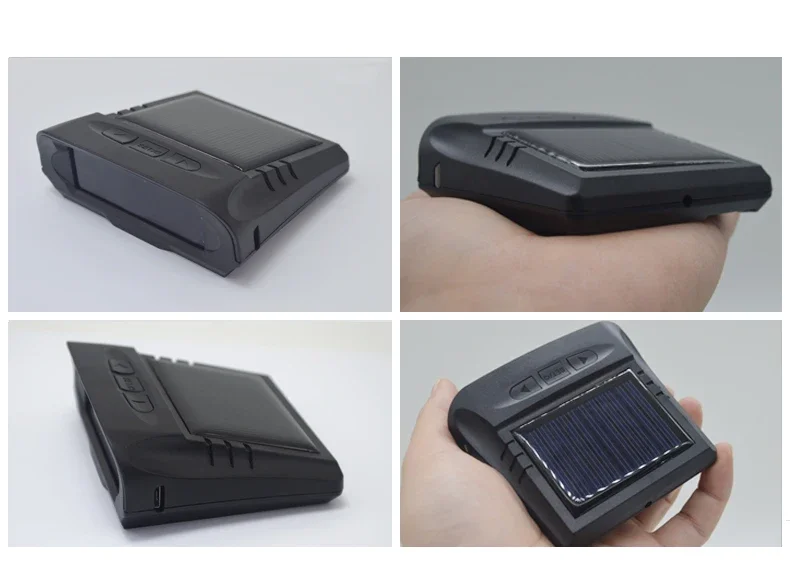

Solar automatic charging
The display has a built-in 600mAh battery, which does not require additional charging via a data cable under normal use.
When reversing, the monitor automatically starts up and goes into sleep mode when reversing is completed, which is very energy-efficient!

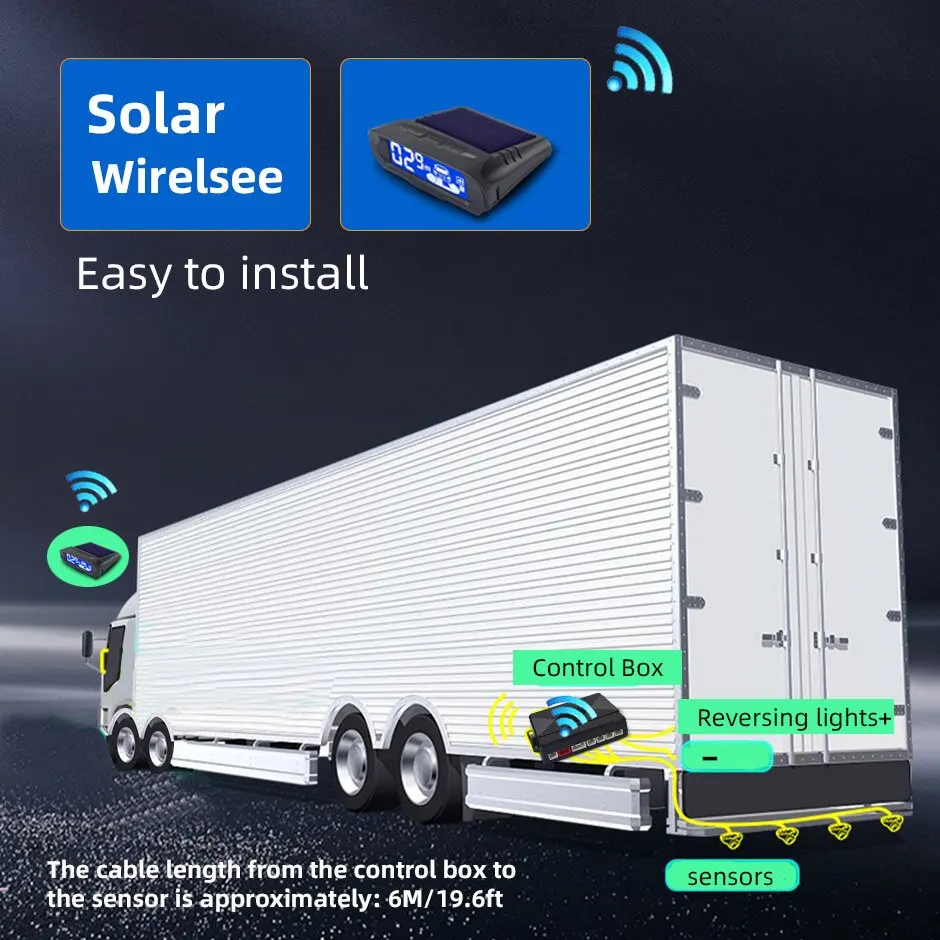

Connect the control box power supply to the reverse light  +/-

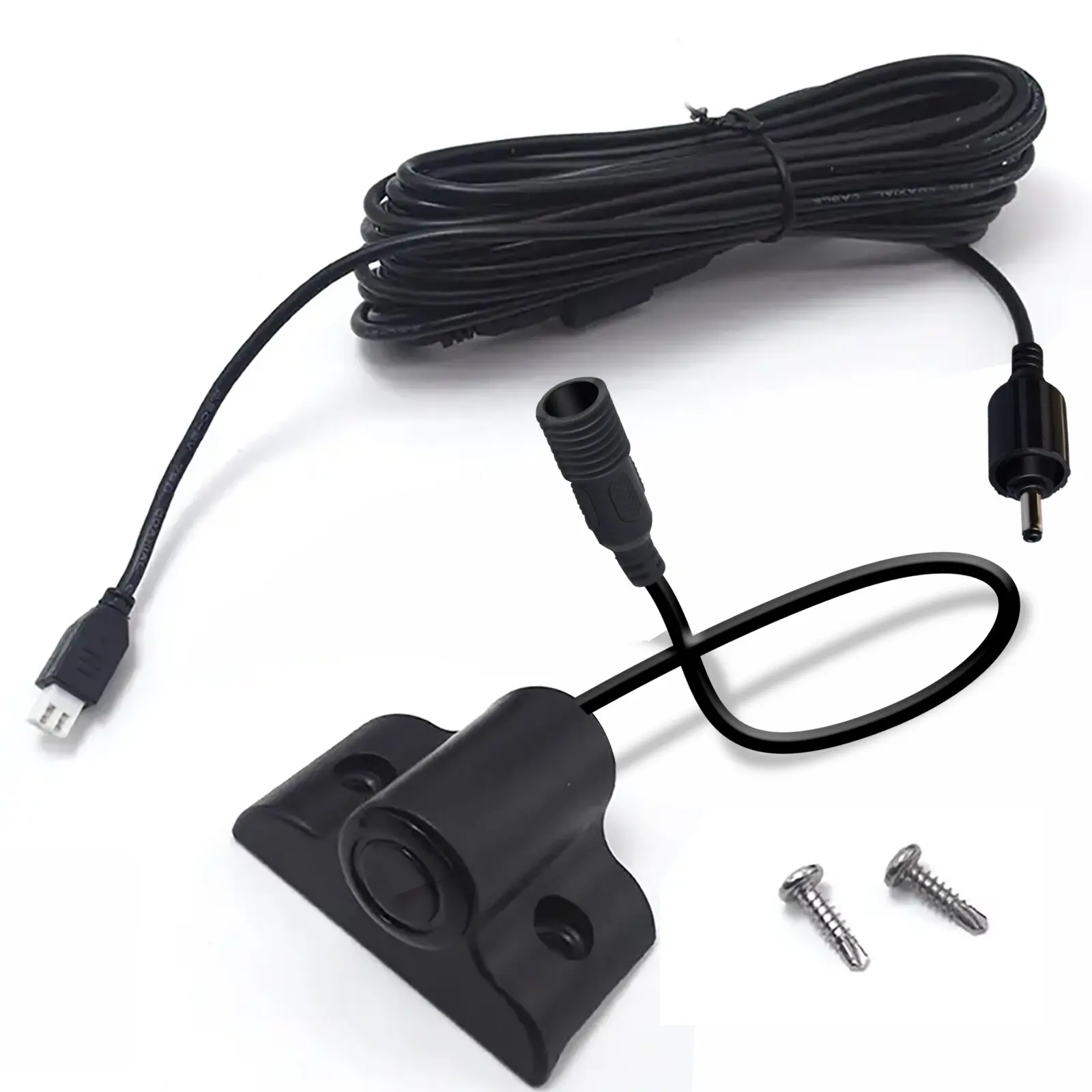

Cable length from control box to sensor: 6M/19.6ft

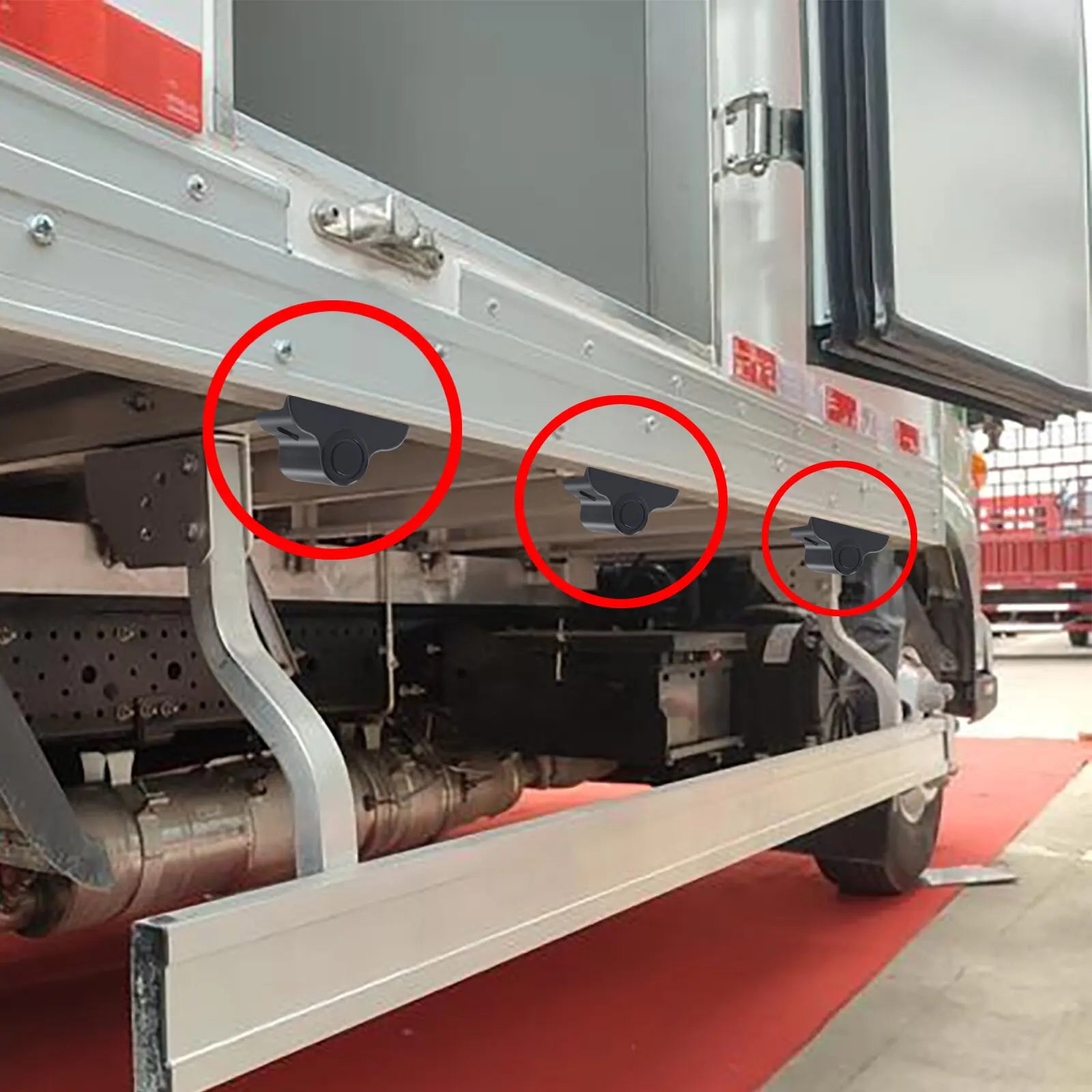

Sensor Installation Requirements
1: Rear installation height must exceed 50 cm .
2: Ensure the sensor surface is perpendicular to the ground.
Critical Note: The sensor must not detect the ground.
Error 1: Height less than 50 cm
Error 2: Surface not perpendicular to the ground
Error 3: Surface tilted

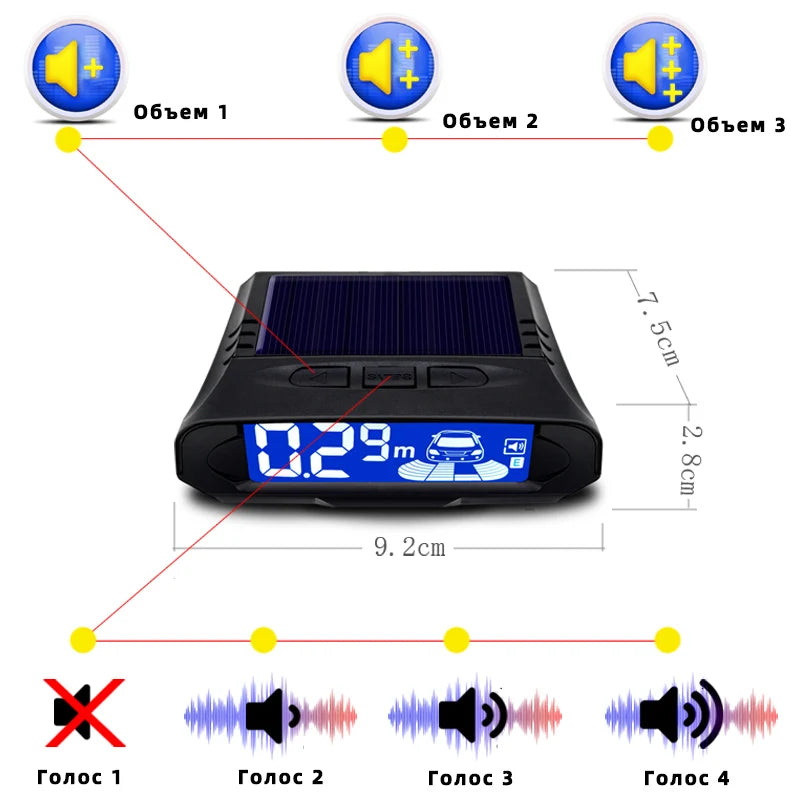

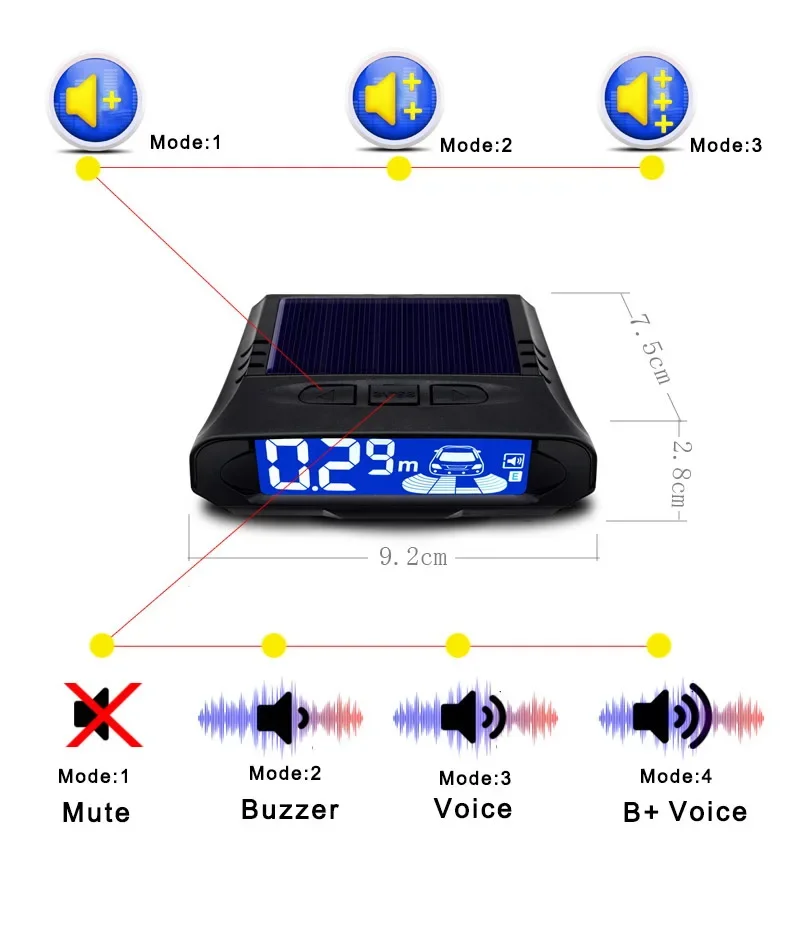

Product alarm 4 sound:
1: English voice
2:Buzzer and voice mixed alarm
3: Buzzer alarm(we strongly advise opting for audible beep alerts as your preferred warning method.)
4: Mute

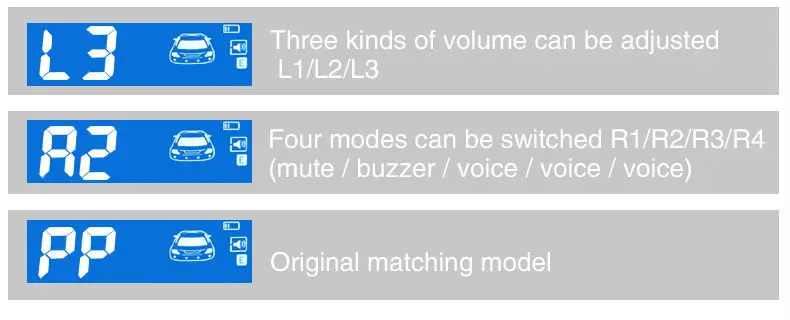

The volume can be set to L1/L2/L3 (low/medium/high)
Switching by keys on the display


Connect the control box power supply to the reverse light  +/-
Cable length from control box to sensor: 6M/19.6ft
