SPECIFICATIONS

Application: All 12V Vehicles

Brand Name: DRAGON GAUGE

Country/Region of Manufacture: China

High-concerned chemical: None

Interchange Part Number: Race Dashboard

Item Height: 10.2cm

Item Length: 18.6cm

Item Weight: 2KG

Item Width: 2.2cm

Manufacturer Part Number: DO928

Material: Plastic + Metal+LCD

Origin: Mainland China

Other Part Number: Dashboard Racing

Placement on Vehicle: Front

Special Features: Measure and display various data on the car

Warranty: 1 Year

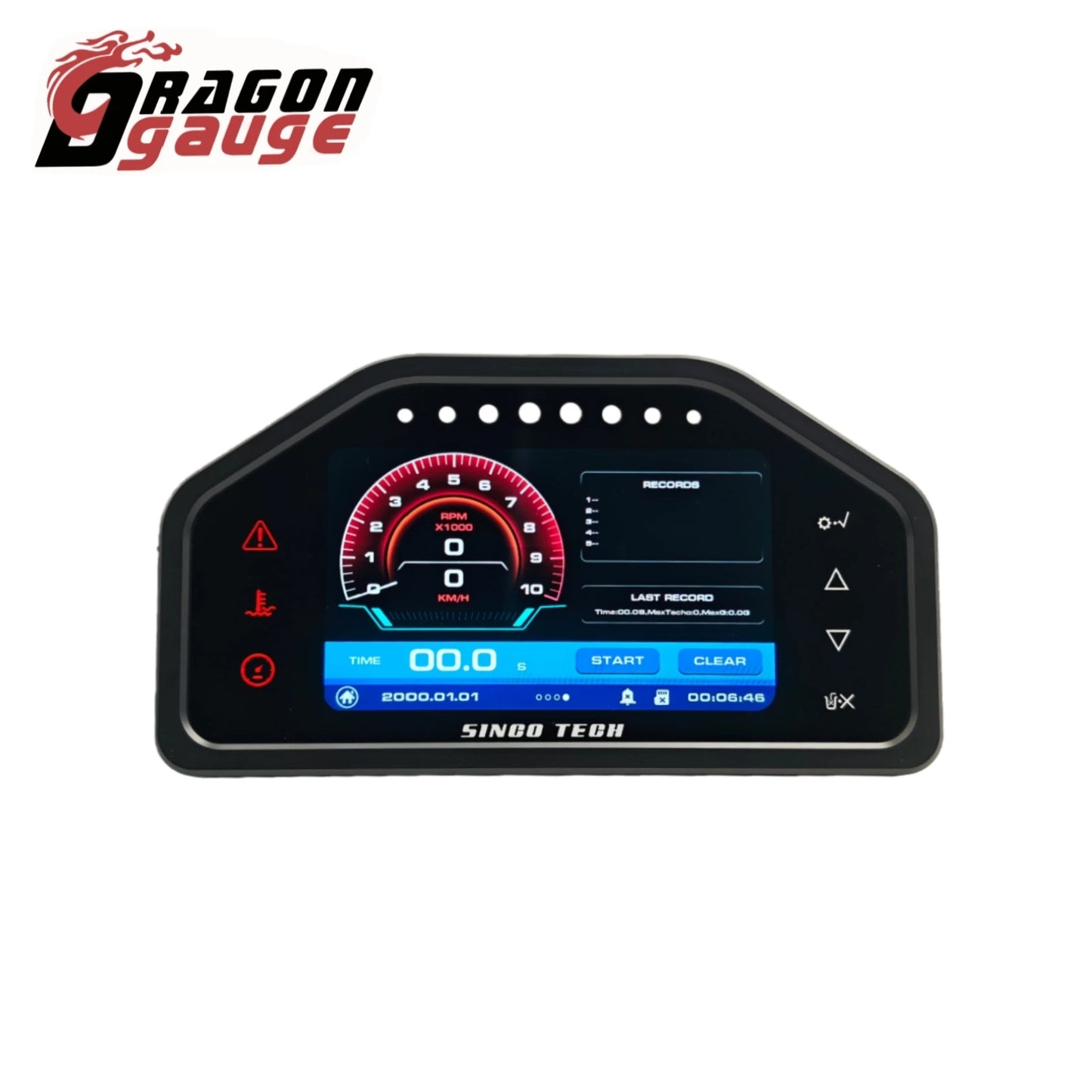

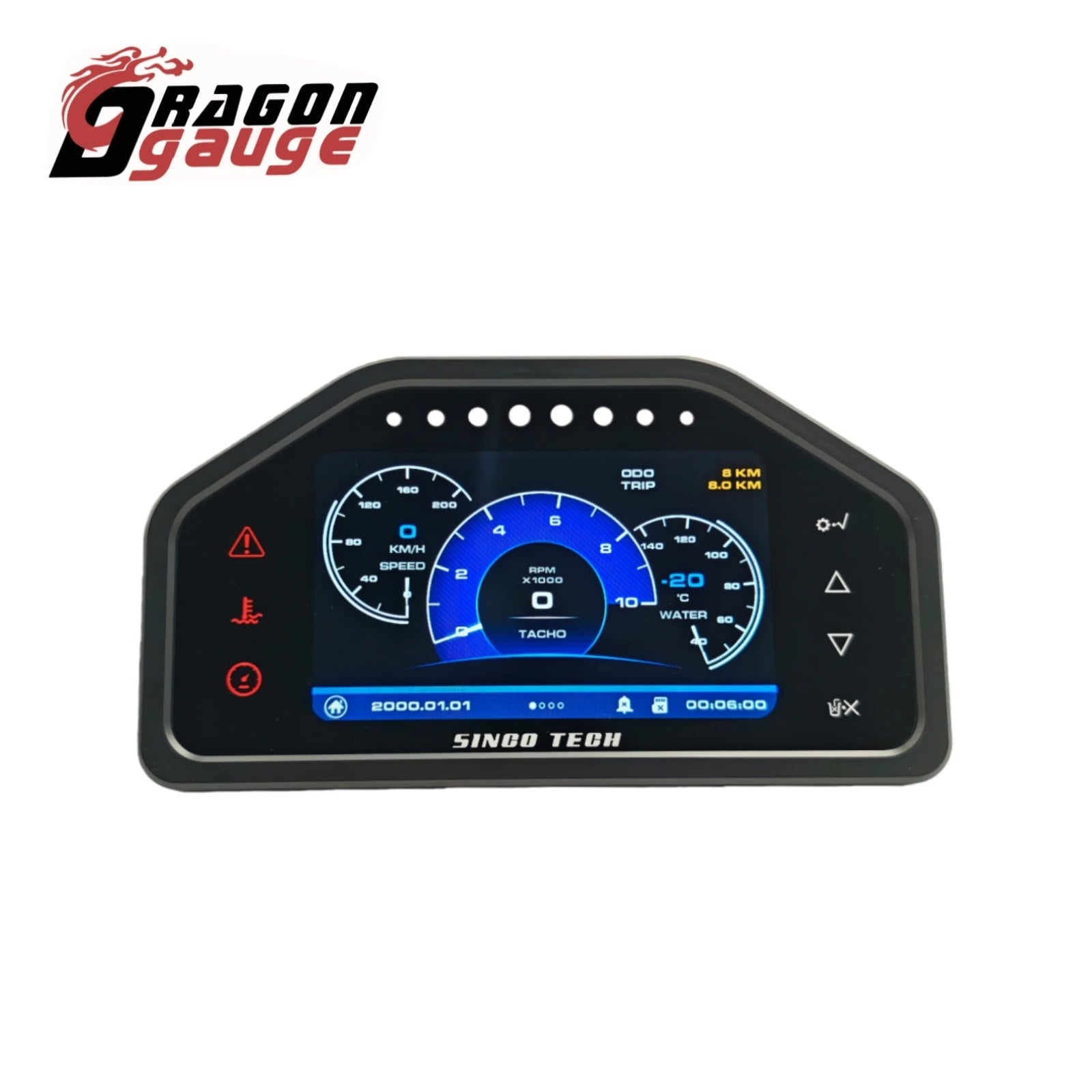

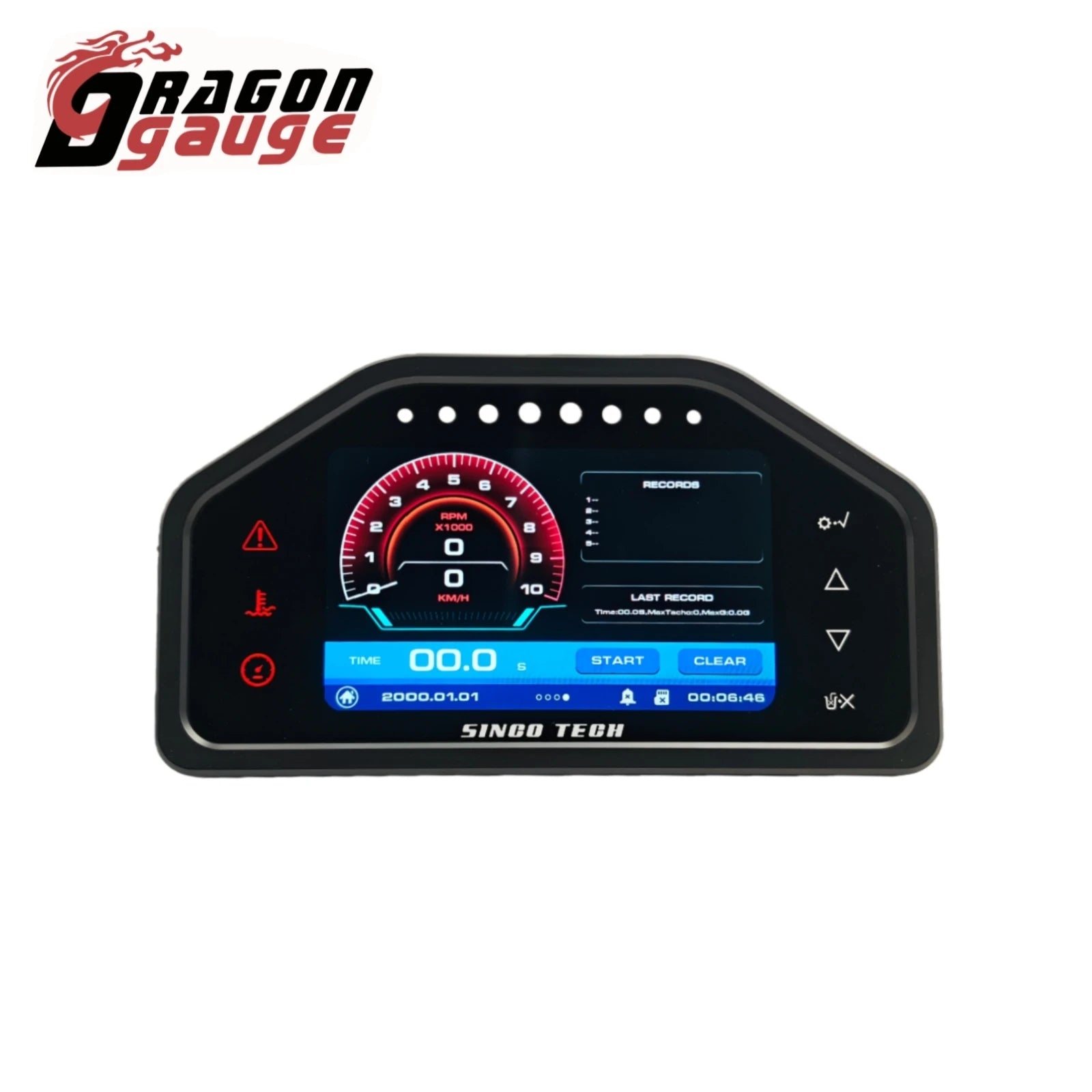

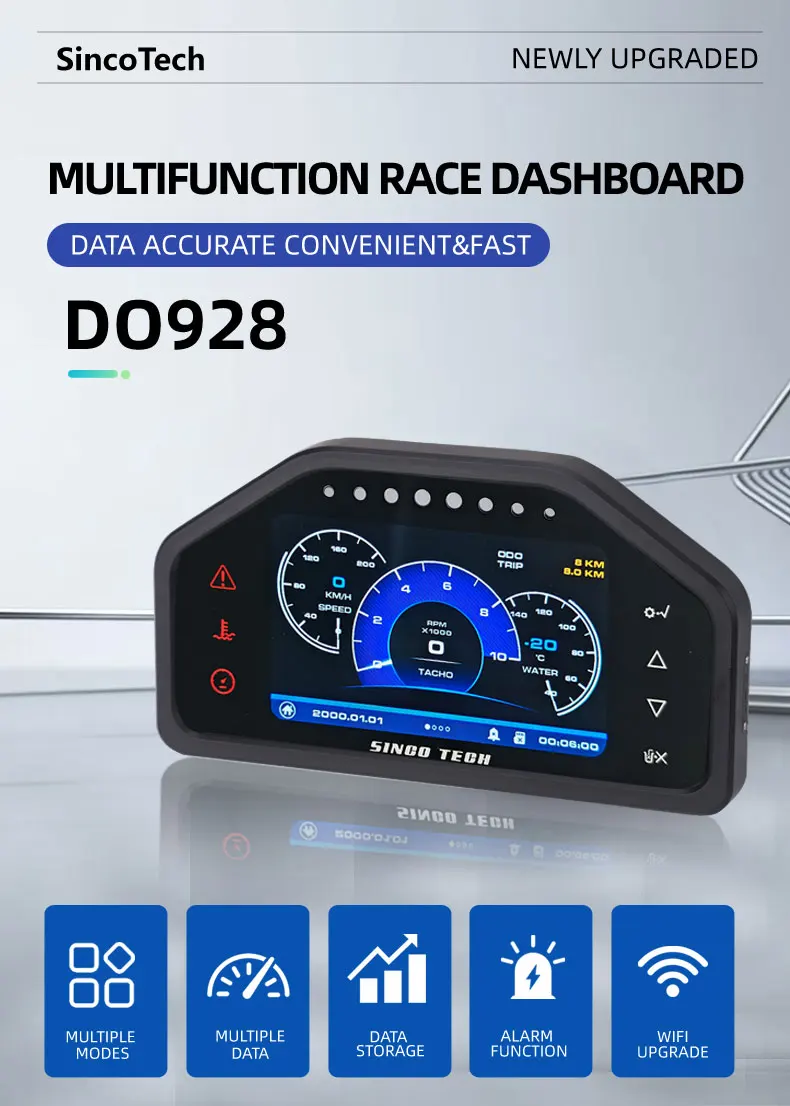

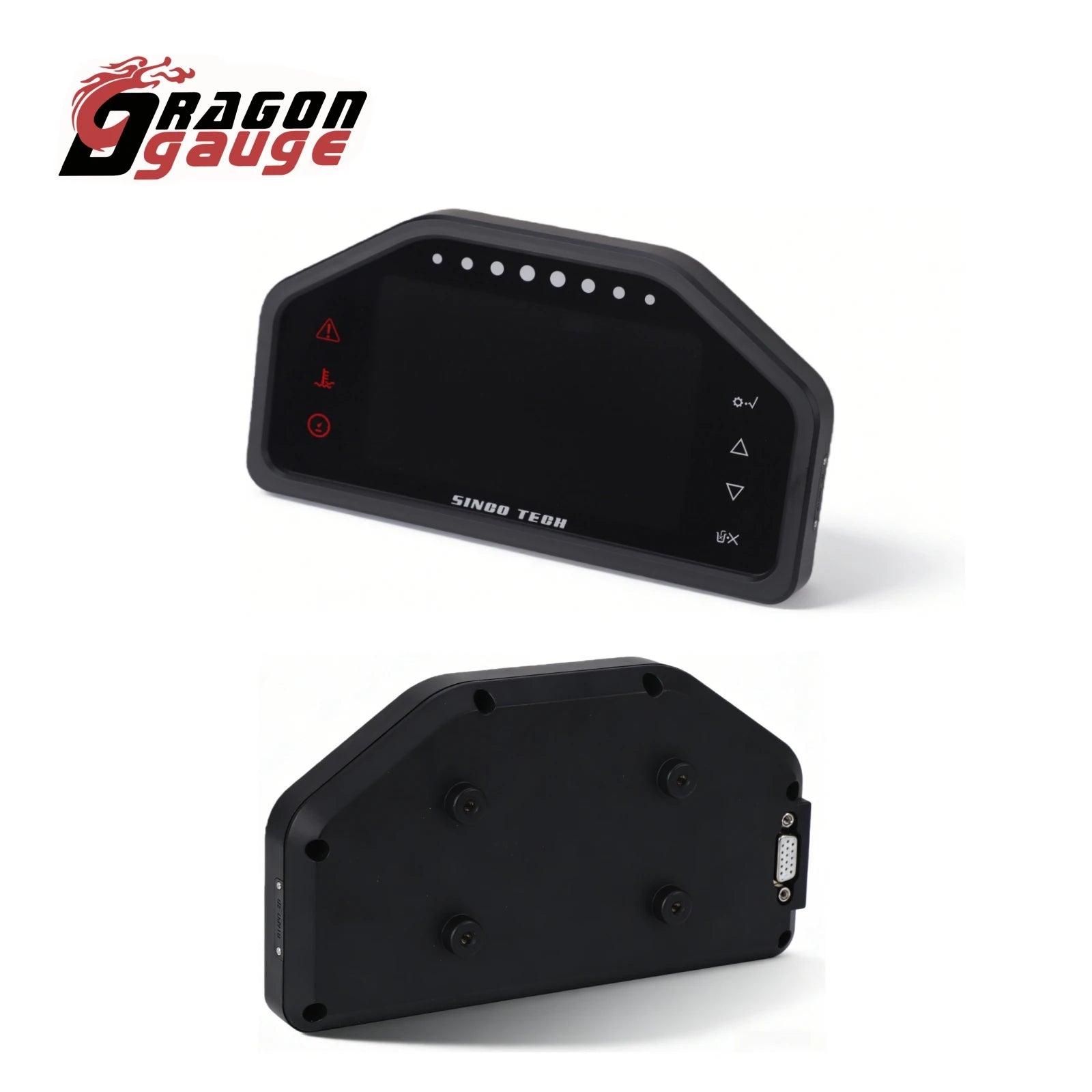

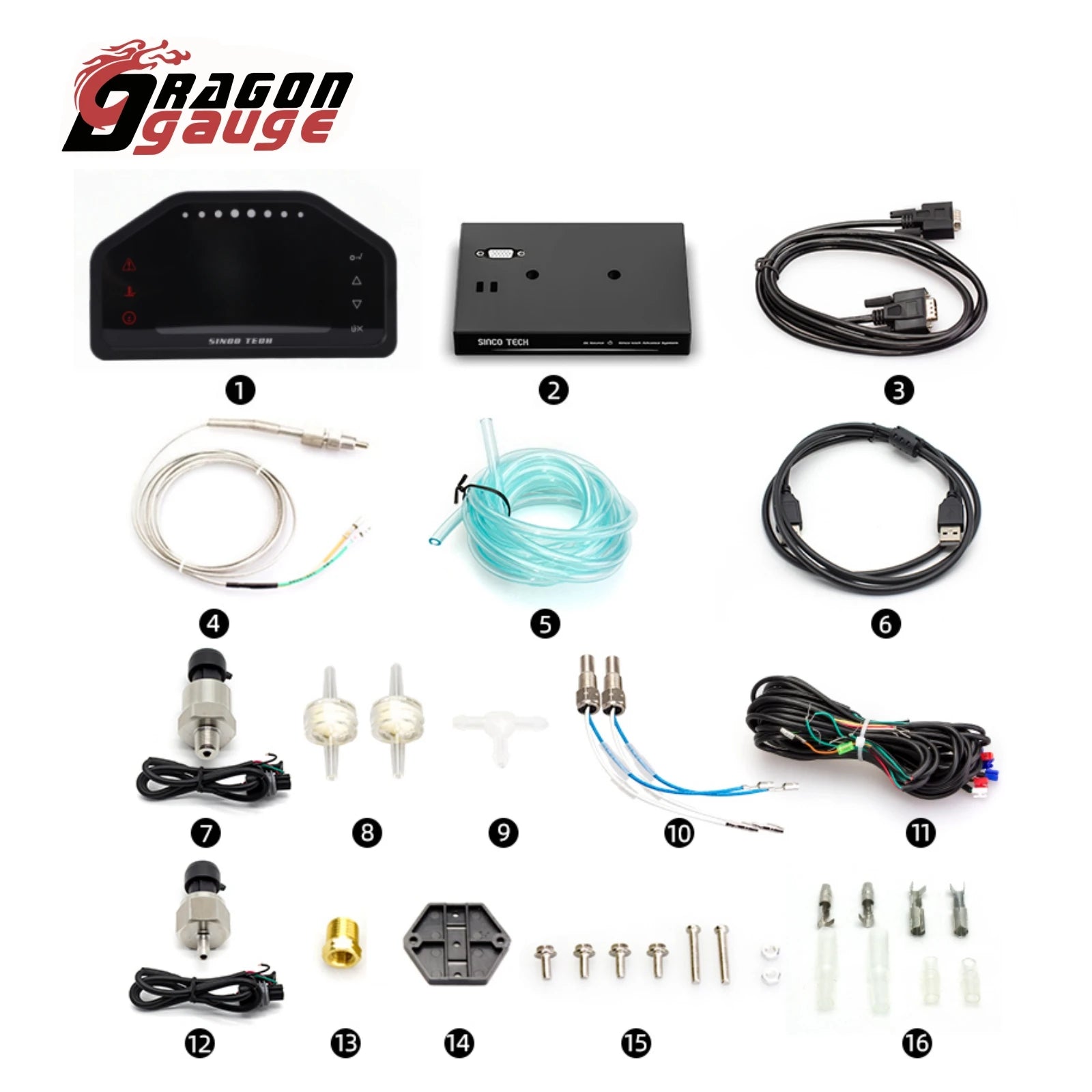

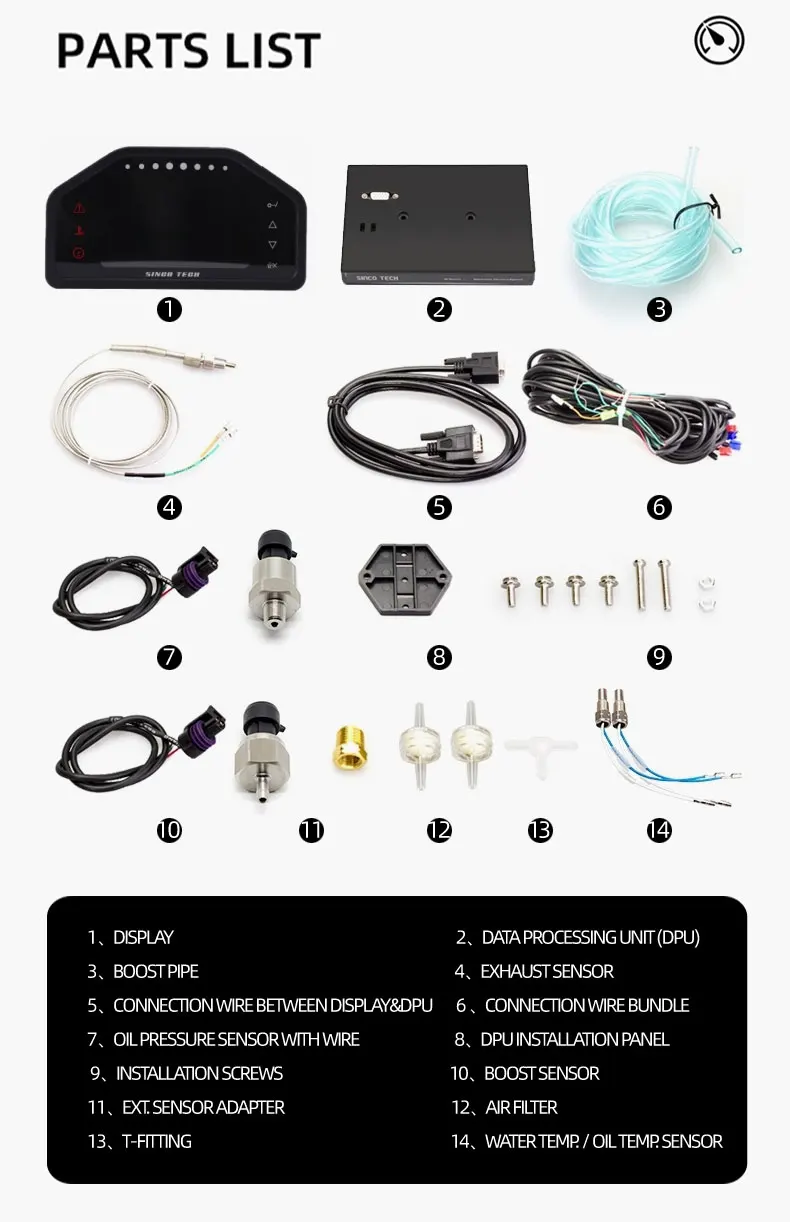

Racing Gauge 9 in 1 Race Dash Panel Multi-Function Dashboard LCD Screen Display with Sensor Kit DO928

1.Covers 9 key parameters of racing cars.

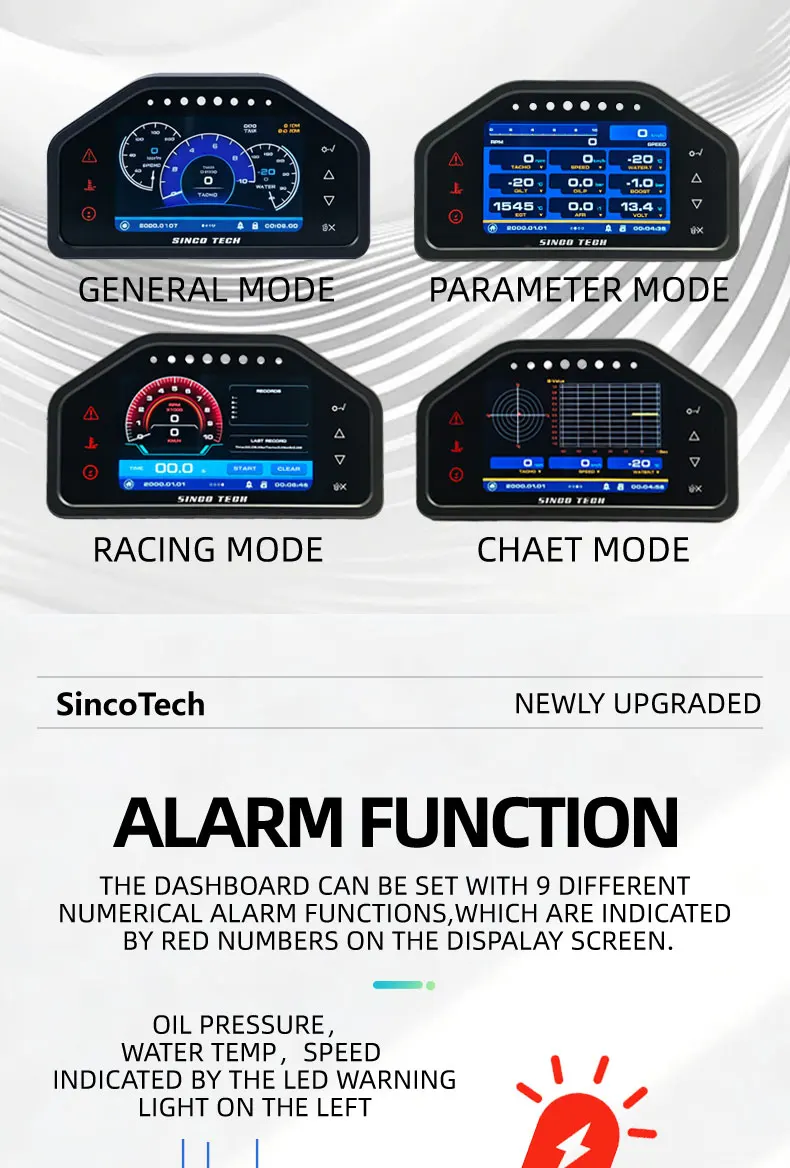

2.Features 4 display modes.

3.Newly designed Wi-Fi upgrade feature.

4.Alarms can be set for all 9 types of parameter data.

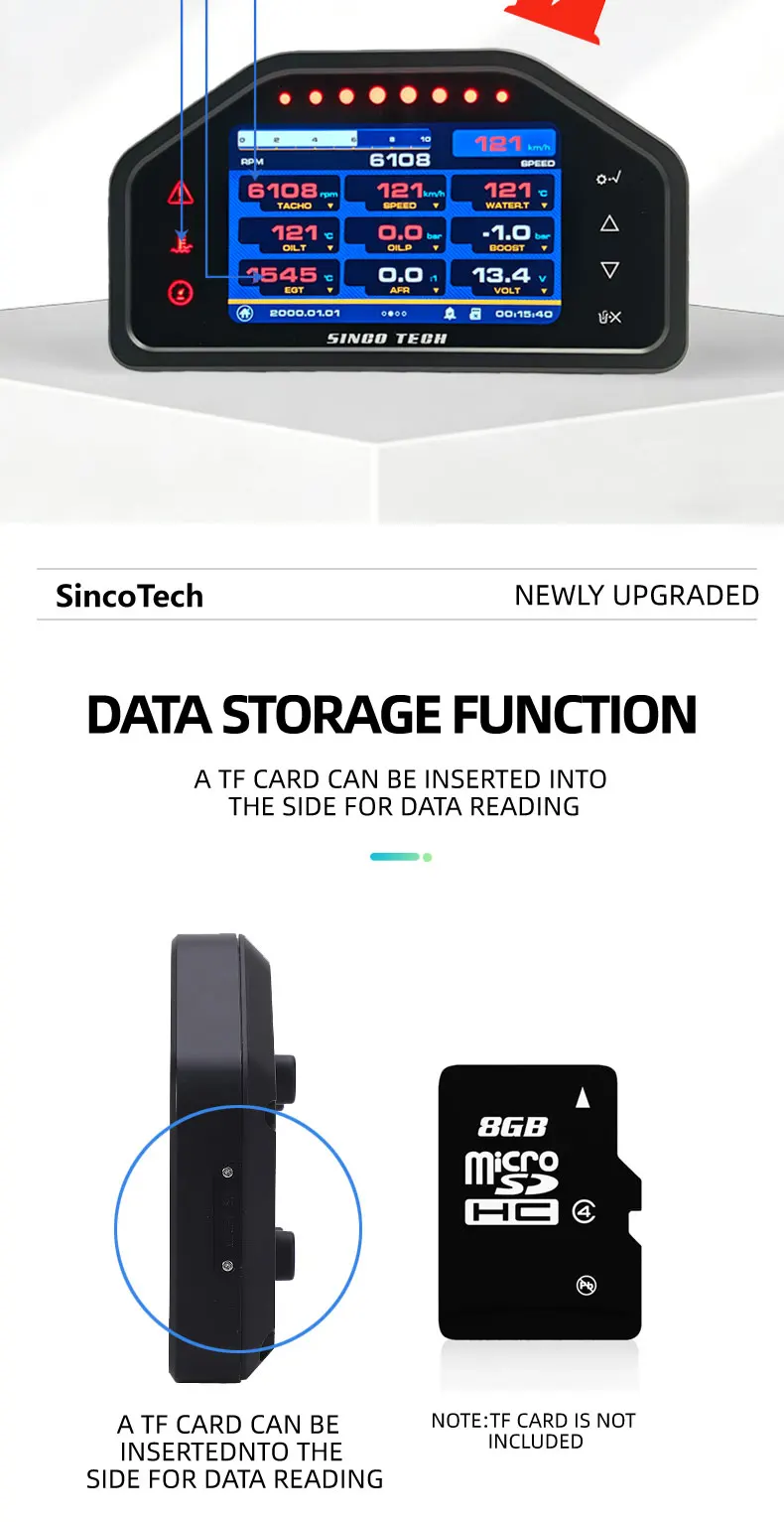

5.Data from the dashboard can be stored on a TF card.

6.Touch-sensitive buttons.

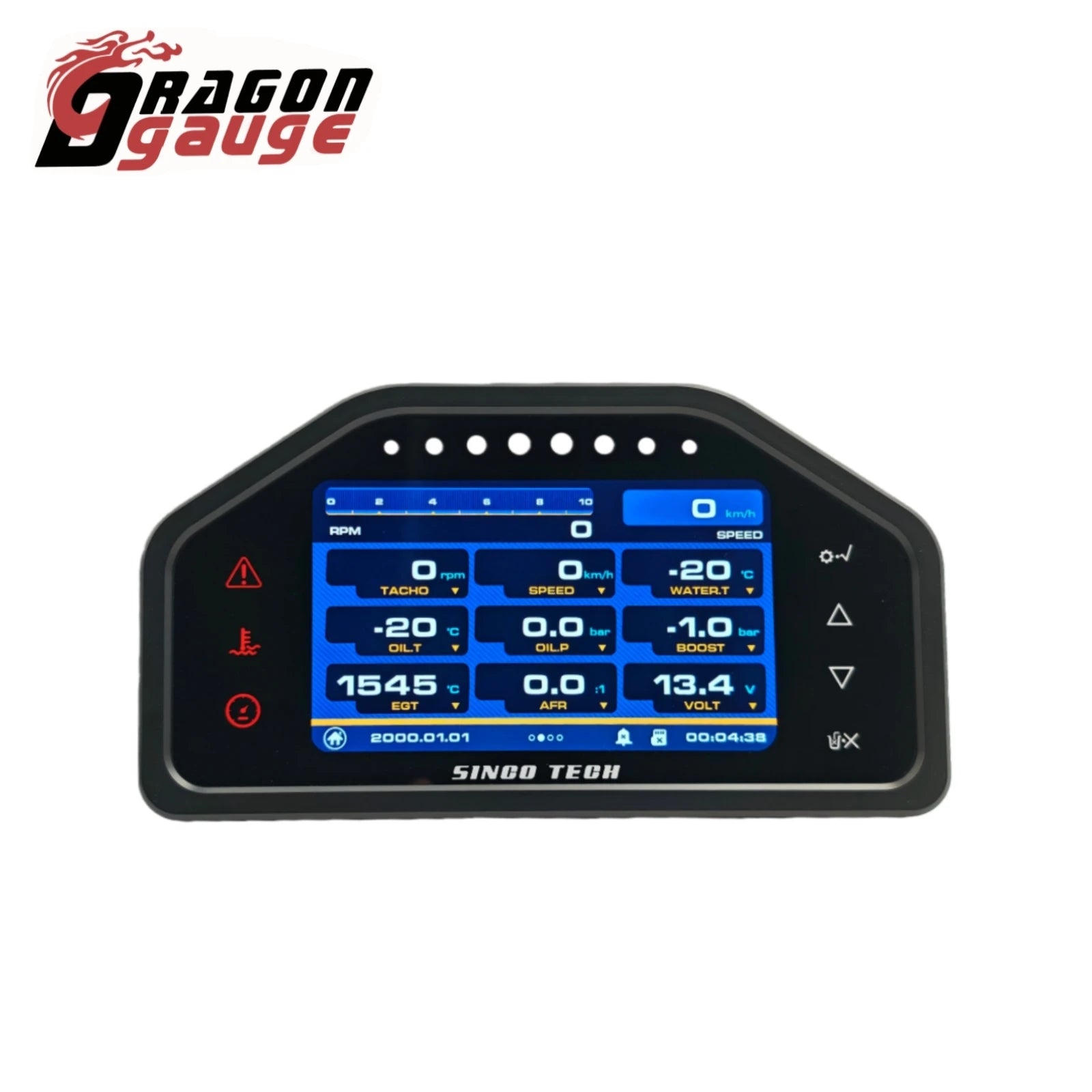

Functions Display

1. RPM

2. Speed

3. Oil Pressure

4. Oil Temp.

5. Water Temp

6. Boost

7. Air Fuel Ratio

8. EGT

9. Voltage

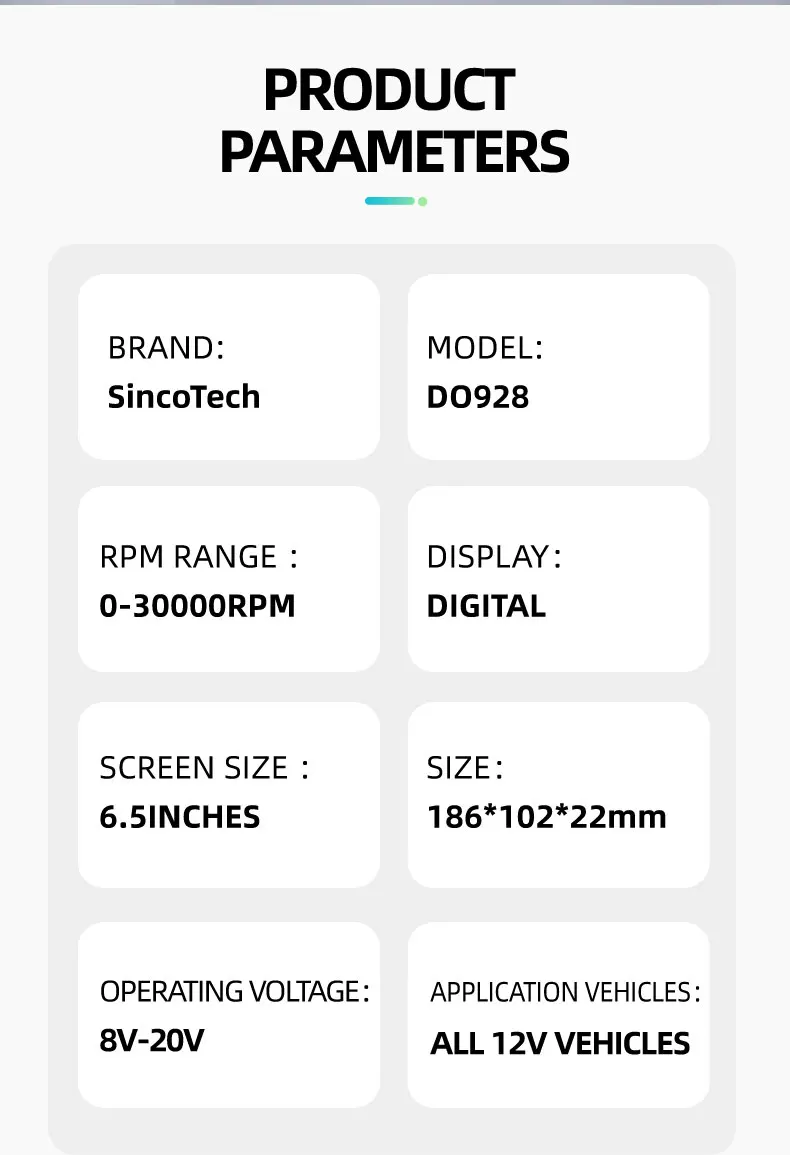

Parameter Range:

Speed:0-999KM/H or 0-999MPH

RPM:0~30000 RPM

Boost Rang:-15~45PSI or -1~3BAR

Water Temperature Rang: 0~150°C or 0~300°F

Oil Temperature Rang: 0~150 or 0~300°F

Oil Pressure Rang:0~150 PSI or 0~10 BAR

Voltage:8~20V

Air-Fuel Ratio:20:1~10:1

Exhaust Temperature Rang:0~1300°C or 0~2400°F

Alarm Setting

Speed、RPM、Boost、Water Temperature、、Oil Temperature、Oil Pressure、Voltage、Air-Fuel Ratio、Exhaust Temperature

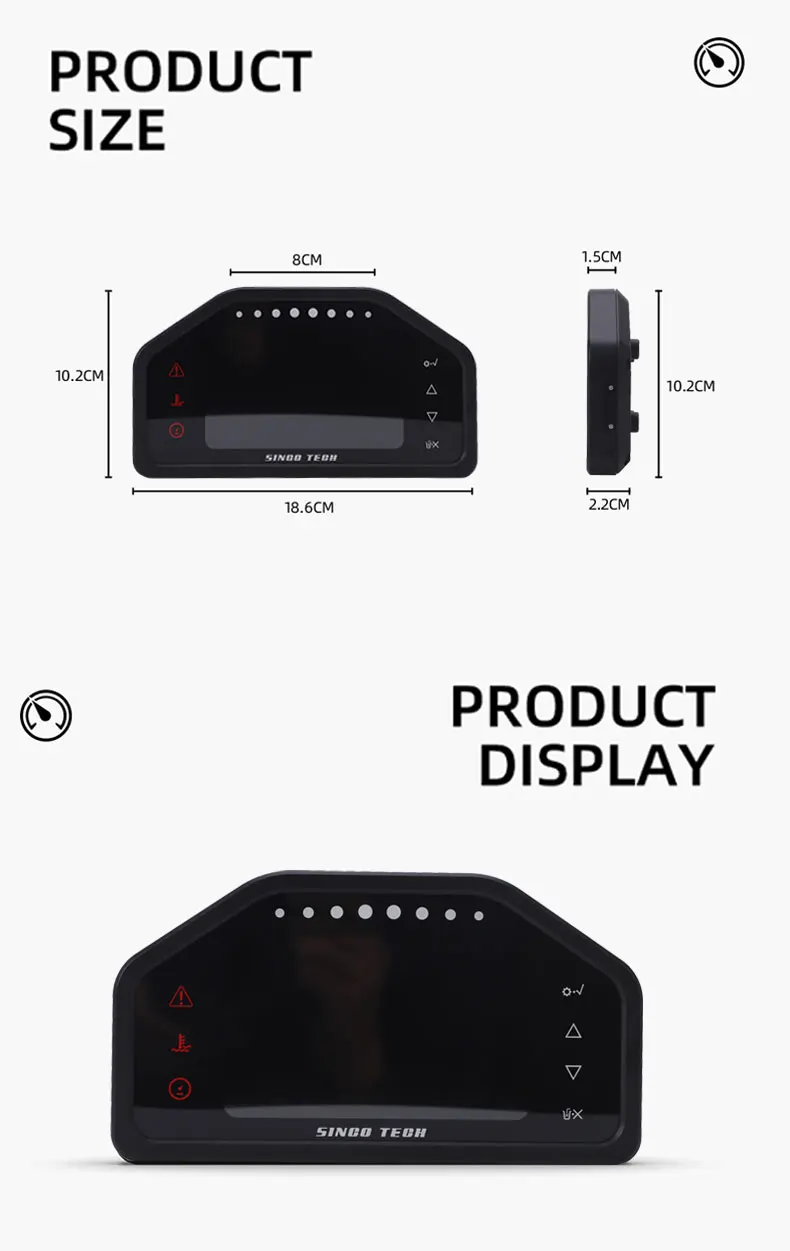

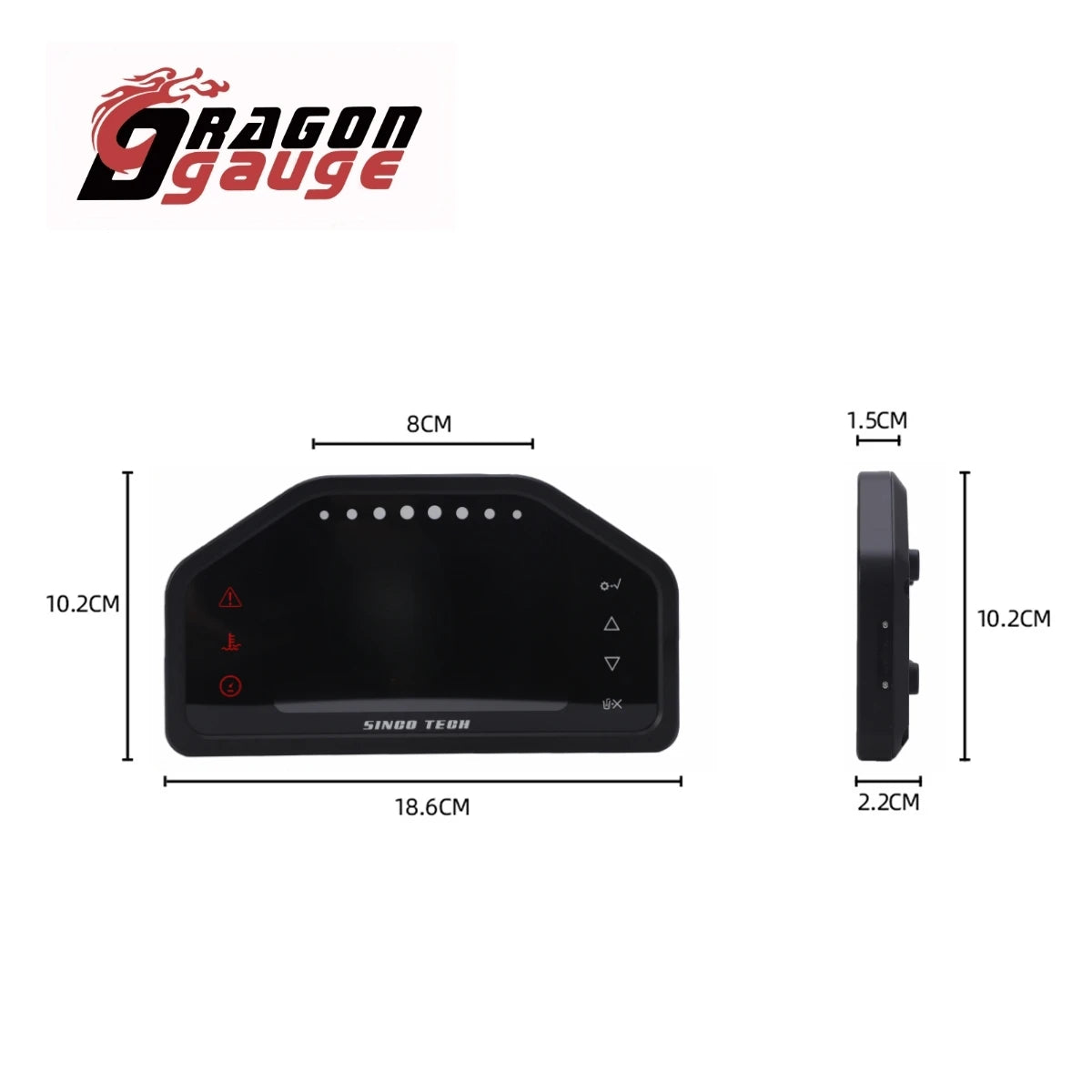

Dimension

186mm*102mm*22mm

Tips:

1.We provide a one-year warranty (excluding damage caused by human factors).All warranty claims require proof of professional installation.

2. Manual measurement, please allow 1~3 mm error, thank you.Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!
