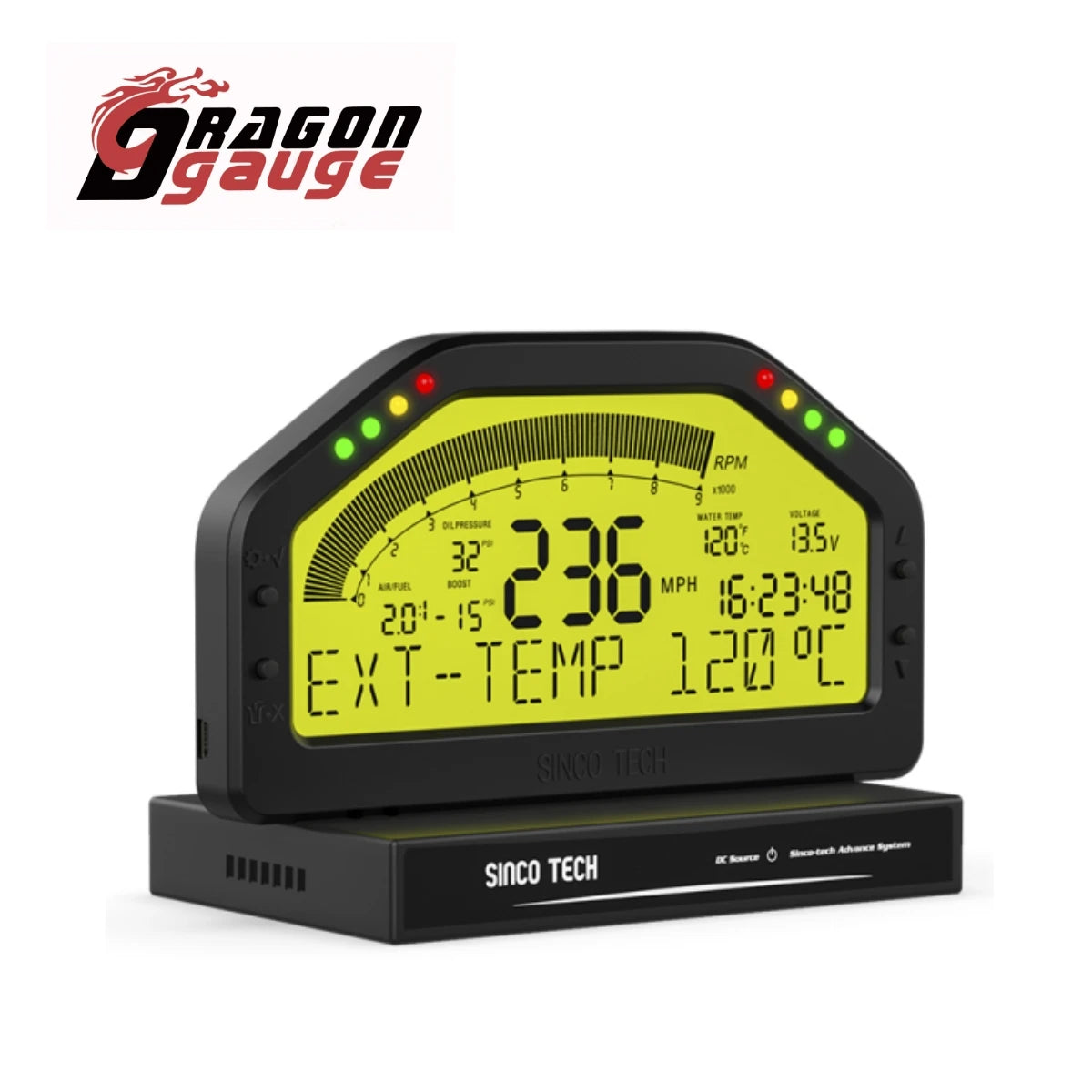

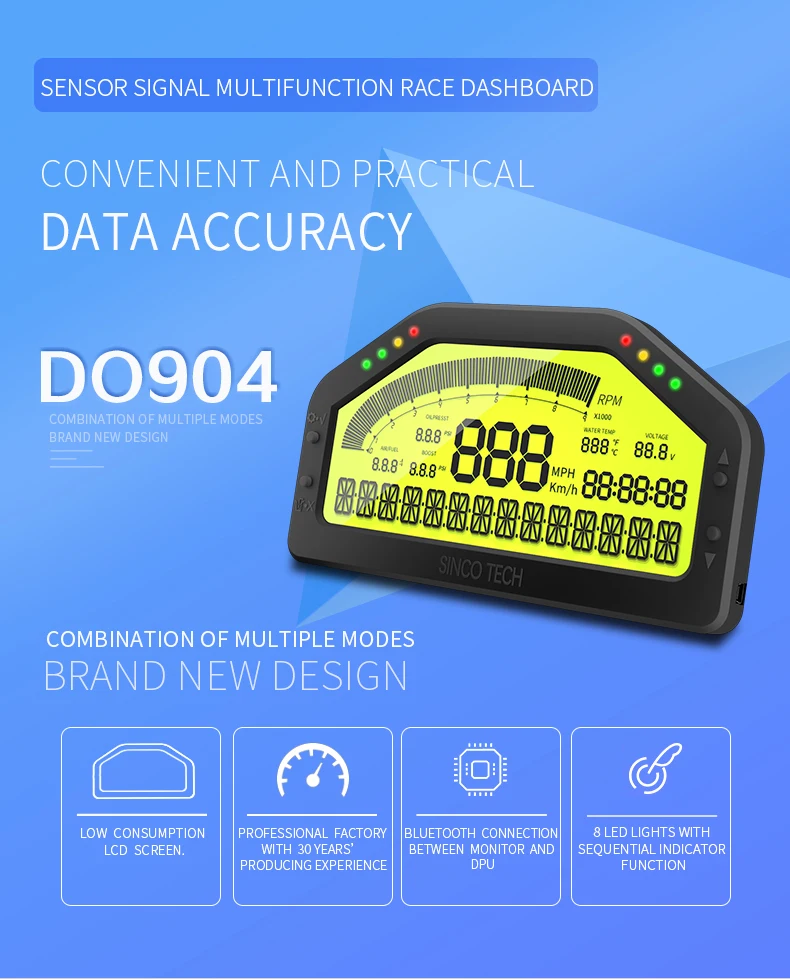

Rally Race Dash Panels 9 in 1 Gauge LCD Display Sensor Kit Multi-Function Race Dashboard Bluetooth Connection

Clear, bright, high visible green backlit LCD display.

Uses Sensor bluetooth connection

Alarm and LED's.

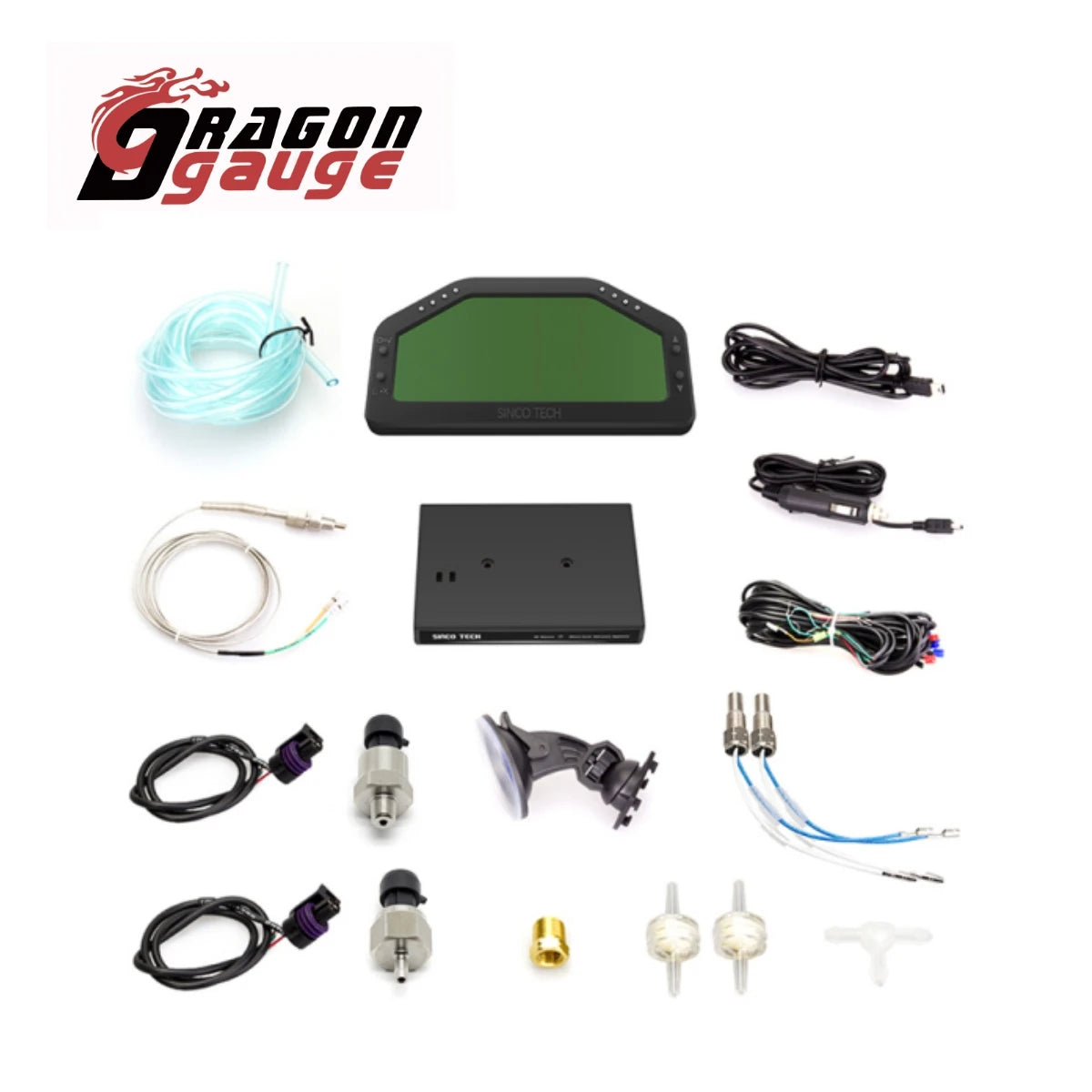

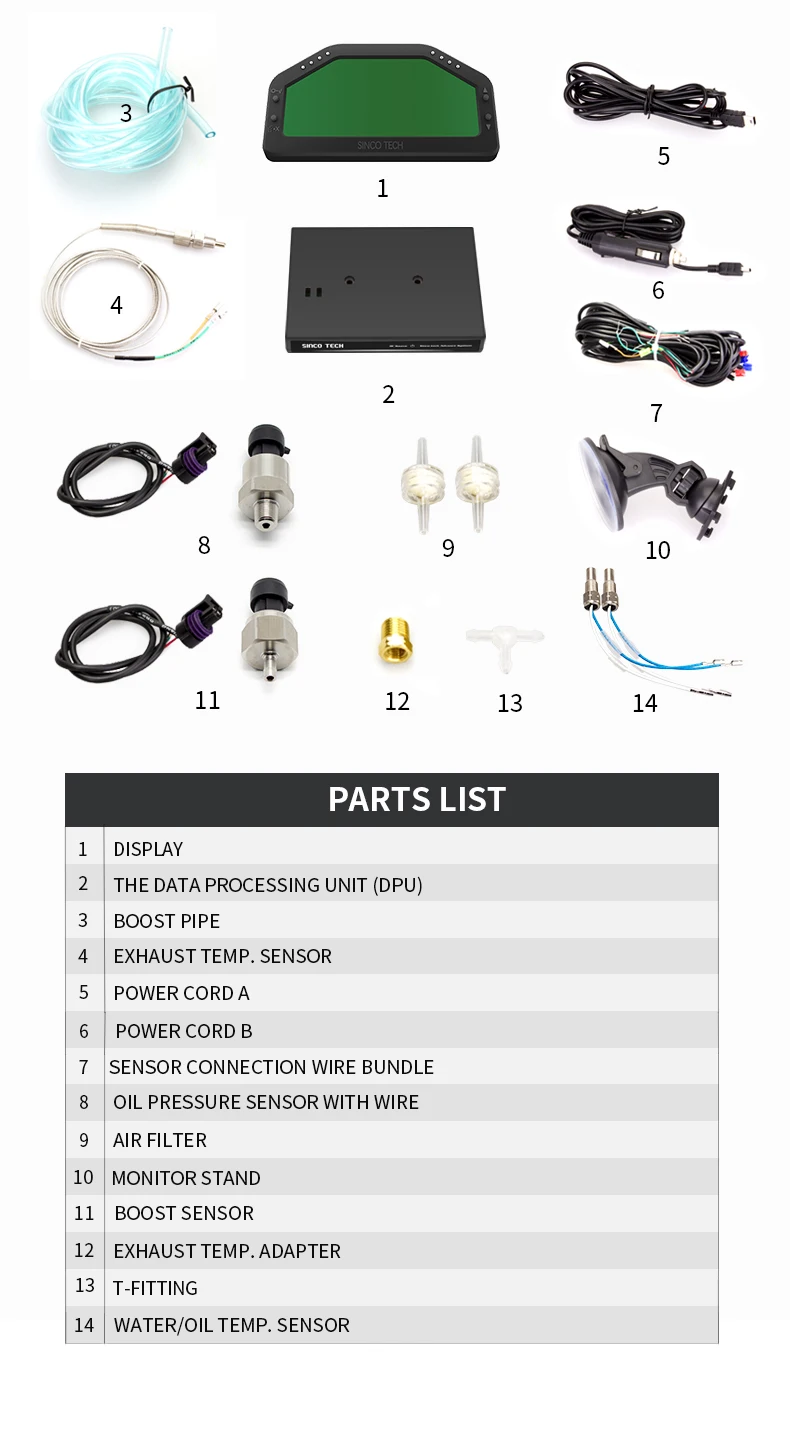

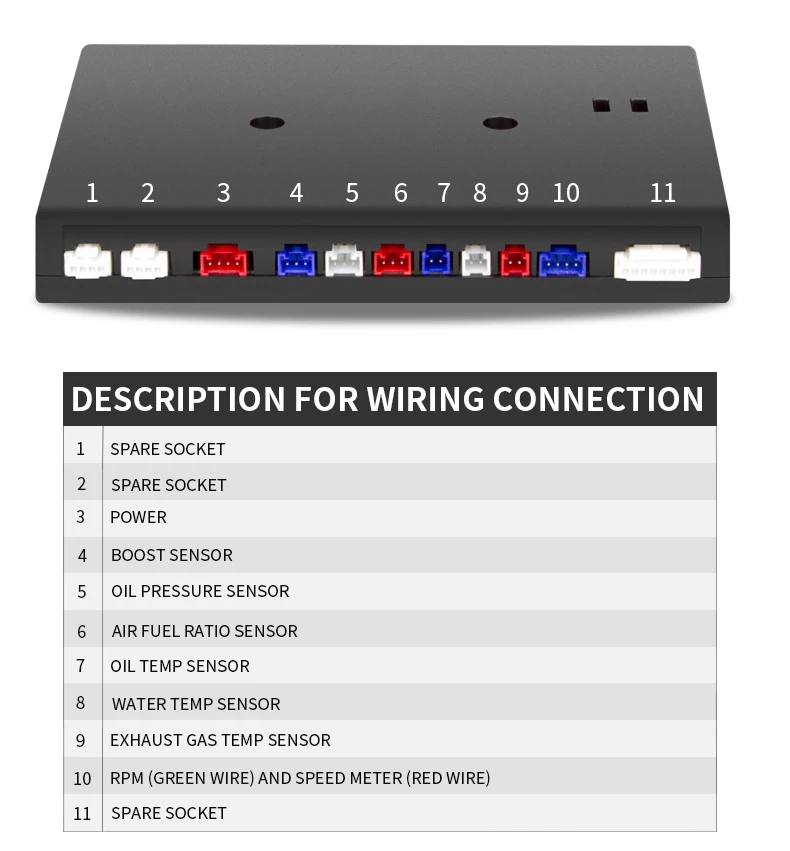

Includes the data processing unit (DPU) all sensors including:

1. spare socket

2. spare socket

3. power

4. Boost sensor

5. Oil Pressure sensor

6. Air Fuel Ratio sensor

7. Oil Temp sensor

8. Water Temp sensor

9. Exhaust Gas Temp sensor

10. RPM (green wire) and Speed meter (red wire)

11. spare socket

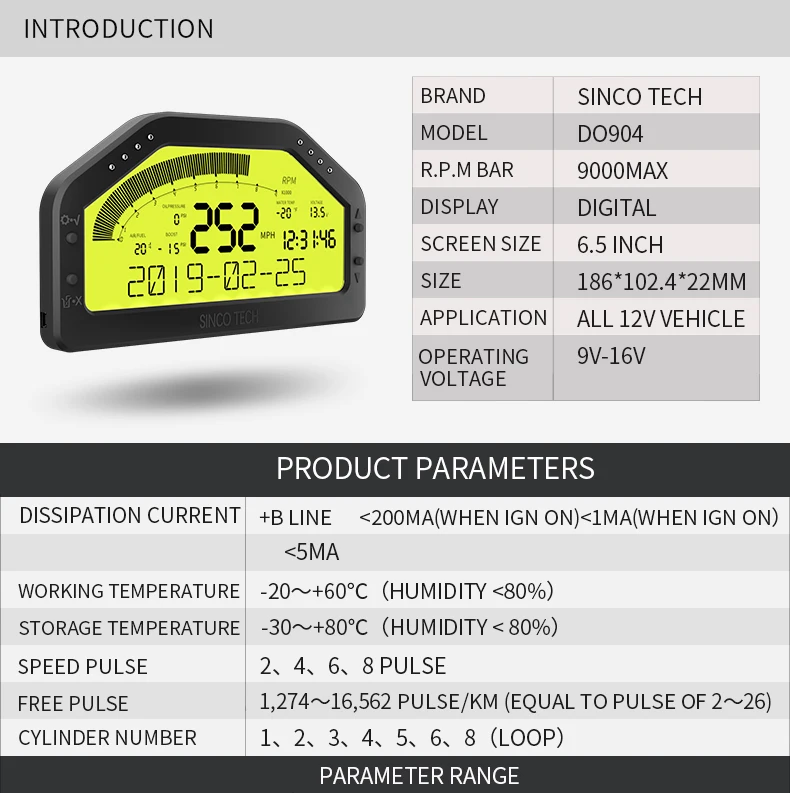

Specification:

Name: Dash Race Display

Connect: Sensor bluetooth

Model: DO904

Voltage: 9V-16V DC

Speed: 7000 or 9000rpm tacho

Suitable For: 12V Universal cars.

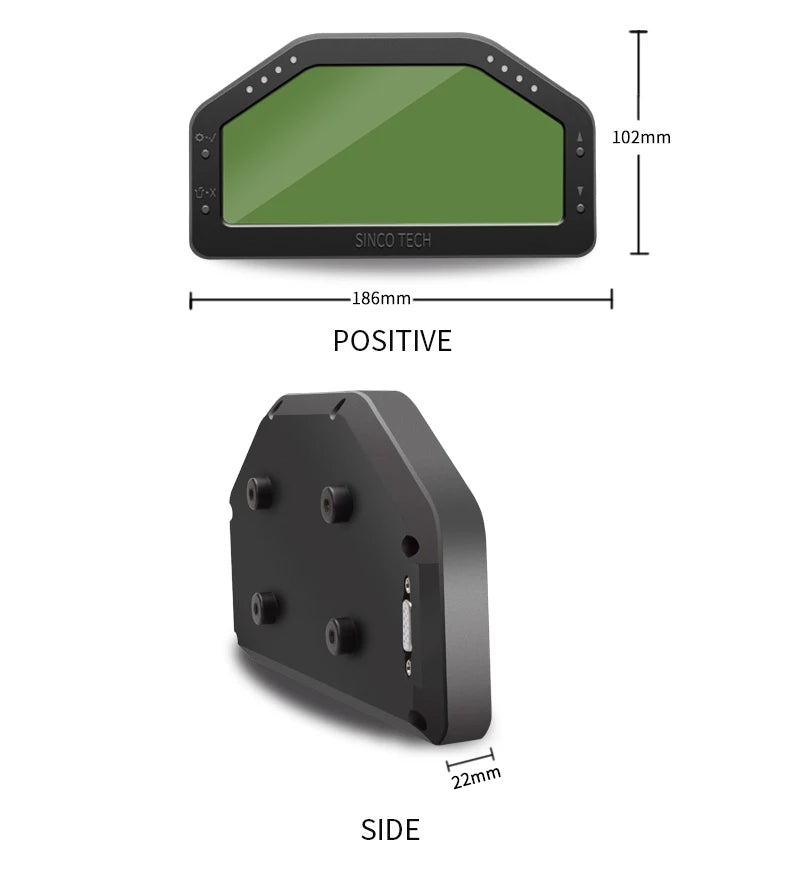

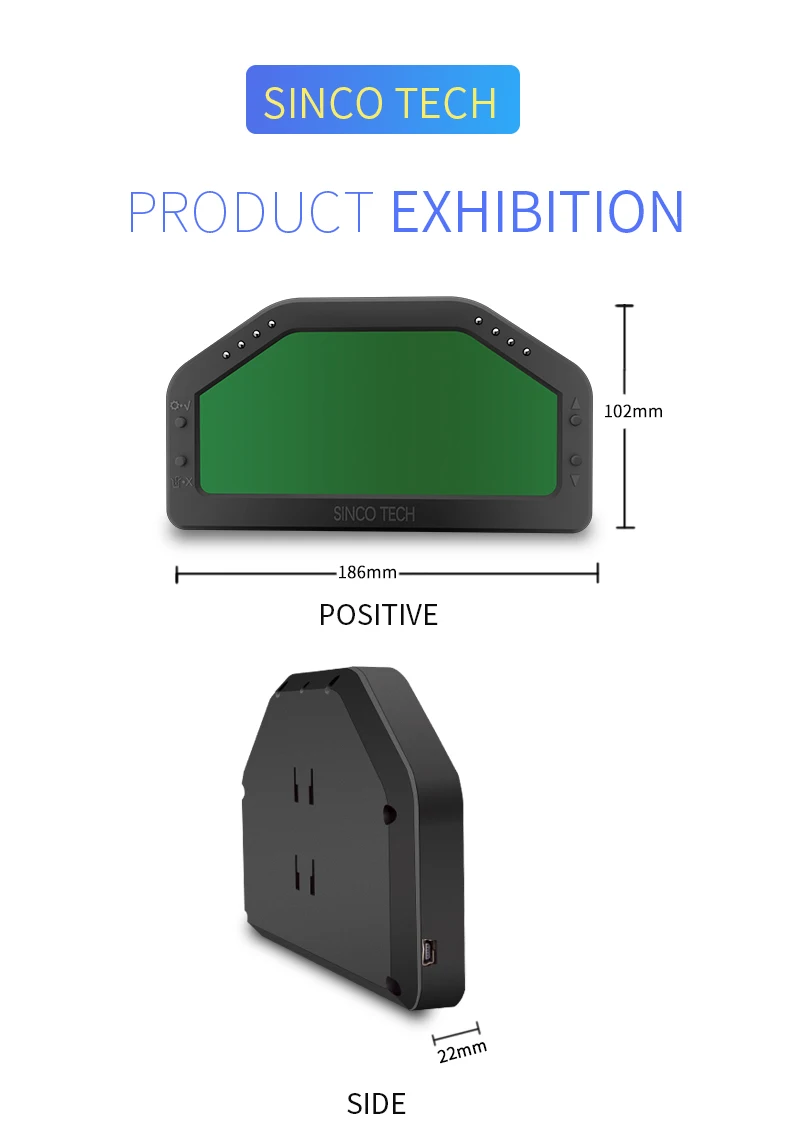

Size: 185 x 102mm

Note:

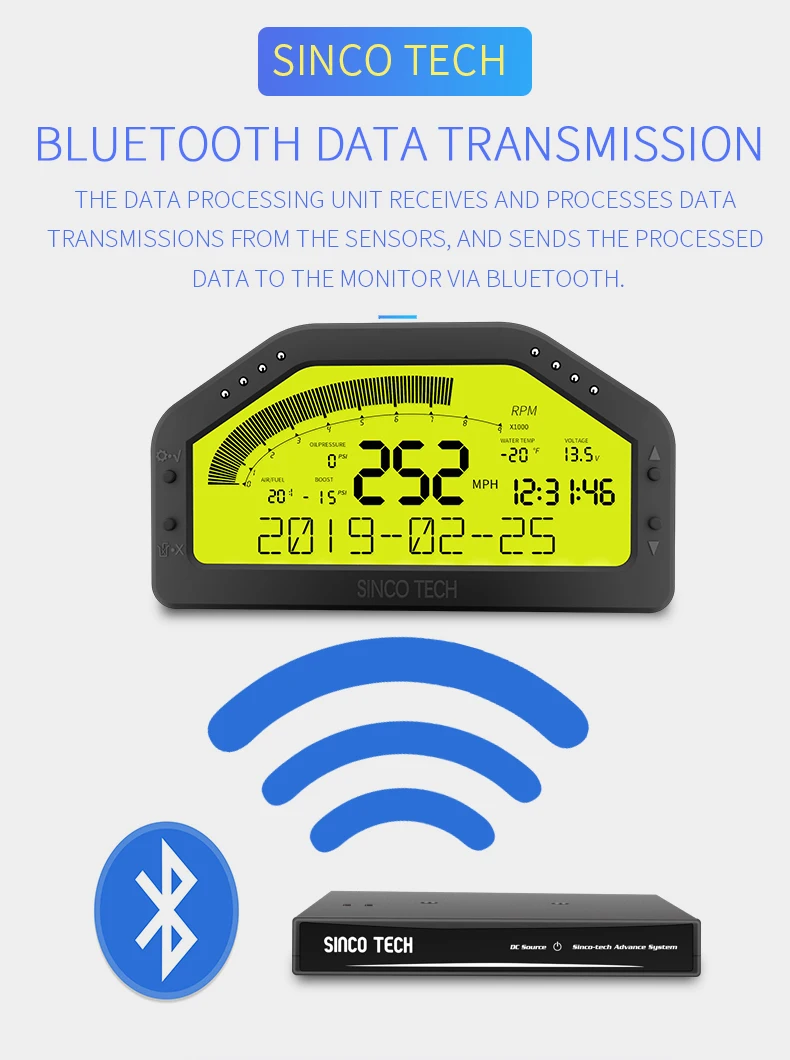

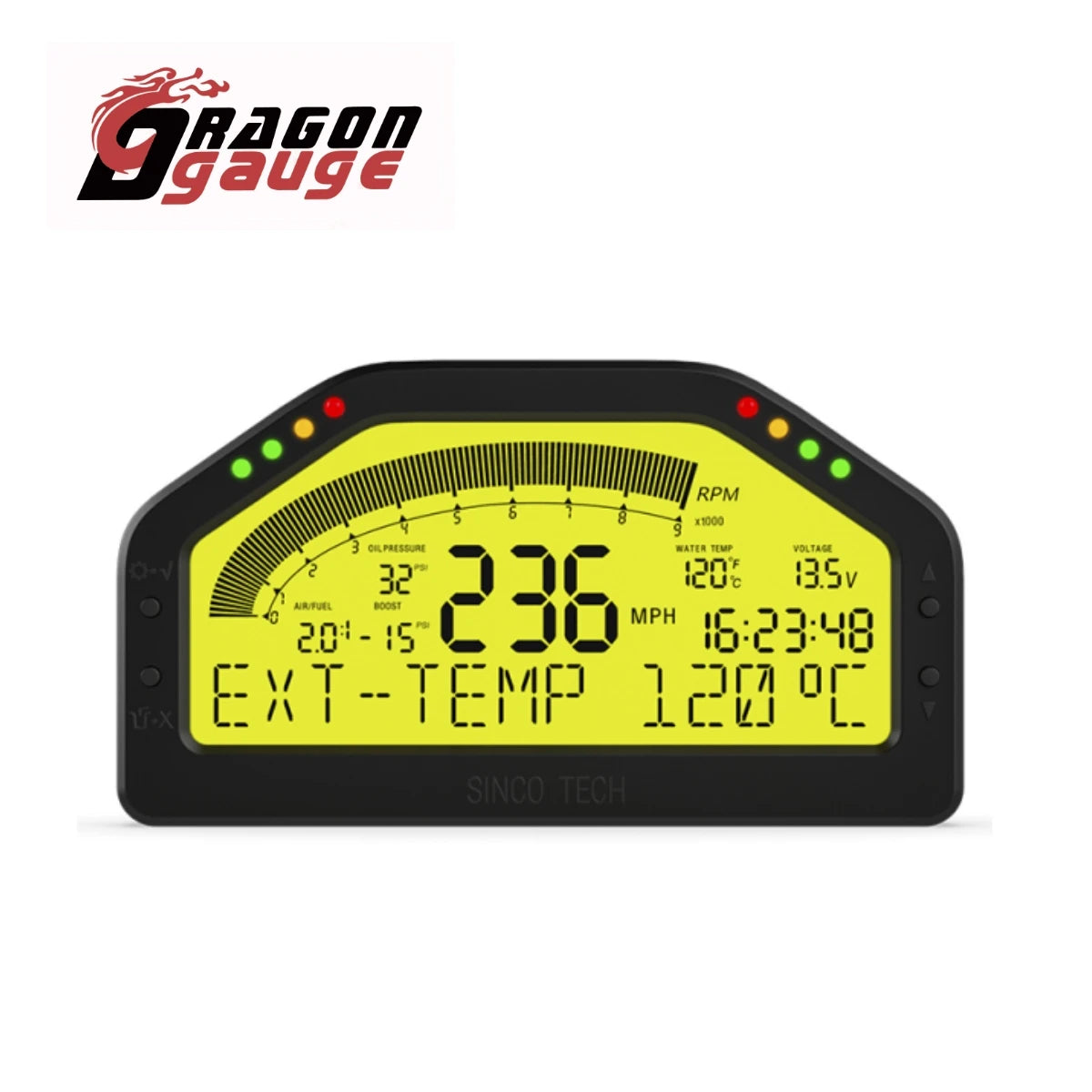

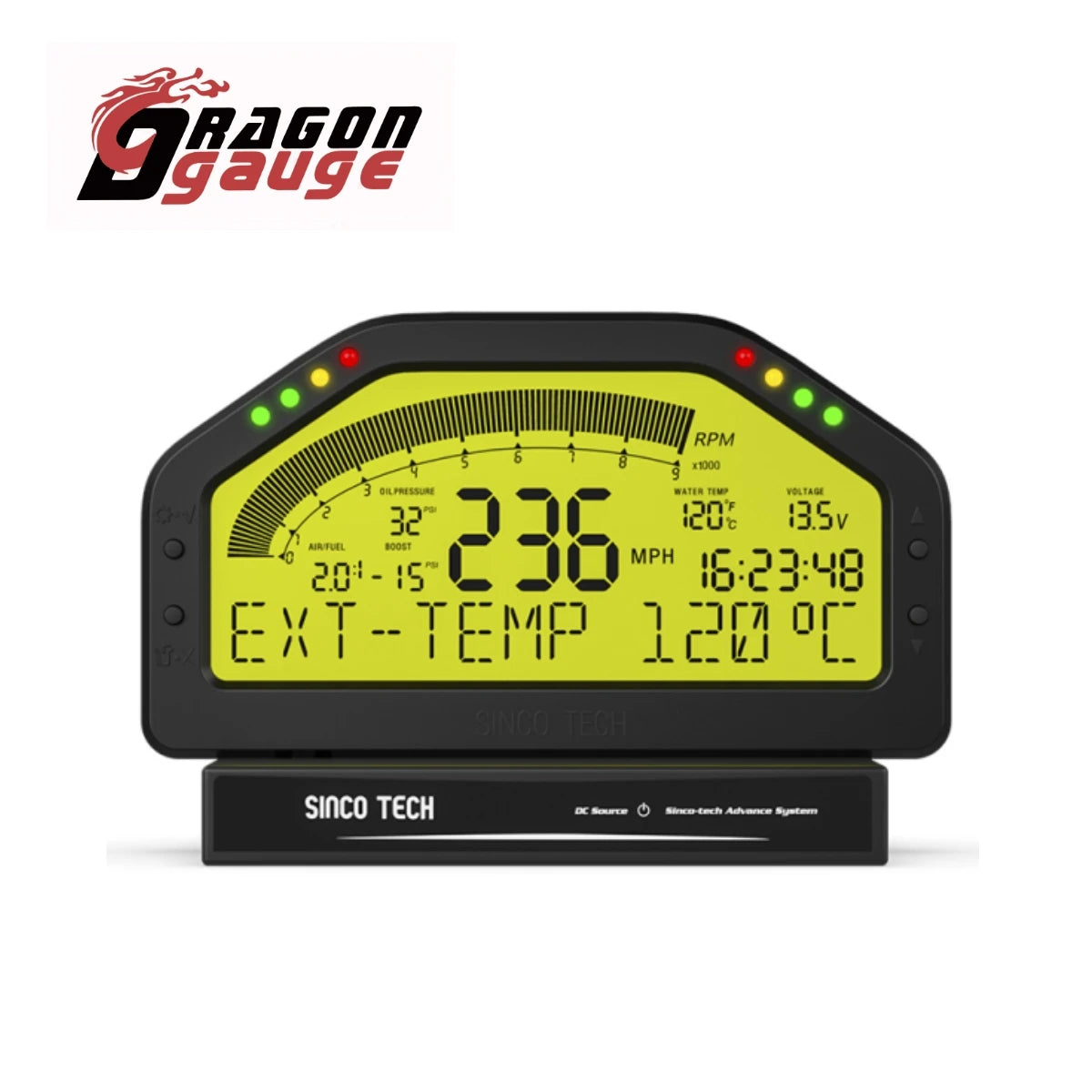

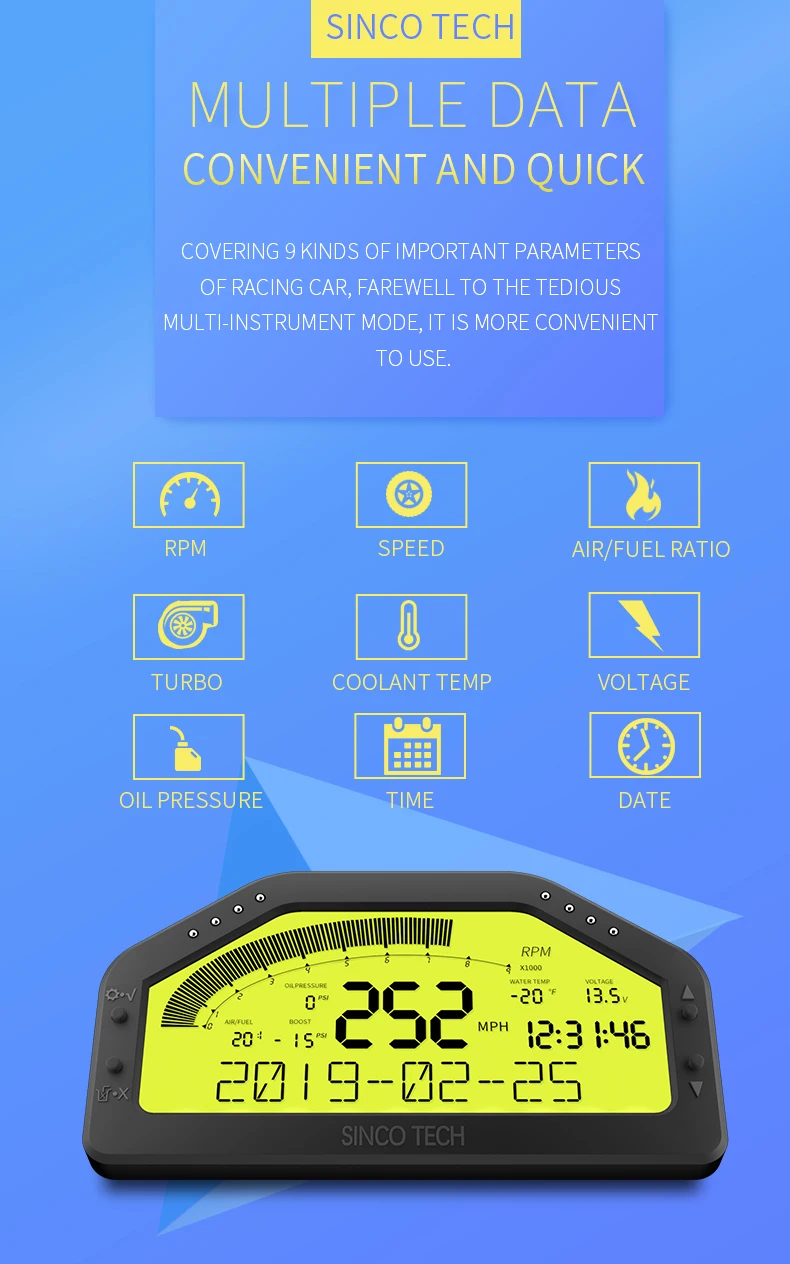

When the connection between the Monitor and the DPU is established,it will switch to the normal display:

1. RPM

2. Speed

3. Oil Pressure

4. Air Fuel Ratio

5. Turbo

6. Coolant Temp

7. Voltage

8. Time

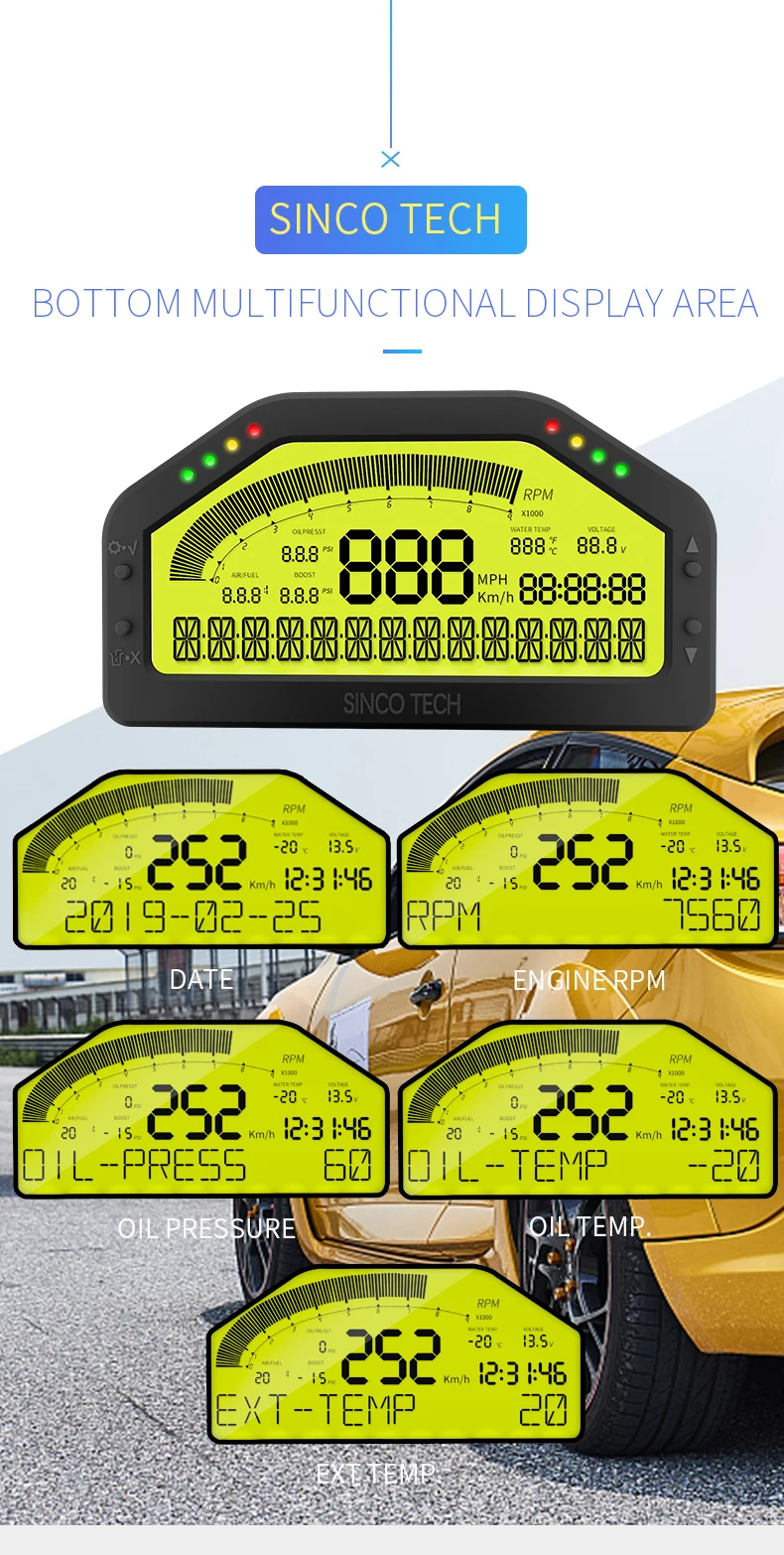

9. Multi-purpose display section. Displays the date by default. The display can be changed by using the “↑” and “↓” button.

Bottom of Display:

1-SET DATE

2-SET TIME

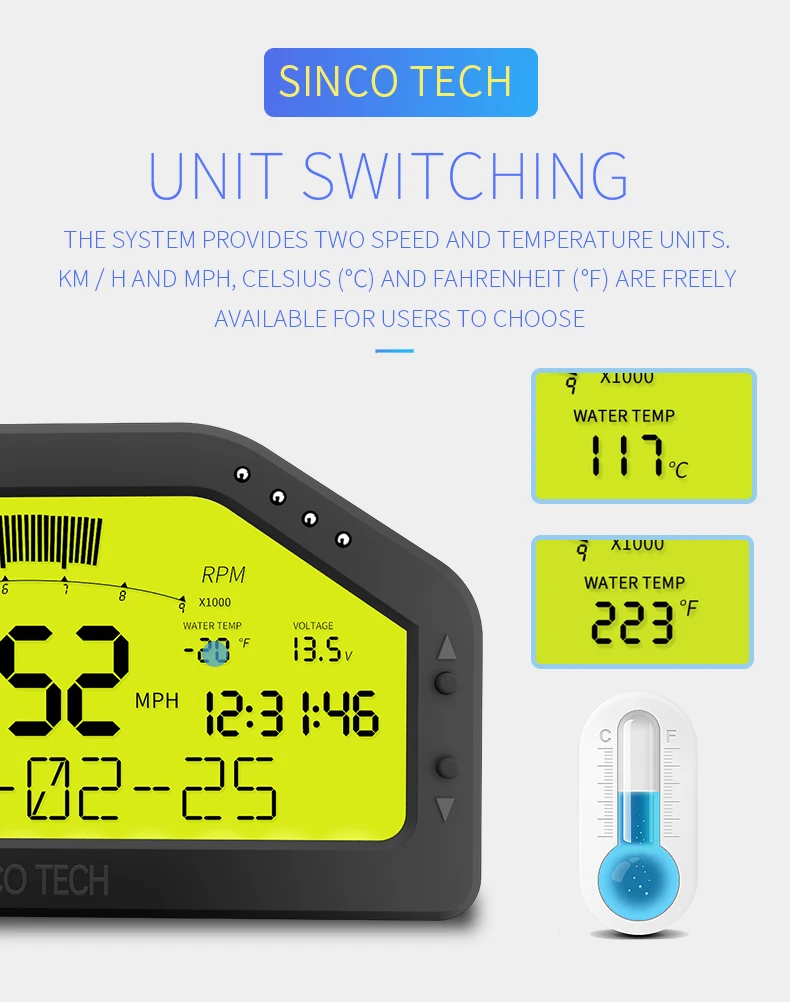

3-SET UNIT (select to change the measurement unit for pressure)

4-SET LED (select to turn the LED on and off)

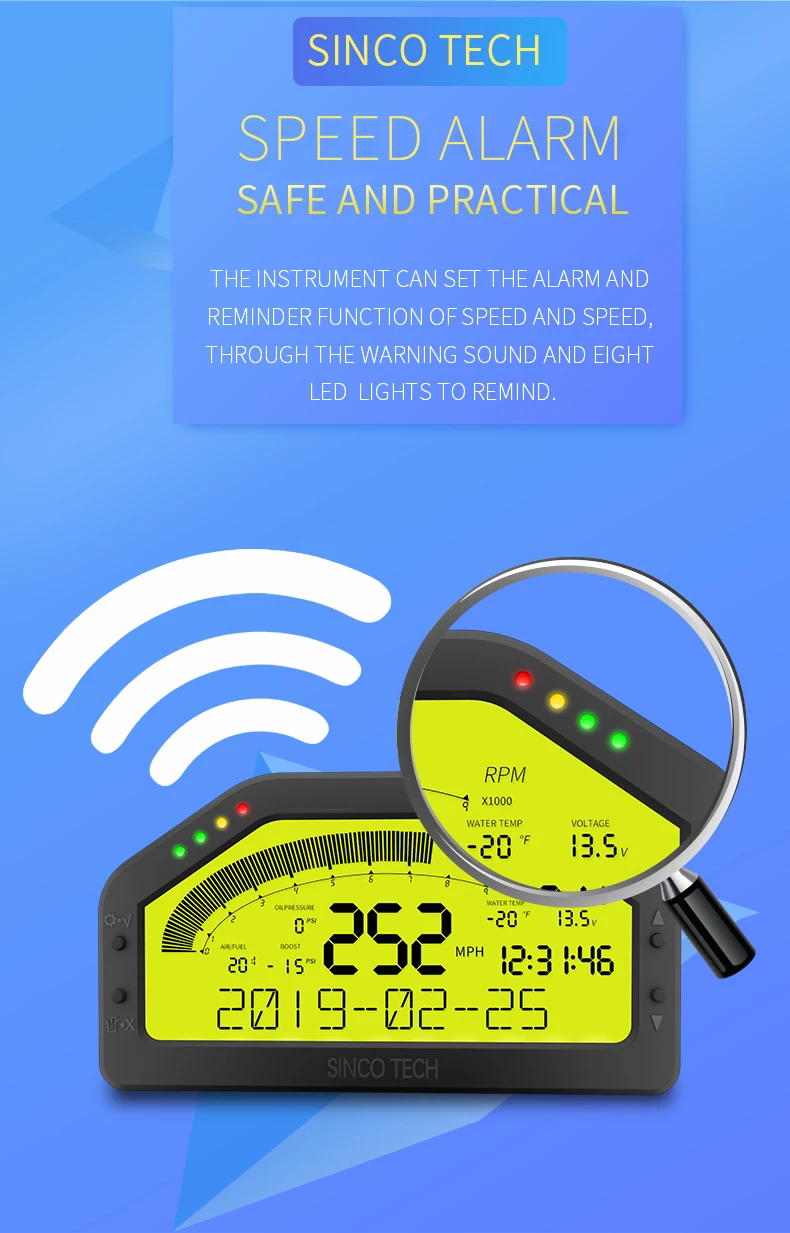

5-SET ALARM (select to adjust the speed limit alarm)

6-SPEED CAL (select to calibrate the speed)

Tips:

1. Manual measurement, please allow 1~3 mm error, thank you.

2. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!

3.Highly recommended for professional installation.
