SPECIFICATIONS

Battery: Built-in 3.7V 1500mah rechargeable Li-ion Battery

Battery Life: 30 Hours & Up

Brand Name: Soufyane

Certification: CE,FCC

Choice: yes

GPS type: GPS Tracker

Gps Module: Yes

High-concerned chemical: None

Is it wireless: No

Item Size: 55 x 36 x 21mm (1.8'' x 1.18'' x 0.69'')

Model Name: TK913 -2G/ TK913-4G

Network: 2G TK913 & 4G TK913

Origin: Mainland China

Out Power: 1W-2W

Screen Size: No screen

Special Features: Remote Control

Voltage: 12 V

standby time: about 15 days

working time: about 36 hours-48 hours

Product Specifictions:

Model name: TK913

Dim: 55mm x 36mm x 21mm

Host Weight:  58G

Color:Black

Network: GSM/GPRS

Frequency: GSM 850/900/1800/1900Mhz

GPS sensitivity: -159dBm

GPS accuracy: 5m

Time To First Fix:

Cold status 35-80s

Warm status 35s

Hot status 1s

Wall charger: 110-220V input, 5V output

Battery: Built-in 3.7V 1500mAh Li-ion battery

Standby: 15 days

Storage Temp.: -40 to +85 degrees

Operation Temp.: -20 to +55 degrees

Humidity: 5%--95% non-condensing

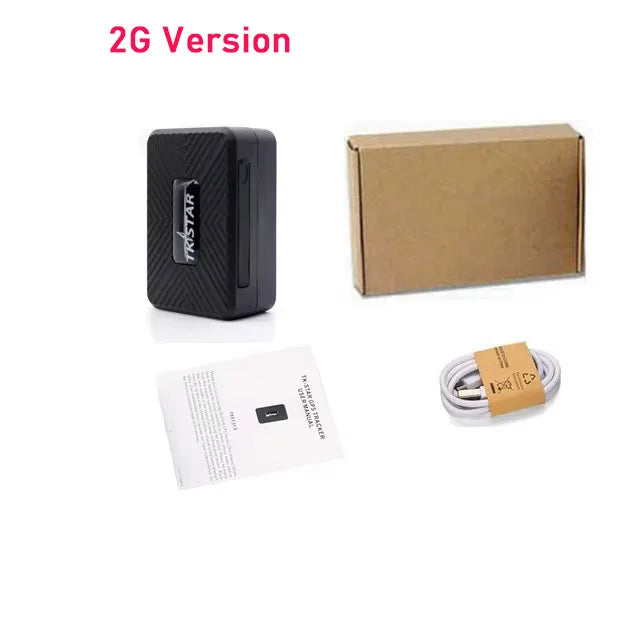

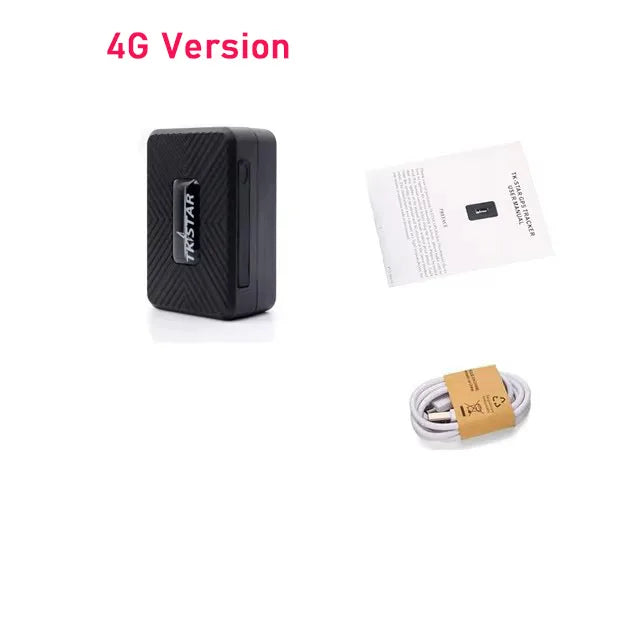

Package List:

1 * TK913 Main Unit

1 * USB Cabl
1 * User Manual
1 * Original Box (Optional)
(No Sim Card and SD Card included)

Main Functions:

1. GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-2000 meters.

2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds.

3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time.

4. Long Standby Time: It has built-in1500 mAh Li-ion battery, the standby time is up to 25 days and the working time is up to 3-4 days;

5. Waterproof IP67: The waterproof level of this device is IP67, it can resist splash water but can't be put under water.

6. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number every 5 minutes.

7. Shock Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS ldquosensor alarm!rdquo to the admin number when the unit get shocked.

8. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

9. Geo-fence: set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

10. Powerful Magnetic: with super strong powerful magnetic,can be very easily installed.

11. Lifetime Free to Support PC Tracking platform and smartphone tracking Application.

Tracking software (Server IP 47.88.85.196  Port 7700):
