SPECIFICATIONS

Brand Name: Yeego

Capacity: >301L

Certification: CB,ETL,CE

Defrost Type: Auto-Defrost

Energy Consumption Grade: Grade 1

Freezer Capacity: <60L

Fridge Capacity: >300 liters

Height: 180-199 cm

High-concerned chemical: None

Number Of Doors: Single Door

Origin: Mainland China

Power Consumption (Kwh/24h): >0.9

Power Source: Electricity

Style: Cold Storage Refrigerator

Voltage: 110 V

Width: 61-70 cm

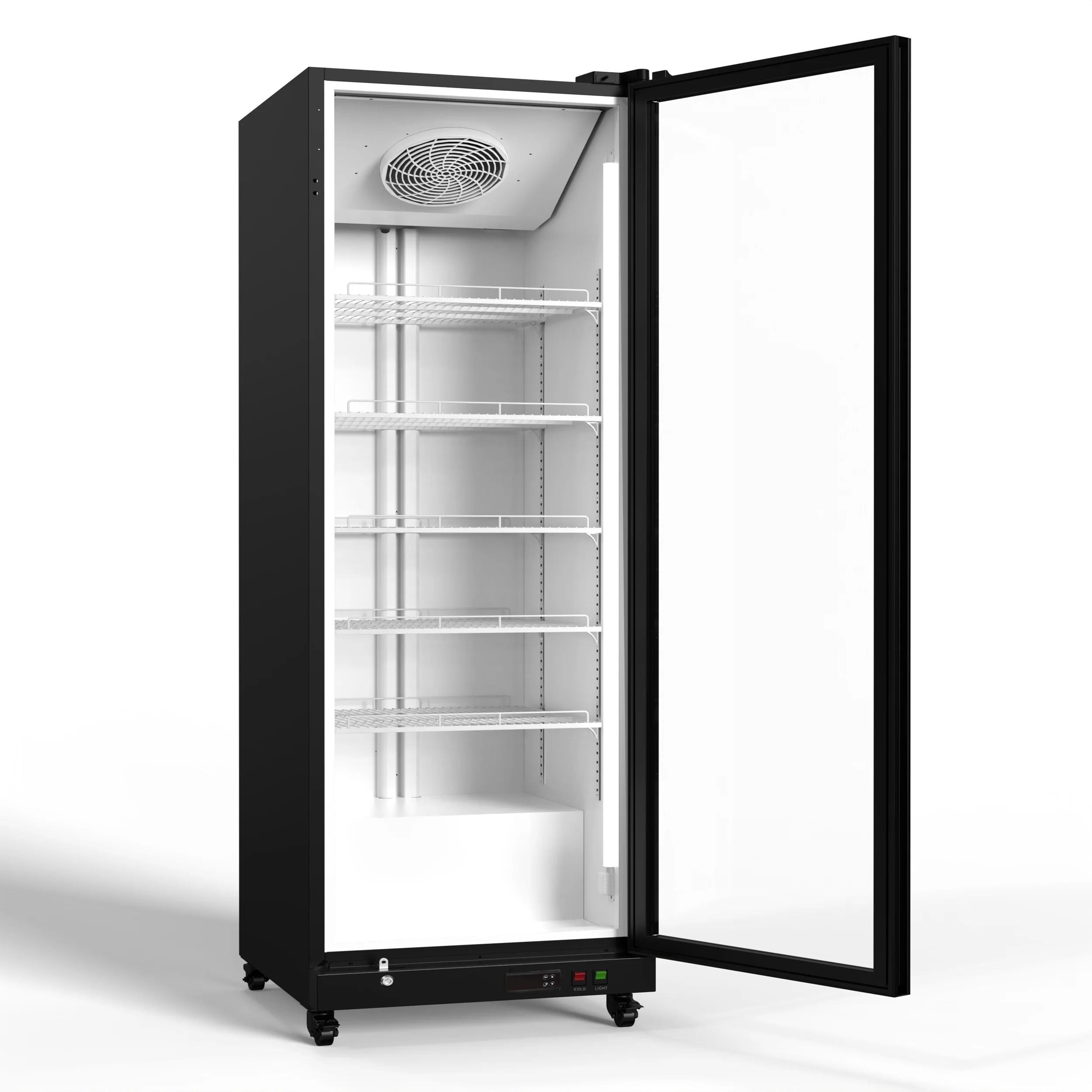

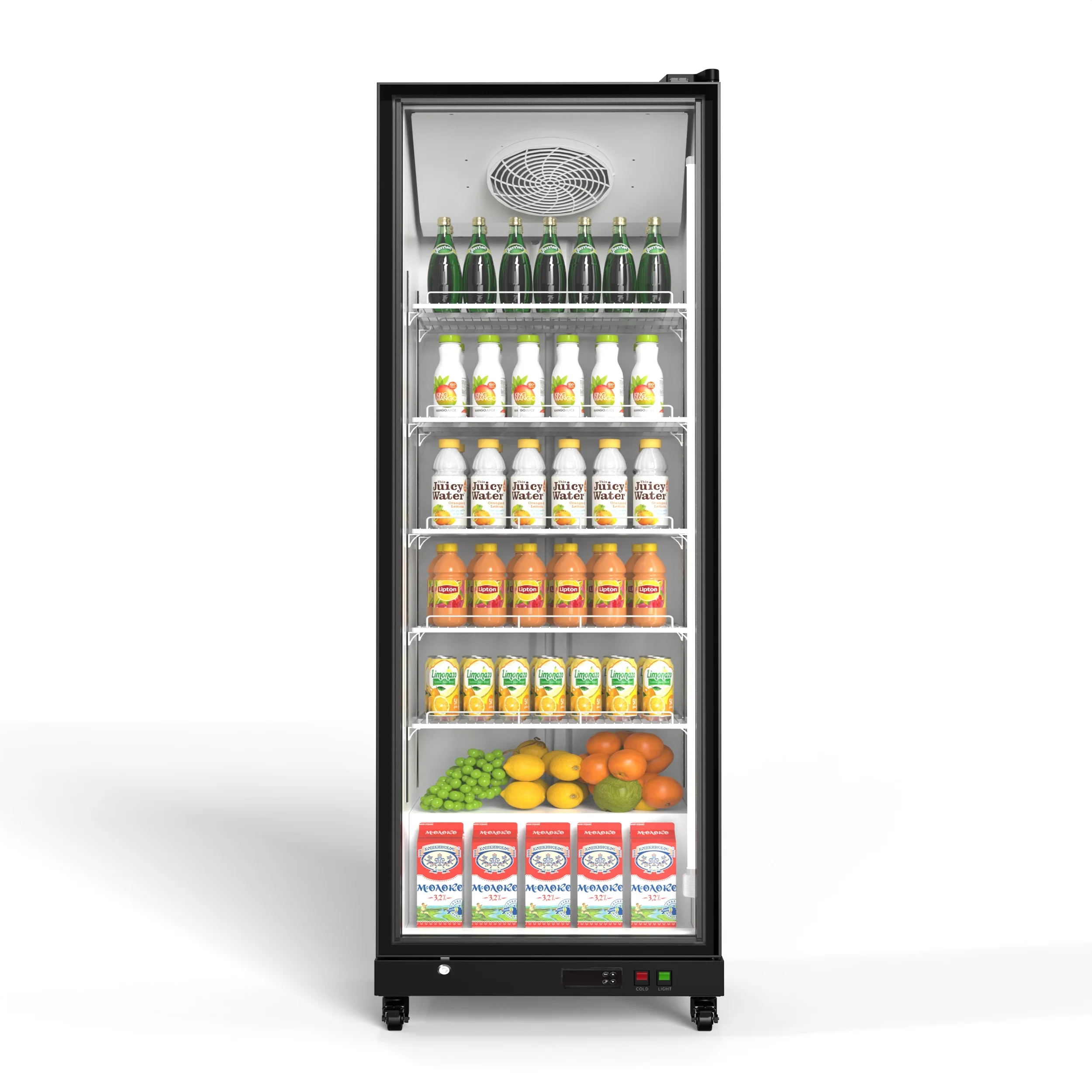

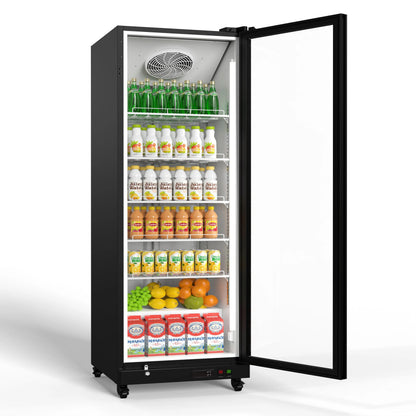

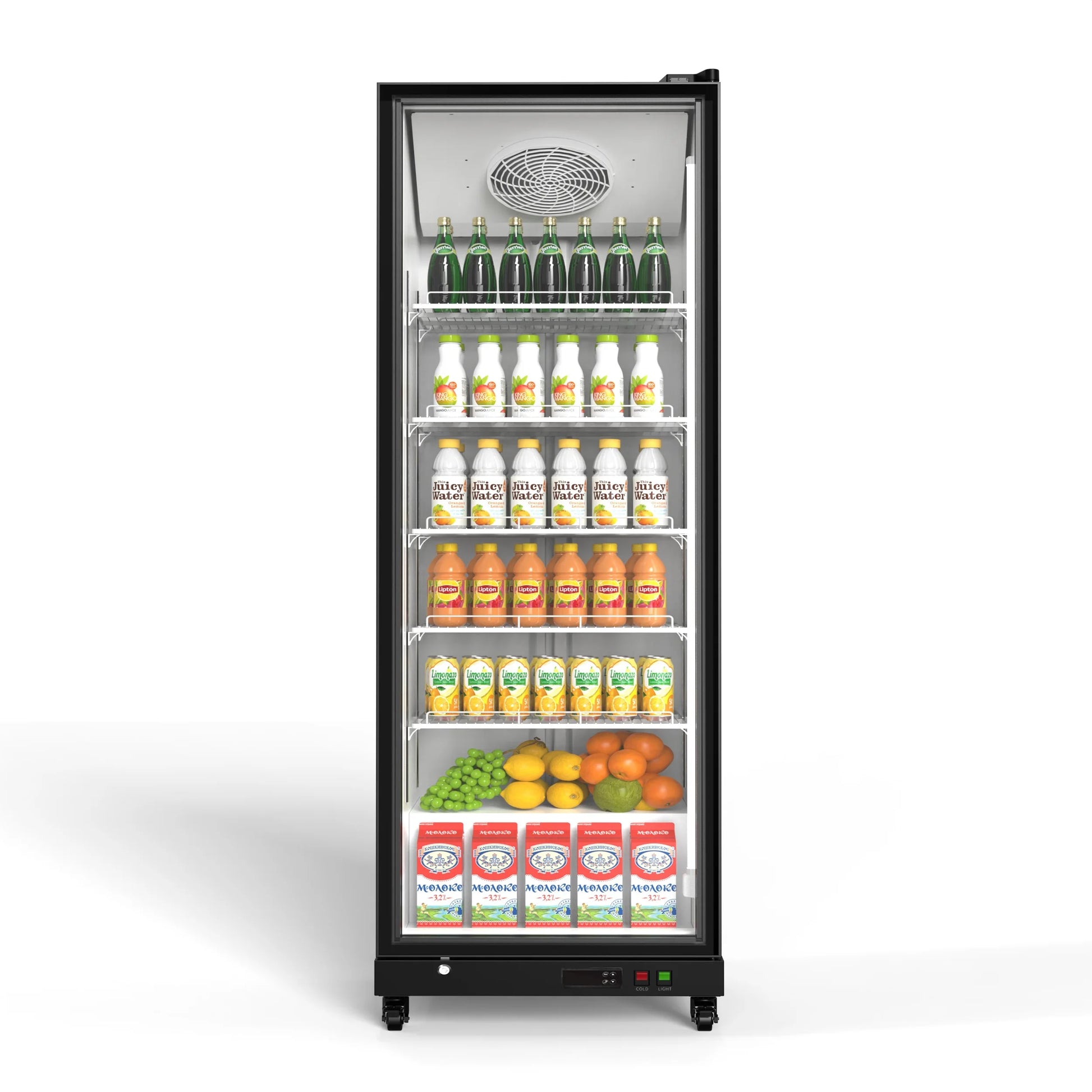

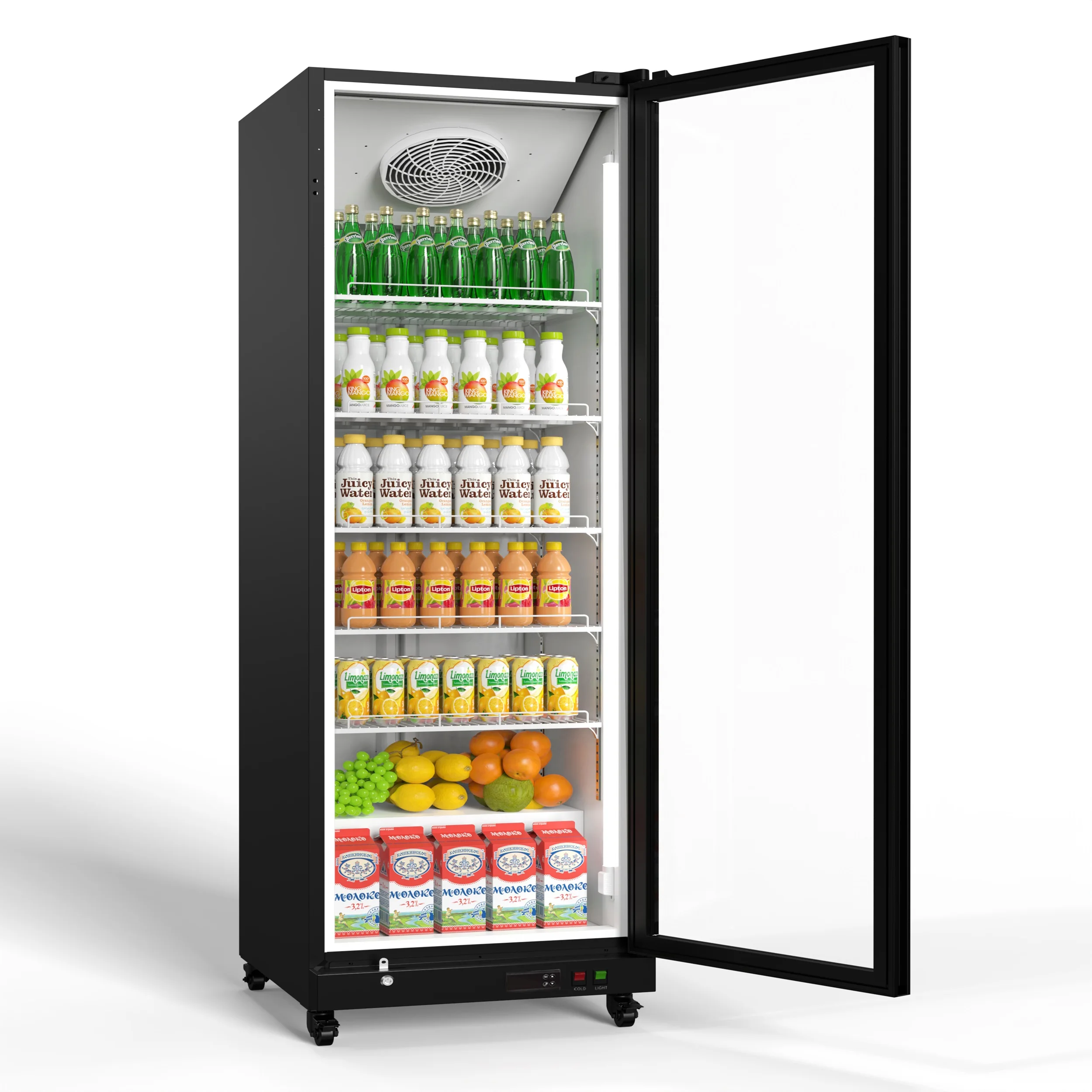

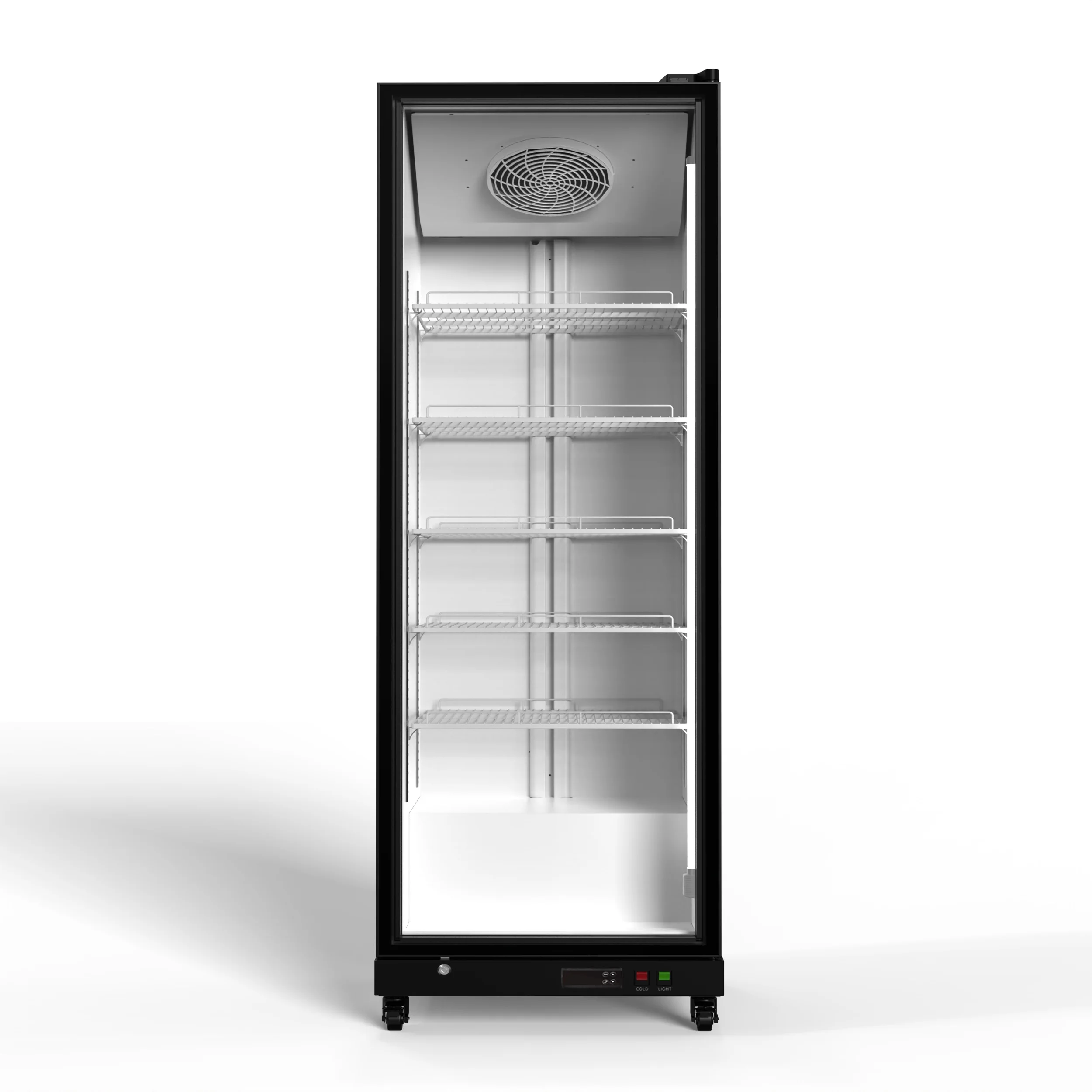

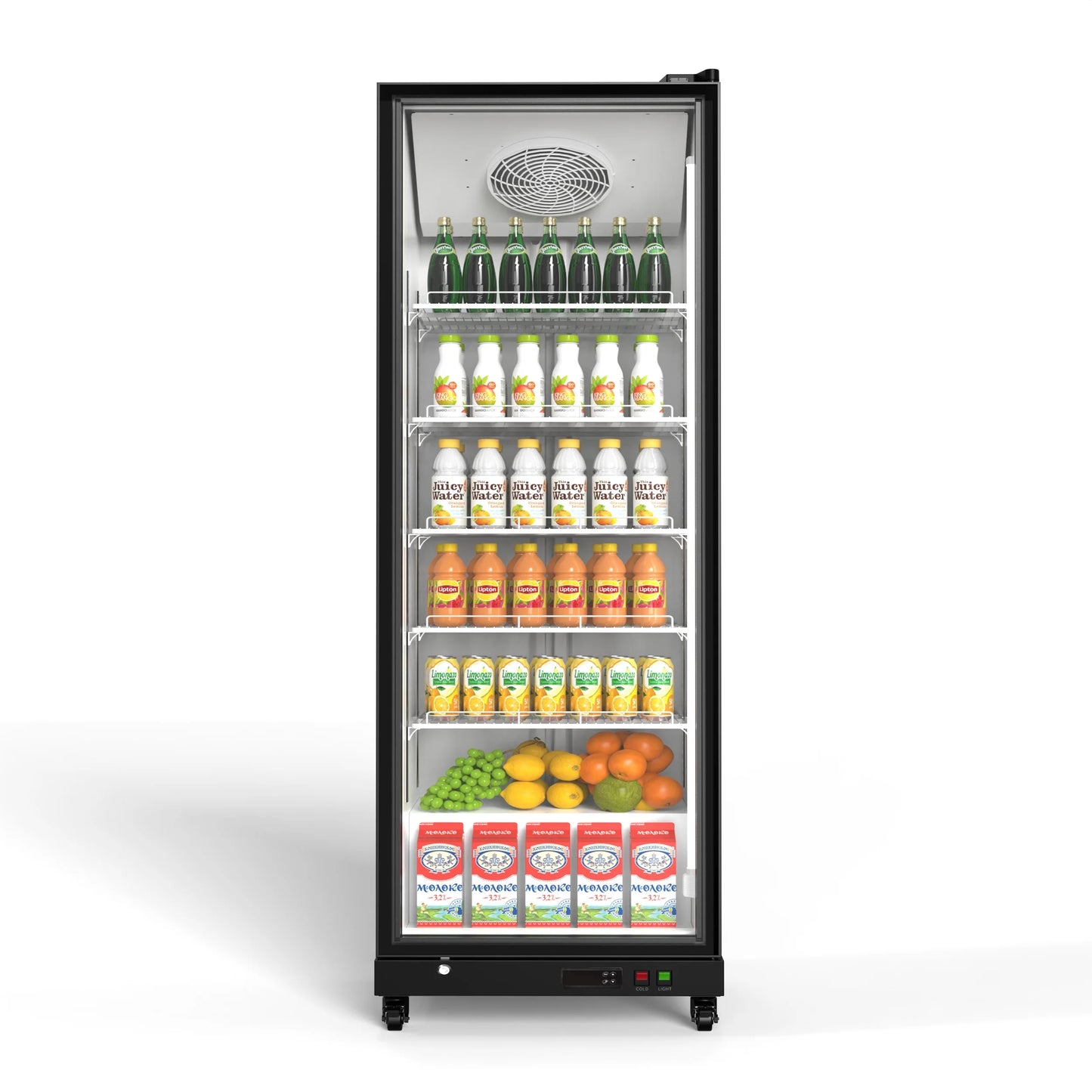

This vertical commercial refrigeration display refrigerator is specially designed for the preservation of beverages and pre packaged food for commercial display. It has a standard large capacity of 350L and is suitable for multi area distribution; Equipped with a compressor refrigeration and forced convection cooling system, the electronic precision temperature control stabilizes the temperature range of 1-10 ℃. It supports customization of multiple voltage versions in China, Europe, and North America, and has obtained authoritative certifications such as CE, CCC, ETL, DOE from multiple countries. It can be used in convenience stores, supermarkets, restaurants, gas stations, and shops, with dual value of display and long-term refrigeration.

Standard Practical Function List

✅ Automatic defrosting function: No need for manual regular defrosting, commercial long-term maintenance free;

✅ Power off memory: After an unexpected power outage and restart, the original temperature setting will be automatically used without the need for repeated debugging;

✅ Beep malfunction alarm: instant reminder of probe malfunction and temperature exceeding limit, timely avoiding deterioration and loss of goods;

✅ Compressor delay protection: Avoiding frequent start stop impacts and extending the lifespan of core components;

✅ Multiple voltage versions available in multiple countries: domestic, European, and American, providing one-stop adaptation to the global market;

❌ No activated carbon deodorizer, no door pressure switch, no temperature lock button lock, streamline redundant electronic components, and lower commercial continuous operation failure rate.

Performance start stop standard (multi environment adaptive)

Set precise shutdown temperature control logic based on different environmental temperatures, with stronger temperature control stability:

Environmental temperature<16 ℃: Run for 40 minutes and automatically stop when reaching 3 ℃;

Environmental temperature range of 16~25 ℃: Run for 50 minutes and automatically stop when reaching 3 ℃;

Environmental temperature of 25-32 ℃: Run for 60 minutes and automatically stop when reaching 3 ℃;

Environmental temperature range of 32-38 ℃: Run for 90 minutes and automatically shut down when reaching 3 ℃.

Energy Efficiency Level (Regional Compliance)

Domestic energy efficiency: Level 1 energy efficiency, daily electricity consumption of 1.69kWh/24h;

European energy efficiency: ERP certification B level, annual power consumption 836kWh/annum;

North American energy efficiency: DOE certification, daily electricity consumption of 1.98kWh/day.

Automatic locking and fault reminder

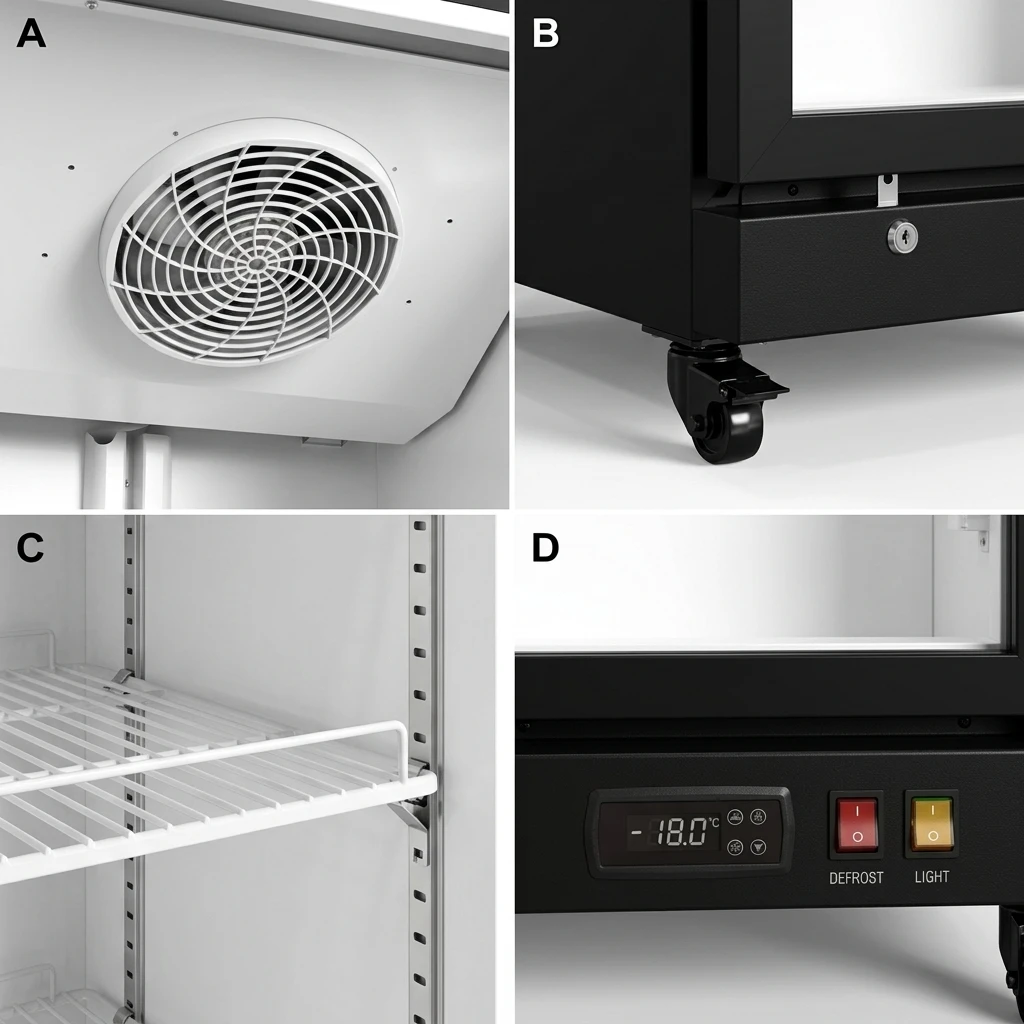

Automatic screen lock without operation: The controller remains idle for 1 minute without any button operation, automatically locking the panel to prevent accidental touch and tampering with temperature;

Multiple fault code alarm:

EE: Probe short circuit/open circuit, continuous buzzing alarm;

AH: When the temperature exceeds the upper limit, the digital tube flashes and beeps as a reminder;

AL: Temperature exceeding the lower limit, digital tube flashing+buzzing reminder;

HH/LL: Temperature over range upper and lower limits, synchronous alarm prompt.

Compressor delay protection

After each power on, the compressor is forced to start with a 5-second delay to avoid the impact of starting current;

After the compressor is shut down, it must complete the delay protection cycle before it can be restarted, effectively extending the service life of the compressor;

The power on buzzer prompts once, and each effective key operation is synchronized with a short prompt sound, providing clear feedback on the operation.

Applicable scenarios

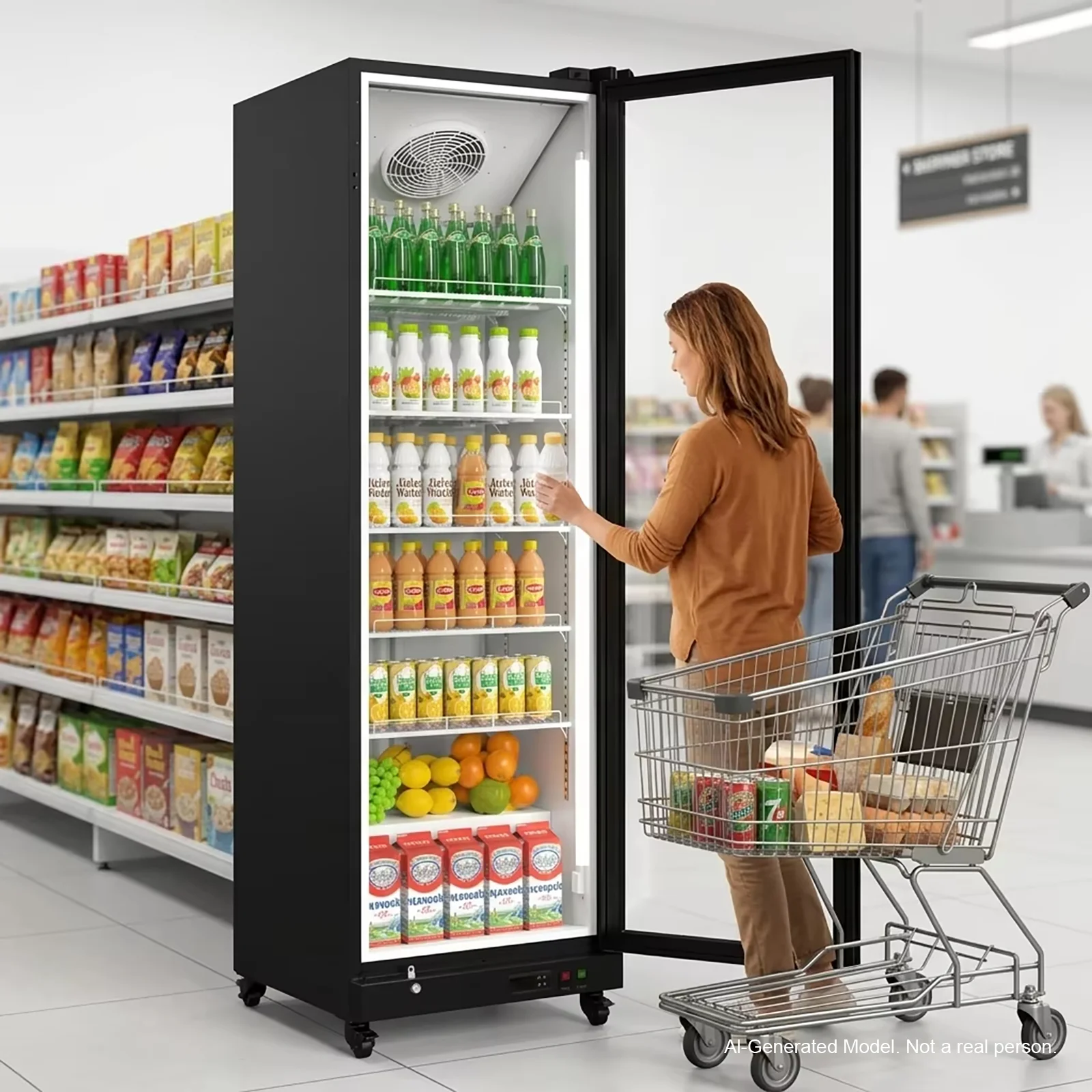

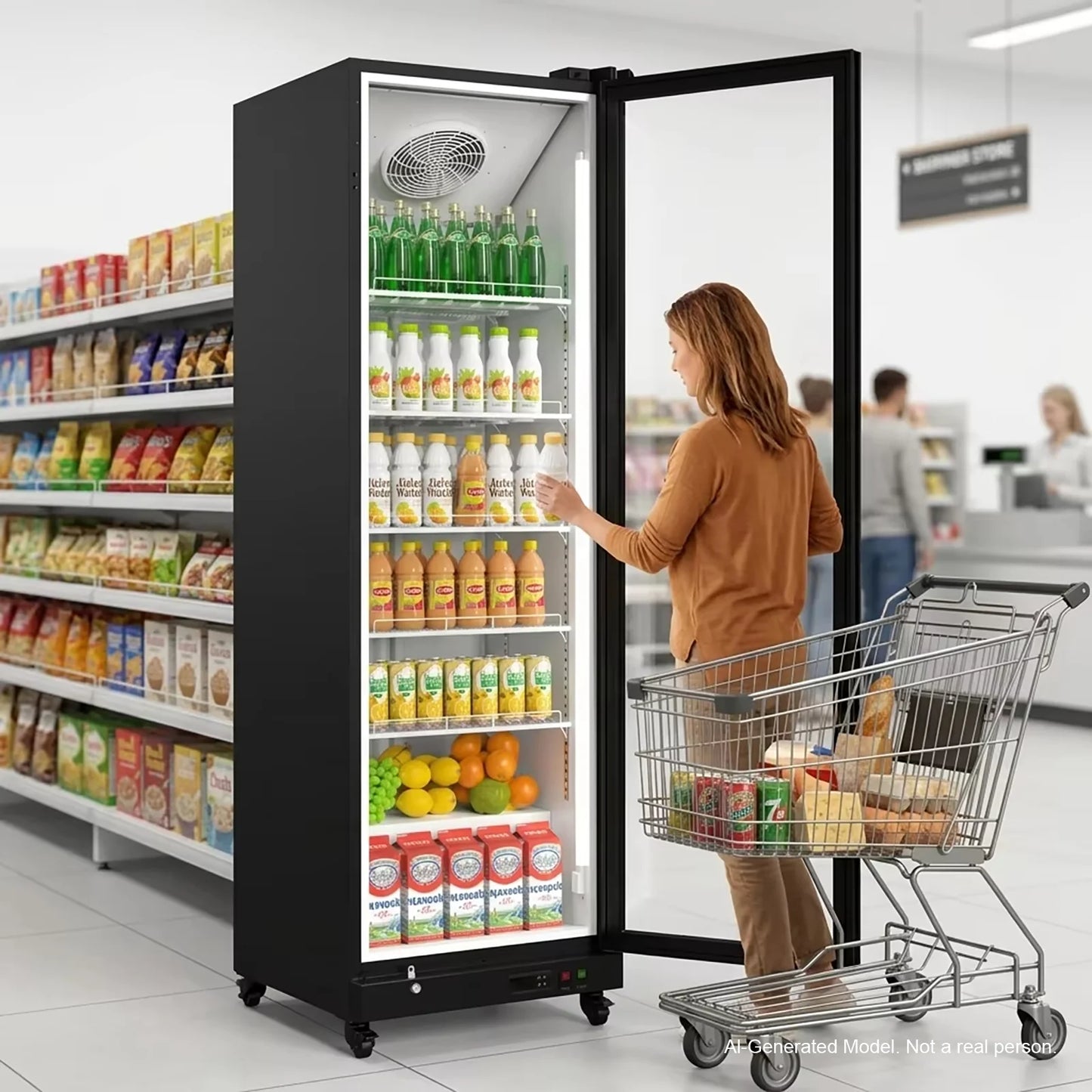

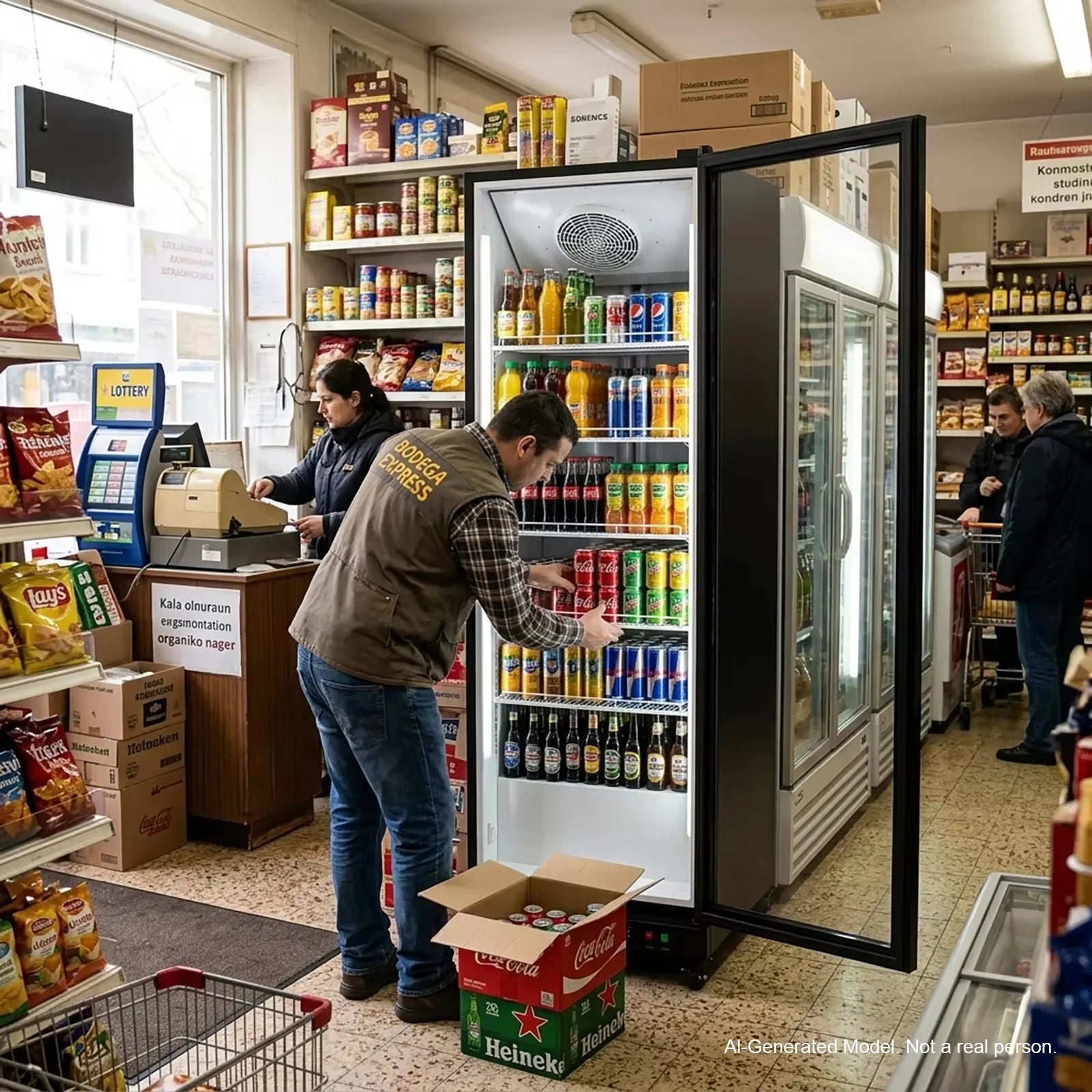

🛒 Chain convenience stores and community supermarkets: vertical display and sale of beverages, beer, yogurt, and pre packaged snacks;

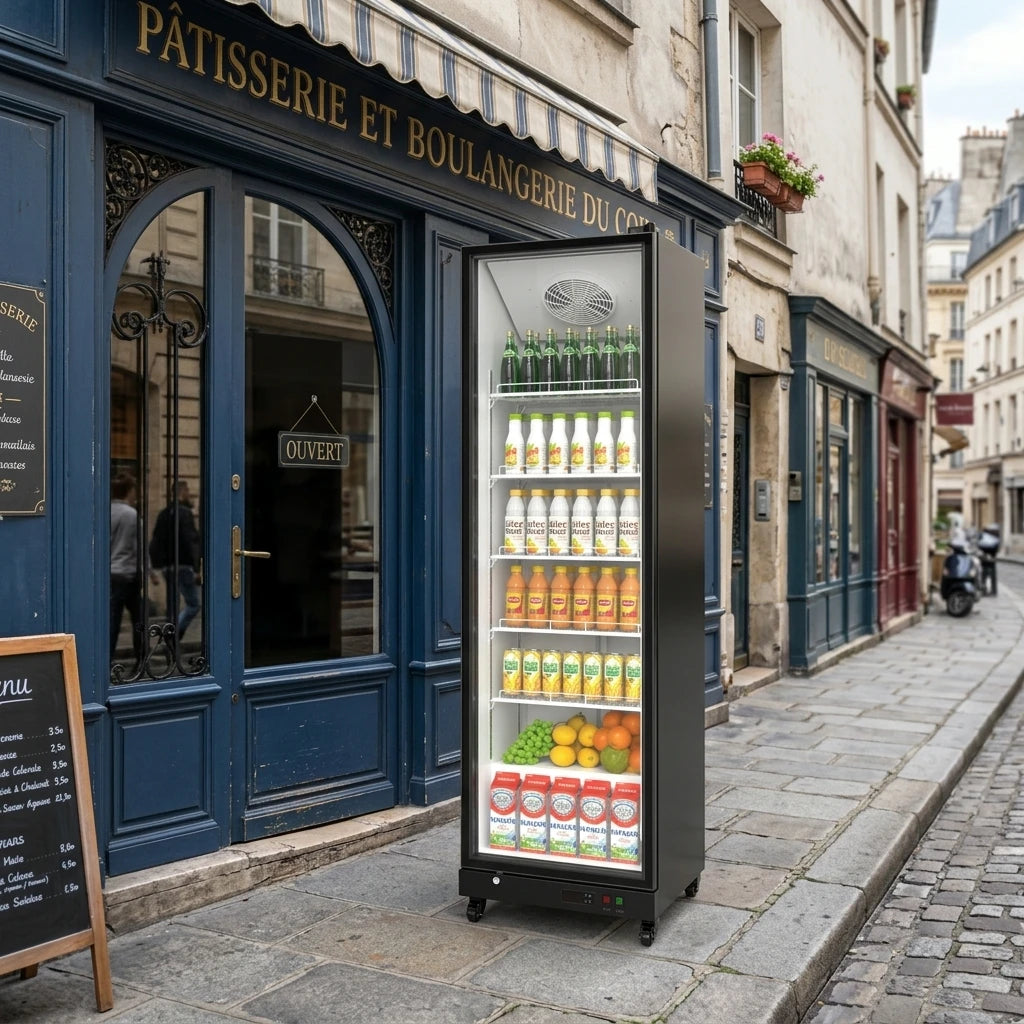

🍔 Catering stores: burger shops, milk tea shops, Western restaurants, self-service restaurants, refrigerated canned drinks, bottled fruit juice;

⛽ Gas stations and shops in highway service areas: standardized commercial refrigeration display, capable of stable and continuous operation even with high passenger flow;

🏪 Hotels, cinemas, and office building supporting shops: Open glass doors display goods intuitively, enhancing sales conversion.
