ZhuCamX DSM BSD Blind Spot Detection Monitoring Ultrasonic Warning Lane Assist System

$465.30 AUD

~~$467.29 AUD~~ $465.30 AUD

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Alarm Distance: 700 M

Brand Name: ZhuCamX

Certification: CE

Detection Mode: Radar Signal Detection

High-concerned chemical: None

OSD Language: English,RUSSIA,albanian,Arabic,Armenian,Azeri,Belarusian,Boolean text (Dutch South Africa),Bulgarian,Catalan,Chinese (Simplified),Chinese (Traditional),Croatian,czech,Danish,Dutch,ESTONIAN,Filipino,Finnish,French,Galicia,Georgian,German,Greek,Haitian Creole,Hebrew,hindi,hungarian,Icelandic,indonesia,Irish,Italian,Japanese,Korean,Latin,Latvian,Lithuanian,Macedonian,Malay,Maltese,Norwegian,PERSIAN,Polish,Portuguese,Romanian,Russian,Serbian,Slovak,Slovenian,Spain's Basque,Spanish,Swahili,Swedish,THAI,Turkish,Ukrainian,Urdu India,Vietnamese,Welsh,Yiddish

Origin: Mainland China

Special Features: motion detection

Style: CAR STYLE

Type: Fixed & Flow Velocity

Suitable for vehicle models

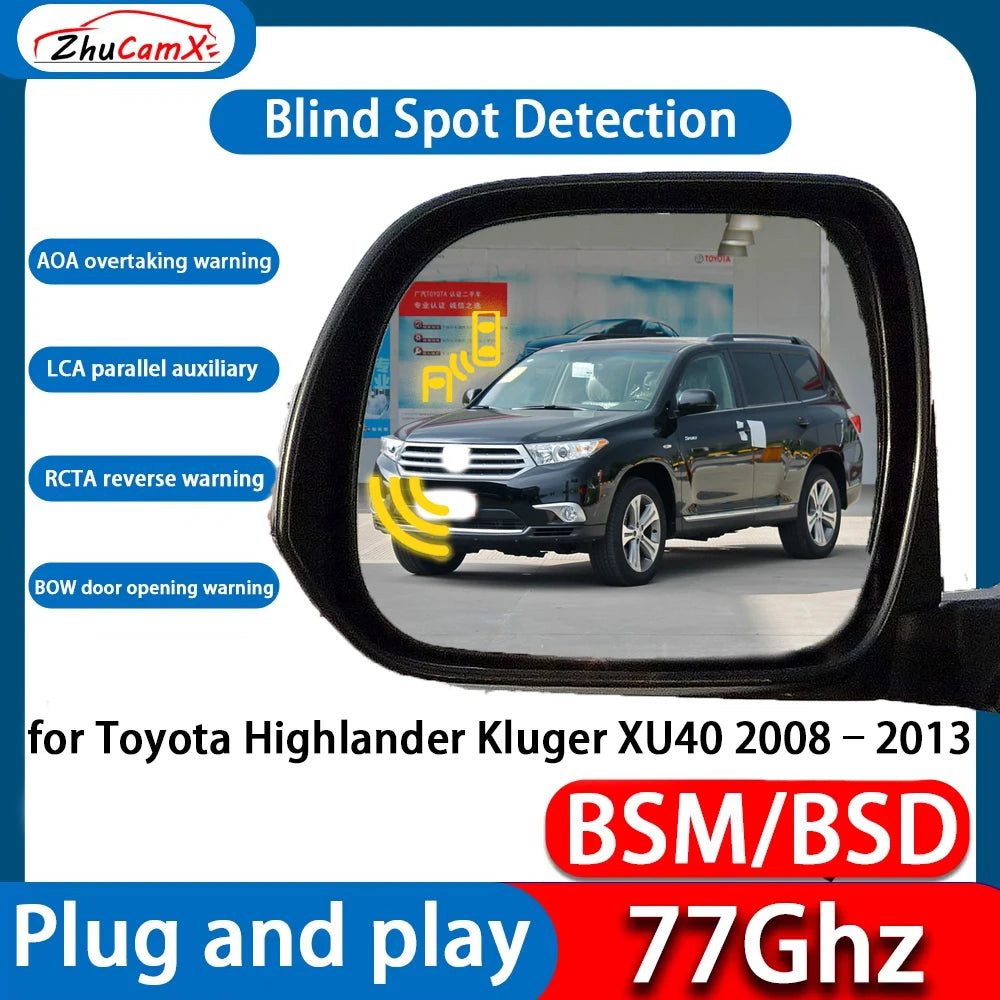

for Toyota Highlander XU40 2008–2013
for Toyota Kluger XU40 2008–2013

Note:

Please check your left and right rearview mirrors to avoid errors. The model name and year are for reference only, as the same car brand may have some differences in different countries. If you don't know which model is suitable for you, please send us photos of your rearview mirror, left, right, and rear side, and we will answer your question. ^ _ ^.

Brief introduction

Report Item
Product desciption:
1.This system is a vehicle assistance device that helps driver lane changing safely during driving.

2.With the aid of 77GHz microwave sensor, probe the side / rear of the vehicle for those moving objects into the blind spot of the detection zone.

3.The system works in a set of a control box (controlled by computer), two microwave sensors, two blind region monitor (or LED light), a buzzer and the wire harness which is the perfect connection of microwave and computer.

4.There is blind zone at the rear of the vehicle which is easy to endanger driving safety.! When you installed BSM into your lovely car, no matter it's day time, night time or even in the snow,you can be alerted whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on , blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.

5.After the vehicle is stopped, the system delays for 30s. When there are bicycles, electric cars, motorcycles, pedestrians and other vehicles near the vehicle, the system will light up and there is a risk of opening the doors. Please confirm the safety before opening the doors.

Newly upgraded and more intelligent

1. Work 24/7, unaffected by weather conditions
2. Long distance, large-scale monitoring, with a 50% increase in field of view
3.77GHZ high-performance millimeter wave sensor
4. No false alarms, only detecting moving objects within blind spots
5. Dual protection (LED light warning, sound alarm)
6. Non destructive installation, without damaging the appearance

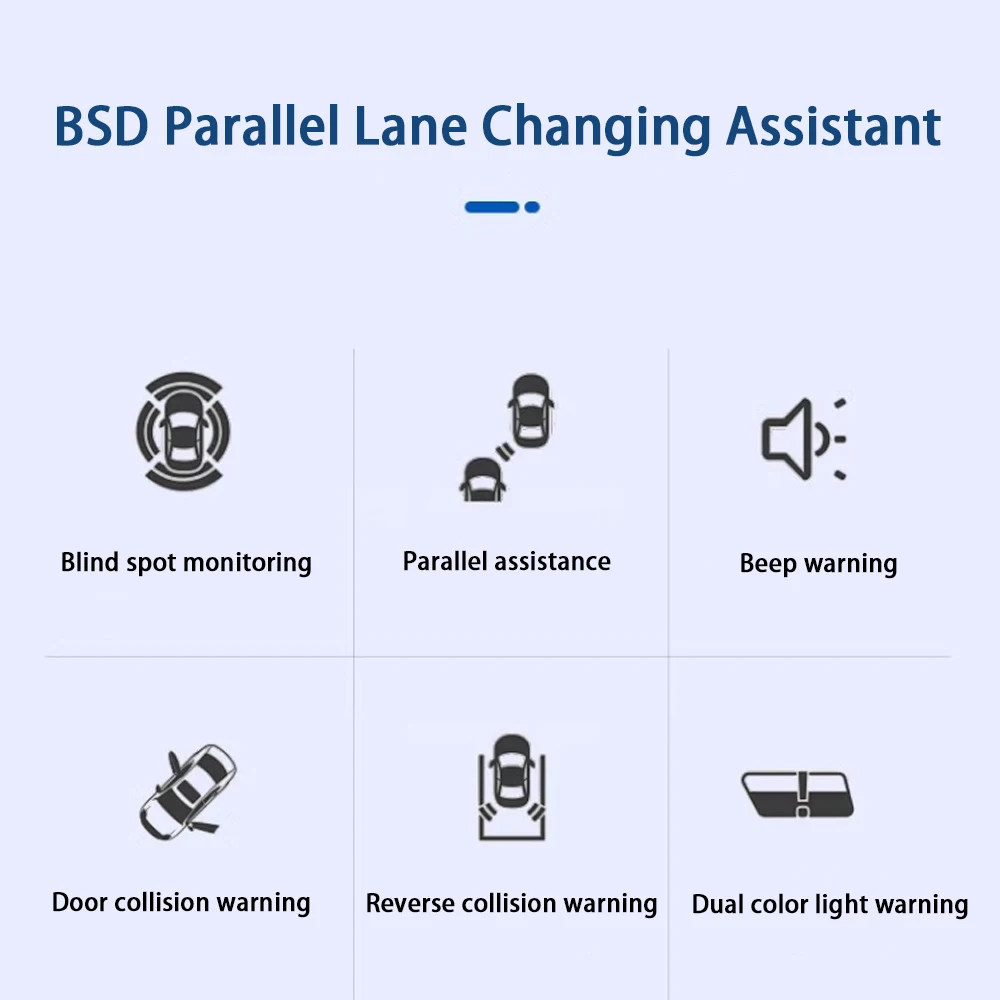

BSD Parallel Lane Changing Assistant

1. Blind spot monitoring
2. Parallel line assistance
3. Beep warning

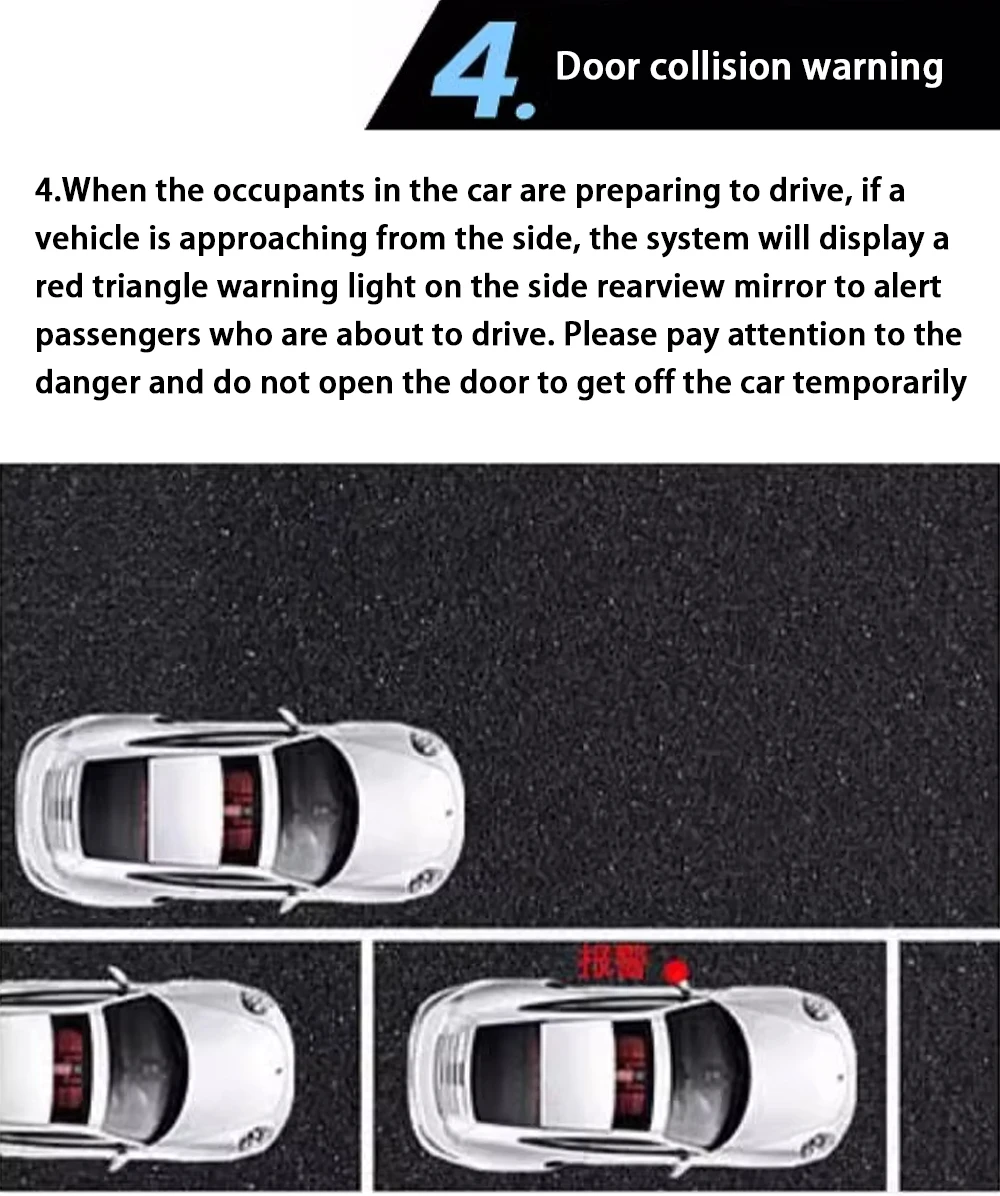

4. Door collision warning
5. Reverse collision warning
6. Dual color light warning

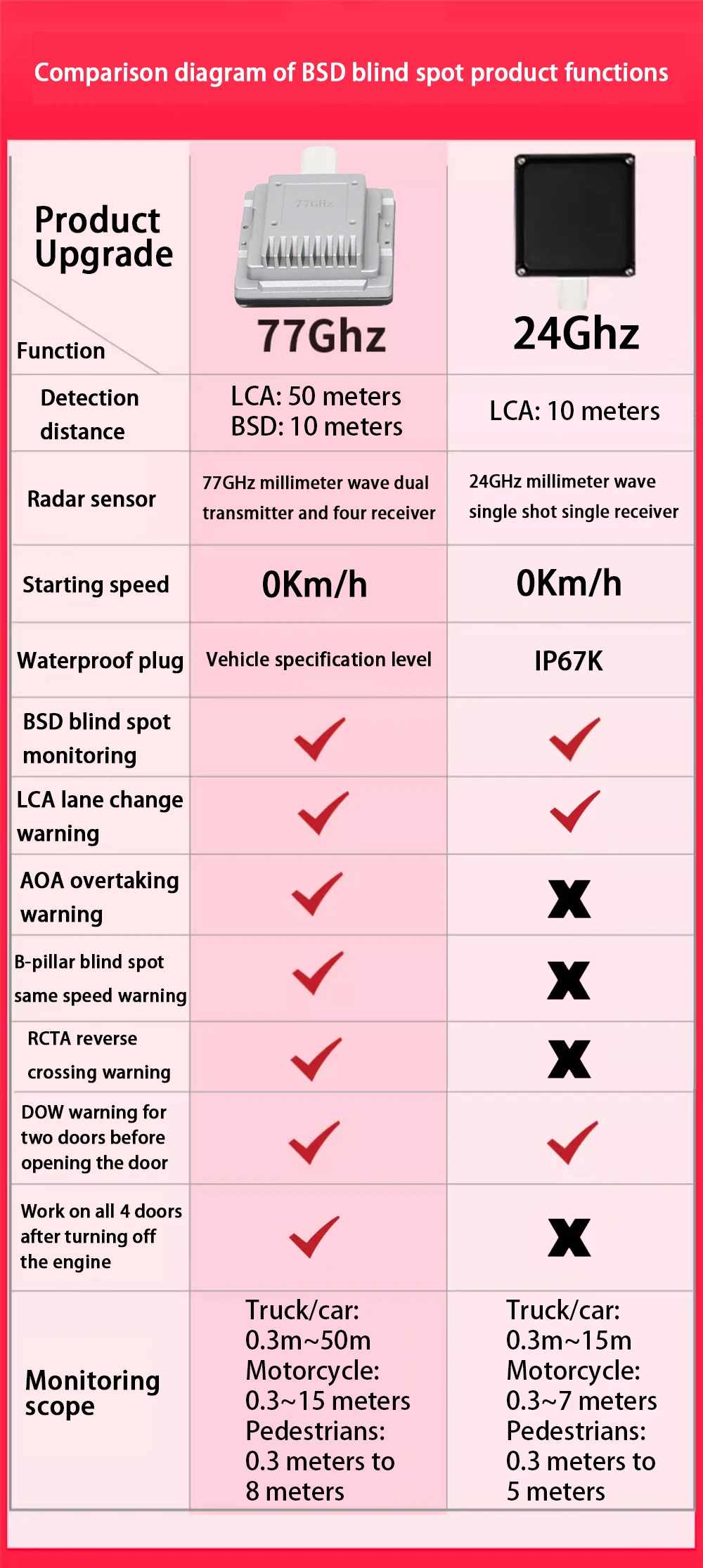

Comparison diagram of BSD blind spot product functions

Why do we need blind spot assistance system?

Driving blind spots bring visual obstacles to driving, which can easily lead to accidents. In order to protect the lives of family members, we must not be careless when facing blind spots.

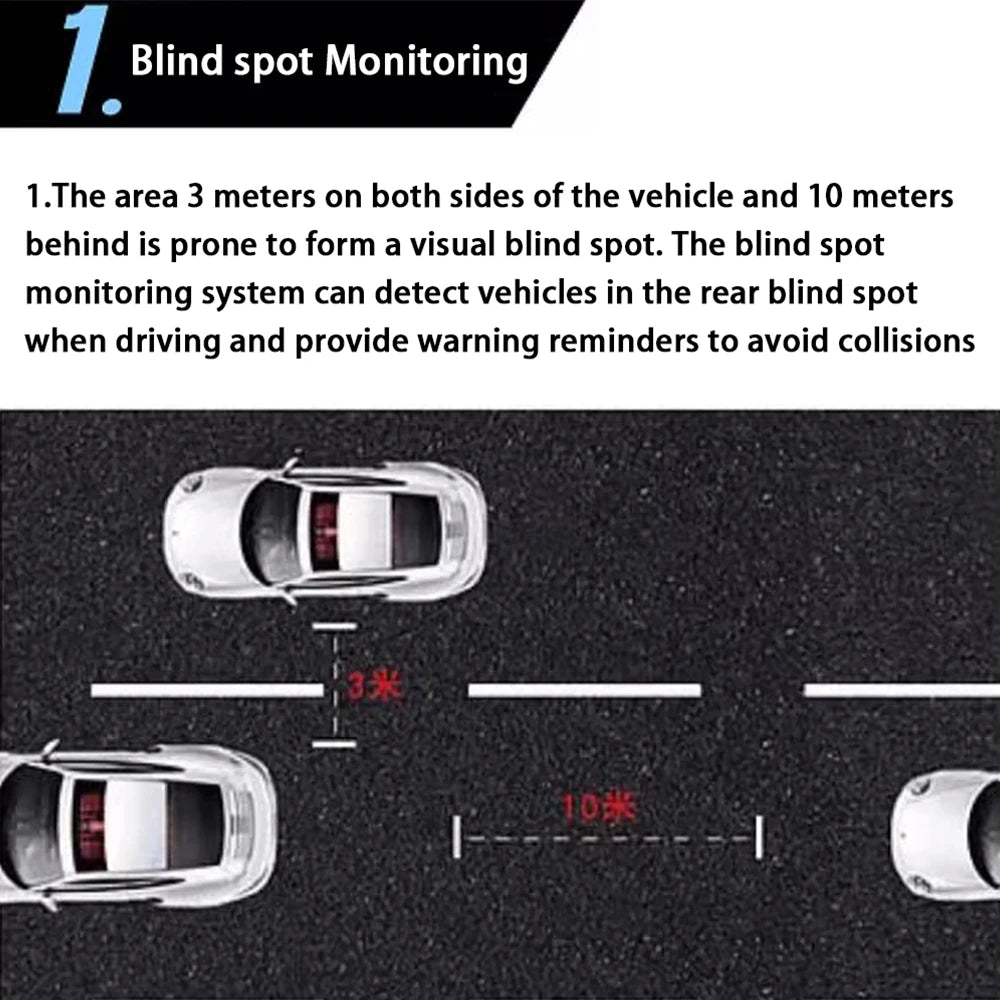

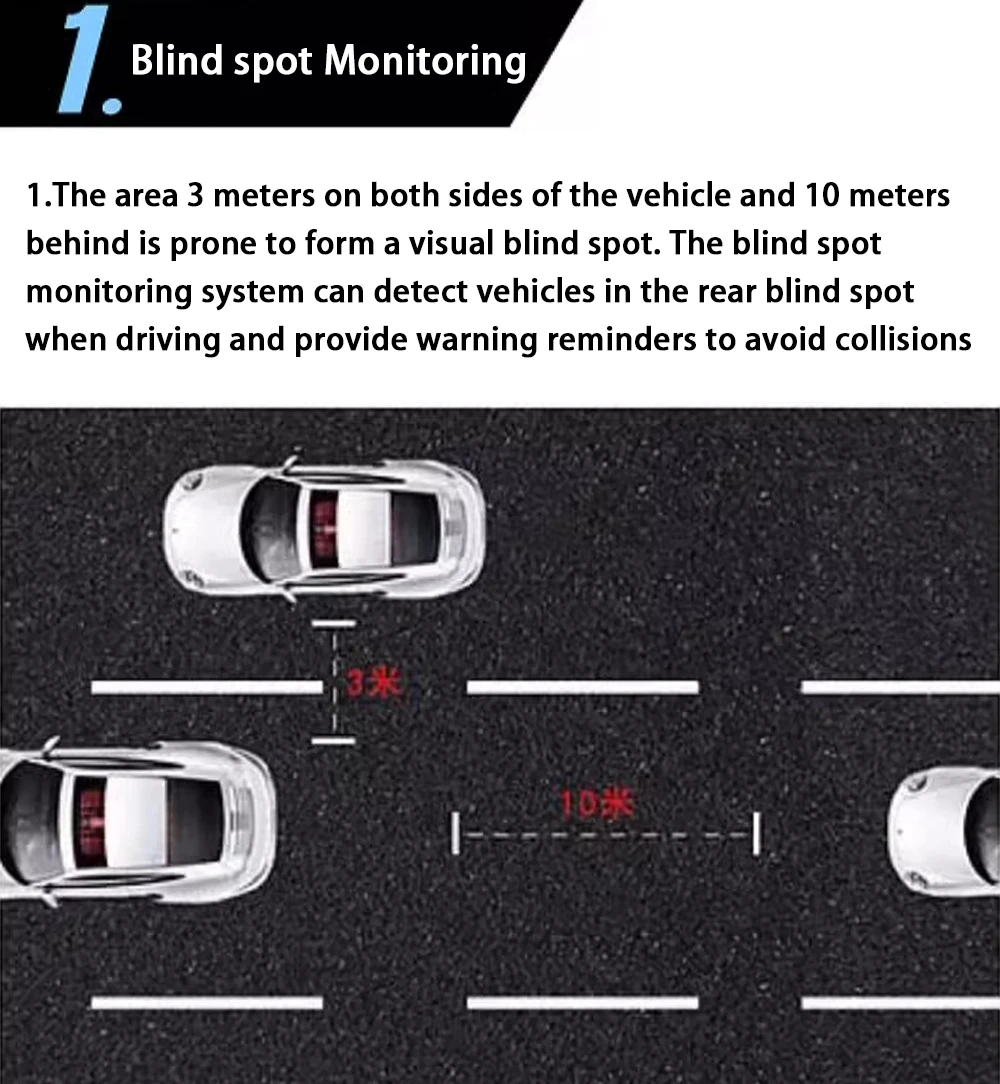

Blind spot monitoring

The area 3 meters on both sides of the vehicle and 10 meters behind is prone to form a visual blind spot. The blind spot monitoring system can detect vehicles in the rear blind spot when driving and provide warning reminders to avoid collisions

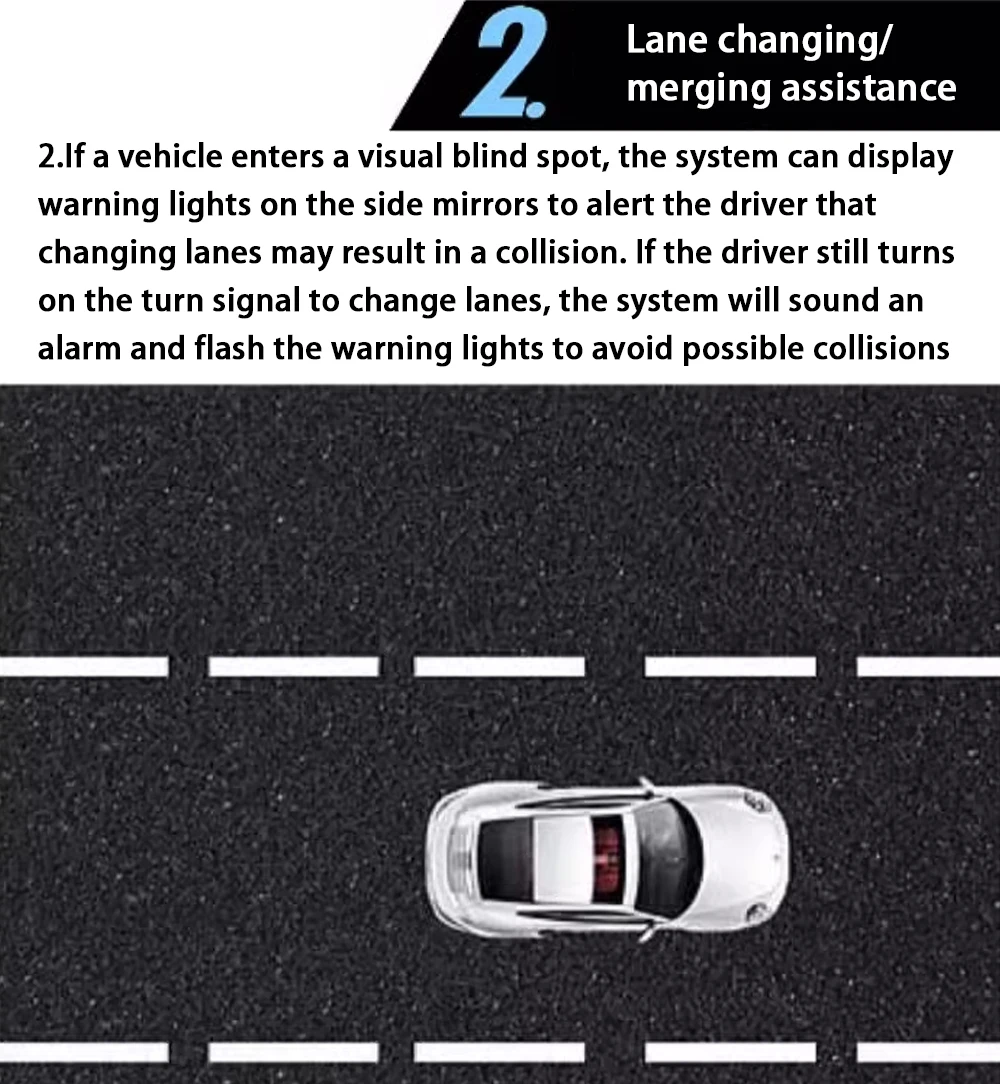

If a vehicle enters a visual blind spot, the system can display warning lights on the side mirrors to alert the driver that changing lanes may result in a collision. If the driver still turns on the turn signal to change lanes, the system will sound an alarm and flash the warning lights to avoid possible collisions

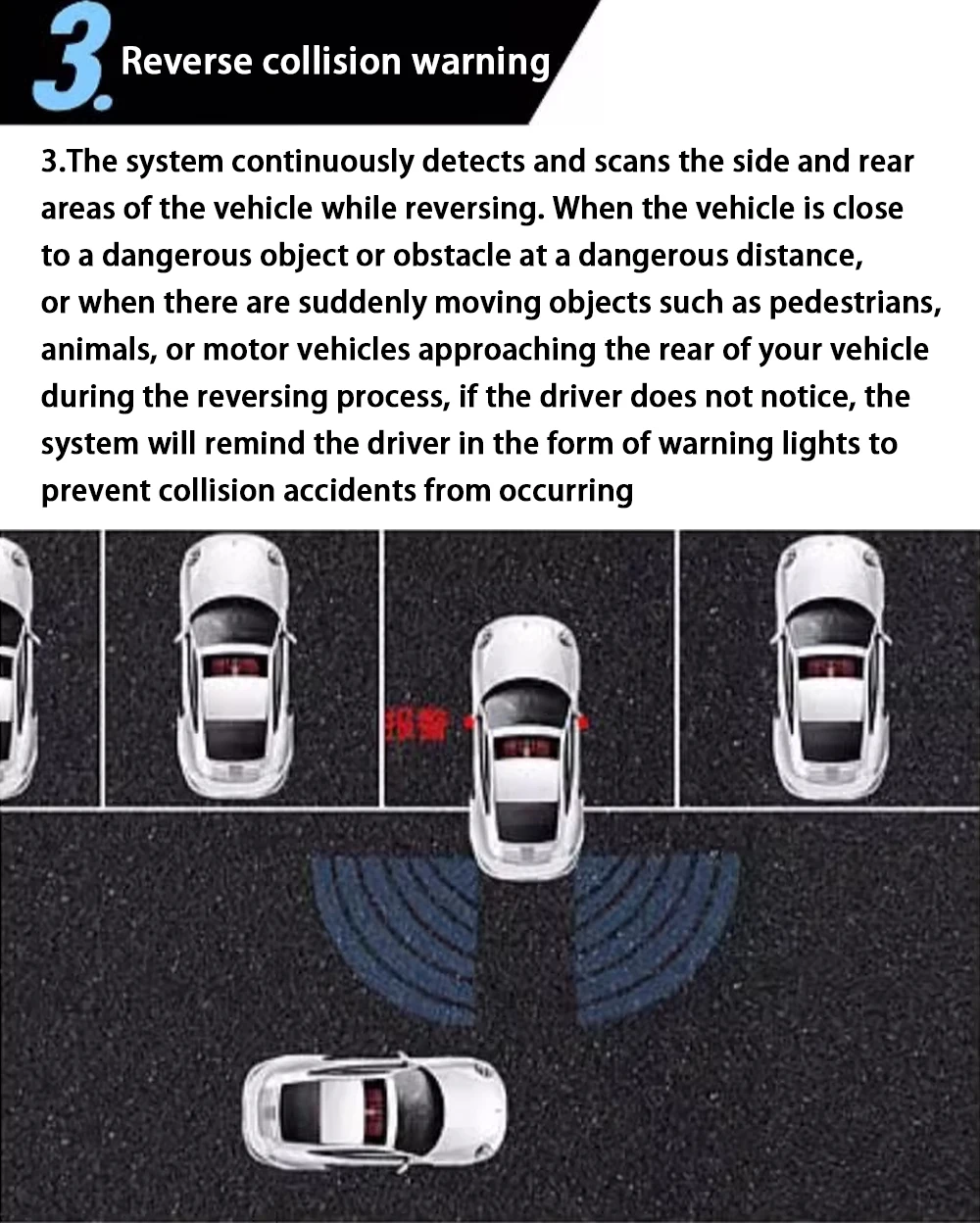

Reverse collision warning

The system continuously detects and scans the side and rear areas of the vehicle while reversing. When the vehicle is close to a dangerous object or obstacle at a dangerous distance, or when there are suddenly moving objects such as pedestrians, animals, or motor vehicles approaching the rear of your vehicle during the reversing process, if the driver does not notice, the system will remind the driver in the form of warning lights to prevent collision accidents from occurring

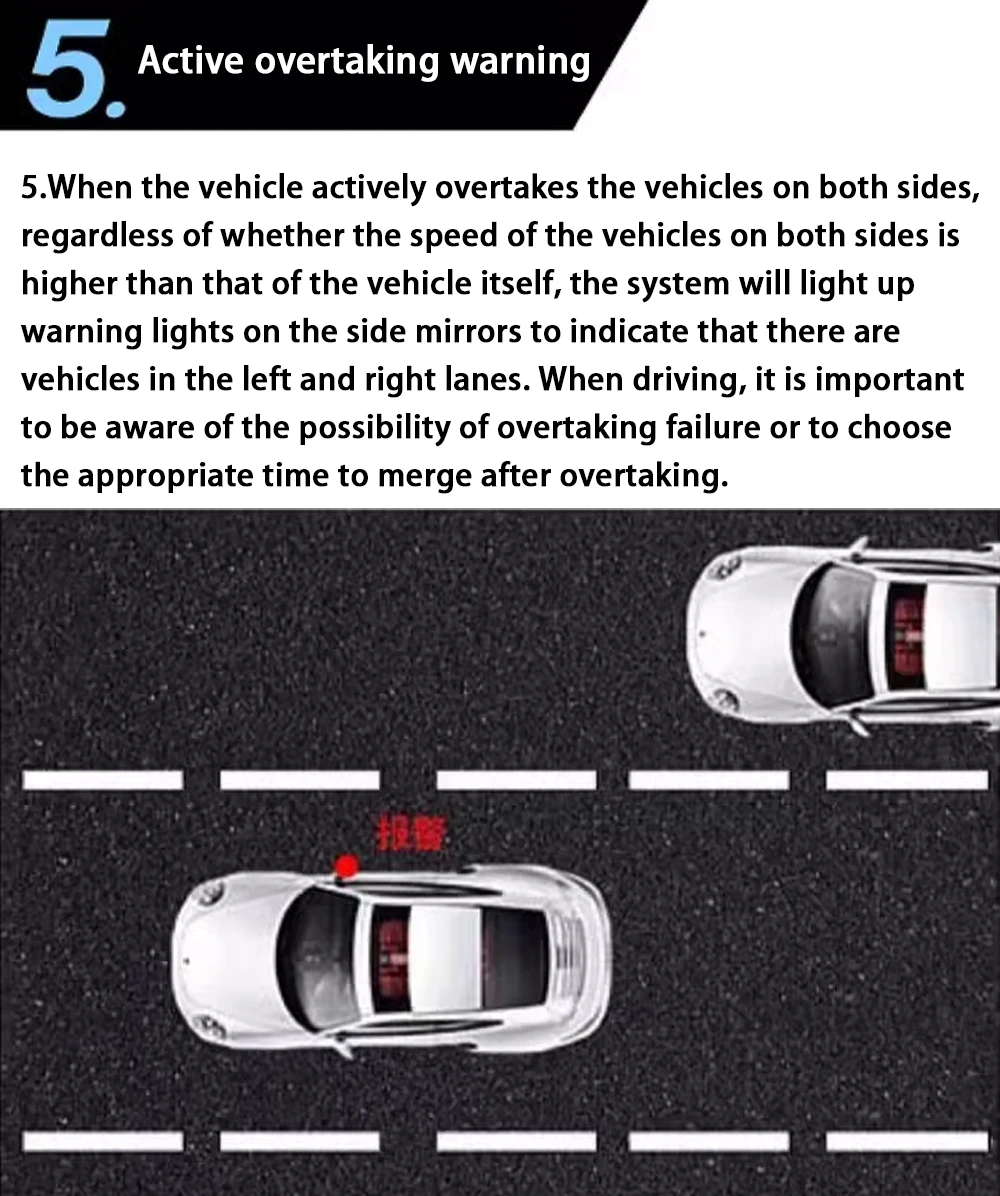

Active overtaking warning

When the vehicle actively overtakes the vehicles on both sides, regardless of whether the speed of the vehicles on both sides is higher than that of the vehicle itself, the system will light up warning lights on the side mirrors to indicate that there are vehicles in the left and right lanes. When driving, it is important to be aware of the possibility of overtaking failure or to choose the appropriate time to merge after overtaking.

77GHz millimeter wave radar

High sensitivity, high stability, all-weather characteristics, precise algorithms, wider detection range on both sides of the vehicle, faster response, allowing car owners more time to react and achieve effective warning

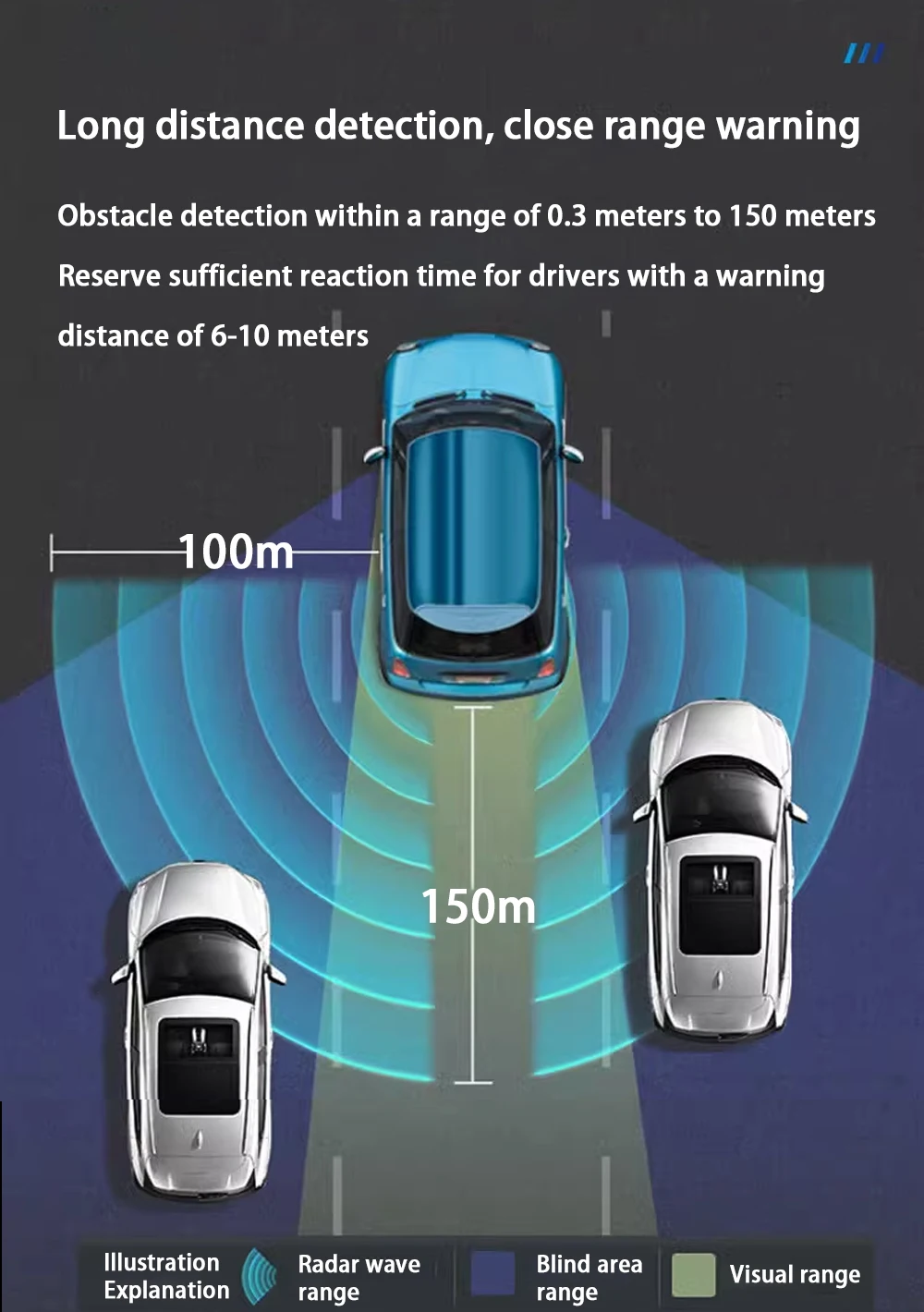

Long distance detection, close range warning

Obstacle detection within a range of 0.3 meters to 150 meters
Reserve sufficient reaction time for drivers with a warning distance of 6-10 meters

Vehicle grade chip

Fearless of extremely harsh environments
High temperatures ranging from minus 30 degrees Celsius to 125 degrees Celsius do not affect normal operation

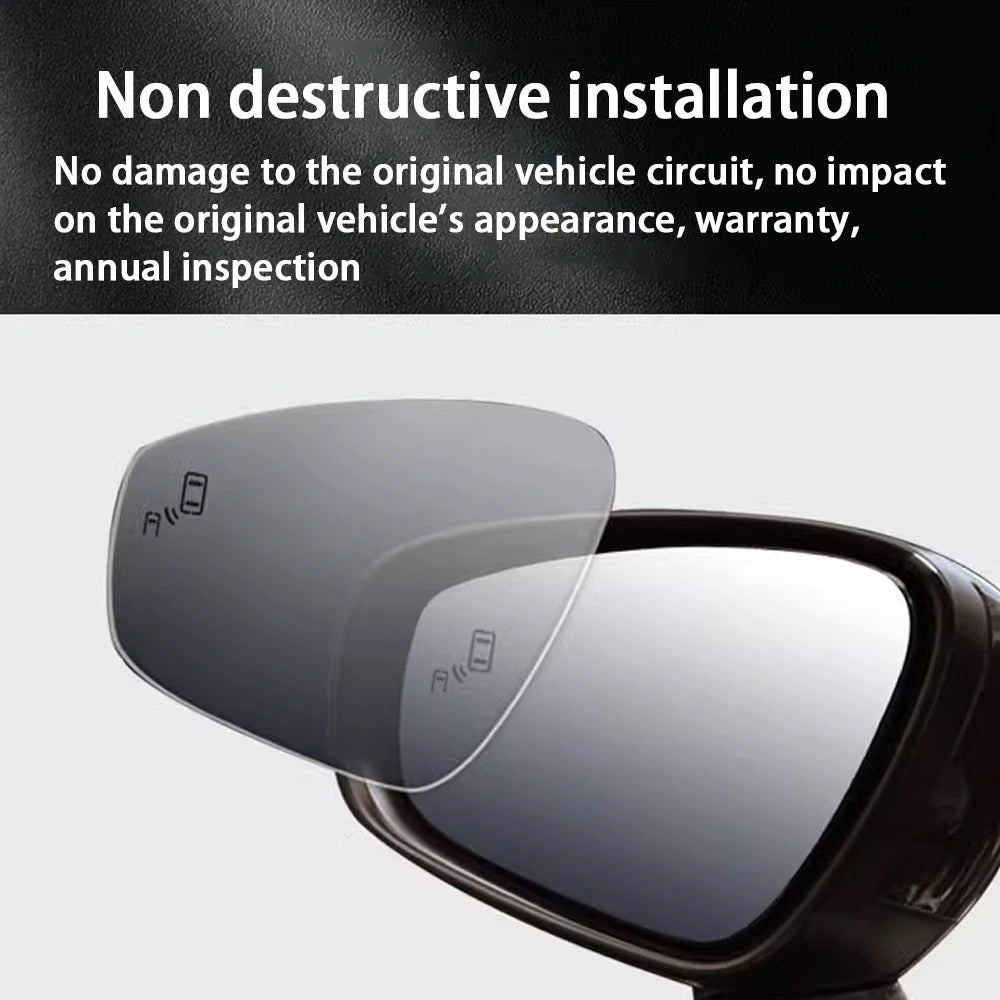

Non destructive installation

No damage to the original vehicle circuit, no impact on the original vehicle's appearance, warranty, annual inspection

Not affected by the environment

The product works normally in various weather conditions and is not affected by any environmental factors

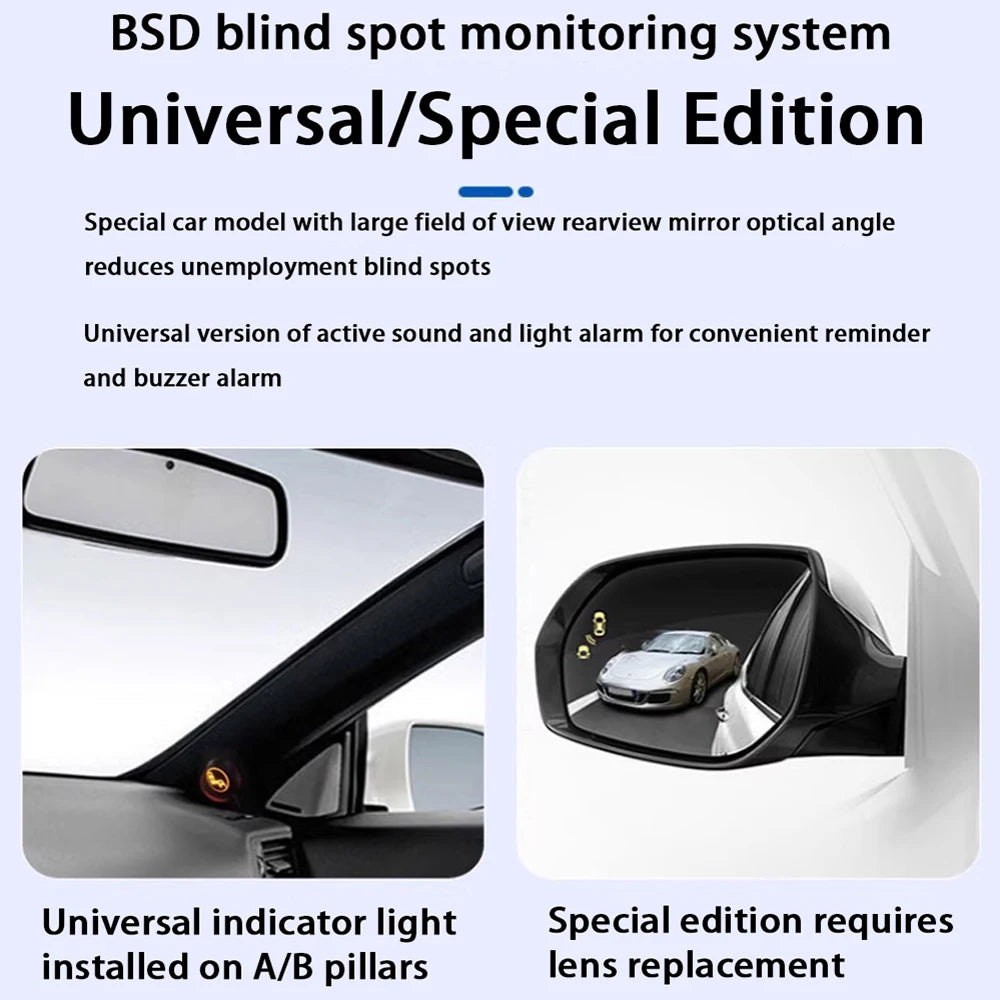

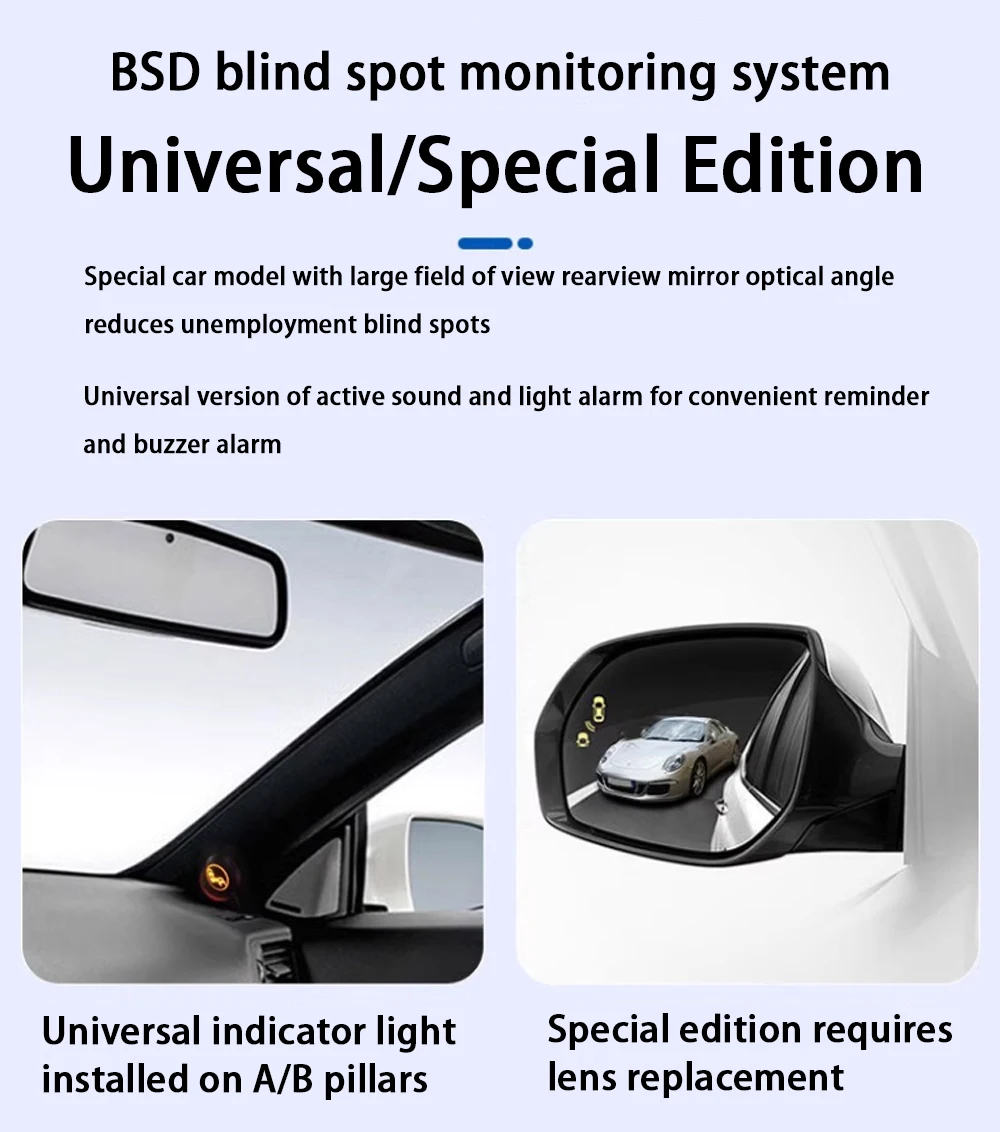

Universal/Special Edition

Special car model with large field of view rearview mirror optical angle reduces unemployment blind spots
Universal version of active sound and light alarm for convenient reminder and buzzer alarm
Universal indicator light installed on A/B pillars
Special edition requires lens replacement

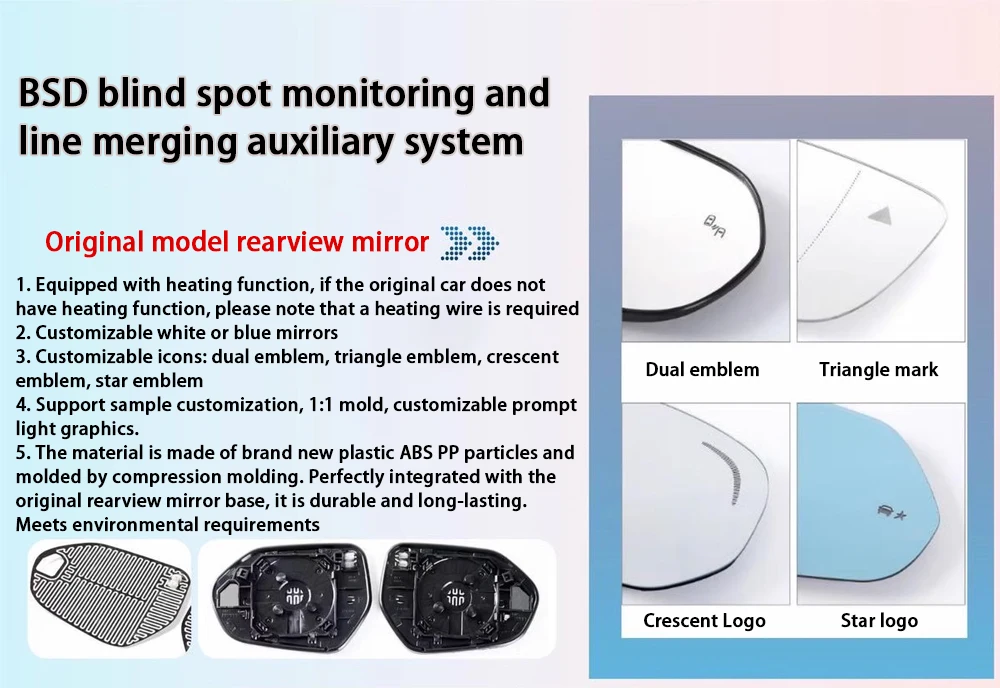

Customizable indicator lights are available

1. Equipped with heating function, if the original car does not have heating function, please note that a heating wire is required
2. Customizable white or blue mirrors
3. Customizable icons: dual emblem, triangle emblem, crescent emblem, star emblem
4. Support sample customization, 1:1 mold, customizable prompt light graphics.
5. The material is made of brand new plastic ABS PP particles and molded by compression molding. Perfectly integrated with the original rearview mirror base, it is durable and long-lasting. Meets environmental requirements

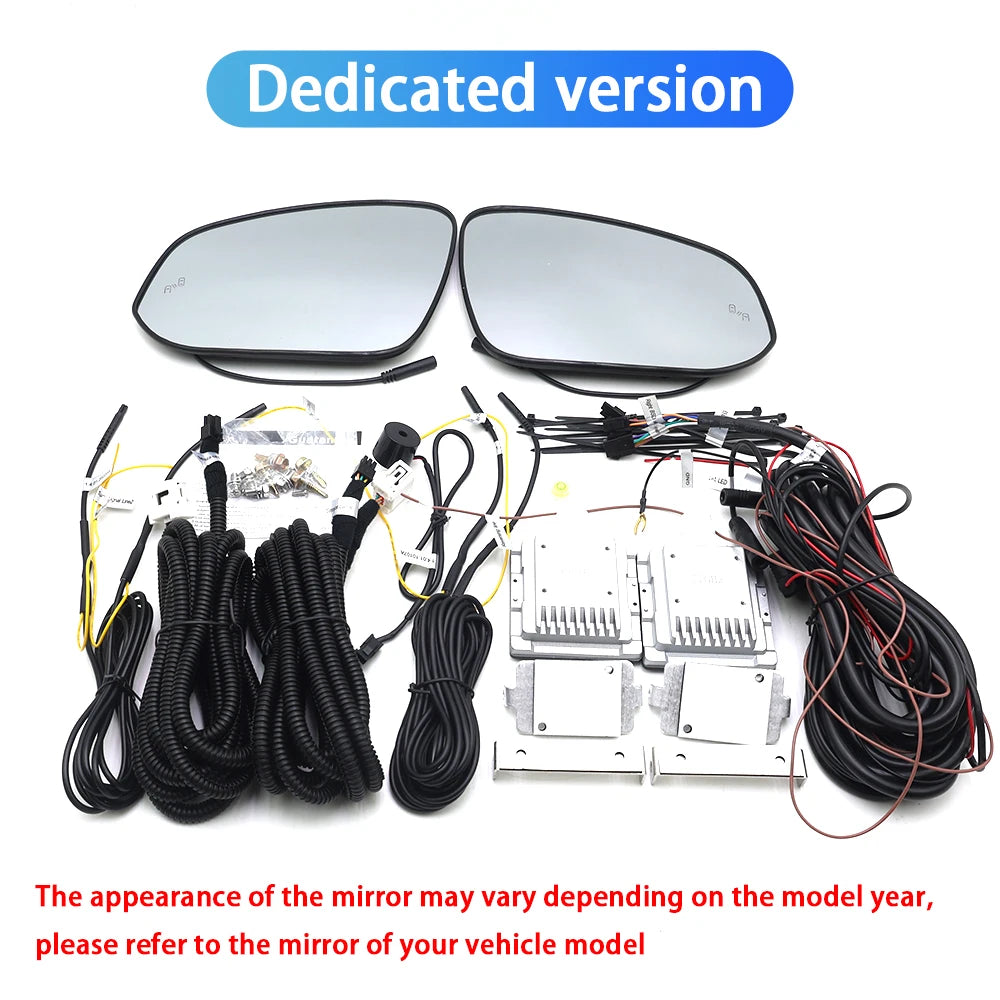

Dedicated version

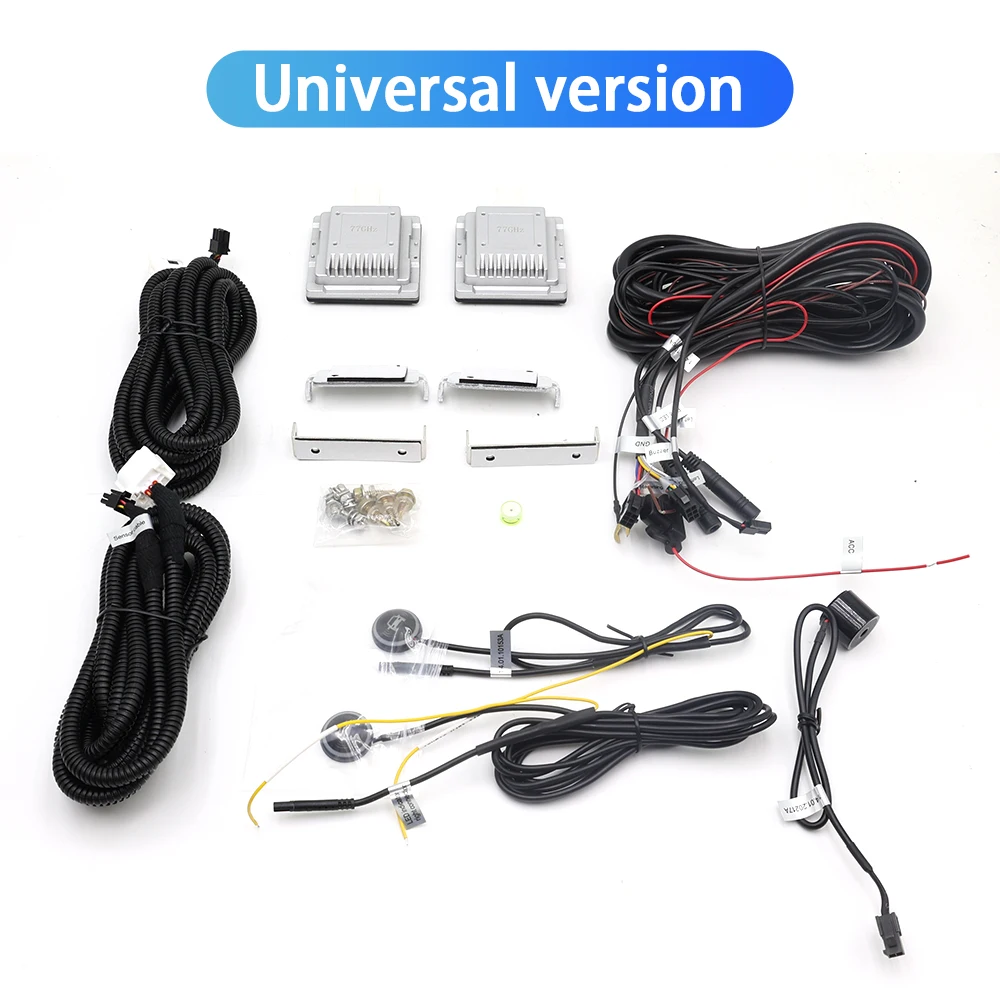

Universal version

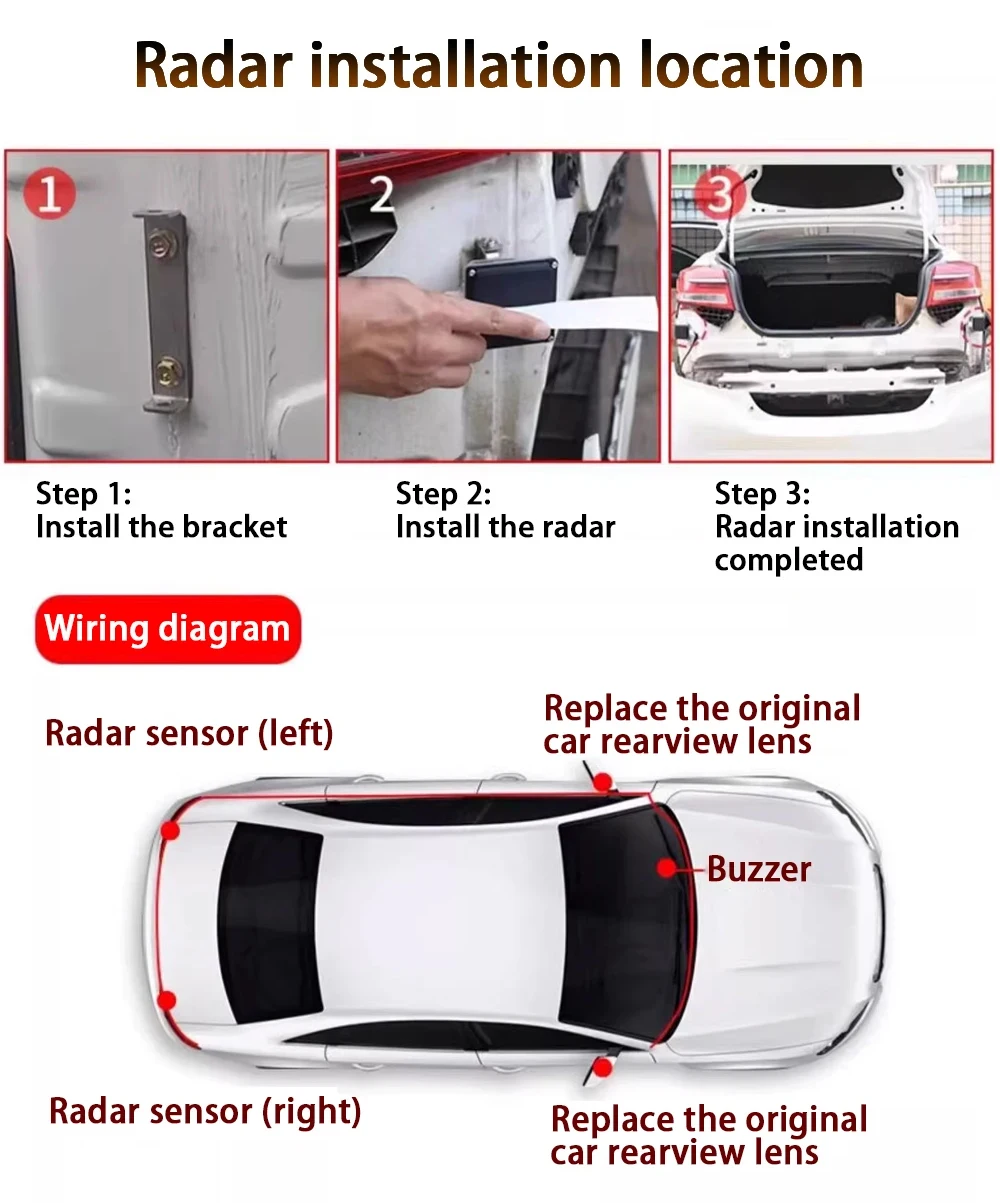

Radar installation location

Hidden radar sensor

Using 77Ghz millimeter wave radar technology, real-time detection on both sides of the rear
Installation steps

1. Remove the rear bumper and install the left and right millimeter wave radars (hidden installation in the original car style)

2. Wiring, extend the extension line to both sides of the front door according to the original vehicle route

3. Install a dedicated rearview mirror (connect the lens plug to the extension cable)

4. Adjust the radar angle to the optimal state for testing

5. Restore disassembled components and inspect the vehicle

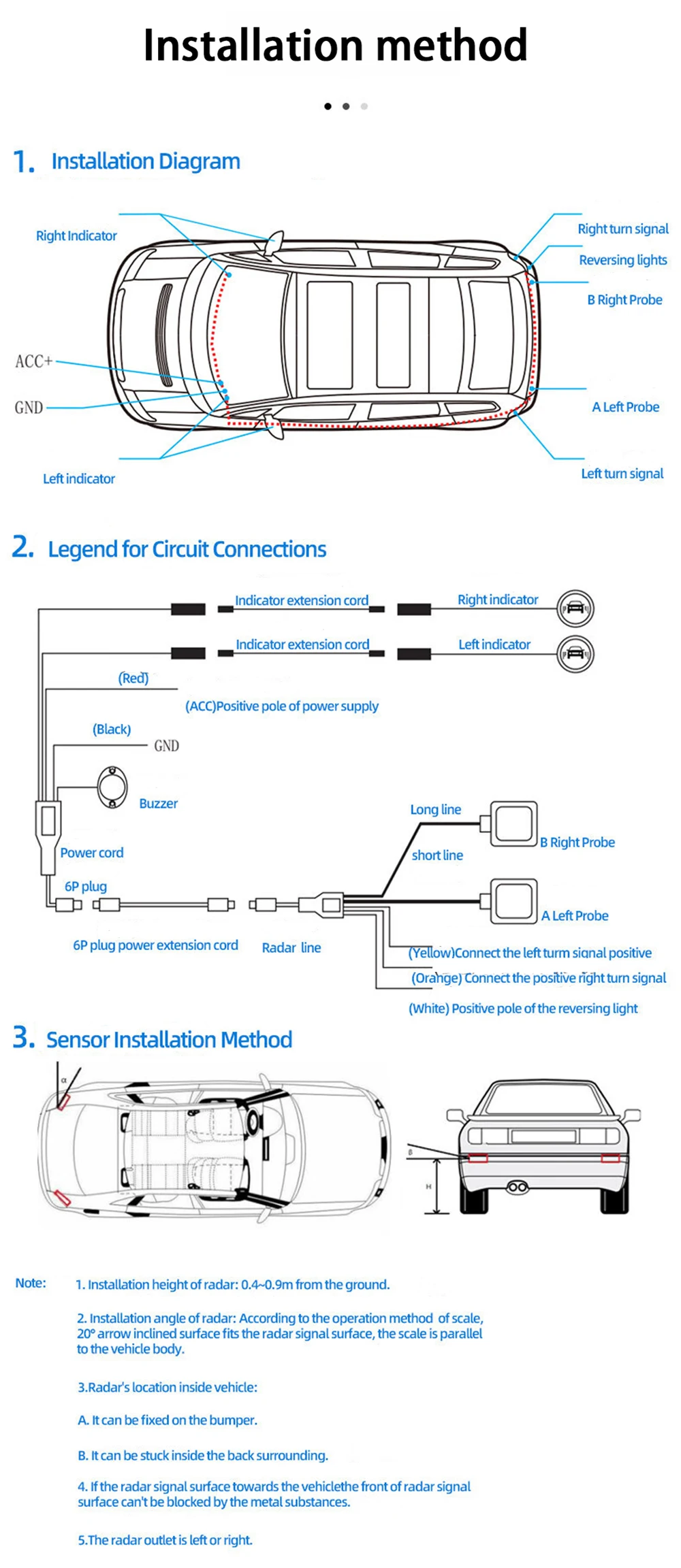

Installation method

System parameters:

Sensor frequency 72GHZ
Detection accuracy of 0.25CM
Maximum detection range of pedestrians: 0.3M-10M
Motorcycle: 0.3M-40M
Truck: 0.3M-50M
Alarm measuring range of 0.3-50 meters
System efficient car> 98%
Pedestrian> 95%
Alarm mode 1: LED is always on
2: LED flashes + buzzer
Waterproof rating Vehicle grade
Operating current 200MA
Operating voltage 9V-16V
Operating temperature -30 ℃ +80 ℃
Storage temperature -40 ℃ +85 ℃
Detection angle Horizontal 54 ° X Vertical 28 °
About packing:
The actual package of the goods may be different from the picture, But please rest assured, Products are the same,We just choose a more cost-effective shipping cost, to give you a lower price.

Note：

1. It is recommended that the installation be carried out by professionals.
2. The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions.
3. Rainstorm weather may affect the detection distance and effect.
4. Moving objects approaching 3M behind the vehicle may not be monitored.
5. Because of manual measurement, there may be a change of 1-3 mm (cm).
