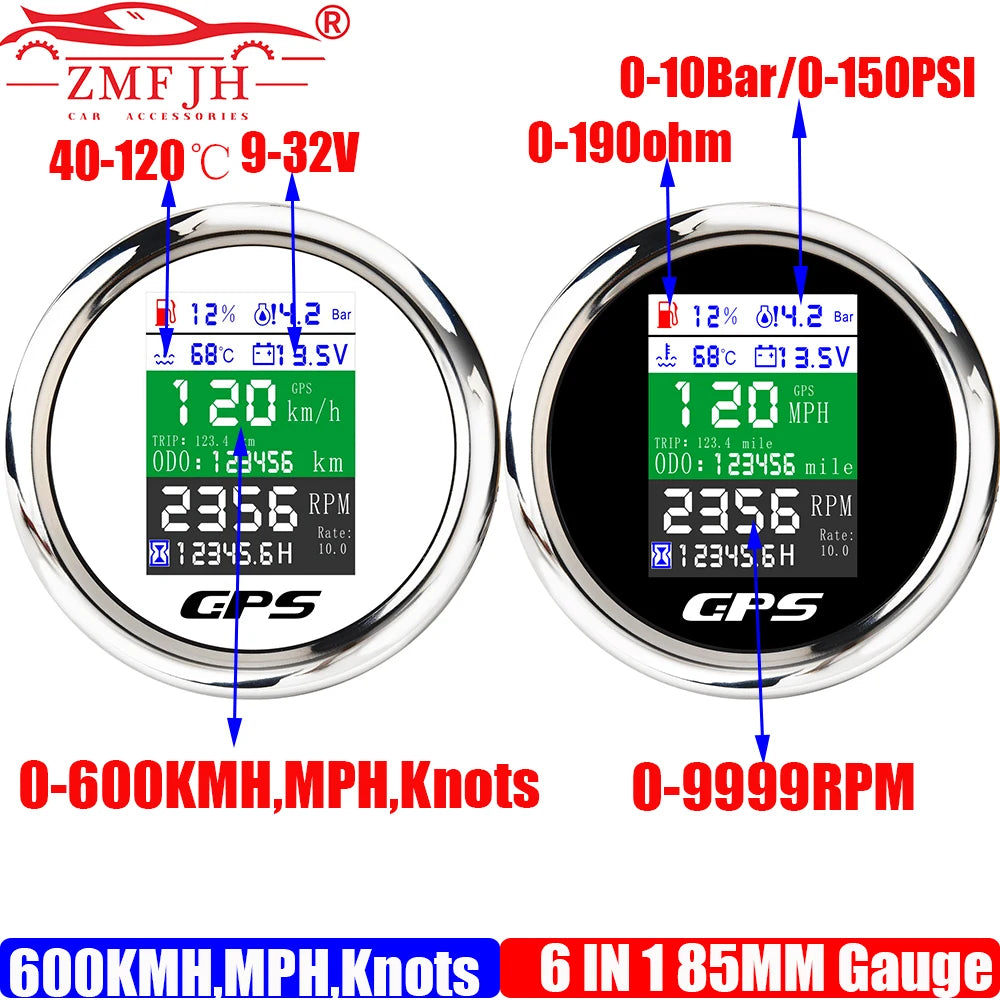

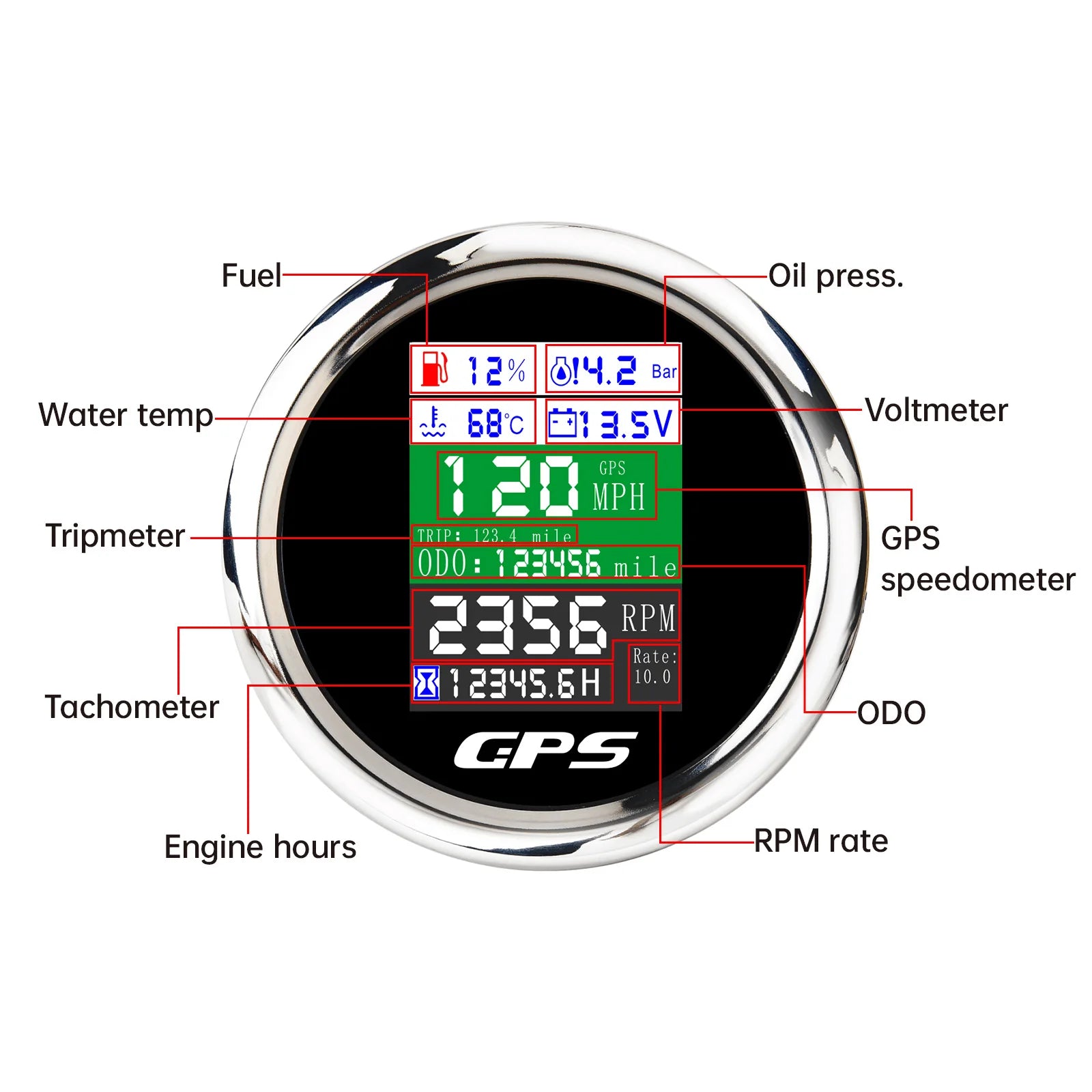

Feature:

GPS Speedometer Gauge :0-600km/h,MPH,Knots
Tachometer: 0~9999RPM
Engine oil pressure: 0~10 bar,0~150PSI
Engine temperature Gauge: 40~ 120℃,100~250℉
Battery voltage: 9~ 32V
Fuel level:0~1 00%
Total engine hours: 0.0-99999.9H

Alarm Message:

1 Oil pressure sensor off,low pressure,alarm set<0.8Bar
2 Temperature sensor off,high temperature,alarm set>95℃
3 Low voltage, Alarm set <11.8V
4 low fuel level,Alarm set<13%

Input Parameter(customizable) signal:

Oil pressure sensor: 10~ 184ohm
Temperature sensor :301 -22ohm
Fuel level sensor: 0~ 190ohm/240-30ohm

Environmental

Operating Voltage 9 to 32 Volts(DC)
Power Consumption <120mA
Operating Temperature -20-70degrees
Storage Temperature -30~ 80degrees
Degree of Protection Ip67

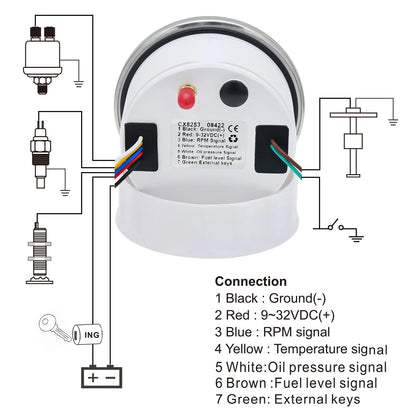

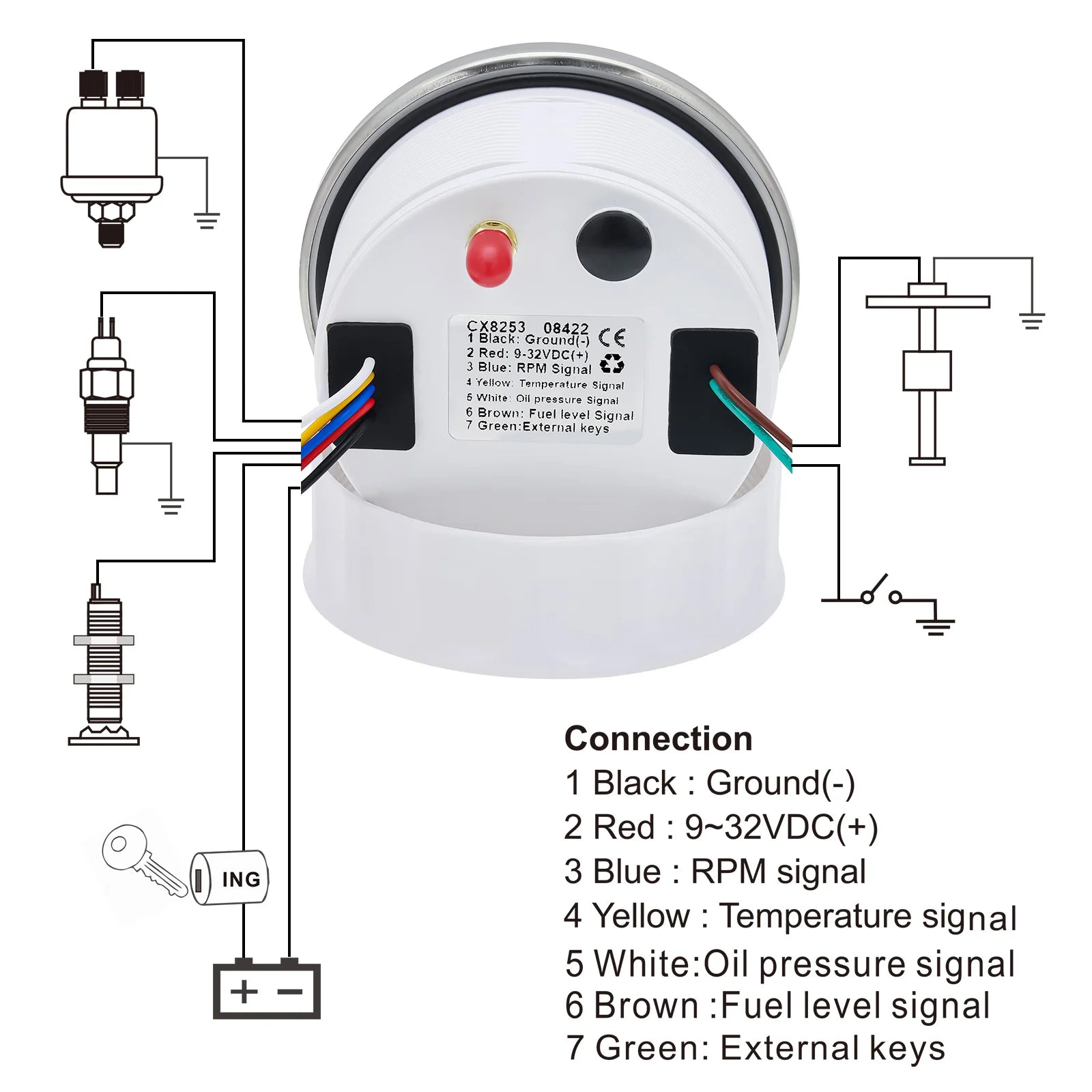

Connection

1 Black : Ground(-)
2 Red : 9~32VDC(+)
3 Blue : RPM signal
4 Yellow : Temperature signal
5 White:Oil pressure signal
6 Brown :Fuel level signal
7 Green: External keys

Setting Step:

1. After power on, touch the button, we can switch the unit: km/h,mph,knots,and save automatically.
2. Keep on pressing the rubber button of the backside for 3 seconds, and then enter into setting mode, if leave button
more than 3 seconds, it will be out of setting mode. The value will increase when you press the button. When you leave
the button and then press it again, the value will decrease. The minimum step value is 0.1 and the adjustable range is
1~360. When you get the required speed ratio value after adjustment, please leave the button. The tachometers will
auto save your setup after 3 seconds. If the setup doesn't meet your demand, please re-setup.
3. Press the button first, then power on, and then enter the parameter selection mode, press the button once to select the
0- 190ohm(European)level sensor or 240-33ohm(American)level sensor, press the button twice to select the
temperature unit and pressure unit,(°F and Psi)or(°C and Bar) and the meter save automatically.
4. Quick touch the button for 5 times, and then enter the engine hours setting mode, when you press the button the
engine hours will increase, when you leave the button and then press it again, the engine hours will decrease, when
you get the required value after adjustment, please leave the button, and the meter will auto save your setup after 3
seconds.
5. Then quick touch the button for 5 times again, and then enter into the ODO setting mode, when you press the button
the ODO will increase, when you leave the button and then press it again, the ODO will decrease, when you get the
required value after adjustment, please leave the button, and the meter will auto save your setup after 3 seconds.
